USER MANUAL Matterhorn Breeze Klarstein

COOKINGCO COOKINGCO KINGCOOKING KINGCOOKING COOKINGCO KINGCOOKING KINGCOOKING KINGCOOKING

KLARSTEIN

www.klarstein.com

QR code image containing encoded data, no visible human-readable text

INHALTSVERZEICHNIS

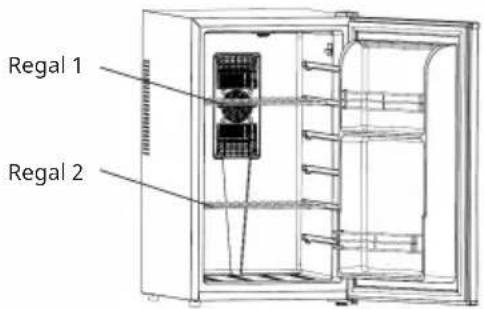

Line drawing of an open refrigerator with internal compartments and ventilation slots (no text or symbols)

Regal 1 Regal 2

Symbol of a trash bin crossed with a diagonal line, no text or labels present

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

PRODUKTDATENBLÄTTER

Congratulations on the purchase of your device. Please read the following instructions carefully and follow them to prevent potential damage. We accept no liability for damage caused by disregarding the instructions or improper use. Please scan the QR code to access the latest operating instructions and for further information about the product.

QR code image containing encoded data, no visible human-readable text

CONTENTS

Safety Instructions 24

Device Overview 27

Installation and setup 28

Troubleshooting 32

Disposal Considerations 33

Manufacturer & importer (UK) 33

Product Data Sheets 34

TECHNICAL DATA

Article number	10045286 10045287, 10045288	10045289, 10045290, 10045291	10045292, 10045293, 10045294
Power supply 100 - 240 V ~ 50 /60 Hz
Dimensions: 380 x 460 x 445 430 x 510 x	513 430 x 510 x 738
Volume 28 L 44 L 68 L
Energy consumption 0.183 kWh / 24 h 0.2 kWh / 24 h 0.2 kWh / 24 h

SAFETY INSTRUCTIONS

Advice for the safety of children and vulnerable people

• This device can be used by children aged from 8 years and above and people with limited physical, sensory or mental abilities or a lack of experience and knowledge only if they are supervised during use or have received instruction in the safe use of the device and understand the hazards involved.
  • Children aged 3 to 8 may fill refrigerators with food and remove food.
• Make sure that children do not play with the device.
• Cleaning and maintenance of the device may be carried out by children only if they are at least 8 years old and are supervised.
• Keep all packaging away from children. There is a danger of suffocation.
• When disposing of the appliance, unplug it from the mains outlet, cut off the power cord and remove the door. This prevents playing children from injuring themselves on the device, being hit or locking themselves in it.
• If this appliance is replacing an older appliance with a spring lock and latch on the door or lid, render the spring lock and latch unusable before discarding the old appliance. This prevents children from locking themselves in and suffocating.

General Instructions

• Keep ventilation openings in the device housing or in the built-in closet free of obstacles.
• Do not use mechanical devices or other means to speed up the defrosting process.
• Do not damage the refrigerant circuit.
• Do not use other electrical devices, such as ice machines, inside refrigerators unless approved for this purpose by the manufacturer.
• If there is a light bulb in the device, do not touch it. If left on for a long period of time, it can become very hot. The light bulb supplied with this device is a special lamp that must only be used with the supplied device. This bulb is not suitable for household lighting. Do not use the device without the light bulb.
• When setting up the device, make sure that the power cord is not pinched or damaged.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

• During the transportation and installation of the unit, be careful not to damage any refrigerant cycle components.

• Avoid open flames and sources of ignition in the vicinity of the device.

• Ventilate the room in which the device is located thoroughly and regularly.
• It is dangerous to modify this product in any way. Any damage to the cord can cause a short circuit, fire, or electric shock.
• All electrical components such as the plug, power cord and compressor may only be replaced by a certified service centre or by qualified service personnel.
• The power cord must not be extended.
• Make sure that the mains plug is not crushed or damaged. A crushed or damaged mains plug can overheat and cause a fire.
• Make sure that you can access the mains plug of the device at all times.
• Do not pull on the mains cord.
• If the outlet is loose, do not insert the power cord. There is a risk of electric shock or fire.
• This unit is heavy. Be careful when moving it.
• Do not touch the freezer compartment when your hands are damp or wet as this may cause abrasions or cold burns.
• Do not place the device in direct sunlight.

• This appliance is intended for use in households and similar environments. These include:

• Staff kitchens in shops, offices and other work environments

• Farms, hotels, motels and other residential establishments
• Guest houses that offer breakfast (Bed & Breakfasts)
• Catering and similar non-retail applications

This unit contains the refrigerant Isobutane (R600a), a natural gas that has high environmental compatibility, but is flammable. Although it is flammable, it does not damage the ozone layer or increase the greenhouse effect. The use of this refrigerant results in a slightly higher noise level of the unit. In addition to the compressor noise, you can hear the flow of refrigerant. This is unavoidable and has no negative effect on the performance of the device. Be careful during transport to avoid damage to the refrigerant circuit. Refrigerant leaks can irritate the eyes.

Instructions for daily use

• Do not put hot food in the appliance.
• Do not place food directly against the back wall.
• Frozen food must not be refrozen after it has been thawed.
• Store packaged frozen foods according to the frozen food manufacturer's instructions.
• Do not place fizzy drinks in the freezer compartment as the pressure generated could cause them to explode and damage the appliance.
• Open the door as infrequently as possible.
• Do not leave the door open too long.
• Do not set the thermostat too low.
• To reduce energy consumption, leave all accessories such as drawers, shelves or trays in the appliance.

Notes on cleaning and maintenance

• Before cleaning or servicing the appliance, switch it off and disconnect the power cord from the wall socket.
• Do not clean the device with metal objects. Do not use sharp objects to remove the frost from the device. Use a plastic scraper.
• All electrical work required to service the unit should be performed by a qualified electrician or competent person.

WARNING

When using, during maintenance and when disposing of the device, pay attention to the left symbol located on the back or on the compressor of the device. This symbol warns you of possible fires. There are flammable substances in the refrigerant lines and in the compressor. Keep the appliance away from sources of fire during use, maintenance and disposal.

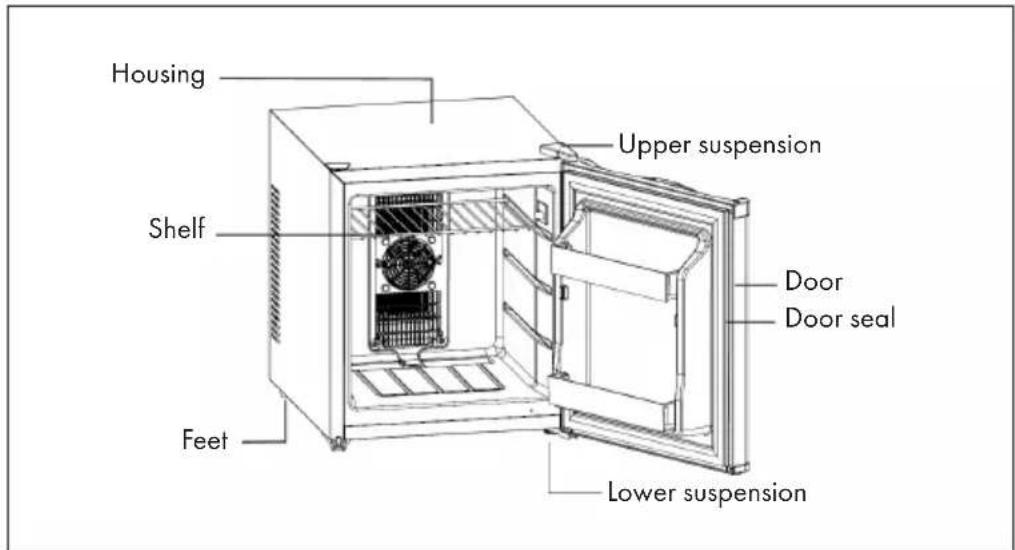

DEVICE OVERVIEW

Article 10045286 10045287, 10045288

Housing Upper suspension Shelf Door Door seal Feet Lower suspension

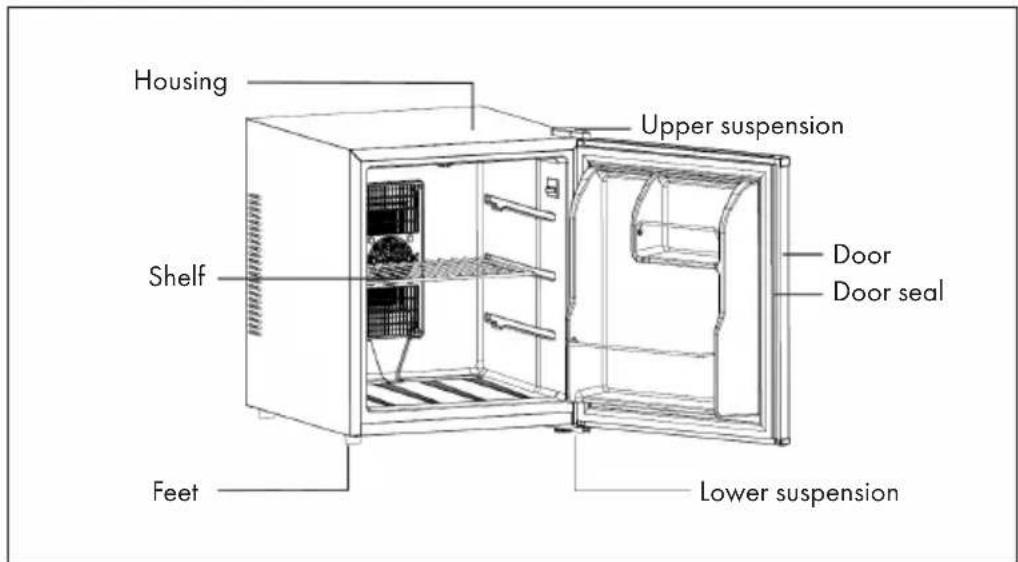

Article 10045289 10045290, 10045291

Housing Upper suspension Shelf Door Door seal Feet Lower suspension

Housing Upper suspension Shelf Door Door seal Feet Lower suspension

INSTALLATION AND SETUP

Before first use

- Before use, first remove all packing materials, including the bottom padding, foam cushions and adhesive strips inside the refrigerator.

- Tear off the protective film on the refrigerator door and on the cabinet.

- Keep the device away from heat and direct sunlight. To avoid rusting, do not place the device in damp or wet places.

- Do not spray, wash, or place the refrigerator in a damp location where it may be subject to splashing water. This can affect the electrical insulation properties.

- The refrigerator must be placed in a well-ventilated place where the floor is flat and solid. Use the adjustable feet to compensate for slight unevenness.

- The clearance to the ceiling should be at least 30 cm and the device should be placed at a distance of more than 10 cm against a wall so that the heat can dissipate.

• Before using the refrigerator for the first time, let it stand for at least half an hour before connecting it to the power supply.
• Run the refrigerator for 2-3 hours before adding fresh or frozen food. If the outside temperature is high, let it run for at least 4 hours before filling.
• Leave enough space to easily open the drawers and doors.

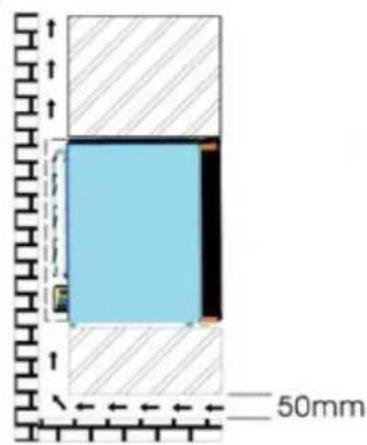

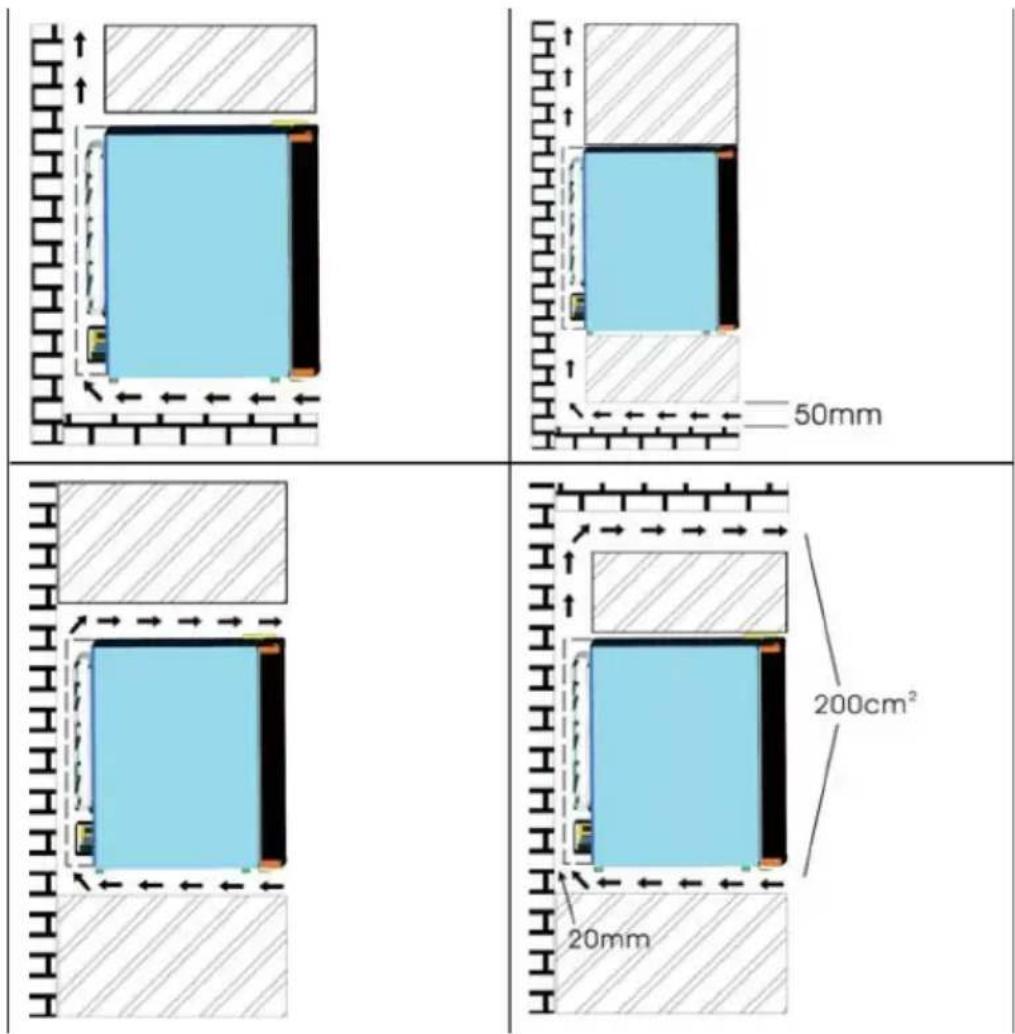

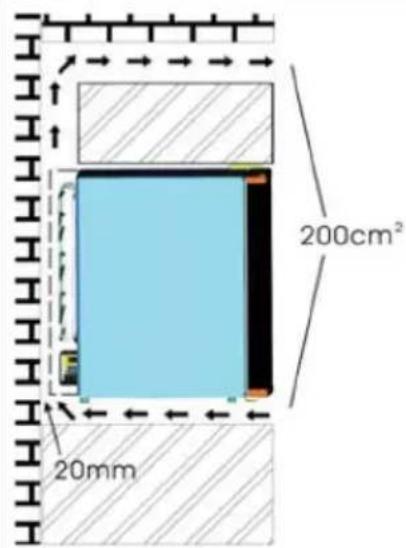

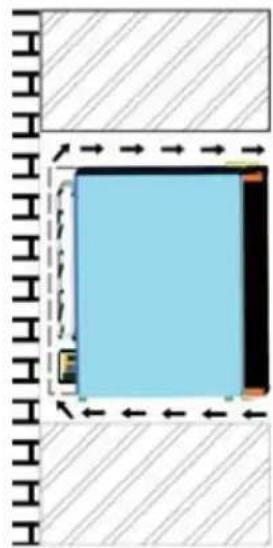

Installation instructions

Sufficient ventilation should be ensured during installation, so please note the following:

• There should be at least 200~cm^3 left for ventilation.
• The distance between the wall and the side of the refrigerator should be at least 20 mm.
• At least 50 mm should remain free for air circulation on the underside, since the air flowing through must not be preheated.

How to change the door opening direction

The door of this refrigerator can be opened from both the left and right side. The device is delivered with the door opening from the left side. Should you wish to reverse the opening direction, please follow the instructions below.

All hinges can be used for left or right hinges. An additional top left hinge can be found in the user manual pouch. Turn the door as follows:

• Pull out the three screws of the right hinge.
- Remove the hinges (top and bottom).
Install the door and hinges on the other side and attach the top left hinge with the three self-tapping screws.

OPERATION

Circular mechanical component diagram with labeled parts (0, 1, 2, ω) and no readable text or symbols beyond labels

Your refrigerator has only one controller for temperature control. The temperature controller is located on the top of the refrigerator inside. To control the indoor temperature, adjust the knob according to the ambient temperature or intended use. The range of the temperature control is from position 0-3.

The following temperature ranges can be set with the controllers:

• 0 = Standby
  • 1 = temperature control range 18 ± 2^ C
• 2 = temperature control range 11±2 °C
  • 3 = temperature control range 4±2 °C

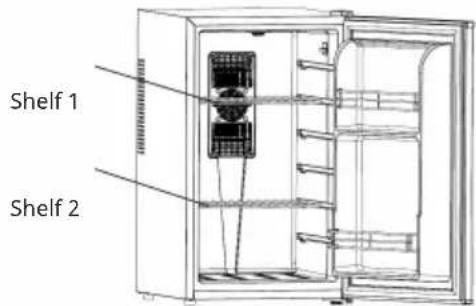

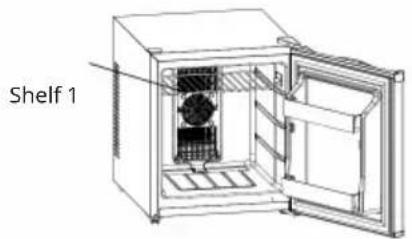

Notes on operation and positioning of the shelves

• The refrigerator is intended exclusively for storing food and drinks.
• The refrigerator is not suitable for freezing food.

The shelves are installed at the factory in such a way that they allow the most efficient use of energy for the refrigerator. The following combination of shelves is recommended to use energy as efficiently as possible:

Shelf 1

Shelf 1

Line drawing of an open refrigerator with internal compartments and ventilation slots (no text or symbols)

Shelf 1 Shelf 2

• If the ambient temperature is 25^ C and the refrigerator is not loaded, it takes about 3.5 hours to lower the temperature in the refrigerator from 25^ C to 17^ C.
  • We recommend that you set the refrigerator to 17^ C. The energy consumption is given in the table below. When the set temperature is higher than 17^ C, the energy consumption is lower. If the set temperature is lower than 17^ C, the energy consumption is higher.

10045286 10045287, 10045288	10045289, 10045290, 10045291	10045292, 10045293, 10045294
0.183 kWh / 24 h 0.2	kWh / 24 h 0.2 kWh / 24 h

Advice on how to save energy

• The refrigerator should be placed in the coolest part of the room, away from heat-producing appliances and out of direct sunlight.
  • Overloading the refrigerator forces the thermoelectric cooling system to run longer.
• Open the door as infrequently as possible and avoid lengthy searches. Only take out as many items as you need at a time and close the door as quickly as possible.
• A distinctive feature of this type of device is the time it takes to recover from frequent opening and closing of the door. If the door is opened and closed frequently, it may take longer for the temperature to return to previous levels.

TROUBLESHOOTING

Problem Possible cause and solution
The appliance is not working.	It is not plugged in.
	It is switched off.
	The fuse is out or blown.
The appliance is not cold enough.	Check the temperature settings.
	The environment requires a lower setting.
	The door was opened too often.
	The door is not closed properly.
	The door seal does not seal properly.
The light doesn't work.	The appliance is not plugged in.
	The fuse is out or blown.
	The light bulb is broken.
	The light switch is set to "off".
Vibrations Check if the device is level.
The door does not close properly.	The device is not level.
	The door was turned upside down and not fitted properly.
	The seal or the magnet are damaged.
	The shelves stick out too far.

DISPOSAL CONSIDERATIONS

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

If there is a legal regulation in your country regarding the disposal of electrical and electronic equipment, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of this product in accordance with the regulations, you protect the environment and the health of those around you from negative consequences. For information on recycling and disposal of this product, contact your local government or household waste disposal service.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

PRODUCT DATA SHEETS

Information according to Regulation (EU) No. 2019/2016

Supplier's name or trademark: Klarstein
Supplier's address: Wallstraße 16, 10179 Berlin, DE
Model identifier: 10045286 10045287, 10045288
Type of refrigerating appliance:
Low-noise appliance: No D		design type: freestanding
Wine storage appliance: No		Other refrigerating appliance:		Yes
General product parameters:
Parameter Value Parameter Value
Overall dimensions (mm)	Height 435		Total volume (dm3or L)	28Width 380
	Depth 458
EEI		88	Energy efficiency class	E
Airborne acoustical noise emissions (dB(A) re 1 pW)		35	Airborne acoustical noise emission class	B
Annual energy consumption (kWh/a)		67 Climate class: temperate
Minimum ambient temperature (°C), for which the refrigerating appliance is suitable		16	Maximum ambient temperature (°C), for which the refrigerating appliance is suitable	32
Winter setting No

Compartment Parameters:
Compartment type		Compartment parameters and values
		Compartment volume (dm3 or L)	Recommended temperature setting for optimised food storage (°C) These settings shall not contradict the storage conditions set out in Annex IV, Table 3	Freezing capacity (kg/24h)	Defrosting type (auto-defrost=A, manual defrost=M)
Pantry Yes 28,0 14 - M
Wine storage No ----
Cellar No ----
Fresh food No ----
Chill No ----
0-star or icemaking No ----
1-star No ----
2-star No ----
3-star No ----
4-star No ----
2-star section No ----
Variable temperature compartment	----
Light source parameters:
Type of light source -
Energy efficiency class -
Minimum duration of the guarantee offered by the manufacturer: 24 months
Additional information:
Weblink to the manufacturer's website, where the information in point4(a) Annex of Commission Regulation (EU) 2019/2019 is found: www.klarstein.co.uk

Supplier's name or trademark: Klarstein
Supplier's address: Wallstraße 16, 10179 Berlin, DE
Model identifier: 10045289, 10045290, 10045291
Type of refrigerating appliance:
Low-noise appliance: No D		Design type: freestanding
Wine storage appliance: No		Other refrigerating appliance:		Yes
General product parameters:
Parameter Value Parameter Value
Overall dimensions (mm)	Height 530		Total volume (dm3or L)	44Width 4
	Depth 510
EEI		95	Energy efficiency class	E
Airborne acoustical noise emissions (dB(A) re 1 pW)		35	Airborne acoustical noise emission class	B
Annual energy consumption (kWh/a)		73 Climate class: temperate
Minimum ambient temperature (°C), for which the refrigerating appliance is suitable		16	Maximum ambient temperature (°C), for which the refrigerating appliance is suitable	32
Winter setting No

Compartment Parameters:
Compartment type		Compartment parameters and values
		Compartment volume (dm3 or L)	Recommended temperature setting for optimised food storage (°C) These settings shall not contradict the storage conditions set out in Annex IV, Table 3	Freezing capacity (kg/24h)	Defrosting type (auto-defrost=A, manual defrost=M)
Pantry Yes 44,0 14 - M
Wine storage No ----
Cellar No ----
Fresh food No ----
Chill No ----
0-star or icemaking No ----
1-star No ----
2-star No ----
3-star No ----
4-star No ----
2-star section No ----
Variable temperature compartment	----
Light source parameters:
Type of light source -
Energy efficiency class -
Minimum duration of the guarantee offered by the manufacturer: 24 months
Additional information:
Weblink to the manufacturer's website, where the information in point4(a) Annex of Commission Regulation (EU) 2019/2019 is found: www.klarstein.co.uk

Supplier's name or trademark: Klarstein
Supplier's address: Wallstraße 16, 10179 Berlin, DE
Model identifier: 10045292, 10045293, 10045294
Type of refrigerating appliance:
Low-noise appliance: No D		Design type: freestanding
Wine storage appliance: No		Other refrigerating appliance:		Yes
General product parameters:
Parameter Value Parameter Value
Overall dimensions (mm)	Height 738		Total volume (dm3or L)	68Width 430
	Depth 510
EEI		94	Energy efficiency class	E
Airborne acoustical noise emissions (dB(A) re 1 pW)		32	Airborne acoustical noise emission class	B
Annual energy consumption (kWh/a)		73 Climate class: temperate
Minimum ambient temperature (°C), for which the refrigerating appliance is suitable		16	Maximum ambient temperature (°C), for which the refrigerating appliance is suitable	32
Winter setting No

Compartment Parameters:
Compartment type		Compartment parameters and values
		Compartment volume (dm3 or L)	Recommended temperature setting for optimised food storage (°C) These settings shall not contradict the storage conditions set out in Annex IV, Table 3	Freezing capacity (kg/24h)	Defrosting type (auto-defrost=A, manual defrost=M)
Pantry Yes 68,0 14 - M
Wine storage No ----
Cellar No ----
Fresh food No ----
Chill No ----
0-star or icemaking No ----
1-star No ----
2-star No ----
3-star No ----
4-star No ----
2-star section No ----
Variable temperature compartment	----
Light source parameters:
Type of light source -
Energy efficiency class -
Minimum duration of the guarantee offered by the manufacturer: 24 months
Additional information:
Weblink to the manufacturer's website, where the information in point4(a) Annex of Commission Regulation (EU) 2019/2019 is found: www.klarstein.co.uk

Estimado cliente:

QR code image containing encoded data, no visible human-readable text

ÍNDICE

Symbol of a trash bin crossed with a diagonal line, no text or labels present

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

Reino Unido

FICHA TÉCNICA DEL PRODUCTO

Cher client, chère cliente,

QR code image containing encoded data, no visible human-readable text

SOMMAIRE

Diagram showing a blue rectangular block with directional arrows and a hatched top area, no text or symbols present.

50mm

Simple diagram with a light blue rectangle and black border, surrounded by diagonal hatching and arrows (no text or symbols)

200cm² 20mm

Line drawing of an open refrigerator with a fan inside, showing internal structure without any text or symbols.

Clayette 1

Line drawing of an open refrigerator with internal compartments and ventilation slots (no text or symbols)

Clayette 1
Clayette 2

Diagram of an open refrigerator with internal compartments and ventilation slots (no text or labels)

Symbol of a trash bin crossed with a diagonal line, no text or labels present

Berlin Brands Group UK Ltd

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

FICHE DE DONNÉES PRODUIT

QR code image containing encoded data, no visible human-readable text

INDICE

Symbol of a trash bin crossed with a diagonal line, no text or labels present

PRODUTTORE E IMPORTATORE (UK)

Produttore:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlino, Germania.

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

SCHEDA DATI DEL PRODOTTO

KLARSTEIN
