Dear Customer,

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

CONTENTS

Safety Instructions 26

Product Overview 30

Preparation for Use 31

Controls 32

Care and Maintenance 33

Disposal Considerations 35

Manufacturer & Importer (UK) 35

TECHNICAL DATA

Item number	10046631 10046632	10046633 10046634	10046635 10046636	10046637 10046638
Power supply 220 - 240 V~ 50 Hz
Volume 45 L 67 L 92 L	113 L

SAFETY INSTRUCTIONS

Information on the safety of children and persons at risk

• This appliance may be used by children over 8 years of age and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, provided they are supervised during use or have received instruction in the safe use of the appliance and understand the risks involved.
  Children aged 3 to 8 years may fill refrigerators with food and remove food.
• Ensure that children do not play with the appliance.
• Cleaning and maintenance of the appliance may only be carried out by children if they are at least 8 years old and supervised.
• Keep all packaging away from children. There is a danger of suffocation.
• When you dispose of the appliance, unplug it from the wall outlet, cut the power cord and remove the door. This will prevent children playing on the appliance from injuring themselves, getting hit or getting trapped.
• If this machine replaces an older machine with a spring lock and latch on the door or lid, disable the spring lock and latch before disposing of the old machine. This will prevent children from getting trapped and suffocating.

General advice

• This refrigerating appliance is not intended to be used as a built-in appliance.
• Do not use mechanical devices or other means to speed up the defrosting process.
• Do not damage the refrigerant circuit.
• Do not use other electrical appliances, such as ice machines, inside refrigeration appliances unless they are approved for this purpose by the manufacturer.
• If there is a light bulb inside the appliance, do not touch it. If it has been switched on for a long time, it can become very hot. The light bulb supplied with this unit is a special bulb that may only be used with the unit supplied. This light bulb is not suitable for household lighting. Do not use the unit without the light bulb.
• When setting up the machine, take care not to pinch or damage the power cord.
• Do not store explosive substances such as spray cans containing a flammable propellant in this appliance.

• During transport and installation of the unit, take care not to damage any components of the refrigerant circuit.

• Avoid naked flames and sources of ignition near the unit.

• Thoroughly and regularly ventilate the room in which the unit is located.
• It is dangerous to modify this product in any way. Any damage to the cable may cause a short circuit, fire or electric shock.
• All electrical components such as the plug, power cord and compressor must be replaced by a certified service centre or by qualified service personnel.
• The power cord must not be extended.
• Be careful not to pinch or damage the power plug. A pinched or damaged power plug may overheat and cause a fire.
• Make sure that you can reach the power plug of the machine at any time.
• Do not pull on the power cord.
• If the power outlet is loose, do not plug in the power plug. There is a risk of electric shock or fire.
• This machine is heavy. Be careful when moving it.
• Do not touch the freezer compartment if your hands are damp or wet, as this may cause skin abrasions or cold burns.
• Do not place the unit in direct sunlight.

• This appliance is intended for use in the home and similar environments. These include:

• Staff kitchens in shops, offices and other working environments

• Farms, hotels, motels and other residential facilities
• Pensions that offer breakfast (Bed & Breakfasts)
• Catering and similar applications outside the retail trade

This appliance contains the coolant isobutane (R600a), a natural gas which is environmentally friendly. Although it is flammable, it does not damage the ozone layer and does not increase the greenhouse effect. The use of this coolant has, however, led to a slight increase in the noise level of the appliance. In addition to the noise of the compressor, you might be able to hear the coolant flowing around the system. This is unavoidable, and does not have any adverse effect on the performance of the appliance. Care must be taken during the transportation and setting up of the appliance that no parts of the cooling system are damaged. Leaking coolant can damage the eyes.

Notes on daily use

• Do not put hot food in the machine.
• Do not place food directly against the rear panel.
• Frozen food must not be refrozen after defrosting.
• Store packaged frozen food according to the instructions of the frozen food manufacturer.
• Do not place carbonated fizzy drinks in the freezer compartment as the pressure they generate can cause them to explode and damage the appliance.
• Open the door as rarely as possible.
• Do not leave the door open too long.
• Do not set the thermostat too low.
• To reduce energy consumption, leave all accessories, such as drawers, shelves or racks in the appliance.

Notes on installation

• Unpack the machine and check for damage. Do not connect the machine if it is damaged. Report any damage immediately to the manufacturer. Save the original packaging for possible return shipment.
• Wait at least four hours before connecting the unit to allow the coolant to distribute itself in the cooling circuit.
• Ensure that there is sufficient air circulation around the unit. Otherwise, the unit may overheat.
• If possible, the spacers on the unit should rest against the wall. This prevents burns caused by touching the hot compressor or condenser.
• The unit must not be installed near radiators or cookers.
• Make sure that the mains plug is always accessible after the unit has been installed.
• Install this unit in a location where the ambient temperature corresponds to the climate class indicated on the unit's nameplate:

SN	Low	This cooling unit is designed for use at ambient temperatures of 10-32 °C.
N	Moderate	This cooling unit is intended for use at ambient temperatures of 16-32 °C.
ST	Subtropical	This cooling unit is intended for use at ambient temperatures of 16-38 °C.
T	Tropical	This cooling unit is intended for use at ambient temperatures of 16-43 °C.

Notes on cleaning and maintenance

• Before cleaning and maintenance, switch the machine off and unplug the power cord from the wall outlet.
• Do not clean the machine with metal objects. Do not use sharp objects to remove frost from the machine. Use a plastic scraper.
• All electrical work required to service the unit should be performed by a qualified electrician or competent person.

Special instructions for freezers and chest freezers

Children between the ages of 3 and 8 are allowed to fill refrigerators with food and remove food.
- When positioning the machine, make sure that the mains cable is not pinched or damaged.
- Ensure that there are no multiple sockets or power supply units on the rear of the machine.

To avoid contamination of food, please follow the instructions below:

• Prolonged opening of the door can cause a significant temperature rise in the compartments of the unit.
• Clean surfaces that may come into contact with food regularly. Clean the water drain regularly.
• Store raw meat and fish in suitable containers in the refrigerator so that meat and fish do not come into contact with or drip onto other foods.

Notes on the freezer compartments

• Two-star freezer compartments are suitable for storing pre-frozen food, storing or making ice cream and making ice cubes.
• One-, two- and three-star freezer compartments are not suitable for freezing fresh food.
• If the refrigerator is left empty for a long period of time, switch it off, let it defrost, clean it, dry it and leave the door open to prevent mould from forming in the appliance.

WARNING

When using, servicing and disposing of the unit, pay attention to the left symbol on the rear of the unit or on the compressor. This symbol warns of possible fires. There are flammable substances in the refrigerant lines and in the compressor. Keep the appliance away from sources of fire during use, maintenance and disposal.

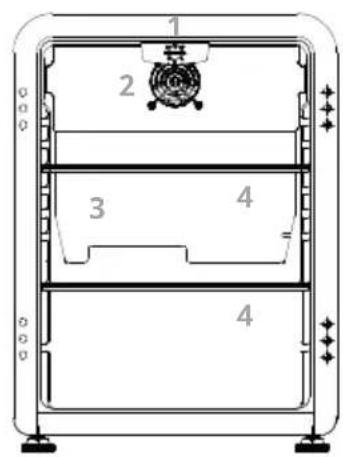

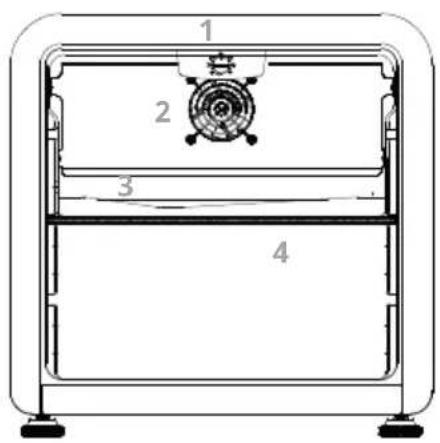

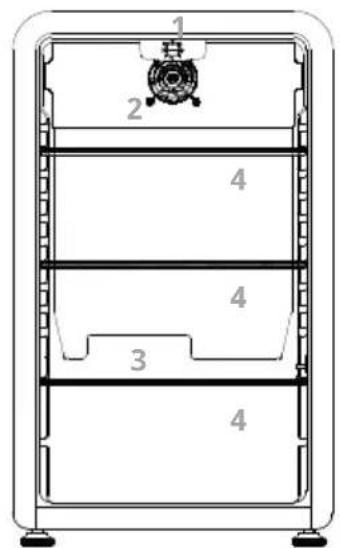

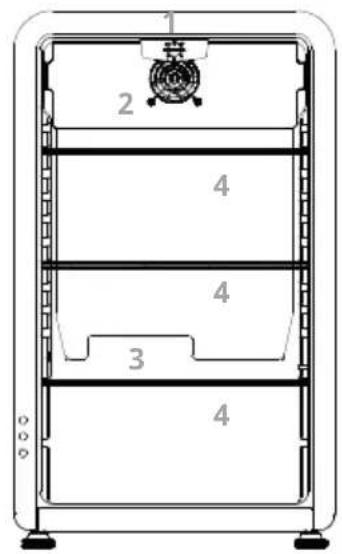

PRODUCT OVERVIEW

10046631, 10046632 10046633, 10046634

10046635, 10046636 10046637, 10046638

1 Control panel
2 Fan
3 Defrost water outlet
4 Shelves

PREPARATION FOR USE

Ventilation condition

The position you select for the refrigerator installation should be well-ventilated and has less hot air. Do not locate the refrigerator near a heat source such as cooker, and avoid it from direct sunlight, thus guaranteeing the refrigeration effect while saving energy consumption. Do not locate the refrigerator in the damp place, so as to prevent the refrigerator from rusting and leaking electricity. The result of the total space of the room in which the refrigerator is installed being divided by the refrigerant charge amount of the refrigerator shall not be less than 1m^3 (space)/8 g(refrigerant).

Note: The amount of refrigerant charged for the refrigerator can be found on the nameplate.

Heat dissipation space

When working, the refrigerator gives off heat to surroundings. Therefore, at least 30mm of free space should be spared at the top side, more than 100mm on both sides, and above 50mm at the back side of the refrigerator.

Leveling the fridge

If the fridge is not level, the door and magnetic seal alignment will be affected and may cause you fridge to work incorrectly. Once the fridge is placed in its final location, adjust the levelling feet at the front by turning them.

Cleaning before use

Wipe the inside of the fridge with a weak solution of bicarbonate of soda. Then rinse with warm water using a damp sponge or cloth. Wash the baskets and shelves in warm soapy water and dry completely before replacing in the fridge.

The external parts of the fridge can be cleaned with wax polish.

Before plugging in you must check that you have a socket which is compatible with the plug supplied with the fridge.

Before switching on

DO NOT SWITCH ON UNTIL FOUR HOURS AFTER MOVING THE FRIDGE.

The coolant fluid needs time to settle. If the appliance is switched off at any time, wait 30 minutes before switching back on to allow the coolant fluid to settle.

Before filling your fridge

Before storing foods in your fridge, turn the fridge on and wait for 24 hours, to make sure it is working properly and to allow the fridge to fail to the correct temperature.

CONTROLS

The temperature of the appliance is controlled by setting the thermostat knob(exterior rear wall of the cabinet)to a desired setting.

Temperature selection

To start the appliance, turn the temperature control knob to the position 1-7 corresponding to the desired cooling. The temperature range is -0 - 10^

CARE AND MAINTENANCE

Defrosting

After a period of use, a thin layer of frost will be formed on the freezer compartment inner wall (or evaporator) surface, which may affect the refrigeration effect if exceeding 5mm in thickness. In such case, you need to gently scrape the frost off using an ice scraper rather than the metal or sharp hardware. Frosts need to be cleared off every 3 months or so, and if the normal use of drawers and normal access of foods are affected by frosting, make sure to remove the frosts in a timely manner. Follow the following steps to remove frosts:

1. Take out the frozen foods, shut off the mains power supply, open the refrigerator door, and gently remove the frosts from the inner wall with an ice scraper. To speed up the thawing process, you are suggested to place a bowl of hot water inside the refrigerator/freezer, and when the solid ice frosts become loose, use an ice scraper to scrape them off and then take them out.
2. After defrosting, clean the refrigerator/freezer inside, and switch on the power supply.

Cleaning inside the fridge

After defrosting you should clean the fridge internally with a weak solution of bicarbonate of soda. Then rinse with warm water using a damp sponge or cloth and wipe dry. Wash the baskets in warm soapy water and ensure they are completely dry before replacing in the fridge.

Cleaning outside the fridge

Use standard non-abrasive detergent diluted in warm water to clean the fridge exterior. The grille of the condenser at the back of the fridge and the adjacent components can be vacuumed using a soft brush attachment.

Do not use harsh cleaners, scouring pads or solvents to clean any part of the fridge

Moving the fridge

Location: Do not place your fridge/Freezer near a heat source, eg. Cooker, boiler or radiator. Also avoid direct sunlight in out-buildings or sun lounges.

Vacation time

• Turn off the refrigerator first and then unplug the unit from the wall outlet.
• Remove all the food.
• Clean the refrigerator.
• Leave the lid open slightly to avoid possible formation of condensation, mold, or odours.
• Use extreme caution in the case of children. The unit should not be accessible

to child's play.

• Short vacations: Leave the refrigerator operating during vacations of less than three weeks.

• Long vacations: If the appliance will not be used for several months, remove all food and unplug the power cord. Clean and dry the interior thoroughly. To prevent odour and mold growth, leave the door open slightly: blocking it open if necessary or have the door removed.

DISPOSAL CONSIDERATIONS

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Product Information Sheet COMMISSION DELEGATED REGULATION (EU) 2019/2018 with regard to energy labelling of refrigerating appliances with a direct sales function
Supplier's name or trade mark: Klarstein
Supplier's address: Customer service, Wallstraße 16, 10179 Berlin, DE
Model identifier: 10046631, 10046632
Use: Display and sale
Type of refrigerating appliance with a direct sales function: Beverage coolers
Cabinet family code, according to the harmonised standards or other reliable, accurate and reproducible methods in accordance with Annex IV.	BCVTn
	Warmest temperature (℃) Relative humidity (%)
45 25 60
General product parameters:
Parameter Value Parameter Value
Annual energy 299,00 Recommended temperature (kWh/a)	perature(s) for optimised food storage (℃) (These settings shall not contradict the temperature conditions set out in Annex IV, Table 4, 5 or 6, as applicable)	5
EEI 34,6 Energy efficiency class C
Light source parameters:
Type of light source LED
Energy efficiency class C
Minimum duration of the guarantee offered by the supplier: 24 months
Additional information:
The weblink to the supplier's website, where the information in point 3 of Annex II of Commission Regulation (EU) 2019/2024 is found: https://www.electronic-star.com/

Model placed on the Union market from 01/09/2024.

EPREL registration number: 2107779

https://eprel.ec.europa.eu/qr/21 07779

Supplier: Chal-Tec GmbH (Authorised representative)

Website:

Customer care service:

Name: Customer service

Website: https://www.elektronik-star.de/Info/Impressum/

Email: [e-mail]

Phone: [phone]

Address:

Wallstraße 16

10179Berlin

Germany

Product Information Sheet COMMISSION DELEGATED REGULATION (EU) 2019/2018 with regard to energy labelling of refrigerating appliances with a direct sales function
Supplier's name or trade mark: Klarstein
Supplier's address: Customer service, Wallstraße 16, 10179 Berlin, DE
Model identifier: 10046633, 10046634
Use: Display and sale
Type of refrigerating appliance with a direct sales function: Beverage coolers
Cabinet family code, according to the harmonised standards or other reliable, accurate and reproducible methods in accordance with Annex IV.	BCVTn
	Warmest temperature (℃) Relative humidity (%)
67 25 60
General product parameters:
Parameter Value Parameter Value
Annual energy 314,00 Recommended temperature (kWh/a)	perature(s) for optimised food storage (℃) (These settings shall not contradict the temperature conditions set out in Annex IV, Table 4, 5 or 6, as applicable)	5
EEI 34,4 Energy efficiency class C
Light source parameters:
Type of light source LED
Energy efficiency class C
Minimum duration of the guarantee offered by the supplier: 24 months
Additional information:
The weblink to the supplier's website, where the information in point 3 of Annex II of Commission Regulation (EU) 2019/2024 is found: https://www.electronic-star.com/

Model placed on the Union market from 01/09/2024.

EPREL registration number: 2108159

https://eprel.ec.europa.eu/qr/21 08159

Supplier: Chal-Tec GmbH (Authorised representative)

Website:

Customer care service:

Name: Customer service

Website: https://www.elektronik-star.de/Info/Impressum/

Email: [e-mail]

Phone: [phone]

Address:

Wallstraße 16

10179Berlin

Germany

Product Information Sheet COMMISSION DELEGATED REGULATION (EU) 2019/2018 with regard to energy labelling of refrigerating appliances with a direct sales function
Supplier's name or trade mark: Klarstein
Supplier's address: Customer service, Wallstraße 16, 10179 Berlin, DE
Model identifier: 10046635, 10046636
Use: Display and sale
Type of refrigerating appliance with a direct sales function: Beverage coolers
Cabinet family code, according to the harmonised standards or other reliable, accurate and reproducible methods in accordance with Annex IV.	BCVTn
	Warmest temperature (℃) Relative humidity (%)
92 25 60
General product parameters:
Parameter Value Parameter Value
Annual energy 336,00 Recommended temperature (kWh/a)	perature(s) for optimised food storage (℃) (These settings shall not contradict the temperature conditions set out in Annex IV, Table 4, 5 or 6, as applicable)	5
EEI 34,7 Energy efficiency class C
Light source parameters:
Type of light source LED
Energy efficiency class C
Minimum duration of the guarantee offered by the supplier: 24 months
Additional information:
The weblink to the supplier's website, where the information in point 3 of Annex II of Commission Regulation (EU) 2019/2024 is found: https://www.electronic-star.com/

Model placed on the Union market from 01/09/2024.

EPREL registration number: 2108271

https://eprel.ec.europa.eu/qr/21 08271

Supplier: Chal-Tec GmbH (Authorised representative)

Website:

Customer care service:

Name: Customer service

Website: https://www.elektronik-star.de/Info/Impressum/

Email: [e-mail]

Phone: [phone]

Address:

Wallstraße 16

10179Berlin

Germany

Product Information Sheet COMMISSION DELEGATED REGULATION (EU) 2019/2018 with regard to energy labelling of refrigerating appliances with a direct sales function
Supplier's name or trade mark: Klarstein
Supplier's address: Customer service, Wallstraße 16, 10179 Berlin, DE
Model identifier: 10046637, 10046638
Use: Display and sale
Type of refrigerating appliance with a direct sales function: Beverage coolers
Cabinet family code, according to the harmonised standards or other reliable, accurate and reproducible methods in accordance with Annex IV.		BCVTn
		Warmest temperature (℃) Relative humidity (%)
Product specific parameters
1. Beverage coolers:
Gross volume (dm3 or L)	Ambient conditions for which the appliance is suitable (according to Table 6)
	Warmest temperature (℃) Relative humidity (%)
113 25 60
General product parameters:
Parameter Value Parameter Value
Annual energy consumption (kWh/a)	perature(s) for optimised food storage (℃) (These settings shall not contradict the temperature conditions set out in Annex IV, Table 4, 5 or 6, as applicable)
EEI 33,4	Energy efficiency class C
Light source parameters:
Type of light source	LED
Energy efficiency class	B
Minimum duration of the guarantee offered by the supplier: 24 months
Additional information:
The weblink to the supplier's website, where the information in point 3 of Annex II of Commission Regulation (EU) 2019/2024 is found: https://www.electronic-star.com/

Model placed on the Union market from 01/09/2024.

EPREL registration number: 2108185

https://eprel.ec.europa.eu/qr/21 08185

Supplier: Chal-Tec GmbH (Authorised representative)

Website:

Customer care service:

Name: Customer service

Website: https://www.elektronik-star.de/Info/Impressum/

Email: [e-mail]

Phone: [phone]

Address:

Wallstraße 16

10179Berlin

Germany

Chere cliente, cher client,

Berlin Brands Group UK Limited

Boite postale 42

272 Kensington High Street

Londres, W8 6ND

Royaume-Uni

Nom: Customer service

Site web: https://www.elektronik-s.tar.de/Info/Impressum/

Courriel: [e-mail]

Telephone: [phone]

Adresse:

Wallstraße 16

10179Berlin

Allemagne

Nom: Customer service

Site web: https://www.elektronik-s.tar.de/Info/Impressum/

Courriel: [e-mail]

Telephone: [phone]

Adresse:

Wallstraße 16

10179Berlin

Allemagne

Nom: Customer service

Site web: https://www.elektronik-s.tar.de/Info/Impressum/

Courriel: [e-mail]

Telephone: [phone]

Adresse:

Wallstraße 16

10179Berlin

Allemagne

Nom: Customer service

Site web: https://www.elektronik-s.tar.de/Info/Impressum/

Courriel: [e-mail]

Telephone: [phone]

Adresse:

Wallstraße 16

10179Berlin

Allemagne

Gentile clientele,

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

Londra, W8 6ND

United Kingdom

Nome: Customer service

Sito web: https://www.elektronik-star.de/Info/Impressum/

E-mail: [e-mail]

Nome: Customer service

Sito web: https://www.elektronik-star.de/Info/Impressum/

E-mail: [e-mail]

Name: Customer service

Sito web: https://www.elektronik-star.de/Info/Impressum/

E-mail: [e-mail]

Name: Customer service

Sito web: https://www.elektronik-star.de/Info/Impressum/

E-mail: [e-mail]

Berlin Brands Group UK Limited

272 Kensington High Street

Londres, W8 6ND

Reino Unido
