Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the items and cautions mentioned in the instruction manual are not covered by our warranty and any liability. Scan the QR code to get access to the latest user manual and other information about the product.

QR code image containing encoded data, no visible human-readable text

CONTENTS

Technical Specifications 29 Safety Instructions 30 Product Overview 32 Cleaning and Care 50 Disposal Considerations 51 Manufacturer & Importer (UK) 51

TECHNICAL SPECIFICATIONS

Article number 10046915

Power supply 230 V~ 50 Hz

SAFETY INSTRUCTIONS

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision

- Keep the appliance and its cord out of reach of children less than 8 years.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

- Appliances are not intended to be operated by means of an external timer or separate remote-control system.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- The temperature of accessible surfaces may be high when the appliance is operating.

- Please check the device and the electrical wire timely, and stop using if you find some problems of the device.

- Never immerse the appliance with heating element?the appliance should be switched off at mains when not in use.

- Use only one appliance per plug and always use an earthed extension cable, with cross section of at least 1.5mm2

- Do not touch the appliance (cover or grill rack) when cooking in order to prevent any risk of burning.

- The temperature of the surface will be very high when using, please keep it away from tinder.

• This appliance is only use for cooking.

- Never place your appliance on a fragile surface

- The supply cord should be regularly examined for signs of damage, and if the cord is damaged, the appliance must not be used.

- The appliance must be supplied through a residual current device (RCD) having a rated residual operating current not exceeding 30 mA.

- The appliance is to be connected to a socket-outlet having an earthing contact.

- Charcoal or similar combustible fuels must not be used with this appliance.

- An electric appliance is not a children's toy. Children are not aware of the hazards of electrical appliances. Therefore close supervision is necessary when the appliance is used by children. Do not allow power cable to hang down within easy reach. Keep children away from packing material, e.g. plastic bags.

- The installation of a faulty current protective device with a rated breaking current offers you additional safety by ensuring that 30 mA will not be exceeded in the house installation. Let your installation electrician advice you. Danger also exists with appliance which have been switched off, this is

why, after use, the plug should be removed for the mains.

• Do not use this appliance near the water contained in bath-tubs, washbasins or other receptacles neither expose it to rain or other humidity.
• Regularly check whether the wire is defective. In this case the appliance must not be put into operation (immediately pull the plug). Send it to the manufacturer for repair.

The appliance must not be operated (disconnect the mains plug immediately) when:

• the appliance, casing or cable is damaged.
• the appliance shows visible signs of damage.
• a fault is suspected after a fall or the like.

Disconnect the main plug:

• in case of faults during use.
• before cleaning or moving the appliance from place to place.

• after use

• Never carry nor pull the appliance by the flex.

• Don't pull the flex over sharp edges. Don't wedge it.
• Never immerse the mains cord in water or any other liquid.
• Only use extension leads after having made sure that their condition is faultless and use an earthed wise with a minimum capacity of 13A.
• Put the wire so that unintentional touching or drawing is impossible.
• Never bring the extension wire in touch with the hot grill house.
• Always switch off the appliance before removing the mains plug.
• Before removing attachments or cleaning the grill, allow to cool completely.
• Take care! The grill plate will get very hot, and it stays hot for a long time after it has been switched off. Beware of burns! Do not touch any hot surfaces and take care when handling the appliance after use.
• Do not stand the grill over the edge or corner of the table and avoid contact with the hot surfaces.
• Do not place the appliance on or near a hot gas electrical burner, or in a heated oven.
• Only use the appliance when it is placed on a stable and dry surface.
• Do not leave the appliance unattended.
  • Always switch off the appliance when it is not in use.
• This appliance is not meant for commercial use but exclusively for private use.
• Do not use the appliance without the fat collecting bowl or the base.
• Never cover the grill plate with aluminum foil or trays.
• Make sure without fail that the device is installed correctly before you put this into operation (first of all if using the stand).
• lease, ensure that the grill plate must not touch the heating element-injury danger!

• Beware of fat spitting while grilling fat or juicy meat.

• Place the appliance on a surface that is resistant to heat. Keep the electric grill at least 10 cm from any walls when in operation.

• Use this appliance only as described in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock or injury to persons.

PRODUCT OVERVIEW

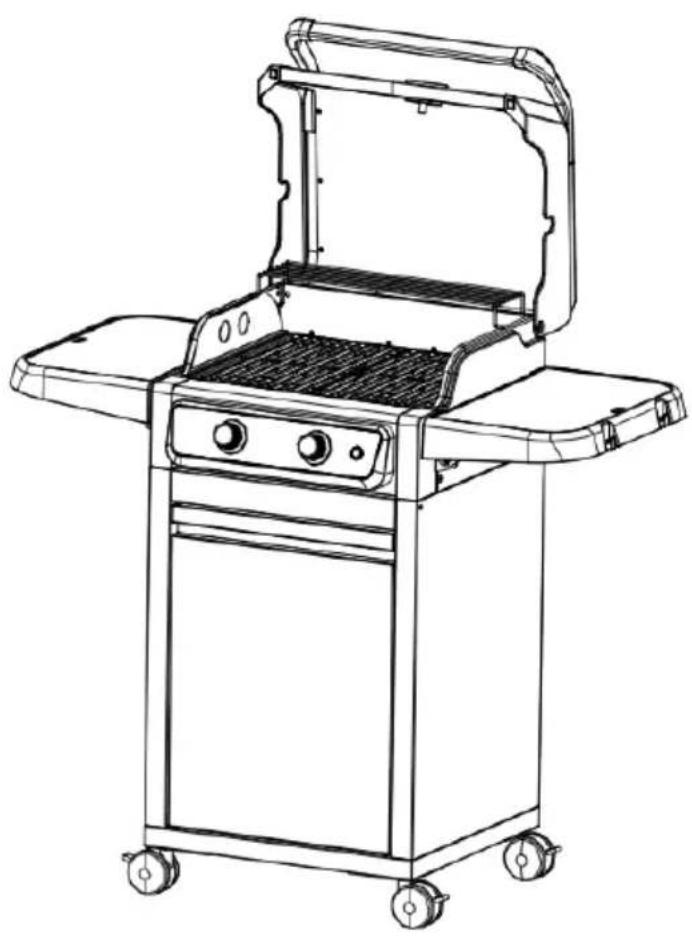

Line drawing of a portable electric grill with open top and side panels (no text or symbols)

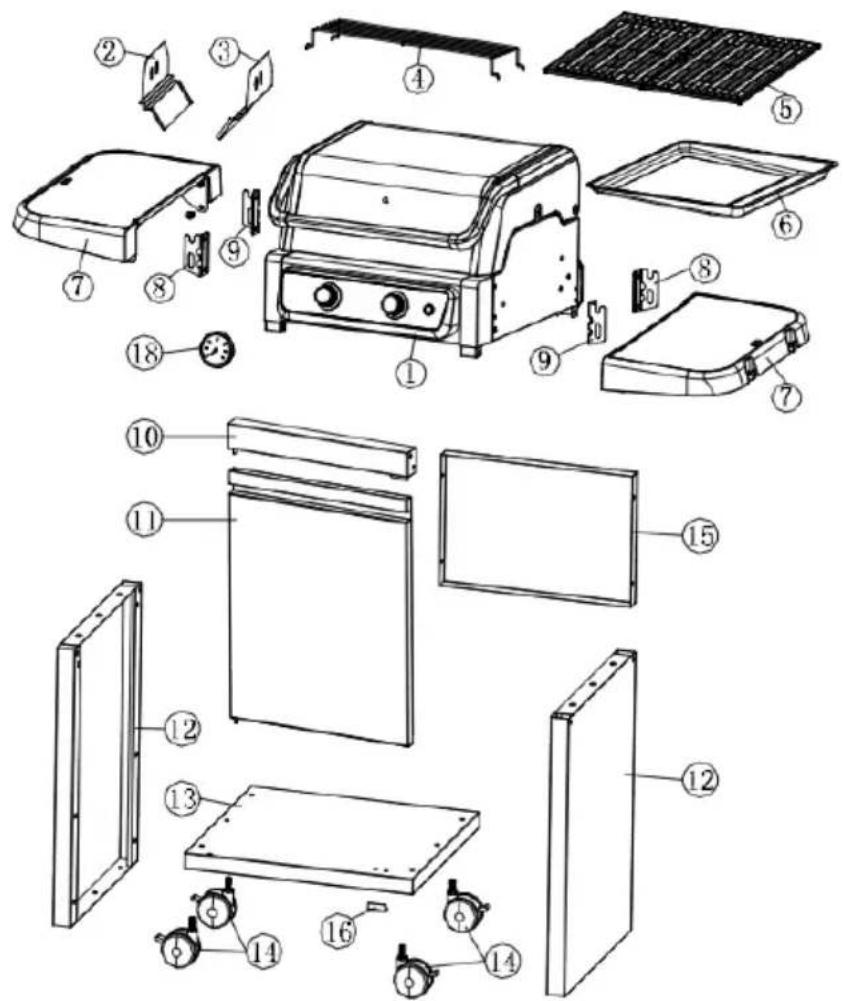

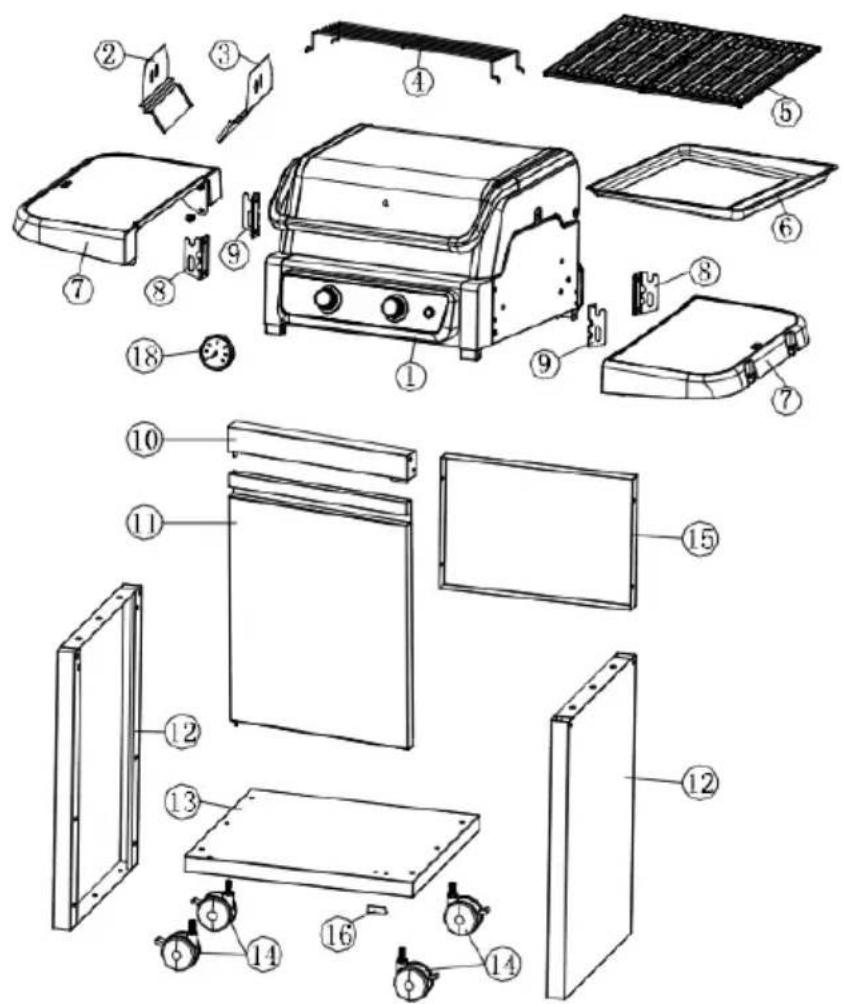

Exploded view

Exploded view diagram of a refrigerator with numbered parts for identification and assembly reference.

No.	Description Qty.
1	Grill body assembly 1
2	Simple clean left panel	1
3	Simple clean right panel	1
4	Warming rack 1
5	grill rack 2
6	Drip tray 1
7	Side table assembly 2
8	Side table holder A 2
9	Side table holder B 2

No.	Description Qty.
10	Trolley front panel assembly	1
11	Door assembly 1
12	Left Trolley sheet 1
13	Trolley bottom shelf	1
14	Castor 4
15	Trolley rear sheet	1
16	Right Trolley sheet 1
17	magnet bracket	1

Screw list

No.	Description Picture Qty.
A	M6×12Screw		20
B	M6×50Screw		2
C Axis ad 4
D M4x6 Screw 2
E Gasket 1
F Spanner 1
G	Spring washer		4

INSTALLATION INSTRUCTIONS

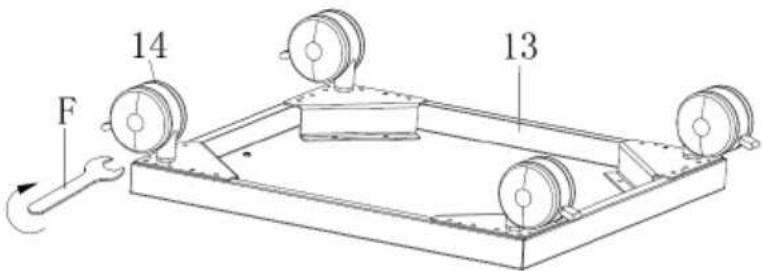

Step 1

No. Picture Qty.
13		1
14		4
F		1

14 13 F

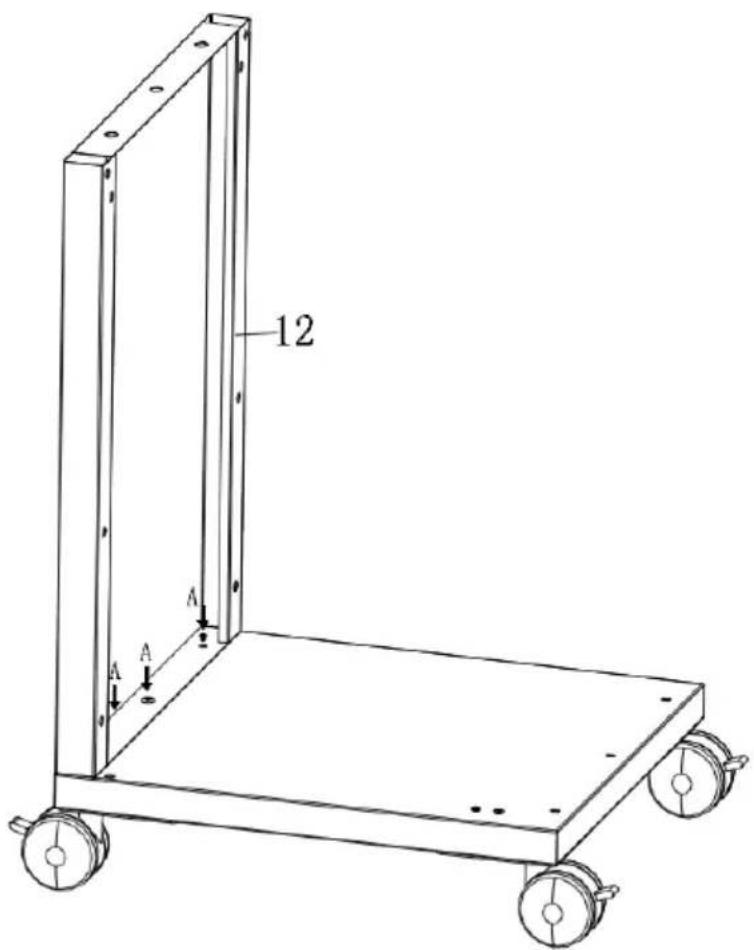

Step 2

No.	Picture Qty.
12 1
A		3

12 A A A

Step 3

No. Picture Qty.

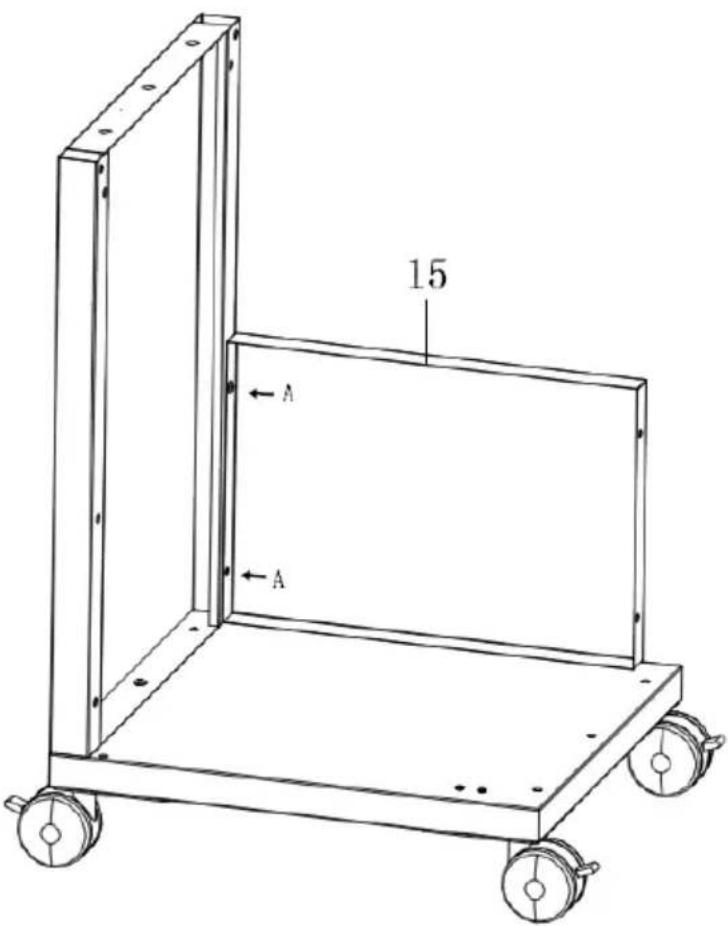

15	1
A 2

15 A A

Step 4

No.	Picture Qty.
16
A

12 A → A → A ← A A ←

EN

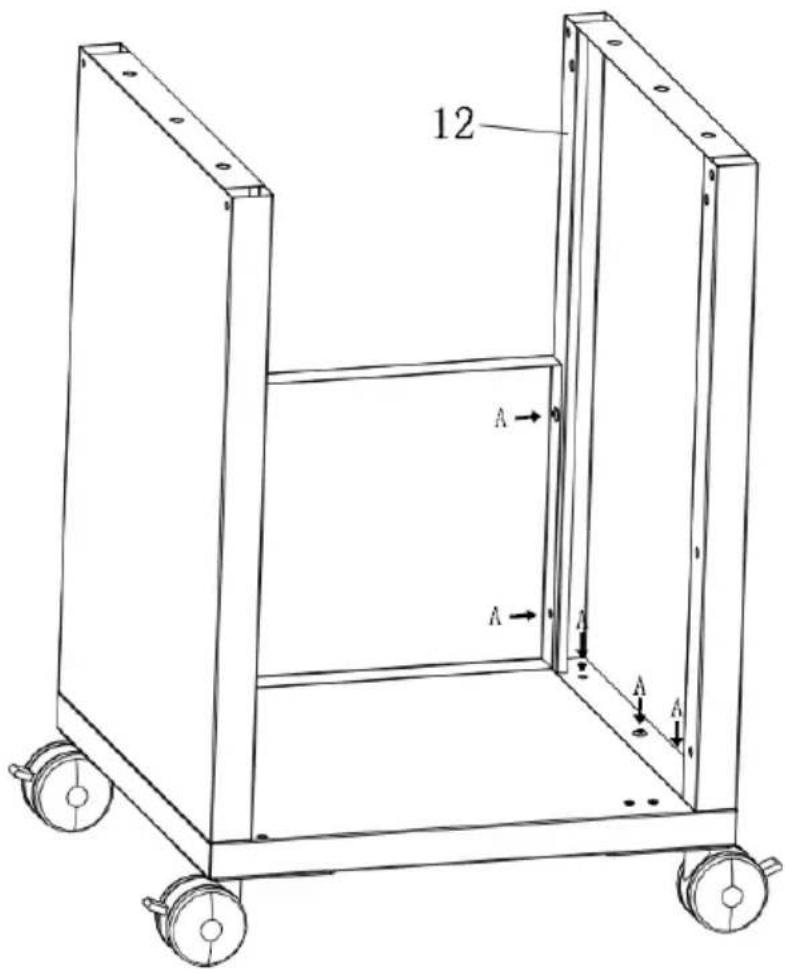

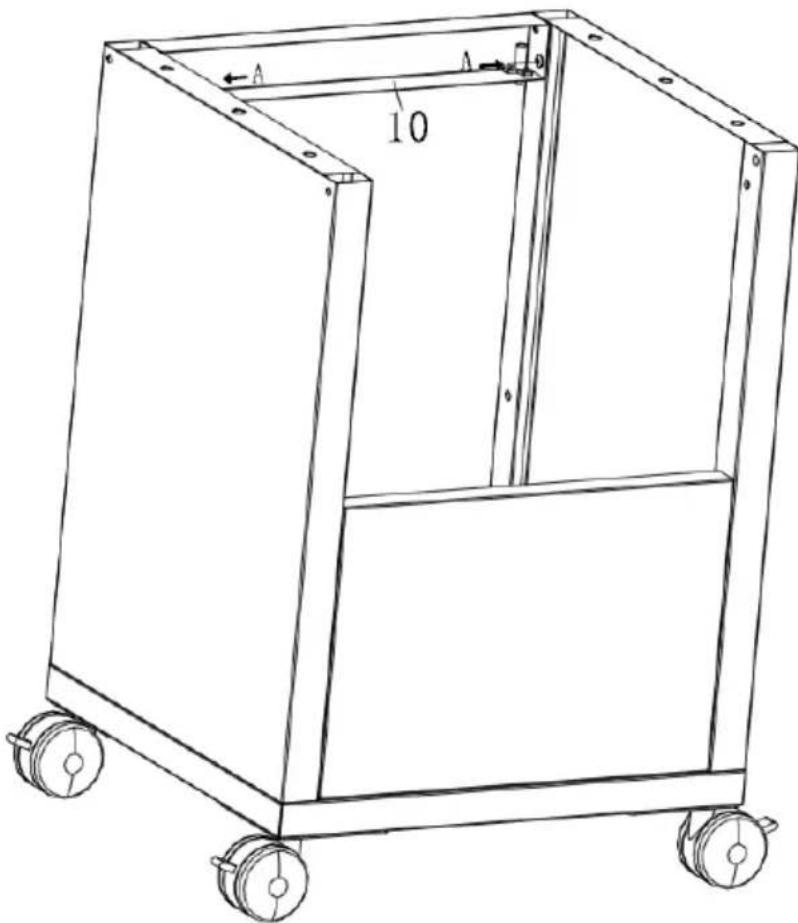

Step 5

No.	Picture Qty.
10	[xw58]	1
A2

Line drawing of a rectangular industrial cart with wheels and a side panel, no text or symbols present

Step 6

No.	Picture Qty.

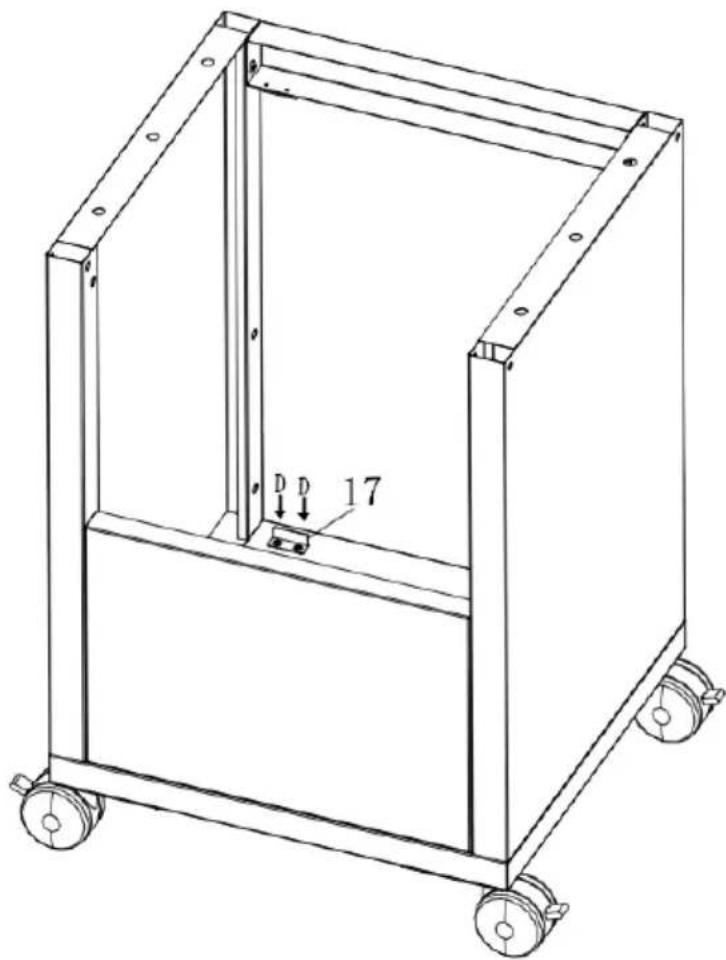

17 1
D 2

Technical line drawing of a mechanical cart with wheels and a side panel, no text or symbols present

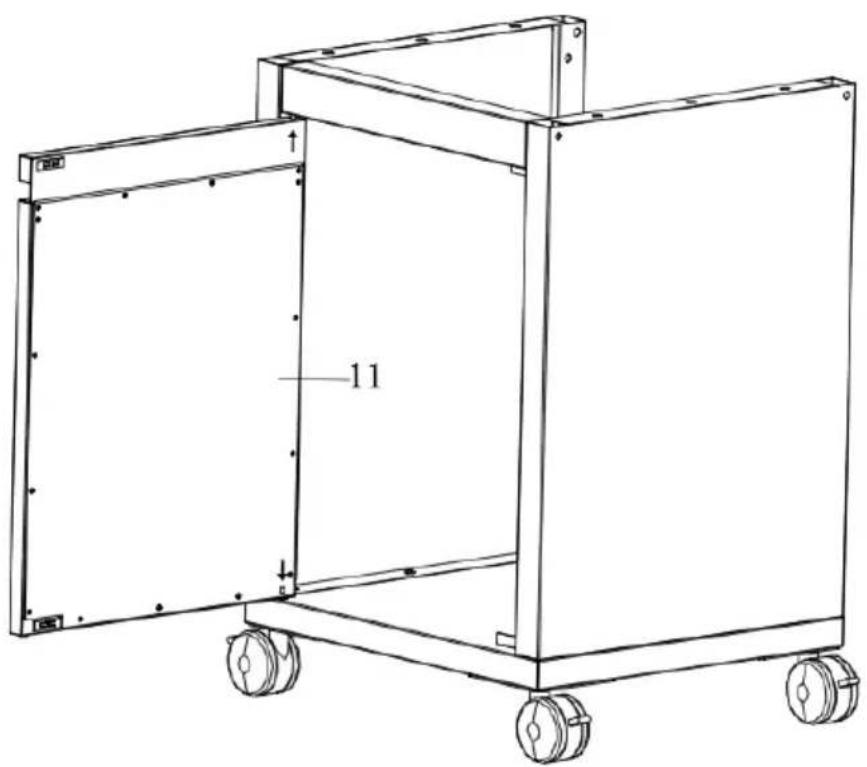

Step 7

No. Picture Qty.

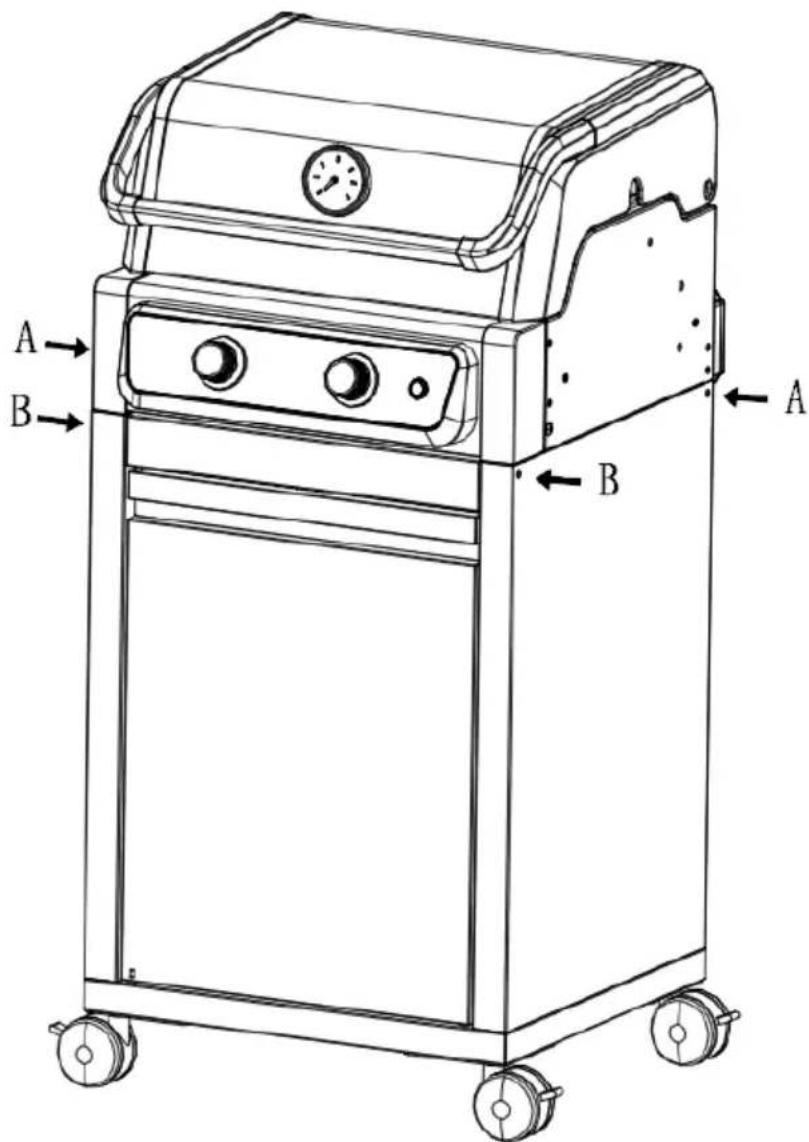

11		1

Technical line drawing of a two-wheeled cart with wheels and a labeled part (no text or symbols beyond the label)

Step 8

No. Picture Qty.

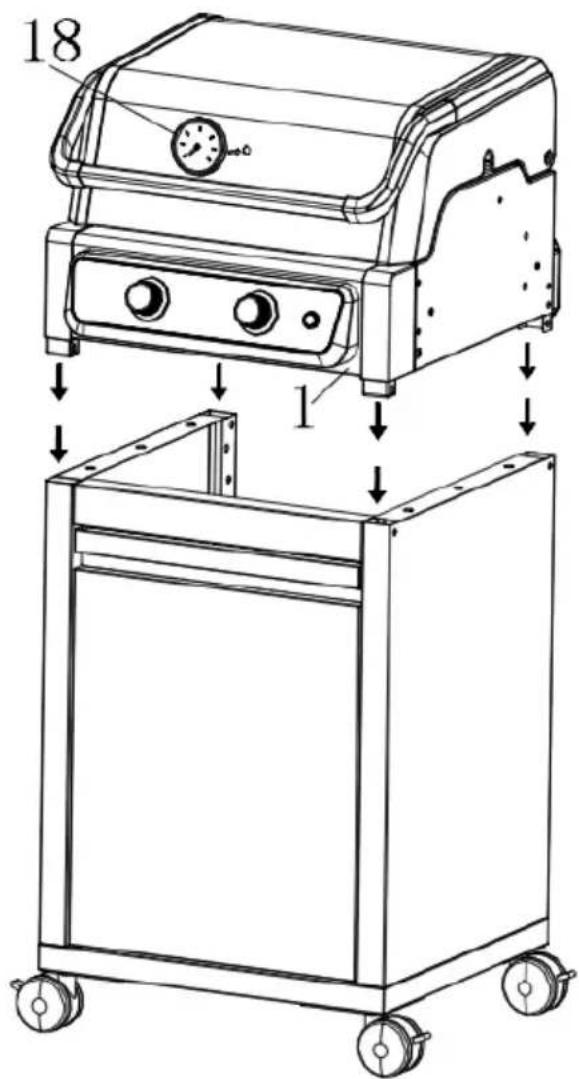

1		1
18		1
E	[8W06]	1

18 1

Diagram illustrating a mechanical assembly with labeled components and directional arrows indicating motion or transformation.

Step 9

No.	Picture Qty.
B 2
A 2

A B A B

Step 10

No. Picture Qty.

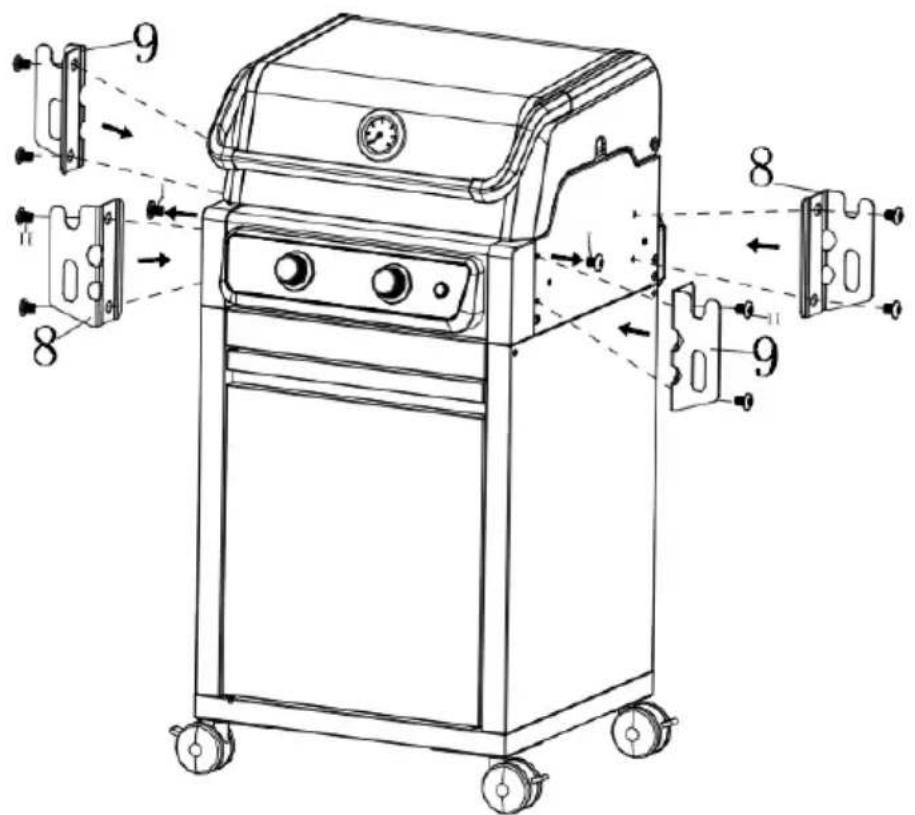

8 2
9 2
A		6

Technical diagram of a portable air conditioner unit with labeled components and directional arrows indicating airflow or movement.

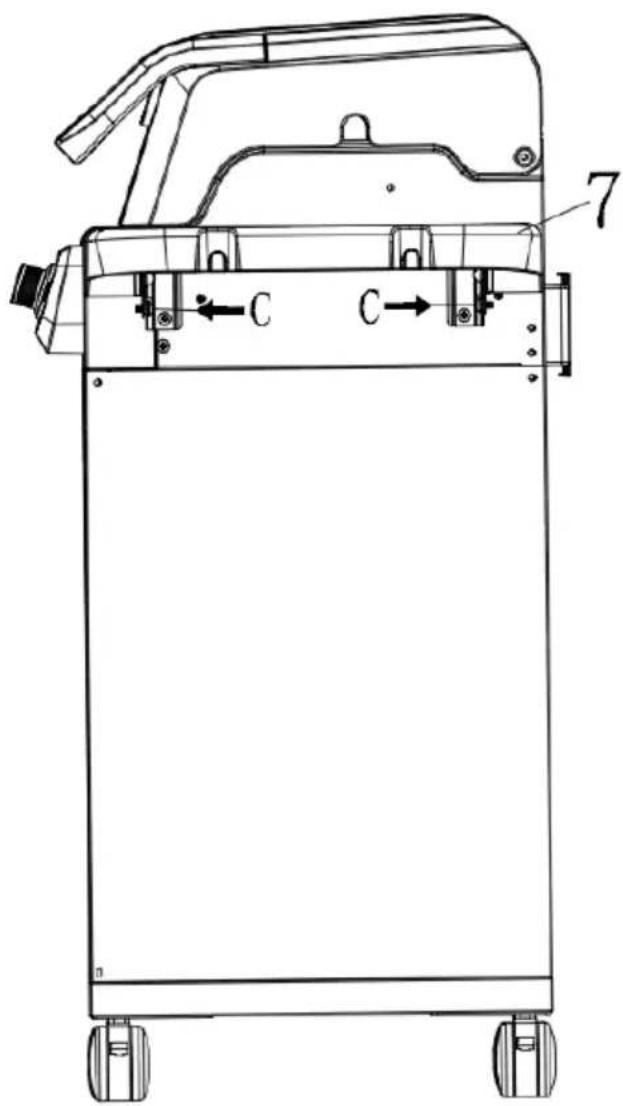

Step 11

No. Picture Qty.
7		2
C		4
G		4

7 C C

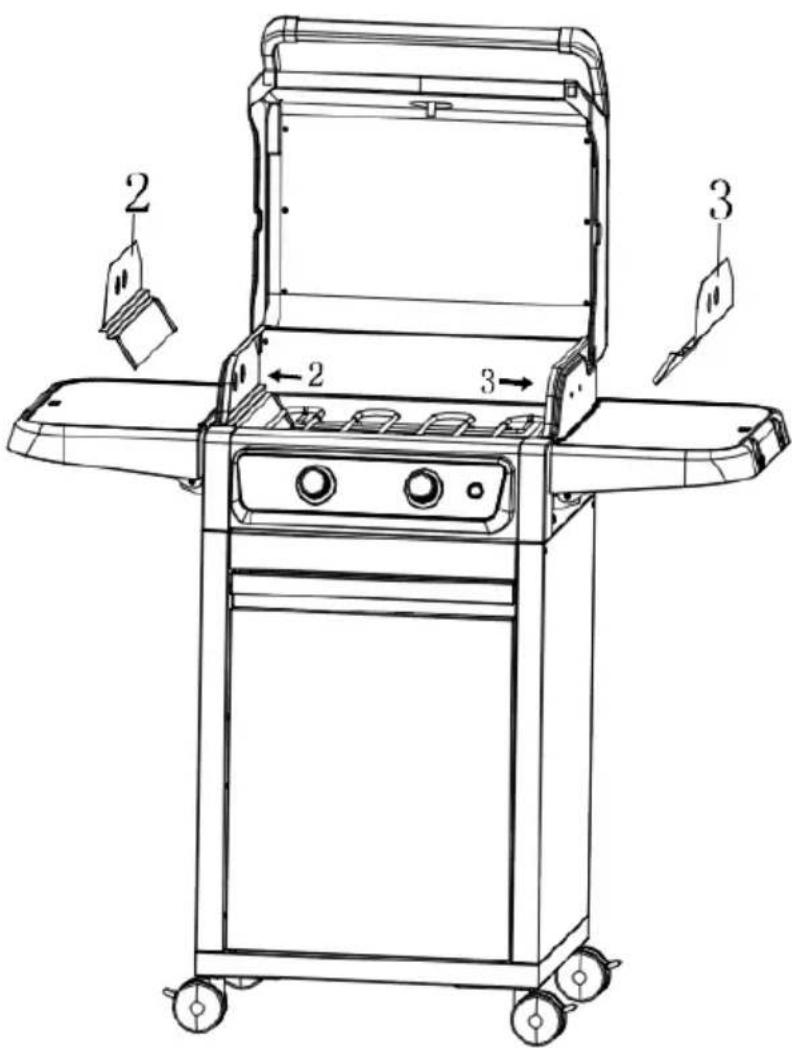

Step 12

No. Picture Qty.
2 1
3		1

Technical line drawing of a portable electric grill with labeled components and directional arrows indicating parts 2 and 3.

Step 13

No. Picture Qty.
52

Technical line drawing of a portable electric grill with labeled components and directional arrows indicating down or up motion.

Step 14

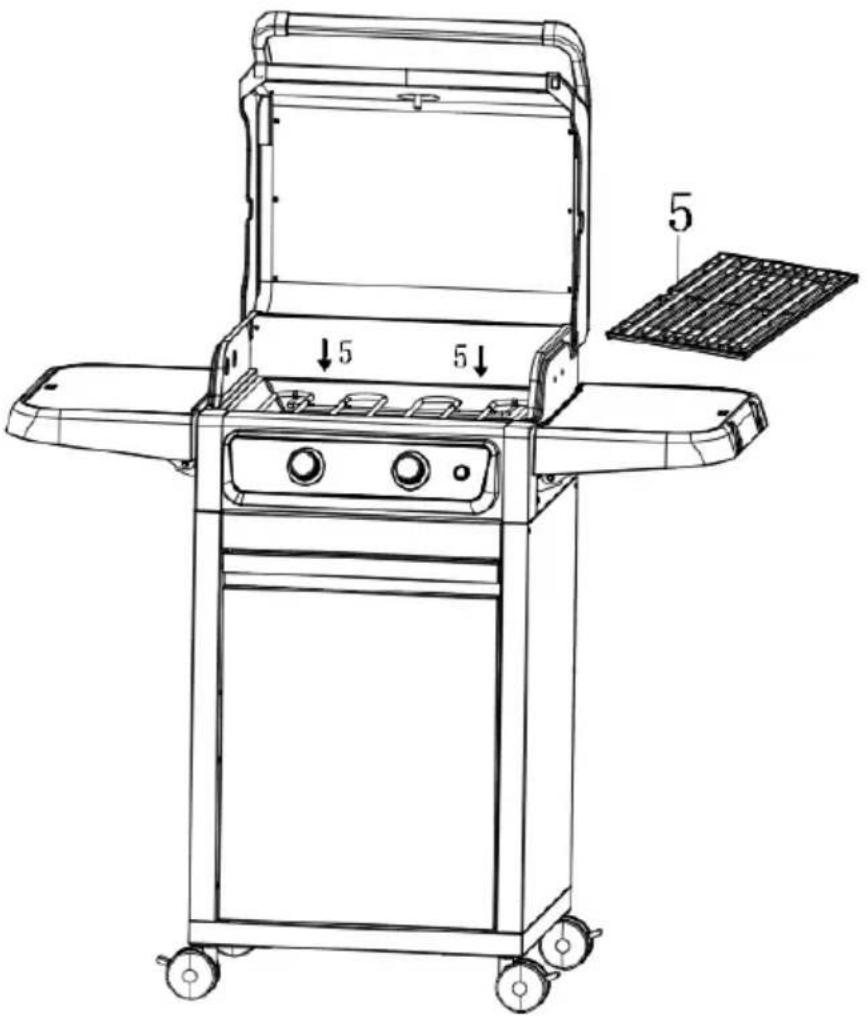

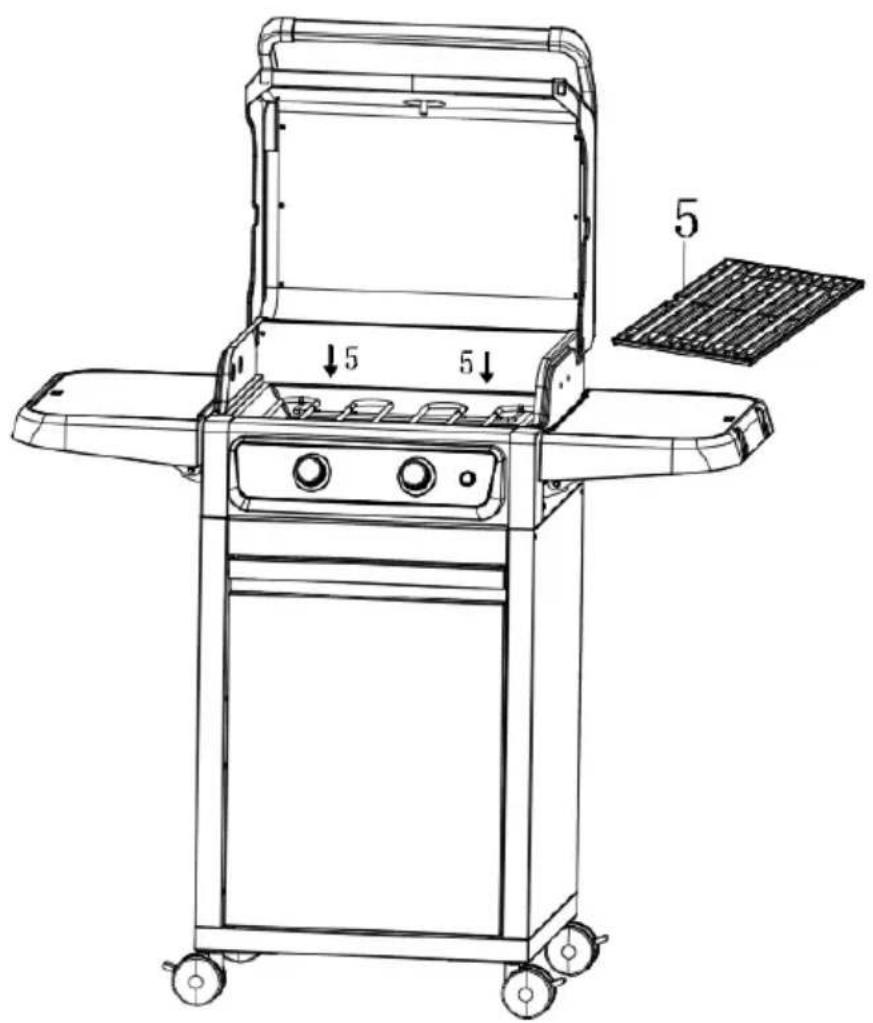

No. Picture Qty.

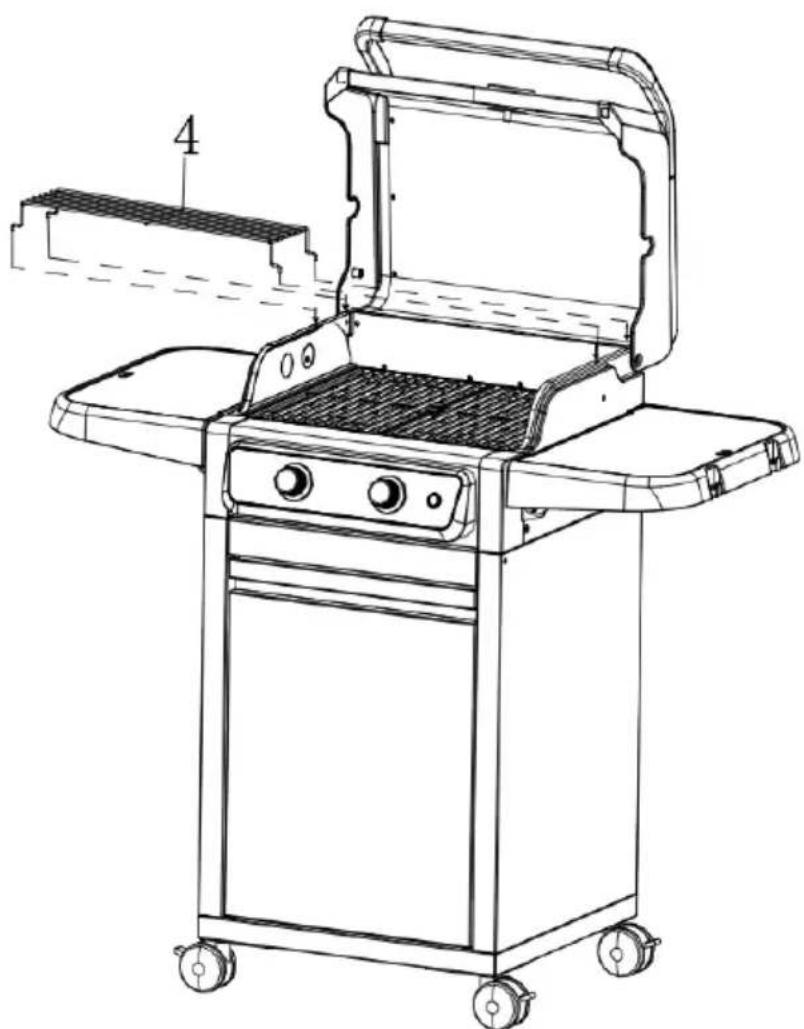

4		1

Line drawing of a portable electric grill with open lid and wheels, no text or symbols present

EN

Step 15

No. Picture Qty.

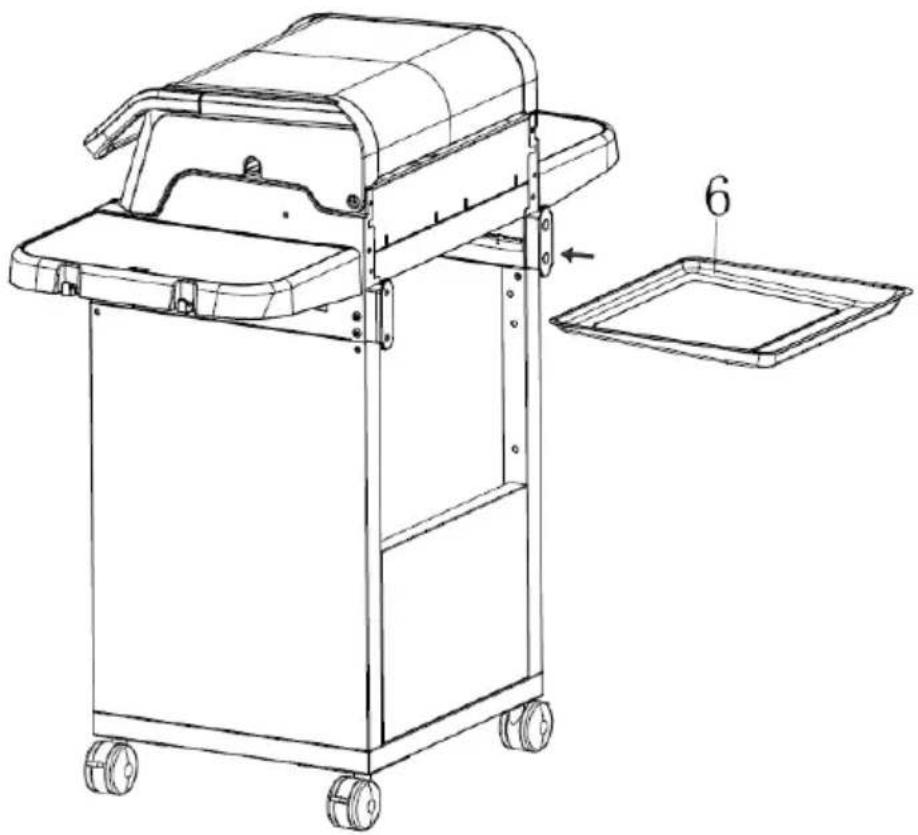

6		1

Technical line drawing of a mechanical device with wheels and a tray, no text or symbols present

Use

Before using the appliance for the first time

Connect the appliance to the mains electricity supply.

Set the temperature regulator to the required temperature level (it usually takes about 3 minutes to heat up).

The temperature indicator lamp will go out as soon as the required temperature has been reached.

Place the food to be grilled on the grill plate.

Cooking times

The following are recommended cooking times. Different times will be required for different weights and sizes of foods to be grilled, and depending on whether you are grilling with or without the cover.

OFF HIGH LOW blumfeldt HIGH LOW OFF POWER ON/OFF

Food to be grilled Temperature grade setting	Cooking time
Steak/beef HI 8-12 min
Lamb HI 7-10 min
Chicken drumsticks HI 10-15 min
Chops HI 8-12 min
Chicken wings HI 8-12 min
Fillet of pork MID-HI 5-8 min
Whole fish HI 6-10 min
Kebabs MID 5-8 min
Various sausages MID 6-10 min

Tips for grilling

Your meat will be tendered if you marinade it overnight before cooking (the marinade is always made of oil (to and moistness), vinegar (to tenderize) and a mixture of seasonings).

• Always use tongs or some form of scoop to turn the grilled food.
- Only turn meat and fish once during grilling. You do not need to turn it more than once and too much turning dries food out.
- Never cook meat for too long. Even pork is better if it is served when it is still somewhat pink and juicy.
- If cooked food sticks to the grill rack, rub the rack with a piece of kitchen paper soaked in oil from time to time.

CLEANING AND CARE

• Disconnect the appliance from the mains electricity supply.
• Allow the grill to cool completely.
• Wash the grill rack and drip tray with hot washing-up water (they are dishwasher safe). Do not use steel wool pads or abrasives.
• Wipe the base of the appliance with a damp cloth. Fat splashes can be removed with a mild cleaning agent.

Notes

• Do not scratch this coating during either the grilling or the cleaning stages.
• Use a washing-up brush with plastic bristles to clean the grill rack.
• Protect the appliance from dust and dirt if it is not to be used for a prolonged length of time (wrap it in a plastic bag). Store it in a dry place.

DISPOSAL CONSIDERATIONS

Symbol of a trash bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

[e-mail]

Importer for Great Britain:

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Chère cliente, cher client,

QR code image containing encoded data, no visible human-readable text

SOMMAIRE

Fiche technique 53

Line drawing of a portable electric grill with open lid and wheels (no text or symbols)

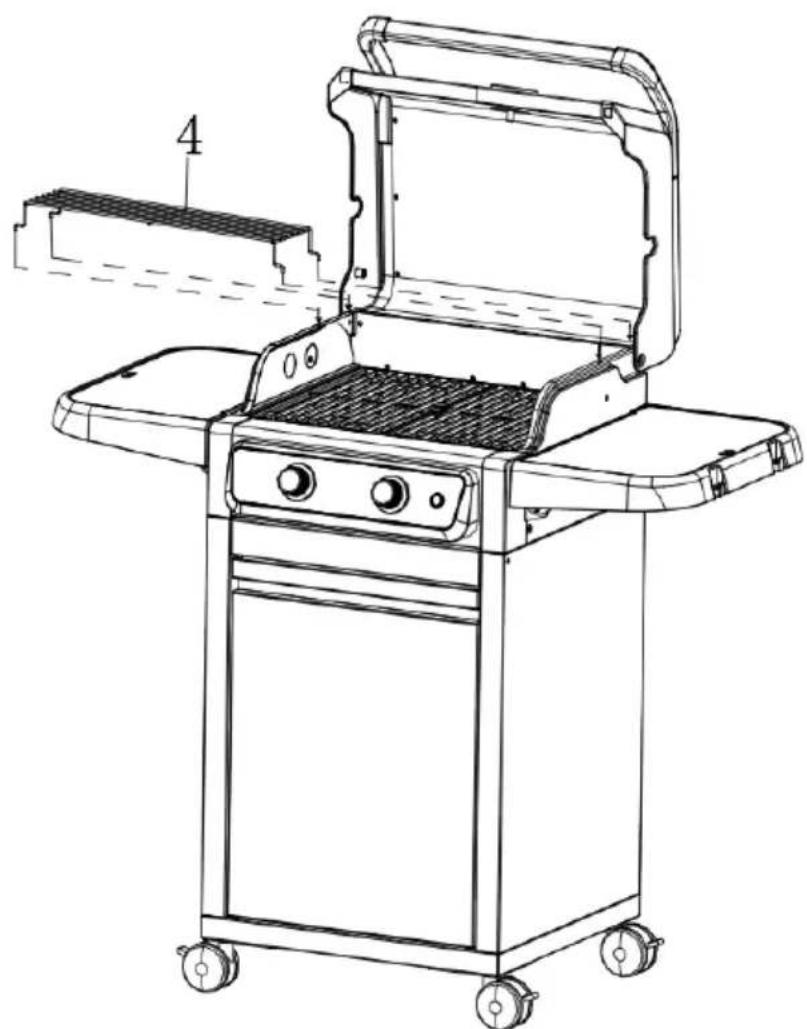

Vue éclatée

Exploded view diagram of a microwave oven with numbered parts for identification

12 A → A → A ← A A ←

FR

Étape 5

Line drawing of a rectangular industrial cart with wheels and a side panel, no text or symbols present

Étape 6

Technical line drawing of a mechanical cart with wheels and a side panel, no text or symbols present

FR

Étape 7

N° Photo Qté
11		1

Technical line drawing of a two-wheeled cart with wheels and a labeled part (no text or symbols beyond the label)

Étape 8

Diagram illustrating a mechanical assembly with labeled components and directional arrows indicating motion or transformation.

FR

Étape 9

Technical diagram of a portable air conditioner unit with labeled components and airflow indicators

Étape 11

Technical line drawing of a portable electric grill with labeled components and directional arrows indicating parts 2 and 3.

FR

Étape 13

N° Photo Qté
52

Technical line drawing of a portable electric grill with labeled components and directional arrows indicating down or up motion.

Étape 14

N° Photo Qté
4		1

Line drawing of a portable electric grill with open lid and wheels, no text or symbols present

FR

Étape 15

N° Photo Qté
6		1

Technical line drawing of a mechanical device with wheels and a tray, no text or symbols present

Utilisation

Symbol of a trash bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

Berlin Brands Group UK Limited

Boîte postale 42

272 Kensington High Street

Londres, W8 6ND

Royaume-Uni

Gentile cliente,

QR code image containing encoded data, no visible human-readable text

INDICE

Line drawing of a portable electric grill with open lid and wheels (no text or symbols)

Vista esplosa

Exploded view diagram of a refrigerator with numbered parts for identification and assembly reference.

15 ← A ← A

4° passaggio

12 A → A → A ← A A ←

5° passaggio

Line drawing of a multi-wheeled cart with wheels and labeled parts (no text or symbols beyond labels)

6° passaggio

Technical line drawing of a mechanical cart with wheels and a side panel, no text or symbols present

7° passaggio

Technical line drawing of a two-wheeled cart with wheels and a labeled part (no text or symbols beyond the label)

8° passaggio

Diagram illustrating a mechanical assembly with labeled components and directional arrows indicating motion or transformation.

9º passaggio

Technical diagram of a portable air conditioner unit with labeled components and directional arrows indicating assembly or movement.

IT

11° passaggio

Technical line drawing of a portable electric grill with labeled components and directional arrows indicating parts 2 and 3.

IT

13° passaggio

Technical line drawing of a portable electric grill with labeled components and directional arrows indicating down or up motion.

14° passaggio

Line drawing of a portable electric grill with open lid and wheels, no text or symbols present

IT

15° passaggio

Technical line drawing of a portable kitchen machine with wheels and a tray, no text or symbols present

Utilizzo

Symbol of a trash bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Estimado cliente:

QR code image containing encoded data, no visible human-readable text

ÍNDICE

Datos técnicos 21

Line drawing of a portable electric grill with open lid and wheels (no text or symbols)

Vista de las piezas

Exploded view diagram of a microwave oven with numbered parts for identification

12 A → A → A ← A A ←

Paso 5

Line drawing of a two-wheeled cart with wheels and a side panel, no text or symbols present

Paso 6

Technical line drawing of a mechanical cart with wheels and a door, no text or symbols present

Paso 7

Technical line drawing of a two-wheeled cart with wheels and a labeled part (no text or symbols beyond the label)

Paso 8

Diagram illustrating a mechanical assembly with labeled components and directional arrows indicating motion or transformation.

Paso 9

Technical diagram of a portable air conditioner unit with labeled components and directional arrows indicating assembly or movement.

Paso 11

Technical line drawing of a portable electric grill with labeled components and directional arrows indicating parts 2 and 3.

Paso 13

Núm. Dibujo Ctd.
52

Technical line drawing of a portable electric grill with labeled components and directional arrows indicating down or up motion.

Paso 14

Line drawing of a portable electric grill with open lid and wheels, no text or symbols present

Paso 15

Technical line drawing of a mechanical device with wheels and a tray, no text or symbols present

Uso

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid rectangle below (no text or labels)

Berlin Brands Group UK Limited

272 Kensington High Street

Londres, W8 6ND

Reino Unido
