Thank you for purchasing a Concept product. We wish you much joy with your new appliance every day you use it. Please read the instruction manual carefully before initial use. To refer to this manual any time you need to, we recommend you to keep it in a safe place. And please pass it to any future owner of the appliance.

Technical specifications
Input 30 W
Battery voltage 14.4 V
Charger voltage	AC 220-240 V - 50/60 Hz
	DC 19 V
Sound level 56-68 dB
Battery 2600 mAh, Li-Ion
Operation time 120 minutes
Full charge time 4-5 hours
Frequency range 2.4-2.4835 GHz
Transmitter power (max.) 18 dBm

IMPORTANT

Before connecting to the mains, make a visual check to ensure that the unit is intact and that no damage occurred during transport.

IMPORTANT SAFETY PRECAUTIONS

• Do not use the appliance in any other way than as described in this manual.
• Remove all the covering and marketing materials from the appliance before the first use.
• Remove all items from the floor from the floor that could disrupt the effective a trouble-free cleaning (cables, papers, clothes, table cloths and curtains touching the ground).
• If there are stairs in the cleaning area, place a magnetic strip (virtual wall) at a minimum distance of 15 cm from the top edge. This distance should ensure the highest protection against falling from the stairs.
• Use only original accessories and spare parts for this model.
• Do not sit on the vacuum robot or place other objects on it.
• The appliance should only be used in households at temperatures between 0 °C and 40 °C.
• Make sure that the dust container and mopping cloth are properly attached before use.
• Do not put your hair, clothes, fingers or other body parts near the main brush. Keep the main brush and the suction part of the vacuum robot clean, remove all hair and dust that can lower the suction properties of the vacuum robot and the cleaning quality.
• Do not use the appliance on wet or damp floors.
• Do not vacuum liquids, burning cigarettes, splinters and sharp objects, matches and other

VR2020

EN

concept

concept

EN

flammable substances, larger pieces of paper, plastic bags or other items that can damage the vacuum robot.

• Do not allow the vacuum robot to pass over loose cables when vacuuming.
• When servicing and cleaning the appliance, turn the power switch to the OFF position.
• Direct sunlight may cause a reduced sensitivity of the infra-red sensors of the vacuum robot, please avoid direct sunlight.
• A carpet must be secured so that the robot does not enter on it during cleaning. If a mopping cloth with a water tank is installed on the vacuum robot, cleaning can be interrupted or unwanted soaking of the carpet can occur.
• Do not place the appliance in a place where it could easily fall on the floor (table, chairs).
• Before charging the appliance, make sure the charging station is properly connected.
• Extreme thermal conditions or inappropriate use may result in leakage of the battery. If the fluid gets on your skin, wash immediately under running water. In case of contact with eyes, rinse immediately under running water for at least 10 minutes. Get medical help.
• In case you want to dispose of the product, first disconnect the battery from the appliance.
• If the appliance is being transported or it is not used for a long time, switch it to the OFF position. This extends the battery life.
• Make sure the mains voltage corresponds to the values on the rating plate of the product. Do not connect the appliance to the distribution sockets and extension leads.
• When disconnecting the appliance from the wall outlet, never pull the power cord, grasp the plug end and disconnect it by removing it from the receptacle.
• Do not use the appliance as a toy.
• Do not use coarse and chemically aggressive substances to clean the appliance.
  • The appliance is only suitable for home use and is not intended for commercial use.
• Do not immerse the power cord, plug or appliance in water or any other liquid.
• Do not repair the appliance yourself. Please contact an authorized service centre to prevent injury from improper handling.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Cleaning and maintenance performed by the user must not be carried out by children unless they are 8 years old and under supervision. Children aged under 8 years of age must be kept away from the appliance and its power cord. Do not let children play with the appliance.
• Children aged under 3 years of age must be prevented from accessing the appliance unless they are permanently supervised.
  • The manufacturer and importer to the European Union has no liability for damage caused by the

operation of the appliance, i.e. wounds, scalding, fire, injuries, damage to other things, etc.

• If the power cord is damaged, have it replaced by a qualified service centre to avoid a dangerous situation. It is forbidden to use the appliance with a damaged power cord.
• The robotic vacuum cleaner must only be used with the original AC adapter supplied with it. To avoid a dangerous situation, never use any other type of adapter.

Damages from failure to follow the manufacturer's instructions are not covered by the warranty.

Carefully check that you have unpacked all the accessories that are supplied. During the warranty period, we recommend to keep the original paper box, user manual and the packaging material

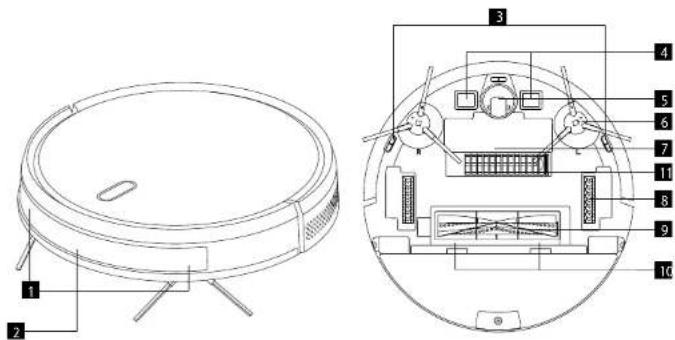

PRODUCT DESCRIPTION

1 Anti-collision sensor
2 Infra-red charging sensor
3 Cliff senso
4 Charging contact
5 Universal wheel
6 Side brush

7 Battery cover
8 Drive wheel
9 The main brush
10 Main brush cover latch
11 UV lamp

Technical diagram of a robotic vacuum cleaner with numbered parts and internal components

EN

concept

concept

EN

1 Filter strainer cover
2 Dust container button
3 Wall sensor

Diagram of a robotic vacuum cleaner with labeled parts 1, 2, and 3

Docking station

1 Power indicator light
2 Signal transmission area
3 Base charging contacts
4 Catch groove
5 Cover plate
6 Cable passage
7 AC adapter socket
8 Winding pin

Technical diagram of mechanical components with numbered parts for identification

List of parts

1 Docking station 1x
2 Remote control 1x
3 Wiping cloth 2x
4 HEPA filter + foam filter 1x
5 Magnetic strip 1x
6 Adapter 1x

7 Cleaning brush 1x
8 Left and right brush 2x
9 Middle rotary "V" brush
10 Hanging water tank 1x
11 Main brush cover with steel wire 1x

KEY FEATURES

Cleaning/ON/OFF

• Press briefly to start or pause cleaning.
• Press and hold for 3 seconds to switch the appliance on or off.
• Long press for 15 seconds to force the appliance to shut down under unusual circumstances.

Charging / Local cleaning

• Press briefly to start or pause charging.
• Long press to start local cleaning.

Indicator light

• Turquoise: Normal operation or charging.
• Red: Abnormal condition or low battery.
• Light blue: The appliance is not connected to the network.

Wi-Fi reset

- Press both buttons simultaneously for 3 seconds.

INSTALLATION

1. Connect the power cord and store the excess cable length in the cable compartment.
2. Place the docking station against the wall and connect the power

Note:

• Provide a space of min. 0.5 m on both sides of the docking station and min. 1.5 m in front of the station.
• If the power cord is stretched vertically to the ground, the appliance may pull it out and the docking station may be switched off.

• In normal condition, the charging indicator light is on when switched on, and off when charged.

• Do not move the docking station or expose it to direct sunlight.

Note: Direct sunlight will interfere with the docking station signal and the appliance may not return to the docking station properly.

4. Installing the side brush

Make sure the left side brush (L) and right side brush (R) markings correspond to the L and R markings on the bottom cover. Push the side brushes L and R until you hear a "click" sound.
5. Putting the appliance into operation and charging To switch the robot on, press and hold the button ⏻ If the power indicator light is normally on, charge the robot in the docking station.

Note: If the appliance does not start due to a low battery, charge it in the docking station and it will start automatically. Normally, the appliance can only operate when the battery level is ≥20% .

1. Connecting a mobile app (you can skip this step) Read the instructions for connecting Wi-Fi and connect the mobile app.

7. Start of cleaning

After switching on the robot, briefly press the button ⏻ on the robot or start cleaning using the mobile app (you can pause the appliance by pressing any button during use).

Note:

• The sweeping robot cannot be used to remove fluids.
- If the battery charge level is less than 20 %, the appliance cannot operate. In this case, recharge it.
- If the battery charge level is less than 20 %, the appliance automatically returns to the docking station.
- Before use, remove various wires (including the docking station power cord) from the floor to prevent outages and damage to objects or wires when the appliance catches these wires.

8. Installing the wiping module

a) Installing the wiping cloth: glue the wiping cloth straight to the bottom of the water tank.

Note: Clean the wiping cloth after use to keep it in good condition.

b) Fill the water tank: open the cover and fill the tank with water.

c) Install the module:

Push the module horizontally along the back of the robot. The module is installed in place when you hear a "click" sound.

9. Removing the wiping module

Once the robot has completed its work, press the latches on both sides, remove the wiping module backwards, empty the water from the water tank and clean the cloth (do not move or flip the robot during cleaning).

10. Instructions for using the wiping module

• Do not use the wiping module unless supervised.
• For safety, make sure the wiping module is removed when charging or when not in use.
• Do not attempt to wipe the carpet.
• For a better wiping effect, the wiping module should be used after sweeping or vacuuming the floor three times.
  • To refill water or clean the cloth while the appliance is operating, pause it, remove and reinsert the wiping module as described in steps 8 and 9. Do not move or flip the appliance to avoid positioning errors and map loss.
• The wiping function of the appliance is designed for wiping and aids deep cleaning. However, it cannot effectively remove stubborn dirt and thus replace human power.

USE

ON/OFF

Press and hold the button ☐ or 3 seconds, the indicator light comes on and the appliance starts.

Press and hold the button C for 3 seconds while the appliance is in standby mode, the indicator light goes out and the appliance switches off.

NOTE: The appliance cannot be switched off while it is being charged.

CLEANING/PAUSE

After starting the appliance, briefly press the button on the appliance or start the appliance using the mobile app (press any button to pause the appliance).

Note:

• The robotic vacuum cleaner cannot be used to remove fluids.
• If the battery charge level is less than 20 %, the appliance cannot operate. In this case, recharge it.
• If the battery charge level is less than 20 %, the appliance automatically returns to the docking station.
• Before use, remove various wires (including the docking station power cord) from the floor to prevent outages and damage to objects or wires when the

robot catches these wires.

CHARGING

Automatic mode: The appliance automatically returns to the clocking station after work.

Manual mode: When paused, press the button briefly to start charging or you can use your mobile app to charge the appliance. The indicator light flashes when the appliance is fully charged.

Note: If the appliance does not find the docking station, it will automatically return to its original position. In this case, place the device manually into the docking station.

MAGNETIC STRIP

Magnetic strips can be set to separate areas that should not be cleaned (for example, bathrooms, kitchens, etc.). Note: attach the magnetic strip to the floor so that it cannot move. Otherwise, it will affect its effectiveness.

CLEANING MODE

Upon start-up, the appliance will move according to the cleaning program in curves to clean up the entire floor area and complete the cleaning of all rooms one by one in a regular, efficient manner with full coverage. When cleaning is complete, the appliance returns to the docking station and recharges automatically.

LOCAL CLEANING

By pressing and holding the button for 3 seconds, the robot is localized, cleans a circular area of 1.5 m diameter, and automatically stops when cleaning is complete.

CLEANING PLANNING

You can set a fixed cleaning time using the mobile app. The appliance will automatically start cleaning at the specified time and will return to the docking station when completed.

WI-FI RESET

If the mobile phone cannot connect to the appliance due to a change in router and password configuration or other reasons, press the button and the button for 3 seconds at the same time until you hear the "Wi-Fi has been reset" voice prompt and until the indicator light turns on light blue and flashes slowly.

SILENT MODE

You can turn robot voice messages on or off using the mobile app.

SETTING THE SUCTION POWER

You can set the suction power to a quiet, standard or high level using the mobile app.

When the carpet is detected, the suction force automatically increases to the highest level.

UV LAMP AND STERILIZATION

You can turn the UV lamp on/off using the app or the

remote control. For safety reasons, do not turn it on with the wiping module attached.

The UV lamp can be turned on during complete cleaning, peripheral cleaning or local TURBO cleaning.

Note:

- The UV lamp cannot be used during charging, standby mode, low battery capacity, pause, etc.

SCENTED TABLET

On the bottom side of the HEPA filter cover on the dust container, there is the chamber for the scented tablet. Put the scented tablet into the chamber and press the lock to close it.

3D rendering of a mechanical device with a screen and handle (no visible text or symbols)

USING THE REMOTE CONTROL

1. Cleaning planning
2. Moving forward
3. Turning left
4. UVC light
5. Start/pause charging
6. Timer
7. Automatic cleaning/pause
8. Turning right
9. Peripheral cleaning
10. Setting suction power

Note: To ensure that all the correct settings are effective, you must point the remote control at the front of the robotic vacuum cleaner from close proximity.

88:88 U/DCM 1 2 3 4 5 U/DC 6 7 8 9 10

Time setting

1. Press the button ⚙ the remote control to enter the time setting, the Sunday symbol flashes on the LCD.
2. Press the left and right buttons to select the day of the week and press the button confirm it, then the LCD will automatically switch to the clock setting.
3. Press the up and down buttons to set the hour and press the left and right buttons to move to the minute setting.
4. After setting the current time, point the remote control at the front of the robotic vacuum cleaner and press the button confirm all time settings. Failure to do so will invalidate your settings.
5. This completes the time setting for both the remote control and the robotic vacuum cleaner.

Cleaning plan

1. Press the button 📋 the remote control to enter the plan setting function, the Sunday symbol flashes on the LCD.
2. Press the left and right buttons to select the day of the week and press the button 📄 confirm it, then the LCD will automatically switch to the clock setting.
3. Press the up and down buttons to set the hour and press the left and right buttons to move to the minute setting. Then point the remote control at the front of the robot vacuum cleaner and press the button to confirm this plan setting for the robotic vacuum cleaner.
4. When one plan setting is completed, the remote control automatically moves to the next plan setting. If you do not want to continue with the setting, press the exit button 📊 wait 10 seconds for the setting

EN

concept

concept

EN

to finish automatically.

1. This completes the time setting for both the remote control and the robotic vacuum cleaner.

Cancelling the cleaning plan

1. Press the button 📂 on the remote control, the Sunday symbol flashes on the LCD and the symbols for the days of the week you have planned appear.
2. Press the left and right buttons to select the day of the week you have planned, and press and hold the button for 3 seconds to cancel the plan. You can also select the next planned day you want to cancel, or press the exit button wait 10 seconds for the setting to finish automatically.

DAILY MAINTENANCE

Main brush (clean regularly)

1. Turn the appliance over and press the latch on the main brush cover to pull it out.
2. Remove dust from inside and from inside the main brush with a small brush and clean the main brush.
3. Reassemble the main brush and press firmly on the cover until the latch clicks into place.

Latch The main brush

Side brush (clean regularly)

1. Turn the appliance over and pull the side brush up.
2. Remove hair and dirt and refit the side brush.
3. Make sure the left side brush (L) and right side brush (R) correspond to the L and R symbols on the bottom cover. Push the L and R side brushes to reinstall them. Note: Replace the side brushes every 3 to 6 months to ensure their cleaning effect.

R - right side brush L - left side brush

Dust container and filter grid (clean regularly)

1. Press the button and pull the dust container backwards.
2. Open and clean the dust container.

Cleaning the filter grid (clean regularly)

1. After prolonged use, remove the filter grid, foam filter and HEPA filter.
2. Clean the removed filter grid. Rinse the foam filter and HEPA filter under water.
3. Wipe the individual parts and let them dry freely.
4. After drying, gradually install them in the correct order: grid - foam filter - HEPA filter.

Filter grid (coarse filter) Button Filter cover Foam filter HEPA filter

Note:

• Rinse the filter grid with clean water and do not add any detergent.
• Do not clean the filter grid with a brush or fingers.
• Allow the filter grid to air dry for at least 24 hours.
• Replace the filter grid every 3 to 6 months.

Wiping module (clean after each use)

1. Remove the cloth, empty the water tank.
2. Clean the cloth, dry both the water tank and the cloth.

Sensors (clean regularly)

Clean the sensors with a soft cloth as follows:

1. Clean the sensors along the wall to the right.
2. Three cliff sensors at the bottom of the appliance.
3. Infra-red anti-collision sensor in front of the appliance.
4. Protection against electric shock and docking station contacts at the bottom of the appliances (turn off the appliance during cleaning).
5. Docking station signal transmission area.

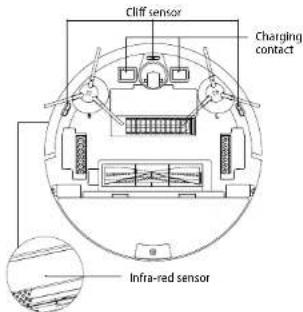

Cliff sensor Charging contact Infra-red sensor

Sensors (clean every month)

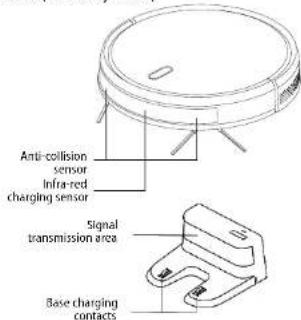

Anti-collision sensor Infra-red charging sensor Signal transmission area Base charging contacts

Battery

• The appliance is equipped with high-performance lithium-ion batteries. To maintain battery performance, keep the appliance charged every day.
- If the appliance is not used for a long time, turn it off and store it properly. Charge it at least every 3 months to prevent damage to the batteries due to excessive discharge.

Firmware update

Use the mobile app to update the firmware. If new firmware is detected, update as prompted. When updating the firmware, the battery level should be ≥50% , so the appliance should be placed in the docking station.

COMMON PROBLEMS

Problem Remedy
The robot cannot be started	• If the battery is low, place the robot in the docking station and align it with the board contacts, the appliance will start automatically (if the robot is completely off, it can start automatically after a while).• Do not use the appliance if the ambient temperature is below 0 °C or above 50 °C. Use at 0-40 °C.
The robot cannot be charged	• Move the robot off the station, make sure the docking station indicator light turns on, and make sure both ends of the docking station power adapter are properly connected.• In case of poor contact, clean the docking station contact points and charging contacts on the robot or turn the side brush to the side.
The robot cannot be recharged	The robot is too far from the docking station, place it near the docking station and try again.

EN

concept

concept

EN

Abnormal behaviour Turn off the robot and restart it.
Unusual noise is heard during use	The main brush, side brush or wheel may be wrapped with foreign objects, turn off the robot and remove foreign objects.
Cleaning ability is reduced or dust is dropping from the appliance	The dust container is full. Clean It.The filter grid is clogged. Clean or replace.The main brush is wrapped with foreign objects, clean it.
Wi-Fi cannot be connected	The Wi-Fi signal is bad. Check that the correct Wi-Fi coverage is available.Wi-Fi is connected in an unusual way. Reset Wi-Fi, download the latest app, and try connecting again.The password is entered incorrectly.There is a router for the 5G frequency band, the robotic vacuum cleaner is equipped only for the 2.4G frequency band.
The planned cleaning did not take place	If the battery level is low, planned cleaning can only be started if the battery level is at least 30%.
Does the robot consume power when it is always placed in the docking station?	The robot consumes a small amount of power when it is permanently placed in the docking station, allowing the best battery performance.
Do I need to charge the robot three times for 16 hours the first time?	The lithium battery can be used immediately after charging and has no memory effect.

TROUBLE SHOOTING

Voice message Remedy
Error 1: Oh dear! I cannot find the dust collector Cleaning	was started after removing the dust container.
Error 2: Please check if the radar on top has been covered or blocked	The top sensor is covered or placed in an open area (there is no obstruction in the 6 × 6 m^2 area).
Error 3: Please place me in a new location and try again Pick up the robot or lift it into the air.
Error 4: Please scrub the cliff sensor, and restart me from a new location	The cliff sensor is covered or placed at a height.
Error 5: Please scrub the front sensor, and restart me from a new location	The infra-red anti-collision sensor is dirty or covered.
Error 6: Please scrub the right-hand sensor, and restart me from a new location	The wall sensor is dirty or covered.
Error 7: Please scrub the radar housing on top, and restart me from a new location	The anti-collision radar sensor is dirty or covered.
Error 8: Please check if the bumper has been blocked in some way	The edge sensor or anti-collision sensor is stuck.
Error 9: Master, please clean the dust container and filter	The dust container is full or the filter grid needs to be replaced.

Error 10: Dust container has been removed, please clean the container and filter	After error 9 has been signalled, the user has removed the dust container and this triggers error 10.
Error 11: I'm stuck, please help me! The robot is stuck somewhere.
Error 12: Please place me correctly! The robot is tilted.
Error 13: Please check if my wheels have become blocked somewhere	The drive wheel is stuck or tangled.
Error 14: Please check if the main brush has become stuck	The main brush is tangled or stuck.
Error 15: Please check if the side brushes have become stuck	The side brush is tangled or stuck.
Error 16: What's going on? Where is the docking station?	Docking station not found or not connected.
Error 17: Oh dear! Program error, please restart me	Abnormal condition due to unknown failure, restart the robot.
Error 18: Error encountered initiating shutdown	The robot alerts the user and automatically shuts down or recharges.
Error 19: Low battery, please recharge	When the battery charge level is too low, the robot is not in the docking station and cleaning starts (the battery charge level is less than 10 %).
Error 20: To shut me down, please place me away from the docking station	The robot was turned off while charging at the docking station.

WIRELESS CONNECTION AND COMPATIBILITY

• Jindrich Valenta - CONCEPT shall in no way be liable for any incidental, indirect or consequential damages, or for any loss of data or loss due to information leakage during communication via wireless technology.
• Successful wireless communication cannot be 100% guaranteed on all Smart devices and Wi-Fi networks (routers). Due to the variety of devices on the market, there may be cases where the character or specification of a given Smart device or Wi-Fi network (router) makes connection impossible or is somehow disturbed. In addition, a number of factors, including hardware and software configuration, also affect the success of wireless communication via Wi-Fi network. The connection between the robot and your Wi-Fi network can also be adversely affected by the surrounding Wi-Fi networks, which can be tuned to the same channel and thus interfere with the connection (e.g., in housing estates, apartment buildings, etc.). These facts are not a reason to claim the appliance.
• The application is owned and operated by a third party (the "Entity") different from Jindrich Valenta - CONCEPT (the "Seller"). No personal data is transferred to the Entity by the Seller. When registering for the application, the customer submits personal data directly to the Entity, who becomes the administrator of personal data. The application and the associated protection of personal data are governed by the Entity's rules.

Compatibility:

Smart device operating system - Android 5.0 and higher

- IOS 9.0 and higher

Wi-Fi network

-2.4GHz

-WPA1 and WPA2 security (WPA2 recommended)

NOTICE: The appliance cannot be operated on IEEE 802.1X-protected Wi-Fi networks (usually corporate Wi-Fi networks).

EN

concept

concept

EN

Before you can control the device through the application, it is necessary to connect it to your phone and give it access to your Wi-Fi network.

Router 1

Recommended distance during set-up: less than 4 meters

Make sure your robotic vacuum cleaner, router, and your mobile phone are close together so that you can pair your phone with the device with no problems.

Download and installation of the app

1. Scan the QR code below (Fig. 1) or find and download the "Concept Home" application on Google Play or App Store (Fig. 2).
2. If you already have Concept Home, open the app, sign in, and continue with the pairing instructions.
3. If you are a new user, start by registering (Fig. 3). Follow the instructions to enter the verification code and complete the registration (Fig. 4).
4. Follow the instructions to create a family (Fig. 5).

Fig. 1

Instructions for pairing the device

1. At the beginning of pairing, you need to be connected to your Wi-Fi network.
2. Make sure that the appliance is in standby mode before starting the connection. Press both buttons (Fig. 6) at the same time for at least 3 seconds until the robot starts flashing and you hear the "Wi-Fi lost, please follow the App instruction for reconnection" voice message. Make sure your phone is connected to the same Wi-Fi network you want

to connect the robot to.

1. Then press + or "Add device" (Fig. 7) in the application to add a new device.
2. Confirm "Confirm indicator rapidly blink" (Fig. 8).
3. Select your Wi-Fi network to which the device needs to connect to and enter your password (Fig. 9).
4. This will start the set-up process, which may take some time (Fig. 10).
5. Your phone will try to connect to the device and it will connect it to your Wi-Fi network.
6. After successful set-up (Fig. 11), press "Completed" to enter the device control interface (Fig. 12).

Pairing troubleshooting

• Verify that your Wi-Fi network password is correct.
  • The device only supports 2.4 GHz Wi-Fi networks.
  • The router is overloaded as many other devices are connected.
• When attempting to connect to the device (Fig. 10), try to manually connect to its WI-Fi network.

App modes

You can choose between the AUTO (Automatic/ZIGZAG), Local (Circular), Peripheral (EDGE) and DOCK (search for the docking station).

VR2020VR2020

EN

concept

concept

DE

SERVICE

Extensive maintenance or repair, which requires access to internal parts of the product, has to be performed by a qualified specialist or the service centre.

ENVIRONMENTAL CONCERNS

• Packaging materials and old appliances should be recycled.
• Packaging materials may be disposed of as sorted waste.
• Dispose the plastic bags made of polyethylene (PE) of as sorted waste.

Recycling of the appliance at the end of its lifespan:

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (Waste Electrical and Electronic Equipment - WEEE). The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead, it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The disposal of such material has to be done according to the recycling regulations. For more detailed information about recycling of this appliance see the authorized local office or service for household waste disposal or the shop, where you purchased the appliance.

The product meets all the necessary requirements of the EU directives applicable to the specific product.

Changes in text, design, and technical specifications are subject to change without prior notice and we reserve the right to change them.

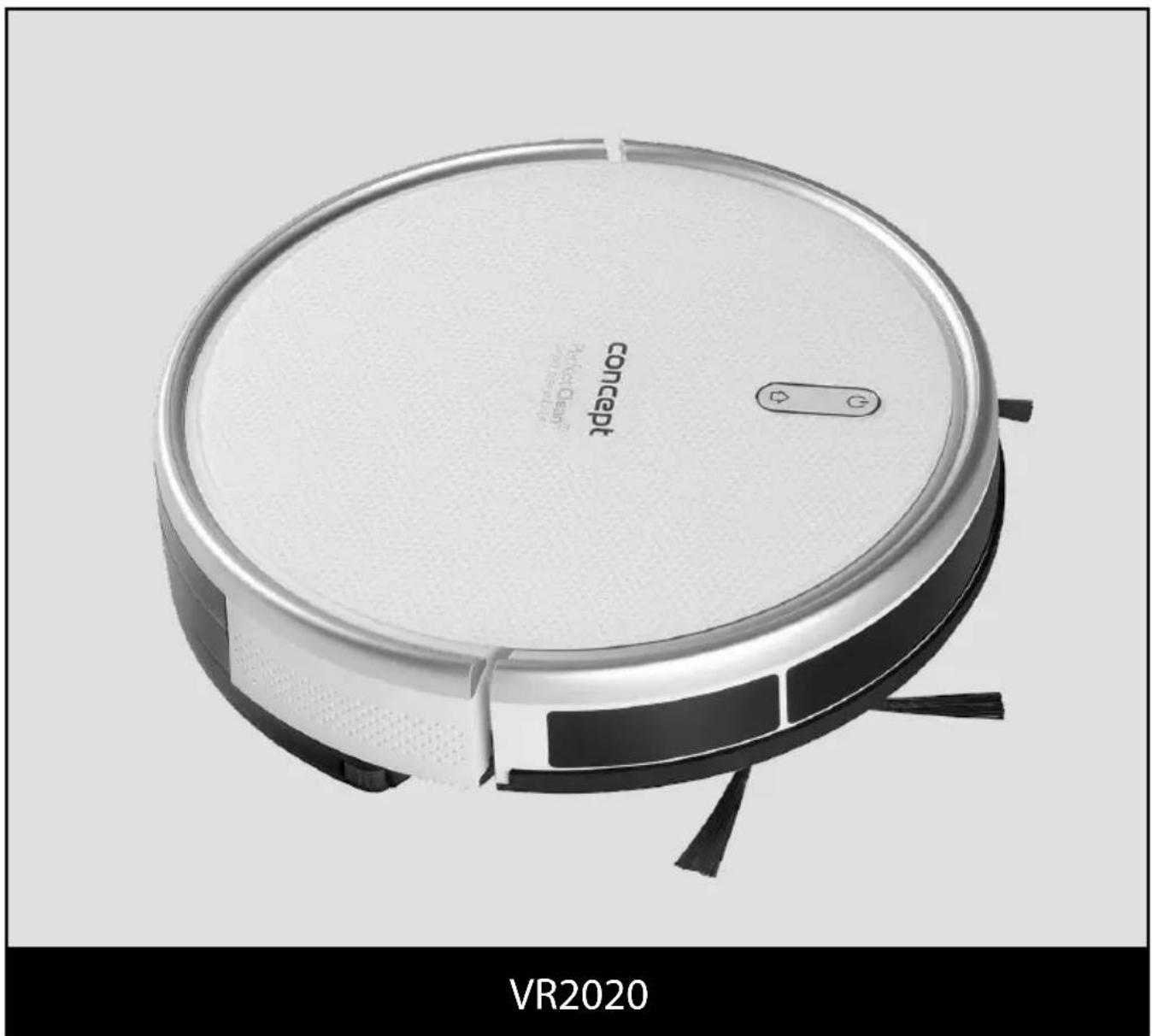

VR2020

DANKSAGUNG

Line drawing of a circular vacuum cleaner with labeled parts (no text or symbols present)

3 4 5 6 7 8 9 10

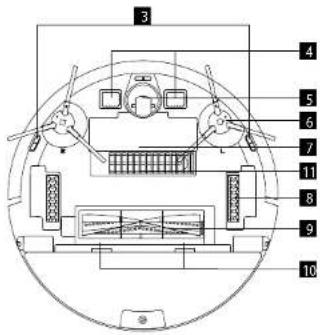

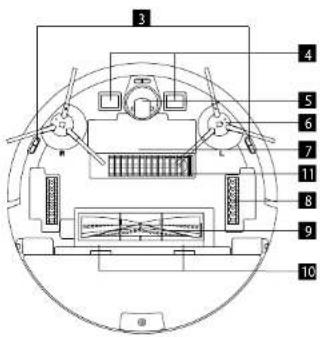

Diagram showing three labeled components of a robotic vacuum cleaner, with arrows indicating motion direction.

Technical diagram of a mechanical component with numbered parts for identification

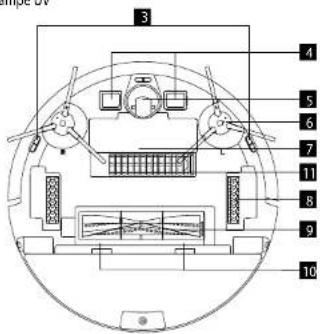

Komponentenliste

Illustration of a handheld device with a screen and handle (no text or symbols visible)

Line drawing of a circular robotic vacuum cleaner with labeled parts (1 and 2), no text or symbols present.

3 4 5 6 7 8 9 10

FR

concept

concept

FR

Diagram of a robotic vacuum cleaner with labeled parts 1, 2, and 3

Bloc d'alimentation

Technical diagram of a mechanical component with numbered parts for identification

Liste de composants

Illustration of a handheld device with a screen and handle, no visible text or symbols

UTILISATION DE LA TÉLÉCOMMANDE

Line drawing of a circular robotic vacuum cleaner with labeled parts (1 and 2), no text or symbols present.

3 4 5 6 7 8 9 10

Diagram showing a robotic vacuum cleaner with labeled parts and directional arrow indicating motion

Technical diagram of a mechanical component with numbered parts for identification

Lista delle parti

Diagram showing 12 labeled mechanical or electrical components with numbered labels from 1 to 11.

FUNZIONI CHIAVE

PULIZIA/SOSPENSIONE TEMPORANEA

Illustration of a handheld device with a screen and handle, no visible text or symbols

IT

concept

concept

IT

UTILIZZO DEL TELECOMANDO

Technical diagram of a robotic vacuum cleaner with numbered components and exploded view

ES

concept

concept

ES

Diagram showing three labeled components of a robotic vacuum cleaner, with arrows indicating motion direction.

Estación base

Technical diagram of a mechanical component with numbered parts for identification

Lista de componentes

Illustration of a handheld device with a screen and handle, no visible text or symbols

USO DEL CONTROL REMOTO

Pestillo Cepillo principal

Cepillo lateral (limpieza regular)

Technical diagram of a circular device with numbered components and internal layout, including labeled parts 1 through 10.

RO

concept

concept

RO

Diagram of a robotic vacuum cleaner with labeled parts 1, 2, and 3

Statia de andocare

Technical diagram of a mechanical component with numbered parts for identification

Listă de componente

Illustration of a mechanical device with a screen and lever (no text or symbols visible)

FOLOSIREA TELECOMENZII

Router 100% 50% 30% 20% 10% 5% 0% 0% 0% 0% 0% 0% 0% 0% 0% 0% 0% 0% 0% 0% 0% 0% 0% 0% 0% 0% 0% 0% 0% 0% 0% 0% 0% 0% 0% 0% 0% 0% 0% 0.5mV 1.5mV 2.5mV 3.5mV 4.5mV 5.5mV 6.5mV 7.5mV 8.5mV 9.5mV 10.5mV 11.5mV 12.5mV 13.5mV 14.5mV 15.5mV 16.5mV 17.5mV 18.5mV 19.5mV 20.5mV 21.5mV 22.5mV 23.5mV 24.5mV 25.5mV 26.5mV 27.5mV 28.5mV 29.5mV 30.5mV 31.5mV 32.5mV 33.5mV 34.5mV 35.5mV 36.5mV 37.5mV 38.5mV 39.5mV 40.5mV 41.5mV 42.5mV 43.5mV 44.5mV 45.5mV 46.5mV 47.5mV 48.5mV 49.5mV 50.5mV

CONCEPT POLSKA sp. z o.o.

The manufacturer (or importer) is responsible for ensuring the product complies with the requirements of applicable legal regulations as well as those of the relevant technical standards. Moreover, they are responsible for ensuring the product has the properties the manufacturer described in documents related to the goods or those reasonably expected by the customer with regard to the nature of the goods or based on advertising produced by the manufacturer, and further they are responsible for ensuring the product is fit for the purpose proposed by the manufacturer or that a product of the same type is normally used for.

The quality warranty term is 24 months from product takeover by the customer.

The warranty does not apply to wear and tear caused by regular use. The customer shall not be entitled to any warranty claims if, prior to taking the product over, they knew the product contained a defect or if the defect is attributable to the customer.

In terms of these warranty conditions, a defective battery is considered a battery that is electronically inoperative (i.e., does not communicate with the base unit, the charging or discharging circuits are defective, etc.) or has an internal short circuit.

Defects or changes in parameters caused by normal use and wear (e.g. natural capacity decrease) are in no way considered a defect in terms of warranty.

The battery is provided warranty service for a period of 6 months. In terms of these warranty conditions, the battery has the nature of a consumable, for more details see „Consumables“.

Consumables

For consumables (batteries, etc.) we guarantee the preservation of technical parameters for 6 months, in case it was not damaged by improper use and its lifetime has not expired.

The warranty specifically does not apply:

• If the product installation, operation and service conditions stipulated in the product operating manual have not been adhered to,
• to malfunctions caused due to mechanical, heat or chemical damage, short circuit, over voltage or incorrect installation,
  • to malfunctions caused by an inexpert third-party intervention,
  • to malfunctions caused by natural disaster,
• to malfunctions caused by insufficient or inappropriate maintenance in violation of the operating manual, including malfunctions caused by water and other sediments.
  • to changes in colour of the heating surface or to scratching of the surface caused as a result of using the products in an unusual manner,
  • to appearance and functional changes caused by exposure to sunlight, thermal radiation of water and other sediments,
• If the service life of certain product parts expires, e.g. for accumulators, bulbs, etc.

The warranty does not apply to any products and services provided along with the product (gifts, promotional articles, etc.).

Filing a complaint

A complaint against a product defect must be filed as soon as identified, yet no later than before the end of the warranty term.

The customer must file a product complaint with the dealer from which they have purchased the product, or with any authorised service centre, a list of which is included in the product package, or available at www.my-concept.com.

While filing a product complaint, the product must be duly cleaned and securely packed so as to prevent any damage during its transport to an authorised service centre, where relevant, unless the product is delivered in person.

The customer must submit proof of having concluded a purchase contract for the product by producing the receipt.

While filing their complaint, the customer must indicate the noted defect and identify the preferred complaint application method.

Complaints processing

As long as the noted defect may be removed, the user has the right to have the defect duly removed free of charge on a timely basis.

If the noted defect is not removable, or if the customer becomes entitled to replacement of the product or a part thereof, yet the replacement is not possible, for example due to the product having been sold out, the customer has the right to return the product (withdrawal from the contract).

The customer shall have the right to a new product (replacement) or to replacement of a part of the product even if the defect can be removed, provided they cannot properly use the product due to repeated occurrence of the defect or due to a high number of such defects. In such a case, the customer also has the right to return the product (by withdrawing from the contract).

If the product is not returned (the customer does not withdraw from the contract), or if the customer does not apply the right to a new defect-free product (replacement), to replacement of a part thereof or to repair of the product, they may request a reasonable discount. The customer also has a right to a reasonable discount if a new defect-free product cannot be supplied to them, or if a product part cannot be replaced or the product repaired unless the situation is remedied within a reasonable time limit, or if remedying the situation would create major discomfort on the part of the customer.

The seller, authorised service centre or a staff member authorised by them must decide about each complaint immediately or within three business days in complicated cases. This term does not include a reasonable period of time, depending on the type of product concerned, required for the defect to be assessed by an expert. A complaint, including defect removal, must be dealt with without any undue delay, yet no later than within 30 calendar days of the complaint filing date, unless the seller and the customer agree on a later deadline.

On returning the product (withdrawing from the contract) the customer must return any accessories and documents supplied along with the product.

The customer does not have the right to keep the defective parts and components of the product replaced as part of a repair of the product.

This shall be without prejudice to any other rights the customer may have in relation to the purchase of the product.

Remark: Complaints against products damaged in transport are governed by the carrier's complaints procedure.

Manufacturer

Jindřich Valenta - Concept

Vysokomytská 1800, 565 01 Chocen

Czech Republic

tel.: [phone]

tax [phone]

Company ID No. 13216660

email: [e-mail]

www: www.my-concept.com

Product data

Model:
Production number:
Date of purchase: Seal and signature of vendor:

concept concept

DE

GARANTIEBEDINGUNGEN

Garantie

CONDITIONS DE GARANTIE

Garantie

CONCEPT POLSKA sp. z o.o.

Ostrowskiego 30, 53-238 Wroclaw Tel.: [phone], Fax: [phone] www.my-concept.pl

ASPICO KFT
