Product Type	Ball Hitch with Mount (Ball Mount)
Brand	Vevor
Model	AL-2.5-DROP8
Material	Aluminum Alloy
Color	Silver
Receiver Size	2.5 in (6.35 cm)
Drop/Rise	8 in (20.32 cm)
Ball Size (Included)	1-7/8 in, 2 in, 2-5/16 in (three sizes)
Max Trailer Gross Weight	8,000 lb (1-7/8 in), 15,000 lb (2 in), 18,500 lb (2-5/16 in)
Approx. Dimensions (L × W × H)	10.5 × 7.56 × 8.66 in (26.7 × 19.2 × 22 cm)
Axle Diameter	0.67 in (1.7 cm)
Safety	Locking pin included, safety chains recommended, anti-theft design with removable ball
Noise Reduction	Built-in rubber rings on interior sides
Maintenance	Check bolts and pins before each use, clean if sand or gravel adheres, replace worn parts immediately
Spare Parts Available	Ball mounts (1-7/8, 2, 2-5/16 in), pins, trailer lock
Repairability	Ball replaceable without special tools (full flip possible to switch from 2 to 2-5/16 in)
General Information	Manufactured by Shanghaimuxinmuyeyouxiangongsi, distributed by Vevor. Support: www.vevor.com/support

Frequently Asked Questions - AL-2.5-DROP8 Vevor

What is the maximum towing capacity of the Vevor AL-2.5-DROP8 hitch?

The capacity depends on the ball used: 8,000 lb (3,629 kg) with the 1-7/8 in ball, 15,000 lb (6,804 kg) with the 2 in ball, and 18,500 lb (8,391 kg) with the 2-5/16 in ball. Never exceed the rating of the lowest-rated component in your towing system.

What ball sizes are included with the AL-2.5-DROP8 model?

Three balls are included: 1-7/8 in, 2 in, and 2-5/16 in. This allows adaptation to different trailers.

How to install the Vevor AL-2.5-DROP8 hitch?

1. Insert the ball mount into the vehicle's receiver. 2. Align the holes, then insert and tighten the bolt by hand. 3. Use the provided tool to tighten firmly. 4. Rotate to align the pin holes and secure with the lock and pin. See the manual for details.

Can I replace the ball mount myself?

Yes, the design allows quick change. To replace the ball mount, loosen the center bolt, remove the old ball, install the new one and retighten. For the 2 and 2-5/16 in balls, you can flip the entire assembly without separate disassembly.

Is this hitch compatible with a 2-inch receiver?

No, the AL-2.5-DROP8 model is designed for a 2.5-inch receiver. For a 2-inch receiver, choose the AL-2-DROP6 or AL-2-DROP8 models.

What is the maximum weight supported by this hitch?

The maximum gross trailer weight (GVWR) is 8,000 lb with the 1-7/8 in ball, 15,000 lb with the 2 in ball, and 18,500 lb with the 2-5/16 in ball. These values are for the hitch alone; the vehicle and other components may have lower limits.

How to maintain the Vevor hitch?

Before each use, check the condition of bolts and pins. Clean any sand or gravel. Immediately replace any worn, cracked, or damaged parts. The rubber rings reduce noise but should be inspected.

Is there a warranty for this product?

Yes, Vevor provides an electronic warranty. You can obtain the warranty certificate and technical support at www.vevor.com/support.

Is the hitch secure against theft?

Yes, the ball mount is removable and can be locked with the provided trailer lock, preventing theft of the ball mount.

Where can I find the complete manual in French?

The complete manual in French is available for free on notice-facile.com. You can also download it in PDF format on the Vevor website. For other languages, a translation can be requested via email.

USER MANUAL AL-2.5-DROP8 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

BALL MOUNT HITCHES

MODEL: AL-2-DROP6"

AL-2-DROP8"

AL-2.5-DROP4"

AL-2.5-DROP8"

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

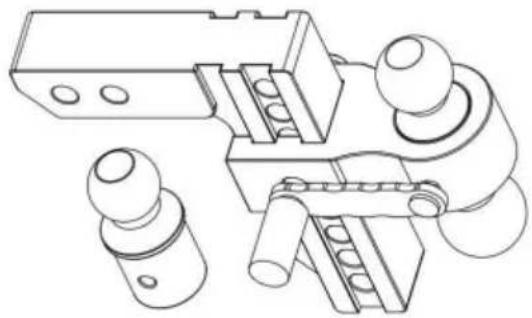

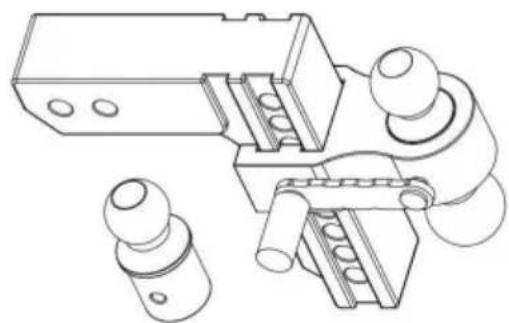

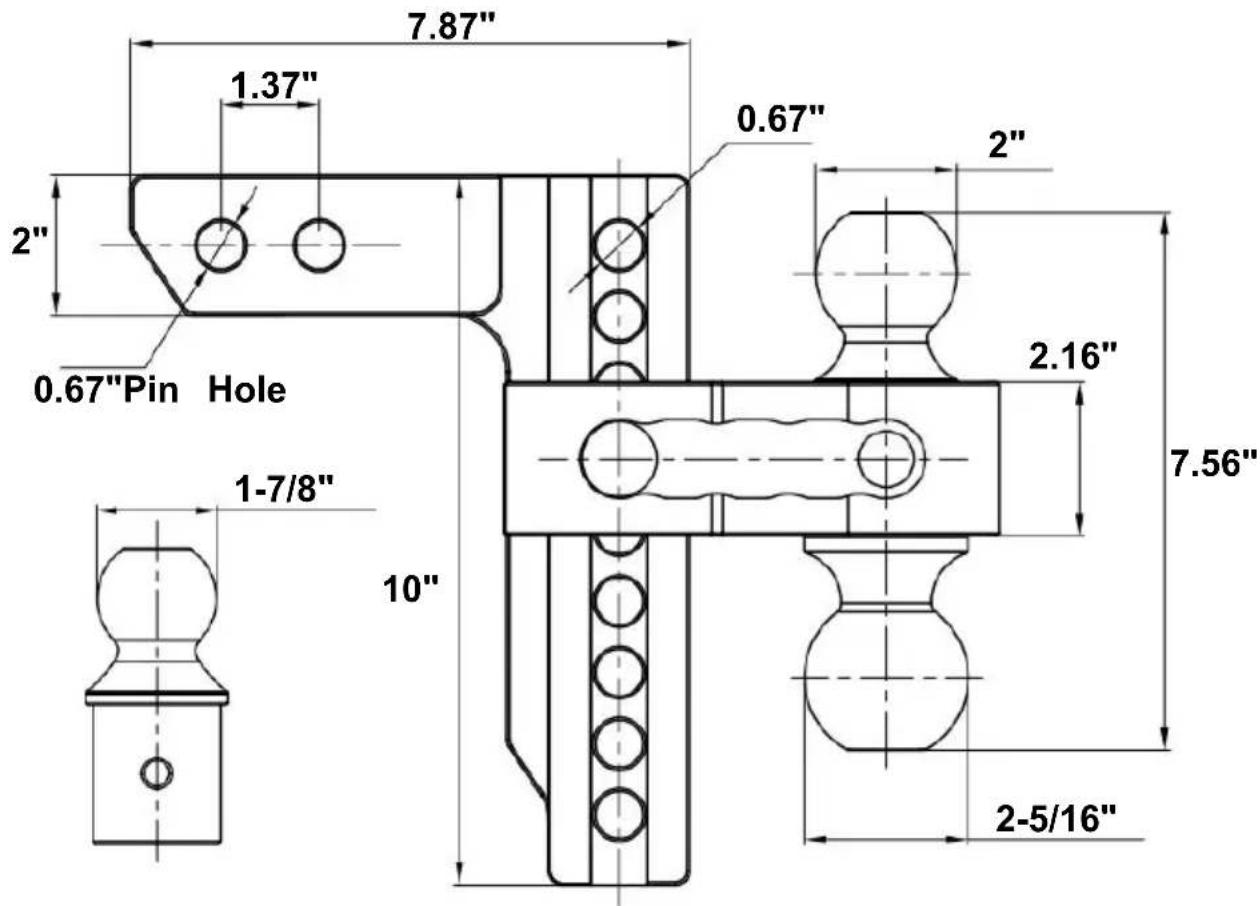

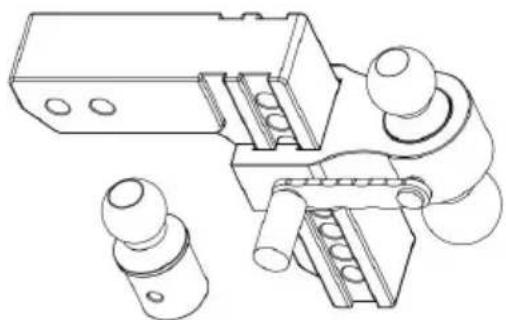

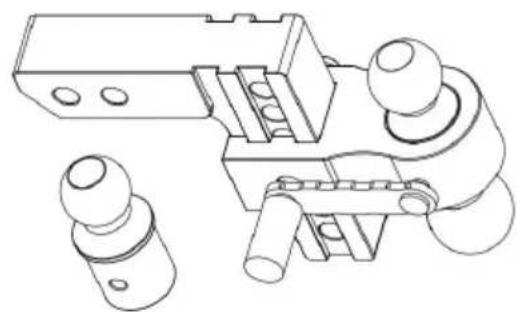

BALL MOUNT HITCHES

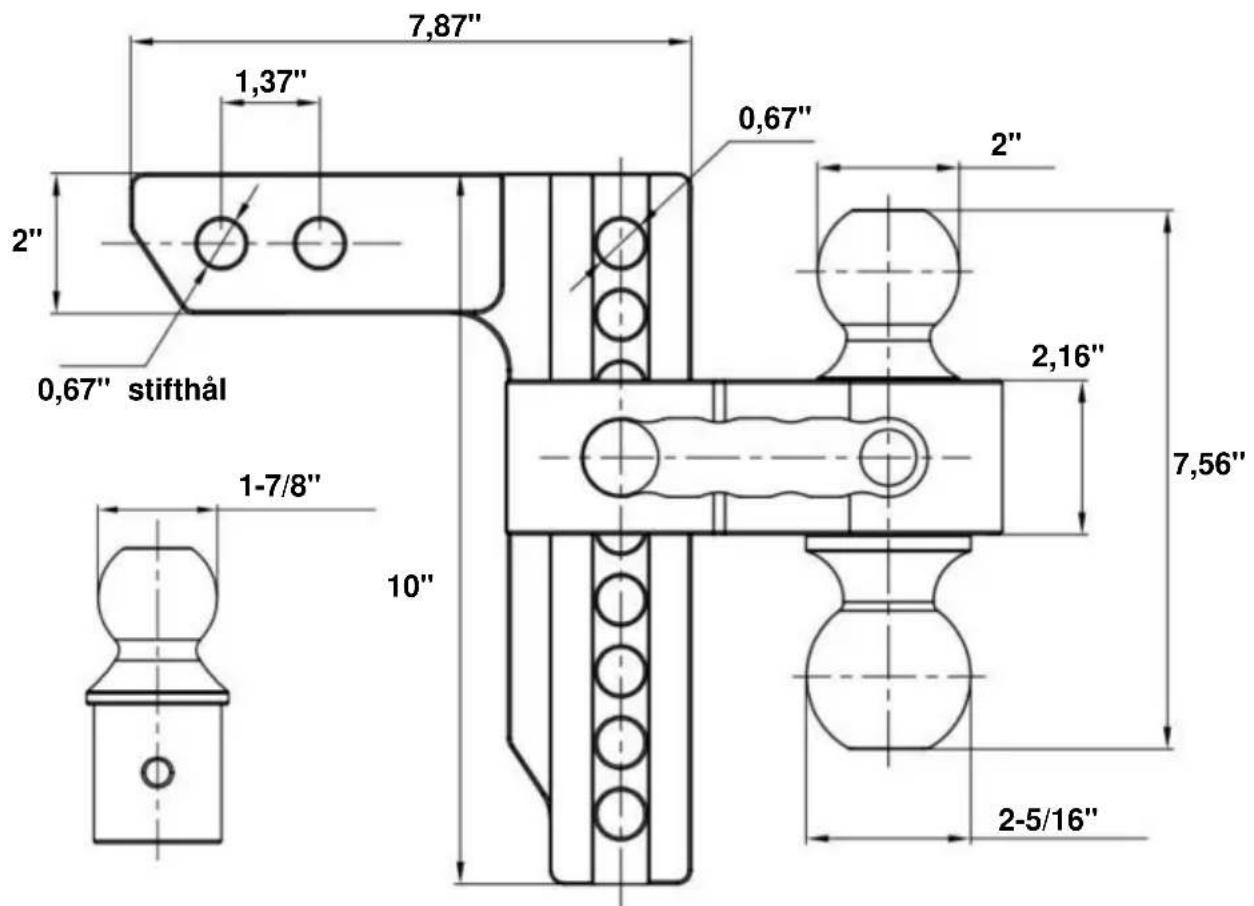

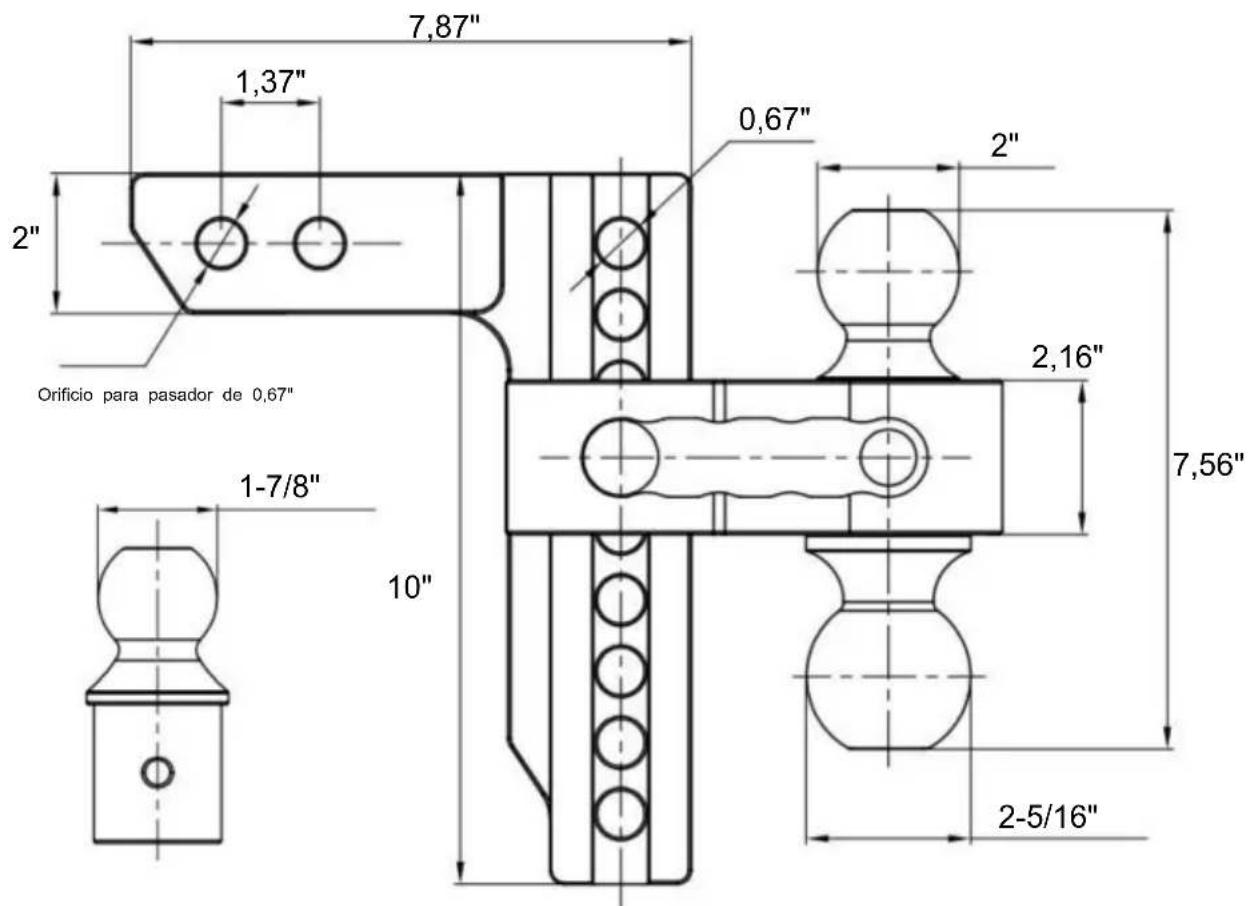

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

AL-2-DROP6"

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

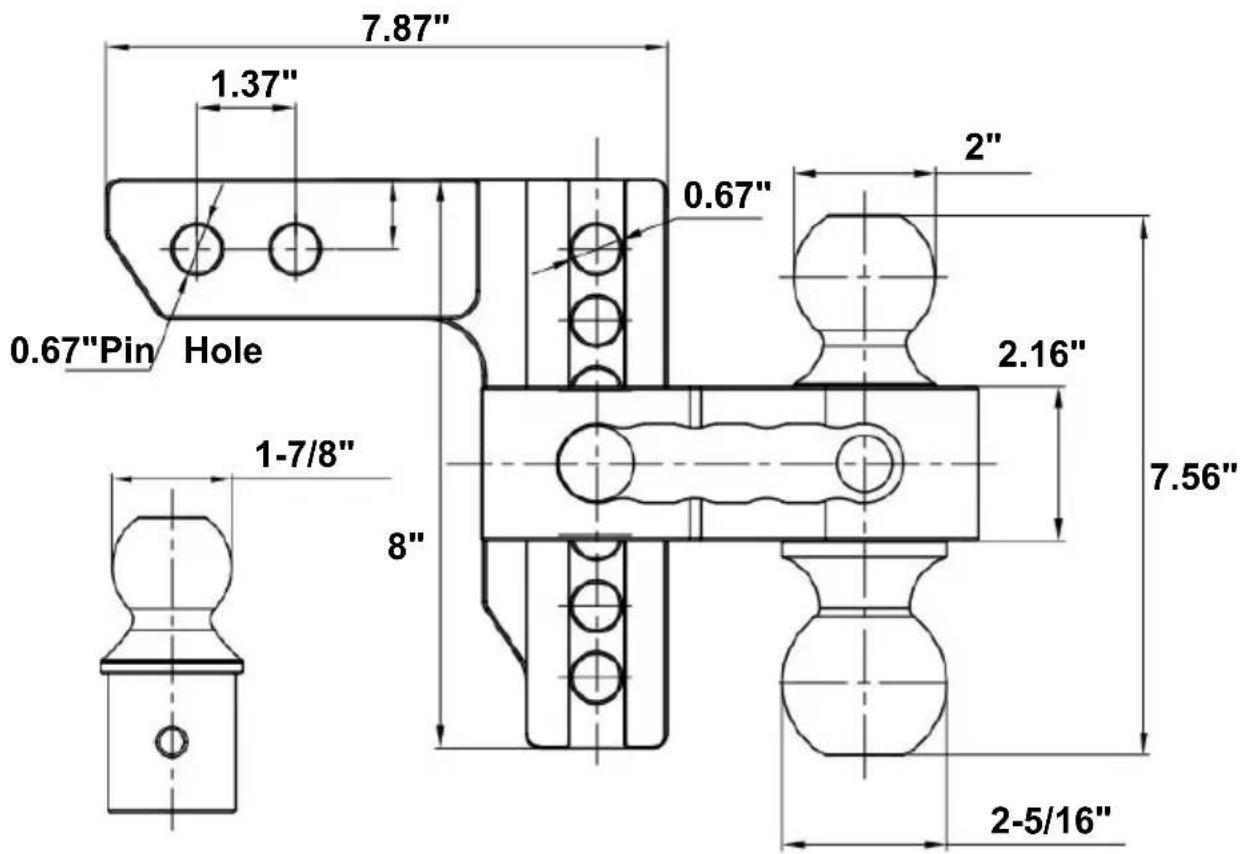

AL-2-DROP8"

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

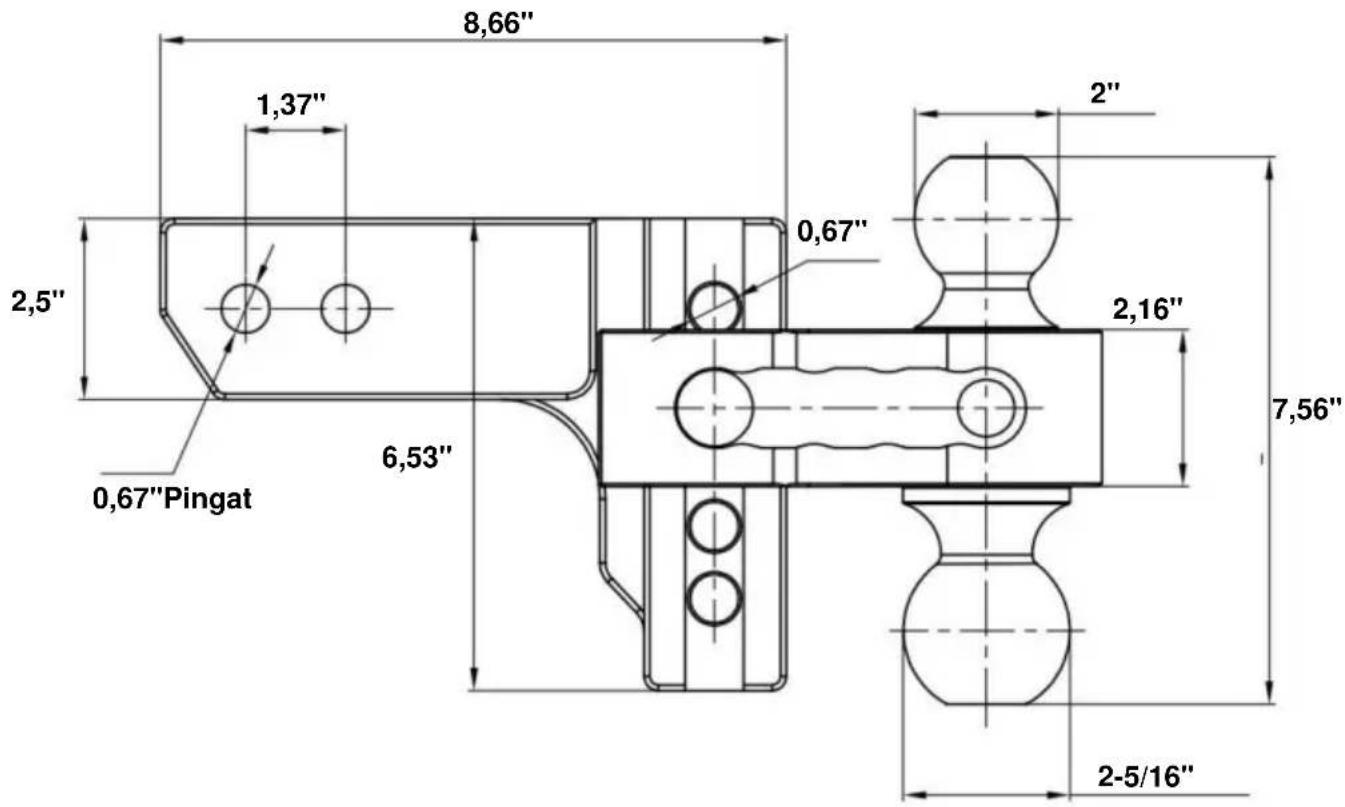

AL-2.5-DROP4"

Technical line drawing of mechanical components including a bracket, clamping mechanism, and two cylindrical parts (no text or symbols)

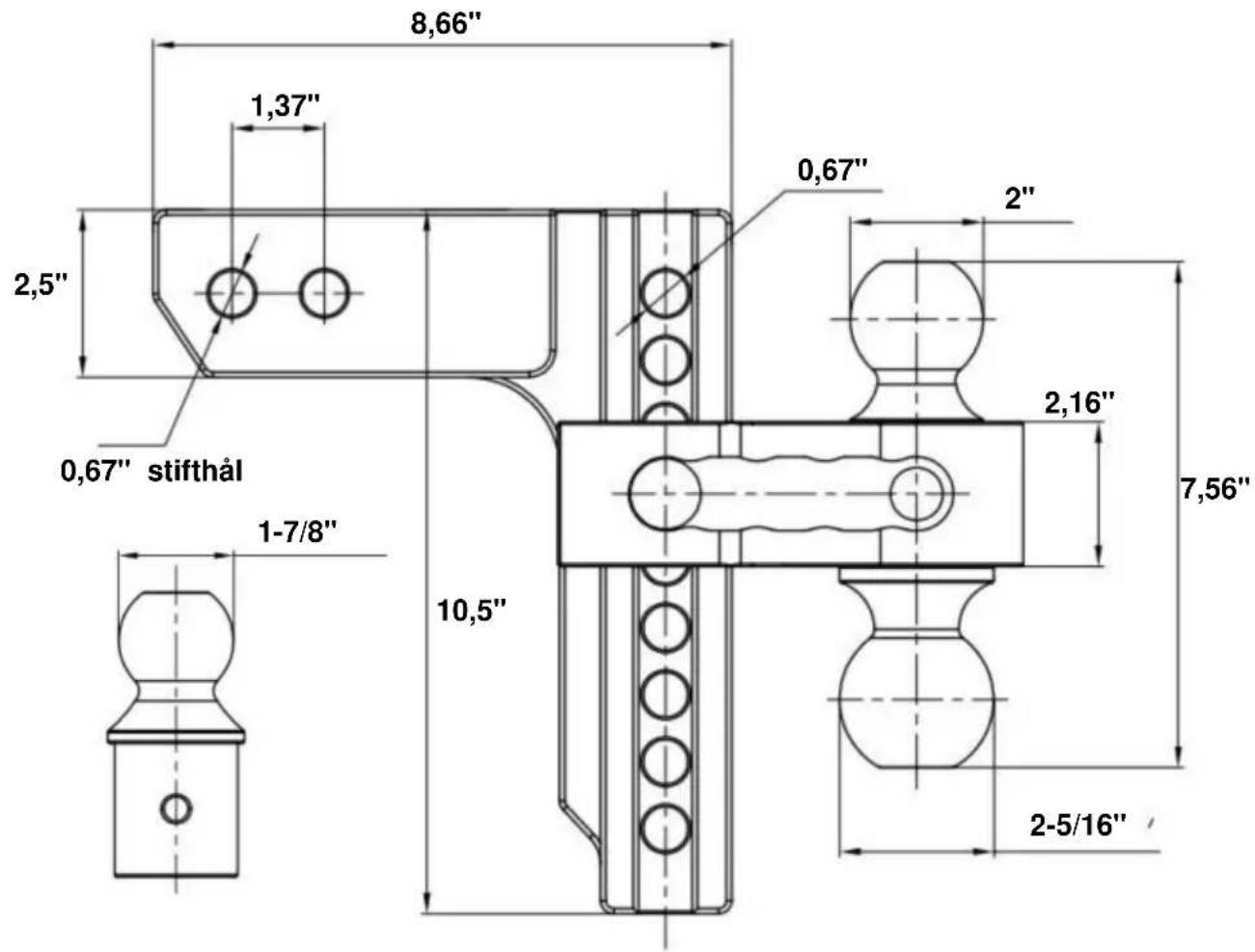

AL-2.5-DROP8"

NOTE: Photo for Reference. Please refer to your purchase.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel from contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

SAFETY INSTRUCTIONS

WARNING:

1. Never exceed the vehicle manufacturer's recommended towing capacity. The ratings of the mounting system are intended to repressor product's capability and in no way reflect the ratings or capacity of tl towing system it is being used with. The consumer or operator is str advised to learn the ratings of the various components of the towing system and never exceed the limits of the lowest-rated component be used.
2. Use of any pin other than that of the mount system manufacturer be a serious safety hazard and will void the warranty. Never hook u safety chains to the mounting system.
3. Installing a safety chain between the vehicle and accessories is high recommended.
4. Be aware of the danger of “dynamic loading.” This situation arises a load is dropped onto the product, resulting in an excessive short-te load. Dynamic loading can damage and fail the product and/or the attached accessory and cause personal injury to people nearby.
5. Ensure the safety chains operate freely around the mounting system and do not become entangled.
6. This product is not a toy and cannot be used as a toy for child
7. Remember that the previously discussed warnings cannot cover all possible events and circumstances. The person setting up and using the product must always use common sense.

CAUTION:

1. Defective accessories should be replaced immediately. Defective accessories can lead to personal injury and material damage.

2. During their period of use, accessories must be checked for wear, and other damage.

SAVE THESE INSTRUCTIONS

NOTE: Please match your purchase.

Parts list:

Four identical black rectangular shapes arranged horizontally (no text or symbols)

Two black cylindrical electronic components with two small accessories (no visible text or symbols)

Model	AL-2-drop6"
Trailer Ball	1-7/8"+2"+2-5/16"
Fits receiver	2"
Drop/Rise	6"
Max. Gross Trailer W	8000lbs(1-7/8")/10000lbs(2")/15000lbs(2-5/16")
Subject Color	Silver
Material	Aluminium alloy

Parts list:

Four identical black rectangular shapes arranged horizontally (no text or symbols)

Two black cylindrical electronic components with two metallic clips attached (no text or symbols visible)

Model	AL-2-drop8"
Trailer Ball	1-7/8"+2"+2-5/16"
Fits receiver	2"
Drop/Rise	8"
Max. Gross Trailer W	8000lbs(1-7/8")/10000lbs(2")/15000lbs(2-5/16")
Subject Color	Silver
Material	Aluminium alloy

Parts list:

Four black rectangular blocks arranged horizontally (no text or symbols)

Two black cylindrical mechanical components with three small metallic clips below (no text or symbols visible)

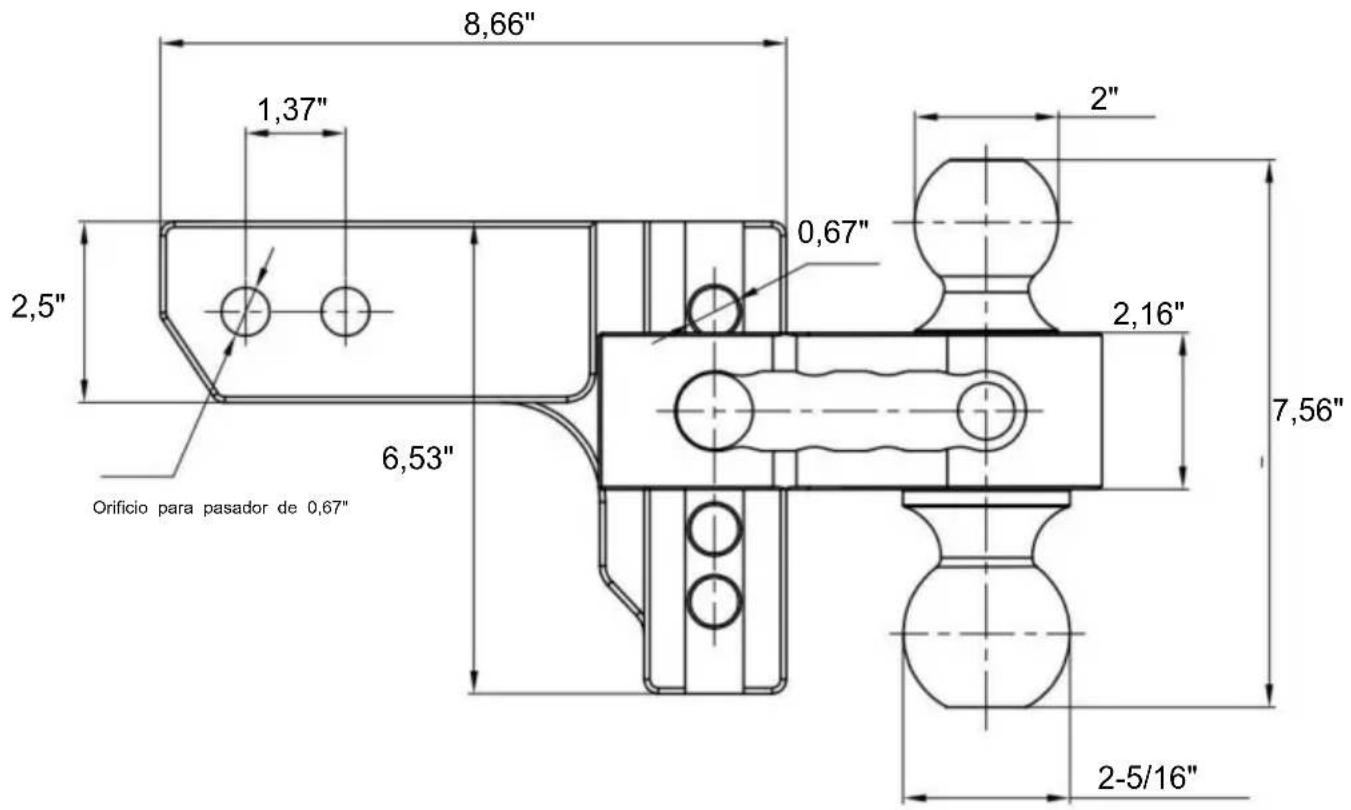

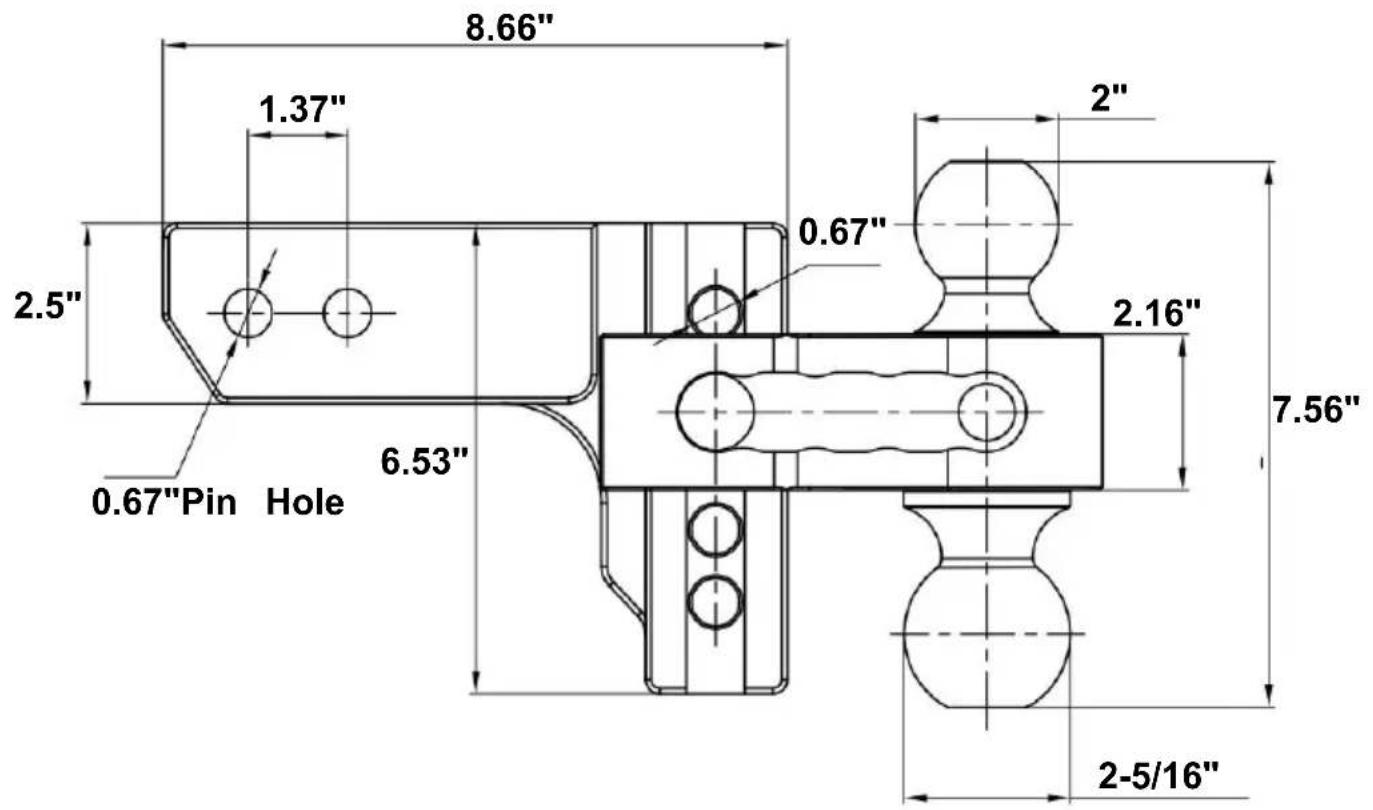

Model	AL-2.5-drop4"
Trailer Ball	2"+2-5/16"
Fits receiver	2.5"
Drop/Rise	4"
Max. Gross Trailer W	8000lbs(2")/18500lbs(2-5/16")
Subject Color	Silver
Material	Aluminium alloy

Parts list:

Four black rectangular buttons arranged horizontally (no text or symbols)

Two black cylindrical mechanical components with two separate electrical connectors (no text or symbols visible)

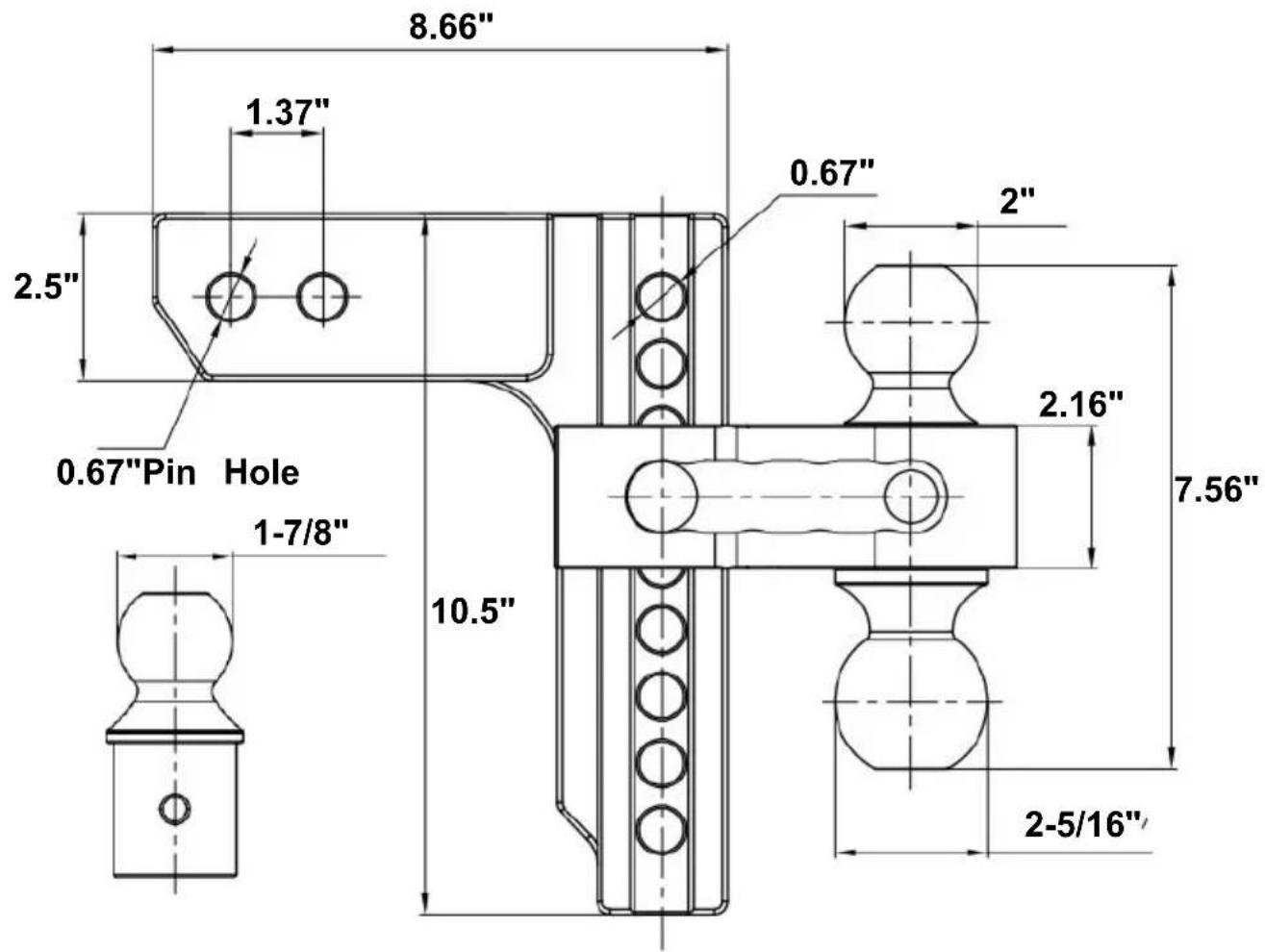

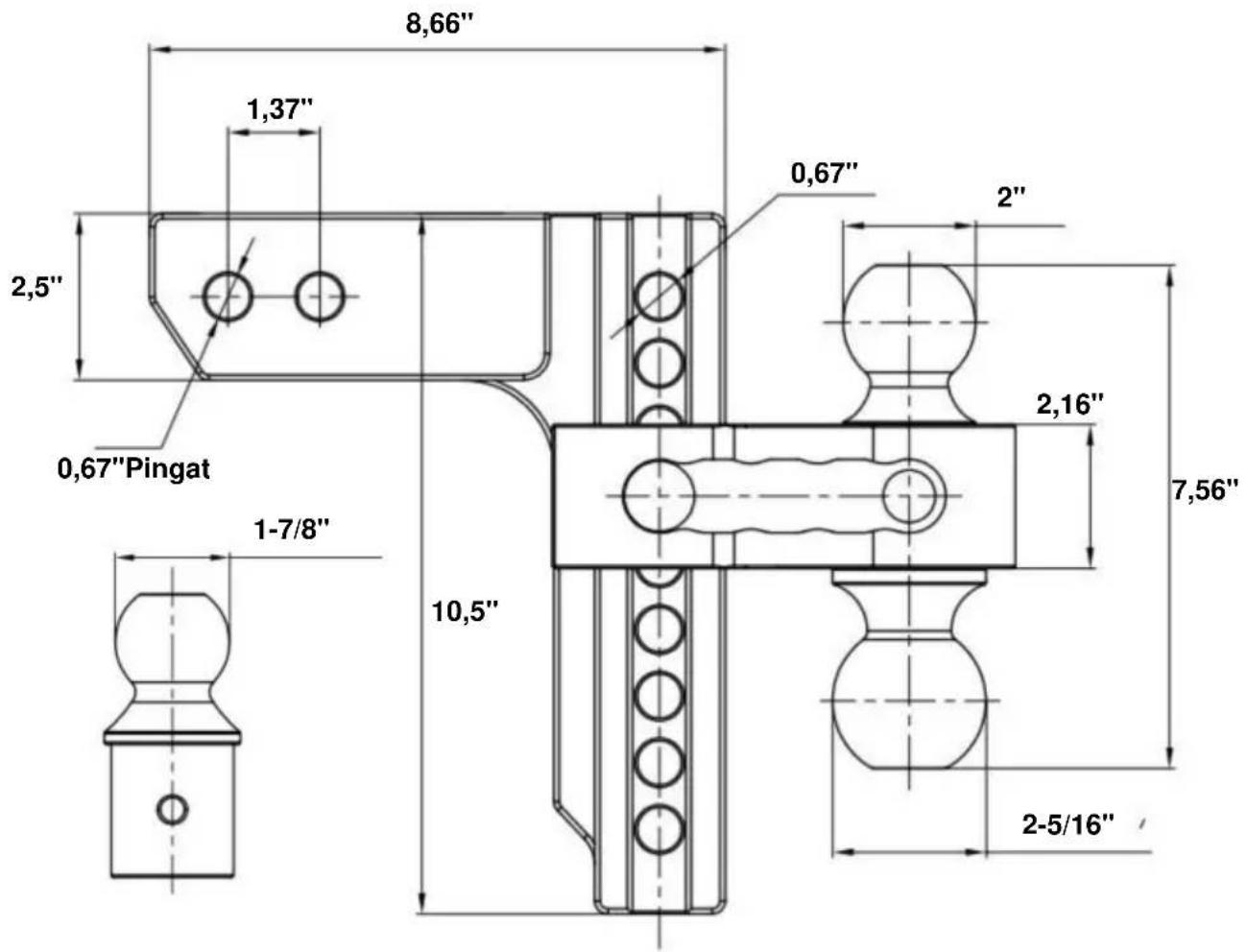

Model	AL-2.5-drop8"
Trailer Ball	1-7/8"+2"+2-5/16"
Fits receiver	2.5"
Drop/Rise	8"
Max. Gross Trailer W	8000lbs(1-7/8")/15000lbs(2")/18500lbs(2-5/16")
Subject Color	Silver
Material	Aluminium alloy

INSTALLATION

This product has a unique design, the ball head can be quickly and easily replaced! It can prevent the ball head from being stolen.

The following installation procedure uses the model AL-2-drop6" as an example. Other models are similar.

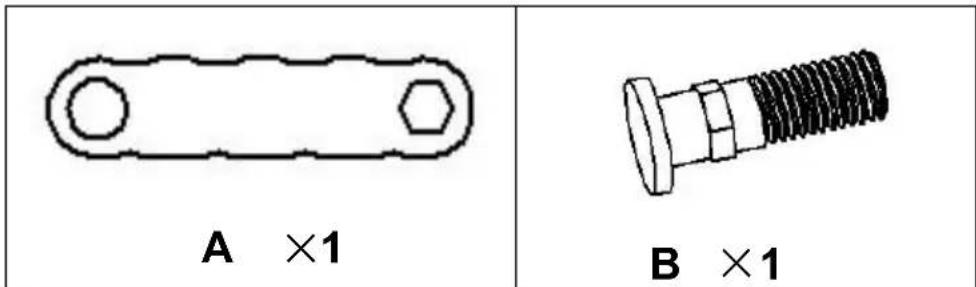

NOTE: Please check you have the key parts as shown below.

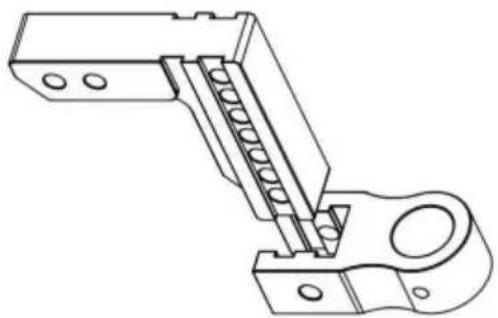

STEP 1: Install the ball seat.

Technical line drawing of a mechanical bracket assembly (no text or symbols)

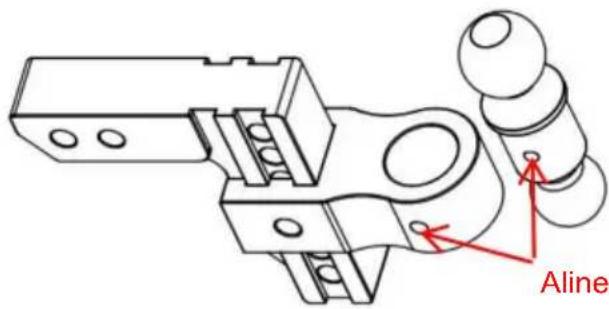

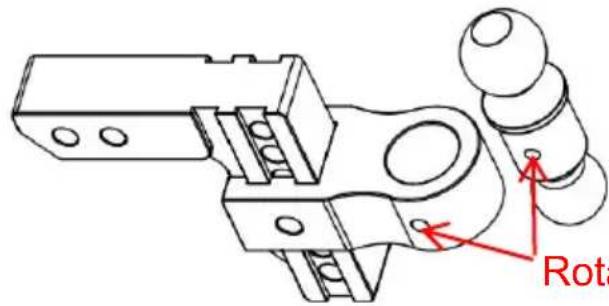

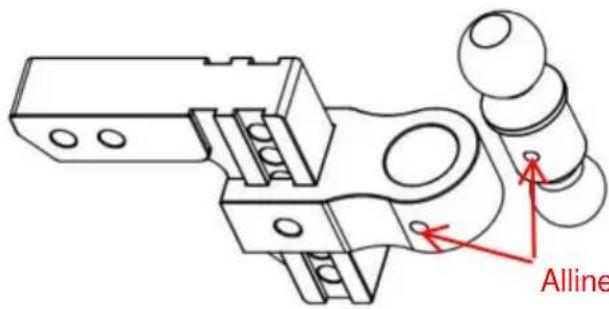

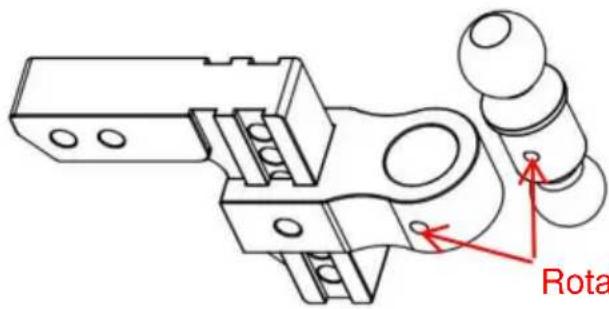

STEP 2: Install the ball.

Note: If the hole pair is not com turn it over and try again.

Rotation alignment

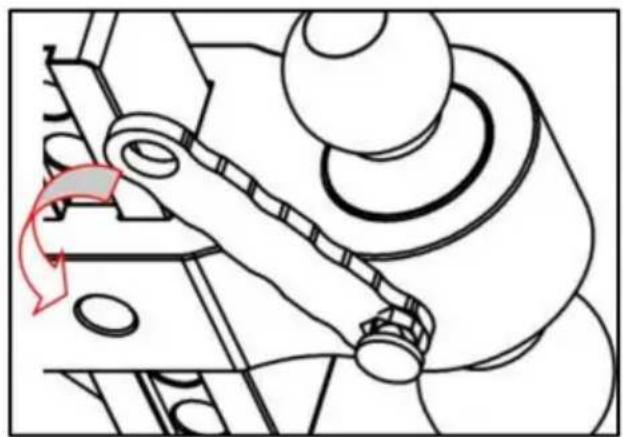

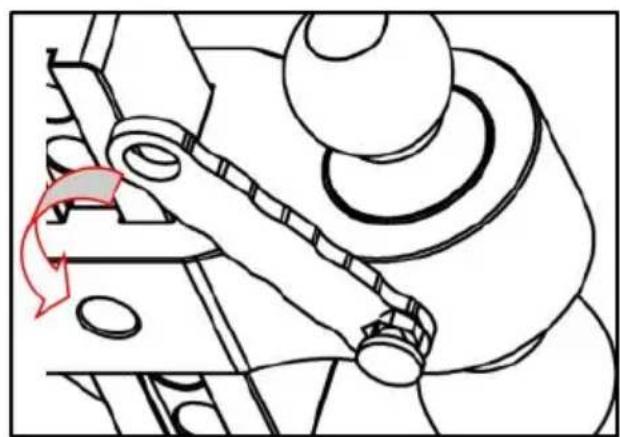

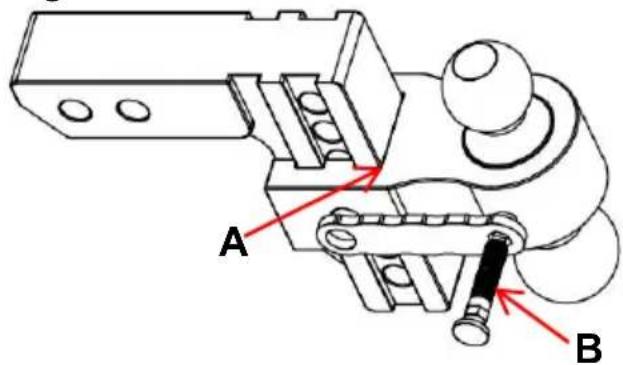

STEP 3: B goes through A, spins into the ball, and twists with your until it is slightly tight.

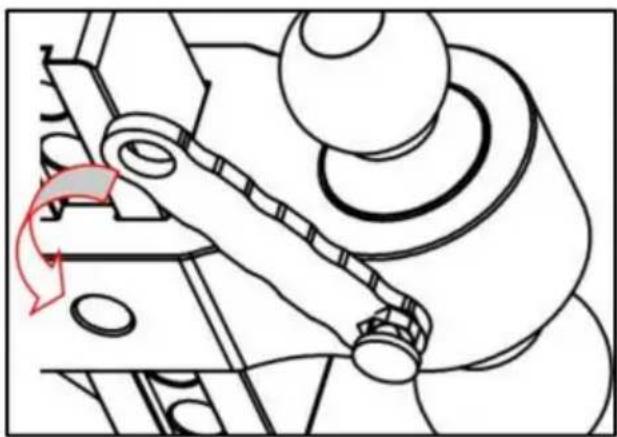

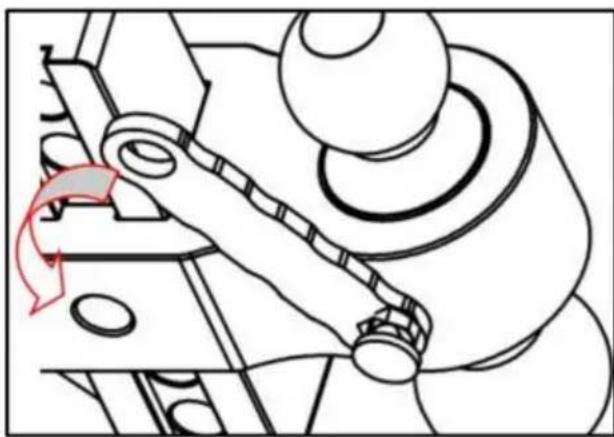

STEP 4: Use A to continue tightening bolt B.

Technical line drawing of a mechanical assembly with a red rotation arrow indicating motion (no text or symbols)

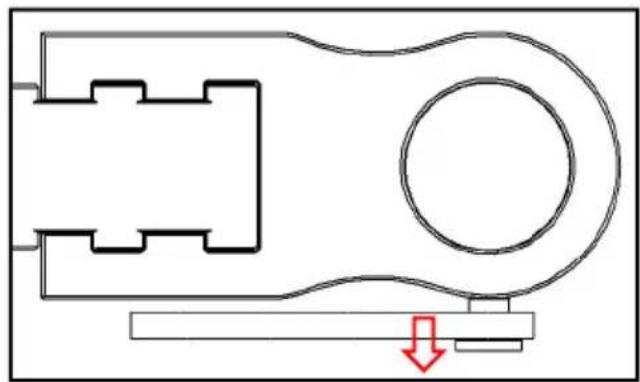

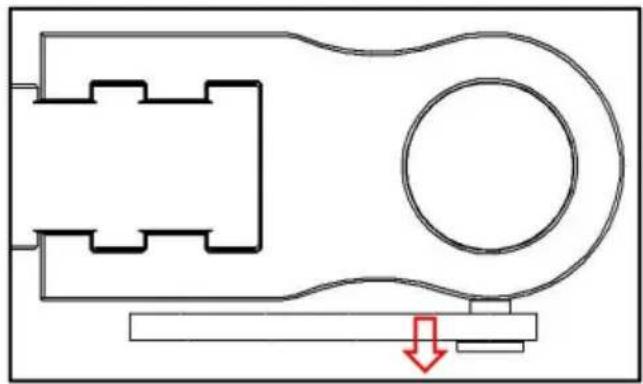

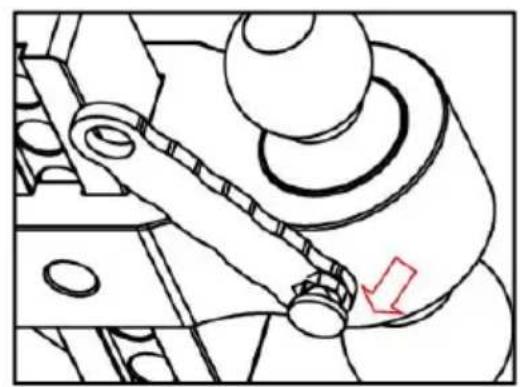

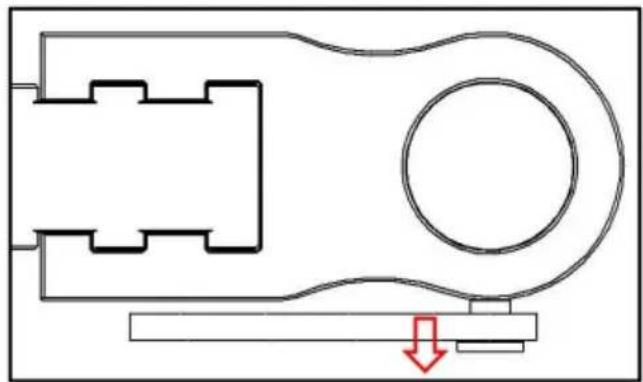

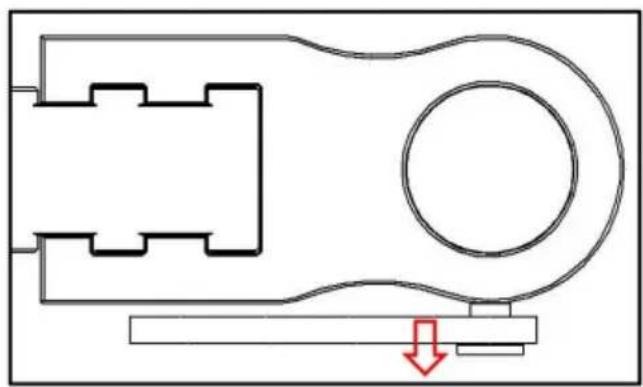

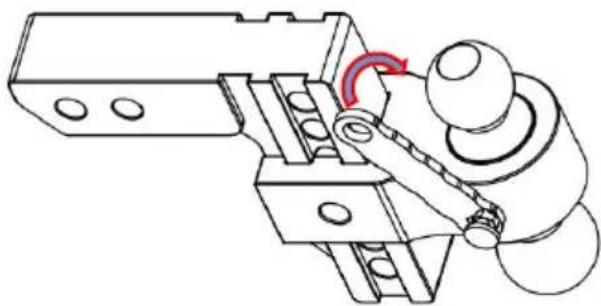

STEP 5: A go out, and rotate to line up with the tee hole.

Mechanical assembly diagram showing a chain and bearing mechanism (no text or labels)

Pure mechanical diagram showing a piston and wheel assembly without any text, numbers, or symbols

Mechanical assembly diagram showing a chain and gear mechanism with no visible text or symbols

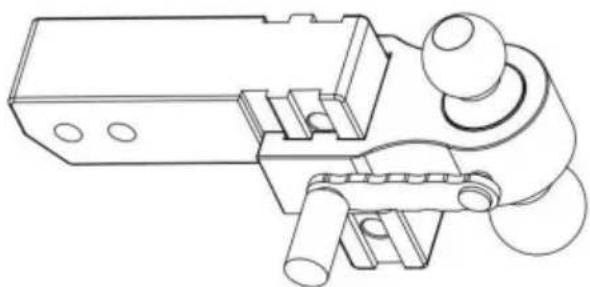

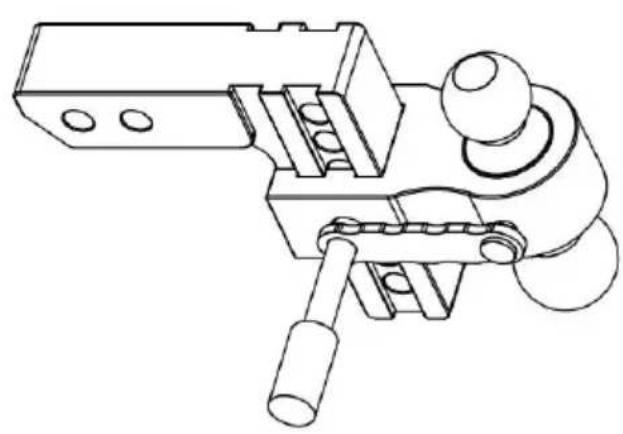

STEP 6: Fix with the trailer lock after moving to the appropriate height

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

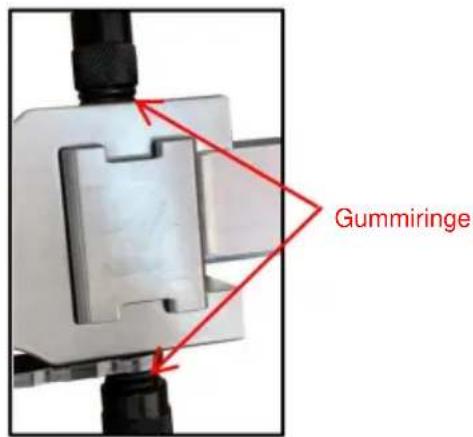

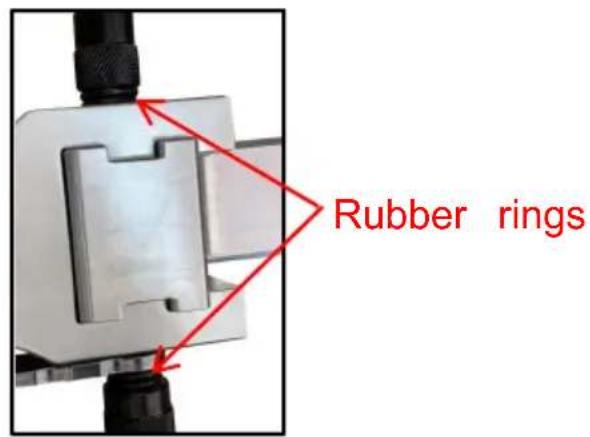

NOTE: Rubber rings are placed on both inner sides as needed to re noise.

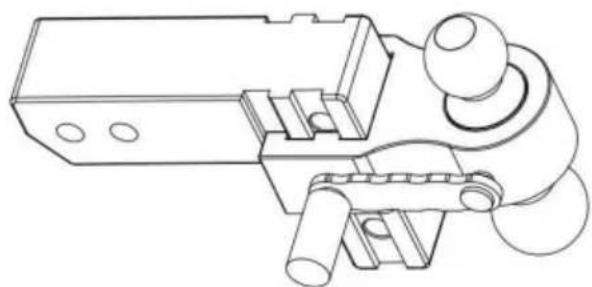

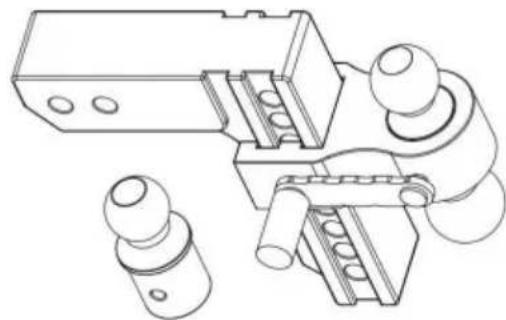

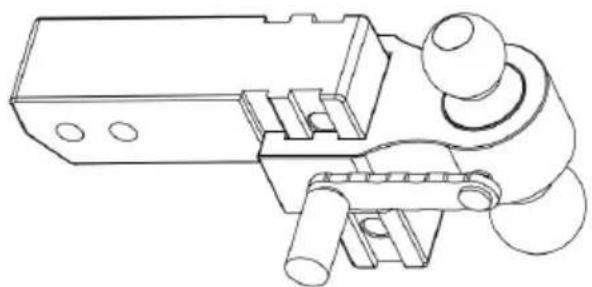

STEP 7: Installation complete. If you need to remove and replace other ball heads, refer to the preceding steps.

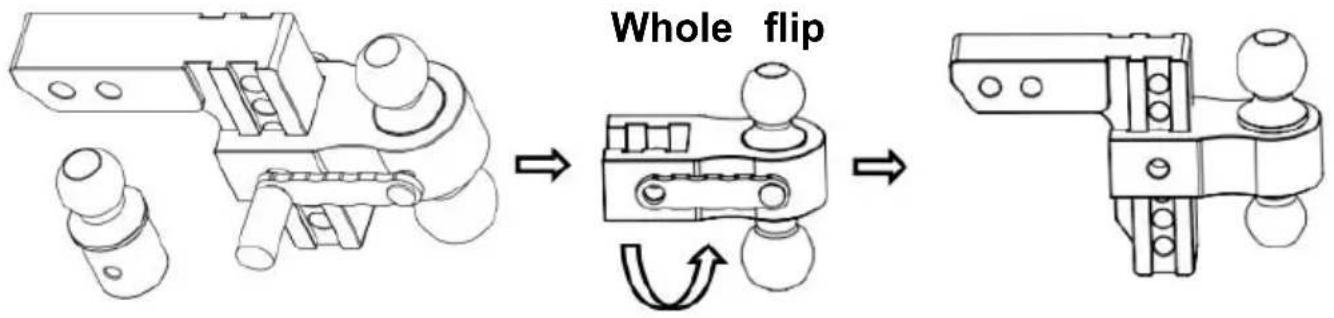

NOTE!

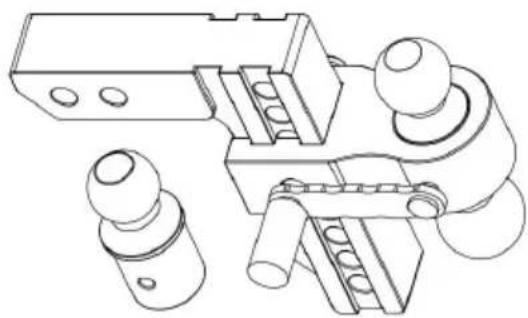

The conversion of 2" and 2-5/16" ball heads does not require separate removal of the ball heads, only the whole component is turned over a installed.

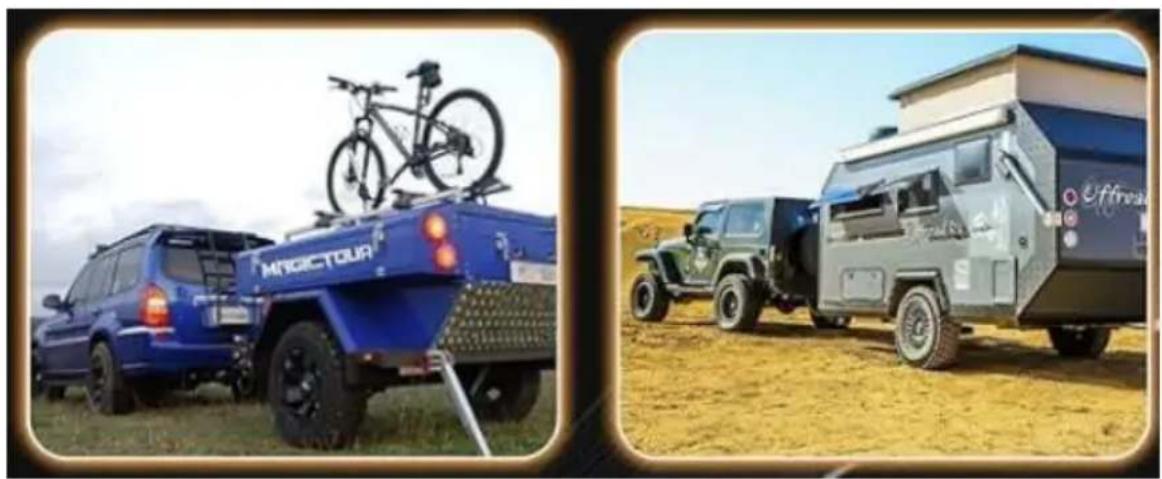

APPLICATION SCENARIOS

Two outdoor vehicles: a blue MiQICTOUR vehicle with a bicycle roof and a green off-road vehicle with 'Offshore' signage, both parked on a dirt field (no visible text beyond branding)

MAINTENANCE

1. Check bolts and safety pins regularly. Inspect all equipment for loc worn parts before each use and replace or tighten as needed.
2. Do not overload.
3. Please clean up the product at a time when sand or gravel sticks

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NS 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Ma

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion H, London Road, Staines-upon-Thames, Surrey, TW18 4

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

Three identical black square frames arranged horizontally (no text or symbols)

Two black cylindrical electronic components with two small metallic contacts below (no text or symbols visible)

Three identical black rectangular shapes arranged horizontally (no text or symbols)

Two black cylindrical mechanical components with two small electrical contactors (no text or symbols visible)

Four identical black rectangular shapes arranged horizontally (no text or symbols)

Two black cylindrical mechanical components with two separate metal clamps (no text or symbols visible)

Product display showing four black rectangular buttons and a yellow square, alongside two black cylindrical sensors with keys (no text or symbols visible)

Technical line drawing of a mechanical bracket assembly (no text or symbols)

Mechanical assembly diagram showing a rotating mechanism with a red arrow indicating rotational motion (no text or symbols present)

Mechanical assembly diagram showing a chain and rotating component with a red arrow indicating a specific point (no text or symbols present)

Pure architectural floor plan lines without any text, numbers, or symbols

Mechanical assembly diagram showing a chain and gear mechanism with no visible text or symbols

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Close-up of a mechanical component with red arrows indicating direction (no visible text or symbols)

Two outdoor vehicles: a blue Miroctour trailer with a bicycle on top and a green off-road vehicle parked in a field (no visible text or symbols)
