Product Type	Wheel Chock Tie-Down Kit
Brand	Vevor
Model	XMS-1
Maximum Load Capacity	2500 daN
Net Weight	9.1 kg
Gross Weight	9.6 kg
Main Functions	Wheel stabilization, ratchet strap tie-down
Safety	Do not overload, check tire pressure, use on stable ground
Maintenance and Cleaning	Clean with a dry cloth, check strap wear
Spare Parts and Repairability	Contact Vevor technical support for parts
General Information	Use for towed vehicles, DOT compliant

Frequently Asked Questions - XMS-1 Vevor

How to properly install the XMS-1 tie-down kit?

Ensure the engine is off and the parking brake is engaged. Place the wheel chock under the tire, then use the ratchet strap to securely fasten the chock to the vehicle or trailer. Follow the manual steps for the ratchet.

What is the maximum load capacity of the XMS-1?

The maximum load capacity is 2500 daN. Never exceed this limit to avoid risk of damage or injury.

How to use the ratchet strap?

Thread the strap through the slot of the spool, pull to remove slack, then operate the ratchet handle by lifting and lowering until tight. To release, pull the release tab.

Can the XMS-1 kit be used for all types of vehicles?

It is designed for towed vehicles, including trailers, caravans, and boats. Check that the tire matches the chock size.

What safety precautions should I take?

Do not overload the kit, regularly check tire pressure, work in a well-lit area, and keep children away. Wear fitted clothing.

How to maintain the tie-down kit?

Clean with a dry cloth. Inspect straps for any signs of wear or damage. Replace worn parts immediately.

Where can I get spare parts?

Contact Vevor technical support via www.vevor.com/support to obtain spare parts or assistance.

Is the kit compliant with DOT regulations?

Yes, it meets the Department of Transportation (DOT) requirements when used correctly.

Can I use the XMS-1 kit to secure loads other than wheels?

No, it is specifically designed for wheel chocks. Do not use it for other purposes to avoid any risk.

What if the ratchet strap does not lock?

Check that the strap is correctly inserted and the ratchet is in the closed position. If the problem persists, contact technical support.

USER MANUAL XMS-1 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

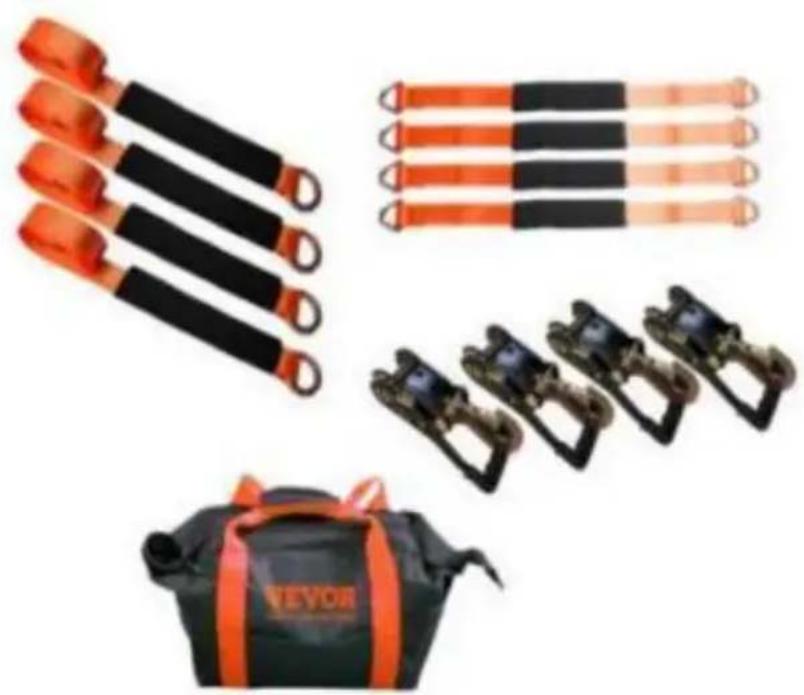

WHEEL CHOCK TIE DOWN KIT

MODEL: XMS-1/ XMS-2/ XMS-3/ XMS-5

We continue to be committed to provide you with tools at competitive prices. "Save Half", "Half Price" or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to major top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us, where we are actually saving half in comparison with the top major brands.

VEVOR®

Wheel Chock Tie Down Kit User Manual

MODEL: XMS-1/ XMS-2/ XMS-3/ XMS-5

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you receive. Please forgive us that we won't inform you again if there are any hardware or software updates on our product.

Safety & Warning

• Read and understand this entire manual before assembling, installing, operating, or servicing this product. Failure to follow these warnings and instructions can cause death, personal injury, or damage to valuable property.
• Do not overload the chock tie. Never exceed the maximum weight capacity of the parameter table.
• Make sure the vehicle's engine is OFF, with parking brake set, before touching tires or other car parts.
• The performance of the Wheel Stabilizer is dependent on proper trailer tire pressures. Check tire pressures frequently for safety, good tire wear and good chock performance.
• Adhere to all Department of Transportation (D.O.T.) requirements when using this product.
• Use common sense when working. Stay alert and concentrate when setting up and using this product. Never work while under the influence of alcohol, drugs or medications. ● While assembling and using this product keep work area clean and well lighted. Keep spectators and children out of the work area.
• Dress appropriately. Never wear loose fitting clothing or jewelry when working. Contain long hair, and keep hair, clothing and gloves away from moving parts.

Specifications

Model Series	XMS-1	XMS-2	XMS-3	XMS-5
Maximum Load Capacity (daN)	2500	2500	2500	1000
Net Weight (kg)	9.1	8.4	7.6	4.2
Gross Weight (kg)	9.6	8.9	8.1	4.4

Drawing of the Product

XMS-1	XMS-2	XMS-3	XMS-5

Ratchet belt instruction

A. Ratchet instructions

STEP 1	From bottom, thread webbing though slot in center spool of closed ratchet.
STEP 2	Pull webbing through, removing the slack.
STEP 3	Start ratcheting--raising and lowering handle
STEP 4	Finish ratcheting with lowered handle.

B. Release instructions

	Pull&hold release tab(to override ratcheting function).
STEP 2	Open ratchet until it is completely open and flat.
STEP 3	Remove webbing from ratchet by gently pulling out.
STEP 4	Pull and hold release tab to clos ratchet.

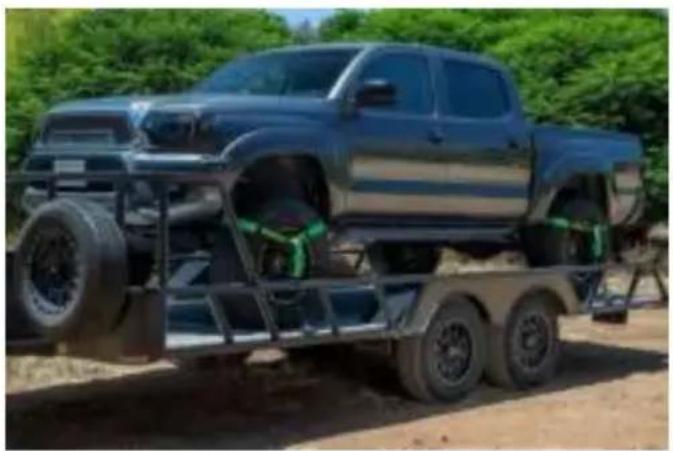

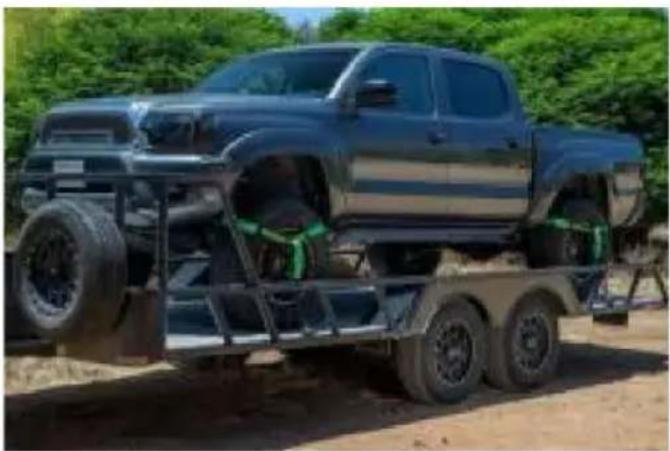

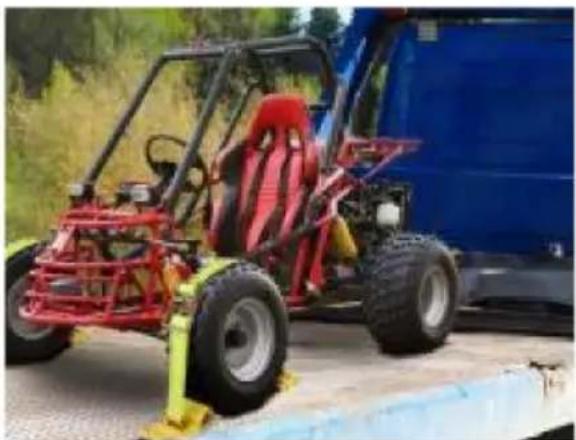

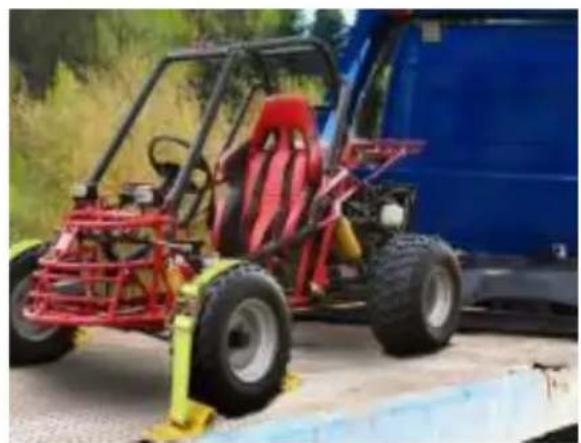

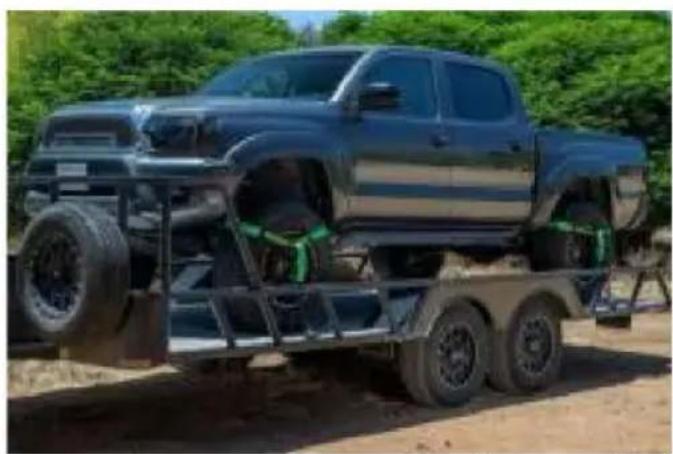

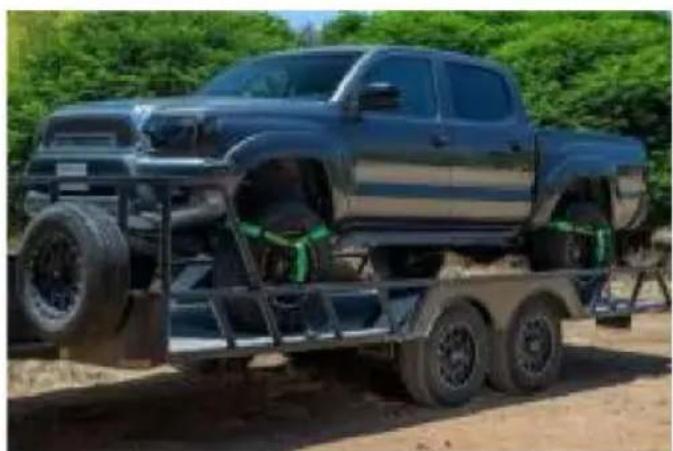

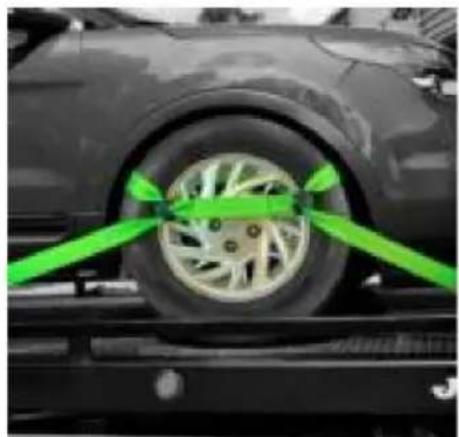

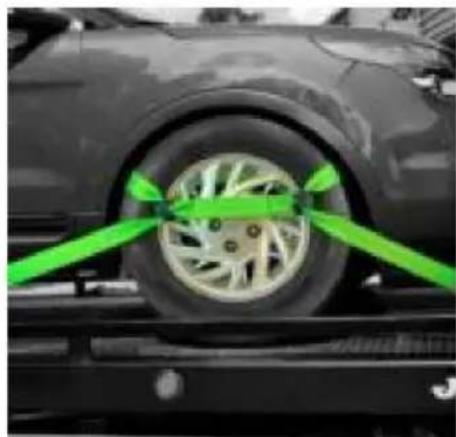

Usage scenario

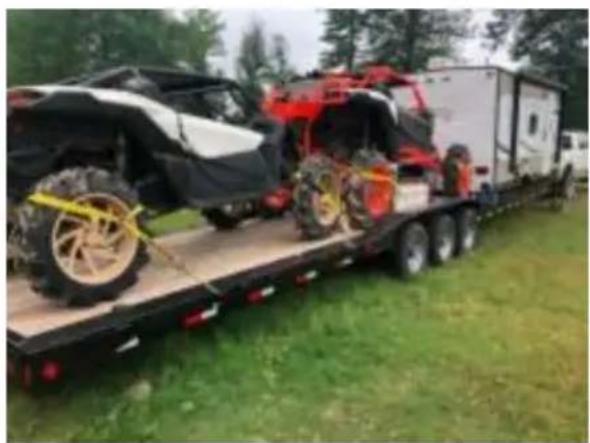

ATV Transport

Road Rescue
