USER MANUAL TX-B7123-10FT Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

OUTDOOR ENTERTAINMENT

TRAMPOLINE

MODEL: TX-B7123-10FT

TX-B7123-12FT

TX-B7123-14FT

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL: TX-B7123-10FT / TX-B7123-12FT / TX-B7123-14FT

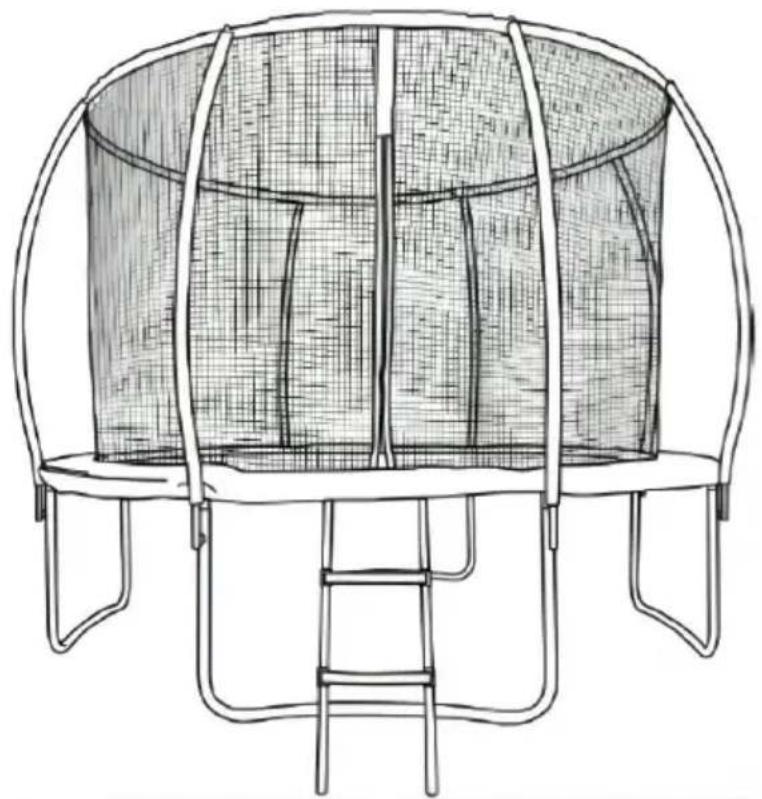

Line drawing of a trampoline with a circular frame and metal frame (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

	Warning-To reduce the risk of injury, user must read instructi manual carefully.
	Not suitable for children under 36 months
	Do not use during pregnancy!
	Do not use when suffering from high blood pressure!
	Only one person on the trampoline!
	Use only bare feet!
	No somersaults!
	No smoking!
	Remove all sharp objects from trampoline and jumper!
	Do not bring watches, glasses, rings, scissors, phone etc.

SAFETY WARNINGS AND PRECAUTIONS

Thank you for using this product. In order to make sure that you can operate machine correctly, read this instruction carefully before operation and keep it properly for future reference. Please read the precautions and safety rules on page to ensure your safe use. This manual will outline safety warnings and precautions, operating, maintenance and cleaning. The warnings and instructions reviewed in this manual cannot cover all possible conditions and situations that may occur. Caution and common sense are not built into this product, since believe that the uses will comply with these codes. Before starting a training program or engaging in strenuous endurance activity on the device, please call a doctor.

Please read ALL the instructions before using your machine.

1. Assemble needs to follow these instructions. Incorrect assembly can be a hazard. Wear heavy-duty work gloves during assembly.
2. Do not assemble and use when tired or when under the influence of alcohol drugs or medication.
3. Elastic and other product properties only apply to correctly and completely assembled products.
4. Keep the assembly area clean and well-lit.
5. Keep bystanders out of the area during assembly.
6. The trampoline must be set up by an adult following the instructions. Do allow children and pets to play alone or approach this item. Don't Climb Pro
7. Use as intended only. Always zip up the net before jumping. Make sure is securely zipped before bouncing.
8. Inspect before every use. Do not use it if Part are loose or damaged. Be aware of the following potential hazards:
9. Missing, damaged or improperly positioned frame padding.
10. Punctures, tears, frays, or holes in the fabric of the bed. Deterioration of stitching, fabric, or webbing.
11. Bent or broken frame.
12. Loose or missing bolts. Loosened legs.
13. Bumper cotton cracked, damaged, lost

14. People or objects hanging on the product will cause the product to fall.

15. Pay attention to pedestrians and vehicles when using.

16. Do not apply this unit to any other purposes than the indicated usage. Changes to any Part or structure of the product are allowed.
17. The trampoline net cannot place items to avoid damage.
18. Do not use it for commercial purposes.
19. DO NOT CLEAN IT WITH ANY ABRASIVE MATERIAL.
20. Never leave it unattended while in use.
21. Pet urine and feces can damage the product, please keep away.
22. Do not place the product on or near hot air, electric burners or heaters. Fireworks, cigarettes, flares, and other items can ignite the product. Please st away from them.
23. The product should be placed on a flat surface. And it should be install open and safe place, at least 2m from any structure or obstructions, avoiding places near windows, roads, railways, rivers, fences, garages, houses, overhanging branches, electrical wires, swimming pools, swings, slides, climbing frames, walls, furniture, wires, ceiling fans, etc.
24. The trampoline is intended for outdoor use only. Do not place it in a d-environment.
25. Must use the designed access points to climb in S out of the trampoline
26. Do not eat and drink while jumping. It is advisable not to bounce immediately after a meal.
27. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience or knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Not suitable for children under 36 months- small Part, choking hazard.
28. Always jump in the middle of the mat and practice bounce techniques set with adult supervision and guidance.
29. Take your shoes off while jumping. Empty pockets and hands before jump. Don't wear glasses.
30. Do not allow more than one person at a time on the trampoline. Do no multiple people at the same time.
31. Max user weight limit: check size chart.

32. DO NOT bury the trampoline in the ground.

33. Do not install the trampoline over concrete, asphalt, or any other hard suit. Make sure there are no children, pets, animals, obstructions underneath the trampoline.

34. Don't intentionally jump against the protection net as this will weaken it.
35. Artificial illumination may be required for indoor or shady areas.
36. The metal frame of the trampoline can conduct electricity. All lamps, exte cords and similar electronic devices must not come into contact with the fram
37. Check the trampoline before and after each use to make sure that all F properly and securely in place. If necessary, tighten the screws and replace a worn, defective or missing Part.
38. Wear comfortable clothing in which you can move around easily when use the device. Do not wear hooks, snaps, drawstrings or similar items that could caught in the trampoline. Before use, remove all necklaces and earrings.
39. Please only wear suitable trampoline shoes or socks to avoid slipping. Ti or shoes with smooth leather soles are not suitable for trampoline use.
40. The minimum age for using the trampoline is 3 years. Children under the of 12 should only use the trampoline under the supervision of an adult who to assess the risks.
41. If you have heart disease, high blood pressure and other physical diseases you should not use this product. We accept no liability for consequential damage caused by non-compliance.

WARNING: 37. This appliance is not intended for use by young or in persons unless supervised by a responsible person to ensure that they use the appliance safely. Young children should be supervised to ensure that they do not play with the product. Pets should stay away from the product. Do not use outdoors on rainy and cloudy days and strong wind conditions, avoid lightning strikes and falls. People or pets hanging on t product will cause injury or death.

1. The manufacturer strongly recommends assembly the enclosure net before using trampoline, this will reduce the risk of falling off, offer safe children.
2. Do not try to do somersaults on the trampoline. Landing on the head, neck, even if it happens in the middle of the trampoline, can result in injuries such as paralysis and, in the worst case, death.

PRODUCT PART

1. Please dispose of all plastic bags carefully and keep them away from chi and pets.
2. Check all components provided according to the list in this manual. Make s you have all of the Part listed.
3. Although paying particular attention when manufacturing this product, you may be careful during the assembly process to avoid being scratched by sharp ed
4. Wear protective gloves, during assembly and use.
5. The product should be placed on a flat surface.
6. The product requires two people to assemble.

NOTE: The quantity of Part shown in the manual is the actual usage and the unused Part are spare Part.

Model			TX-B7123-10FT	TX-B7123-12FT	TX-B7123-14FT
Max user weight limit			330 Pound (150Kg)	400 Pound (181Kg)	450 Pound (204Kg)
A		Frame Cover	2PCS	2PCS	4PCS
B		Jumping Mat	1PCS	1PCS	1PCS
C		Frame	8PCS	8PCS	8PCS
D		Steel T-Connector	8PCS	8PCS	8PCS
E		Spring	64PCS	72PCS	80PCS
F		Leg Extension	8PCS	8PCS	8PCS
G		W Shaped Leg	4pc	4pc	4pc
H		Spring Tool T-Hook	2pc	2pc	2pc
I		Bottom Pole	8pc	8pc	8pc
J		Upper Pole	8pc	8pc	8pc
K		Long Screw	16pc	16pc	16pc
L		Nut	16pc	16pc	16pc
M		Plastic Pad	16pc	16pc	16pc
N		Enclosure Net	1pc	1pc	1pc
O		Fiberglass Stick	8pc	8pc	8pc
P		Plastic T-Connector	8pc	8pc	8pc
Q		Pole Foam	16pc	16pc	16pc
R		Wrench	1pc	1pc	1pc
S		Screw Nut	16pc	16pc	16pc
T		Ladder Pipe	2pc	2pc	2pc
U		Ladder Steps	2pc	2pc	2pc
V		Ladder Screw	4pc	4pc	4pc
W		Ladder Nut	4pc	4pc	4pc

ASSEMBLY STEPS

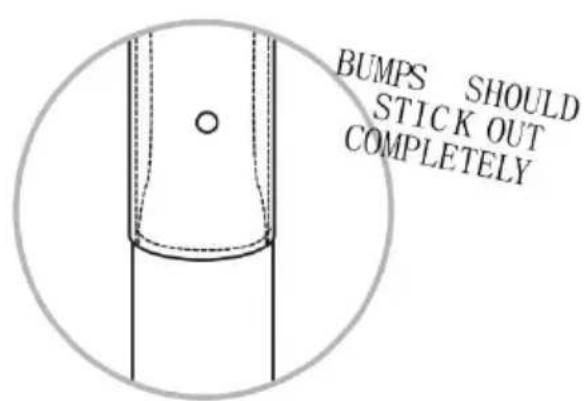

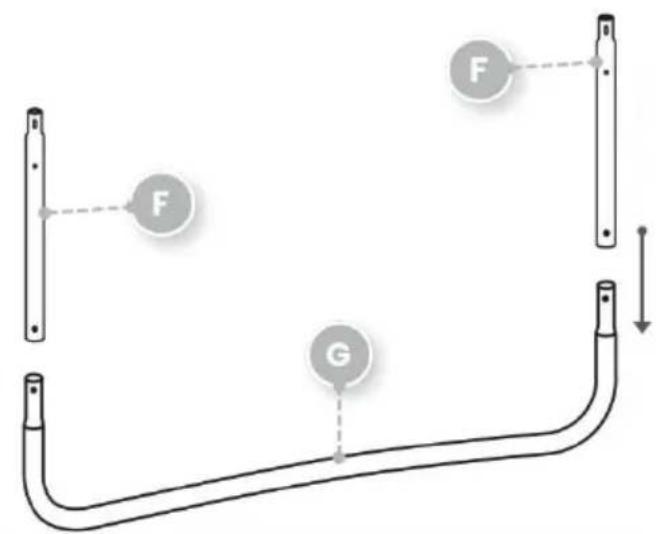

Step 1

- Insert the Leg Extension (F) into the W-Shaped Legs (G). Make sure the bumps are aligned with the holes in the bars and stick out through them cc Bumps should face back and front.

F F G

BUMPS SHOULD STICK OUT COMPLETELY

Step 2

- Attach The Frame (C) to T-Connectors (D). Continue until you form the

Technical line drawing of a circular mechanical component with a magnified inset showing a tool interacting with a bracket (no text or symbols)

Tip: Have a second person or use a wall to apply some resist against the frame to help it shift into place.

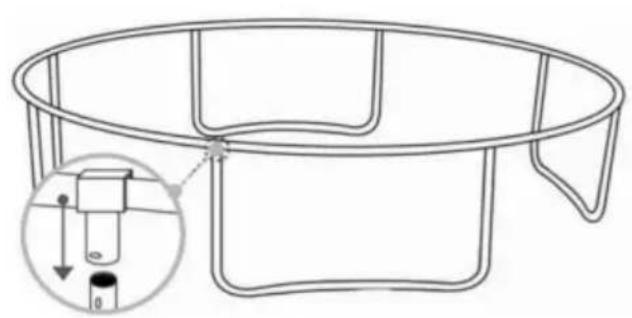

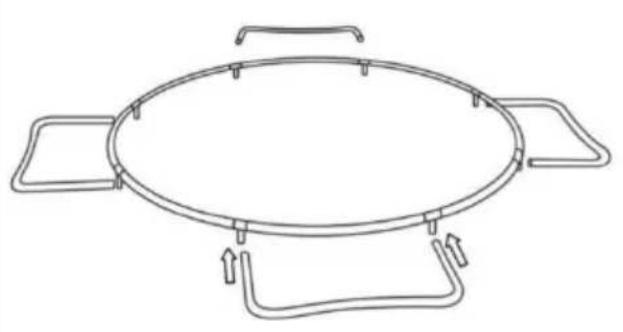

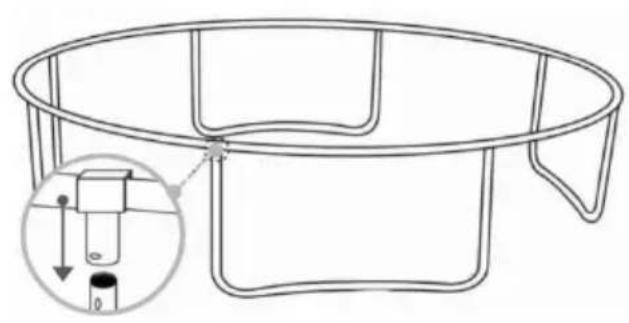

Step 3

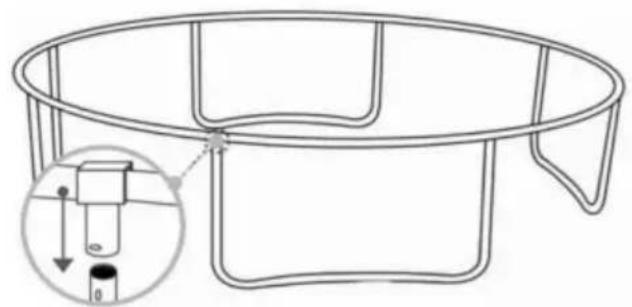

- Two people will be necessary at this point to install the trampoline. One lifts up the circle frame, while the other lifts the W shaped leg tubes to a (vertical) position and inserts the Steel T-Connectors (D) into a W-Shaped Leg tube. Ensure the locking holes are aligned.

Line drawing of a circular heating element with two side handles and a central body, no text or symbols present.

Line drawing of a multi-ring container with an inset showing liquid level measurement (no text or symbols)

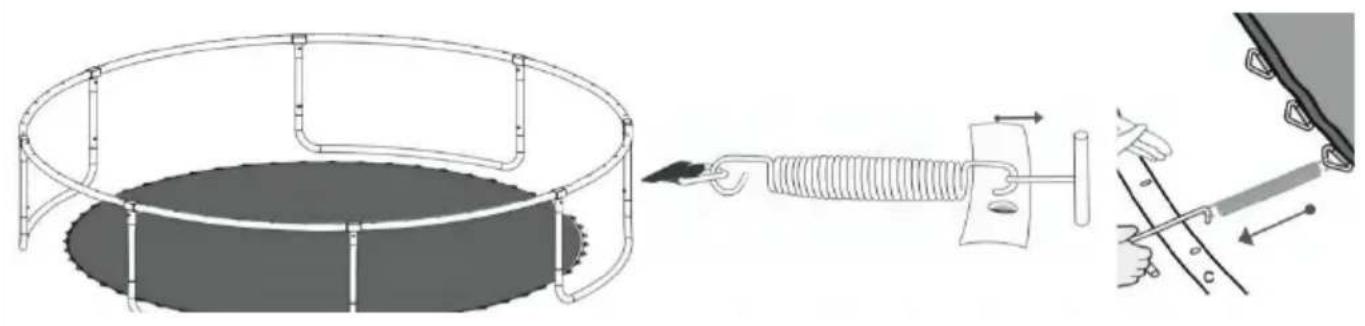

Step 4

- Layout the jumping mat (B) inside the circle frame. Insert one end of the (E) in the triangle ring of the jumping mat (B) and the other end pull it with spring tool (H) and insert it into the frame hole.

Technical illustration of a mechanical device with a coiled spring and attached rod, showing assembly steps (no text or symbols)

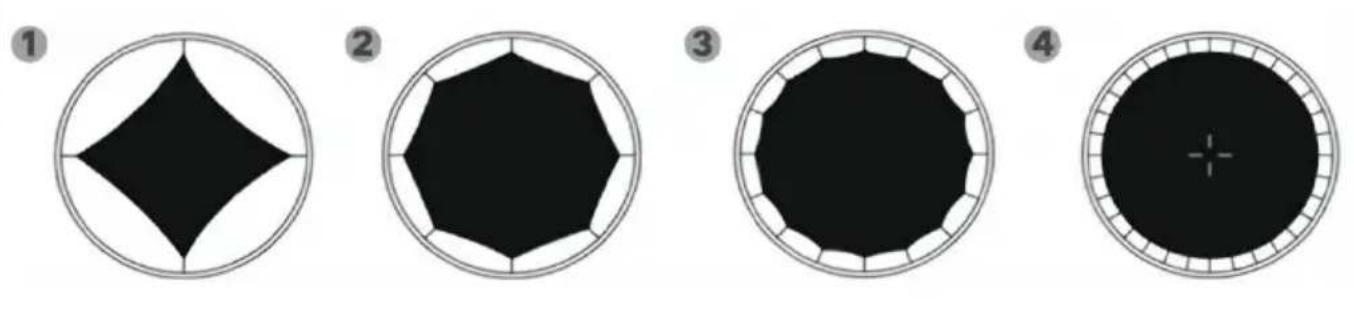

Step 5

- Start installing the springs in an X shape. The tension needs to be distributed evenly for the net to be installed correctly. Gently tap down against the spring hook is not completely in the hole. Springs will create high levels of tension assembled. Please take care not to pinch your fingers.

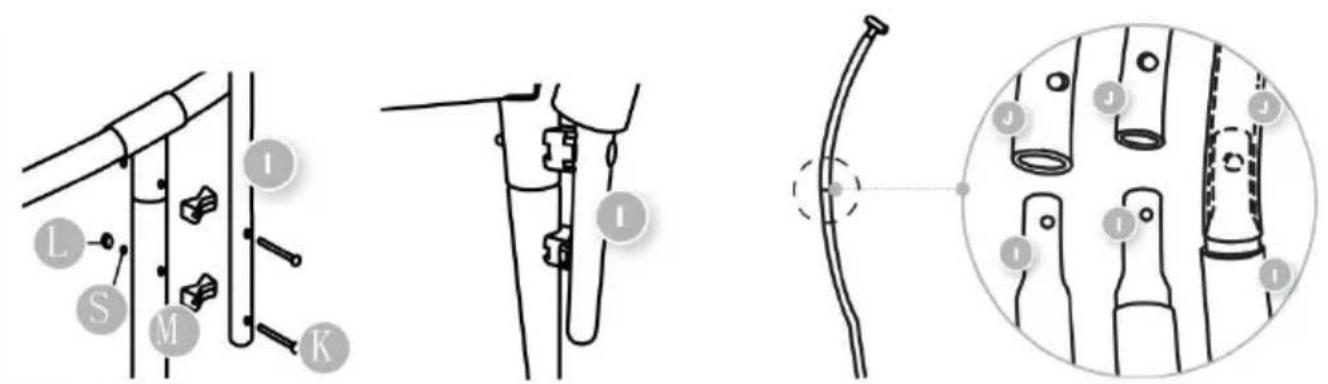

Step 6

- Firmly fix the bottom pole (I) to the plastic pad (M) then insert a long path through the pole, plastic pad, and leg extension then secure it at the end with (L). Then insert the Upper Pole (J) into the Bottom Pole (I).

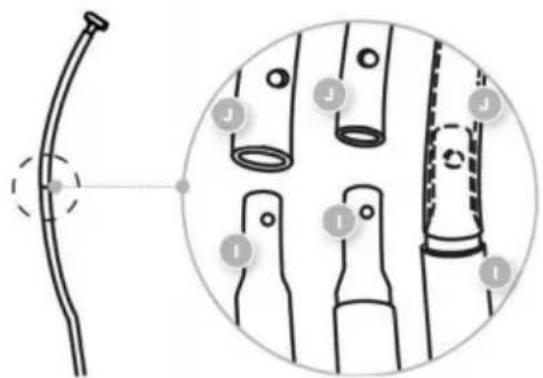

Step 7

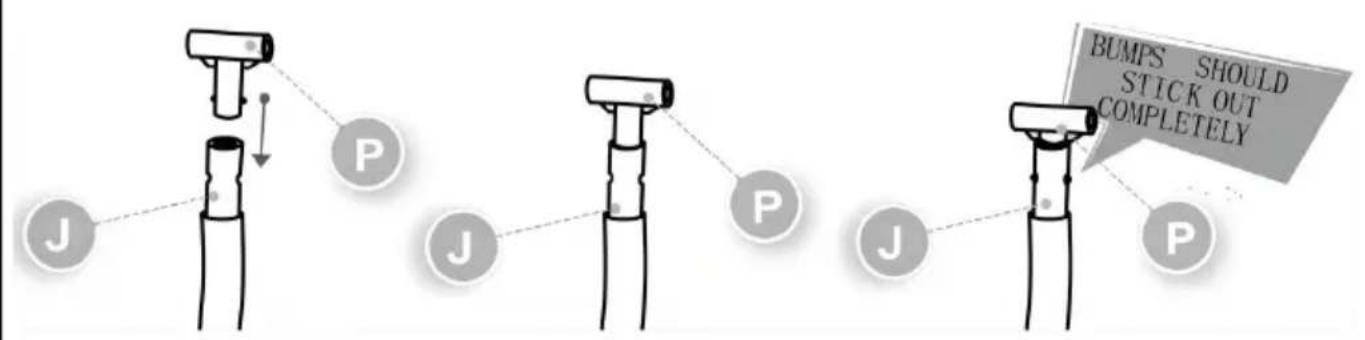

- Insert the Plastic T-Connector (P) into the top of the upper pole (bumps face left and right). Press down with your fingers on the bumps on each side. T-Connector. Make sure the cylinders are securely installed the T-Connector bumps should stick out through the pole holes.

BUMPS SHOULD STICK OUT COMPLETELY

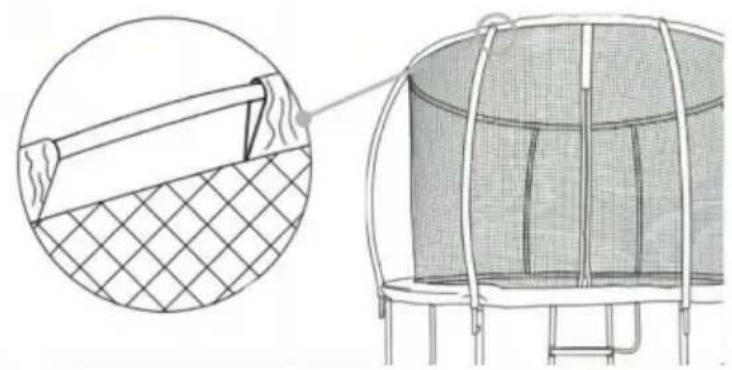

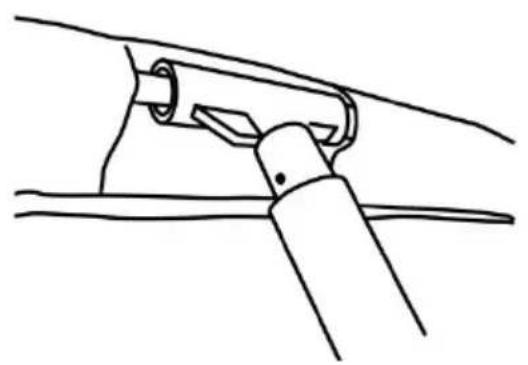

Step 8

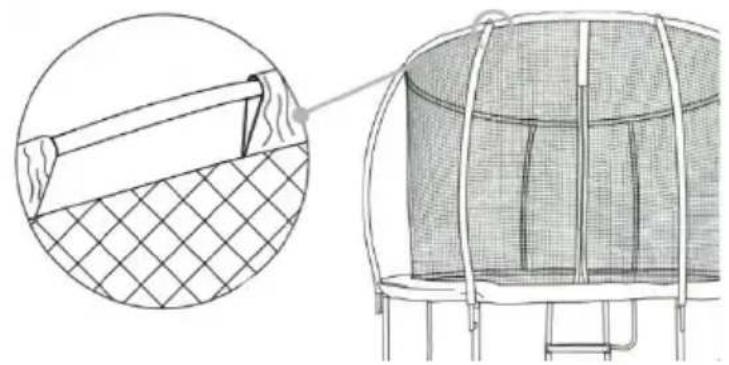

- Insert the fiberglass stick trough the designed area in the safety net and connect it to the T-Connector.

Simple line drawing of a mechanical component or tool interacting with a horizontal surface (no text or symbols)

Technical line drawing of a large cylindrical container with mesh structure, shown from two different angles (no text or symbols)

TIPS: You can connect all the fiberglass sticks through the safe and to the T connectors until you have a circle. After this, you all the T-Connectors into the Pole. 2 people are needed.

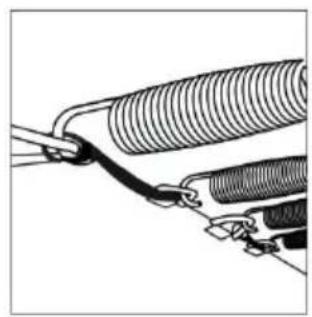

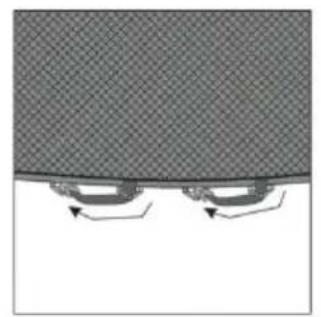

Step 9

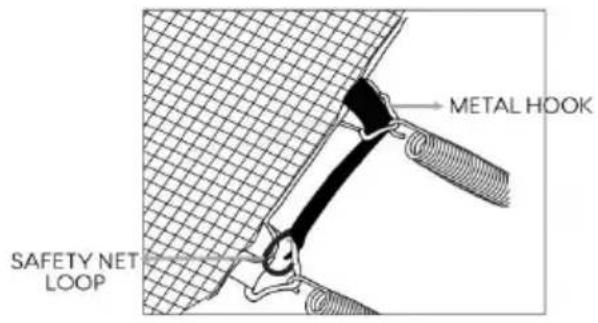

● Pass every strip of the safety net through the metal triangles of the spring secure it with the snap hook around the next triangle on the left. Continue in the same way. When you secure the clip make sure to pass it through the loops, the net.

METAL HOOK SAFETY NET LOOP

Diagram showing two curved objects with directional arrows, no text or symbols present

Close-up of coiled cable and wire with connectors (no text or symbols visible)

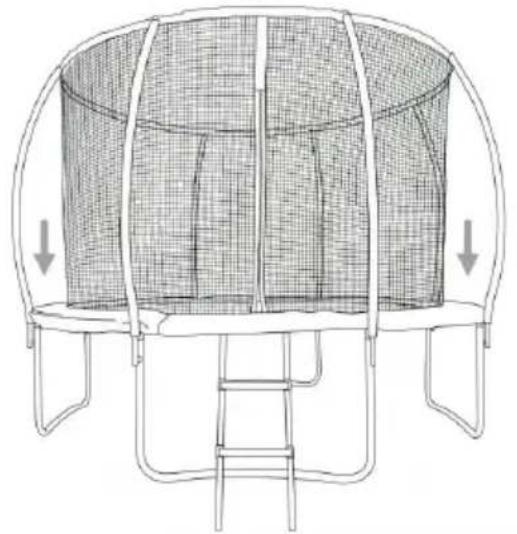

Step 10

- Cover the spring frame with the soft padding Frame Cover (A). Secure the padding parts together using the Velcro on each side, and tie the straps loc underneath. Lay down the Frame Cover (A) so all the springs are covered. should be fitted like a shower cap. Make sure it covers all metal parts.

Line drawing of a trampoline with mesh netting and ladder, no text or symbols present

ATTENTION: If the thread is not correctly installed it might stop zipper from closing properly. Please make sure the thread goes around the net and is securely tightened.

STEP LADDER

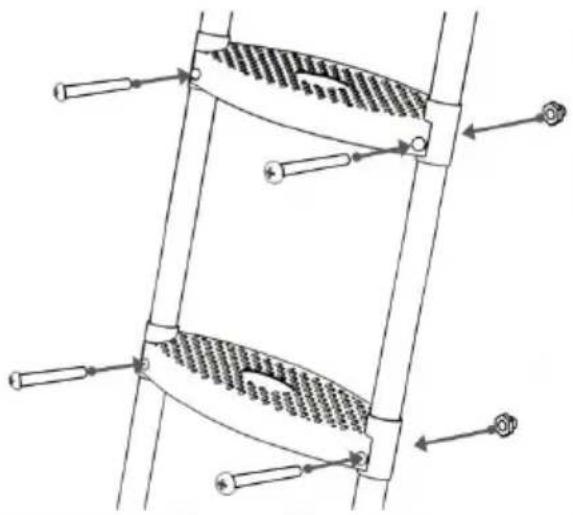

Step 11

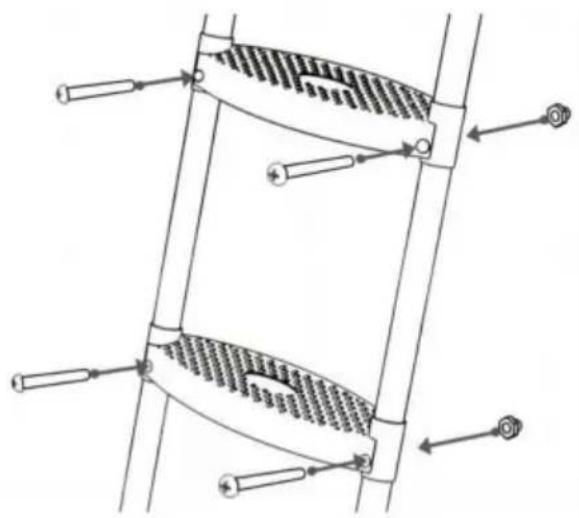

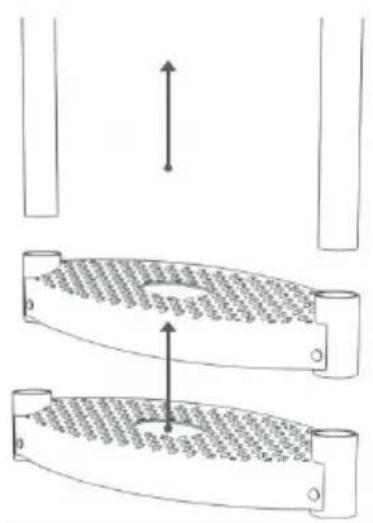

- Align the two Ladder Pipes (T) and slide up the Steps one by one (U). with the screws (V) and Ladder Nuts (W).

Diagram showing two curved structural elements with internal patterns and directional arrows, no text or symbols present.

Pure mechanical diagram showing two curved components with directional arrows and no text or symbols

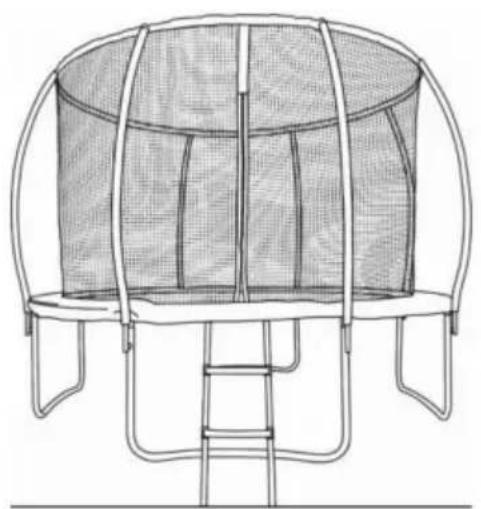

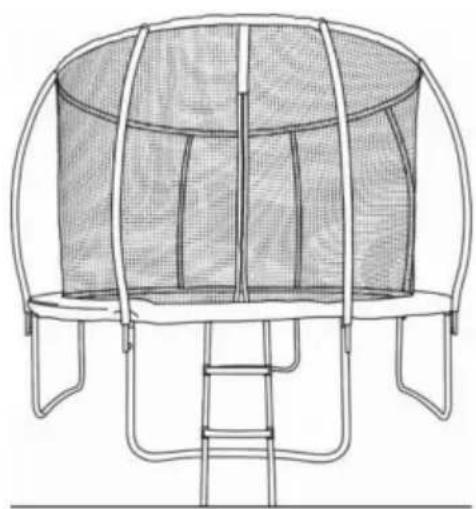

Step 12

- Hook the step ladder to the Metal Frame (C) of the trampoline under the Cover (A).

Pure electrical circuit lines without any symbols

Technical line drawing of a trampoline with a circular frame and metal frame (no text or symbols)

1. Please check whether the product is installed correctly and firmly, and re safety information in the manual again.
2. The product should be placed on a flat surface. Make sure the net zipp closed before use. Follow the manual safety information and enjoy your trampoline.

CLEANING AND STORAGE

1. Wipe with a soft, dry cloth. Never use an abrasive cleanser or harsh pad
2. Children are not allowed to wipe the product to avoid tipping and falling
3. After disassembling the product, please assemble the parts and accessories. Be sure to keep the product dry.
4. Please clean regularly to avoid dirt.

Notes: Before using it again, reassemble according to the instructions.

TIPS

1. Always step on and off the trampoline carefully, do not jump.
2. Stay in the center of the trampoline when jumping. Don't jump on the ed jump on the net.
3. Stop bouncing by flexing your knees as your feet come in contact with the trampoline bed.
4. For safety, it's suggested lessons from a professional should be acquired using this trampoline.

Notice: Before anyone uses this trampoline, it is imperative that you read all instructions carefully and make sure that the assembly went without any error

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.
