6550-6550-BT-106.1-07 - Car accessory Vevor - Free user manual and instructions

Product Type	Wheel Spacers (Wheel Adapters)
Brand	Vevor
Model	6550-6550-BT-106.1-07
Thickness	1.25 inch
Bolt Pattern	6 x 5.5 inches
Center Bore	106 mm
Thread Pitch	M12 x 1.5
Quantity	4 pieces
Thread Type	Open End Nuts Included
Compatible Vehicles	Toyota (Land Cruiser, Prado, Hilux, 4Runner, etc.) and Lexus GX (see manual)
Manual available in	French, English, German, Italian, Dutch, Polish, Swedish
Warranty	Electronic Warranty Certificate at www.vevor.com/support
Material	High Strength Steel
Maintenance	Check tightness after 25-50 miles, then after 1,000-2,000 miles
Safety	Do not stack, do not modify, use threadlocker, no impact wrench
Installation	Follow star pattern, torque according to vehicle specifications
Unit Weight	Approximately 1.5 kg per piece (estimate)

Frequently Asked Questions - 6550-6550-BT-106.1-07 Vevor

Are these wheel spacers compatible with my Toyota 4Runner 2010?

Yes, they fit 3rd, 4th and 5th generation Toyota 4Runner (1989-2023). Check that your model has M12x1.5 thread pitch and 106 mm center bore.

What torque should be used for the nuts?

Standard torque depends on the number of studs. For a 6-stud model, tighten to about 100-110 Nm (75-80 ft-lb) following the star pattern. Refer to the manual for exact values.

Can I use an impact wrench to install the spacers?

No, never use an impact wrench. It could damage the nuts. Use only a hand wrench.

Should I use threadlocker on the studs?

Yes, it is recommended to apply threadlocker on the studs to reduce the risk of vibration and loosening.

After how many kilometers should the nuts be retightened?

After 25 to 50 miles (40-80 km), then again after 1,000 to 2,000 miles (1,600-3,200 km).
Make sure the nuts are tight.

Do these spacers fit a Toyota Tundra 2004?

Yes, model 6550-6550-BT-106.1-07 fits Toyota Tundra 2000-2006.

Can I stack multiple spacers on the same wheel?

No, it is strictly forbidden to stack multiple spacers or adapters. This could cause breakage and wheel loss.

What to do if the wheel touches the body after installation?

Check the clearance in the wheel well after lowering the vehicle. If the tire rubs, the spacer is too thick or the vehicle requires modifications. In that case, do not use.

How to get the manual in French?

You can download the manual in PDF format from notice-facile.com. The original manual is in English, but French translations are available.

Where to find the serial number and technical support?

Technical support and the electronic warranty certificate are available at www.vevor.com/support. The model is indicated on the packaging.

USER MANUAL 6550-6550-BT-106.1-07 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

WHEEL SPACERS

MODEL: 6550-6550-BT-106.1-07

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL: 6550-6550-BT-106.1-07

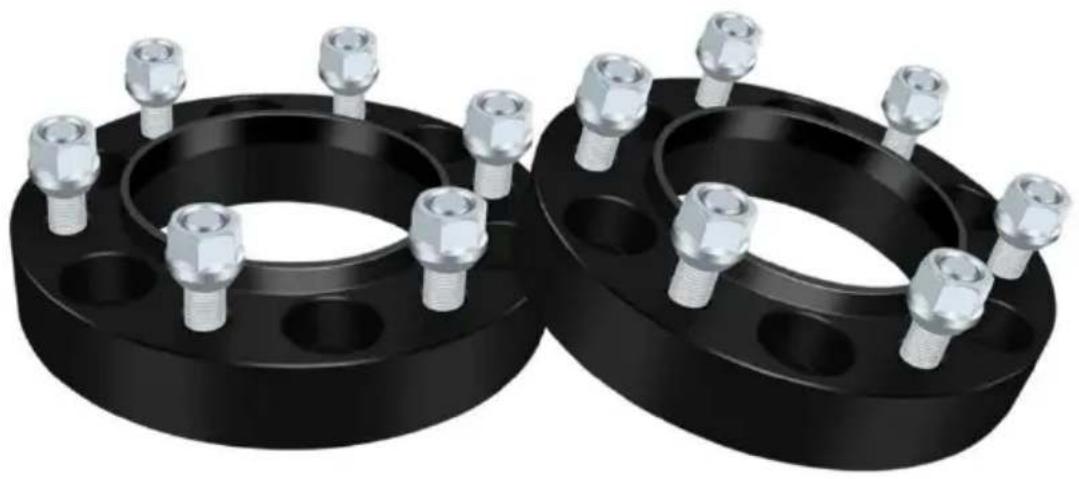

Two black flange components with metallic bolts and threaded fasteners, no text or symbols visible

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

In Order To Avoid Wobble And Break Studs Problems, Please Read These Important Safety Information As Follows:

• Never modify the wheel adapters/spacers.
• Never remove the factory-installed studs on the wheel adapters/spacers.
  ● Never use an impact wrench.

- Do not stack multiple adapters/spacers on a single wheel.

● Make sure that mating flange on the vehicle's rotor is completely clean.

- Re-torque all lug nuts on the spacer/adapter after 25-50 miles of driving, t again after 1-2,000 miles, use the thread locker to ensure the nuts are secu enough, avoid taking off.

- Carefully follow the installation instructions included in this package.

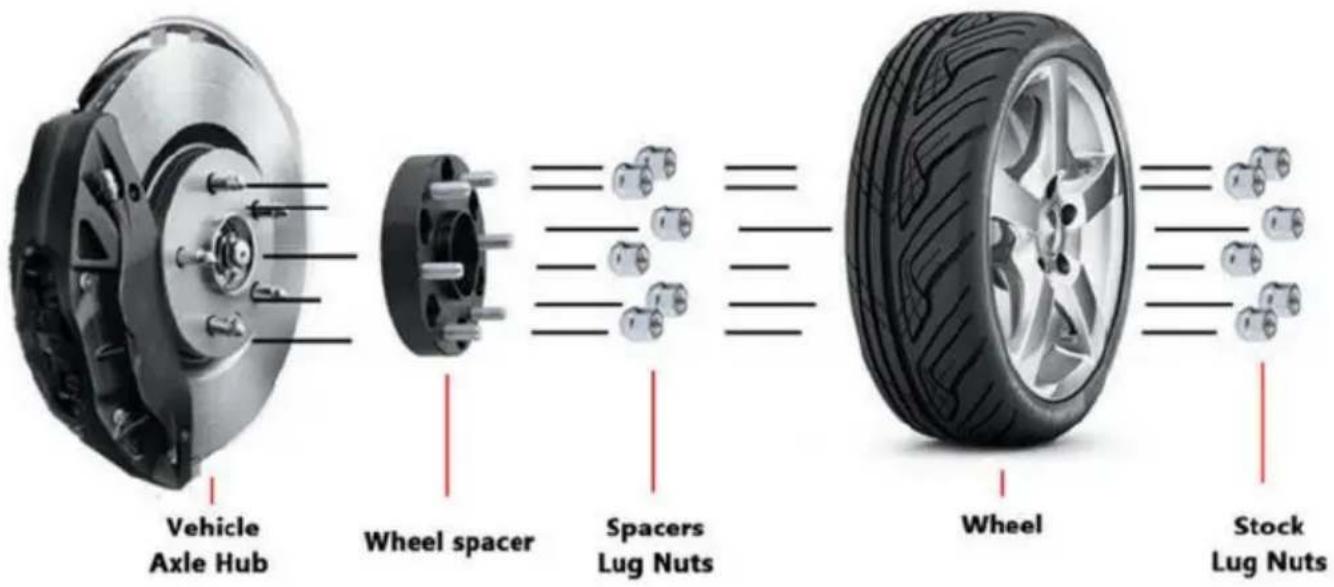

INSTALLATION INSTRUCTIONS

1. Following your vehicle owner's manual, properly raise the vehicle and supp using adequately load-rated jack stands. Never work on a raised vehicle that supported with a factory emergency, floor or bottle jack. Remove wheels and inspect rotors for any damage or cracks. If any damage is identified, do not continue with this installation.

2. Remove any visible rust from the mating flange on the vehicle's rotor. Ins both the rotor and wheel mounting flanges for burns, rivet heads, or other obstruction that would preventa flush seating of the vehicle rotor's mounting fl to both the inner and outer side of the spacers. Improperly seated spacers a

hazardous and may cause adapter failure, resulting in the loss of a wheel driving the vehicle.

1. If proper seating can be achieved, mount the wheel spacer onto the vehicle studs until it sits flush with the rotor's flange. Thread glue on the studs is recommended to reduce vibration risk. Install with open-end lug nuts (included with this kit) as the specs below, follow the star pattern by hand wrench. Do impact or it will damage the nuts.
2. Place wheel on the wheel adapter studs until the wheel mounting flange is flush on the adapter's outer flange. Install the nuts provided onto the lugs.
3. Check for proper tire clearance in the wheel well.making certain there is sufficient wheel and tire clearance for full steering (lock-to-lock). If there is no interference,vehicle may belowered. Once vehicle is on the ground under full recheck for adequate tire and wheel clearance and unobstructed lock-to-lock steering.

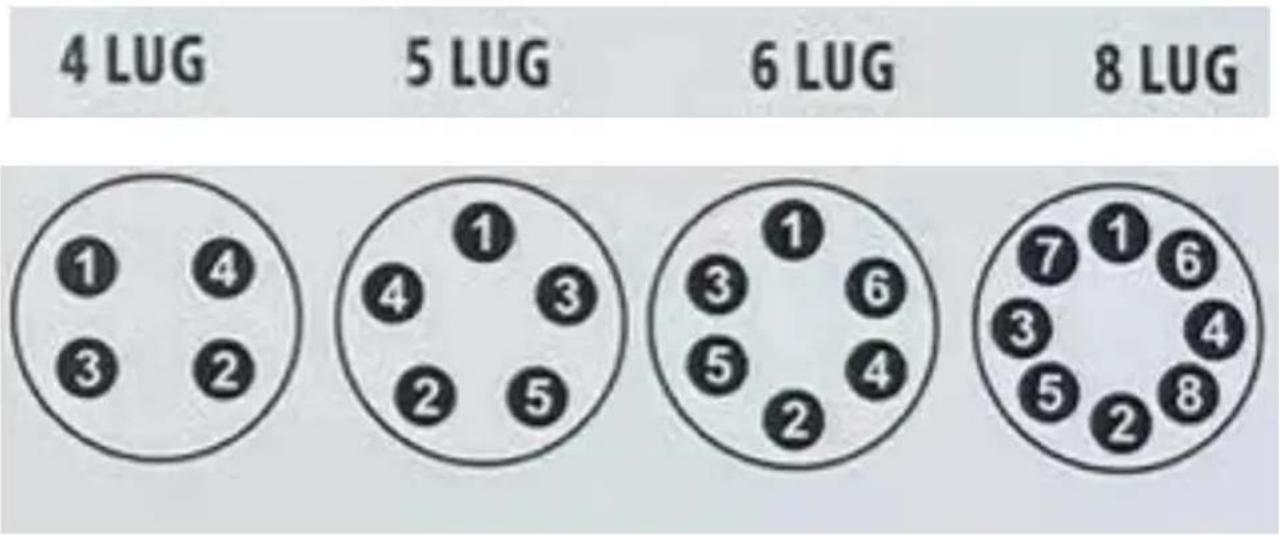

Standard torque of Nuts or bolts:

Torque of Nuts :

• M14 x 1.5 = 8 turns = 85-90 LBS
• M12 x 1.5 = 6.5 turns = 70-80 LBS
• M12 x 1.25 = 6.5 turns = 70-80 LBS
• 9/16 - 18= 8 turns = 135-145 LBS
• 1/2 - 20 = 6 turns = 75-85 LBS

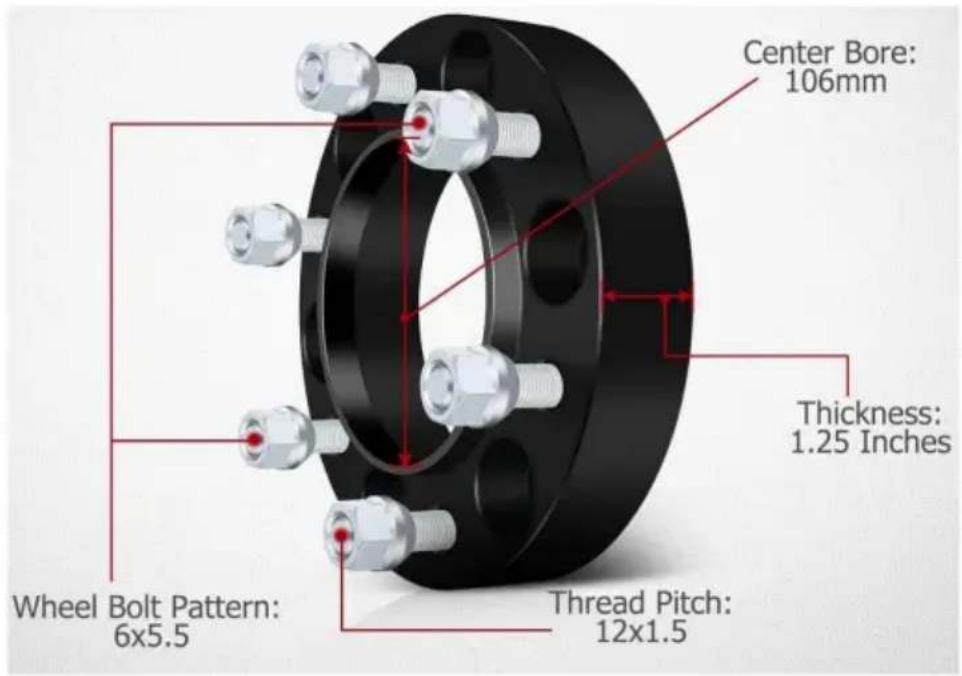

Model	6550-6550-BT-106.1-07
Thickness(inch)	1.25
Wheel Bolt Pattern	6 x 5.5 in
Center Bore	106 mm
Thread Pitch	M12x1.5
Qty.	4

Adaptive Model
Toyota	1990-2022	Land Cruiser Prado
	2005-2023	Fortuner
	2004-2019	Ventury H200
	1998-2013	Land Cruiser(Only Fit For 6 lugs)
	2000-2006	Tundra
	1995-2015	Tacoma (1st Gen, 2nd Gen)4WD/Pre-Runner/VVT-i (not fit 2WD S-Runner orX-Runner)
	2001-2007	Sequoia
Toyota	2015-2020	HILUX REVO
	1989-2009	HILUX SURF
	1979-2020	HILUX 4WD
	1989-2023	4Runner(3rd Gen,4th Gen, 5th Gen)
	2007-2021	FJ Cruiser
LEXUS	2002-2021	GX460 470 400 J120 J150 Series

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Two black flange components with metallic bolts and bolt holes, no text or symbols visible

BESOIN D'AIDE? CONTACTEZ-NOUS!

Machine Translated by Google

• M14 x 1.5 = 8 turns = 85-90 LBS
• M12 x 1.5 = 6.5 turns = 70-80 LBS
- M12 x 1.25 = 6.5 turns = 70-80 LBS
• 9/16 - 18= 8 turns = 135-145 LBS
• 1/2 - 20 = 6 turns = 75-85 LBS

C/O YH Consulting Limited Bureau 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

REPRÉSENTANT CE

E-CrossStu GmbH

Mainzer Landstr.69,

Two black flange components with metallic bolts and bolt holes, no text or symbols visible

BRAUCHEN SIE HILFE? KONTAKTIERE UNS!

Machine Translated by Google

• M14 x 1.5 = 8 turns = 85-90 LBS
• M12 x 1.5 = 6.5 turns = 70-80 LBS
- M12 x 1.25 = 6.5 turns = 70-80 LBS
• 9/16 - 18= 8 turns = 135-145 LBS
• 1/2 - 20 = 6 turns = 75-85 LBS

Adaptives Modell
Toyota	1990-2022 Land Cruiser Prado
	2005–2023 Fortuner
	2004-2019 Ventury H200
	1998–2013 Land Cruiser (nur passend für 6 Laschen)
	2000-2006 Tundra
	1995-2015	Tacoma (1. Generation, 2. Generation)4WD/Pre-Runner/VVT-i(nicht geeignet für 2WD S-Runner oder X-Runner)
	2001-2007 Mammutbaum
Toyota	2015-2020 HILUX REVO
	1989–2009 HILUX SURF
	1979–2020 HILUX 4WD
	1989–2023 4Runner (3. Generation, 4. Generation, 5. Generation)
	2007-2021 FJ Cruiser
LEXUS 2002–2021 GX460 470 400 J120 J150 Serie

Hersteller: Shanghaimuxinmuyeyouxiangongsi

Adresse: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, Shanghai 200000 CN.

C/O YH Consulting Limited Büro 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Two black flange components with metallic bolts and bolt holes, no text or symbols visible

HO BISOGNO DI AIUTO? CONTATTACI!

• M14 x 1.5 = 8 turns = 85-90 LBS
• M12 x 1.5 = 6.5 turns = 70-80 LBS
- M12 x 1.25 = 6.5 turns = 70-80 LBS
• 9/16 - 18= 8 turns = 135-145 LBS
• 1/2 - 20 = 6 turns = 75-85 LBS

Importato in AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

REP.CE

E-CrossStu GmbH

Mainzer Landstr.69,

Two black flange components with metallic bolts and bolt holes, no text or symbols visible

• M14 x 1.5 = 8 turns = 85-90 LBS
• M12 x 1.5 = 6.5 turns = 70-80 LBS
- M12 x 1.25 = 6.5 turns = 70-80 LBS
• 9/16 - 18= 8 turns = 135-145 LBS
• 1/2 - 20 = 6 turns = 75-85 LBS

Modelo	6550-6550-BT-106.1-07
Grosor (pulgadas)	1.25
Patrón de pernos de rueda	6 x 5,5 pulgadas
Orificio central	106mm
Paso de rosca	M12x1.5
Cant.	4

Modelo adaptativo
toyota	1990-2022 Land Cruiser Prado
	2005-2023 Fortuna
	2004-2019 Venturi H200
	Land Cruiser	1998-2013 (solo apto para 6 lengüetas)
	2000-2006 tundra
	1995-2015	Tacoma (1.a generación, 2.a generación) 4WD/Pre-Runner/VVT-i (no compatible con 2WD S-Runner o X-Runner)
	2001-2007 secoya
toyota	2015-2020HILUX REVO
	1989-2009 HILUX SURF
	1979-2020HILUX 4WD
	1989-2023 4Runner (3.a generación, 4.a generación, 5.a generación)
	2007-2021 FJ crucero
LEXUS 2002-2021 Serie		GX460 470 400 J120 J150

Fabricante: Shanghaimuxinmuyeyouxiangongsi

Dirección: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Importado a AUS: SIHAO PTY LTD. 1 ROKEVA CALLE ASTWOOD

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

E-CrossStu GmbH

Mainzer Landstr.69,

Two black flange components with metallic bolts and bolt holes, no text or symbols visible

POTRZEBUJE POMOCY? SKONTAKTUJ SIĘ Z NAMI!

Machine Translated by Google

• M14 x 1.5 = 8 turns = 85-90 LBS
• M12 x 1.5 = 6.5 turns = 70-80 LBS
- M12 x 1.25 = 6.5 turns = 70-80 LBS
• 9/16 - 18= 8 turns = 135-145 LBS
• 1/2 - 20 = 6 turns = 75-85 LBS

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

REPREZENT KE

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt nad Menem.

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technische ondersteuning en e-garantiecertificaat www.vevor.com/support

WIEL SPACERS

MODEL: 6550-6550-BT-106.1-07

Two black flange components with metallic bolts and bolt holes, no text or symbols visible

HULP NODIG? NEEM CONTACT MET ONS OP!

INSTALLATIE INSTRUCTIES

Machine Translated by Google

• M14 x 1.5 = 8 turns = 85-90 LBS
• M12 x 1.5 = 6.5 turns = 70-80 LBS
• M12 x 1.25 = 6.5 turns = 70-80 LBS
• 9/16 - 18= 8 turns = 135-145 LBS
• 1/2 - 20 = 6 turns = 75-85 LBS

Model	6550-6550-BT-106.1-07
Dikte (inch)	1.25
Patroon van wielbouten	6 x 5,5 inch
Centrum boring	106 mm
Draadafstand	M12x1,5
Aantal	4

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

Technische ondersteuning en e-garantiecertificaat www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Two black flange components with metallic bolts and bolt holes, no text or symbols visible

BEHÖVS HJÄLP? KONTAKTA OSS!

• M14 x 1.5 = 8 turns = 85-90 LBS
• M12 x 1.5 = 6.5 turns = 70-80 LBS
• M12 x 1.25 = 6.5 turns = 70-80 LBS
• 9/16 - 18= 8 turns = 135-145 LBS
• 1/2 - 20 = 6 turns = 75-85 LBS

Modell	6550-6550-BT-106.1-07
Tjocklek (tum)	1,25
Hjulbultsmönster	6 x 5,5 tum
Center Bore	106 mm
Trådtäthet	M12x1,5
Antal.	4

Adaptiv modell
Toyota	1990-2022 Land Cruiser Prado
	2005-2023 Fortuner
	2004-2019 Ventury H200
	1998-2013 Land Cruiser (passar endast för 6 luggar)
	2000-2006 Tundra
	1995-2015	Tacoma (1st Gen, 2nd Gen)4WD/Pre-Runner/VVT-i (passar inte 2WD S-Runner eller X-Runner)
	2001-2007 Sequoia
Toyota	2015-2020 HILUX REVO
	1989-2009 HILUX SURF
	1979-2020 HILUX 4WD
	1989-2023 4Runner (3:e generationen, 4:e generationen, 5:e generationen)
	2007-2021 FJ Cruiser
LEXUS	2002-2021 GX460 470 400 J120 J150-serien

Tillverkare: Shanghaimuxinmuyeyouxiangongsi

Adress: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Importerad till AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australien

Importerad till USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support
