USER MANUAL 6550-6550-ET-78.1-09 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

WHEEL SPACERS

MODEL: 6550-6550-ET-78.1-09

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL: 6550-6550-ET-78.1-09

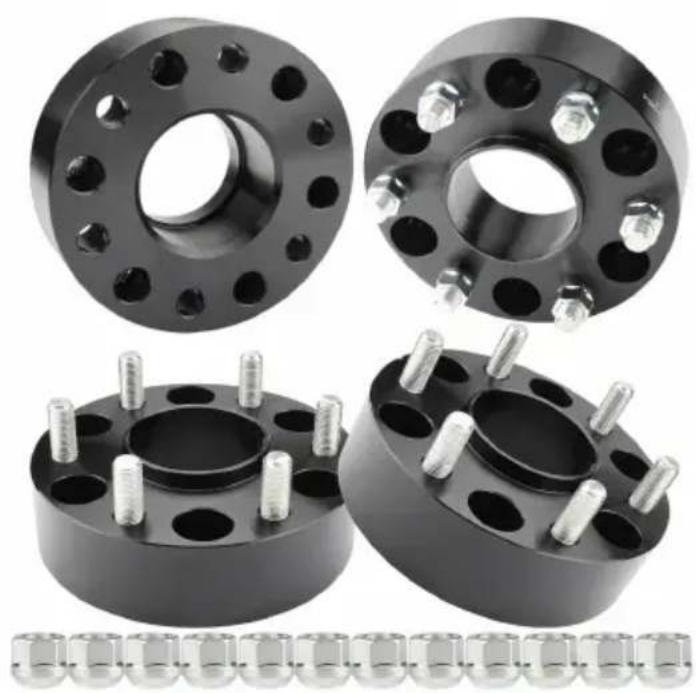

Four black mechanical flange components with bolt holes and threaded pins, shown from different angles (top, front, side, bottom) alongside a row of metallic bolts.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

In Order To Avoid Wobble And Break Studs Problems, Please Read These Important Safety Information As Follows:

● Never modify the wheel adapters/spacers.
- Never remove the factory-installed studs on the wheel adapters/spacers.
● Never use an impact wrench.

- Do not stack multiple adapters/spacers on a single wheel.

● Make sure that mating flange on the vehicle's rotor is completely clean.

- Re-torque all lug nuts on the spacer/adapter after 25-50 miles of driving, t again after 1-2,000 miles, use the thread locker to ensure the nuts are secu enough, avoid taking off.

- Carefully follow the installation instructions included in this package.

INSTALLATION INSTRUCTIONS

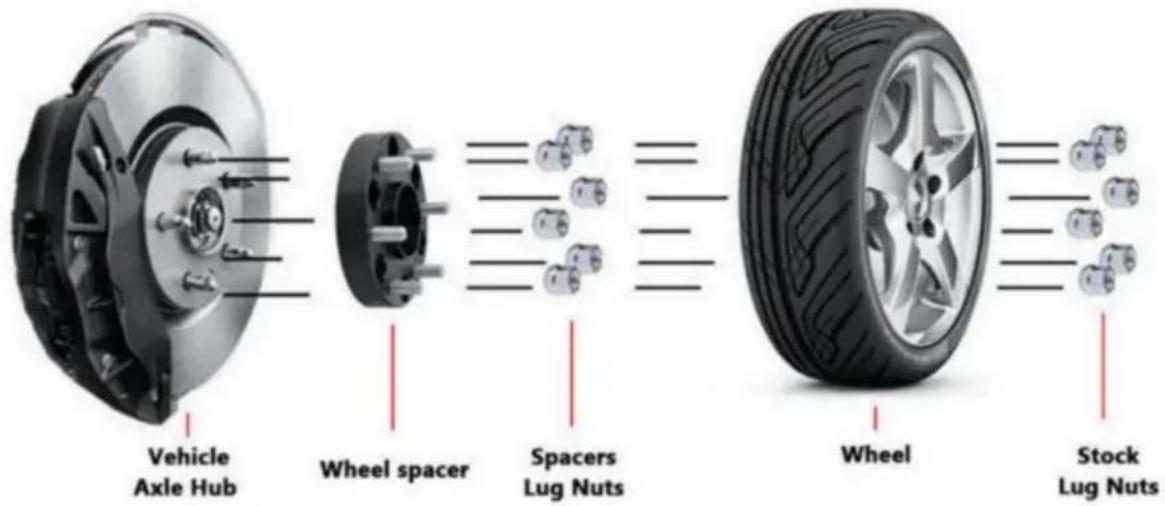

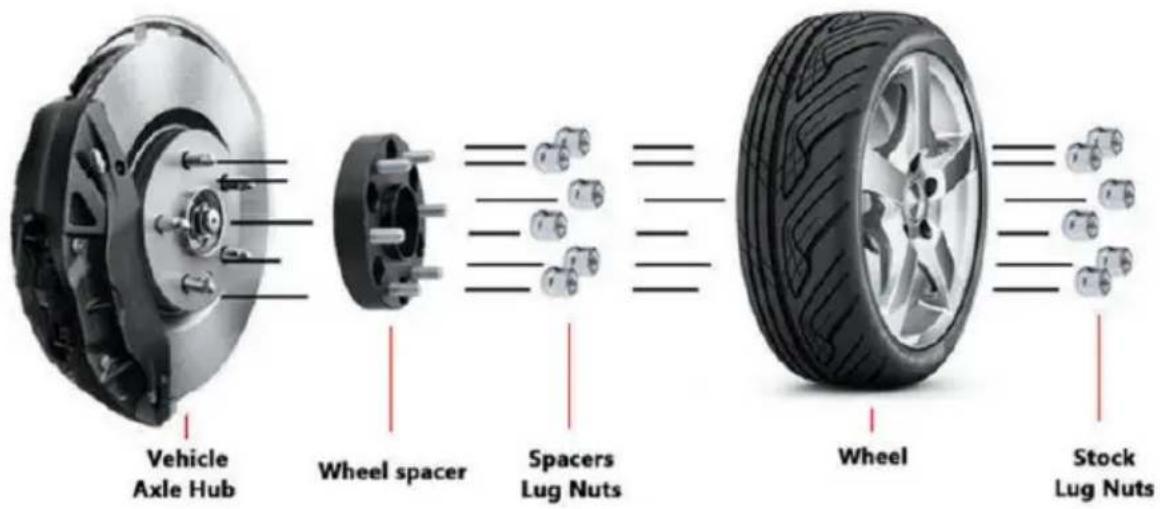

Vehicle Axle Hub Wheel spacer Spacers Lug Nuts Wheel Stock Lug Nuts

1. Following your vehicle owner's manual, properly raise the vehicle and supp using adequately load-rated jack stands. Never work on a raised vehicle that supported with a factory emergency, floor or bottle jack. Remove wheels and inspect rotors for any damage or cracks. If any damage is identified, do not continue with this installation.

2. Remove any visible rust from the mating flange on the vehicle's rotor. Ins both the rotor and wheel mounting flanges for burns, rivet heads, or other obstruction that would preventa flush seating of the vehicle rotor's mounting fl to both the inner and outer side of the spacers. Improperly seated spacers a hazardous and may cause adapter failure, resulting in the loss of a wheel driving the vehicle.

3. If proper seating can be achieved, mount the wheel spacer onto the vehicle studs until it sits flush with the rotor's flange. Thread glue on the studs is recommended to reduce vibration risk. Install with open-end lug nuts (included with this kit) as the specs below, follow the star pattern by hand wrench. Do impact or it will damage the nuts.

4. Place wheel on the wheel adapter studs until the wheel mounting flange is flush on the adapter's outer flange. Install the nuts provided onto the lugs.
5. Check for proper tire clearance in the wheel well.making certain there is sufficient wheel and tire clearance for full steering (lock-to-lock). If there is no interference,vehicle may belowered. Once vehicle is on the ground under full recheck for adequate tire and wheel clearance and unobstructed lock-to-lock steering.

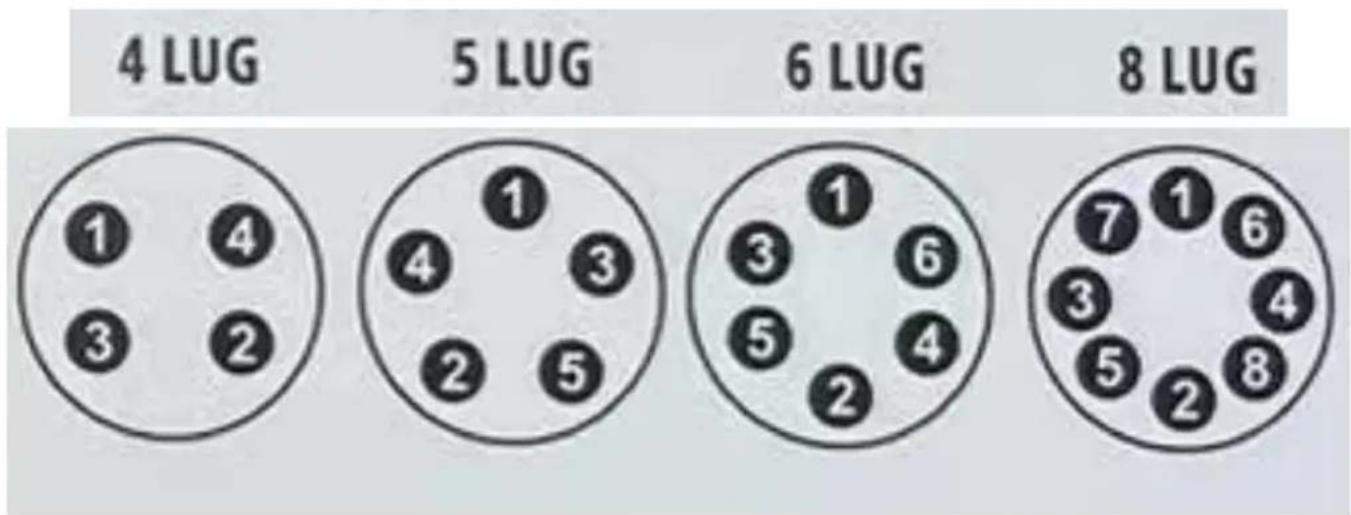

Standard torque of Nuts or bolts:

4 LUG 5 LUG 6 LUG 8 LUG

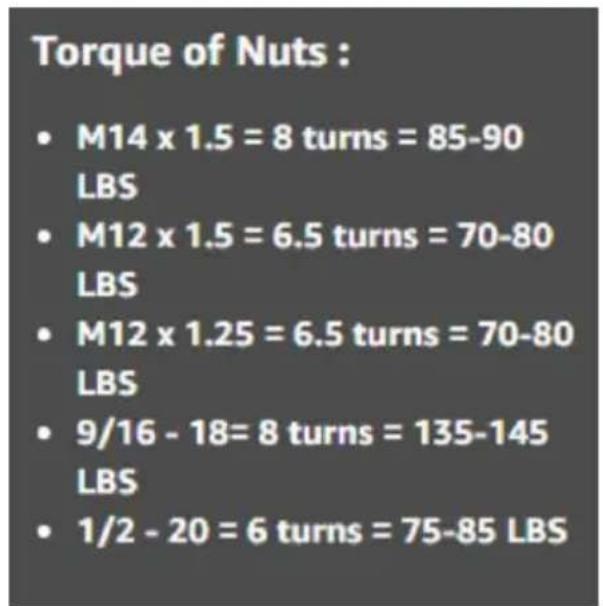

Torque of Nuts : • M14 x 1.5 = 8 turns = 85-90 LBS • M12 x 1.5 = 6.5 turns = 70-80 LBS • M12 x 1.25 = 6.5 turns = 70-80 LBS • 9/16 - 18= 8 turns = 135-145 LBS • 1/2 - 20 = 6 turns = 75-85 LBS

Model	6550-6550-ET-78.1-09
Thickness(inch)	2
Wheel Bolt Pattern	6 x 5.5 in
Center Bore	78.1 mm
Thread Pitch	M14x1.5
Qty.	4

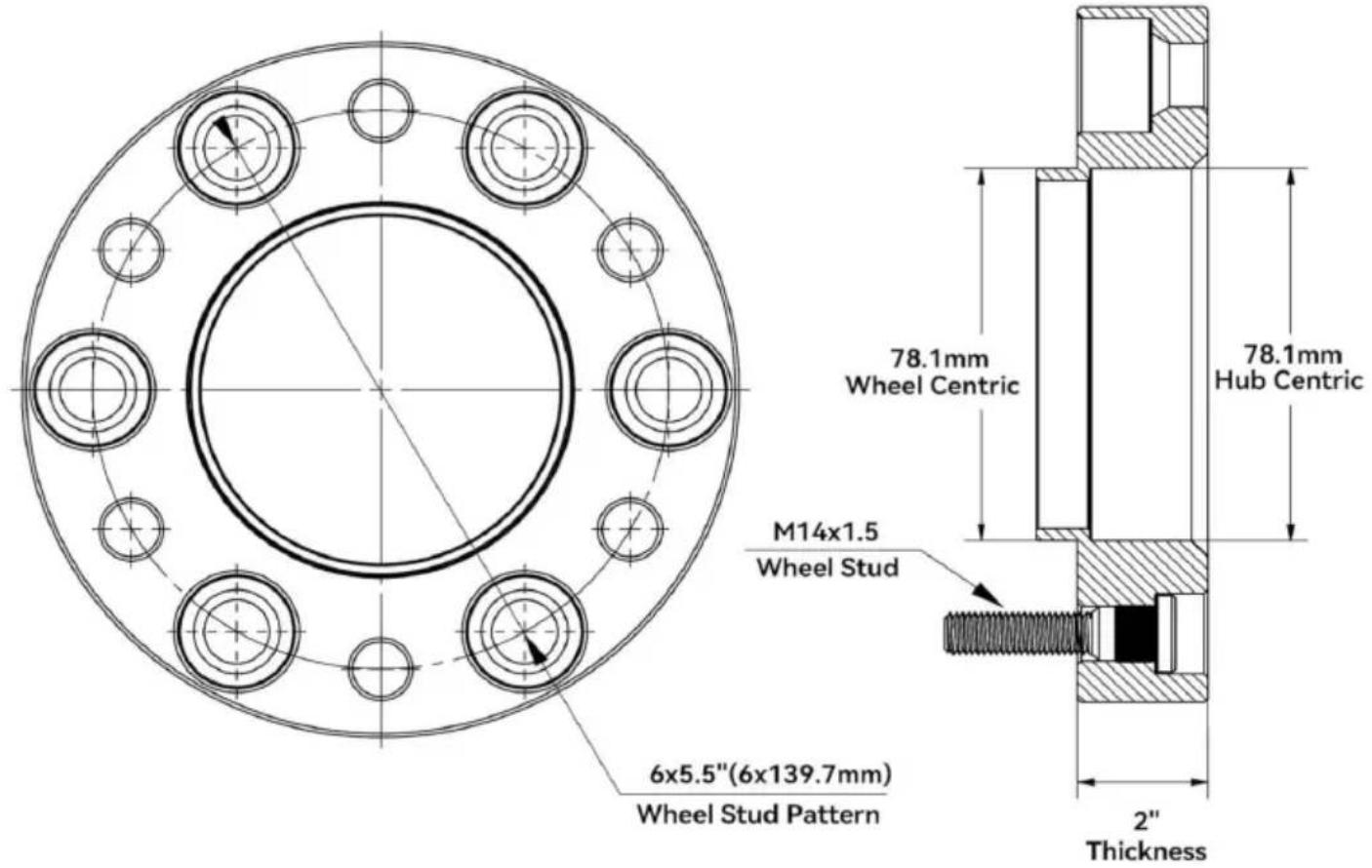

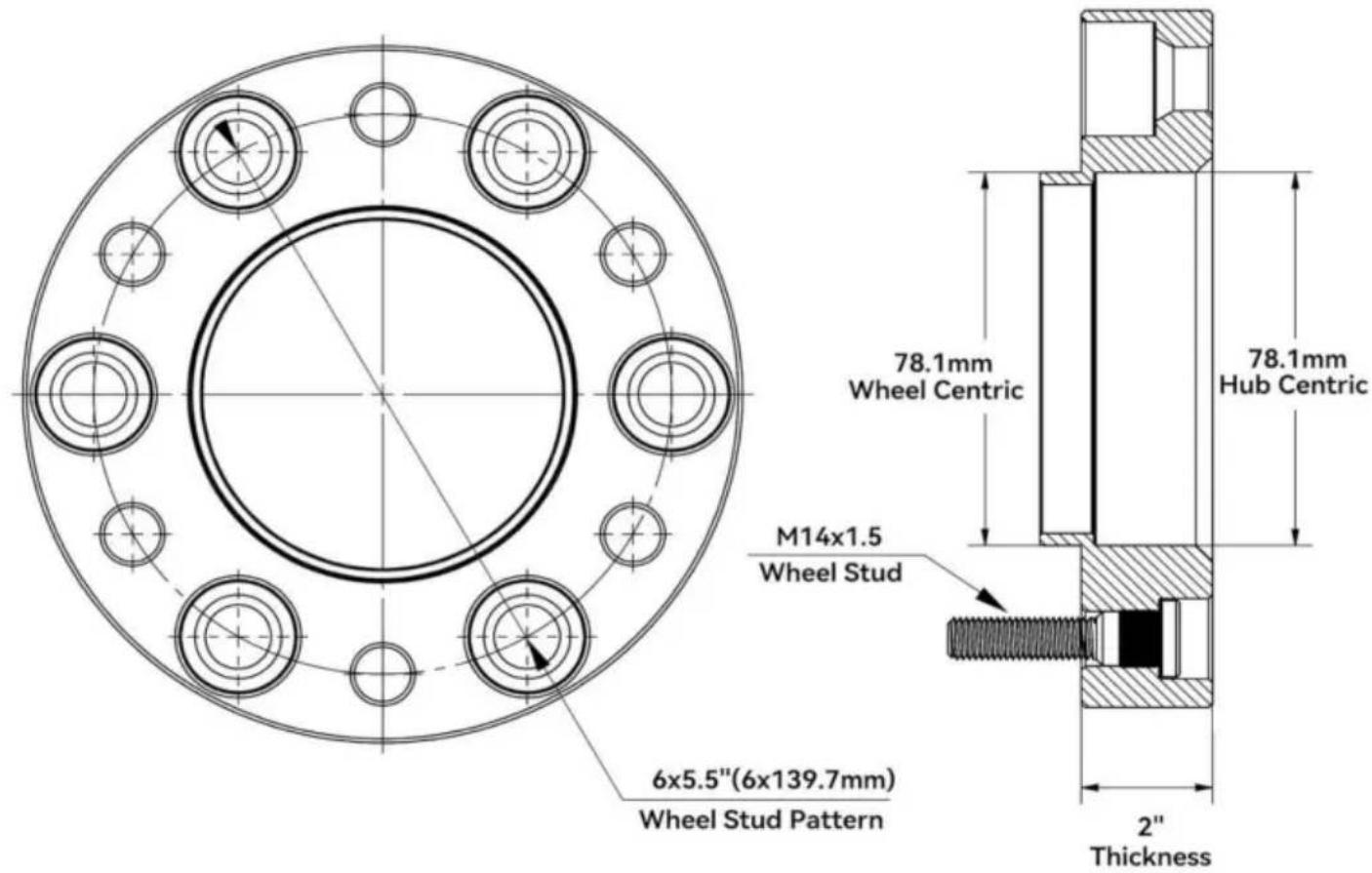

78.1mm Wheel Centric 78.1mm Hub Centric M14x1.5 Wheel Stud 6x5.5"(6x139.7mm) Wheel Stud Pattern 2" Thickness

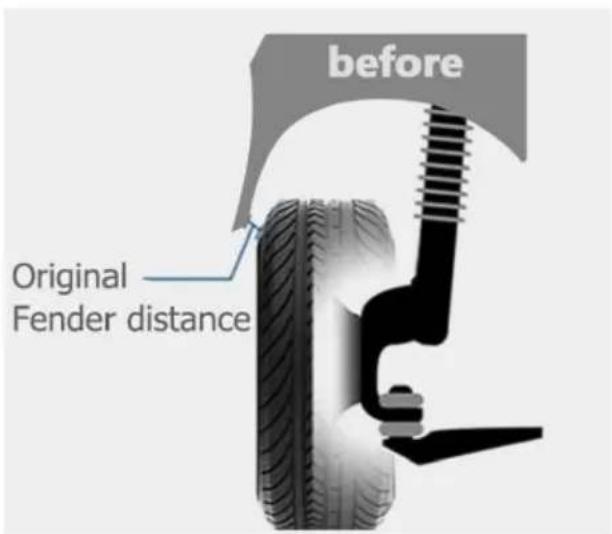

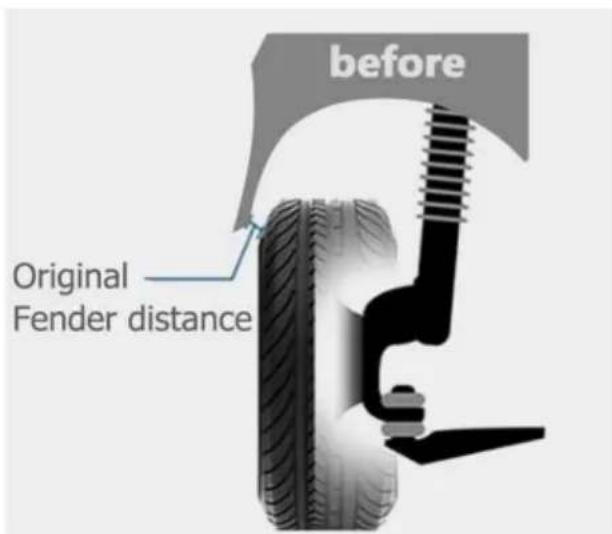

before Original Fender distance

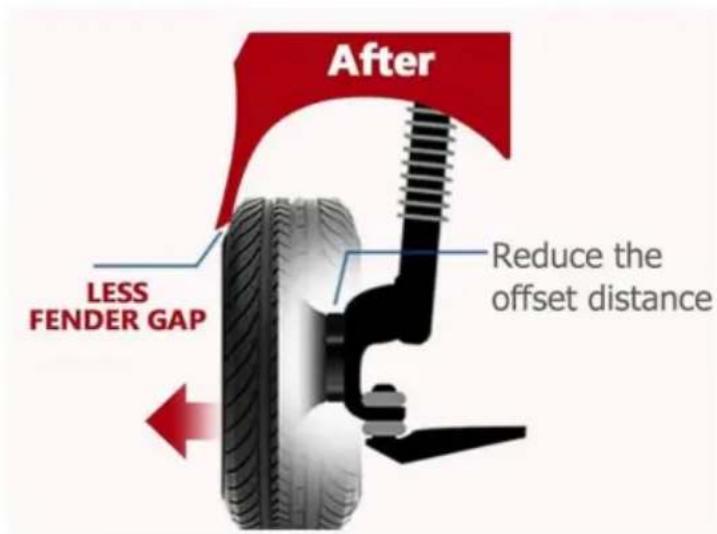

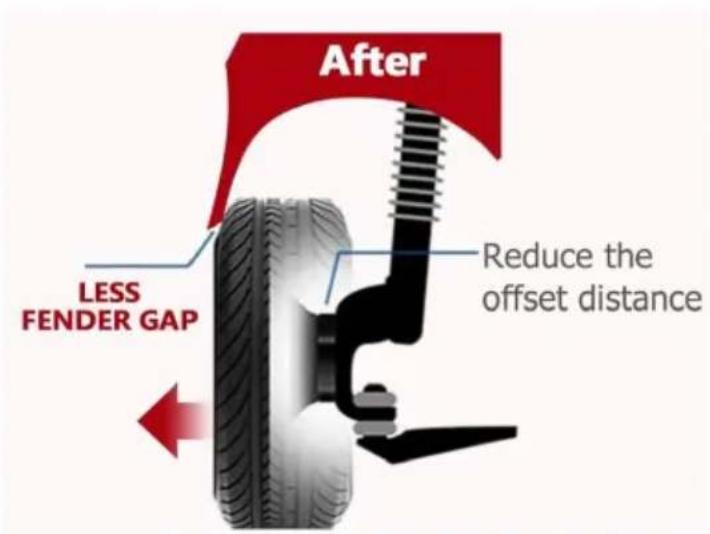

After Less FENDER GAP Reduce the offset distance

Adaptive Model
Chevrolet	1999-2023	Silverado 1500	GMC	1999-2023	Sierra 1500
	2002-2006	Avalanche 1500		2003-2014	Savana 1500
	1995-2000	Tahoe 4WD		2000-2023	Yukon
	2007-2013	Avalanche		2015-2023	Yukon XL
	2000-2014	Suburban 1500		2000-2014	Yukon XL 1500
	2015-2023	Suburban	Cadilac	1999-2023	Escalade
	2001-2023	Tahoe	Chevrolet	2003-2014	Express 1500

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Four black mechanical flange components with bolt holes and threaded pins, shown from different angles (top, front, side, bottom) against a white background.

BESOIN D'AIDE? CONTACTEZ-NOUS!

Vehicle Axle Hub Wheel spacer Spacers Lug Nuts Wheel Stock Lug Nuts

• M14 x 1.5 = 8 turns = 85-90 LBS

• M12 x 1.5 = 6.5 turns = 70-80 LBS

• M12 x 1.25 = 6.5 turns = 70-80 LBS

• 9/16 - 18= 8 turns = 135-145 LBS

• 1/2 - 20 = 6 turns = 75-85 LBS

before Original Fender distance

After LESS FENDER GAP Reduce the offset distance

Modèle adaptatif
Chevrolet		Silverado Sierra1500	GMC	1999-20231999	1500
	2002-2006	avalanche Savane1500 1500		2003-2014
	1995-2000	Tahoe4 roues matrices		2000-2023 Yukon
	Avalanches 2007-2013			2015-2023	YukonXL
	2000-2014	1500		2000-2014	YukonDe banlieueXL1500
	Cadillac de banlieue 2015-2023			Escalade 1999	-2023
	Tahoe 2001-2023		Chevrolet2003-2014		Exprimer1500

Fabricant : Shanghaimuxinmuyeyouxiangongsi

Adresse : Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, Shanghai 200000 CN.

Importé en Australie : SIHAO PTY LTD. 1 RUE ROKEVAASTWOOD NSW 2122 Australie

C/O YH Consulting Limited Bureau 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

REPRÉSENTANT CE

E-CrossStu GmbH

Mainzer Landstr.69,

Four black mechanical flange components with bolt holes and threaded pins, shown from different angles (top, front, side, bottom) against a white background.

BRAUCHEN SIE HILFE? KONTAKTIERE UNS!

Vehicle Axle Hub Wheel spacer Spacers Lug Nuts Wheel Stock Lug Nuts

• M14 x 1.5 = 8 turns = 85-90 LBS
• M12 x 1.5 = 6.5 turns = 70-80 LBS
• M12 x 1.25 = 6.5 turns = 70-80 LBS
• 9/16 - 18= 8 turns = 135-145 LBS
• 1/2 - 20 = 6 turns = 75-85 LBS

before Original Fender distance

After LESS FENDER GAP Reduce the offset distance

Adaptives Modell
Chevrolet		Silverado Sierra1500 1500	GMC	1999-20231999-2023
	2002-2006	Lawine Savanne1500 1500		2003-2014
	1995-2000	Tahoe4WD		2000-2023 Yukon
	Lawine 2007-2013			2015-2023	YukonXL
	2000-2014 2000-20141500				YukonXL 1500
	2015-2023 Vorstadt-Cadilac			1999-2023 Escalade
	2001-2023 Tahoe		Chevrolet 2003-2014		Äußern1500

Hersteller: Shanghaimuxinmuyeyouxiangongsi

Adresse: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, Shanghai 200000 CN.

C/O YH Consulting Limited Büro 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

EG-REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Four black mechanical flange components with bolt holes and threaded pins, shown from different angles (top, front, side, bottom) against a white background.

HO BISOGNO DI AIUTO? CONTATTACI!

Vehicle Axle Hub Wheel spacer Spacers Lug Nuts Wheel Stock Lug Nuts

• M14 x 1.5 = 8 turns = 85-90 LBS
• M12 x 1.5 = 6.5 turns = 70-80 LBS
• M12 x 1.25 = 6.5 turns = 70-80 LBS
• 9/16 - 18= 8 turns = 135-145 LBS
• 1/2 - 20 = 6 turns = 75-85 LBS

before Original Fender distance

After LESS FENDER GAP Reduce the offset distance

Modello adattivo
Chevrolet	1999-2023 19	Silverado 99-2023 1500 1500	GMC		Sierra
	2002-2006	Valanga Savana 1500 1500		2003-2014
	1995-2000	Tahoe 4 ruote motrici		2000-2023 Yukon
	2007-2013 Valanga			2015-2023	Yukon XL
		Suburbano 1500		2000-20142000	Yukon XL1500
	2015-2023 Cadilac suburbana			Scalata 1999	2023
	2001-2023 Tahoe		Chevrolet2003-2014		Esprimere 1500

Importato in AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122Australia

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

REP.CE

E-CrossStu GmbH

Mainzer Landstr.69,

Four black mechanical flange components with bolt holes and threaded pins, shown from different angles (top, front, side, bottom) against a white background.

Vehicle Axle Hub Wheel spacer Spacers Lug Nuts Wheel Stock Lug Nuts

• M14 x 1.5 = 8 turns = 85-90 LBS
• M12 x 1.5 = 6.5 turns = 70-80 LBS
• M12 x 1.25 = 6.5 turns = 70-80 LBS
• 9/16 - 18= 8 turns = 135-145 LBS
• 1/2 - 20 = 6 turns = 75-85 LBS

before Original Fender distance

After LESS FENDER GAP Reduce the offset distance

Modelo adaptativo
chevrolet		plateado Sierra1500 1500	GMC	1999-20231999-2023
	2002-2006	avalancha Sabana1500 1500		2003-2014
	1995-2000	Tahoe4x4		2000-2023 Yukón
	2007-2013 Avalancha			2015-2023	YukónSG
	2000-2014 2000-20141500				YukónXL 1500
	2015-2023 Cadilac suburbano			Escalada 1999-2023
	2001-2023 Tahoe		Chevrolet 2003-2014		Expresar1500

Fabricante: Shanghaimuxinmuyeyouxiangongsi

Dirección: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Importado a AUS: SIHAO PTY LTD. 1 ROKEVA CALLE ASTWOOD

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

REPRESENTANTE DE LA CE

E-CrossStu GmbH

Mainzer Landstr.69,

Four black mechanical flange components with bolt holes and threaded pins, shown from different angles (top, front, side, bottom) against a white background.

POTRZEBUJE POMOCY? SKONTAKTUJ SIĘ Z NAMI!

Vehicle Axle Hub Wheel spacer Spacers Lug Nuts Wheel Stock Lug Nuts

• M14 x 1.5 = 8 turns = 85-90 LBS

- M12 x 1.5 = 6.5 turns = 70-80 LBS

• M12 x 1.25 = 6.5 turns = 70-80 LBS

• 9/16 - 18= 8 turns = 135-145 LBS

• 1/2 - 20 = 6 turns = 75-85 LBS

before Original Fender distance

After LESS FENDER GAP Reduce the offset distance

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

REPREZENT KE

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt nad Menem.

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technische ondersteuning en e-garantiecertificaat www.vevor.com/support

WIEL SPACERS

MODEL: 6550-6550-ET-78.1-09

Four black mechanical flange components with bolt holes and threaded pins, shown from different angles (top, front, side, bottom) against a white background.

HULP NODIG? NEEM CONTACT MET ONS OP!

INSTALLATIE INSTRUCTIES

Vehicle Axle Hub Wheel spacer Spacers Lug Nuts Wheel Stock Lug Nuts

• M14 x 1.5 = 8 turns = 85-90 LBS
• M12 x 1.5 = 6.5 turns = 70-80 LBS
• M12 x 1.25 = 6.5 turns = 70-80 LBS
• 9/16 - 18= 8 turns = 135-145 LBS
• 1/2 - 20 = 6 turns = 75-85 LBS

before Original Fender distance

After LESS FENDER GAP Reduce the offset distance

Adaptief model
Chevrolet		Zilverado Sierra1500 1500	GMC	1999-20231999-2023
	2002-2006	Lawine1500 1500		2003-2014	Savanne
	1995-2000	Tahoe4WD		2000-2023 Yukon
	2007-2013 Lawine			2015-2023	YukonXL
	2000-2014 2000-20141500				YukonXL1500
	2015-2023 Cadilac in de voorsteden			Escalade 1999-2023
	2001-2023Tahoe		Chevrolet 2003-2014		Nadrukkelijk1500

Fabrikant: Shanghaimuxinmuyeyouxiangongsi

Adres: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

EG REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

Technische ondersteuning en e-garantiecertificaat www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Four black mechanical flange components with bolt holes and threaded pins, shown from different angles (top, front, side, bottom) against a white background.

BEHÖVS HJÄLP? KONTAKTA OSS!

Vehicle Axle Hub Wheel spacer Spacers Lug Nuts Wheel Stock Lug Nuts

• M14 x 1.5 = 8 turns = 85-90 LBS
- M12 x 1.5 = 6.5 turns = 70-80 LBS
• M12 x 1.25 = 6.5 turns = 70-80 LBS
• 9/16 - 18= 8 turns = 135-145 LBS
• 1/2 - 20 = 6 turns = 75-85 LBS

Modell	6550-6550-ET-78.1-09
Tjocklek (tum)	2
Hjulbultsmönster	6 x 5,5 tum
Center Bore	78,1 mm
Trådtäthet	M14x1,5
Antal.	4

78.1mm Wheel Centric 78.1mm Hub Centric M14x1.5 Wheel Stud 6x5.5"(6x139.7mm) Wheel Stud Pattern 2" Thickness

before Original Fender distance

After LESS FENDER GAP Reduce the offset distance

Adaptiv modell
Chevrolet	1999-2023	Silverado 1999-2023 1500 1500	GMC		Sierra
	2002-2006	Lavin Savann 1500 1500		2003-2014
	1995-2000	Tahoe 4WD		2000-2023	Yukon
	2007-2013	lavin		2015-2023	Yukon XL
		Förorts 1500		2000-2014	Yukon 2000-2014 XL 1500
	2015-2023	Suburban Cadilac		1999-2023	Escalade
	2001-2023	Tahoe	Chevrolet	2003-2014	uttrycka 1500

Tillverkare: Shanghaimuxinmuyeyouxiangongsi

Adress: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Importerad till AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australien

Importerad till USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support
