Product Type	Wheel Spacers (Adapters)
Model	6550-6550-A-108-07
Brand	Vevor
Thickness	1 inch (25.4 mm)
Number of Studs	4 pieces per spacer
Wheel Bolt Pattern	6 x 5.5 inches (6 x 139.7 mm)
Center Bore	108 mm
Thread Pitch	M12 x 1.5
Quantity in Kit	4 spacers (complete for one vehicle)
Material	High Strength Steel
Finish	Anti-corrosion Coating
Intended Use	Track Widening, Wheel Adaptation
Compatibility	Vehicles with 6x5.5" bolt pattern and 108 mm center bore
Estimated Unit Weight	Approximately 1.5 kg
Recommended Tightening Torque	Follow vehicle specifications (usually 100-120 Nm)
Installation Instructions	Included, requires prior cleaning and progressive tightening
Safety Precautions	Do not stack, do not modify, retighten after 25-50 miles
Required Tools	Wrench, thread locker, jack stands
Maintenance	Check tightening regularly, clean flanges
Warranty	Electronic warranty certificate available at vevor.com/support
Repairability	Parts not individually repairable, replace the whole
Standards	Compliant with automotive safety guidelines

Frequently Asked Questions - 6550-6550-A-108-07 Vevor

What is the tightening torque for the nuts on the spacer?

The tightening torque should follow your vehicle's specifications. Use a torque wrench and tighten in a star pattern. In the absence of data, a torque of 100-120 Nm is generally recommended for M12 studs.

Can I use an impact wrench to tighten the nuts?

No, never use an impact wrench. It could damage the nuts or studs. Always tighten by hand with a torque wrench.

Are these spacers compatible with all vehicles?

No, they are designed for vehicles with a 6x5.5 inch bolt pattern and a 108 mm center bore. Check your vehicle's specifications before purchase.

Can I stack multiple spacers?

No, never stack them. Stacking is dangerous and may cause failure. Use one spacer per wheel.

How to install the spacers correctly?

Lift the vehicle, clean the rotor flange, mount the spacer, hand-tighten the nuts in a star pattern, then lower the vehicle and tighten to recommended torque. Consult the installation manual provided.

Should I apply thread locker?

Yes, it is highly recommended to apply thread locker to the studs to reduce vibration and loosening. Use a medium-strength thread locker.

How often should I check the tightness?

Retighten all nuts after 25 to 50 miles of driving, then again after 1,000 to 2,000 miles. After that, check periodically.

What if the spacer does not fit perfectly?

Ensure the rotor flange is clean and rust-free. Check for obstructions such as rivet heads. If the fit issue persists, do not force it and contact technical support.

Can I use standard wheel nuts?

No, use the open-end nuts provided in the kit. Standard nuts may not provide proper tightening due to stud length.

Where to find technical support and warranty?

Go to www.vevor.com/support to get the electronic warranty certificate and contact technical support for any questions.

USER MANUAL 6550-6550-A-108-07 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

WHEEL SPACERS

MODEL: 6550-6550-A-108-07

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only rep estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offer are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL: 6550-6550-A-108-07

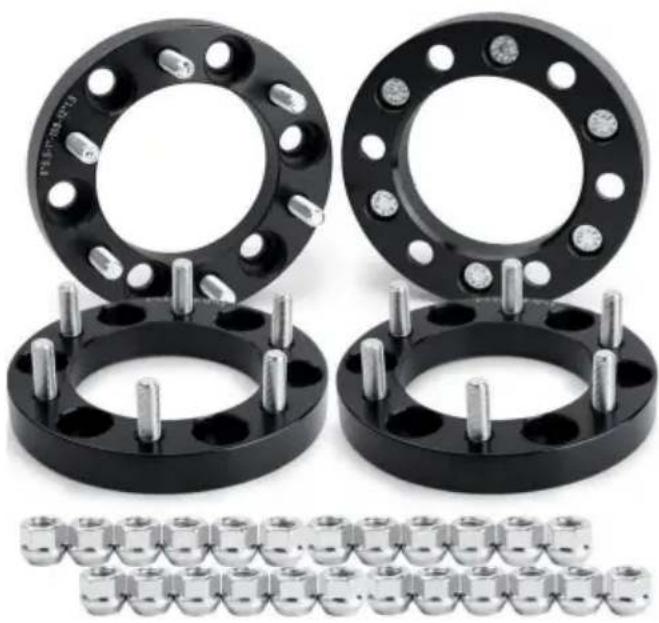

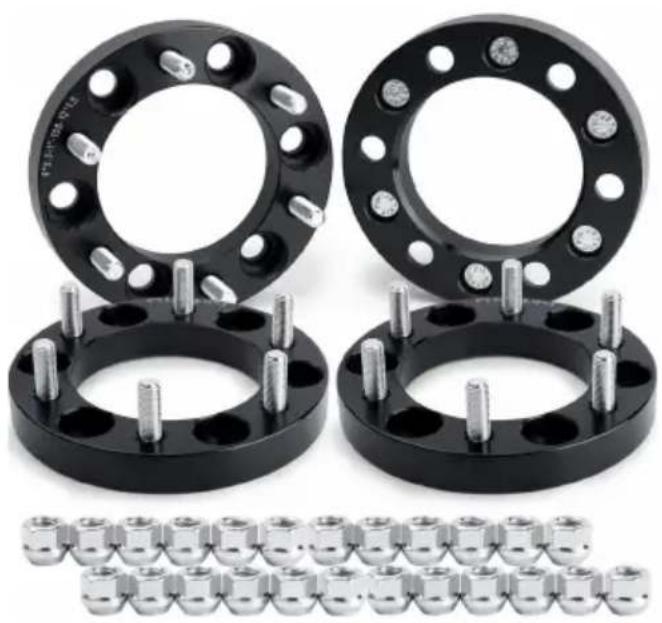

Four black flange components with metallic bolts and a row of metallic bolts below (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

In Order To Avoid Wobble And Break Studs Problems, Please Read These Important Safety Information As Follows:

• Never modify the wheel adapters/spacers.
  ● Never remove the factory-installed studs on the wheel adapters/spacers.
  ● Never use an impact wrench.

- Do not stack multiple adapters/spacers on a single wheel.

● Make sure that mating flange on the vehicle's rotor is completely clean.

- Re-torque all lug nuts on the spacer/adapter after 25-50 miles of driving, t again after 1-2,000 miles, use the thread locker to ensure the nuts are secu enough, avoid taking off.

- Carefully follow the installation instructions included in this package.

INSTALLATION INSTRUCTIONS

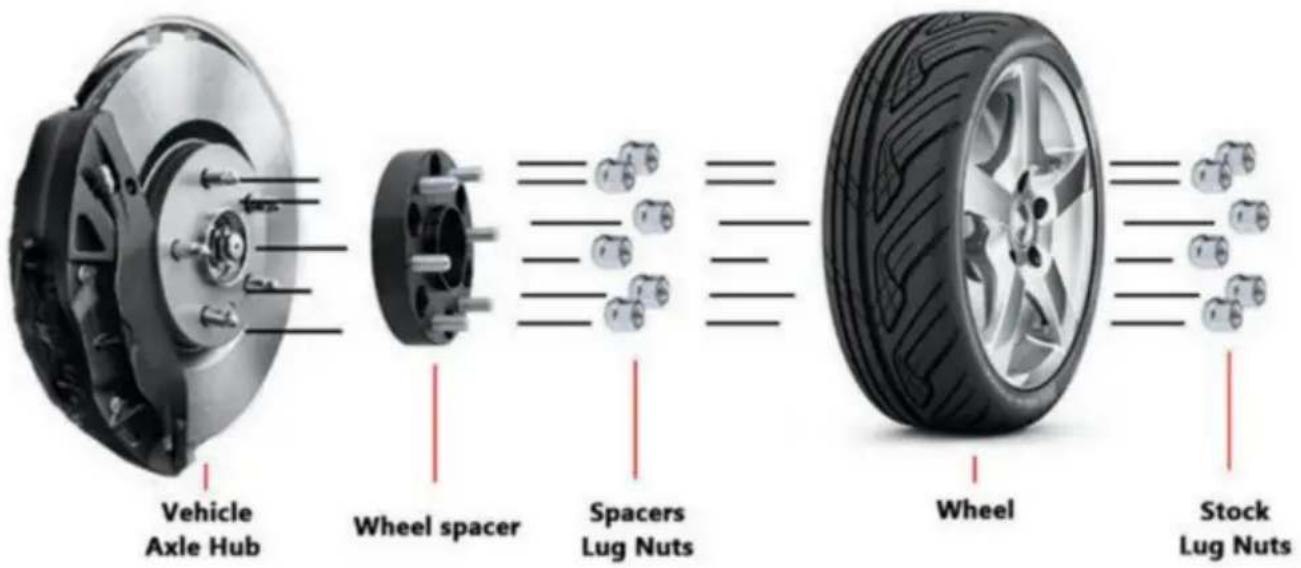

Vehicle Axle Hub Wheel spacer Spacers Lug Nuts Wheel Stock Lug Nuts

1. Following your vehicle owner's manual, properly raise the vehicle and supp using adequately load-rated jack stands. Never work on a raised vehicle that supported with a factory emergency, floor or bottle jack. Remove wheels and inspect rotors for any damageor cracks. If any damage is identified, do not continue with this installation.

2. Remove any visible rust from the mating flange on the vehicle's rotor. Ins, both the rotor and wheel mounting flanges for burns, rivet heads, or other obstruction that would preventa flush seating of the vehicle rotor's mounting flange to both the inner and outer side of the spacers. Improperly seated spacers are hazardous and may cause adapter failure, resulting in the loss of a wheel which driving the vehicle.

3. If proper seating can be achieved, mount the wheel spacer onto the vehicle studs until it sits flush with the rotor's flange. Thread glue on the studs is recommended to reduce vibration risk. Install with open-end lug nuts (included with this kit) as the specs below, follow the star pattern by hand wrench. Do impact or it will damage the nuts.

4. Place wheel on the wheel adapter studs until the wheel mounting flange is flush on the adapter's outer flange. Install the nuts provided onto the lugs.
5. Check for proper tire clearance in the wheel well.making certain there is sufficient wheel and tire clearance for full steering (lock-to-lock). If there is no interference,vehicle may belowered. Once vehicle is on the ground under full recheck for adequate tire and wheel clearance and unobstructed lock-to-lock steering.

Standard torque of Nuts or bolts:

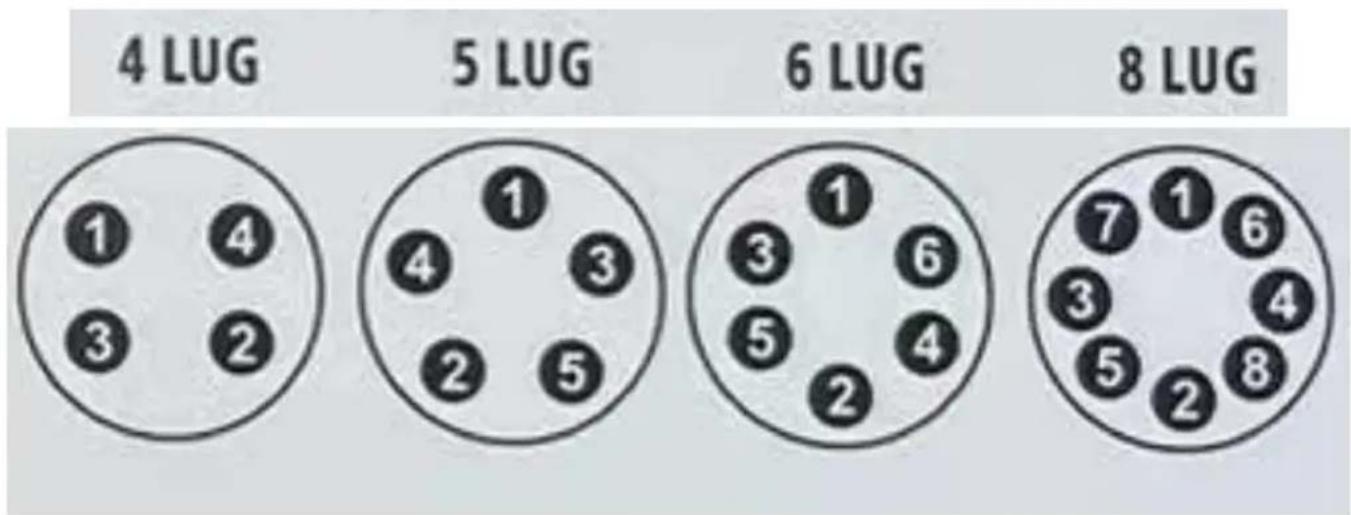

4 LUG 5 LUG 6 LUG 8 LUG

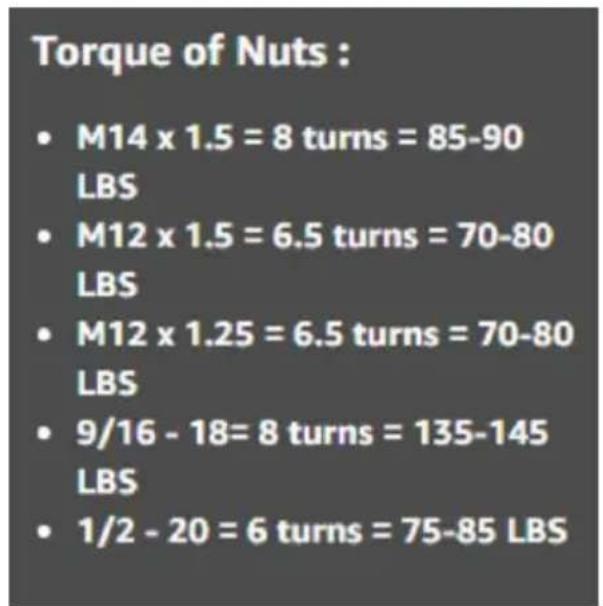

Torque of Nuts : • M14 x 1.5 = 8 turns = 85-90 LBS • M12 x 1.5 = 6.5 turns = 70-80 LBS • M12 x 1.25 = 6.5 turns = 70-80 LBS • 9/16 - 18= 8 turns = 135-145 LBS • 1/2 - 20 = 6 turns = 75-85 LBS

Model	6550-6550-A-108-07
Thickness(inch)	1
Wheel Bolt Pattern	6 x 5.5 in
Center Bore	108 mm
Thread Pitch	M12x1.5
Qty.	4

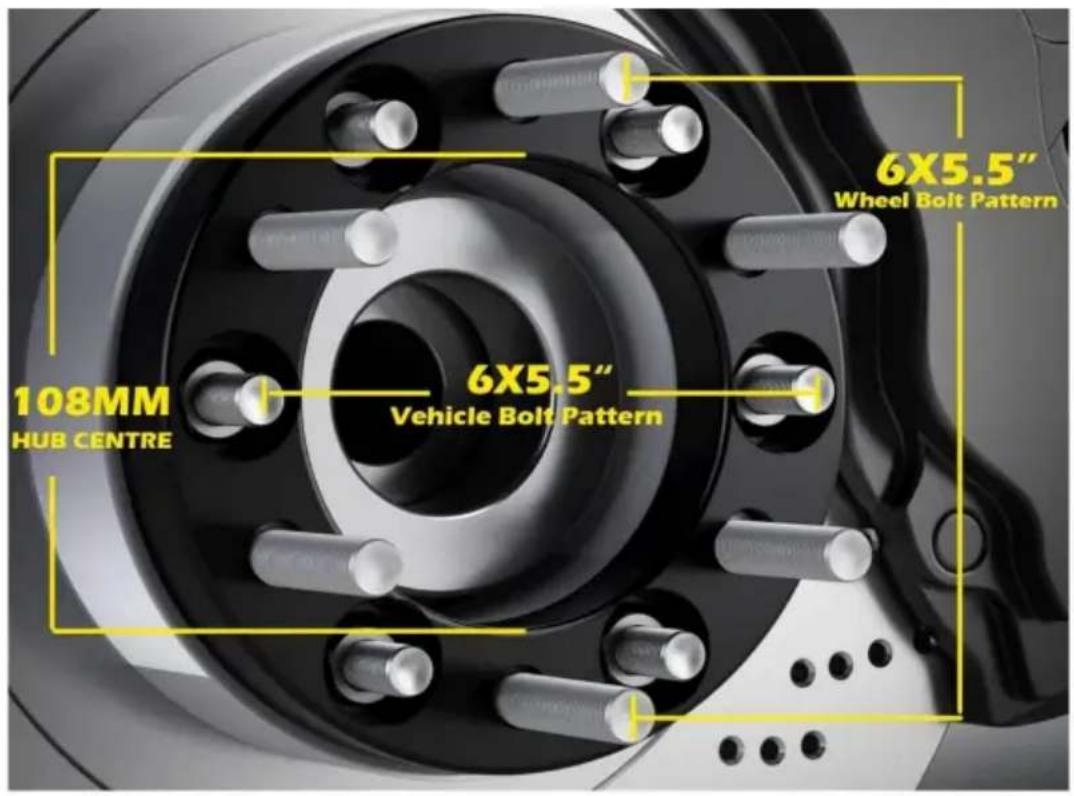

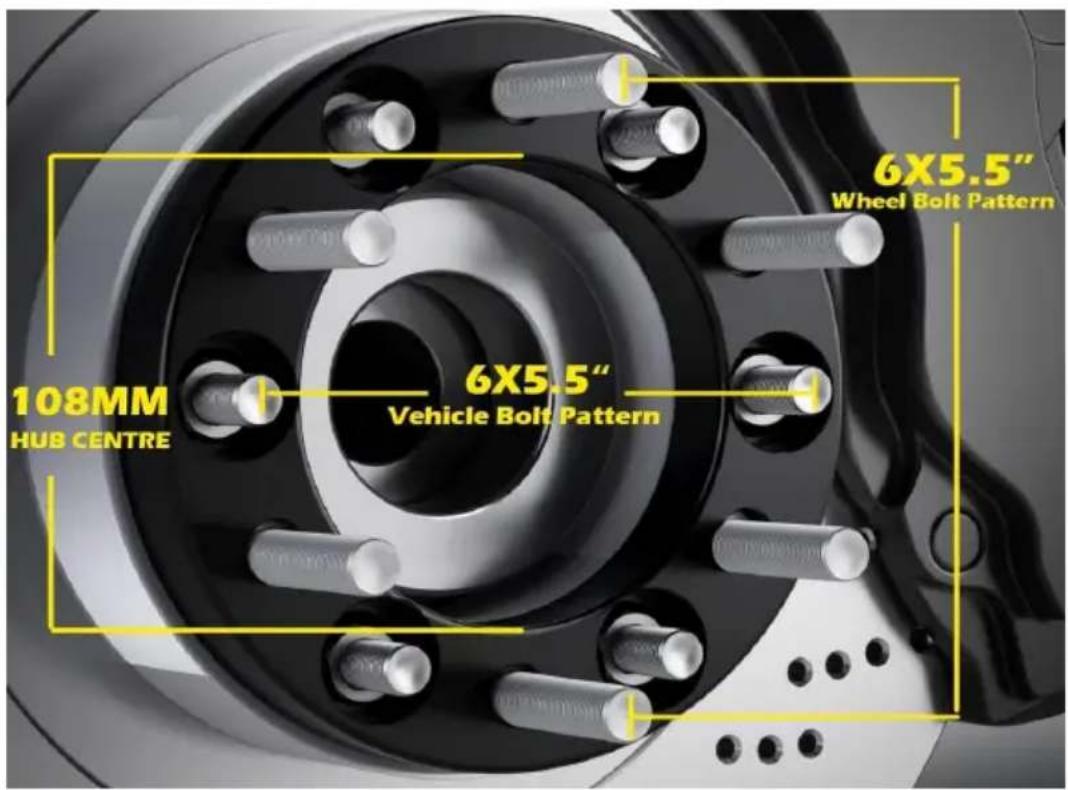

6X5.5" Wheel Bolt Pattern 6X5.5" Vehicle Bolt Pattern 108MM HUB CENTRE

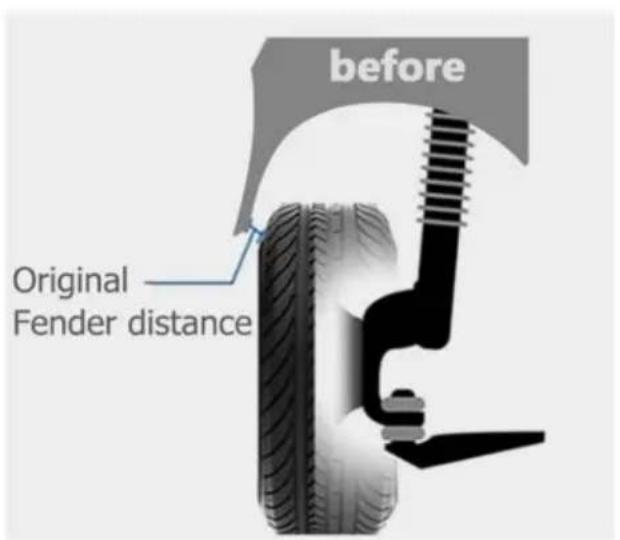

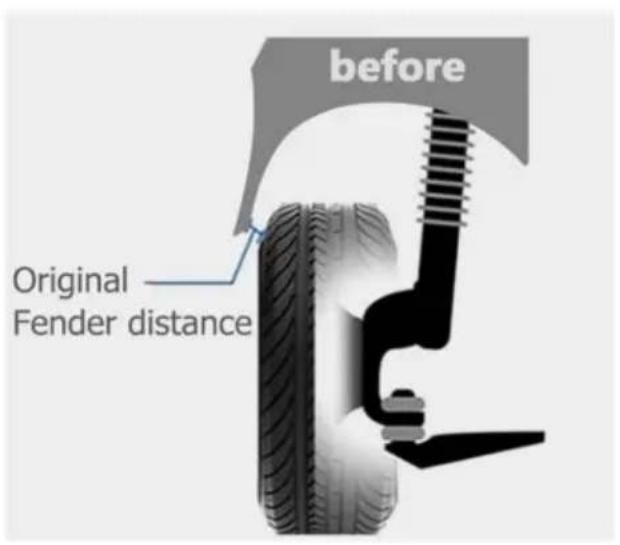

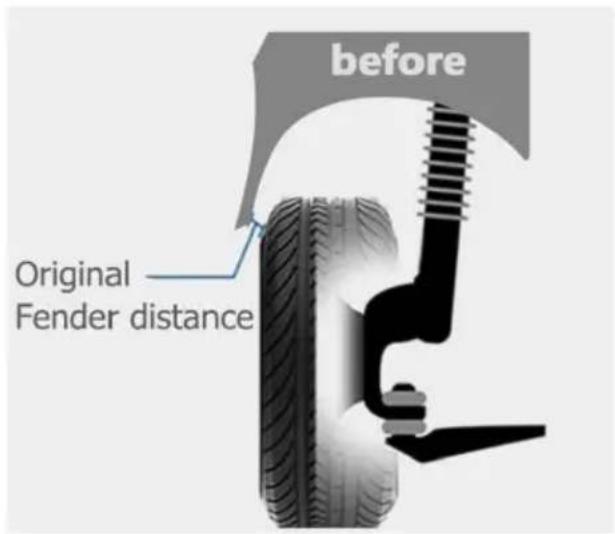

before Original Fender distance

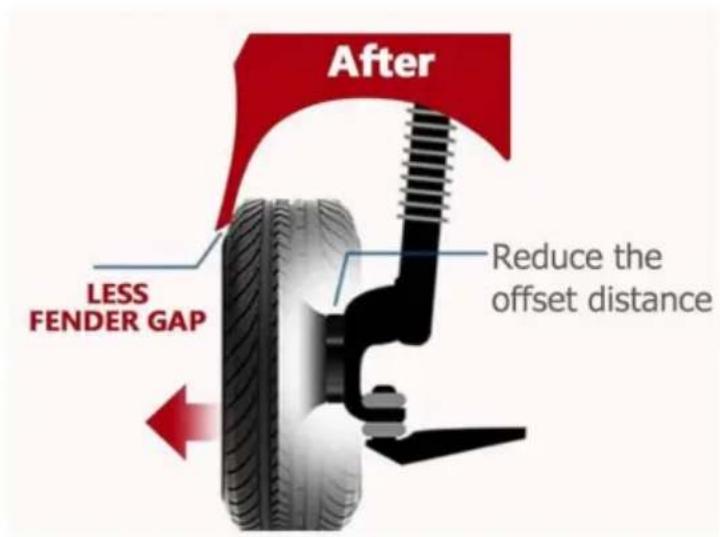

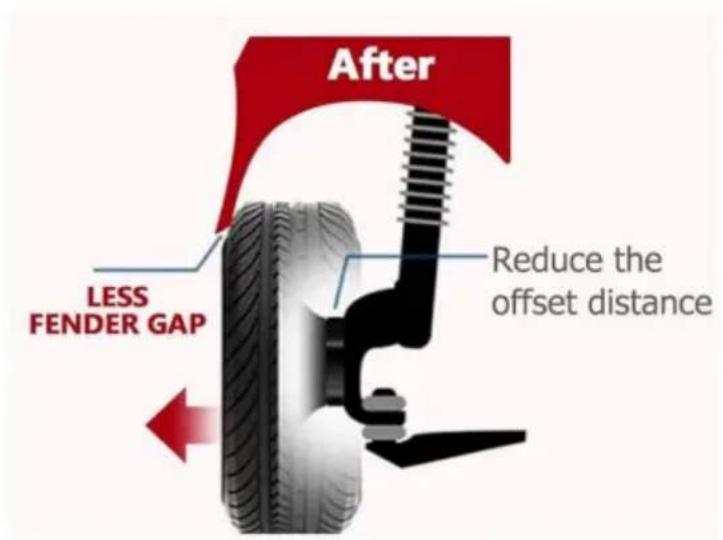

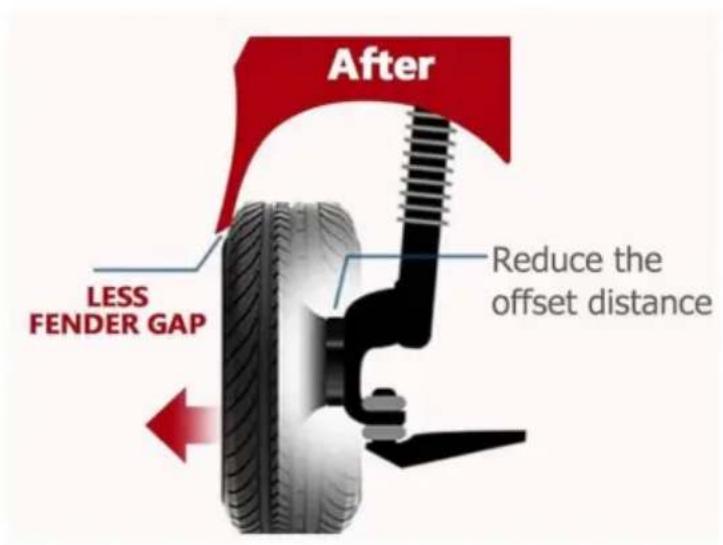

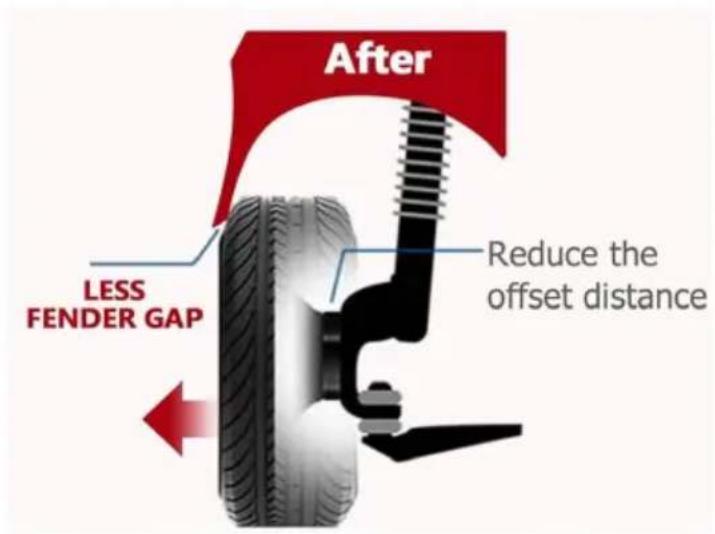

After LESS FENDER GAP Reduce the offset distance

Adaptive Model
TOYOTA	1979-1994	Hilux (6 Lug ONLY)	HUMMER	2005-2021	H3
	1995-2015	Tacoma (6 Lug ONLY)		2009-2010	H3T
	2016-2022	Tacoma	MITSUBISHI	1989-2021	MONTERO
	1989-2022	4Runner		1996-2022	MONTRO SPORT
	2007-2022	FJ Cruiser	LEXUS	2002-2022	GX
	1980-1997	Land Cruiser	CHEVROLET	2004-2014	COLORADO
	2000-2006	Tundra	GMC	2004-2012	CANYON
	2005-2022	Fortuner	ACURA	1995-1999	SLX
	2001-2007	Sequoia	HONDA	1994-2002	PASSPORT
	2004-2019	Ventury	ISUZU	1981-2002	TROOPER
	1980-1988	Pick up 4WD		1989-2004	RODEO
	1989-1995	Pick up (6 Lu ONLY)		1998-2004	RODEO SPORT
	1993-1998	T100		2005-2008	I-SERIES
	2004-2018	Commuter	HYUDAI	2007-2009	ENTOURAGE
	2005-2022	SW4		1991-2003	GALLOPER
				2001-2007	TERRACAN

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Four black flange components with metallic bolts and a row of metallic bolts below (no text or symbols visible)

BESOIN D'AIDE? CONTACTEZ-NOUS!

Vehicle Axle Hub Wheel spacer Spacers Lug Nuts Wheel Stock Lug Nuts

• M14 x 1.5 = 8 turns = 85-90 LBS

- M12 x 1.5 = 6.5 turns = 70-80 LBS

• M12 x 1.25 = 6.5 turns = 70-80 LBS

• 9/16 - 18= 8 turns = 135-145 LBS

• 1/2 - 20 = 6 turns = 75-85 LBS

before Original Fender distance

After LESS FENDER GAP Reduce the offset distance

Modèle adaptatif
TOYOTA	1979-1994	Hilux (6 cosses SEULEMENT)	HUMMER	2005-2021	H3
	1995-2015	Tacoma (6 Cosse UNIQUEMENT)		2009-2010	H3T
	2016-2022	Tacoma	MITSUBISHI	MONTÉRO 1989-2021
	1989-2022	4Coureur		1996-2022	MONTRER SPORT
	2007-2022	Croiseur FJ	LEXUS	2002-2022	GX
	1980-1997 Land Cruiser CHEVROLET 2004-2014 COLORADO
	2000-2006	Toundra	GMC	CANYON 2004-2012
	2005-2022	Fortunateur	ACURA1995-1999		SLX
	2001-2007	Séquoia	PASSEPORT	HONDA 1994-2002
	2004-2019	Entreprise	ISUZU	SOLDAT 1981-2002
	1980-1988 ramasser 4WD			1989-2004	RODEO
	1989-1995	Ramasser (6 cosses SEULEMENT)		1998-2004	RODEO SPORT
	1993-1998	T100		2005-2008	SÉRIE I
	2004-2018 Navetteur		HYUDAI	ENTOURAGE	2007-2009
	2005-2022	SW4		1991-2003 GALOPEUR
				2001-2007 TERRASSE

Fabricant : Shanghaimuxinmuyeyouxiangongsi

Adresse : Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, Shanghai 200000 CN.

Importé en Australie : SIHAO PTY LTD. 1 RUE ROKEVAASTWOOD

NSW 2122 Australie

Lieu, Rancho Cucamonga, CA 91730

REPRÉSENTANT DU ROYAUME-UNI

YH CONSULTING LIMITÉE.

C/O YH Consulting Limited Bureau 147,

Maison Centurion, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

REPRÉSENTANT CE

E-CrossStu GmbH

Mainzer Landstr.69,

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

MODELL: 6550-6550-A-108-07

MODELL: 6550-6550-A-108-07

Four black flange components with metallic bolts and a row of metallic bolts below (no text or symbols visible)

BRAUCHEN SIE HILFE? KONTAKTIERE UNS!

Vehicle Axle Hub Wheel spacer Spacers Lug Nuts Wheel Stock Lug Nuts

• M14 x 1.5 = 8 turns = 85-90 LBS

- M12 x 1.5 = 6.5 turns = 70-80 LBS

• M12 x 1.25 = 6.5 turns = 70-80 LBS

• 9/16 - 18= 8 turns = 135-145 LBS

• 1/2 - 20 = 6 turns = 75-85 LBS

before Original Fender distance

After LESS FENDER GAP Reduce the offset distance

Adaptives Modell
Toyota	1979-1994	Hilux (6 Lug NUR)	HUMMER	2005-2021	H3
	1995-2015	Tacoma (6 NUR Lug)		2009-2010	H3T
	2016-2022	Tacoma	MITSUBISHI	1989-2021 MONTERO
	1989-2022	4Läufer		1996-2022	ZEIGEN SPORT
	2007-2022	FJ Cruiser	LEXUS	2002-2022	GX
	1980-1997	Land Cruiser CHEV	ROLET 2004-2014	COLORADO
	2000-2006	Tundra	GMC	2004-2012 CANYON
	2005-2022	Fortuner	ACURA 1995-1999		SLX
		Mammutbaum	HONDA 1994-2002 REISEP		ASS2001-2007
	2004-2019	Ventury	ISUZU	1981-2002 Soldat
	1980-1988 Pick-up mit Allradantrieb			1989-2004	RODEO
	1989-1995	Abholung (6 Lug NUR)		1998-2004	RODEO SPORT
	1993-1998	T100		2005-2008	I-SERIE
	2004-2018	Pendler	HYUDAI	2007-2009 ENTOURAGE
	2005-2022	SW4		1991-2003 GALLOPER
				2001-2007 TERRAKAN

Hersteller: Shanghaimuxinmuyeyouxiangongsi

Adresse: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, Shanghai 200000 CN.

C/O YH Consulting Limited Büro 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

EG-REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

S

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Four black flange components with metallic bolts and a row of metallic bolts below (no text or symbols visible)

HO BISOGNO DI AIUTO? CONTATTACI!

Vehicle Axle Hub Wheel spacer Spacers Lug Nuts Wheel Stock Lug Nuts

• M14 x 1.5 = 8 turns = 85-90 LBS

- M12 x 1.5 = 6.5 turns = 70-80 LBS

• M12 x 1.25 = 6.5 turns = 70-80 LBS

• 9/16 - 18= 8 turns = 135-145 LBS

• 1/2 - 20 = 6 turns = 75-85 LBS

before Original Fender distance

After LESS FENDER GAP Reduce the offset distance

Modello adattivo
TOYOTA	1979-1994	Hilux (6 agSOLTANTO)	HUMMER	2005-2021	H3
	1995-2015	Tacoma (6SOLO capocorda)		2009-2010	H3T
	2016-2022	Tacoma	MITSUBISHI	1989-2021 MONTERO
	1989-2022	4Corridore		1996-2022	SPETTACOLOSPORT
	2007-2022	Incrociatore FJ	LEXUS	2002-2022	GX
	1980-1997 Land Cruiser CHEVROLET 2004-2014 COLORADO
	2000-2006	Tundra	GMC	CANONE 2004-2012
	2005-2022	Fortunatore	ACURA 1995-1999		SLX
		Sequoia	PASSAPORTO	HONDA 1994-2002	20022001-2007
	2004-2019	Venture	ISUZU	1981-2002 SOLDATO
	1980-1988 Pick-up 4WD			1989-2004	RODEO
	1989-1995	Ritiro (6 giorniSOLTANTO)		1998-2004	RODEOSPORT
	1993-1998	T100		2005-2008	SERIE I
	Pendolare 2004-2018		HYUDAI	ENTORAGGIO	2007-2009
	2005-2022	SW4		1991-2003 GALLOPER
				2001-2007 TERRACANO

Importato in AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

C/O YH Consulting Limited Ufficio 147,

Casa del Centurione, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

REP.CE

E-CrossStu GmbH

Mainzer Landstr.69,

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

MODELO: 6550-6550-A-108-07

MODELO: 6550-6550-A-108-07

Four black flange components with metallic bolts and a row of metallic bolts below (no text or symbols visible)

Vehicle Axle Hub Wheel spacer Spacers Lug Nuts Wheel Stock Lug Nuts

• M14 x 1.5 = 8 turns = 85-90 LBS
- M12 x 1.5 = 6.5 turns = 70-80 LBS
• M12 x 1.25 = 6.5 turns = 70-80 LBS
• 9/16 - 18= 8 turns = 135-145 LBS
• 1/2 - 20 = 6 turns = 75-85 LBS

before Original Fender distance

After LESS FENDER GAP Reduce the offset distance

Modelo adaptativo
Toyota	1979-1994	Hilux (6 terminales)SOLO)	HUMMER	2005-2021	H3
	1995-2015	Tacoma (6SÓLO terminal)		2009-2010	H3T
	2016-2022	Tacoma	MITSUBISHI	1989-2021 MONTERO
	1989-2022	4 corredores		1996-2022	ESPECTÁCULODEPORTE
	2007-2022	crucero fj	LEXUS	2002-2022	GX
	1980-1997 Land Cruiser CHEVROLET 2004-2014 COLORADO
	2000-2006	Tundra	GMC	2004-2012 CANÓN
	2005-2022	fortuna	ACURA 1995-1999		SLX
	2001-2007	Secoya	HONDA 1994-2002 PASAPORTE
	2004-2019	Venturi	ISUZU	1981-2002 SOLDADO
	1980-1988 recoger 4WD			1989-2004	RODEO
	1989-1995	Recoger (6 terminalesSOLO)		1998-2004	RODEODEPORTE
	1993-1998	T100		2005-2008	SERIE I
	2004-2018 viajero		HYUDAI	2007-2009 SÉQUITO
	2005-2022	SW4		1991-2003 GALLOPER
				2001-2007 TERRACÁN

Fabricante: Shanghaimuxinmuyeyouxiangongsi

Dirección: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Importado a AUS: SIHAO PTY LTD. 1 ROKEVA CALLE ASTWOOD

Casa Centurión, London Road,

Staines upon Thames, Surrey, TW18 4AX

REPRESENTANTE DE LA CE

E-CrossStu GmbH

Mainzer Landstr.69,

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Four black flange components with metallic bolts and a row of metallic bolts below (no text or symbols visible)

POTRZEBUJE POMOCY? SKONTAKTUJ SIĘ Z NAMI!

Vehicle Axle Hub Wheel spacer Spacers Lug Nuts Wheel Stock Lug Nuts

• M14 x 1.5 = 8 turns = 85-90 LBS

- M12 x 1.5 = 6.5 turns = 70-80 LBS

• M12 x 1.25 = 6.5 turns = 70-80 LBS

• 9/16 - 18= 8 turns = 135-145 LBS

• 1/2 - 20 = 6 turns = 75-85 LBS

before Original Fender distance

After LESS FENDER GAP Reduce the offset distance

Model adaptacyjny
TOYOTA	1979-1994	Hilux (6 lut TYLKO)	HUMMER	2005-2021	H3
	1995-2015	Tacoma (6 TYLKO zaczep)		2009-2010	H3T
	2016-2022	Tacoma	MITSUBISHI	1989-2021 MONTERO
	1989-2022	4Biegacz		1996-2022	POKAZYWAĆ SPORT
	2007-2022	Krążownik FJ	LEXUS	2002-2022	GX
	1980-1997 Land Cruiser CHEVROLET 2004-2014 COLORADO
	2000-2006	Tundra	GMC	2004-2012 KANION
	2005-2022	Fortuner	ACURA 1995-1999		SLX
	2001-2007	Sekwoja	PASZPORT HONDY 1994-2002
	2004-2019	Ventury'ego	ISUZU	1981-2002 ŻOŁNIERZ
	1980-1988 Pick up 4WD			1989-2004	RODEO
	1989-1995	Odbiór (6 lut TYLKO)		1998-2004	RODEO SPORT
	1993-1998	T100		2005-2008	SERIA I
	2004-2018 Dojazd do pracy		HYUDAI	ŚWIAT 2007-2009
	2005-2022	SW4		1991-2003 GALERIA
				2001-2007 TERRAKAN

Producent: Shanghaimuxinmuyeyouxiangongsi

Adres: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, szanghaj 200000 CN.

Import do AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD

C/O YH Consulting Limited Biuro 147,

Dom Centuriona, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

REPREZENT KE

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt nad Menem.

S

VEVOR®

TOUGH TOOLS, HALF PRICE

Four black flange components with metallic bolts and a row of metallic bolts below (no text or symbols visible)

HULP NODIG? NEEM CONTACT MET ONS OP!

INSTALLATIE INSTRUCTIES

Vehicle Axle Hub Wheel spacer Spacers Lug Nuts Wheel Stock Lug Nuts

• M14 x 1.5 = 8 turns = 85-90 LBS
• M12 x 1.5 = 6.5 turns = 70-80 LBS
• M12 x 1.25 = 6.5 turns = 70-80 LBS
• 9/16 - 18= 8 turns = 135-145 LBS
• 1/2 - 20 = 6 turns = 75-85 LBS

Model	6550-6550-A-108-07
Dikte (inch)	1
Patroon van wielbouten	6 x 5,5 inch
Centrum boring	108 mm
Draadafstand	M12x1,5
Aantal	4

6X5.5" Wheel Bolt Pattern 108MM HUB CENTRE 6X5.5" Vehicle Bolt Pattern

before Original Fender distance

After LESS FENDER GAP Reduce the offset distance

Adaptief model
TOYOTA	1979-1994	Hilux (6 lug ALLEEN)	HUMMER	2005-2021	H3
	1995-2015	Tacoma (6 ALLEEN lug)		2009-2010	H3T
	2016-2022	Tacoma	MITSUBISHI	1989-2021 MONTERO
	1989-2022	4 Loper		1996-2022	SHOW SPORT
	2007-2022	FJ Kruiser	LEXUS	2002-2022 GX
	Landcruiser CHEVROLET 1980-1997 2004-2014 COLORADO
	2000-2006	Toendra	GMC	CANION 2004-2012
	2005-2022	Fortuner	ACURA 1995-1999		SLX
	2001-2007	Sequoia	HONDA PASPOORT 1994-2002
	2004-2019	Venturi	ISUZU	1981-2002 TROOPER
	1980-1988 Pick-up met 4WD			1989-2004	RODEO
	1989-1995	Ophalen (6 lug ALLEEN)		1998-2004	RODEO SPORT
	1993-1998	T100		2005-2008	I-SERIE
	2004-2018 Forens		HYUDAI	2007-2009 ENTOURAGE
	2005-2022	SW4		1991-2003 GALLOPER
				TERRAKAAN	2001-2007

Fabrikant: Shanghaimuxinmuyeyouxiangongsi

Adres: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

C/O YH Consulting Limited Kantoor 147,

Centurion House, Londen Road,

Staines-upon-Thames, Surrey, TW18 4AX

EG REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

S

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

MODELL: 6550-6550-A-108-07

MODELL: 6550-6550-A-108-07

Four black flange components with metallic bolts and a row of metallic bolts below (no text or symbols visible)

BEHÖVS HJÄLP? KONTAKTA OSS!

Vehicle Axle Hub Wheel spacer Spacers Lug Nuts Wheel Stock Lug Nuts

• M14 x 1.5 = 8 turns = 85-90 LBS
- M12 x 1.5 = 6.5 turns = 70-80 LBS
• M12 x 1.25 = 6.5 turns = 70-80 LBS
• 9/16 - 18= 8 turns = 135-145 LBS
• 1/2 - 20 = 6 turns = 75-85 LBS

Modell	6550-6550-A-108-07
Tjocklek (tum)	1
Hjulbultsmönster	6 x 5,5 tum
Center Bore	108 mm
Trådtäthet	M12x1,5
Antal.	4

6X5.5" Wheel Bolt Pattern 108MM HUB CENTRE 6X5.5" Vehicle Bolt Pattern

before Original Fender distance

After LESS FENDER GAP Reduce the offset distance

Adaptiv modell
TOYOTA	1979-1994	Hilux (6 Lug ENDAST)	HUMMER	2005-2021	H3
	1995-2015	Tacoma (6 ENDAST rygg)		2009-2010	H3T
	2016-2022	Tacoma	MITSUBISHI	1989-2021 MONTERO
	1989-2022	4Löpare		1996-2022	SHOW SPORT
	2007-2022	FJ Cruiser	LEXUS	2002-2022	GX
	1980-1997 Land Cruiser CHEVROLET 2004-2014 COLORADO
	2000-2006	Tundra	GMC	2004-2012 CANYON
	2005-2022	Fortuner	ACURA 1995-1999		SLX
	2001-2007	Sequoia	HONDA 1994-2002 PASS
	2004-2019	Ventury	ISUZU	1981-2002 TROOPER
	1980-1988 Pick up 4WD			1989-2004	RODEO
	1989-1995	Plocka upp (6 Lug ENDAST)		1998-2004	RODEO SPORT
	1993-1998	T100		2005-2008	I-SERIEN
	2004-2018 Pendlare		HYUDAI	2007-2009 ENOURAGE
	2005-2022	SW4		1991-2003 GALLÖR
				2001-2007 TERRAKAN

Tillverkare: Shanghaimuxinmuyeyouxiangongsi

Adress: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Importerad till AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australien

Importerad till USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

S

VEVOR®

TOUGH TOOLS, HALF PRICE
