USER MANUAL 5450-5450-E-82.5-04 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

WHEEL SPACERS

MODEL: 5450-5450-E-82.5-04

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only rep estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offer are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL: 5450-5450-E-82.5-04

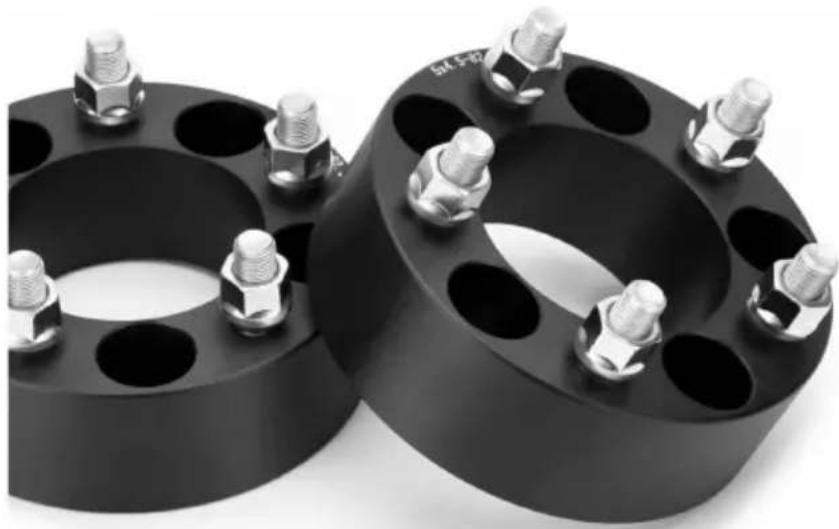

Two black mechanical flange components with metallic bolts and bolted inserts, no visible text or symbols.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

In Order To Avoid Wobble And Break Studs Problems, Please Read These Important Safety Information As Follows:

• Never modify the wheel adapters/spacers.
  ● Never remove the factory-installed studs on the wheel adapters/spacers.
  ● Never use an impact wrench.

- Do not stack multiple adapters/spacers on a single wheel.

● Make sure that mating flange on the vehicle's rotor is completely clean.

- Re-torque all lug nuts on the spacer/adapter after 25-50 miles of driving, t again after 1-2,000 miles, use the thread locker to ensure the nuts are secu enough, avoid taking off.

- Carefully follow the installation instructions included in this package.

INSTALLATION INSTRUCTIONS

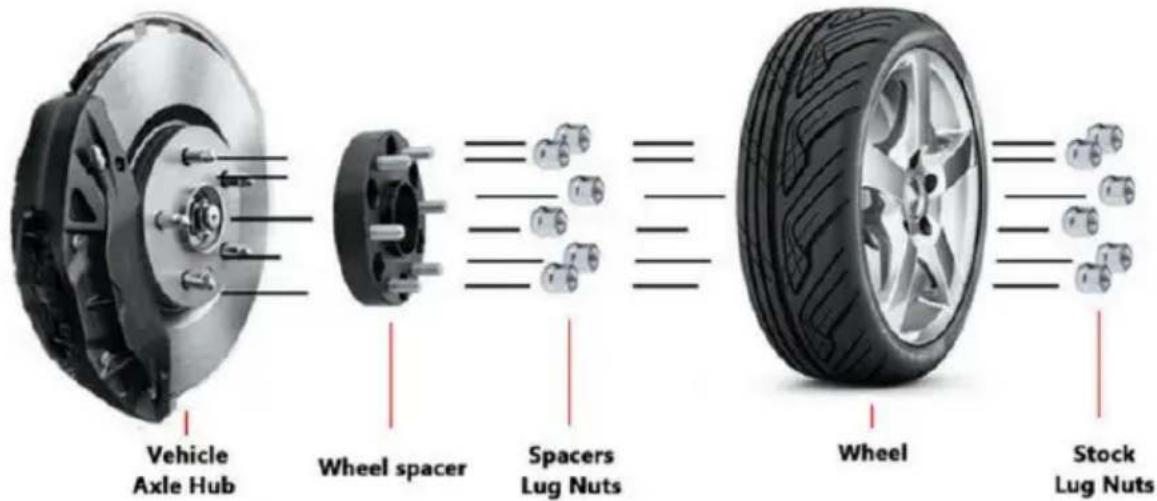

Vehicle Axle Hub Wheel spacer Spacers Lug Nuts Wheel Stock Lug Nuts

1. Following your vehicle owner's manual, properly raise the vehicle and supp using adequately load-rated jack stands. Never work on a raised vehicle that supported with a factory emergency, floor or bottle jack. Remove wheels and inspect rotors for any damageor cracks. If any damage is identified, do not continue with this installation.

2. Remove any visible rust from the mating flange on the vehicle's rotor. Ins, both the rotor and wheel mounting flanges for burns, rivet heads, or other obstruction that would preventa flush seating of the vehicle rotor's mounting flange to both the inner and outer side of the spacers. Improperly seated spacers are hazardous and may cause adapter failure, resulting in the loss of a wheel which driving the vehicle.

3. If proper seating can be achieved, mount the wheel spacer onto the vehicle studs until it sits flush with the rotor's flange. Thread glue on the studs is recommended to reduce vibration risk. Install with open-end lug nuts (included with this kit) as the specs below, follow the star pattern by hand wrench. Do impact or it will damage the nuts.

4. Place wheel on the wheel adapter studs until the wheel mounting flange is flush on the adapter's outer flange. Install the nuts provided onto the lugs.
5. Check for proper tire clearance in the wheel well.making certain there is sufficient wheel and tire clearance for full steering (lock-to-lock). If there is no interference,vehicle may belowered. Once vehicle is on the ground under full recheck for adequate tire and wheel clearance and unobstructed lock-to-lock steering.

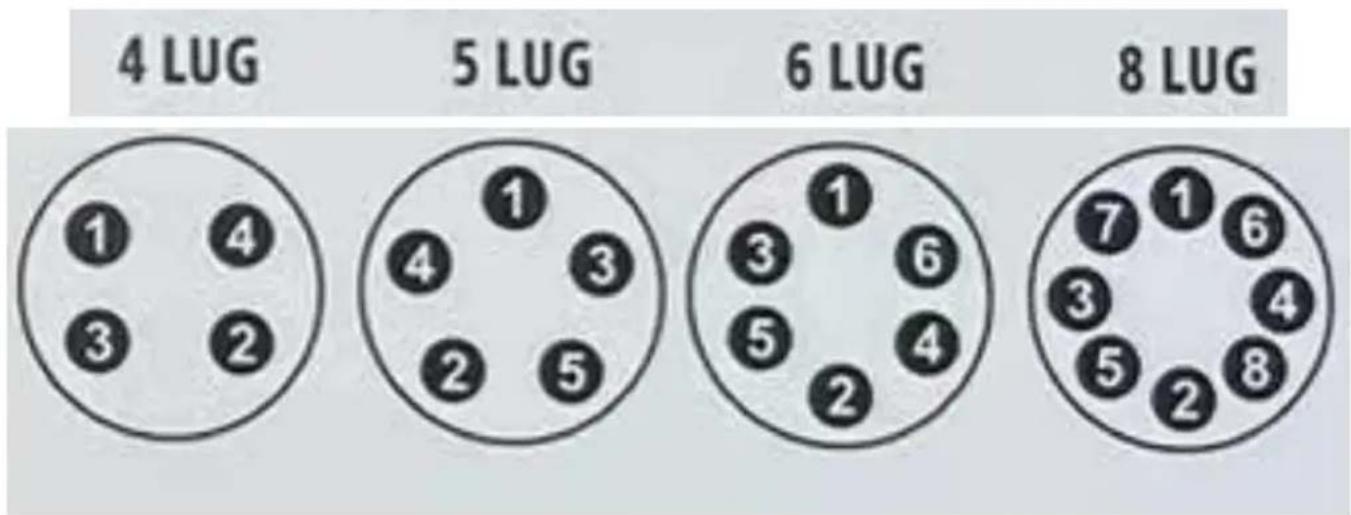

Standard torque of Nuts or bolts:

4 LUG 5 LUG 6 LUG 8 LUG

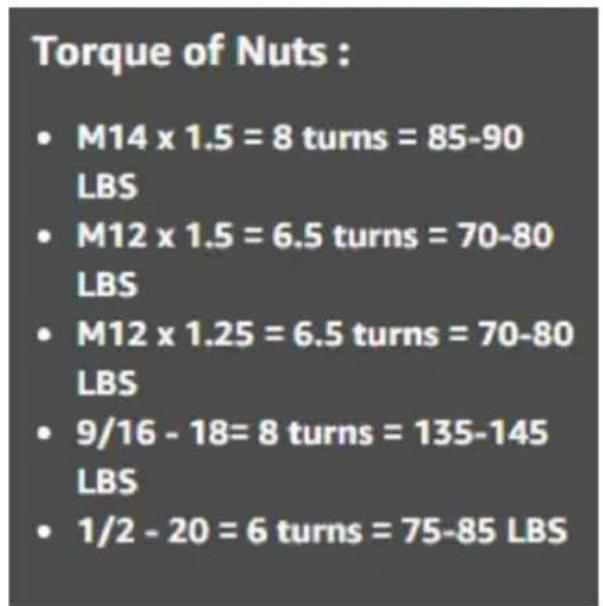

Torque of Nuts : • M14 x 1.5 = 8 turns = 85-90 LBS • M12 x 1.5 = 6.5 turns = 70-80 LBS • M12 x 1.25 = 6.5 turns = 70-80 LBS • 9/16 - 18= 8 turns = 135-145 LBS • 1/2 - 20 = 6 turns = 75-85 LBS

Model	5450-5450-E-82.5-04
Thickness(inch)	2
Wheel Bolt Pattern	5 x 4.5 in
Center Bore	82.5 mm
Thread Pitch	1/2"-20
Qty.	4

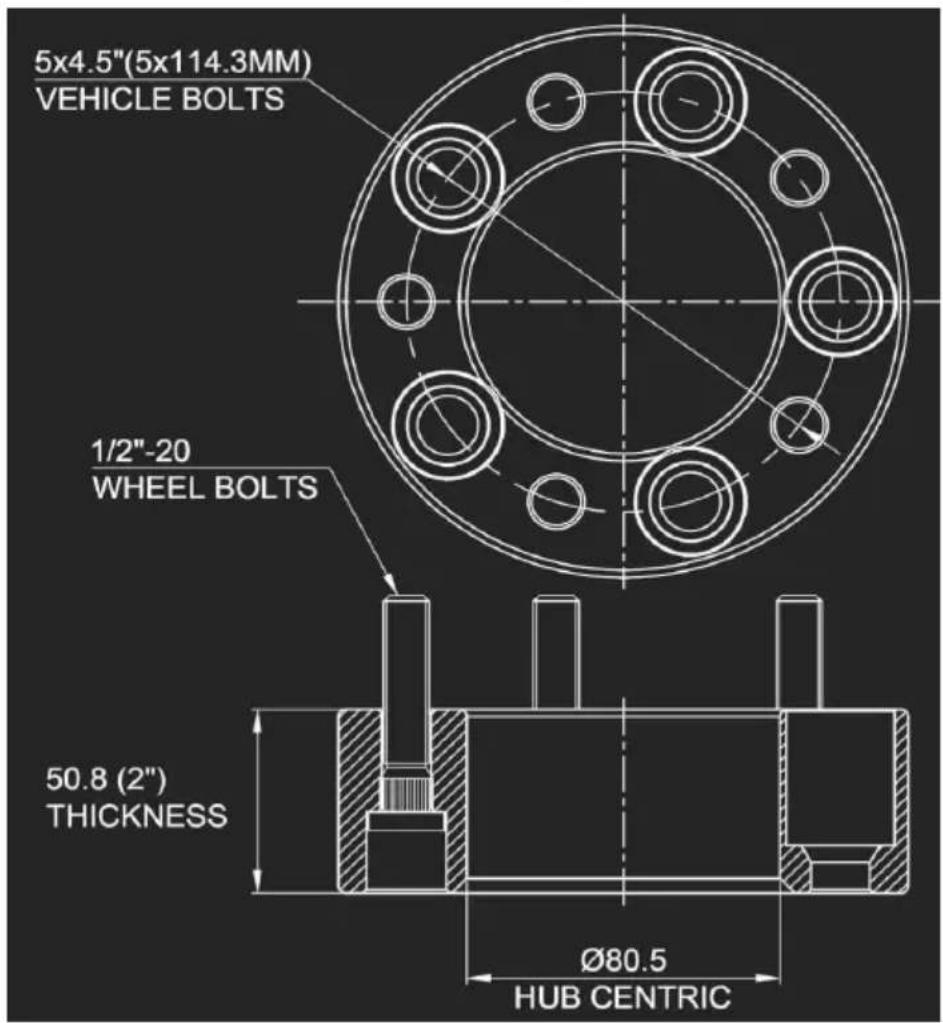

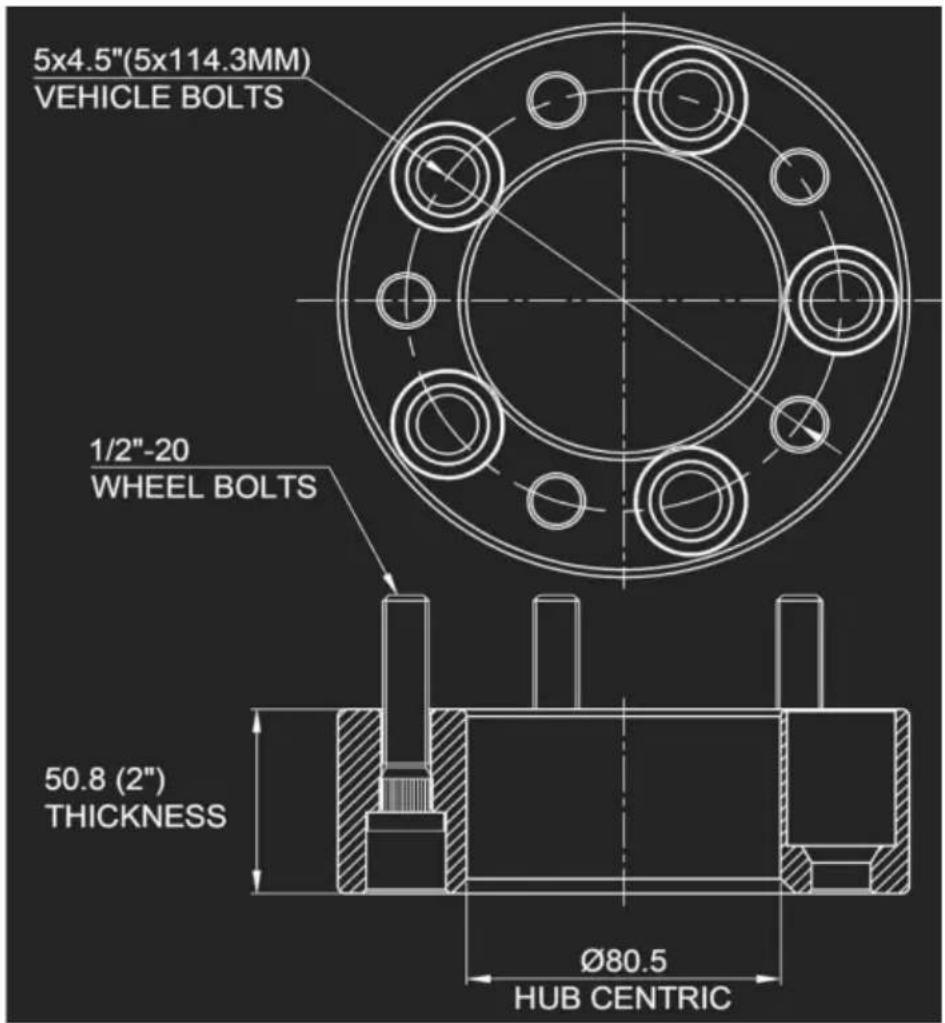

5x4.5"(5x114.3MM) VEHICLE BOLTS 1/2"-20 WHEEL BOLTS 50.8 (2") THICKNESS Ø80.5 HUB CENTRIC

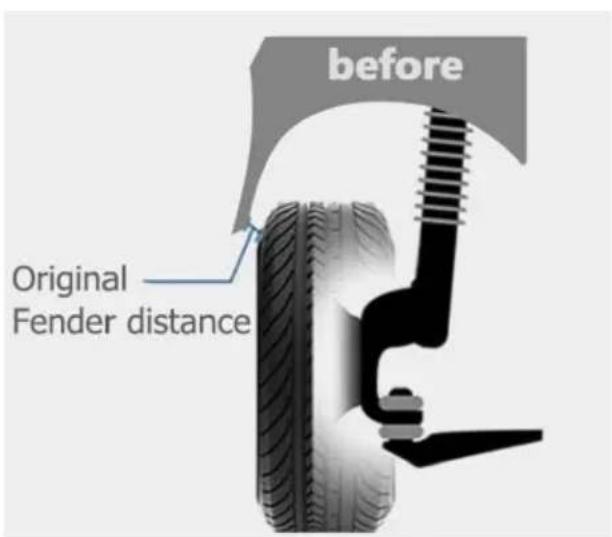

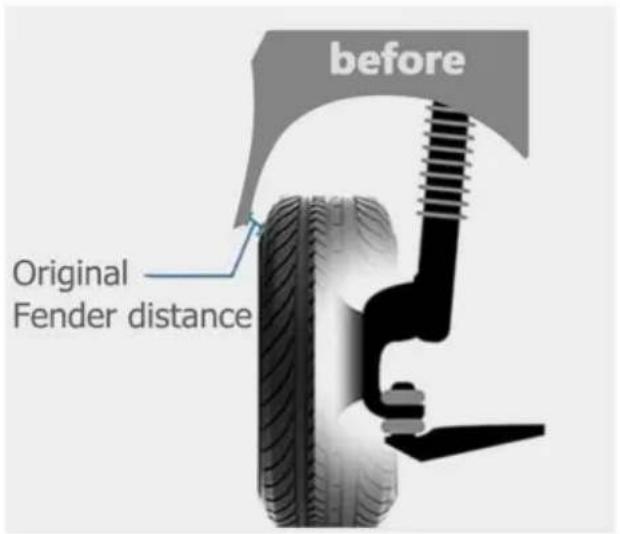

before Original Fender distance

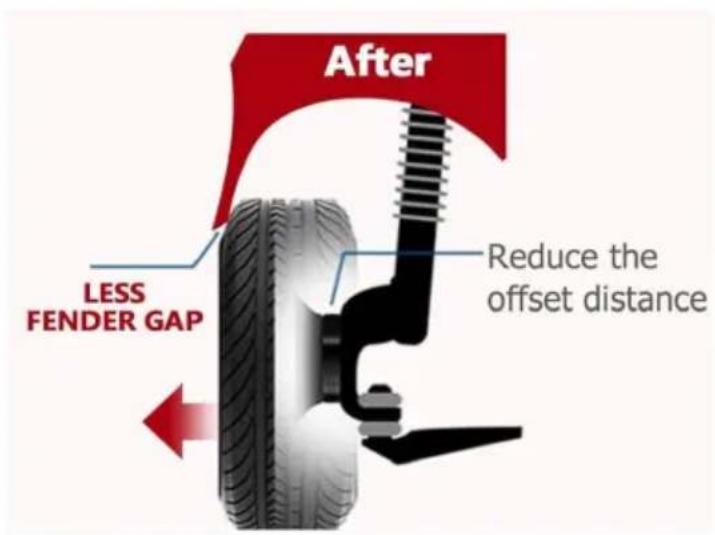

After LESS FENDER GAP Reduce the offset distance

Adaptive Model
Jeep	1984-2013	Cherokee XJ KJKK	Ford	1985-1997	Aerostar
	1997-2006	Wrangler TJ		1992-2011	Crown Victoria
	1992-1998	Grand Cherokee ZJ		2006-2014	Edge
	2001-2013	Liberty KJ KK		1990-2018	Explorer
Ford	2001-2012	Ranger		2005-2017	Falcon
	2008-2018	Taurus		2008-2018	Flex
	2004-2017	Territory SX		2004-2007	Freestyle
	1987-1990	Dodge Dakota		2005-2014	Mustang

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Two black mechanical flange components with metallic bolts and bolt holes, no visible text or symbols

BESOIN D'AIDE? CONTACTEZ-NOUS!

Vehicle Axle Hub Wheel spacer Spacers Lug Nuts Wheel Stock Lug Nuts

• M14 x 1.5 = 8 turns = 85-90 LBS

• M12 x 1.5 = 6.5 turns = 70-80 LBS

• M12 x 1.25 = 6.5 turns = 70-80 LBS

• 9/16 - 18= 8 turns = 135-145 LBS

• 1/2 - 20 = 6 turns = 75-85 LBS

before Original Fender distance

After LESS FENDER GAP Reduce the offset distance

Modèle adaptatif
Jeep	1984-2013	Cherokee XJ KJKK	Gué	1985-1997 Aérostar
	1997-2006 Wrangler TJ			1992-2011	Couronne Victoria
	1992-1998	Grandiose Cherokee ZJ		Bord 2006-2014
	2001-2013 Liberté KJ KK			Explorateur 1990-2018
Gué	Ranger 2001-2012			Faucon 2005-2017
	Taureau 2008-2018			2008-2018 flexible
	Territoire SX	2004-2017		2004-2007 Libre
	Dodge Dakota 1987-1990			Mustang 2005-2014

Fabricant : Shanghaimuxinmuyeyouxiangongsi

Adresse : Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, Shanghai 200000 CN.

Importé en Australie : SIHAO PTY LTD. 1 RUE ROKEVAASTWOOD NSW 2122 Australie

C/O YH Consulting Limited Bureau 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

REPRÉSENTANT CE

E-CrossStu GmbH

Mainzer Landstr.69,

Two black mechanical flange components with metallic bolts and bolt holes, no visible text or symbols

BRAUCHEN SIE HILFE? KONTAKTIERE UNS!

Vehicle Axle Hub Wheel spacer Spacers Lug Nuts Wheel Stock Lug Nuts

• M14 x 1.5 = 8 turns = 85-90 LBS
• M12 x 1.5 = 6.5 turns = 70-80 LBS
• M12 x 1.25 = 6.5 turns = 70-80 LBS
• 9/16 - 18= 8 turns = 135-145 LBS
• 1/2 - 20 = 6 turns = 75-85 LBS

before Original Fender distance

After LESS FENDER GAP Reduce the offset distance

Adaptives Modell
Jeep	1984-2013	Cherokee XJ KJKK	Ford	1985-1997 Aerostar
	1997-2006 Wrangler TJ			1992-2011	Krone Victoria
	1992-1998	Großartig Cherokee ZJ		2006-2014 Kante
	2001–2013 Liberty KJ KK			1990–2018 Entdecker
Ford	2001-2012 Ranger			2005–2017 Falke
	2008-2018 Stier			2008-2018 Flex
	2004–2017 Territory SX			2004–2007 Freistil
	1987-1990 Dodge Dakota			2005-2014 Mustang

Hersteller: Shanghaimuxinmuyeyouxiangongsi

Adresse: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, Shanghai 200000 CN.

C/O YH Consulting Limited Büro 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

EG-REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Two black mechanical flange components with metallic bolts and bolt holes, no visible text or symbols

HO BISOGNO DI AIUTO? CONTATTACI!

Vehicle Axle Hub Wheel spacer Spacers Lug Nuts Wheel Stock Lug Nuts

• M14 x 1.5 = 8 turns = 85-90 LBS

- M12 x 1.5 = 6.5 turns = 70-80 LBS

• M12 x 1.25 = 6.5 turns = 70-80 LBS

• 9/16 - 18= 8 turns = 135-145 LBS

• 1/2 - 20 = 6 turns = 75-85 LBS

before Original Fender distance

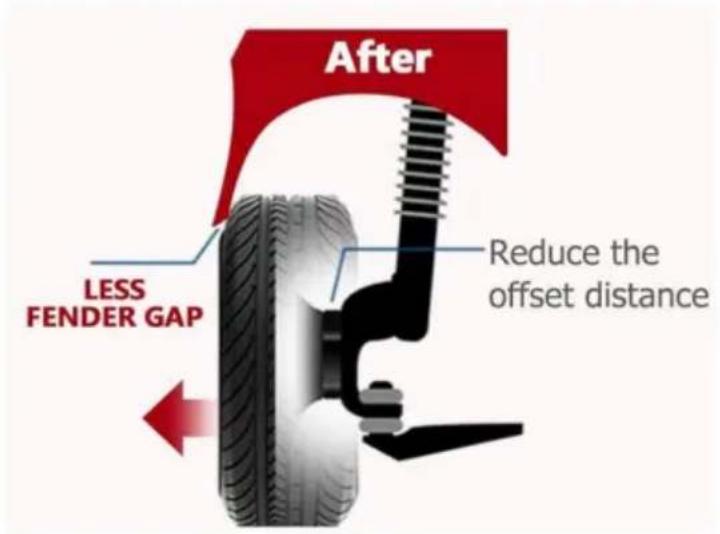

After LESS FENDER GAP Reduce the offset distance

Modello adattivo
Jeep	1984-2013	Cherokee XJ KJKK	Guado	1985-1997 Aerostar
	1997-2006 Wrangler TJ			1992-2011	Corona Vittoria
	1992-1998	mille dollari Cherokee ZJ		Bordo 2006-2014
	2001-2013 Libertà KJ KK			1990-2018 Esploratore
Guado	2001-2012 Guardia forestale			2005-2017 Falco
	2008-2018 Toro			Flessione 2008-2018
	2004-2017 Territorio SX			2004-2007 Stile libero
	1987-1990 Dodge Dakota			Mustang 2005-2014

Importato in AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122Australia

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

REP.CE

E-CrossStu GmbH

Mainzer Landstr.69,

Two black mechanical flange components with metallic bolts and bolt holes, no visible text or symbols

Vehicle Axle Hub Wheel spacer Spacers Lug Nuts Wheel Stock Lug Nuts

• M14 x 1.5 = 8 turns = 85-90 LBS
• M12 x 1.5 = 6.5 turns = 70-80 LBS
• M12 x 1.25 = 6.5 turns = 70-80 LBS
• 9/16 - 18= 8 turns = 135-145 LBS
• 1/2 - 20 = 6 turns = 75-85 LBS

before Original Fender distance

After LESS FENDER GAP Reduce the offset distance

Modelo adaptativo
todoterreno	1984-2013	Cherokee XJ KJKK	Vado	1985-1997 Aerostar
	1997-2006 Wrangler TJ			1992-2011	Corona Victoria
	1992-1998	grandioso Cherokee Z.J.		2006-2014 borde
	2001-2013 libertad KJ KK			Explorador 1990-2018
Vado	Guardabosques	2001-2012		2005-2017 halcon
	2008-2018 Tauro			2008-2018 flexible
	2004-2017 Territorio SX			2004-2007 estilo libre
	1987-1990 Dodge Dakota			Mustango 2005-2014.

Fabricante: Shanghaimuxinmuyeyouxiangongsi

Dirección: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Importado a AUS: SIHAO PTY LTD. 1 ROKEVA CALLE ASTWOOD

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

REPRESENTANTE DE LA CE

E-CrossStu GmbH

Mainzer Landstr.69,

Two black mechanical flange components with metallic bolts and bolt holes, no visible text or symbols

POTRZEBUJE POMOCY? SKONTAKTUJ SIĘ Z NAMI!

Vehicle Axle Hub Wheel spacer Spacers Lug Nuts Wheel Stock Lug Nuts

• M14 x 1.5 = 8 turns = 85-90 LBS

- M12 x 1.5 = 6.5 turns = 70-80 LBS

• M12 x 1.25 = 6.5 turns = 70-80 LBS

• 9/16 - 18= 8 turns = 135-145 LBS

• 1/2 - 20 = 6 turns = 75-85 LBS

before Original Fender distance

After LESS FENDER GAP Reduce the offset distance

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

REPREZENT KE

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt nad Menem.

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technische ondersteuning en e-garantiecertificaat www.vevor.com/support

WIEL SPACERS

MODEL: 5450-5450-E-82.5-04

Two black mechanical flange components with metallic bolts and bolt holes, no visible text or symbols

HULP NODIG? NEEM CONTACT MET ONS OP!

INSTALLATIE INSTRUCTIES

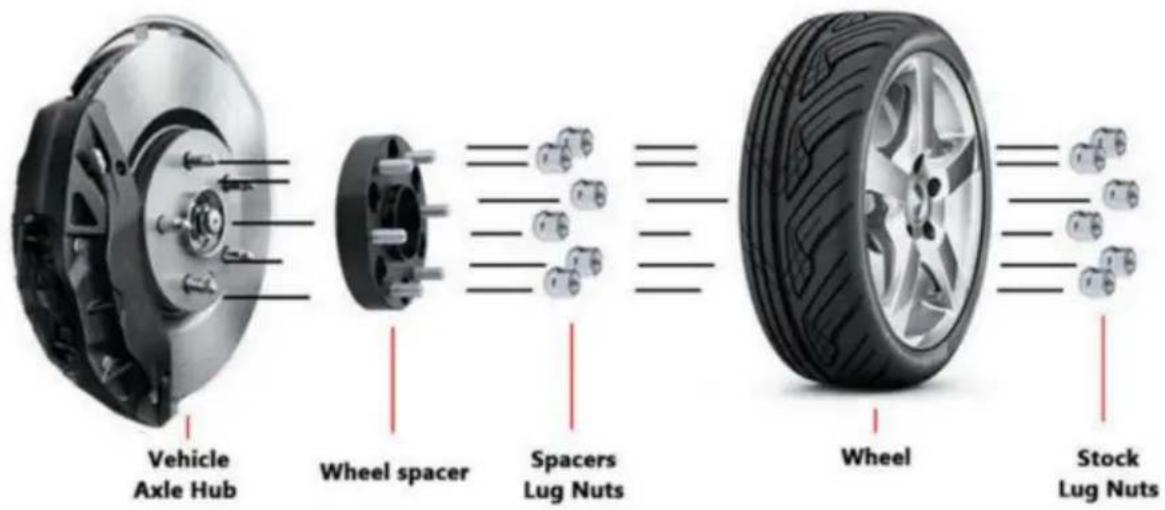

Vehicle Axle Hub Wheel spacer Spacers Lug Nuts Wheel Stock Lug Nuts

• M14 x 1.5 = 8 turns = 85-90 LBS
• M12 x 1.5 = 6.5 turns = 70-80 LBS
• M12 x 1.25 = 6.5 turns = 70-80 LBS
• 9/16 - 18= 8 turns = 135-145 LBS
• 1/2 - 20 = 6 turns = 75-85 LBS

Machine Translated by Google

Model	5450-5450-E-82.5-04
Dikte (inch)	2
Patroon van wielbouten	5 x 4,5 inch
Centrum boring	82,5 mm
Draadafstand	1/2”-20
Aantal	4

5x4.5"(5x114.3MM) VEHICLE BOLTS 1/2"-20 WHEEL BOLTS 50.8 (2") THICKNESS Ø80.5 HUB CENTRIC

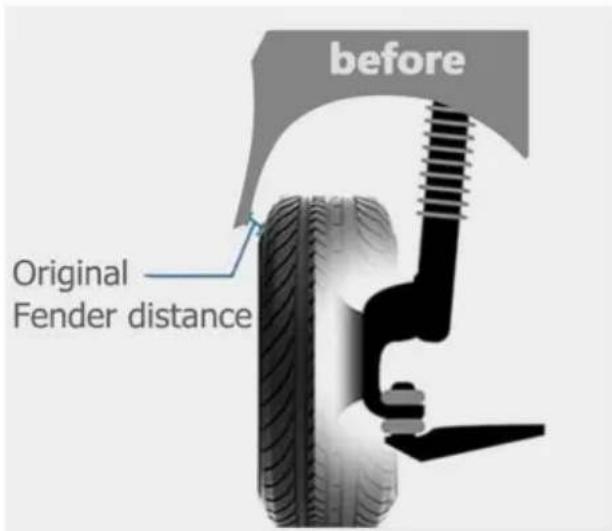

before Original Fender distance

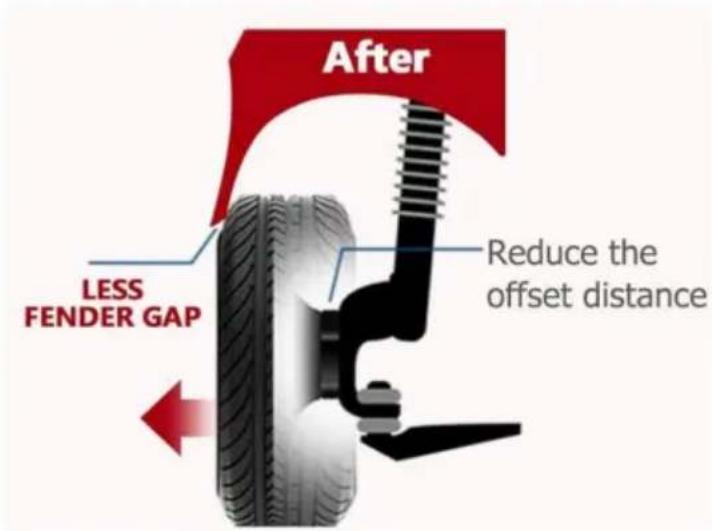

After LESS FENDER GAP Reduce the offset distance

Adaptief model
Jeep	1984-2013	Cherokee XJ KJKK	Ford	1985-1997 Aerostar
	1997-2006 WranglerTJ			1992-2011	Kroon Victoria
	1992-1998	Groots Cherokee ZJ		2006-2014 Rand
	2001-2013 Liberty KJ KK			Ontdekkingsreiziger 1990-2018
Ford	Boswachter 2001-2012			Valk 2005-2017
	2008-2018 Stier			2008-2018 Flex
	Territorium SX 2004-2017			2004-2007 vrije slag
	1987-1990 Dodge Dakota			Mustang uit 2005-2014

Fabrikant: Shanghaimuxinmuyeyouxiangongsi

Adres: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

EG REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

Technische ondersteuning en e-garantiecertificaat www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Two black mechanical flange components with metallic bolts and bolt holes, no visible text or symbols

BEHÖVS HJÄLP? KONTAKTA OSS!

Vehicle Axle Hub Wheel spacer Spacers Lug Nuts Wheel Stock Lug Nuts

• M14 x 1.5 = 8 turns = 85-90 LBS
• M12 x 1.5 = 6.5 turns = 70-80 LBS
• M12 x 1.25 = 6.5 turns = 70-80 LBS
• 9/16 - 18= 8 turns = 135-145 LBS
• 1/2 - 20 = 6 turns = 75-85 LBS

Modell	5450-5450-E-82.5-04
Tjocklek (tum)	2
Hjulbultsmönster	5 x 4,5 tum
Center Bore	82,5 mm
Trådtäthet	1/2"-20
Antal.	4

5x4.5"(5x114.3MM) VEHICLE BOLTS 1/2"-20 WHEEL BOLTS 50.8 (2") THICKNESS Ø80.5 HUB CENTRIC

before Original Fender distance

After LESS FENDER GAP Reduce the offset distance

Adaptiv modell
Jeep	1984-2013	Cherokee XJ KJKK	Vadställe	1985-1997 Aerostar
	1997-2006 Wrangler TJ			1992-2011	krona Victoria
	1992-1998	Stor Cherokee ZJ		2006-2014 Edge
	2001-2013 Liberty KJ KK			1990-2018 Explorer
Vadställe	2001-2012 Ranger			2005-2017 Falcon
	2008-2018 Oxen			2008-2018 Flex
	2004-2017 Territory SX			2004-2007 Freestyle
				2005-2014 Mustang 1987-1990

Tillverkare: Shanghaimuxinmuyeyouxiangongsi

Adress: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Importerad till AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australien

Importerad till USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support
