USER MANUAL 6135-6135-CT-87.1-09 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

WHEEL SPACERS

MODEL: 6135-6135-CT-87.1-09

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL: 6135-6135-CT-87.1-09

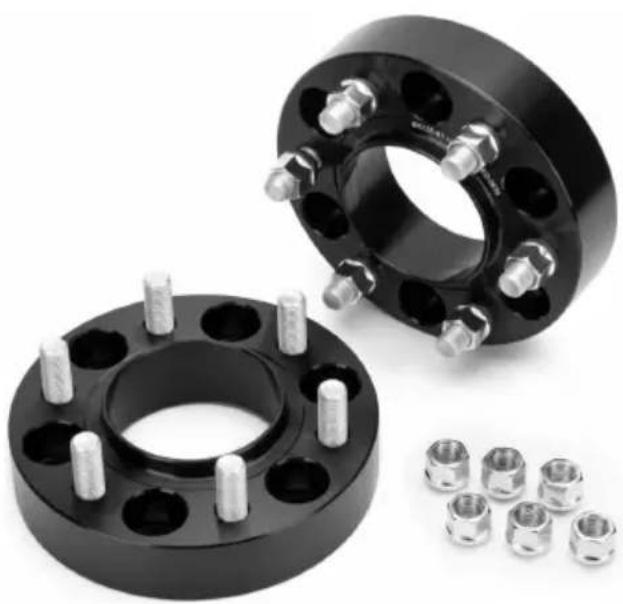

Two black flange components with bolt holes and metallic fasteners, accompanied by a set of small metal fasteners (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

In Order To Avoid Wobble And Break Studs Problems, Please Read These Important Safety Information As Follows:

• Never modify the wheel adapters/spacers.
  ● Never remove the factory-installed studs on the wheel adapters/spacers.
  ● Never use an impact wrench.

- Do not stack multiple adapters/spacers on a single wheel.

● Make sure that mating flange on the vehicle's rotor is completely clean.

- Re-torque all lug nuts on the spacer/adapter after 25-50 miles of driving, t again after 1-2,000 miles, use the thread locker to ensure the nuts are secu enough, avoid taking off.

- Carefully follow the installation instructions included in this package.

INSTALLATION INSTRUCTIONS

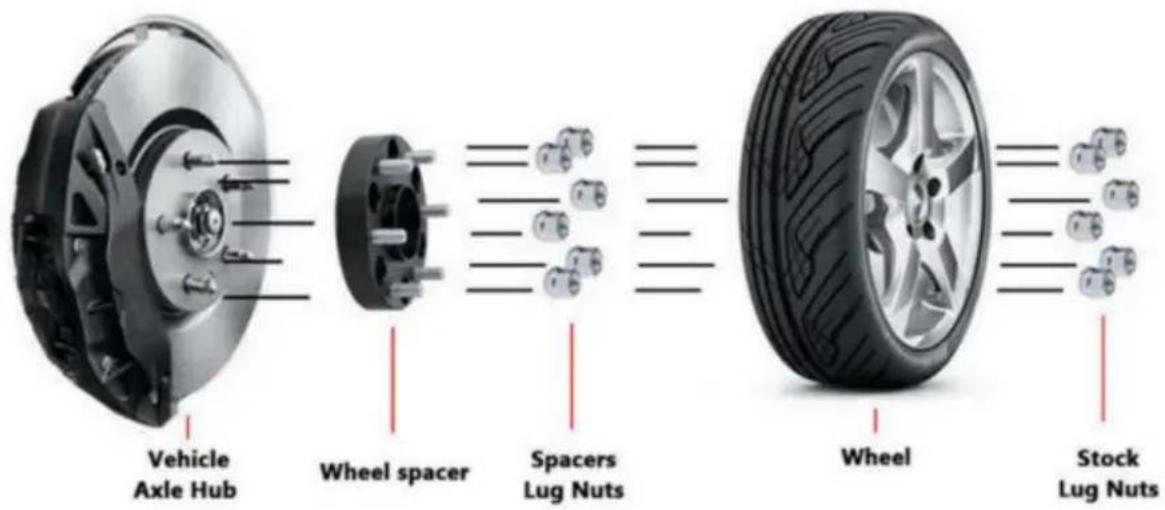

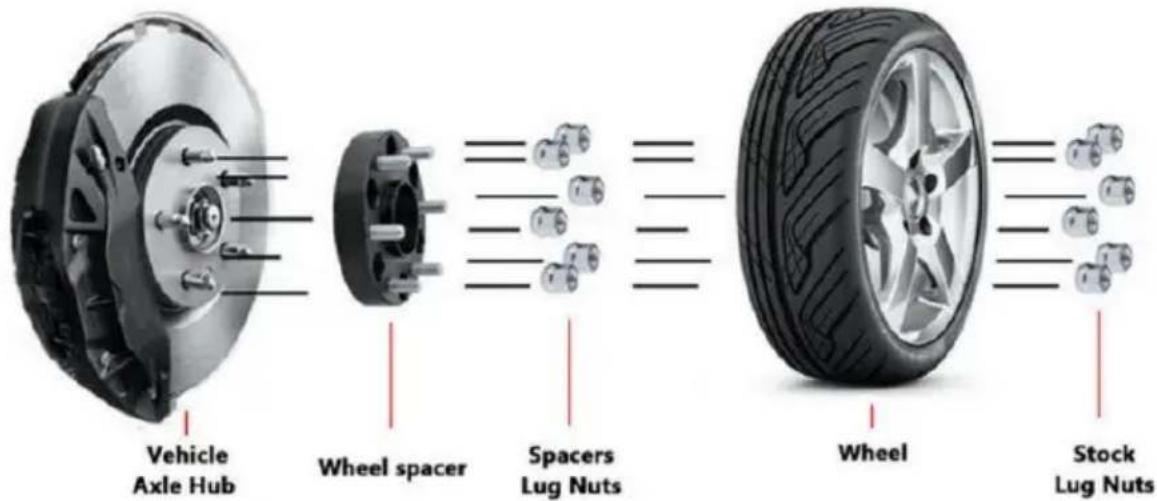

Vehicle Axle Hub Wheel spacer Spacers Lug Nuts Wheel Stock Lug Nuts

1. Following your vehicle owner's manual, properly raise the vehicle and supp using adequately load-rated jack stands. Never work on a raised vehicle that supported with a factory emergency, floor or bottle jack. Remove wheels and inspect rotors for any damageor cracks. If any damage is identified, do not continue with this installation.

2. Remove any visible rust from the mating flange on the vehicle's rotor. Ins, both the rotor and wheel mounting flanges for burns, rivet heads, or other obstruction that would preventa flush seating of the vehicle rotor's mounting flange to both the inner and outer side of the spacers. Improperly seated spacers are hazardous and may cause adapter failure, resulting in the loss of a wheel which driving the vehicle.

3. If proper seating can be achieved, mount the wheel spacer onto the vehicle studs until it sits flush with the rotor's flange. Thread glue on the studs is recommended to reduce vibration risk. Install with open-end lug nuts (included with this kit) as the specs below, follow the star pattern by hand wrench. Do impact or it will damage the nuts.

4. Place wheel on the wheel adapter studs until the wheel mounting flange is flush on the adapter's outer flange. Install the nuts provided onto the lugs.
5. Check for proper tire clearance in the wheel well.making certain there is sufficient wheel and tire clearance for full steering (lock-to-lock). If there is no interference,vehicle may belowered. Once vehicle is on the ground under full recheck for adequate tire and wheel clearance and unobstructed lock-to-lock steering.

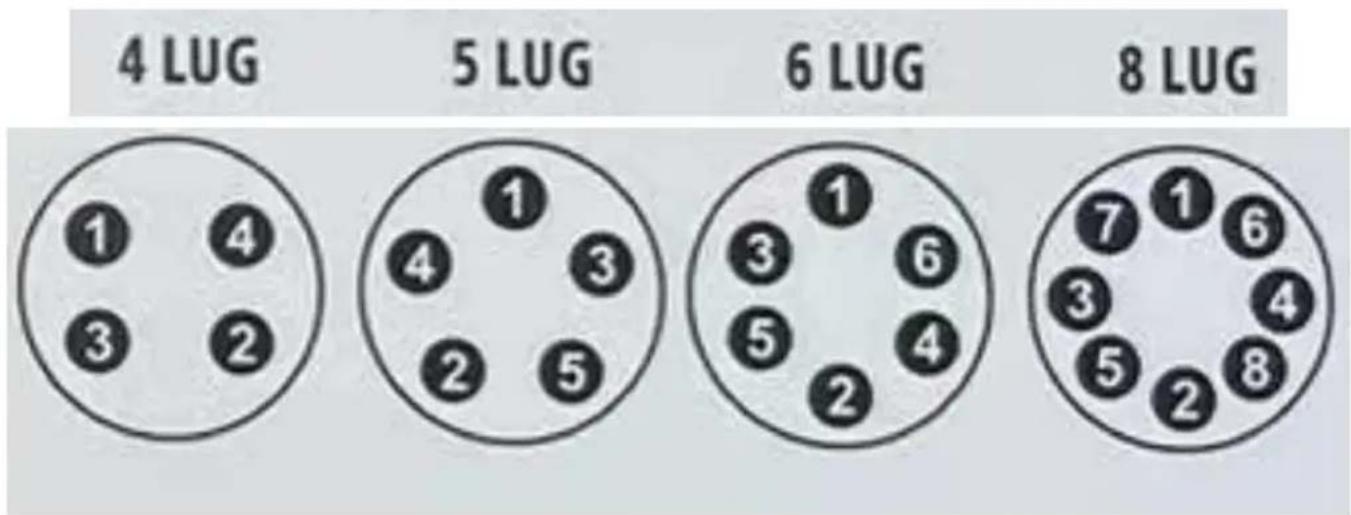

Standard torque of Nuts or bolts:

4 LUG 5 LUG 6 LUG 8 LUG

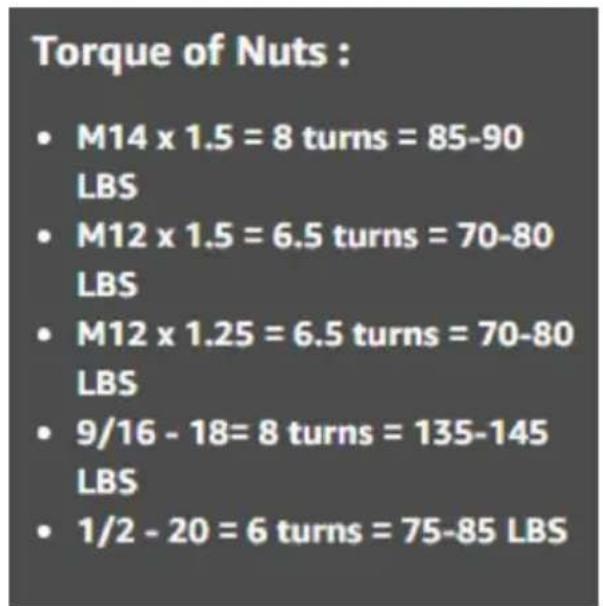

Torque of Nuts : • M14 x 1.5 = 8 turns = 85-90 LBS • M12 x 1.5 = 6.5 turns = 70-80 LBS • M12 x 1.25 = 6.5 turns = 70-80 LBS • 9/16 - 18= 8 turns = 135-145 LBS • 1/2 - 20 = 6 turns = 75-85 LBS

Model	6135-6135-CT-87.1-09
Thickness(inch)	1.5
Wheel Bolt Pattern	5 x 5.3 in
Center Bore	87.1 mm
Thread Pitch	M14x1.5
Qty.	4

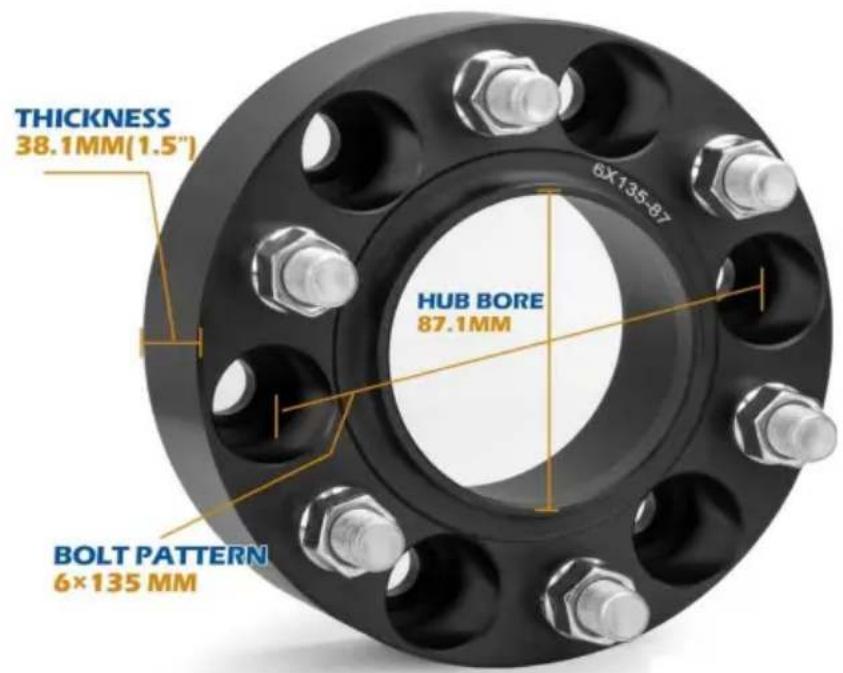

THICKNESS 38.1MM(1.5") HUB BORE 87.1MM 6X135-87 BOLT PATTERN 6X135 MM

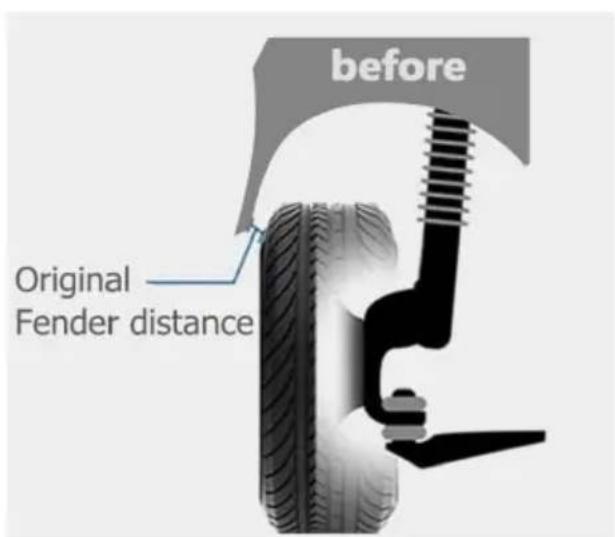

before Original Fender distance

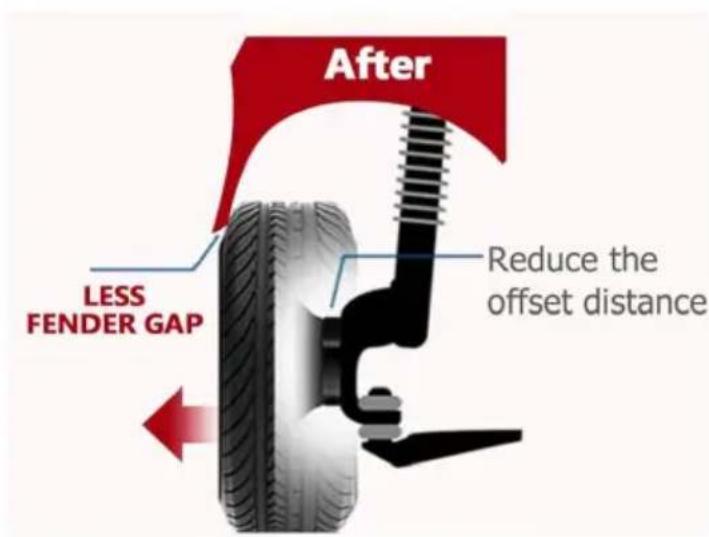

After LESS FENDER GAP Reduce the offset distance

Adaptive Model
Ford	2015-2023	F150
	2015-2022	Expedition
	2015-2022	Lobo
	2015-2022	Navigator

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Two black mechanical flange components with bolt holes and metallic fasteners, accompanied by a row of small metallic fasteners (no text or symbols visible)

BESOIN D'AIDE? CONTACTEZ-NOUS!

Vehicle Axle Hub Wheel spacer Spacers Lug Nuts Wheel Stock Lug Nuts

• M14 x 1.5 = 8 turns = 85-90 LBS

- M12 x 1.5 = 6.5 turns = 70-80 LBS

• M12 x 1.25 = 6.5 turns = 70-80 LBS

• 9/16 - 18= 8 turns = 135-145 LBS

• 1/2 - 20 = 6 turns = 75-85 LBS

Machine Translated by Google

THICKNESS 38.1MM(1.5") 6X135-87 HUB BORE 87.1MM BOLT PATTERN 6×135 MM

before Original Fender distance

After LESS FENDER GAP Reduce the offset distance

C/O YH Consulting Limited Bureau 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

REPRÉSENTANT CE

E-CrossStu GmbH

Mainzer Landstr.69,

Two black mechanical flange components with bolt holes and metallic fasteners, accompanied by a row of small metallic fasteners (no text or symbols visible)

BRAUCHEN SIE HILFE? KONTAKTIERE UNS!

Vehicle Axle Hub Wheel spacer Spacers Lug Nuts Wheel Stock Lug Nuts

• M14 x 1.5 = 8 turns = 85-90 LBS

- M12 x 1.5 = 6.5 turns = 70-80 LBS

• M12 x 1.25 = 6.5 turns = 70-80 LBS

• 9/16 - 18= 8 turns = 135-145 LBS

• 1/2 - 20 = 6 turns = 75-85 LBS

THICKNESS 38.1MM(1.5") 6X135-87 HUB BORE 87.1MM BOLT PATTERN 6×135 MM

before Original Fender distance

After LESS FENDER GAP Reduce the offset distance

Adaptives Modell
Ford		F1502015–2023
	2015–2022	Expedition
		Lobo2015-2022
	2015–2022	Navigator

Hersteller: Shanghaimuxinmuyeyouxiangongsi

Adresse: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, Shanghai 200000 CN.

C/O YH Consulting Limited Büro 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

EG-REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Two black mechanical flange components with bolt holes and metallic fasteners, accompanied by a row of small metallic fasteners (no text or symbols visible)

HO BISOGNO DI AIUTO? CONTATTACI!

Vehicle Axle Hub Wheel spacer Spacers Lug Nuts Wheel Stock Lug Nuts

• M14 x 1.5 = 8 turns = 85-90 LBS

- M12 x 1.5 = 6.5 turns = 70-80 LBS

• M12 x 1.25 = 6.5 turns = 70-80 LBS

• 9/16 - 18= 8 turns = 135-145 LBS

• 1/2 - 20 = 6 turns = 75-85 LBS

THICKNESS 38.1MM(1.5") 6X135-87 HUB BORE 87.1MM BOLT PATTERN 6×135 MM

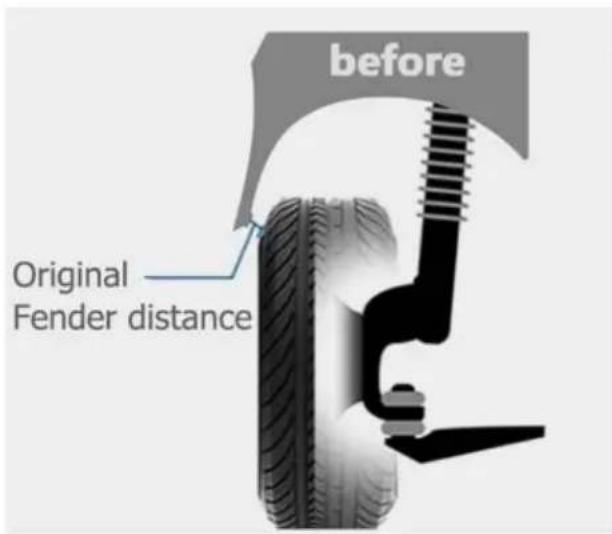

before Original Fender distance

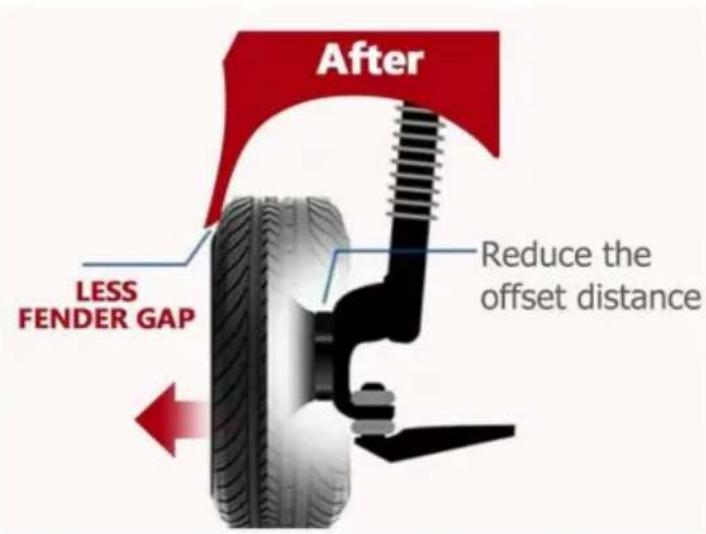

After LESS FENDER GAP Reduce the offset distance
