Product Type	Wheel Spacers (Adapters)
Brand	Vevor
Model	5450-5450-A-82.5-04
Thickness	1 inch (25.4 mm)
Number of Wheel Bolts	5
Bolt Pattern	5 x 4.5 inches (114.3 mm)
Center Bore	82.5 mm
Thread Pitch	1/2\"-20
Quantity per Kit	4 spacers
Material	High-strength steel
Main Function	Widen wheel track, change offset
Installation	Direct mounting on hub studs, requires specified torque
Safety	Do not modify, do not stack, retorque after 25-50 miles then 1000-2000 miles
Maintenance	Clean rotor hub before installation, use threadlocker on studs
Required Tools	Torque wrench, jack, jack stands
Compatibility	Vehicles with center bore 82.5 mm and bolt pattern 5x4.5 inches
Warranty	Electronic warranty via www.vevor.com/support
Import Country (for the United States)	Imported by Sanven Technology Ltd., Rancho Cucamonga, CA
EU Representative	YH Consulting Limited, Frankfurt am Main
Additional Specifications	Recommended torque according to table (refer to manual)

Frequently Asked Questions - 5450-5450-A-82.5-04 Vevor

How to properly install Vevor wheel spacers 5450-5450-A-82.5-04?

Lift the vehicle and support it with jack stands. Remove the wheels, clean the rotor hub. Place the spacer on the hub studs, then hand tighten the included nuts in a star pattern. Lower the vehicle and retorque after 25 to 50 miles, then after 1,000 to 2,000 miles.

What is the recommended torque for the wheel nuts?

The torque depends on the number of studs (4, 5, 6, or 8). For this model, consult the torque table in the manual. Use a torque wrench to avoid over-tightening or under-tightening.

Can I stack multiple spacers on one wheel?

No, it is strictly forbidden to stack multiple adapters/spacers on the same wheel. This can cause dangerous failure.

Are the spacers compatible with all vehicles?

They fit vehicles with a center bore of 82.5 mm, a bolt pattern of 5x4.5 inches (114.3 mm), and studs with thread 1/2"-20. Check your vehicle's specifications before purchase.

Should I use threadlocker during installation?

Yes, it is recommended to apply threadlocker on the studs to reduce the risk of loosening due to vibrations. Never remove factory-installed studs.

What tools are needed for installation?

You will need a jack, jack stands, a torque wrench, a hand wrench (no impact wrench), and optionally threadlocker.

How to check tire clearance after installation?

After mounting the wheel, turn the steering wheel lock to lock. Ensure there is no contact between the tire and the body or suspension components. Also check under full load.

What to do if the provided nuts are damaged?

The supplied nuts are specific. Do not use standard nuts. Contact Vevor support at www.vevor.com/support for replacement parts.

Can I use an impact wrench to tighten the nuts?

No, the use of an impact wrench is not recommended as it can damage the nuts and studs. Always use a hand wrench or torque wrench.

Where can I find the complete manual?

The manual is available for free download at notice-facile.com. You can also consult technical support at www.vevor.com/support.

USER MANUAL 5450-5450-A-82.5-04 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

WHEEL SPACERS

MODEL: 5450-5450-A-82.5-04

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only rep estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL: 5450-5450-A-82.5-04

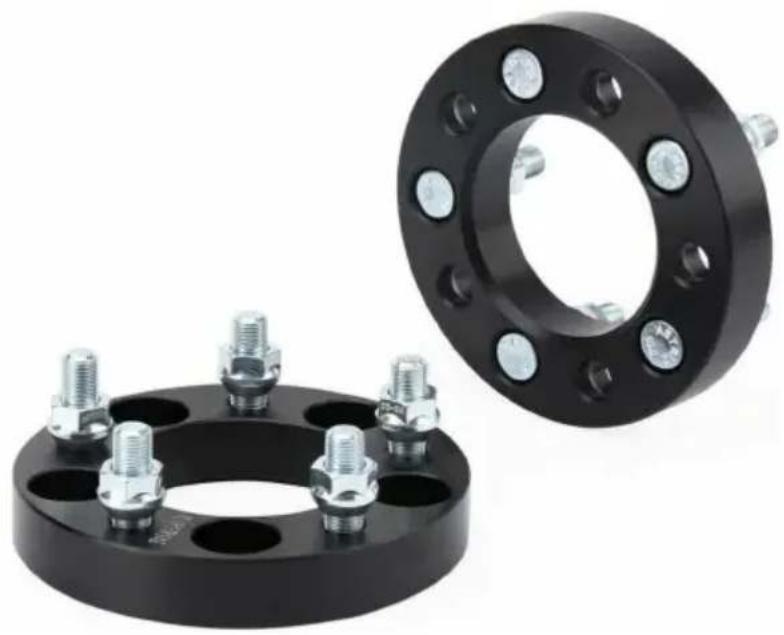

Two black flange components with metallic bolts and bolt holes, shown from different angles (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

In Order To Avoid Wobble And Break Studs Problems, Please Read These Important Safety Information As Follows:

• Never modify the wheel adapters/spacers.
• Never remove the factory-installed studs on the wheel adapters/spacers.
  ● Never use an impact wrench.

- Do not stack multiple adapters/spacers on a single wheel.

● Make sure that mating flange on the vehicle's rotor is completely clean.

- Re-torque all lug nuts on the spacer/adapter after 25-50 miles of driving, t again after 1-2,000 miles, use the thread locker to ensure the nuts are secu enough, avoid taking off.

- Carefully follow the installation instructions included in this package.

INSTALLATION INSTRUCTIONS

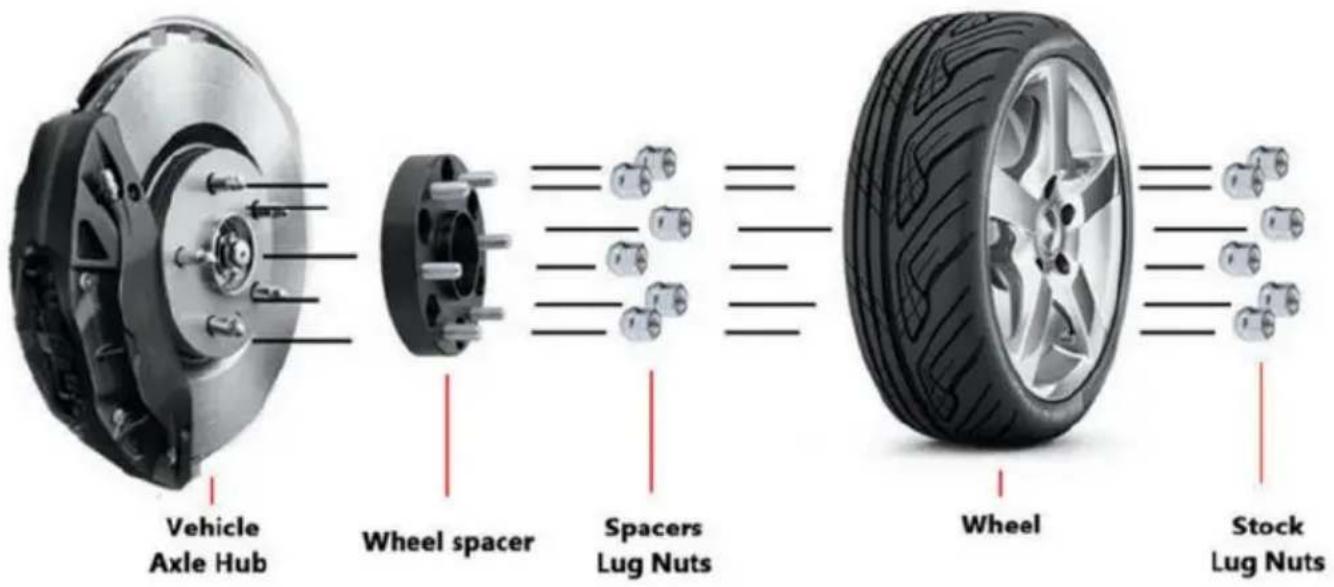

Vehicle Axle Hub Wheel spacer Spacers Lug Nuts Wheel Stock Lug Nuts

1. Following your vehicle owner's manual, properly raise the vehicle and supp using adequately load-rated jack stands. Never work on a raised vehicle that supported with a factory emergency, floor or bottle jack. Remove wheels and inspect rotors for any damageor cracks. If any damage is identified, do not continue with this installation.

2. Remove any visible rust from the mating flange on the vehicle's rotor. Ins both the rotor and wheel mounting flanges for burns, rivet heads, or other obstruction that would preventa flush seating of the vehicle rotor's mounting fl to both the inner and outer side of the spacers. Improperly seated spacers a

hazardous and may cause adapter failure, resulting in the loss of a wheel driving the vehicle.

1. If proper seating can be achieved, mount the wheel spacer onto the vehicle studs until it sits flush with the rotor's flange. Thread glue on the studs is recommended to reduce vibration risk. Install with open-end lug nuts (included with this kit) as the specs below, follow the star pattern by hand wrench. Do impact or it will damage the nuts.
2. Place wheel on the wheel adapter studs until the wheel mounting flange is flush on the adapter's outer flange. Install the nuts provided onto the lugs.
3. Check for proper tire clearance in the wheel well.making certain there is sufficient wheel and tire clearance for full steering (lock-to-lock). If there is no interference,vehicle may belowered. Once vehicle is on the ground under full recheck for adequate tire and wheel clearance and unobstructed lock-to-lock steering.

Standard torque of Nuts or bolts:

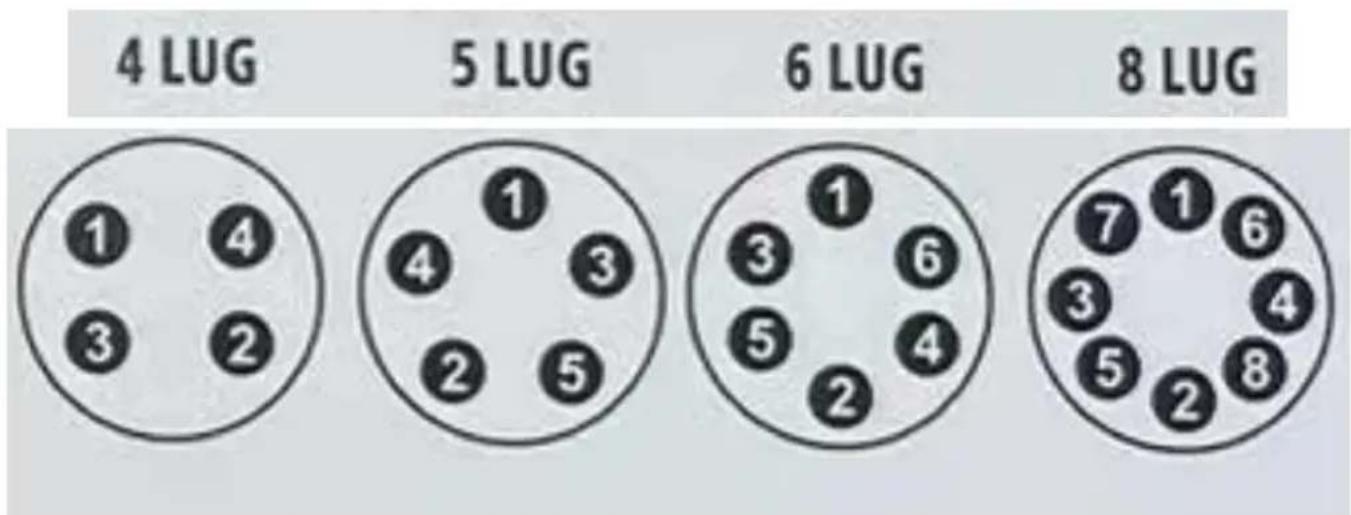

4 LUG 5 LUG 6 LUG 8 LUG

Torque of Nuts :

• M14 x 1.5 = 8 turns = 85-90 LBS
• M12 x 1.5 = 6.5 turns = 70-80 LBS
• M12 x 1.25 = 6.5 turns = 70-80 LBS
• 9/16 - 18= 8 turns = 135-145 LBS
• 1/2 - 20 = 6 turns = 75-85 LBS

Model	5450-5450-A-82.5-04
Thickness(inch)	1
Wheel Bolt Pattern	5 x 4.5 in
Center Bore	82.5 mm
Thread Pitch	1/2”-20
Qty.	4

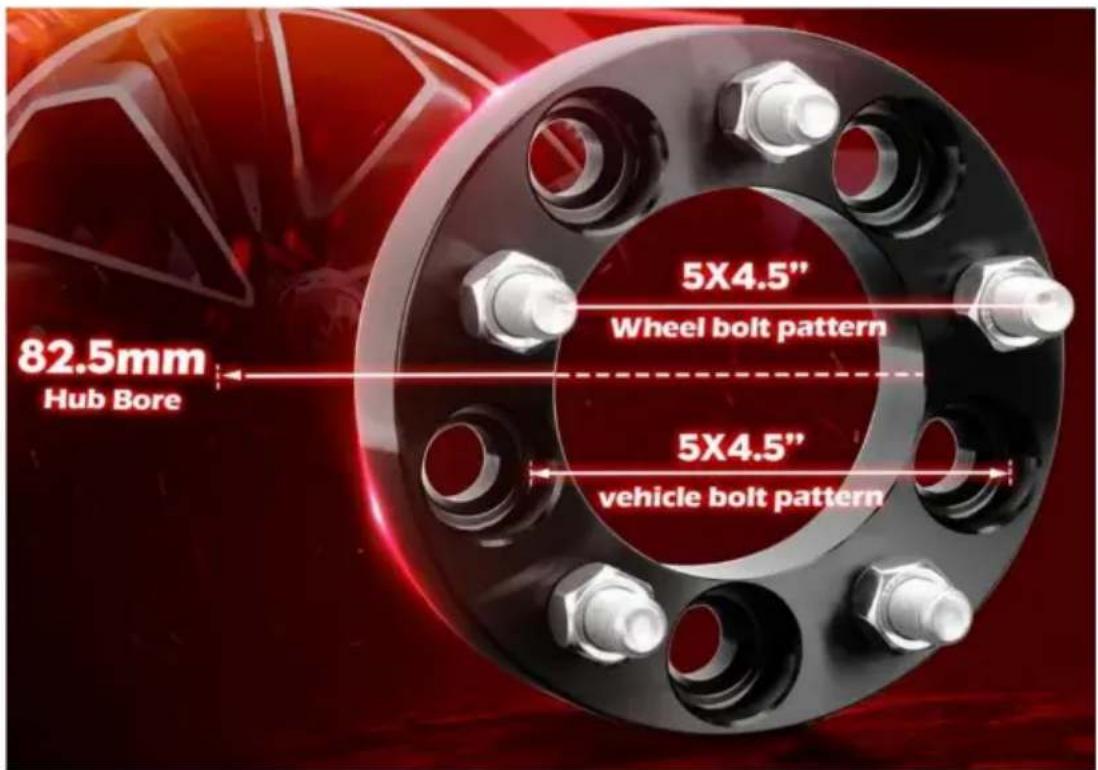

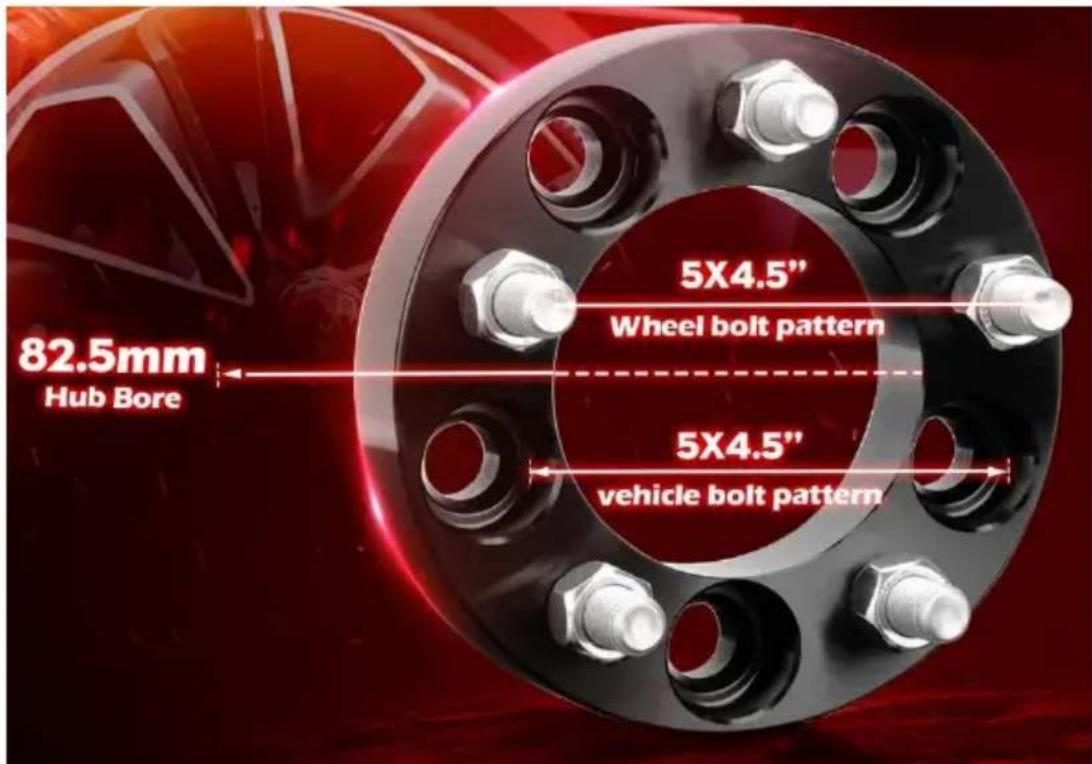

82.5mm Hub Bore 5X4.5" Wheel bolt pattern 5X4.5" vehicle bolt pattern

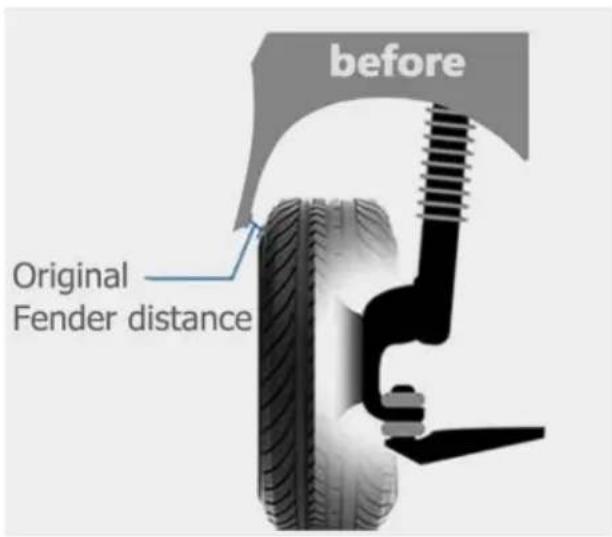

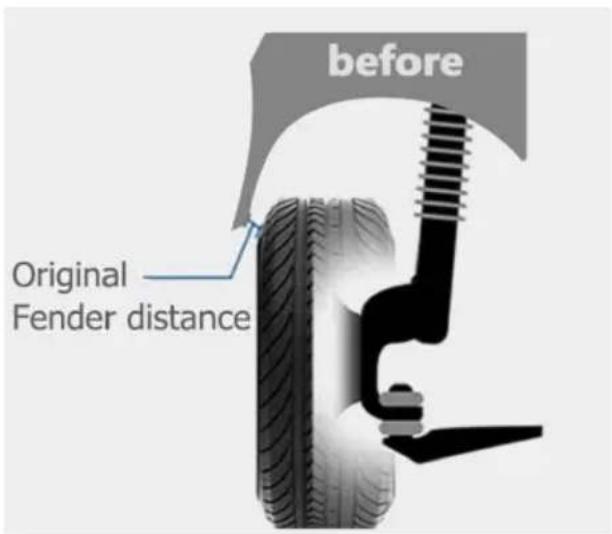

before Original Fender distance

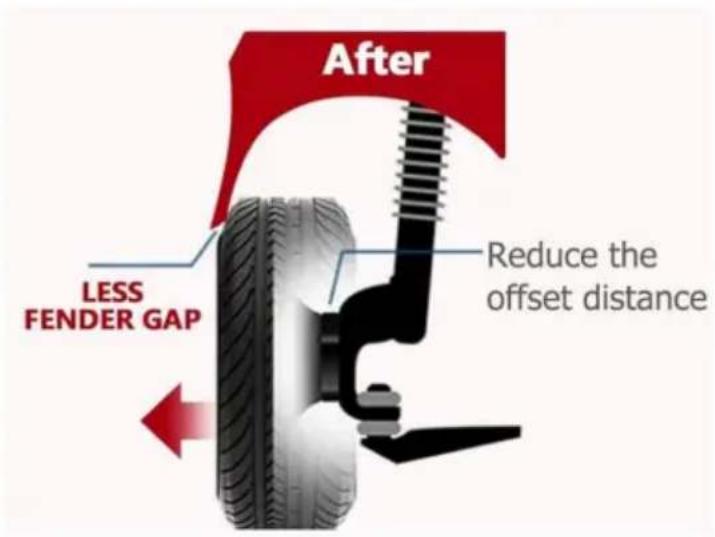

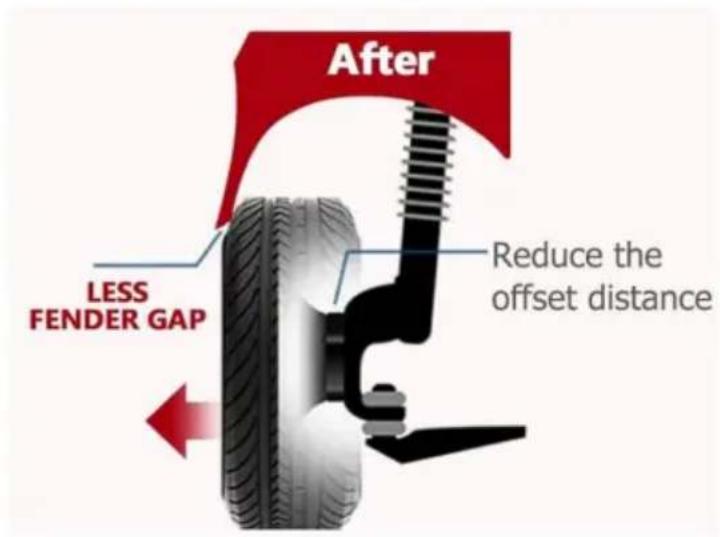

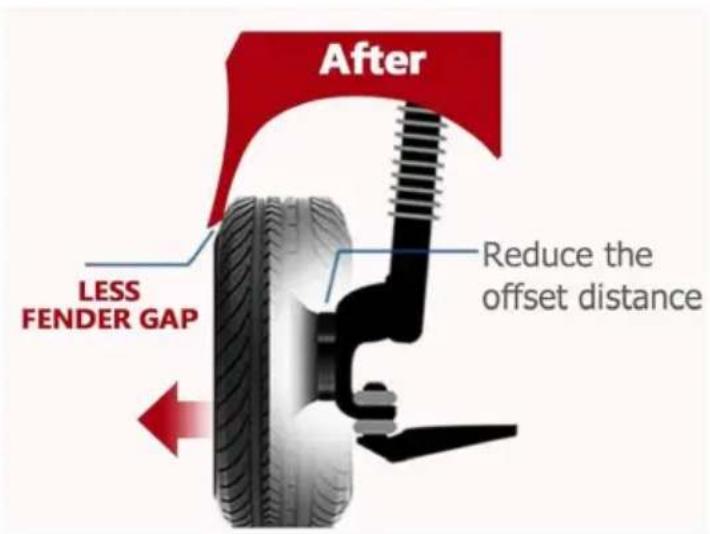

After LESS FENDER GAP Reduce the offset distance

Adaptive Model
Jeep	1984-2013	Cherokee XJ KJ KK	Ford	1985-1997	Aerostar
	1997-2006	Wrangler TJ		1992-2011	Crown Victoria
	1992-1998	Grand Cherokee ZJ		2006-2014	Edge
	2001-2013	Liberty KJ KK		1990-2018	Explorer
Ford	2001-2012	Ranger		2005-2017	Falcon
	2008-2018	Taurus		2008-2018	Flex
	2004-2017	Territory SX		2004-2007	Freestyle
	1987-1990	Dodge Dakota		2005-2014	Mustang

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.
