USER MANUAL 58016V-1 Vevor

Affordable. Reliable. Home Improvement.

ELECTRIC COFFEE URN

MODEL:18102, 58016V-1, 18103, 58016V

VEVOR

Affordable. Reliable. Home Improvement.

ELECTRIC COFFEE URN

MODEL:18102, 58016V-1, 18103, 58016V

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again there are any technology or software updates on our product.

	Warning-To reduce the risk of injury, user must read instructions manual carefully.
	CORRECT DISPOSALThis product is subject to the provision of European Direc 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the proo and all accessories marked with this symbol. Products ma as such may not be discarded with normal domestic wast must be taken to a collection point for recycling electrical electronic devices
	Keep children away from the machine for fear of danger.
	Surface are liable to get hot during use.

TO PREVENT PERSONAL INJURY OR PROPERTY DAMAGE, READ AND FOLLOW THE INSTRUCTIONS AND WARNINGS IN THIS CARE AND USE INSTRUCTION MANUAL.

IMPORTANT SAFEGUARDS

Use electricity safely and wisely. Observe safety precautions when using your

coffeemaker including the following:

• Read all instructions before using.
• Be sure coffeemaker contains water or brewed coffee before plugging in.

Do not leave coffeemaker plugged in when it is not being used.

• Plug coffeemaker into 120 or 220-240 volt AC electric outlet ONLY. Ensure that plug is wired correctly as follows.
  • Coffeemaker should always be unplugged and allowed to cool before cleaning.

• Do not let cord touch hot surfaces or hang over the edge of a counter, table or surface area.

• Make sure cover, basket and stem are properly attached before coffeemaker is plugged in (see instructions). No part of the coffeemaker should be removed during the brewing cycle as scalding could occur.
• Your coffeemaker, its cord and plug should not be used outdoors, immersed in liquids, placed near a hot electric or gas burner or placed in a heated oven.
• Do not touch coffeemaker when it is hot. Use handles or knob.
  • Supervise closely when coffeemaker is used by or near children.
• Use your coffeemaker only for the uses described in this booklet. Do not use attachments with your coffeemaker unless recommended by VEVOR.
• Do not use your coffeemaker if it or its cord are damaged or not working properly.
• This appliance is not suitable for installation in an area where a water jet could be used.
  • Children being supervised not to play with the appliance.
  • Children shall not play with the appliance.
• This appliance is only to be installed in locations where it can be overseen by trained personnel.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• This appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.
  • Cleaning and user maintenance shall not be made by children without supervision.

SAVE THESE INSTRUCTIONS

WARNING: THIS APPLIANCE MUST BE GROUNDED

NOTICE

If the supply cord of this appliance is damaged, it must be replaced by a repair shop appointed by the manufacturer because special purpose tools and a special cord are required.

Promptly dispose of any plug that has been cut from the power supply cord.

WARNING: A shock hazard could result if the cut-off plug is inserted in a socket outlet elsewhere in the house.

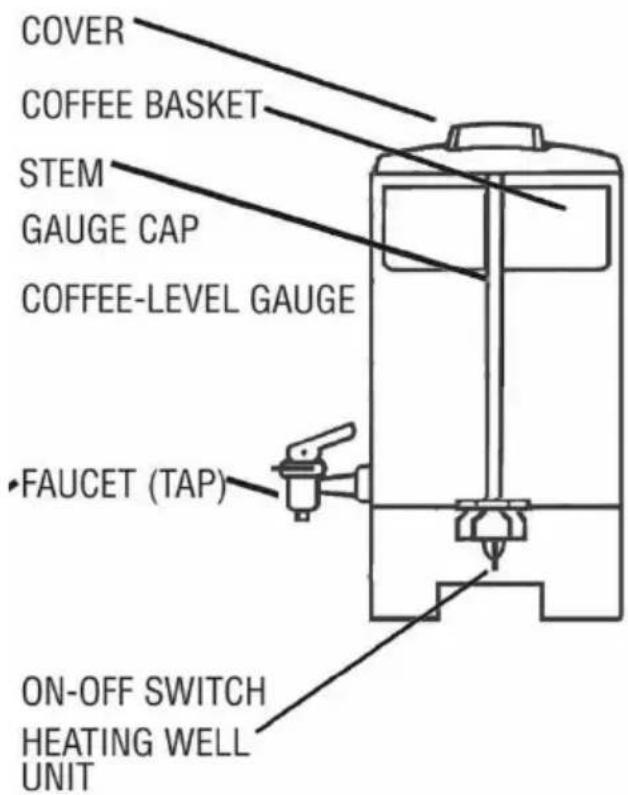

COVER COFFEE BASKET STEM GAUGE CAP COFFEE-LEVEL GAUGE FAUCET (TAP) ON-OFF SWITCH HEATING WELL UNIT

COFFEE MEASURING GUIDE

Note: Use this chart as only as a guide. Adjust the amount of water and coffee as need to suitour taste.

WATER LEVEL	AMOUNT OF GROUND COFFEE
40 cups	212 cups
30 cups	134 cups
20 cups	112 cups
10 cups	34 cup

*1 cup = 150 mL serving

Allow approximately 1 minute per cup brewing time. Voltage changes or variations in water temperature will affect brewing time. NEVER MAKE LESS THAN THE MINIMUM CAPACITY OR MORE THAN THE MAXIMUM CAPACITY OF YOUR COFFEEMAKER.

INSTRUCTIONS FOR MAKING COFFEE

1. Before using the first time, clean coffeemaker thoroughly. Refer to Regular Cleaning Instructions on page 4.

CAUTION: TO PREVENT PERSONAL INJURY OR ELECTRIC SHOCK, DO NOT IMMERSE COFFEEMAKER, ITS PLUG OR CORD IN WATER OR OTHER LIQUID.

1. Always use coffeemaker on a dry, level surface. Be sure hands are dry.

2. With basket and stem removed, fill coffeemaker with COLD water. Marks on inside of coffeemaker show water levels.

3. Press stem into heating well unit in bottom of coffeemaker; put basket on stem. Put electric perk ground coffee in basket; do not let any fall into stem. Follow proper chart for amount to use. Spread evenly in basket. (Use standard measuring cups as used to measure flour, sugar, etc. to measure coffee.) Amount of coffee can be adjusted to suit taste preference.

SPECIAL NOTE ON GRINDING BEANS: If grinding your own coffee beans, grind to medium coarseness for best results. DO NOT grind too fine (powder-like) as this can cause basket to flood.

1. Place cover on coffeemaker, twisting to secure in place inside handles. Note the arrowson the cover for correct turning. To reduce coffee spills, especially if coffeemaker is tipped over, make sure cover has been turned clockwise until it is completely secured into the handle slots. Care should be used when moving the coffeemaker as the secured cover only temporarily reduces coffee spills if coffeemaker is tipped over.

2. Plug cord into a 120 volt AC grounded electric outlet ONLY.

CAUTION: TO PREVENT PERSONAL INJURY OR PROPERTY DAMAGE, DO N ALLOW LONG CORD TO DRAPE OR HANG OVER THE EDGE OF A COUNTERTOP OR TABLETOP WHERE IT CAN BE PULLED ON BY CHILDREN TRIPPED OVER. YOUR COFFEEMAKER HAS A LONG CORD FOR EASY ACCI TO ELECTRIC OUTLET. DO NOT ALLOW CHILDREN TO BE NEAR OR USE T COFFEEMAKER WITHOUT CLOSE ADULT SUPERVISION.

1. The coffeemaker will stop perking automatically. (Each cup requires no longer than 1 minute brewing.) Coffee is ready when light in base glows. Coffee will remain at serving temperature as long as coffeemaker is plugged in . Before serving, twist and remove cover. (Some condensation may form on the inside of the coffeemaker handles which is normal.) Using a hot pad, remove coffee basket and stem. If basket and stem are not removed, bitter oils from the extracted grounds will drip into coffee. Replace cover making sure it is completely secured in the handle slots.

2. For cup-on-saucer filling, press faucet handle down. Release handle when filled. For a continuous flow when filling a coffee server, lift handle straight up until it holds the open position. Lower handle when server is filled.

3. When about three cups of coffee remain in coffeemaker or when coffee can no, unplug cord from wall outlet

4. To reheat cold coffee, simply plug in coffeemaker and push in. Be sure basket and stem are removed. There must be at least 10 cups of coffee in coffeemaker to rehe

5. Operate between ambient temperatures 5^ C - 45^ C ( 40^ F - 110^ F).

CAUTION: LIQUID MUST COVER INSIDE BOTTOM OF UNIT AT ALL TIMES. FALLING BELOW THIS LEVEL (APPROX. 2 INCHES) COULD CAUSE OVERHEATING AND DAMAGE TO INTERNAL COMPONENTS. THIS WILL VOID THE WARRANTY.

INSTRUCTIONS FOR CLEANING COFFEEMAKER

Regular Cleaning – After each use

1. Unplug coffeemaker. Do not let water contact electrical parts in base.
2. Clean inside of coffeemaker by filling with hot water to about one-third its capacity. Add detergent and wash with a sponge or cloth. Twist pad inside unit well to clean. Unit well must be kept clean for coffeemaker to work properly. Rinse thoroughly with clear hot water and dry.
3. Clean faucet (tap) by letting clear hot water run through it, while moving handle up and down. (Keep faucet (tap) in closed position when not in use.)
4. Clean basket, stem and cover in hot soapy water. Rinse thoroughly. Do not clean cover in a dishwasher; surface may permanently discolor.
5. Clean outside of coffeemaker with a damp cloth, then polish with a dry cloth. Sterling silver polish may be used. Do not use scouring pads or powders.

SPECIAL CLEANING - EVERY TWO WEEKS

If coffeemaker is used daily, a special cleaning every 2 weeks (in addition to regular cleaning) is necessary to thoroughly clean the heating well unit. If the heating well unit is not kept clean, the performance of the coffeemaker will be affected.

1. Fill coffeemaker with 1 quart each of cold water and white distilled vinegar. Put empty basket and stem in coffeemaker, secure cover on and plug in. Let coffeemaker run through perking cycle. Let stand 20 minutes. or unplug. Drain coffeemaker and cool. (The vinegar and water solution may be saved for future cleaning. Label container of solution indicating
   its contents and use. Add an additional 1 to 2 cups (16.3 cl to 32.6 cl) of vinegar to the solution when reusing for thorough cleaning.)

2. Add a small amount of hot soapy water to coffeemaker and scour interior and heating well unit following regular cleaning instructions. Drain. Wash basket and stem.

3. Clean coffee-level gauge. Unscrew the gauge cap and remove the tube. Clean tube in hot soapy water. Rinse thoroughly. Replace. The brush may also be used to clean the stem.
4. Unscrew faucet handle. Move a brush up and down through faucet, then insert brush through opening inside coffeemaker to clean faucet connection. Wash faucet handle in hot soapy water and rinse. Replace faucet handle.
5. Rinse inside of coffeemaker and parts thoroughly with clean hot water, then dry.
6. Do not use a baking soda solution; it may discolor and pit the surface.

INSTRUCTIONS FOR HEATING WATER FOR INSTANT BEVERAGES Plain

water may be heated in your coffeemaker for use with instant beverages. Simply fill the clean coffeemaker with cold water to the desired cup level and place stem and clean, empty basket into position as for making coffee. Secure cover in place and Plug cord into grounded electric outlet. Heat water until perking stops and light in base glows.

Twist cover, remove basket and stem with a hot pad and replace cover, making sure it is secured in place. Unplug coffeemaker when less than 3 cups (49 cl) of water remain.

Inside of coffeemaker may darken after heating water which is normal and does not affect coffeemaker or water heated.

When coffeemaker is used to heat water only, it must be cleaned well after each use in addition to special weekly cleaning using vinegar to remove mineral deposits. If these deposits are not removed, pitting of the metal can occur and result in damage to coffeemaker. See Special Cleaning Instructions on page 4.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

Affordable. Reliable. Home Improvement.

Affordable. Reliable. Home Improvement.

ELECTRIC COFFEE URN

MODÈLE : 18102, 58016V-1, 18103, 58016V

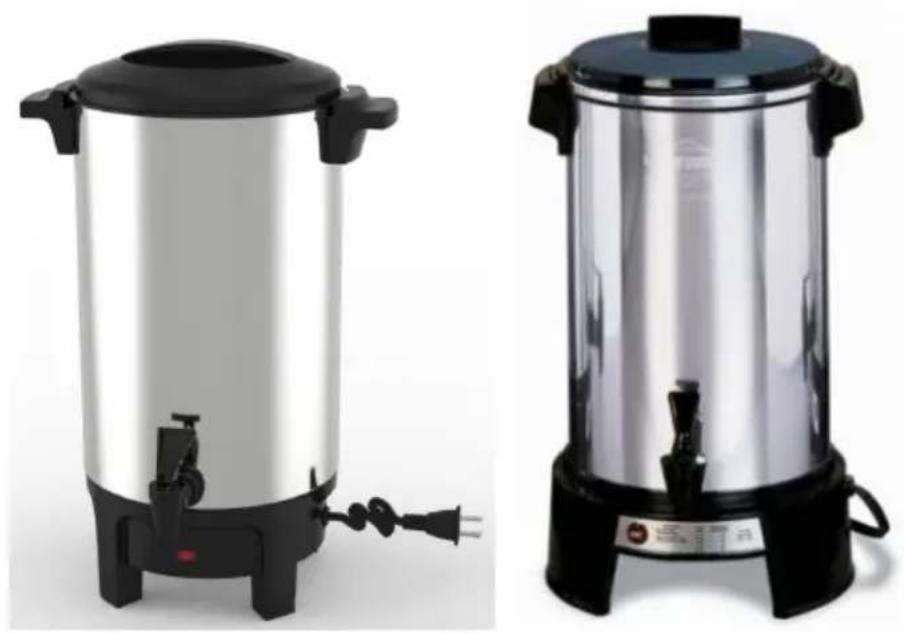

Exterior view of a silver coffee maker with black lid and power outlet (no text or symbols visible)
