LJY120-1 - Coffee machine Vevor - Free user manual and instructions

Product type	Coffee machine
Brand	Vevor
Model	LJY120-1
Power supply	110 V or 220 V, grounded plug
Adjustable timer	1 to 120 seconds
Control panel	Power indicator, start button, time adjustment
Automatic stop	Yes, end of timer
Emergency stop	Emergency switch (OFF by default)
Cup holder	With push system for cup and cap
Shell fragment adjustment	Using an M6 hex key
Coffee type	Not specified (whole bean or ground coffee?)
Capacity	Not specified (single cup)
Housing material	Not specified
Maintenance and cleaning	Turn off and unplug before cleaning; wipe the body; do not immerse
Safety	Do not use with wet hands; check voltage; not for children without supervision
Spare parts and repairability	Original replacement parts; professional replacement for the cord
Origin	Made in China
Certification	European Directive 2012/19/EU (WEEE)

Frequently Asked Questions - LJY120-1 Vevor

What to do if the machine does not start after pressing the start button?

Check the power supply: the voltage must match that indicated on the machine. If the plug is poorly connected, reconnect it properly. If the problem persists, the cord or socket may be defective and must be replaced by a professional.

The machine turns on but the motor does not work, what to do?

Open the back panel and check the internal wiring. If wires are loose, reconnect them. Also check the belt: if it is loose or broken, tighten or replace it.

The machine does not stop after the planned cycle, what should I check?

The timer may be defective. Replace the timer with an original Vevor part.

The machine makes an abnormal noise during operation, why?

The machine may be unstable. Check that it rests on a flat and stable surface. If the shell fragments are loose, adjust them with the M6 hex key so that they are in firm contact with the cup.

How to correctly adjust the shell fragments to hold the cup?

Place the cup on the cup holder, push it forward with the cap. Using an M6 hex key, adjust the shell fragments until they press firmly on the cup.

What is the start and stop procedure of the machine?

Turn on the power: the indicator lights up and the timer displays 15 seconds. Place a cup containing liquid with the lid on the cup holder, push it towards the machine. Press the start button: the machine runs until the countdown ends. For a manual stop, press the start button again.

How to adjust the operating time?

Use the time adjustment button (aaa) to select a duration between 1 and 120 seconds. The timer will update.

Why should I check the emergency switch before first use?

The emergency switch must be in the OFF position when powering on. If it is in the ON position, the machine may start immediately, which is dangerous. Check it systematically.

How to clean the coffee machine?

Turn off and unplug the machine before any cleaning. Wipe the body with a damp cloth. Never immerse the machine in water or other liquids. Do not rinse directly with tap water.

What to do if the cup shakes or moves during operation?

This may be due to loose shell fragments. Tighten or replace the shell fragments. Also ensure that the fragments are in close contact with the cup.

USER MANUAL LJY120-1 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

MILK TEA SHAKER MACHINE

MODEL: LJY120-1, LJY120-2, LJY120-2-1L

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent the estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when placing an order with us to ensure you are actually saving half in comparison with the top major brands.

VEVOR

TOUGH TOOLS, HALF PRICE

MILK TEA SHAKER MACHINE

MODEL: LJY120-1, LJY120-2, LJY120-2-1L

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves the right to interpret the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

Warning-To reduce the risk of injury, user must re instructions manual carefully.

CORRECT DISPOSAL This product is subject to the provision of european D 2012/19/EU. The symbol showing a wheelie bin cross through indicates that the product requires separate recollection in the European Union. This applies to the and all accessories marked with this symbol. Products as such may not be discarded with normal domestic w must be taken to a collection point for recycling electronic devices.

Important

1. Please read this manual carefully before using this product, and retain the instructions for future reference.
2. Do not immerse in water or other liquid, nor rinse by dragon was directly.

Warning

1. Before connecting the power, check that the power supply voltage matches

the voltage marked on the product.

1. This product is not intended for use by persons (including children) with

reduced physical, sensory, or mental capabilities, or lack of experience and

knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

3. When the machine is running, do not close it to avoid danger. 4. If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent. 5. Never immerse the machine in any liquid or use it near sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately. 6. Keep your fingers away from moving parts and fitted tools. Never put fingers etc. in hinge mechanisms. 7. Use only original spare parts. 8. To ensure your children's safety, keep all packaging (plastic bags, boxes, polystyrene, etc.) out of their reach. 9. Do not interfere with any safety switches. 10. Place the machine on a smooth, flat, and stable working surface.

Safety and maintenance

1. The voltage could be 110V or 220V. Please adjust the shrapnel to the appropriate location before using.
2. This product has a three-core plug wire, one of which is the ground

wire, so please make sure the socket has a ground wire to avoid electric shock.

Cleaning methods

1. When cleaning, turn off the power and pull the plug. 2. After use, clean and wipe the body immediately.

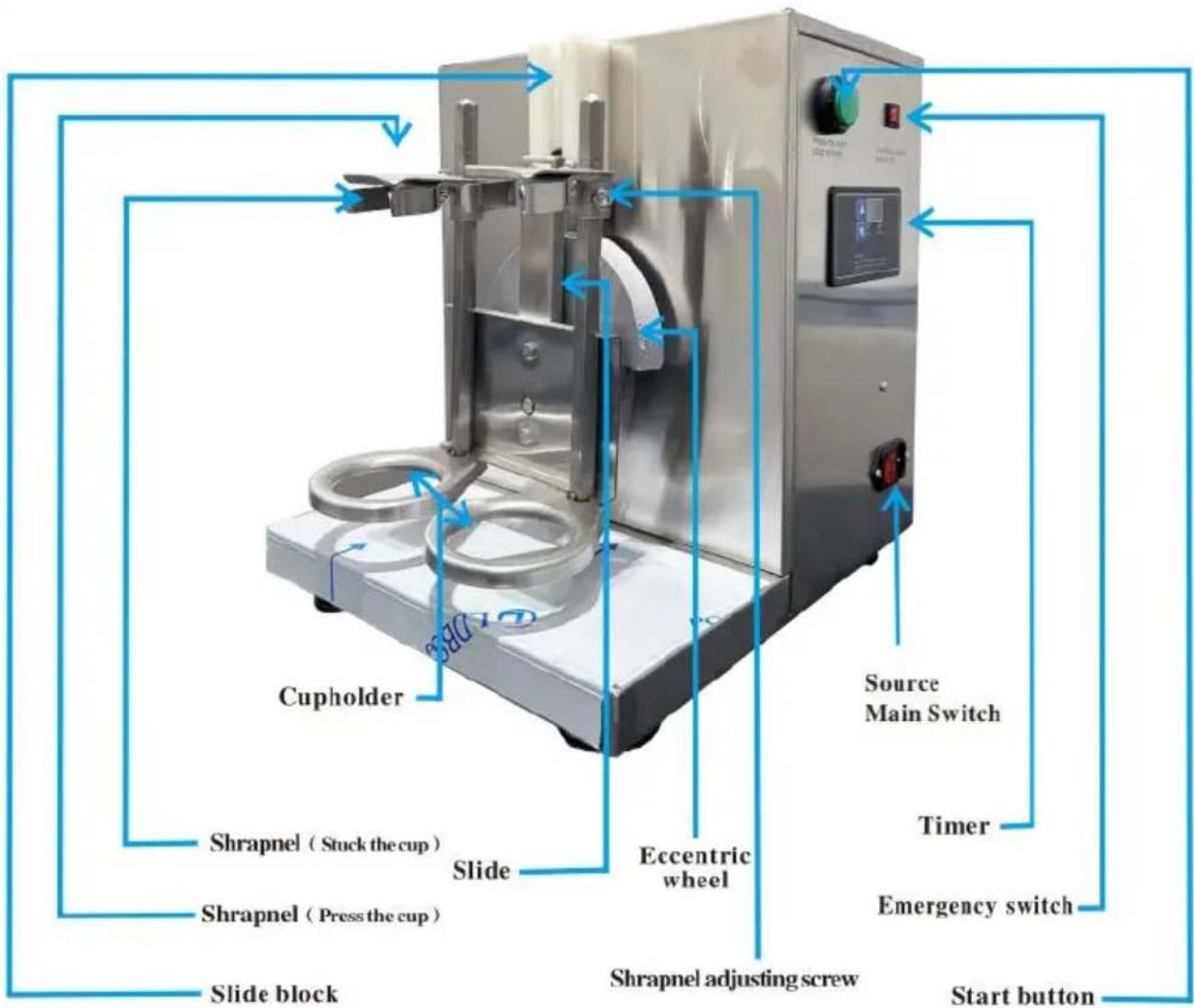

Parts description

The parts' names for single and double cups are the same; images are for reference only; please refer to the actual product.

Operating Instructions Adjustment and placed the cup

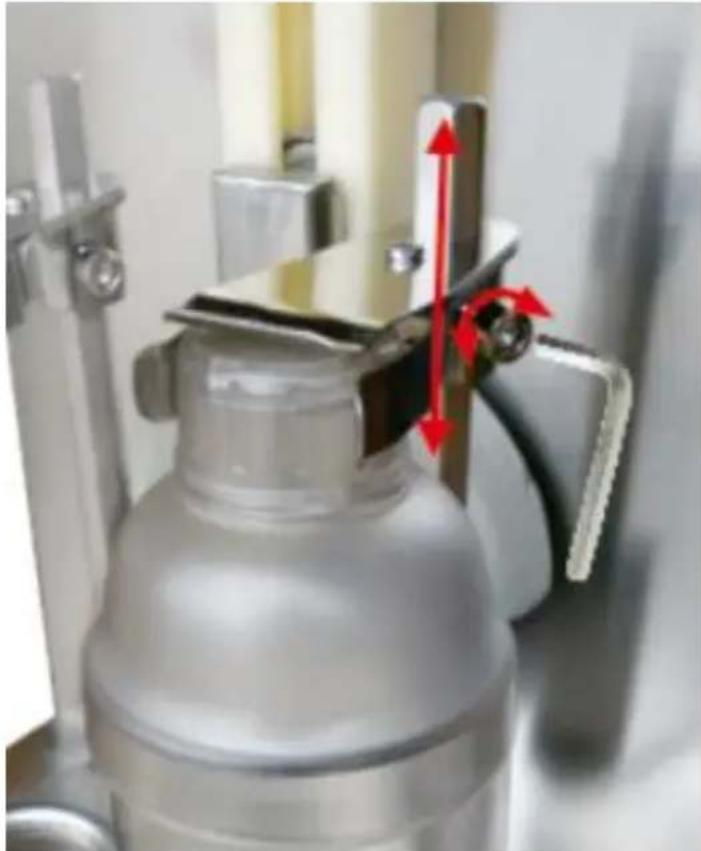

A: Adjust the shrapnel to an appropriate location by using M6 L-type hex wrench (The cup put on the cup holder, then push the cup (with the cap) forward, if the shrapnel can press the cup tightly, then the shrapnel is at

the appropriate location)

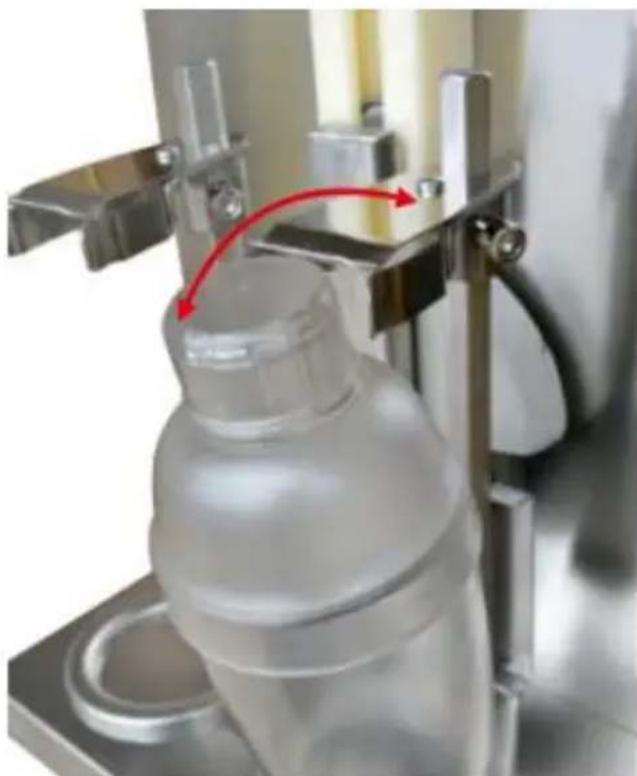

A: When placing the cup, align the cup bottom with the cup holder

B: Push the cup (with the cap) forward

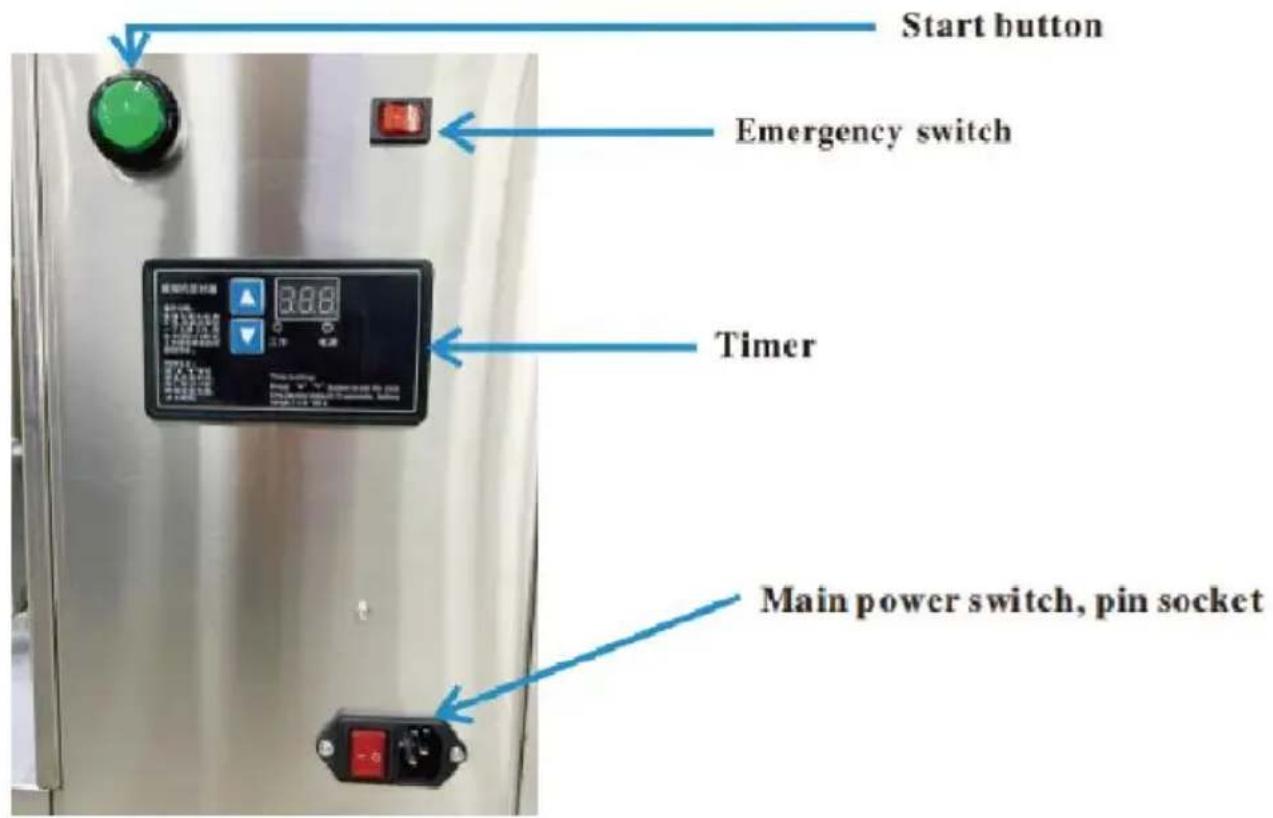

Start and stop

1. After turning on the power supply, the power light is on, and the indicator

shows the stop time. (Factory default 15 seconds)

1. Put the cup (with liquid and cover the lid) on the cup holder, push it toward the machine.
2. The machine starts working after pressing the start button, and it stops when counting down to 000. Please press the start button once again if you want to stop the machine during working.

Press (aaa) button to set the stop time, time setting range 1-120 s. Please keep the emergency switch OFF in the normal working condition. Warning: Please check the emergency switch for the first time. The emergency switch should be OFF, (If the machine starts working after turning on the power supply, please turn off the emergency switch)

Note: please check the emergency switch for the first use of the machine. The emergency switch should be in the OFF state. (if the machine starts working when it is on the power supply, please turn off the emergency

Fault Analysis and Treatment

Cases	Cause of issue	Check the contents	Approach	Remark
After pressed the start button.the machine did not work	Power problems	Check the power	Replacing the power outlet	Electrician Repair If necessary
	Plug and socket Connection is bad	Check the plug i loose or not	Replace the plug wire or socket
After pressed the start button.the timer lights but the machine did not work	The wiring was loose inside the machine	Open the machine rear plate to check the wiring.	Reconnect the loose wire
	The belts was loose	Open the machine rear plate to check the wiring	Tighten the belt or replace the belt
After pressed the start button. The machine work but can not stop working.	The Timer bad	Timer	Replace the Timer
Machine working noise	Machine was put instability	Check whether the table and the machine is flat	Replace the table
	Shrapnel loose	Shrapnel should be in close conta with the cup	Adjust the shrapnel
Cup was thrown off	Shrapnel loose	Check the shrapnel.	Tighten or replace the shrapnel
