FITNESS TRAMPOLINE

MODEL: TX-B6390-48IN+T

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

MODEL: TX-B6390-48IN+T

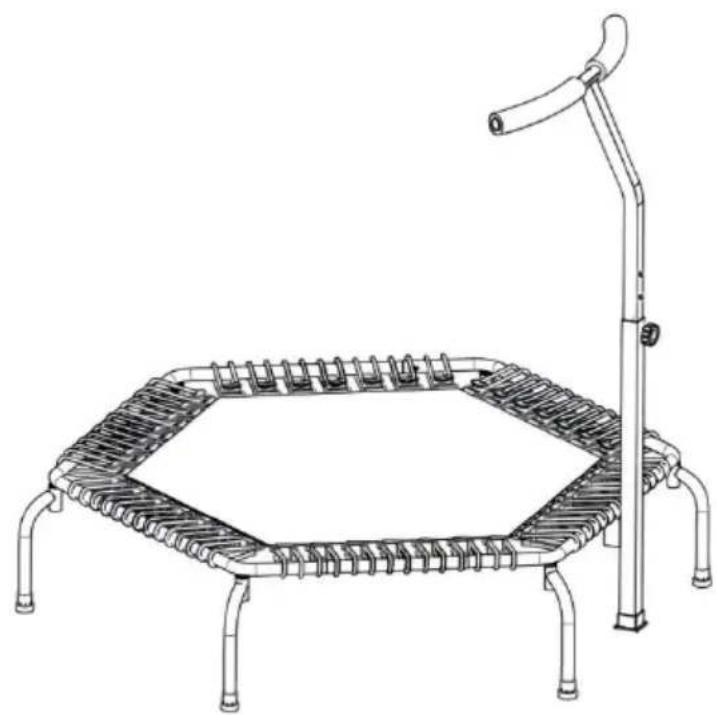

Line drawing of a trampoline with four legs and a vertical support (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

	Warning-To reduce the risk of injury, user must read instructi manual carefully.
	Not suitable for children under 36 months
	Do not use during pregnancy!
	Do not use when suffering from high blood pressure!
	Only one person on the trampoline!
	Use only bare feet!
	No somersaults!
	No smoking!
	Remove all sharp objects from trampoline and jumper!
	Do not bring watches, glasses, rings, scissors, phone etc.

SAFETY WARNINGS AND PRECAUTIONS

Thank you for using this product. In order to make sure that you can operate machine correctly, read this instruction carefully before operation and keep it properly for future reference. Please read the precautions and safety rules on page to ensure your safe use. This manual will outline safety warnings and precautions, operating, maintenance and cleaning. The warnings and instructions reviewed in this manual cannot cover all possible conditions and situations that may occur. Caution and common sense are not built into this product, since believe that the uses will comply with these codes. Before starting a training program or engaging in strenuous endurance activity on the device, please coa doctor.

Please read ALL the instructions before using your machine.

1. Assemble needs to follow these instructions. Incorrect assembly can be a hazard. Wear heavy-duty work gloves during assembly.
2. Do not assemble and use when tired or when under the influence of alcohol drugs or medication.
3. Elastic and other product properties only apply to correctly and completely assembled products.
4. Keep the assembly area clean and well-lit.
5. Keep bystanders out of the area during assembly.
6. The trampoline must be set up by an adult following the instructions. Do allow children and pets to play alone or approach this item. Don't Climb Pro
7. Use as intended only. Always zip up the net before jumping. Make sure is securely zipped before bouncing.
8. Inspect before every use. Do not use it if Part are loose or damaged. Be aware of the following potential hazards:
9. Missing, damaged or improperly positioned frame padding.
10. Punctures, tears, frays, or holes in the fabric of the bed. Deterioration of stitching, fabric, or webbing.
11. Bent or broken frame.
12. Loose or missing bolts. Loosened legs.
13. Bumper cotton cracked, damaged, lost
14. People or objects hanging on the product will cause the product to fall.
15. Pay attention to pedestrians and vehicles when using.
16. Do not apply this unit to any other purposes than the indicated usage. Changes to any Part or structure of the product are allowed.
17. The trampoline net cannot place items to avoid damage.
18. Do not use it for commercial purposes.
19. DO NOT CLEAN IT WITH ANY ABRASIVE MATERIAL.
20. Never leave it unattended while in use.
21. Pet urine and feces can damage the product, please keep away.
22. Do not place the product on or near hot air, electric burners or heaters. Fireworks, cigarettes, flares, and other items can ignite the product. Please st away from them.
23. The product should be placed on a flat surface. And it should be install

open and safe place, at least 2m from any structure or obstructions, avoiding places near windows, roads, railways, rivers, fences, garages, houses, overhanging branches, electrical wires, swimming pools, swings, slides, climbing frames, walls, furniture, wires, ceiling fans, etc.

1. The trampoline is intended for outdoor use only. Do not place it in a d-environment.

2. Must use the designed access points to climb in S out of the trampoline

3. Do not eat and drink while jumping. It is advisable not to bounce immediately after a meal.

4. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience or knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Not suitable for children under 36 months- small Part, choking hazard.

5. Always jump in the middle of the mat and practice bounce techniques set with adult supervision and guidance.

6. Take your shoes off while jumping. Empty pockets and hands before jump. Don't wear glasses.

7. Do not allow more than one person at a time on the trampoline. Do no multiple people at the same time.

8. Max user weight limit: check size chart.

9. DO NOT bury the trampoline in the ground.

10. Do not install the trampoline over concrete, asphalt, or any other hard si Make sure there are no children, pets, animals, obstructions underneath the trampoline.

11. Don't intentionally jump against the protection net as this will weaken it.

12. Artificial illumination may be required for indoor or shady areas.

13. The metal frame of the trampoline can conduct electricity. All lamps, exte cords and similar electronic devices must not come into contact with the fram

14. Check the trampoline before and after each use to make sure that all F properly and securely in place. If necessary, tighten the screws and replace a worn, defective or missing Part.

15. Wear comfortable clothing in which you can move around easily when use the device. Do not wear hooks, snaps, drawstrings or similar items that could

caught in the trampoline. Before use, remove all necklaces and earrings.

1. Please only wear suitable trampoline shoes or socks to avoid slipping. Ti or shoes with smooth leather soles are not suitable for trampoline use.
2. The minimum age for using the trampoline is 3 years. Children under the of 12 should only use the trampoline under the supervision of an adult who to assess the risks.
3. If you have heart disease, high blood pressure and other physical diseases you should not use this product. We accept no liability for consequential damage caused by non-compliance.

WARNING: 37. This appliance is not intended for use by young or in persons unless supervised by a responsible person to ensure that they use the appliance safely. Young children should be supervised to ensure that they do not play with the product. Pets should stay away from the product.Do not use outdoors on rainy and cloudy days and strong wind conditions, avoid lightning strikes and falls. People or pets hanging on t product will cause injury or death.

1. The manufacturer strongly recommends assembly the enclosure net before using trampoline, this will reduce the risk of falling off, offer safe children.
2. Do not try to do somersaults on the trampoline. Landing on the heart, neck, even if it happens in the middle of the trampoline, can result in injuries such as paralysis and, in the worst case, death.

MAX USER WEIGHT

Max user weight limit: Max450 Pound (205Kg)

NOTE: Do not allow more than one person at a time on the trampoline. Do multiple people at the same time.

PRODUCT PART

1. Please dispose of all plastic bags carefully and keep them away from chi and pets.

2. Check all components provided according to the list in this manual.Make s you have all of the Part listed.

3. Although paying particular attention when manufacturing this product, you may be careful during the assembly process to avoid being scratched by sharp ed
4. Wear protective gloves, during assembly and use.
5. The product should be placed on a flat surface.
6. The product requires two people to assemble.

A Jump Mat [X1]

B Frame-U type [X1]

C Frame-L type [X4]

D Frame-I type [X1]

E Leg Tube [X6]

F Handrail Leg [X1]

G Handrail Support [X1]

H Handrail Bar with Foam [X1]

Leg Socket Cap [X6] (Pre-assembled with #E)

a T-hook [X1]

b Traingle Tool [X1]

c Bungee [X44]

d Washer [X2]

e Hex Key Wrench [X1]

f Bolt M8*16&Flat Washer [X6]

g Bolt M8*40 &Are Washer [X1]

h Bolt M8*16 & Flat Washer [X3]

i Bolt M8*12 & Are Washer [X6]

i Bolt M8* 12 & Are Washer [X6]

jAdjustable Knob M8X35 [X1]

NOTE: The quantity of Part shown in the manual is the actual usage and the unused Part are spare Part.

BEFORE ASSEMBLY

Special notice - Check if the springs are connected

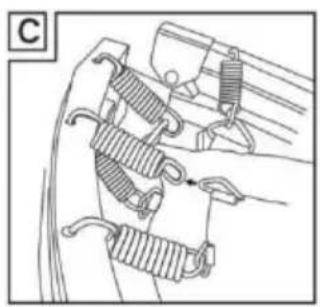

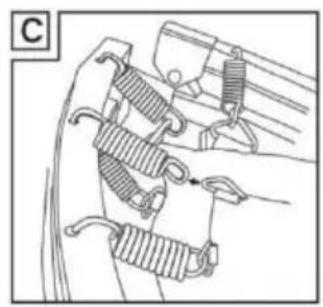

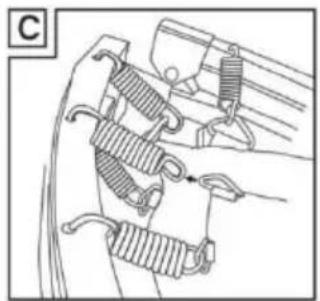

- If the springs are not attached properly, please follow the steps shown in pictures A-B-C.

Attention: The springs can only be linked when the trampoline folded.

Special notice -check if the triangle rings are aligned

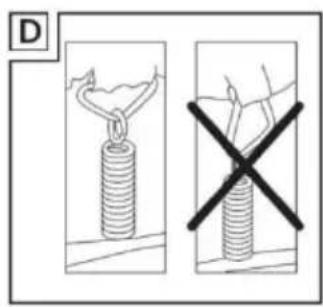

- Please check and position the triangle rings according to picture D

Attention: The triangle rings can only be adjusted whether trampoline is folded.

Line drawing of a mechanical clamp or spring assembly with no visible text or symbols

Diagram of a mechanical or electrical component with wires and connectors, no visible text or symbols

Diagram of car suspension system with coiled springs and connecting wires (no text or labels)

D

ASSEMBLY STEPS

Step 1- Assemble the frame

Warning: Keep fingers away from the end of the rails near the hinged a

• Please connect 4 #C (frame-L type) together sequentially and align the hol
• Then connect the #B (Frame-U type) with the already connected #C (Frame-type), align the holes.
• Connect #D (Frame-I type) with #B (Frame-U type), #C (Frame-L type) respectively, then to form a hexagonal frame.

Attention: please make sure the holes are aligned.

① X3 #C ② #C #B #C ③ #B #D #C

Step 2- Fixed the frame

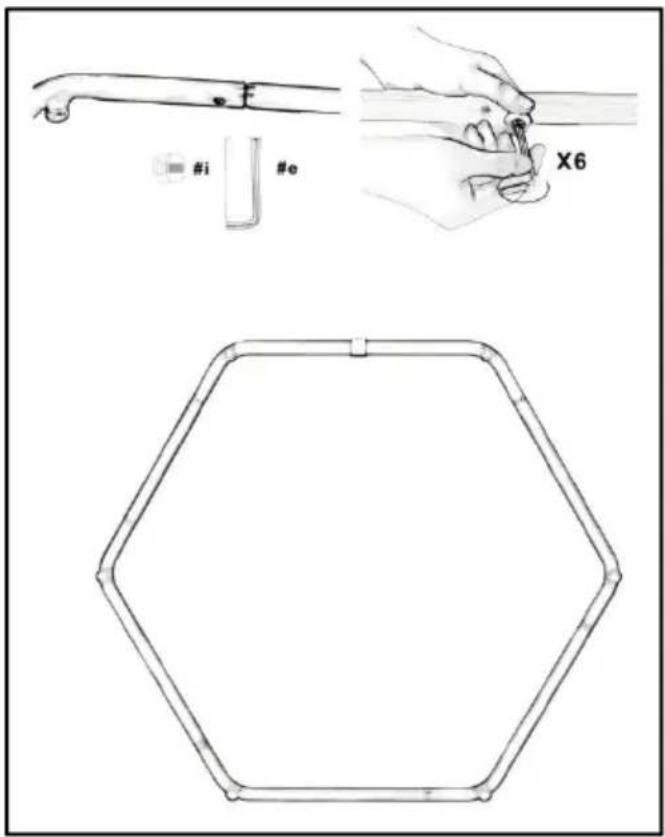

- Make sure the frame is assembled and the holes are aligned, attach#i (Bc Are Washer) to secure the frame.

Attention: Make sure the holes are fully aligned before installing the Bolt

Technical diagram showing a mechanical component with labeled parts #i, #e, and X6, alongside a hexagonal outline.

Step 3- Attach the Bungees

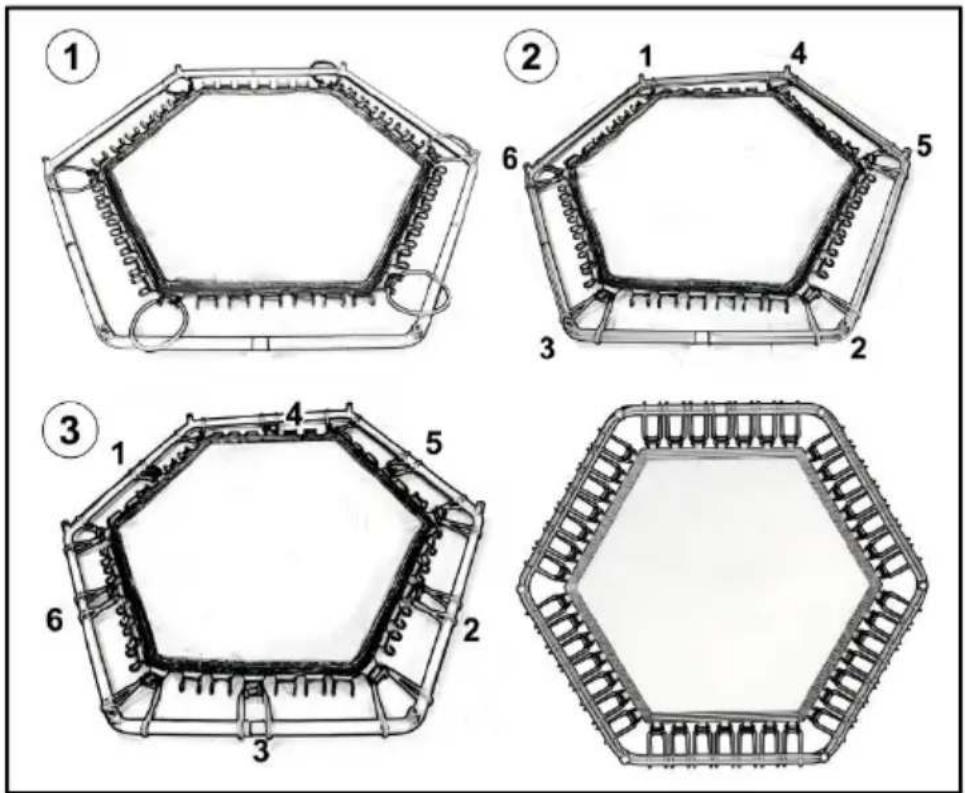

The trampoline come with 42 bungees, and you can install bungees according your need. (It is recommended to install 42 bungees in total.)

- Please understand the installation order of the bungees before starting the installation, and it will be easier to install them in order.

- Put the bungees to the first metal buckle on each side then install the b on the 6 leg connectors according to the numbers marked in the figure ② t jumping cloth.

- Install the bungees on the 4th metal buckle on each side in sequence in picture ③.

- Then install all the bungees.

Technical diagram showing four views of a hexagonal architectural structure with numbered components, likely for architectural or engineering purposes.

Step 4- Attach the Bungees

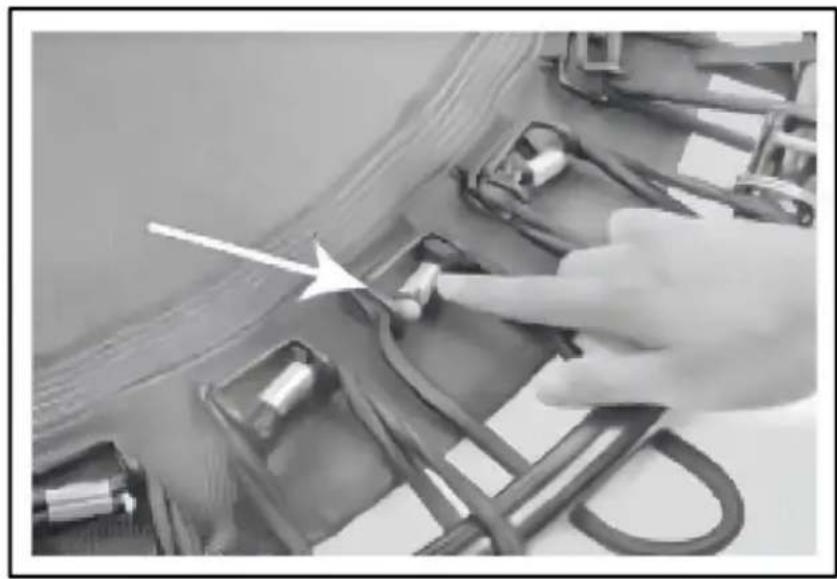

- Please make sure the silver metal ring is in the black metal buckle before installing the bungees.

Close-up of hands using a tool to adjust or install electronic components, with no visible text or symbols.

- Please use #b (Triangle Tool) to install the bungees, and make sure the cord is properly installed. Refer to the illustrations ①-②-③-④

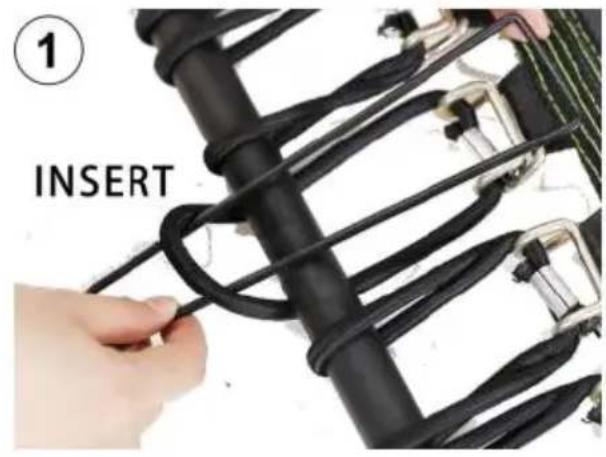

① INSERT

Insert the triangle tool into the bungee.

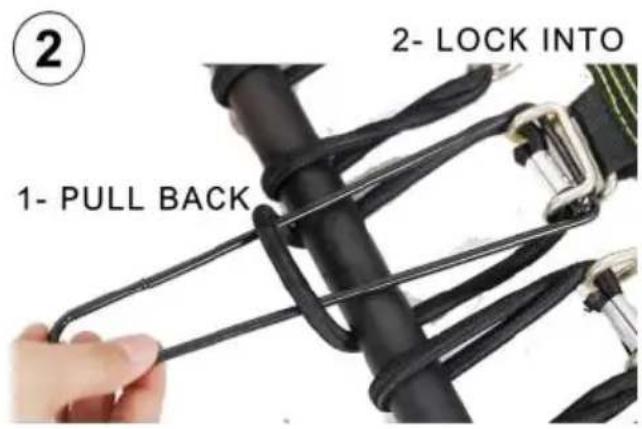

2- LOCK INTO 1- PULL BACK

Pull back the triangle tool to lock it into the black metal buckle.

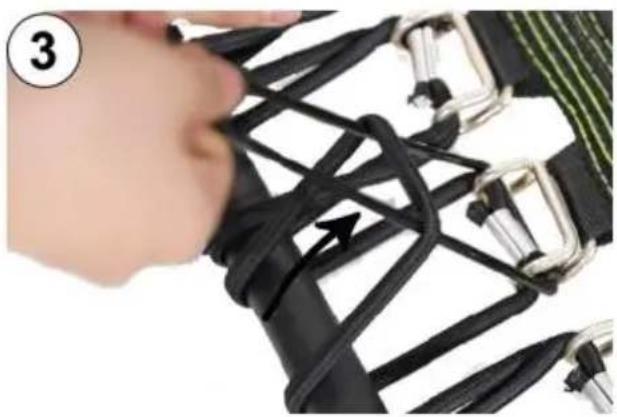

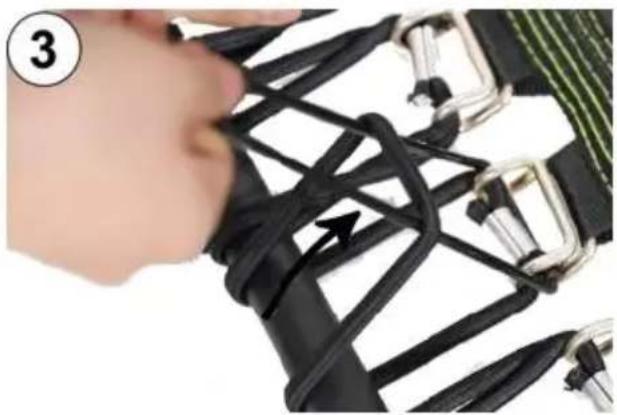

Close-up of a hand adjusting black mesh cable with a numbered arrow (no text or symbols visible)

Move the triangle tool towards the mat until the bungee cord snaps into the black metal buckle.

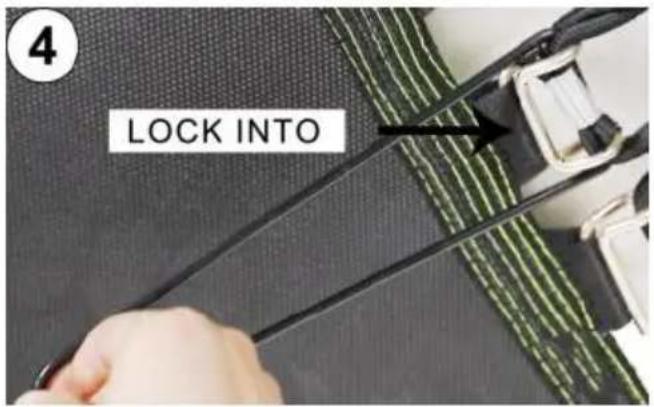

4 LOCK INTO

Make sure the bungee lock into the black buckle.

Step 5- Attach Leg to the Trampoline

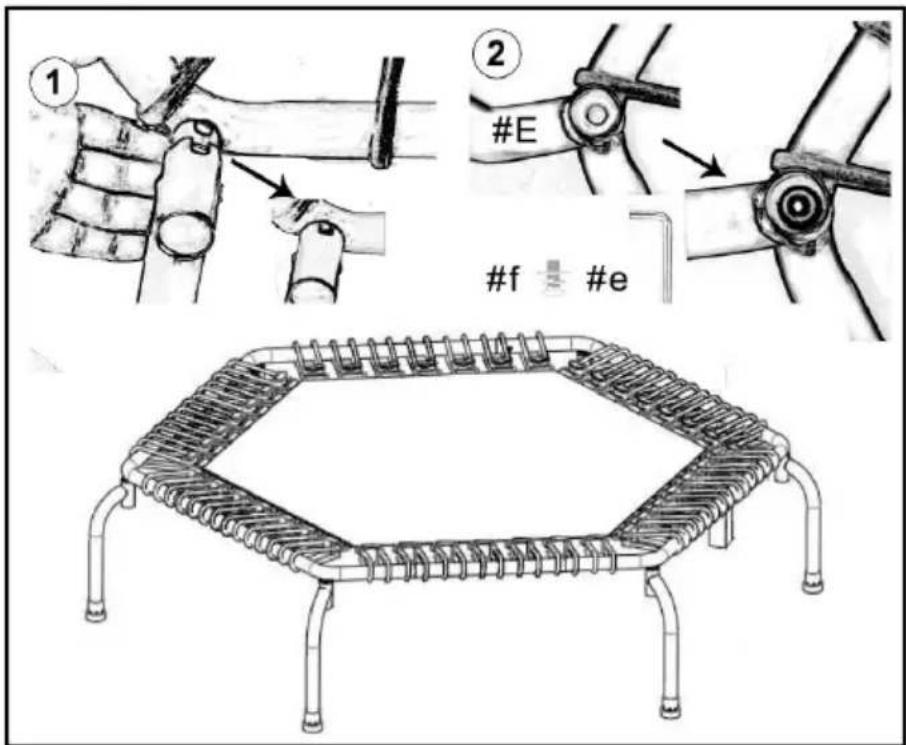

• Insert #E (Leg tube) onto the leg connector of the trampoline frame. Note th there is a notch on the leg tube and a small protrusion on the leg socket to be aligned.
• Screw #f (Bolt M8*16 & Flat Washer) onto the leg using #e (Hex Key W secure the leg. You can use the short handle of the hex key wrench to tig screws further.

• d (Washer) are used to adjust the level of the legs. If the trampoline does perfectly level, you can put the washers inside the rubber feet to adjust the

• Grasp the leg tube and shake to see if the leg tubes are fixed, make six screws are tight.

Attention: All the Legs, and leg caps must be screwed tightly. The tram must be placed flat on the ground to avoid wobble.

Technical diagram showing two mechanical components (① and ②) with labeled parts #E and #f, plus a wire-wrapped trampoline setup.

Step 6- Assemble the handle bar

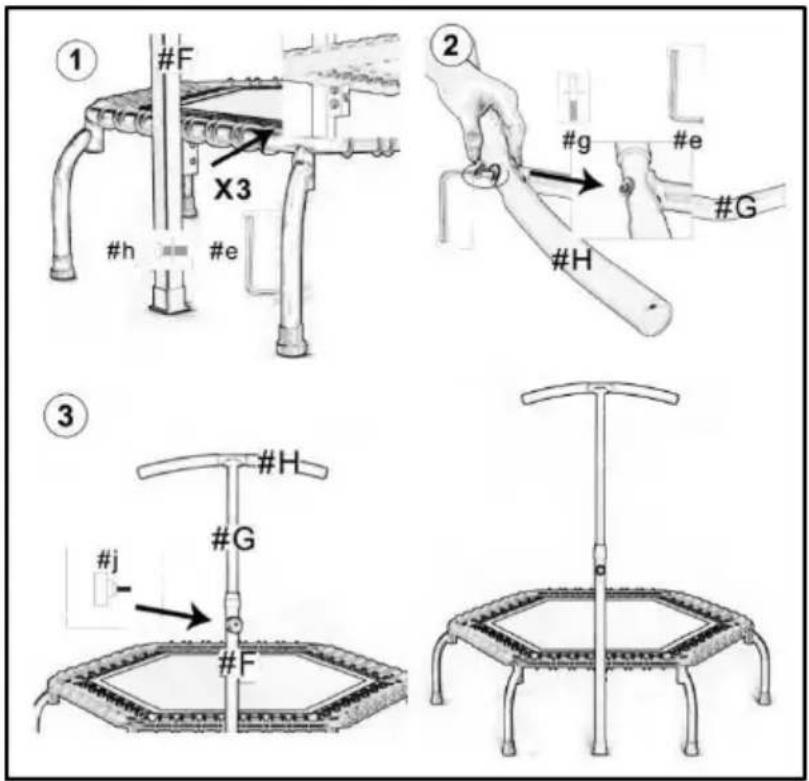

• Put #F(Handrail Leg) into the connector, please note that the two holes sh be aligned then screw #h (Bolt M8*16 & Are Washer) to secure the handrail
• Attach #H (Handrail Bar with Foam) to #G (Handrail Support), then tighten (Bolt M8*40 & Are Washer)
• Put the assembled armrest on #G (Handrail Support), adjust the position of hole according to the height, and then tighten #j(Adjustable Knob M8X35).

Technical diagram showing three different mechanical or electrical component configurations with labeled parts and directional arrows.

1. Please check whether the product is installed correctly and firmly, and rea safety information in the manual again.
2. The product should be placed on a flat surface. Make sure the net zipper closed before use. Follow the manual safety information and enjoy your trampoline.

CLEANING AND STORAGE

1. Wipe with a soft, dry cloth. Never use an abrasive cleanser or harsh pad
2. Children are not allowed to wipe the product to avoid tipping and falling
3. After disassembling the product, please assemble the parts and accessories sure to keep the product dry.
4. Please clean regularly to avoid dirt.

Notes: Before using it again, reassemble according to the instructions

TIPS

1. Always step on and off the trampoline carefully, do not jump.
2. Stay in the center of the trampoline when jumping. Don't jump on the ed jump on the net.
3. Stop bouncing by flexing your knees as your feet come in contact with the trampoline bed.
4. For safety, it's suggested lessons from a professional should be acquired using this trampoline.

Notice: Before anyone uses this trampoline, it is imperative that you read all instructions carefully and make sure that the assembly went without any error

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a trampoline with four legs and a vertical support (no text or symbols)

BESOIN D'AIDE? CONTACTEZ-NOUS!

SAFETY WARNINGS AND PRECAUTIONS

#A Jump Mat [X1]	#B Frame-U type [X1]	#C Frame-L type [X4]
#D Frame-I type [X1]	#E Leg Tube [X6]	#F Handrail Leg [X1]
#G Handrail Support [X1]	#H Handrail Bar with Foam [X1]	#Leg Socket Cap [X6](Pre-assembled with #E)
#a T-hook [X1]	#b Traingle Tool [X1]	#c Bungee [X44]
#d Washer [X2]	#e Hex Key Wrench [X1]	#f Bolt M8*16&Flat Washer [X6]
#g Bolt M8*40 &Are Washer [X1]	#h Bolt M8*16 &Flat Washer [X3]#i Bolt M8*12 &Are Washer [X6]	#i Bolt M8* 12 & Are Washer [X6]
#jAdjustable Knob M8X35 [X1]

Line drawing of a mechanical clamp or spring assembly with coiled springs (no text or symbols)

Diagram of a mechanical or electrical component with coiled wires and connectors (no text or symbols)

Diagram of car suspension system with rope and hook components (no text or labels)

D

ASSEMBLY STEPS

① X3 #C ② #C #B #C ③ #B #D #C

Technical diagram showing four views of a hexagonal architectural structure with numbered components, likely for architectural or engineering purposes.

Close-up of a hand using a tool to adjust or install components on a mechanical part (no visible text or symbols)

Insert the triangle tool into the bungee.

2- LOCK INTO 1- PULL BACK

Pull back the triangle tool to lock it into the black metal buckle.

Close-up of a hand adjusting black mesh ropes with a numbered label (3), no visible text or symbols on the ropes or background.

Move the triangle tool towards the mat until the bungee cord snaps into the black metal buckle.

4 LOCK INTO

Make sure the bungee lock into the black buckle.

Technical diagram illustrating a trampoline setup with labeled parts and a schematic of the frame structure.

Technical diagram showing three different mechanical or electrical component configurations with labeled parts and directional arrows.

CLEANING AND STORAGE

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a trampoline with four legs and a vertical support (no text or symbols)

SAFETY WARNINGS AND PRECAUTIONS

#A Jump Mat [X1]	#B Frame-U type [X1]	#C Frame-L type [X4]
#D Frame-I type [X1]	#E Leg Tube [X6]	#F Handrail Leg [X1]
#G Handrail Support [X1]	#H Handrail Bar with Foam [X1]	#Leg Socket Cap [X6](Pre-assembled with #E)
#a T-hook [X1]	#b Traingle Tool [X1]	#c Bungee [X44]
#d Washer [X2]	#e Hex Key Wrench [X1]	#f Bolt M8*16&Flat Washer [X6]
#g Bolt M8*40 &Are Washer [X1]	#h Bolt M8*16 &Flat Washer [X3]#i Bolt M8*12 &Are Washer [X6]	#i Bolt M8* 12 & Are Washer [X6]
#jAdjustable Knob M8X35 [X1]

Line drawing of a mechanical clamp or spring assembly with coiled spring (no text or symbols)

Diagram of a mechanical or electrical component with coiled wires and connectors, no visible text or symbols

Technical line drawing of a mechanical assembly with coiled spring and clamping elements (no text or symbols)

D

ASSEMBLY STEPS

① X3 #C ② #C #B #C ③ #B #D #C

Technical diagram showing a hand holding a wire with labeled parts and a hexagonal outline, including annotations like #i and #o.

Technical diagram showing four views of a hexagonal architectural structure with numbered components, likely for architectural or engineering purposes.

Close-up of a hand using a tool to adjust or install components on a mechanical part (no visible text or symbols)

Insert the triangle tool into the bungee.

2- LOCK INTO 1- PULL BACK

Pull back the triangle tool to lock it into the black metal buckle.

Close-up of a hand adjusting black mesh ropes with a numbered label (3) and an arrow pointing to the rope knot (no text or symbols on the ropes themselves)

Move the triangle tool towards the mat until the bungee cord snaps into the black metal buckle.

4 LOCK INTO

Make sure the bungee lock into the black buckle.

Technical diagram illustrating a truss structure with labeled parts and a schematic of the frame.

Schritt 6 - Den Lenker montieren

Technical diagram showing three different mechanical or electrical component configurations with labeled parts and numbered annotations.

CLEANING AND STORAGE

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a trampoline with four legs and a vertical support (no text or symbols)

SAFETY WARNINGS AND PRECAUTIONS

#A Jump Mat [X1]	#B Frame-U type [X1]	#C Frame-L type [X4]
#D Frame-I type [X1]	#E Leg Tube [X6]	#F Handrail Leg [X1]
#G Handrail Support [X1]	#H Handrail Bar with Foam [X1]	#Leg Socket Cap [X6](Pre-assembled with #E)
#a T-hook [X1]	#b Traingle Tool [X1]	#c Bungee [X44]
#d Washer [X2]	#e Hex Key Wrench [X1]	#f Bolt M8*16&Flat Washer [X6]
#g Bolt M8*40 &Are Washer [X1]	#h Bolt M8*16 &Flat Washer [X3]#i Bolt M8*12 &Are Washer [X6]	#i Bolt M8* 12 & Are Washer [X6]
#jAdjustable Knob M8X35 [X1]

Line drawing of a mechanical clamp or spring assembly with coiled spring (no text or symbols)

Diagram of a mechanical or electrical component with coiled wires and connectors (no text or symbols)

Diagram of car suspension system with coiled springs and connecting wires (no text or labels)

D

ASSEMBLY STEPS

① X3 #C ② #C #B #C ③ #B #D #C

Technical diagram showing four views of a hexagonal architectural structure with numbered components, likely for architectural or engineering purposes.

Close-up of a hand using a tool to adjust or install components on a mechanical part (no visible text or symbols)

Insert the triangle tool into the bungee.

2- LOCK INTO 1- PULL BACK

Pull back the triangle tool to lock it into the black metal buckle.

Close-up of a hand adjusting black mesh ropes with a numbered label (3), no visible text or symbols on the ropes or background.

Move the triangle tool towards the mat until the bungee cord snaps into the black metal buckle.

4 LOCK INTO

Make sure the bungee lock into the black buckle.

Fase 5 - Fissare la gamba al trampolino

Technical diagram illustrating a trampoline setup with labeled components and a schematic of the frame structure.

Technical diagram showing three different mechanical or electrical component configurations with labeled parts and directional arrows.

CLEANING AND STORAGE

Importato in AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Importato negli USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Plac Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a trampoline with four legs and a vertical support (no text or symbols)

SAFETY WARNINGS AND PRECAUTIONS

#A Jump Mat [X1]	#B Frame-U type [X1]	#C Frame-L type [X4]
#D Frame-I type [X1]	#E Leg Tube [X6]	#F Handrail Leg [X1]
#G Handrail Support [X1]	#H Handrail Bar with Foam [X1]	#Leg Socket Cap [X6](Pre-assembled with #E)
#a T-hook [X1]	#b Traingle Tool [X1]	#c Bungee [X44]
#d Washer [X2]	#e Hex Key Wrench [X1]	#f Bolt M8*16&Flat Washer [X6]
#g Bolt M8*40 &Are Washer [X1]	#h Bolt M8*16 &Flat Washer [X3]#i Bolt M8*12 &Are Washer [X6]	#i Bolt M8* 12 & Are Washer [X6]
#jAdjustable Knob M8X35 [X1]

Line drawing of a mechanical clamp or spring assembly with no visible text or symbols

Diagram of a mechanical or electrical component with coiled wires and a housing, no visible text or symbols

Diagram of car suspension system with coiled springs and connecting wires (no text or labels)

D

ASSEMBLY STEPS

① X3 #C ② #C #B #C ③ #B #D #C

Technical diagram showing four views of a hexagonal architectural structure with numbered components, likely for architectural or engineering purposes.

Close-up of a hand using a tool to adjust or install electronic components (no visible text or symbols)

Insert the triangle tool into the bungee.

2- LOCK INTO 1- PULL BACK

Pull back the triangle tool to lock it into the black metal buckle.

Close-up of a hand adjusting black mesh ropes with a numbered label (3) and an arrow pointing to the rope knot (no text or symbols on the ropes themselves)

Move the triangle tool towards the mat until the bungee cord snaps into the black metal buckle.

4 LOCK INTO

Make sure the bungee lock into the black buckle.

Paso 5 : Fije la pata al trampolín

Technical diagram illustrating a truss structure with labeled parts and a schematic of the frame.

Paso 6 - Ensamble el manillar

Technical diagram showing three different mechanical or electrical component configurations with labeled parts and directional arrows.

CLEANING AND STORAGE

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a trampoline with four legs and a vertical support (no text or symbols)

POTRZEBUJESZ POMOCY? SKONTAKTUJ SIĘ Z NAMI!

SAFETY WARNINGS AND PRECAUTIONS

#A Jump Mat [X1]	#B Frame-U type [X1]	#C Frame-L type [X4]
#D Frame-I type [X1]	#E Leg Tube [X6]	#F Handrail Leg [X1]
#G Handrail Support [X1]	#H Handrail Bar with Foam [X1]	#Leg Socket Cap [X6](Pre-assembled with #E)
#a T-hook [X1]	#b Traingle Tool [X1]	#c Bungee [X44]
#d Washer [X2]	#e Hex Key Wrench [X1]	#f Bolt M8*16&Flat Washer [X6]
#g Bolt M8*40 &Are Washer [X1]	#h Bolt M8*16 &Flat Washer [X3]#i Bolt M8*12 &Are Washer [X6]	#i Bolt M8* 12 & Are Washer [X6]
#jAdjustable Knob M8X35 [X1]

Line drawing of a mechanical clamp or spring assembly with no visible text or symbols

Diagram of a mechanical or electrical component with coiled wires and a housing, no visible text or symbols

Diagram of car suspension system with coiled springs and connecting wires (no text or labels)

D

ASSEMBLY STEPS

Krok 1- Złóż ramę

① X3 #C ② #C #B #C ③ #B #D #C

Technical diagram showing four views of a hexagonal architectural structure with numbered components, likely for architectural or engineering purposes.

Close-up of a hand using a medical or electrical device to adjust or install a component, with no visible text or symbols.

Insert the triangle tool into the bungee.

2- LOCK INTO 1- PULL BACK

Pull back the triangle tool to lock it into the black metal buckle.

Close-up of a hand adjusting black mesh cable harnesses with a numbered callout (no text or symbols visible)

Move the triangle tool towards the mat until the bungee cord snaps into the black metal buckle.

4 LOCK INTO

Make sure the bungee lock into the black buckle.

Technical diagram illustrating a truss bridge installation with labeled components and a schematic of the frame structure.

Technical diagram showing three different mechanical or electrical component configurations with labeled parts and directional arrows.

CLEANING AND STORAGE

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technisch Ondersteuning en E-garantiecertificaat www.vevor.com/support

FITNESSTRAMPOLINE

MODEL: TX-B6390-48IN+T

Line drawing of a trampoline with four legs and a vertical support (no text or symbols)

HULP NODIG? NEEM CONTACT MET ONS OP!

SAFETY WARNINGS AND PRECAUTIONS

#A Jump Mat [X1]	#B Frame-U type [X1]	#C Frame-L type [X4]
#D Frame-I type [X1]	#E Leg Tube [X6]	#F Handrail Leg [X1]
#G Handrail Support [X1]	#H Handrail Bar with Foam [X1]	#Leg Socket Cap [X6](Pre-assembled with #E)
#a T-hook [X1]	#b Traingle Tool [X1]	#c Bungee [X44]
#d Washer [X2]	#e Hex Key Wrench [X1]	#f Bolt M8*16&Flat Washer [X6]
#g Bolt M8*40 &Are Washer [X1]	#h Bolt M8*16 &Flat Washer [X3]#i Bolt M8*12 &Are Washer [X6]	#i Bolt M8* 12 & Are Washer [X6]
#jAdjustable Knob M8X35 [X1]

Line drawing of a mechanical clamp or spring assembly with no visible text or symbols

Diagram of a mechanical or electrical component with coiled wires and a housing, no visible text or symbols

Diagram of car suspension system with coiled springs and connecting wires (no text or labels)

D

ASSEMBLY STEPS

① X3 #C ② #C #B #C ③ #B #D #C

Technical diagram showing four views of a hexagonal architectural structure with numbered components, likely for architectural or engineering purposes.

Stap 4 - Bevestig de bungees

Close-up of a hand using a tool to adjust or install electronic components (no visible text or symbols)

Insert the triangle tool into the bungee.

2- LOCK INTO 1- PULL BACK

Pull back the triangle tool to lock it into the black metal buckle.

Close-up of a hand adjusting black mesh ropes with a numbered label (3) and an arrow pointing to the rope knot (no text or symbols on the ropes themselves)

Move the triangle tool towards the mat until the bungee cord snaps into the black metal buckle.

4 LOCK INTO

Make sure the bungee lock into the black buckle.

Technical diagram showing two mechanical components (① and ②) with labeled parts #E and #f, plus a wire trampoline setup.

Technical diagram showing three different mechanical or electrical component configurations with labeled parts and directional arrows.

CLEANING AND STORAGE

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a trampoline with four legs and a vertical support (no text or symbols)

BEHÖVER HJÄLP? KONTAKTA OSS!

SAFETY WARNINGS AND PRECAUTIONS

G Handrail Support [X1]

H Handrail Bar with Foam [X1]

Leg Socket Cap [X6] (Pre-assembled with #E)

a T-hook [X1]

b Traingle Tool [X1]

c Bungee [X44]

d Washer [X2]

e Hex Key Wrench [X1]

f Bolt M8*16&Flat Washer [X6]

g Bolt M8*40 &Are Washer [X1]

h Bolt M8*16 & Flat Washer [X3]

i Bolt M8*12 & Are Washer [X6]

i Bolt M8* 12 & Are Washer [X6]

jAdjustable Knob M8X35 [X1]

Line drawing of a mechanical clamp or spring device with no visible text or symbols

Diagram of a mechanical or electrical component with wires and connectors, no visible text or symbols

Diagram of car suspension system with coiled springs and connecting wires (no text or labels)

D

ASSEMBLY STEPS

Steg 1- Montera ramen

① X3 #C ② #C #B #C ③ #B #D #C

Steg 2- Fixade ramen

Technical diagram showing a mechanical component with labeled parts #i, #e, and X6, alongside a hexagonal outline.

Technical diagram showing four views of a hexagonal architectural structure with numbered components, likely for architectural or engineering purposes.

Close-up of a hand inserting cables into a device with a white arrow pointing to the cable (no visible text or symbols)

Insert the triangle tool into the bungee.

2- LOCK INTO 1- PULL BACK

Pull back the triangle tool to lock it into the black metal buckle.

Close-up of a hand adjusting black mesh cable with a numbered arrow (no text or symbols visible)

Move the triangle tool towards the mat until the bungee cord snaps into the black metal buckle.

4 LOCK INTO

Make sure the bungee lock into the black buckle.

Technical diagram showing a trampoline setup with labeled parts and a schematic of the frame structure.

Steg 6 - Montera styret

Technical diagram showing three different mechanical or electrical component configurations with labeled parts and numbered annotations.

CLEANING AND STORAGE

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support
