QB-4in-4 - Lifting equipment accessory Vevor - Free user manual and instructions

Product Type	Fence Post Base Kit
Brand	Vevor
Model	QB-4in-4
Number of Kits	4 pieces
Base Size (L x W)	140 × 140 mm (5.5 × 5.5 inches)
Internal Post Cavity Size	92 × 92 mm (3.6 × 3.6 inches)
Recommended Wood Section	89 × 89 mm (0.1 inch smaller than cavity)
Recommended Drilling Depth	65 mm
Recommended Drill Bit Diameter	11.5 mm (29/64 inch)
Main Material	Galvanized Steel and Plastic
Kit Contents	4 bases, 24 self-tapping screws, 24 serrated expansion sleeves, 24 washers, 32 wood screws, 1 wrench
Required Tools	Phillips screwdriver, drill, 11.5 mm drill bit
Intended Use	Fences, deck railings, pergolas, mailboxes, deck supports
Floor Adaptation	Wood or concrete floor
Weather Resistance	Lower partition insulated from ground, prevents wood rot
Assembly Number	2 people recommended
Safety	Do not let children climb, wear goggles and gloves during assembly
Maintenance and Cleaning	Clean regularly, check fasteners
Spare Parts and Repairability	Parts available from Vevor, repairable
Warranty and Support	Technical support and electronic warranty certificate at www.vevor.com/support

Frequently Asked Questions - QB-4in-4 Vevor

How to install the QB-4in-4 kit?

Mark 6 points on the ground through the base holes, drill with a 29/64 inch (11.5 mm) drill bit to 65 mm depth, insert the serrated expansion sleeves, then fix the base with self-tapping screws and washers. Finally, screw the wood on the side using 8 wood screws.

What tools are needed for assembly?

You will need a Phillips screwdriver, a drill, and a 11.5 mm (29/64 inch) drill bit. Power tools can be used at low speed.

Can the kit be used on concrete?

Yes, it is suitable for fixing on wood or concrete floors, thanks to the serrated expansion sleeves.

What is the recommended wood size for posts?

The wood section should be about 0.1 inch (2.54 mm) smaller than the internal cavity, i.e., a section of approximately 89 × 89 mm.

How many pieces does the QB-4in-4 kit contain?

The kit includes 4 bases, 24 self-tapping screws, 24 serrated expansion sleeves, 24 washers, 32 wood screws, and 1 wrench.

Is the product weather resistant?

Yes, thanks to a lower partition insulated from the ground, it prevents wood rot and is suitable for outdoor use.

What safety precautions should be taken during assembly?

Wear safety goggles and work gloves. Do not assemble if tired or under the influence of alcohol, drugs, or medication. Do not let children climb on the device.

Can the kit be assembled alone?

Assembly is designed for two people to facilitate setup and avoid errors.

How to maintain the kit after installation?

Regularly check stability and tighten screws if necessary. Clean the base to prevent debris accumulation.

Where to find spare parts or technical support?

You can visit www.vevor.com/support for technical support and electronic warranty certificate.

USER MANUAL QB-4in-4 Vevor

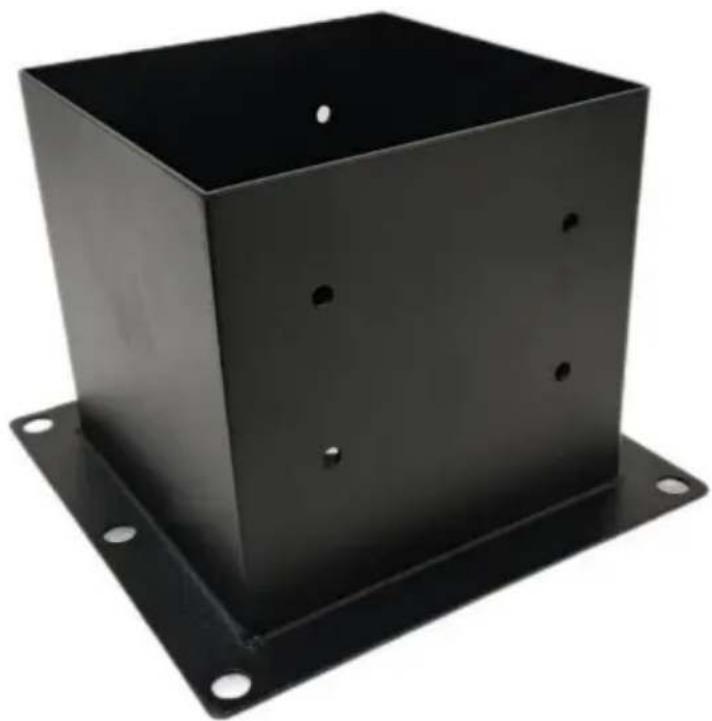

FULL ENCIRCLEMENT POST BASE

MODEL: QB-6in-4/QB-4in-4/QB-4in-8

Technical Support and E-Warranty Certificate

www.vevor.com/support

MODEL: QB-6in-4/QB-4in-4/QB-4in-8

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

Safety Instructions

Read and understand this entire manual before assembling, installing, operating, or servicing this product. Failure to follow these warnings and instructions can cause personal injury or damage to valuable property.

ALL AROUND USE

The product has a partition at the bottom, which is completely separated from the ground. Long-term use does not cause wood to rot from rain. It can be used for decking handrails, pergolas, signs, mailboxes, and garden fences, deck brackets. It would help your fences look sturdy and durable while avoiding breakages.

Suitable for fixing on wooden and concrete floors.

1. Do not allow children to climb on the unit. 2. Keep children and away during assembly.

ASSEMBLY PRECAUTIONS

1. Please assemble the product in strict accordance with the instructions. Incorrect assembly could be hazardous.
2. Please wear safety goggles and work gloves properly during assembly.
3. Do not try to assemble the product when feeling tired or when under the influence of alcohol, drugs or medication.
4. Load bearing capacity and other product parameters are applied to properly and completely assembled product only.
5. Separate and count all parts and hardware.
6. Prepare the following tool: Philips Head Screwdriver.
7. If using power tools, please be careful to slow down and stop when needed.
8. Two people are required for assembly.
9. Follow the intended uses only.

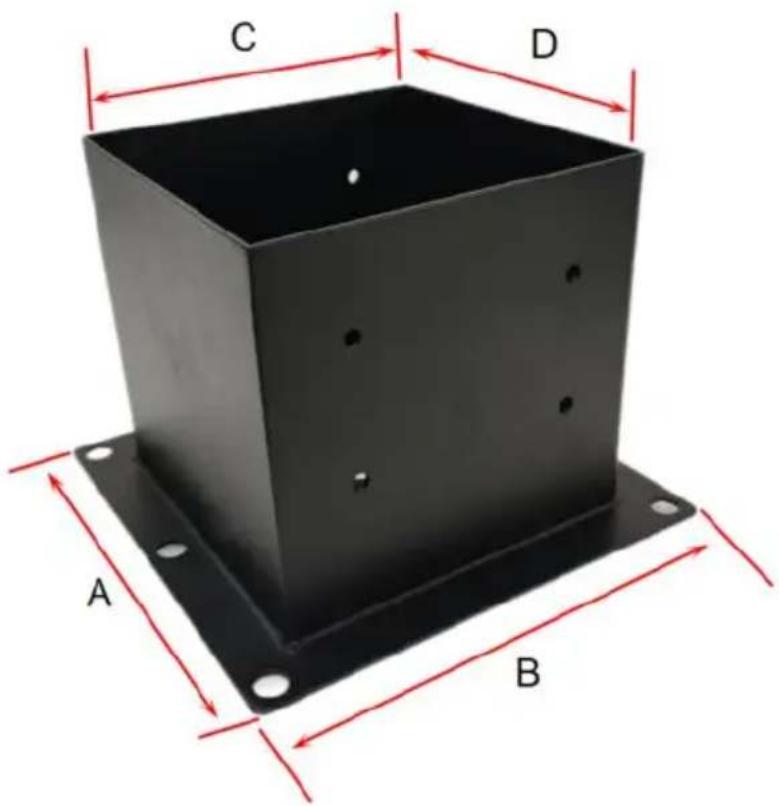

PARAMETER LIST

Product Model	QB-6in-4	QB-4in-4	QB-4in-8
Number of kit	4pcs	4pcs	8pcs
Base size (A*B)	7.05×7.44inch(179×189mm)	5.5×5.5inch(140×140mm)
Internal cavity size of square tube (C*D)	5.6×5.6inch(142×142mm)	3.6×3.6inch(92×92mm)

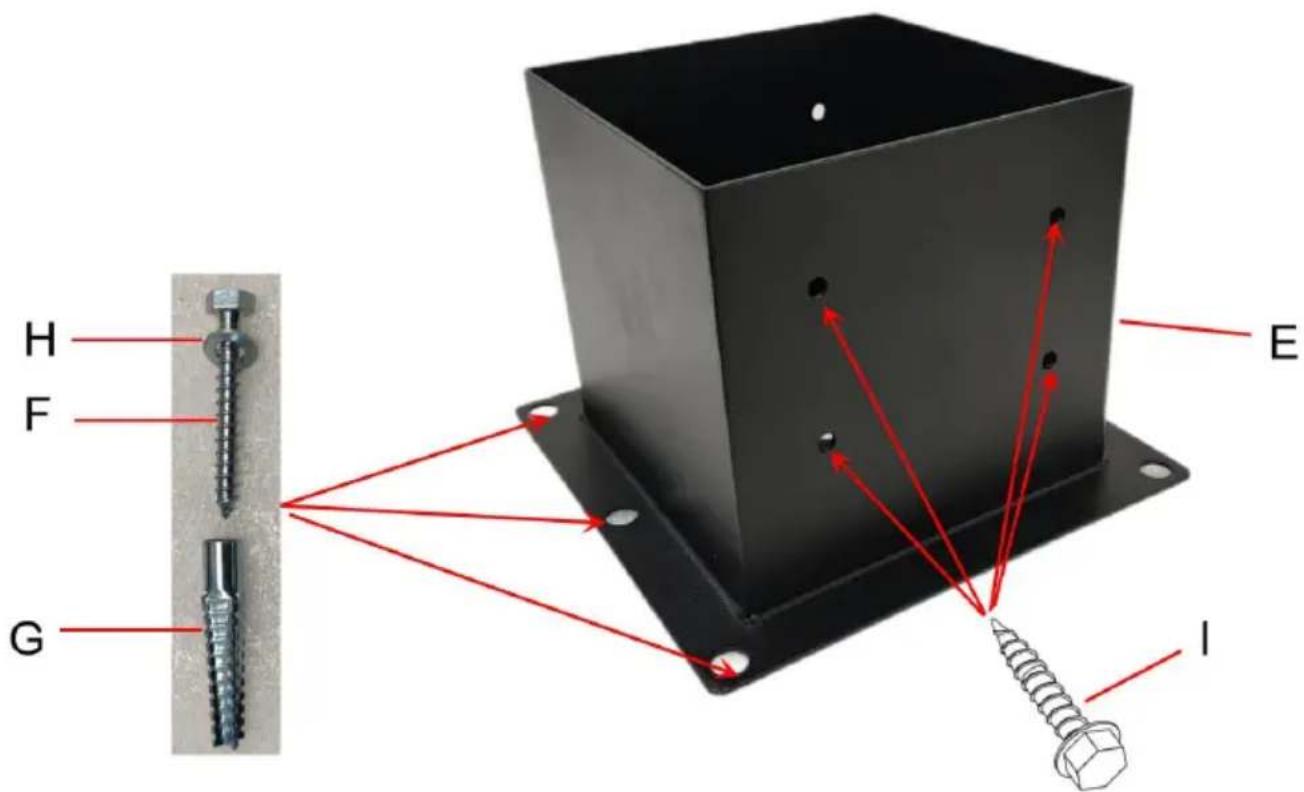

PARTS LIST

Product Model	QB-6in-4	QB-4in-4	QB-4in-8
E:Post Base	4pcs	4pcs	8pcs
F:Self-tapping Screw	24pcs	24pcs	48pcs
G:Serrated Expansion Sleeve	24pcs	24pcs	48pcs
H:washer	24pcs	24pcs	48pcs
I:Wood screws	32pcs	32pcs	64pcs
J:wrench	1pc	1pc	1pc

Our products are constantly updated, the pictures may be different from shape of the actual items, please refer to the actual items.

Count the parts when receiving samples.

Wrench J is used to turn the screws

INSTALLATION GUIDE

1. Mark 6 points on the ground through 6 holes at the bottom surface base; Drilling in the marking position using a 29 / 64" Drill Bit; The depth of the hole was 65 mm .
2. Install the 6 Serrated Expansion Sleeve G into the finished holes.
3. Put the washer H into the screw and secure the base in the expansion screw with 6 screws F.
4. Install the wood to the base and hold the wood to the side with 8 I; We suggest that the cross section of the wooden square should be 0.1 inch smaller than Internal cavity size of square tube.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
