Product Type	Outdoor Fire Ring with Grill
Brand	Vevor
Model	VOLD-31-8.5-Y
Color	Black
Outer Diameter	35 inches (88.9 cm)
Inner Diameter	31 inches (78.7 cm)
Height	8.5 inches (21.6 cm)
Material	Steel
Intended Use	Outdoor only, on non-combustible ground (stone, earth)
Number of Assembly Parts	6 pieces A, 1 piece B, 14 bolts, 14 nut caps
Included Accessories	Grill, handle, poker, 2 pairs of gloves
Fuel Type	Firewood (seasoned hardwood recommended)
Safety	Do not use indoors, under a roof, on grass or wood; do not leave unattended; do not use flammable liquids
Maintenance and Cleaning	Wait for complete cooling, remove ashes, clean with a brush, store away from weather
Spare Parts and Repairability	Available parts: bolts, nuts, grill, handle, poker; support via www.vevor.com/support
General Information	Manufactured by Vevor; imported to the United States by Sanven Technology Ltd.; made in China
Warranty	Electronic warranty certificate available at vevor.com/support

Frequently Asked Questions - VOLD-31-8.5-Y Vevor

How to assemble the fire ring?

Assemble pieces A and B using the provided bolts and nuts. Place the piece with the arrow labels at the bottom (right part lower than the left). Tighten well. Make sure the ring is level.

Where to place the fire ring?

Use only outdoors, on a non-combustible surface such as stone or earth. Avoid lawns, wooden decks, concrete, asphalt. Keep away from any combustible material, overhangs, low branches.

What type of wood to use?

Use seasoned hardwood. Avoid softwoods (pine, cedar) that cause sparks. Do not burn trash, leaves, paper, cardboard or plywood.

Can I use liquid fire starter?

No, never use gasoline, alcohol, diesel, kerosene or charcoal lighter to start or rekindle the fire. Use solid fire starters or kindling.

How to clean the fire ring?

Let the fire go out completely and cool. Remove ashes and debris. Clean with a wire brush. Store in a dry place to prevent rust.

Is it safe to use under an awning or covered porch?

No, never use indoors or under a deck roof, awning, porch or any overhang. Use only outdoors, away from any shelter.

Can I move the ring once lit?

No, never move the fire ring when it is hot or in operation. Wait until the fire is completely out and the ring has cooled.

What tools and accessories are provided with the model VOLD-31-8.5-Y?

The kit includes 6 pieces A, 1 piece B, 14 bolts, 14 nut caps, 2 pairs of gloves, 1 grill, 1 handle, and 1 poker.

How to use the included grill?

After assembly, insert the grill inside the ring. Attach the handle to the grill nut, turn the handle to the outer angle and tighten the nut to avoid burns.

What to do if a part is missing or damaged?

Contact customer service via www.vevor.com/support. Do not attempt to use the product with missing or damaged parts.

USER MANUAL VOLD-31-8.5-Y Vevor

Technical Support and E-Warranty Certificate

www.vevor.com/support

FIRE RING

MODEL:

VOLD-30-10 VOLD-36-10 VOLD-39-10-2.5 VOLD-31-8.5

VOLD-36-8.5 VOLD-39-10-1.5 VOLD-31-8.5-Y VOLD-36-8.5-Y

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

FIRE RING

VOLD-30-10VOLD-31-8.5VOLD-36-10VOLD-36-8.5VOLD-39-10-2.5VOLD-39-10-1.5
VOLD-31-8.5-YVOLD-36-8.5-Y

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform your data on your product.

INTRODUCTION

WARNING:

PLEASE READ AND UNDERSTAND ALL SAFETY RULES BEFORE ASSEMBLY AND USE OF THE FIRE RING.

• Caution: For Outdoor Use Only.
• Use the fire ring on stone, dirt or sand only.
• For adult use only – do not allow children to use the fire ring.
• Do not use on lawns, wooden decks, concrete or asphalt.
• Do not use fire ring indoors or under a patio roof.
• Do not use in windy conditions.
• Do not leave fire unattended at any time.
• Do not burn trash, leaves, paper, cardboard or plywood in fire ring.
• Do not use under low-hanging tree branches, trellis, and overhangs of any kind, including covered porches.
• Do not use flammable liquids such as gasoline, alcohol, diesel fuel, kerosene, or charcoal lighter to light or relight fires.
• Care should be taken to make sure all combustible material is far eno away from the fire ring to not ignite.
  • Always use in accordance with all applicable local and state fire codes.
• Failure to follow these instructions could result in a hazardous fire, causing property damage or physical injury

WARNING! FOR YOUR SAFETY:

• Avoid using softwoods such as pine or cedar, because they are likely to throw sparks. The use of seasoned hardwood is recommended.
• Do not allow children to use the fire ring. Keep children and pets away from the fire ring while it is in use.
• Exercise the same precautions you would with any open fire.
• Do not wear flammable or loose clothing when tending an open fire.
• Avoid touching surfaces, as they will be extremely hot.
  • Assure fire is completely extinguished before leaving fire ring.
• Any modifications to this appliance may be dangerous and are not permitted.

PRODUCT PAREMETERS

Model	Colour	Outer Diameter	Inside Diameter	Height
VOLD-30-10	Black	36”	30”	10”
VOLD-36-10	Black	40”	36”	10”
VOLD-39-10-2.5	Black	45”	39”	10”
VOLD-31-8.5	Black	35”	31”	8.5”
VOLD-36-8.5	Black	40”	36”	8.5”
VOLD-39-10-1.5	Black	45”	39”	10”
VOLD-31-8.5-Y	Black	35”	31”	8.5”
VOLD-36-8.5-Y	Black	40”	36”	8.5”

PART LIST

When unpacking this product, ensure the parts listed below are included a carefully inspect for any damage that may have occurred during transit. D attempt to assemble or use the product if any part is missing or damage

	Pieces A	Pieces B	Screw	Nut Cap	Gloves	Grill	Handle	Poker
VOLD-30-10	7pcs	/	14pcs	14pcs	2pcs	/	/	/
VOLD-36-10	8pcs	/	16pcs	16pcs	2pcs	/	/	/
VOLD-39-10-2.5	9pcs	/	18pcs	18pcs	2pcs	/	/	/
VOLD-31-8.5	7pcs	/	14pcs	14pcs	2pcs	/	/	/
VOLD-36-8.5	8pcs	/	16pcs	16pcs	2pcs	/	/	/
VOLD-39-10-1.5	9pcs	/	18pcs	18pcs	2pcs	/	/	/
VOLD-31-8.5-Y	6pcs	1pcs	14pcs	14pcs	2pcs	1pcs	1pcs	1pcs
VOLD-36-8.5-Y	7pcs	1pcs	16pcs	16pcs	2pcs	1pcs	1pcs	1pcs

INSTALLATION METHODS

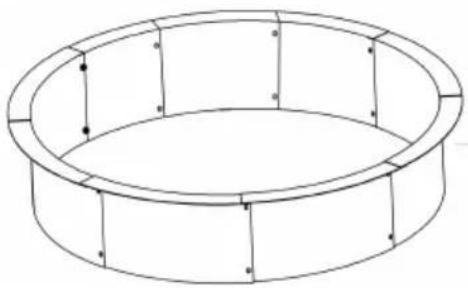

Excluding Grill style

Simple 3D diagram of a curved rectangular object with labeled points and a red arrow pointing to the top edge (no text or symbols beyond basic labels)

Simple line drawing of a circular mechanical component with labeled points A, B, C, D (no text or symbols beyond labels)

Step 1:

Decide on location for the fire ring. Make sure the fire ring is a s from all combustible materials. Using a rake, level the area if neces remove any dry grass or overhanging tree branches.

Step 2:

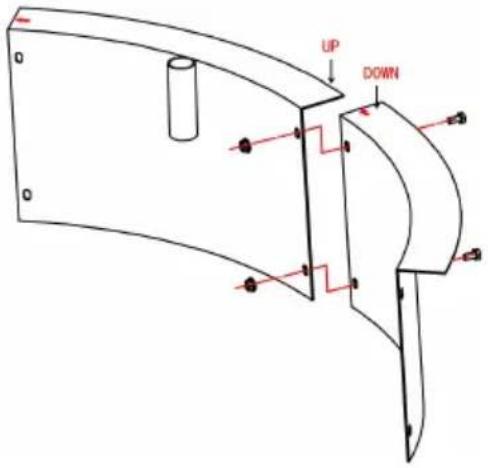

Using the bolts provided, assemble the pieces of the fire ring toget form a ring.(Place the part with arrow labels below, The right part is than the left part when you assemble it ). Make sure the ring is and in the right position.

Step 3:

Stack firewood into fire ring and light the fire.

Helpful Hints:

• Do not attempt to move the fire ring once the fire is started.
• Do not place the fire ring in an area where it could be easily
• For best results, stack firewood in a pyramid shape for burning.

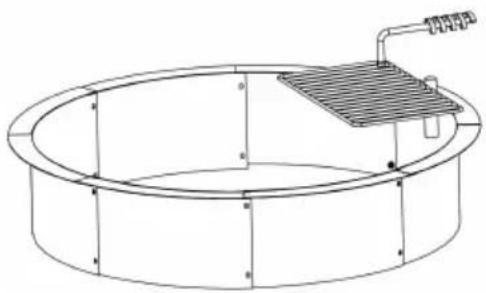

Including Grill style
Step 1:Identify the two parts of the picture.Dec on location for the fire ring. Make sure fire ring is a safe distance from all combustible materials. Using a rake, lev the area if necessary and remove any grass or overhanging tree branches.
Step 2:Using the bolts provided, assemble the pieces of the fire ring together to form ring.(Place the part with arrow labels be The right part is lower than the left pa when you assemble it ). Make sure th is level, tight and in the right position.

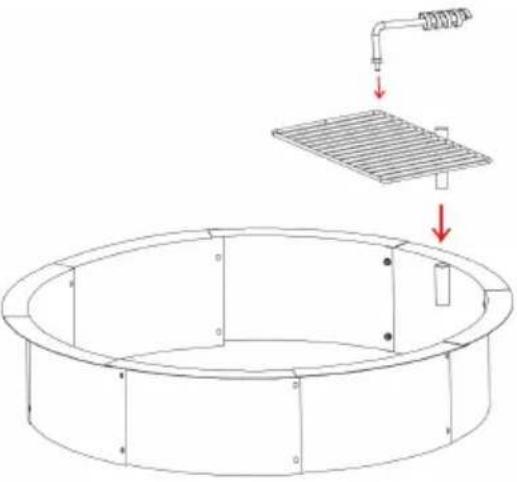

Step 3:Insert the grill inside the fire ring, twist handle on the nut of the grill net, twis handle to the outward Angle, tighten th on the handle, and fix the Angle, do shake, to prevent burns.
Step 4:Assembling fire Poker.
