VV-CGQJD-LDJ-8T - Jack Vevor - Free user manual and instructions

Product Type	Long Ram Jack
Brand	Vevor
Model	VV-CGQJD-LDJ-8T
Lifting Capacity	8 tons
Lifting Stroke	500 mm
Minimum Height	660 mm
Dimensions (H x D1 x D2 x D3 x L)	660 x 17 x 17 x 30 x 22 mm
Estimated Weight	9 kg
Power Source	Manual, hand hydraulic pump
Material	Steel
Main Function	Lifting and lowering heavy loads using a crane
Hydraulic Fluid Type	High quality hydraulic oil (G8443-84 at 27°F-113°F, GB442-64 at 4°F-27°F)
Oil Tank Capacity	Fill to the lower edge of the fill port
Release Valve	Yes, for controlling descent
Control Handle	Included, notched end to open/close valve
Intended Use	With a crane to lift heavier loads; do not use for other purposes
Safety	Do not overload; use on hard ground; support load with jack stands; do not work under load without support
Routine Maintenance	Check oil level, lubricate pivots and axles, clean piston
Oil Change	At least once a year; drain completely with saddle lowered and piston pushed in
Storage	Store with piston and jack fully retracted
Warranty	Electronic warranty certificate available at www.vevor.com/support
Technical Support	www.vevor.com/support

Frequently Asked Questions - VV-CGQJD-LDJ-8T Vevor

How to use the Vevor VV-CGQJD-LDJ-8T jack?

Before use, estimate the weight of the load (max 8 tons). Place the jack on hard ground, insert the notched end of the handle into the release valve and turn it clockwise to close the valve. Insert the handle into the socket and pump to lift the load. To lower, slowly turn the valve counterclockwise. Never work under an unsupported load.

How to add hydraulic oil?

Fully lower the saddle and push in the pump piston. Place the jack upright, remove the oil fill plug. Fill until oil reaches the lower edge of the port. Use only high quality hydraulic oil. Screw the plug back on.

What to do if the jack does not lift the load?

First check that the release valve is fully closed. Ensure the load does not exceed 8 tons. Bleed air from the system by opening the fill plug with the jack fully retracted. If the problem persists, check the oil level and contact after-sales service.

How to lower the jack safely?

Remove the pressure handle. Using the slotted end of the handle, turn the release valve slightly counterclockwise to loosen it. The piston rod will descend slowly. Do not turn quickly, as rapid descent is dangerous. Ensure all personnel are clear.

What is the maximum weight this jack can lift?

The maximum lifting capacity is 8 tons. Never exceed this load, as overloading can damage the jack or cause dangerous failure.

What are the important safety instructions?

Never work under a load supported only by the jack; use jack stands of appropriate capacity. Place the jack on hard, stable ground. Do not drop the load suddenly. Do not use for purposes other than lifting with a crane. Read the entire manual before use.

How to maintain the jack?

Regularly check the oil level and lubricate pivot points, axles, and hinges with light oil. Clean the piston and cylinder with an oily cloth; never use sandpaper. Perform a complete oil change at least once a year. Store the jack with the piston retracted.

What to do if the jack does not retract completely?

This may be due to an overfilled reservoir or blocked linkages. Remove excess oil to the correct level. Clean and lubricate moving parts. If the problem persists, contact technical service.

Where to find the full manual and support?

The full manual is available for free download at notice-facile.com. For technical support and electronic warranty certificate, visit www.vevor.com/support.

Can I use this jack alone or with a crane?

This jack is designed to be used with a crane to lift heavier loads. It should not be used as the sole load support. The load must be immediately supported by appropriate means (jack stands) after lifting.

USER MANUAL VV-CGQJD-LDJ-8T Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

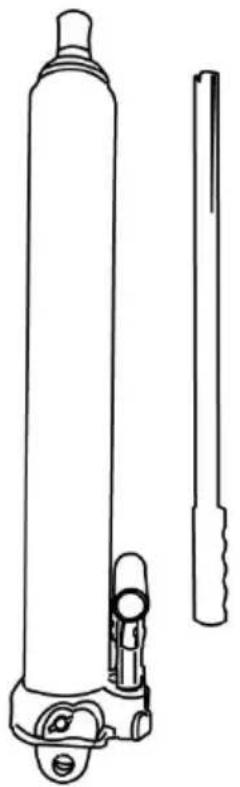

LONG RAM JACK

MODEL: 3T/4T/8T/12T

We continue to be committed to provide you with tools at competitive prices. "Save Half", "Half Price" or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to top brands, and does not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when placing an order with us whether you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

LONG RAM JACK

MODEL: 3T/4T/8T/12T

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you if there are any technology or software updates on our product.

Warning:

For your safety and to prevent injury, please read very carefully the following warnings and operating instructions:

- This is just a lift drive, which is designed to be used with cranes for heavier loads. Do not use this product for any purpose other than for which it was intended.

- This is a lifting device only, designed to be used with lift heavier loads. Do not overload; overloading may cause damage or failure of the unit. Do not use this product for any purpose other than that for which it was intended.

- Load must be supported immediately by other appropriate means. Never work on, under, or around load until it is properly supported on appropriately rated jack stands.

- Do not drop load suddenly, as resulting shock to unit may cause damage. Unit must be fully retracted before adding oil. Fill to lower of filling hole. Use only high quality hydraulic fluid. Do not use brake fluid or any other type of improper fluids that may cause damage to unit.

● All mounting hardware must be tight before using.

- Read, study, understand, and follow all instructions before use or maintenance.

- It is owner's responsibility to keep labels and manuals are available from the manufacturer. Failure to heed these and all other warnings pertaining to this product can result in sudden loss of lifted load resulting in death, personal injury, or property damage.

Caution:

Use the handle provided for this product or an authorized replacement handle to ensure proper release valve operation.

OPERATION INSTRUCTIONS:

1. Before operating, estimate the weight of the load. Do not overload the jack beyond its rated load.
2. Select point of action according to the gravitational center. Place the jack on hard ground. If necessary, place a hard plank under the jack to avoid tottering or falling during operation.
3. Before operating the jack, first, insert the notched end of the handle into the release valve. Turn the operating handle clockwise until release valve is closed. Do not over tighten the valve.
4. Insert the operating handle into the socket and steadily raise and lower the handle. The ram will rise, and the load will be lifted. The ram will stop rising when the required height is reached.
5. Lower the ram by turning the release valve. Using the notched end, turn it counter-clockwise and slacken it slowly when a load is applied, or accidents can occur.
6. When more than one jack is used at the same time, it is important to operate the different jacks at an equal speed with equal load. Otherwise, there is a danger of the entire structure falling.
7. At an ambient temperature from 27°F to 113°F, use machine oil (G8443-84) N15. At an ambient temperature from 4°F to 27°F, use synthetic spindle oil (GB442-64). Sufficient filtered hydraulic oil should be maintained in the jacks. Otherwise, the rated height cannot be reached.
8. Violent shocks must be avoided during operation.

9. The user must operate the jack correctly according to the operating instructions. If the jack has some quality problems, it cannot be operated.

To raise:

1. Using the slotted opening at the end of the handle, turn the release valve clockwise to tighten it.
2. Put the handle in the pressing handle holder and press up and down. The piston rod will rise slowly till the height you need. Then immediately tra

the load to appropriately-rated support devices such as jack stands.

To lower:

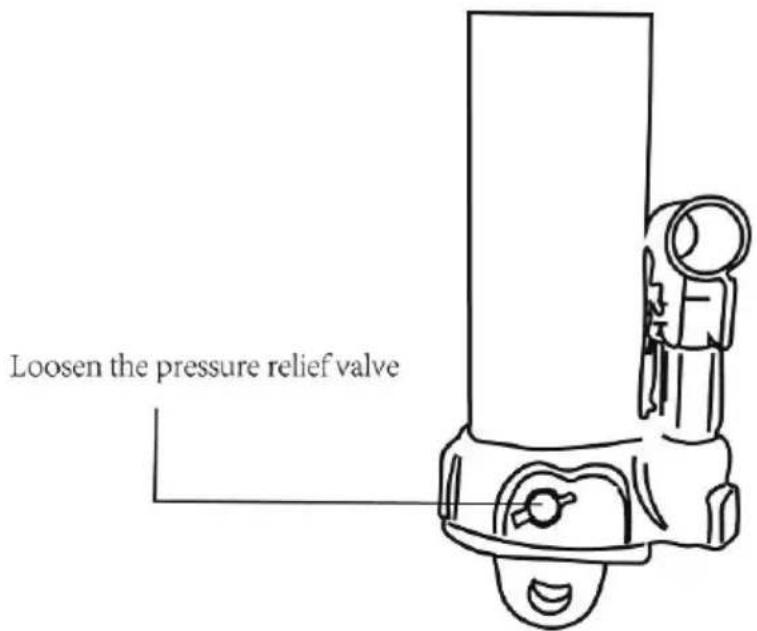

Remove the pressing handle. Using the slotted opening at the end of the handle, turn the release valve slightly counterclockwise to loosen it. Then the piston rod will move down slowly. When loaded, the release should not be turned quickly, otherwise too speedy lowering will lead to danger.

Warning:

Be sure all tools and personnel are clear before lowering load. Danger: dynamic shock loads are created by quickly opening and closing the release valve as the load is being lowered. The resulting overload may cause hydraulic system failure, which could cause severe personal injury and/or property damage.

FOR SAFETY'S SAKE

Lifting weight should not exceed the specified duty of this jack.

Without a supporting rack, it is not allowed to work under the lifted heavy load after it is raised.

ROUTINE MAINTENANCE

Proper quantity of oil should be maintained, otherwise the specified lift height would not be reached.

To avoid damaging, the jack should be kept from shocking while in operation.

The jack is not allowed to stand on one side or upside down.

This product is not suitable for the operation environment full of acid or alkaline corrosive air.

Adding oil

1. With saddle fully lowered and pump piston fully depressed, set jack upright, level position. Remove oil filler plug.
2. Fill until oil is level with the filler plug hole, reinstall oil filler plug.

Oil (G8443-84)N15

Changing oil

For best performance and longest life, replace the complete fluid supply at once per year.

1. With saddle fully lowered and pump piston fully depressed, remove the oil plug.

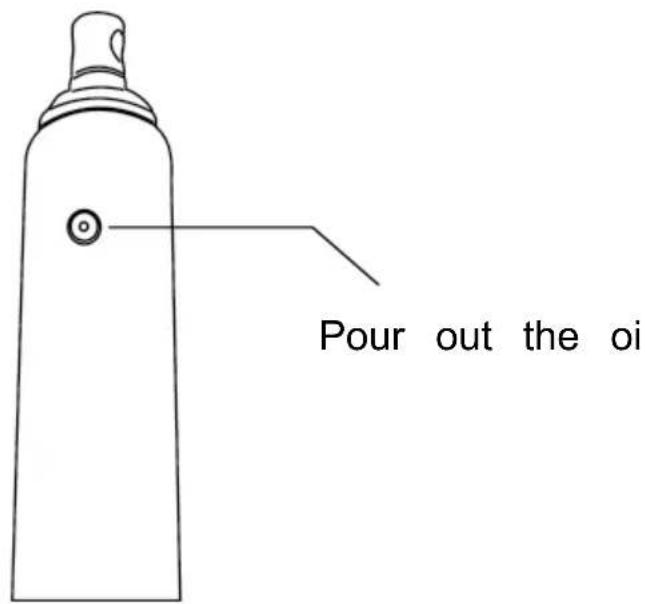

2. Lay the jack on its side and drain the fluid into a suitable container.

Note: Dispose of hydraulic fluid in accordance with local regulations.

1. Fill with good quality jack oil. Reinstall oil filler plug.

Lubrication

1. A coating of light lubricating oil to pivot points, axles, and hinges will prevent rust and assure that wheels, casters, and pump assemblies move freely.
2. Periodically check the pump piston and ram for signs of rust or corrosion. Clean as needed and wipe with an oily cloth.

Caution: Never use sandpaper or abrasive material on these surfaces.

1. When not in use, store the jack with pump piston and ram fully retracted.

Parameter table

Model	Lift Weight Capacity (TON)	Lifting Travel (mm)	Min height (mm)
3T	3	500	660
4T	4	500	610
8T	8	500	660
12T	12	500	660

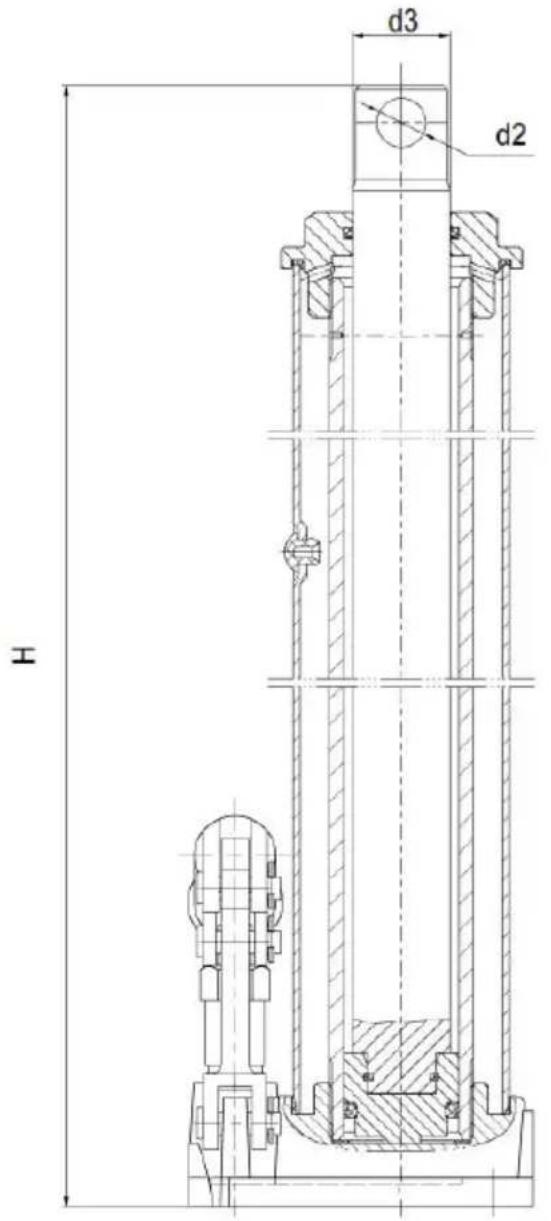

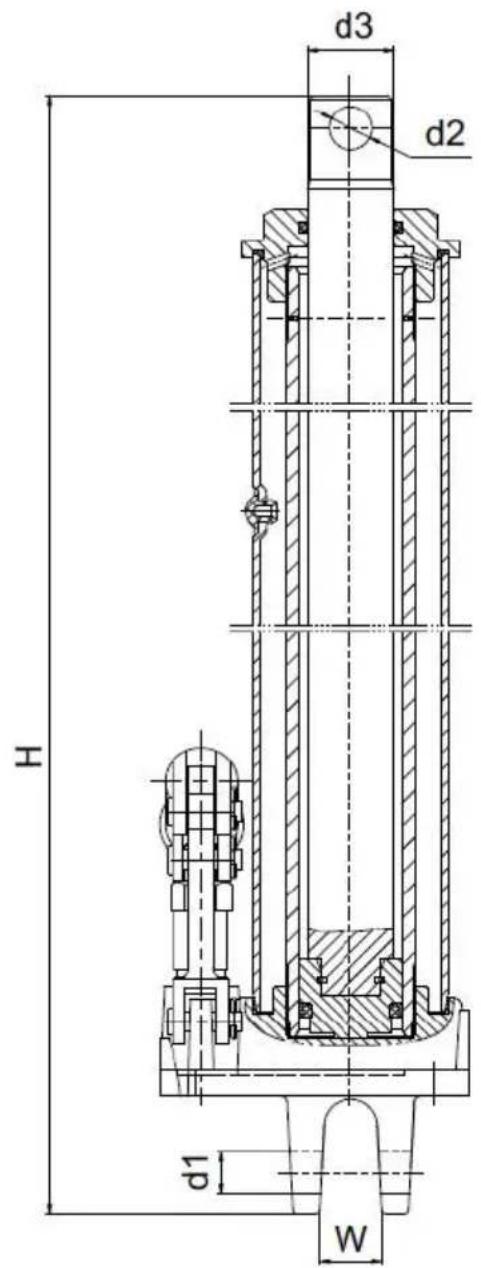

Dimensions

Model	H (mm)	D1 (mm)	D2 (mm)	D3 (mm)	W (mm)
3T	660	17	17	28	25
4T	610	/	17	28	/
8T	660	17	17	30	22
12T	660	17	20	33	22

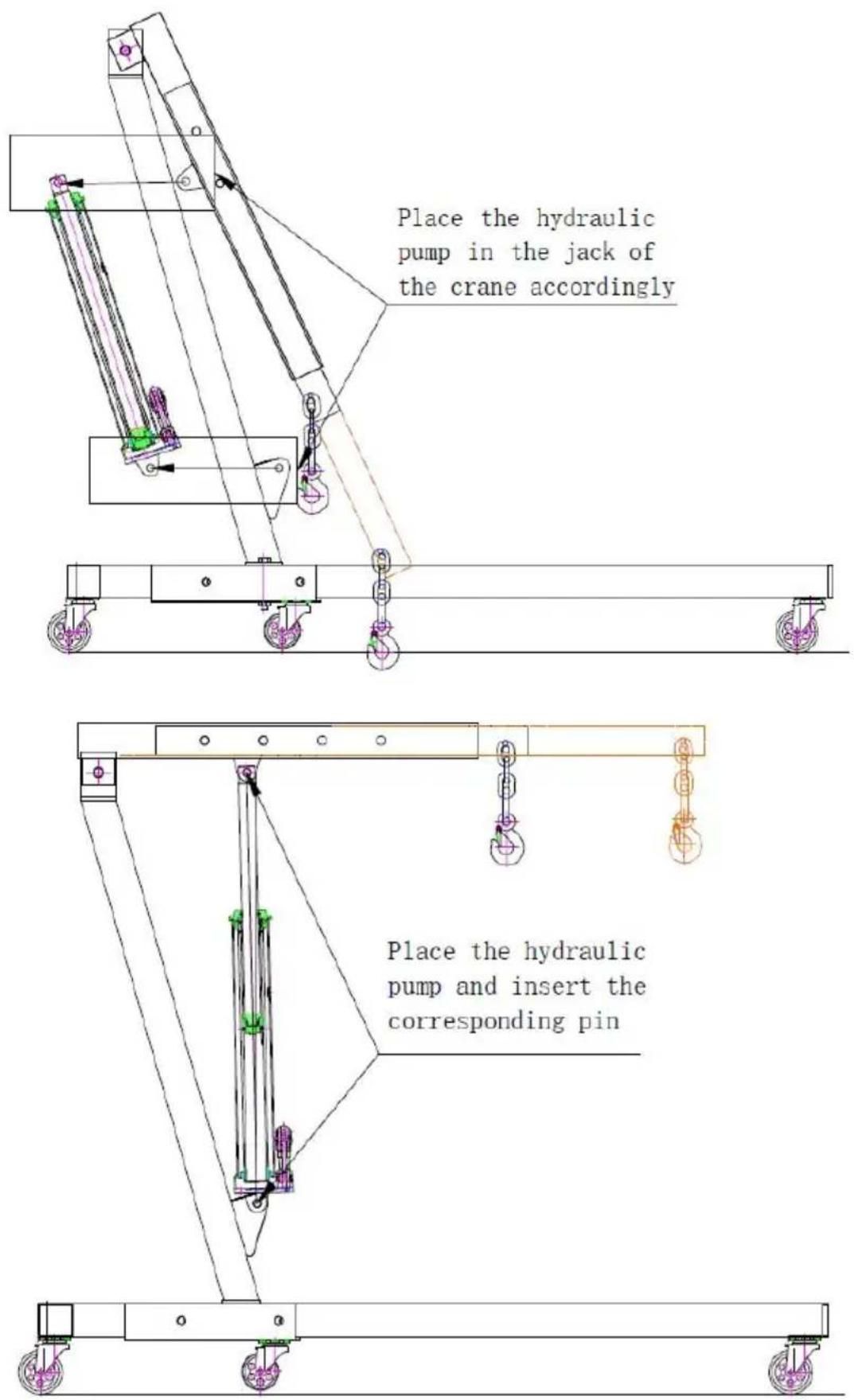

Plunger pump installation instructions

TROUBLESHOOTING

Symptom	Possible Causes	Corrective Action
Jack will not load	Release valve not tightly closed overload conditionAir supply in adequate	Ensure release valve tightly closRemedy overload conditionEnsure adequate air supply
Jack bleeds off after lift	Release valve not tightly closed Overload conditionHydraulic unit malfunction	Ensure release valve tightly closRemedy overload conditionContact seller
Jack will not lower after unloading	Reservoir overfilledLinkages binding	Drain fluid to proper levelClean and lubricate moving parts
Poor lift performance	Fluid level lowAir trapped in system	Ensure proper fluid levelWith ram fully retracted, remove filler plug to let pressurized air escape, reinstall oil filler plug
Will not lift full extension	Fluid level low	Ensure proper fluid level
