Product Type	Cable Stripping Machine
Brand	Vevor
Model	SMS-39DA
Stripping Range (Diameter)	Φ1.5 mm ~ 38 mm
Compatible Wire Types	Copper wires single-core, multi-core, flat wires
Dimensions (L × W × H)	65.5 cm × 34.5 cm × 43 cm
Weight	42 kg
Power Source	Manual (adjustment handles)
Stripping Mechanism	Rotating blades with depth adjustment
Blade Material	Hardened steel
Blade Maintenance	Regular sharpening with oilstone
Lubrication	Light oil on shafts and springs
Pressure Adjustment	M12 handles for tightening/loosening
Centering Adjustment	Lateral centering screws
Safety	Wear gloves, read manual before use
Included Accessories	Manual, gloves, oil cap, handwheel, Allen key
Recommended Use	Feed cables one by one, cut ends first
Optimal Stripping Conditions	Non-hot wires, without excess oil
Common Troubleshooting	Check springs, blades, shaft alignment
Warranty	Electronic support and warranty certificate
Manufacturer	Vevor

Frequently Asked Questions - SMS-39DA Vevor

How to adjust the cutting depth?

Use the M12 handles located on the entry side to tighten or loosen the pressure. Tighter increases cutting depth.

What to do if the cuts are too deep?

Check the M12 handle adjustment, ensure cables are properly positioned when feeding, and that blades are sharp. If necessary, polish them with an oilstone.

Plastic strips but copper doesn't come out, why?

This may be due to loose springs (tighten them), excessive gap between shafts (adjust to 0.3-0.6 mm), or cables being too hot. Also lubricate the upper shaft with oil.

Cables get stuck in the rollers, how to fix?

Loosen the pressure wheel springs if they are too tight. If cables are greasy, wipe them before feeding.

How to center the blades?

Check that the central adjustment device is not loose. Adjust the centering screws on both sides to align the blades with the cable.

What types of cables can be stripped?

This machine handles copper wires single-core, multi-core, and flat wires, with a diameter of 1.5 to 38 mm.

How to maintain the machine?

Regularly sharpen the blades with an oilstone, lubricate moving shafts and springs with light oil, and clean plastic residues.

What accessories are included with the machine?

The package contains a user manual, gloves, an oil cap, a handwheel, and an Allen key.

Can the machine strip hot cables?

No, it is not recommended to strip hot cables as it prevents copper and plastic separation. Let them cool before use.

Where to find the full manual?

The full PDF manual is available free of charge on the site notice-facile.com for the Vevor SMS-39DA model.

USER MANUAL SMS-39DA Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

WIRE STRIPPING MACHINE USER MANUAL

MODEL: SMS-38

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually saving half in comparison with the top major brands.

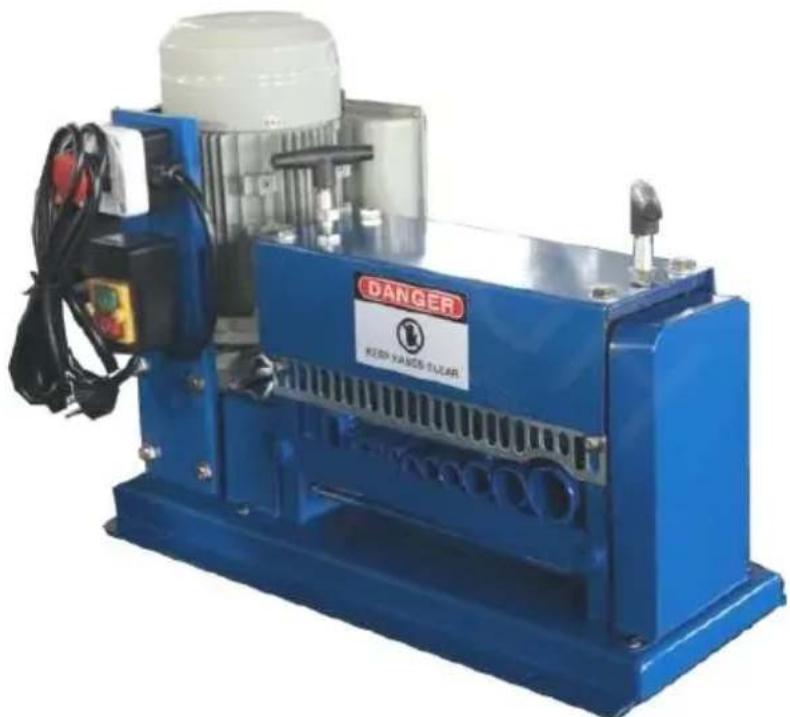

MODEL: SMS-38

(The picture is for reference only, please refer to the actual object)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

Warning - To reduce the risk of injury, user must read the manual carefully.

INSTRUCTIONS

Wire Stripping range: Φ1.5mm ~ 38mm

This machine is easy to operate and convenient to carry, can process single core copper wire, twin cores copper wire.

Please note that there will be a little bit of errors in actual use.

1. Compare the diameters of the cables/wires with the feeding holes on the machine, and feed the cables/wires one at a time. Before feeding, cut off the head of the cables/wires to avoid gaps caused to the blades.
2. On the output side, if the cuts on the cables/wires are too deep, please check the following points:

(1) Adjust the handles on the input side, screw down or loosen (M12 handles). ② Check whether the cables/wires are in the correct position as you feed them. ③ Make sure the blades are sharp; if not, polish them with the oil stone.

1. On the output side, if the plastic (PVC) has been stripped but the copper wires cannot be discharged, please check the following 4 points:

① Polish the axis of the upside with the oil stone. ② Check whether the springs are loose; if so, screw them down to tighten. ③ The diameter of the cables/wires is too small; please adjust the gap between the two axes to 0.3-0.6mm. (4) If the cables/wires you want to strip are hot, they also cannot be

stripped out.

4. If the cables/wires are blocked in the axes, please check the following points:

① If the springs on the press wheels are too tight, loosen them. ② If there is too much oil on the cables/wires, wipe it off.

5. If the blades appear tilted:

① Check whether the center adjuster is loose. ② Perform centering adjustment and adjust the screws on both sides of it.

Make sure the diameters of the cables/wires are similar to the feeding holes: large cables/wires in large feeding holes, small cables/wires in small feeding holes, and flat cables/wires in flat feeding holes.

This product comes with the following items: manual, gloves, oil plug, hex wrench, and Allen key.
