NMBP1-G800-05 - Water pump Vevor - Free user manual and instructions

Product Type	Boat Livewell Aerator Water Pump
Brand	Vevor
Model	NMBP1-G800-05
Power Supply	DC 12V, 4A max
Power	38W
Max Head Height	3.3 m
Max Flow Rate	800 GPH (approximately 3028 L/h)
Protection Rating	IPX7
Motor Type	Removable Power Cartridge
Outlet Connection	Reinforced 3/4" Hose
Installation	Drill a hole in the transom, caulk the threaded shaft
Electrical Connection	Black wire (-) negative, brown wire (+) positive, fuse recommended
Recommended Wire Gauge	18 AWG
Features	Aerator pump, replaceable cartridge, adjustable outlet
Maintenance	Clean the water intake, check the impeller, replace the seal if necessary
Safety	Fuse between battery and pump, waterproof connections
Spare Parts Available	Complete Power Cartridge
Compliance	FCC Part 15, WEEE Directive 2012/19/EC
Warranty and Support	Technical support at www.vevor.com/support
Manufacturer	Shanghaimuxinmuyeyouxiangongsi, Shanghai, China

Frequently Asked Questions - NMBP1-G800-05 Vevor

How to install the aerator pump?

Drill a 116 mm hole in the transom, well below the water line. Apply marine caulk (silicone not recommended) to the threaded shaft and insert the pump. Tighten the nut and cut off the excess shaft. Make sure the outlet points upward before tightening.

How to wire the pump electrically?

Use 18 gauge wire. Connect the black wire to negative (-) and the brown wire to positive (+). Install a fuse between the battery and the pump. Seal the connections with a marine sealant.

What to do if the pump does not start?

Check the power supply (12V) and connections. Make sure the impeller is not blocked. Also check that the fuse has not blown.

What to do if the flow is low or zero?

Clean the water intake. Check that there is no trapped air in the pump body. Make sure the impeller is not reversed and the + and - terminals are correctly connected. Clean foreign objects and check that the pump is fully submerged.

How to replace the power cartridge?

Press the tab and turn the two wings clockwise to remove the motor. To reinstall, apply a thin layer of vegetable or mineral oil to the seal, align the cams with the slots in the housing, insert and turn clockwise.

What is the required power supply?

The pump operates on DC 12V with a maximum current of 4A (38W power). Use a suitable 12V battery.

What type of hose to use?

Use a reinforced hose of diameter 3/4 inch to connect the pump outlet to the livewell or spray bar.

How to maintain the pump?

Regularly clean the water intake and pump body to avoid blockages. Check the seal condition and replace if necessary. Lubricate the seal with vegetable or mineral oil when reassembling.

Is the pump waterproof?

Yes, the pump has an IPX7 protection rating, meaning it can be temporarily immersed up to 1 meter for 30 minutes. However, electrical connections must remain above the maximum water level.

How to contact Vevor technical support?

Visit www.vevor.com/support for technical assistance and the electronic warranty certificate. You will find the necessary contact details there.

USER MANUAL NMBP1-G800-05 Vevor

Technical Support and E-Warranty Certificate

www.vevor.com/support

BOAT LIVEWELL AERATOR PUMP

MODEL: NMBP1-G800-05

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

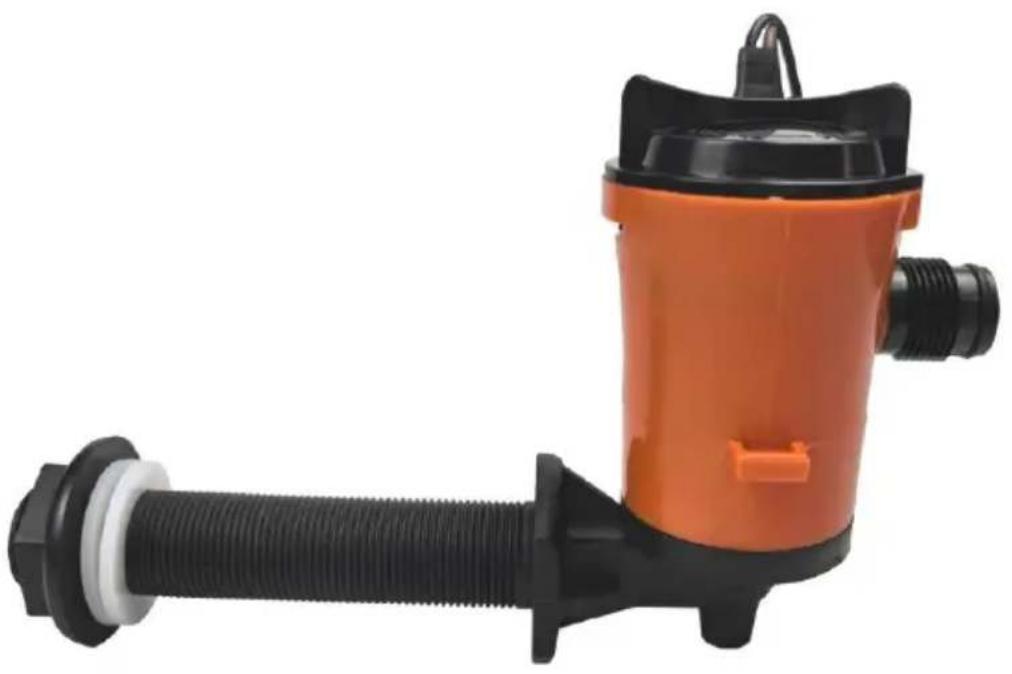

MODEL:NMBP1-G800-05

Orange and black portable water purifier with threaded pipe and connector (no text or symbols visible)

(The picture is for reference only, please refer to the actual obje

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

INSTRUCTIONS

Follow installation instructions carefully to assure proper operation of your live well Pump.

Installation Instruction

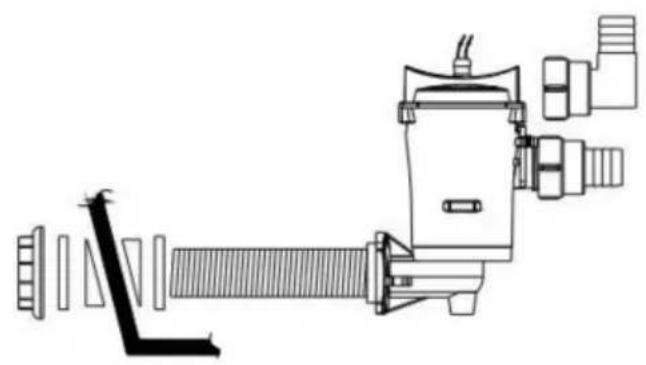

To install the pump, drill a hole through the transom well below the water line. Caulk the threaded Shaft on the pump and the hole.

NOTE: Silicone sealants are not recommended. If the transom has a seven-angle use transom shims to level pump. Tighten the nut and saw off excess threaded shaft. Make certain the pump outlet is pointing straight before tightening shaft.

Electrical Installation

To wire the pump, use 18-gauge wire. Connect the black wire to negative or ground. The brown wire connects to positive(+). Install a fuse somewhere between the pump and the battery (Fuse assemble between the positive(+) of the power and the positive of the pump), if one is no present. Keep all wire connection above the highest possible water level. Seal connections with a marine sealant to prevent corrosion. The positive wire may connect with a panel switch or a Float Switch.

Connect a 3/4" reinforced hose from the pump discharge to the live spray bar.

The unit is now ready for operation.

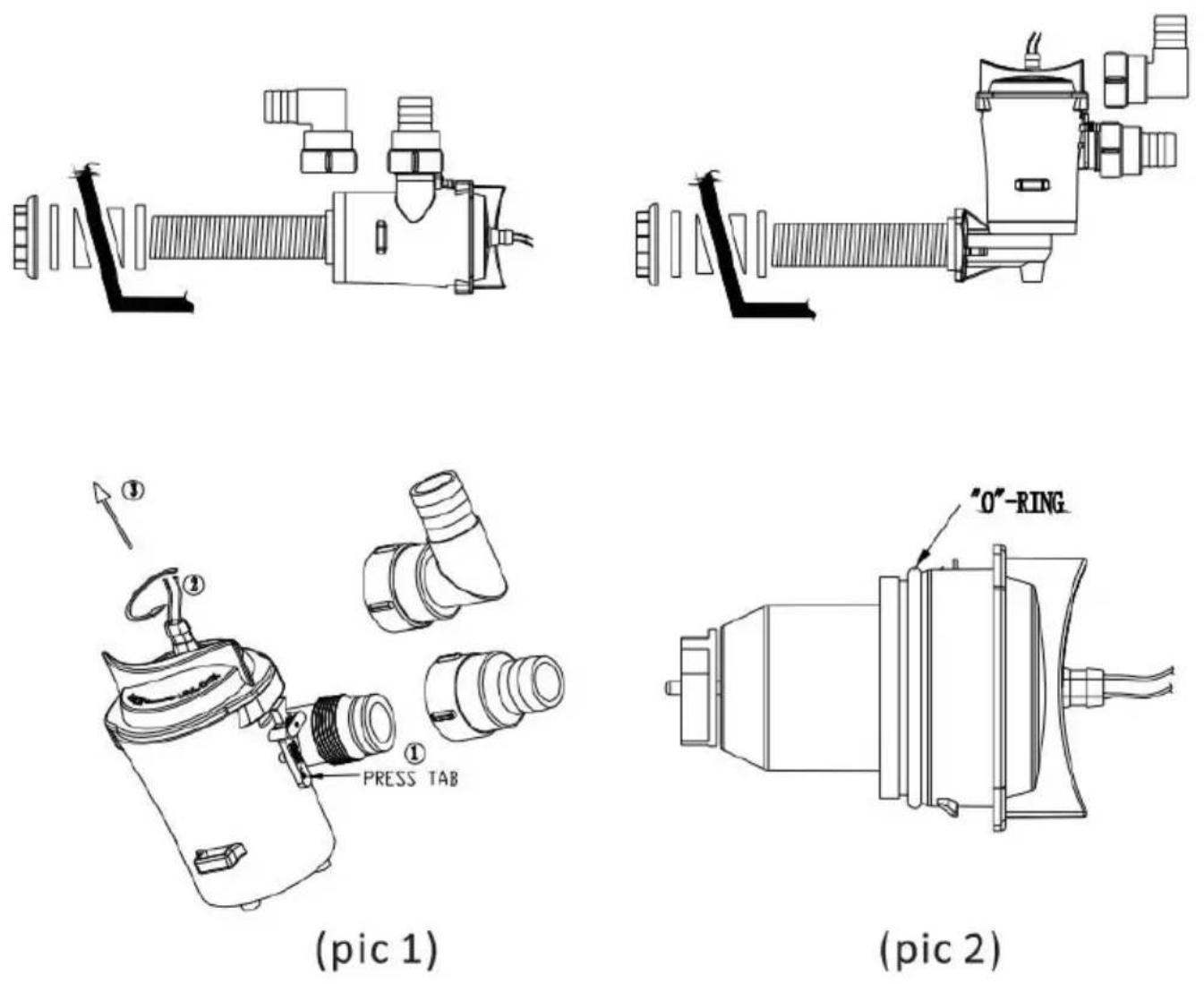

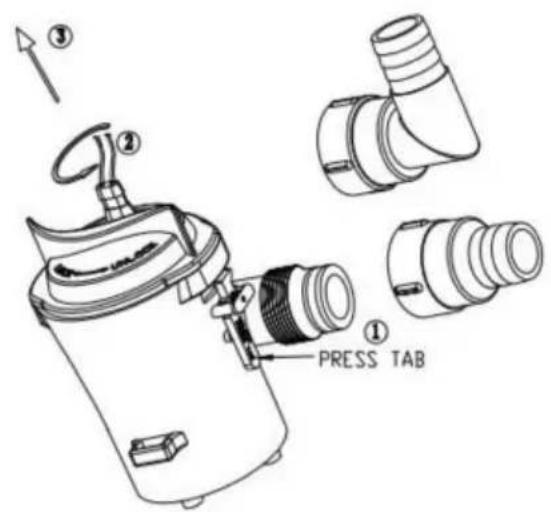

To remove or replace power cartridge. Press down tab and rotate the fins in a clockwise, then the motor can move out.

WARNING: No internal circulation in a single mouth.

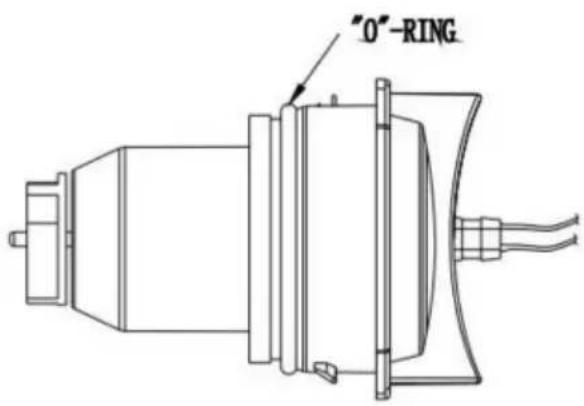

To reinstall, first make sure that the seal is properly located. Pic(2) Coa seal with a light film of vegetable oil or mineral oil, then align the two on either side of the power cartridge with the two slots in the outer housing, lift and twist in a clockwise rotation. To ensure that the power cartridge is properly located, twist tins in a counter clock-wise direction without pressing tab. Cartridge should stay in place.

Unblock inlet, if it was blocked, and reattach power leads see "Electrical installation?

Model	NMBP1-G800-05
Input	DC12V 4A Max
Power	38W
H.max	3.3m
Q.max	800GPH
Waterproofing grade	IPX7

Problem	Solution
Cannot start	Check whether the power supply is normal and whether the cable is properly connected
	Check whether the impeller is stuck
No water or low flow	Clean the water intake
	Check pump body for trapped gas
	Check whether the impeller is reversed
	Check whether the positive and negative terminals of the cable are connected in reverse
	Clean up foreign matter in pump
	Check that the pump is completely submerg
Loud noise	Clean up foreign matter in pump
The motor in the pump is rotating, but the water output is small and weak	Check the above reasons, still can not be solved, that is, the motor life has arrivedFCC Information:CAUTION: Changes or modifications not expressly approved by the responsible for compliance could void the user's authority to operate equipment!This device complies with Part 15 of the FCC Rules. Operation is the following two conditions:1) This product may cause harmful interference.2)This product must accept any interference received, including interfere that may cause undesired operation.WARNING: Changes or modifications to this product not expressly ap by the party.responsible for compliance could void the user's authority operate the product.Note: This product has been tested and found to comply with the I Class B digital device pursuant to Part 15 of the FCC Rules, These designed to provide reasonable protection against harmful interference residential installation.This product generates, uses and can radiate radio frequency energy not installed and used in accordance with the instructions, may caus interference to radio communications. However, there is no guarantee interference will not occur in a particular installation. If this product cause harmful interference to radio or television reception,which can determined by turning the product off and on, the user is encourage correct the interference by one or more of the following measures.Reorient or relocate the receiving antenna.Increase the distance between the product and receiver.Connect the product to an outlet on a circuit different from that t receiver is connected.Consult the dealer or an experienced radio/TV technician for assist
	This product is subject to the provision of European Directive 2012/1The symbol showing a wheelie bin crossed through indicates that th requires separate refuse collection in the European Union. This appli product and all accessories marked with this symbol. Products marke such may not be discarded with normal domestic waste, but must b a collection point for recycling electrical and electronic devices

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NS 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Ma

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion H London Road, Staines-upon-Thames, Surrey, TW18 4

Made in China
