ZXQ500-B - Water pump Vevor - Free user manual and instructions

Product Type	Submersible utility pump
Brand	Vevor
Model	ZXQ500-B
Power Supply	230 V ~ 50 Hz
Maximum Power	500 W
Maximum Flow Rate	500 L/H
Maximum Head Height	8 m
Protection Rating	IPX8
Outlet Size	G1-1/2"
Maximum Water Temperature	35 °C
Allowed Fluids	Clear water only (no wastewater, chemicals or abrasives)
Recommended Uses	Drainage of basements, garages, flat roofs; domestic or agricultural water transfer
Prohibited Uses	Continuous operation, fountains/ponds, septic or sewage systems
Installation Type	Stationary (fixed or flexible hose); vertically submerged
Required Electrical Protection	GFCI protected outlet
Power Cord	Plug with ground conductor; do not use extension cord
Maintenance	Clean the inlet strainer with water jet; check the float switch every 3 months
Cleaning the Impeller	Disassemble the intake cage, clean with clear water; do not place the pump on the impeller
Safety	Do not run dry; protect from frost; avoid corrosive fluids
Warranty and Support	Technical support and electronic warranty certificate at www.vevor.com/support

Frequently Asked Questions - ZXQ500-B Vevor

What is the power of the Vevor ZXQ500-B pump?

The pump has a maximum power of 500 W.

What is the maximum flow rate of this pump?

The maximum flow rate is 500 L/H.

What is the maximum head height?

The maximum head height is 8 m.

Can the pump run dry?

No, the pump must not run dry. It should always be fully submerged to cool down and avoid overheating.

What type of fluid can I use with this pump?

Only clear water, at a maximum temperature of 35 °C. Do not use for wastewater, abrasive or chemical liquids.

How to install the pump correctly?

Place the pump vertically at the bottom of the basin or hung by the handle. Attach a discharge hose to the G1-1/2" outlet and plug into a GFCI protected outlet.

Can I use an extension cord?

No, the use of an extension cord is prohibited to avoid electric shock hazards.

How to maintain the pump?

Disconnect the pump before any maintenance. Clean the inlet strainer with water jet regularly and check the float switch every 3 months. If the impeller is dirty, disassemble the intake cage and clean with clear water.

What to do if the pump does not start?

Check the mains power supply and make sure the float switch is not stuck in the down position. If the problem persists, consult the troubleshooting table in the manual.

Where to find technical support and warranty?

Technical support and the electronic warranty certificate are available on the website www.vevor.com/support.

USER MANUAL ZXQ500-B Vevor

Technical Support and E-Warranty Certificate

www.vevor.com/support

SUBMERSIBLE UTILITY PUMP INSTRUCTIONS

MODEL: ZXQ1000-B / ZXQ500-B / ZXQ400

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent the savings you might benefit from buying certain tools with us compared to top brands, and does not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when placing an order with us to ensure you are actually saving half in comparison with the top major brands.

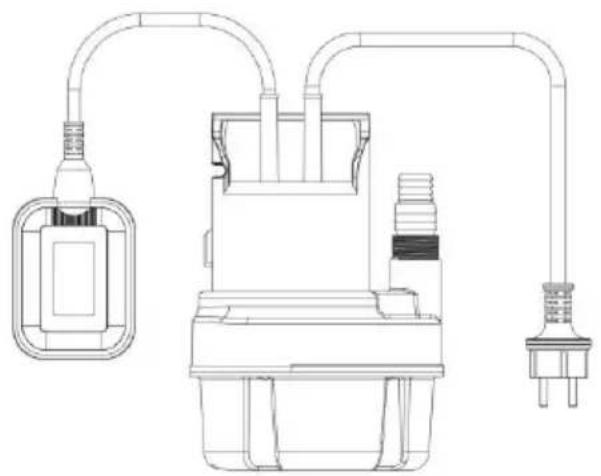

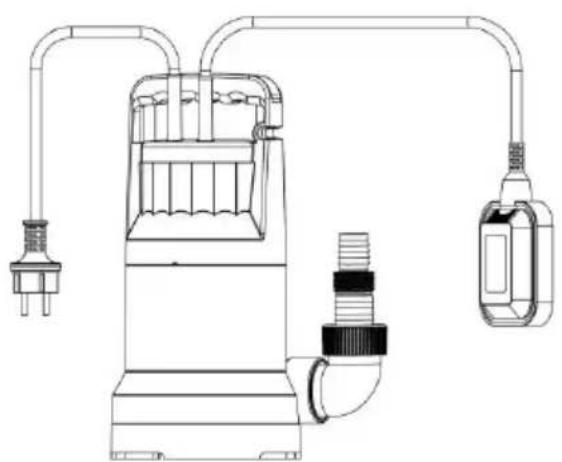

MODEL: ZXQ1000-B / ZXQ500-B MODEL: ZXQ400

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves the right to interpret the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

Warning - To reduce the risk of injury, the user must read the instruction manual carefully.

ATTENTION

WARNING

1. The water pump must be placed upright - do not operate the device on its side.
2. When the water pump works for long periods, ensure that it is completely submerged in water so that the water pump can be fully cooled - a necessary operational condition for all submerged water pumps.
3. When the water pump is working at a low water level, ensure that it is only used for short-term work; the water pump must not run at a low water level for a long time, otherwise it will overheat.

SAVE THIS MANUAL

WARNING

Read this material before using this product. Failure to do so can result in serious injury.

SPECIFICATION PARAMETERS

Model	Input	Max Power	Max Flow	Max Lift	Waterproof Rating	Outlet size
ZXQ1000-B	AC230V 50Hz	700W	15700 L/H	10 m	IPX8	G1-1/2"
ZXQ500-B	AC230V 50Hz	500W	9500 L/H	8 m	IPX8	G1-1/2"
ZXQ400	AC230V 50Hz	320W	6000 L/H	7 m	IPX8	G1"

Before start-up, note the following:

The pump must be connected to a GFCI protected plug which has been installed according to regulations.

The plug must have a supply voltage of AC230V 50Hz.

CAUTION

This pump has been evaluated for use with water only.

IMPORTANT! For your own safety - before starting to run the pump, please have the following items checked by an expert:

1. Risk of electric shock - This pump is supplied with a grounding conductor and grounding-type attachment plug. To reduce the risk of electric shock, be certain that it is connected only to a properly grounded, grounding-type receptacle.
2. Risk of electric shock - This pump has not been investigated for use in swimming pool areas.
3. The electrical connections must be protected from moisture.
4. If there is a danger of flooding, the electrical connections must be taken to higher ground.
5. Circulation of caustic fluids, as well as the circulation of abrasive materials, must be avoided at all costs.
6. The pump must be protected from frost.
7. The pump must be protected from running dry.
8. Access by children should also be prevented with appropriate measures.
9. To prevent death from electric shock, pump must be connected only to a GFCI protected outlet.
10. Do not use an extension cord with this item.

11. WARNING: The cord of this product contains lead and/or

(2-EthylHexyl)Phthalate (DEHP), chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. Wash hands after handling.

1. People with pacemakers should consult their physician(s) before use. Electromagnetic fields in close proximity to heart pacemakers could cause pacemaker interference or pacemaker failure.
2. The warnings, precautions, and instructions discussed in this instruction manual cannot cover all possible conditions and situations that may occur. It must be understood by the operator that common sense and caution are factors that cannot be built into this product, but must be supplied by the operator.

Fluid Type

The pump is designed for use with water with a maximum temperature of 77°F (25°C). Do not use the pump for other fluids, especially not fuels, cleaning fluids, or other chemical products.

Installation

The submersible motor pump must be installed in a stationary position either:

a. A fixed pipeline or b. A flexible hose pipe.

Power Supply

1. The pump is equipped with a shock-proof plug according to regulations. The

pump is designed to be connected to a 280V 50Hz GFCI protected socket.

1. Make sure that the socket is sufficiently secured and is in excellent condition.
2. When the plug is inserted into the socket, the pump will be on stan

4. WARNING: To prevent death from electric shock, pump must be connected only to a GFCI protected outlet.

5. WARNING! If the power cord or plug is damaged, do not use the pump. The power cord or plug may only be repaired by a certified electrician.

Areas of use

1. This pump is designed to pump water only.
2. This pump is designed to be used for: Removing water from flooded basements, window wells, garages, flat roofs.
3. This pump should NOT be used for: Continuous run, fountain/pond water features. Septic or sewage systems.
4. This pump can also be used to transfer water (e.g., household, farming, plumbing).

Installation Instructions

1. Place pump in water.

DANGER! Do not use an extension cord with this pump. Keep plug dry and secured away from water.

1. Attach one end of a discharge hose to the discharge port. Place the end as needed to direct the water discharge at least 3 feet away from the source. Slope the discharge hose downward, away from the source.
2. Plug Power Cord into GFCI protected outlet.

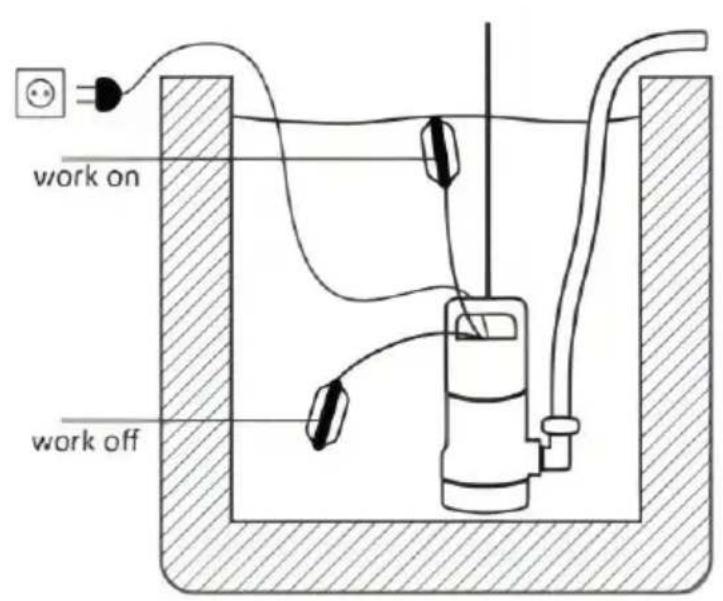

Operation

After reading these instructions, consider the following points before starting the pump:

1. Verify that the pump rests on the floor of the basin, if it is not suspended by the handle.
2. Verify that the discharge pipe is properly connected.
3. Verify that the electrical connection is AC230V 50Hz.
4. Verify that the electrical socket is GFCI protected and in good condition. Test GFCI protected outlet before use.
5. Verify that water and moisture cannot get near the power supply.
6. Verify that the pump is installed so as to prevent running dry.

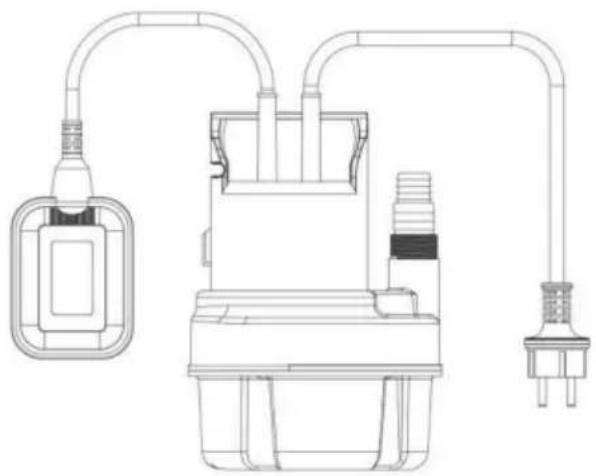

NOTE:

1. Plug cannot be put into water; need to connect leakage protection.
2. The submersible pump needs water (0-35°C) to cool, and can run in a dry environment for a long time.
3. The submersible pump is a clean pump, and it is prohibited to pump sewage.
4. The submersible pump should be completely immersed in water (except the plug) before use, and empty the air in the pump and water pipe, otherwise the water may not be discharged.

5. ZXQ1000-B/ZXQ550-B two pumps are not low-water pumps; when the water level is below about 35 mm, they may not be able to pump water.

6. ZXQ400 model pump, when the water level is below about 5 mm, may not be able to pump water.

WARNING

TO PREVENT SERIOUS INJURY FROM ACCIDENTAL OPERATION:

Unplug the pump from its electrical outlet before performing any inspection, maintenance, or cleaning procedures.

If the pump is moved during operation, flush it out with clean water at every use.

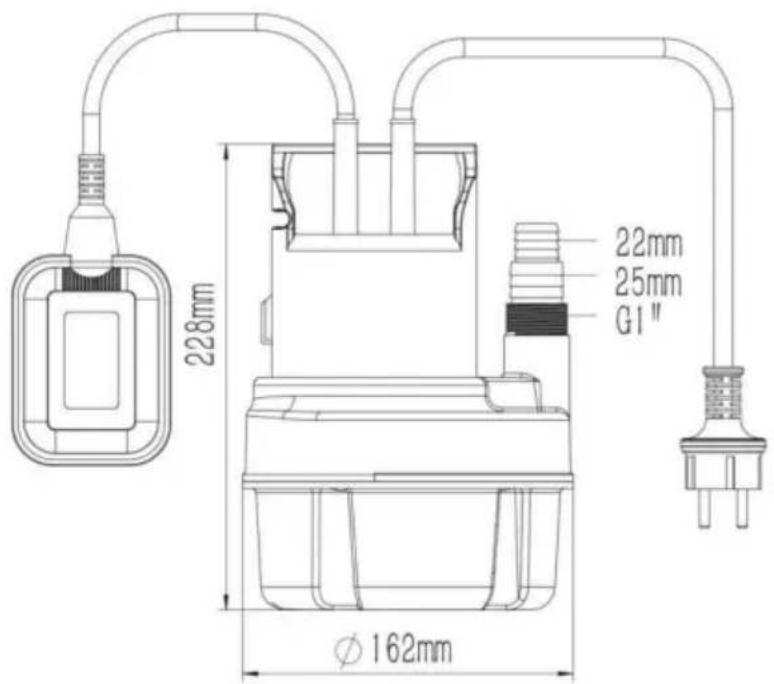

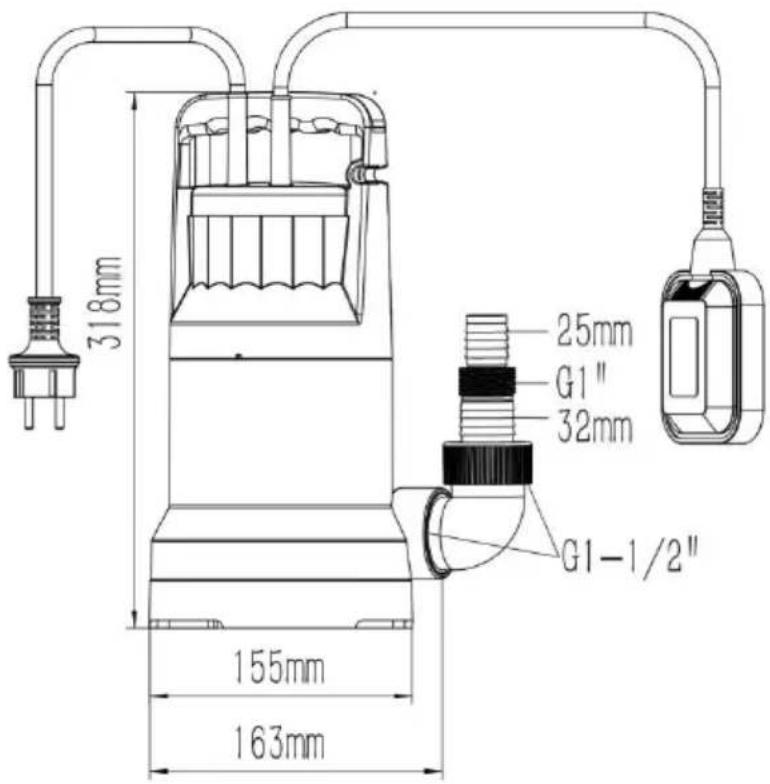

MODEL: ZXQ1000-B

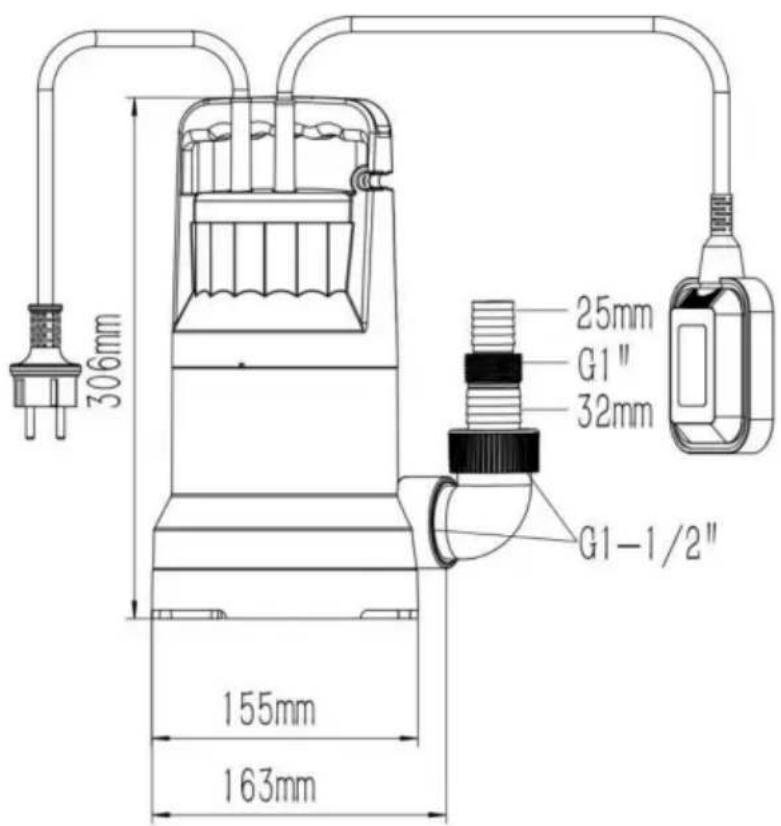

MODEL: ZXQ500-B

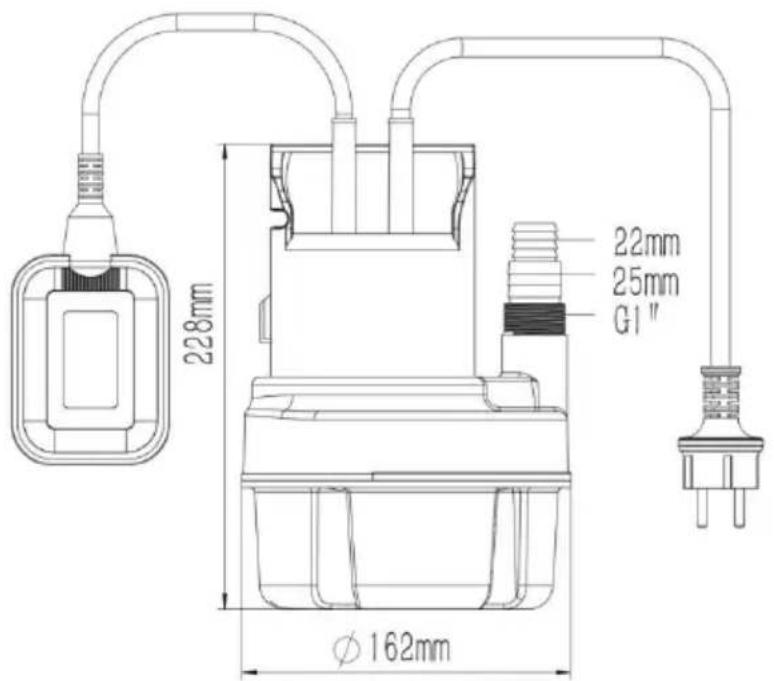

MODEL: ZXQ400

FAILURE RECOVERY

Incidents	Causes	Remedies
Pump does not st	-No mains supply- Floater does not switch	- Check mains supply- Bring floater in a higher pos
No flow	-Inlet sieve is clogged-Pressure hose in bent	-Clean inlet sieve water jet- Reset hose
Pump does not switch off	- Floater cannot sink down	- Place pump properly on shaft ground
Insufficient flow	- Inlet sieve is clogged- Reduced pumping capacity dirty and abrasive water	- Clean inlet sieve- Clean pump and replace worn-out parts
Pump switches off after short operatin period	-Thermal cutout stops pumps due to dirty water- Water too hot. Thermal-cut stops pump	- Remove mains plug. Clean p and shaft- Make sure that the water temperature is at the maximum 35°C is not exceed

MAINTENANCE GUIDELINES

This submersible pump is an approved and maintenance-free high-quality product, which is subject to severe final controls. We recommend regular inspection and maintenance to ensure long equipment life and uninterrupted operation.

Important Note!

• Remove the mains plug before all maintenance work.
• In the event that the pump is often transported in the course of its use, it should be cleaned out with clear water after every use.
• In case of stationary installation, the function of the floating switch should be checked every 3 months.
• All fibrous particles which may have built up inside the pump housing should be removed with a water jet.
• Every 3 months, the shaft ground and impeller should be cleaned of mud.
• Remove deposits on the floater with clear water.

Cleaning the impeller.

If excessive deposits are collected in the pump case, you must dismantle the bottom part of the pump as follows:

1. Remove the intake cage from the pump case.
2. Clean the impeller with clear water.

Important! Do not put down or rest the pump on the impeller!

1. Assemble in reverse order.
