USER MANUAL MM-ZT01-47 Vevor
Technical Support and E-Warranty Certificate www.vevor.com/support
COMMERCIAL CAN OPENER INSTRUCTIONS
We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent the estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. Are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.
NEED HELP? CONTACT US!
Have product questions? Need technical support? Please feel fr contact us:
Technical Support and E-Warranty Certificate www.vevor.com/support
This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.
PRODUCT DESCRIPTION
It is used for opening all kinds of iron cans, convenient to operate. It's ideal utensil for hotels and restaurants.
- After using it, Lay it aside with the handle to horizontal position, so a loosen the spring, lengthen the service life of it.
- Often used, knife and gear may be worn for customer's convenience, prepared completed set of parts, please order according to your need.
SPECIFICATION PARAMETERS
| Model | Applicable height | Can opening size |
| MM-ZG01-47 | ≤300mm (11 inch) | Can open all diameter cans up to 300mm in height. |
| MM-ZT01-47 | ||
| MM-BXG-30 | ||
| MM-ZG02-59 | ≤400mm (15.7 inch) | Can open all diameter cans up to 300mm in height. |
| MM-BXG-40 | ||
| Blade material: SUS420 (Food grade, surface hardened.) | ||
| NOTE: Open the can clockwise, do not turn the handle counter when opening the can, otherwise it will affect the opening e | ||

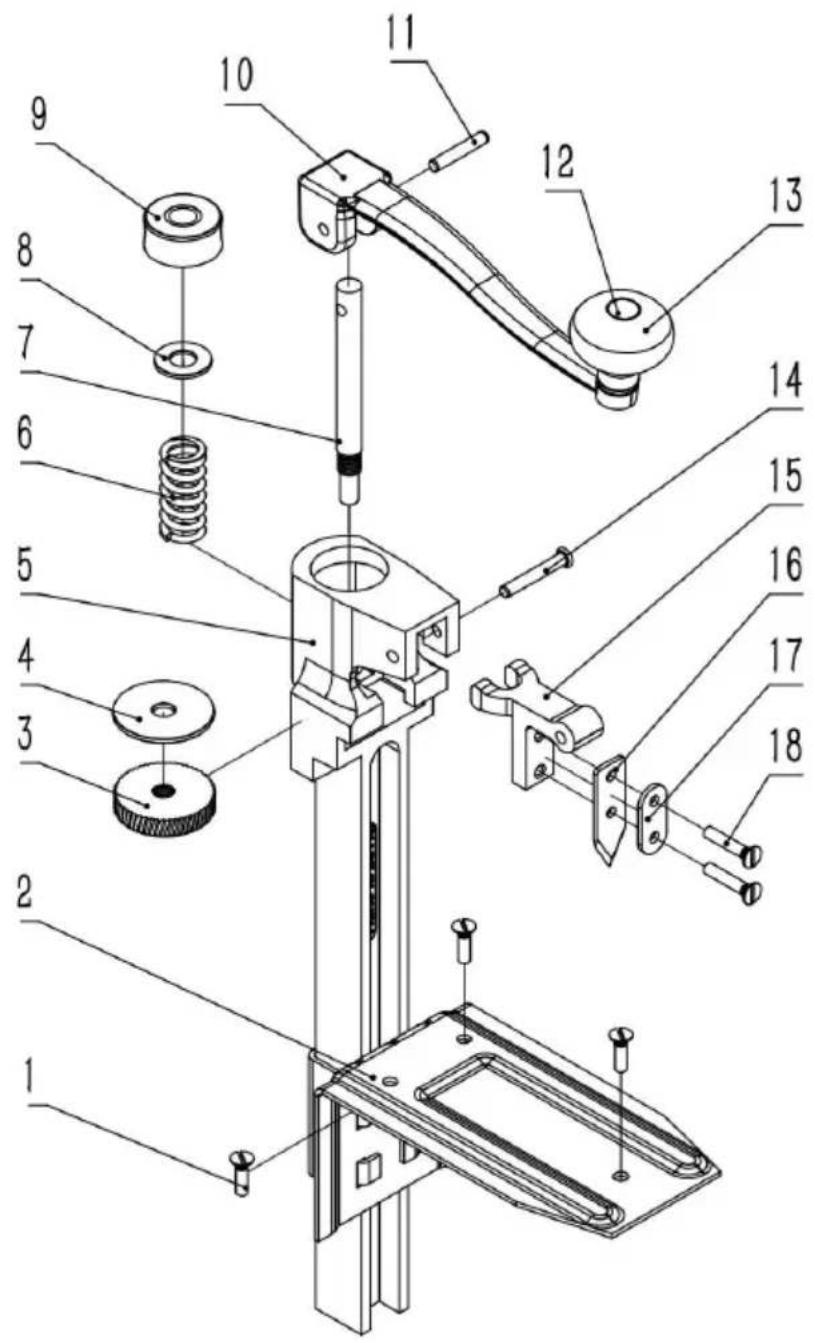

PRODUCT DIAGRAM
*The picture is for reference only, please refer to the actual object.
| Details of accessories | |||||
| 1 | Serew | 7 | Arbor | 13 | Knod |
| 2 | Base | 8 | Sbring Washer | 14 | Knife Holder Pin |
| 3 | Gear | 9 | Bushing | 15 | Knife Holder |
| 4 | Gear Spacer | 10 | Handle | 16 | knife |
| 5 | Body | 11 | Handle Pin | 17 | knife Spacer |
| 6 | Spring | 12 | Kond Rivet | 18 | ScrewBase |
KINDLY REMINDER
NOTE:
- The opening should be near the edge of the jar. Due to the high of the blade, the position of the opening should not be too far away the gear to avoid damaging the blade due to excessive lateral force rotating the rocker arm.
- After use, place the handles together in a horizontal position. Loose spring to extend its service life.
3.Blades and gears are consumables, please check and replace them time.

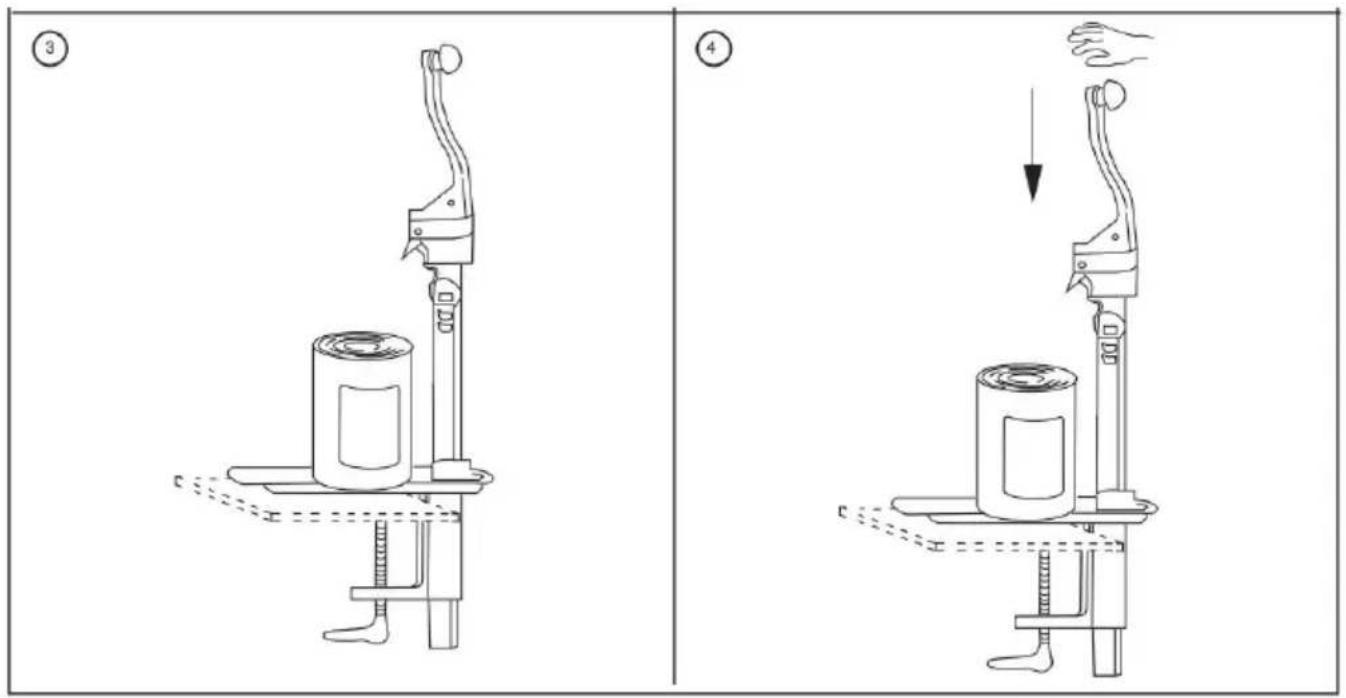

USAGE METHOD

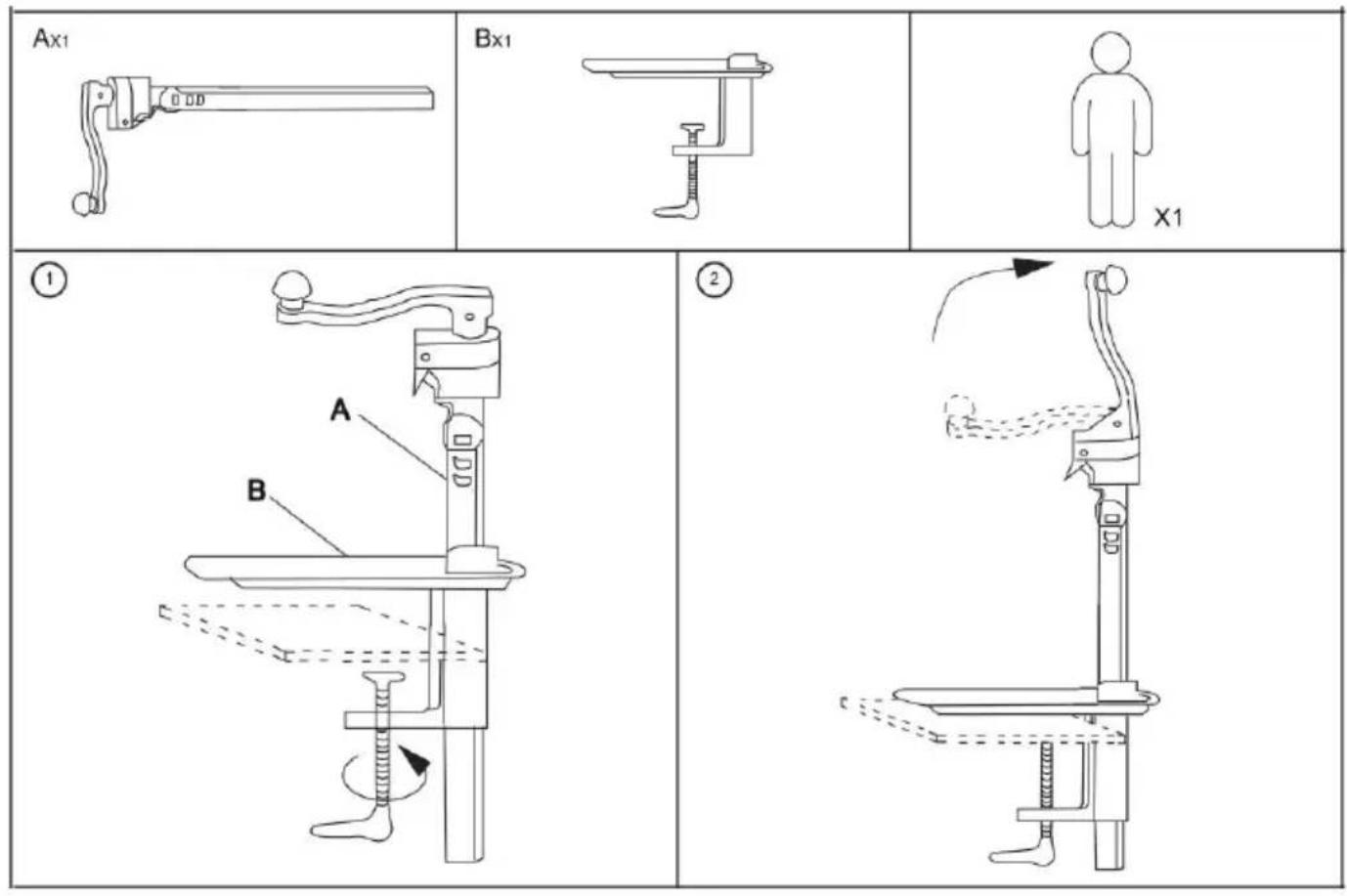

- When using the can opener for the first time, attach the base to a bench with the base screws and place the can on a metal base. The handle is in an illuminated position.
- You will find a slot between the knife and the body. Place the fus into the square hole in the base and properly Pierce the top of the the knife.

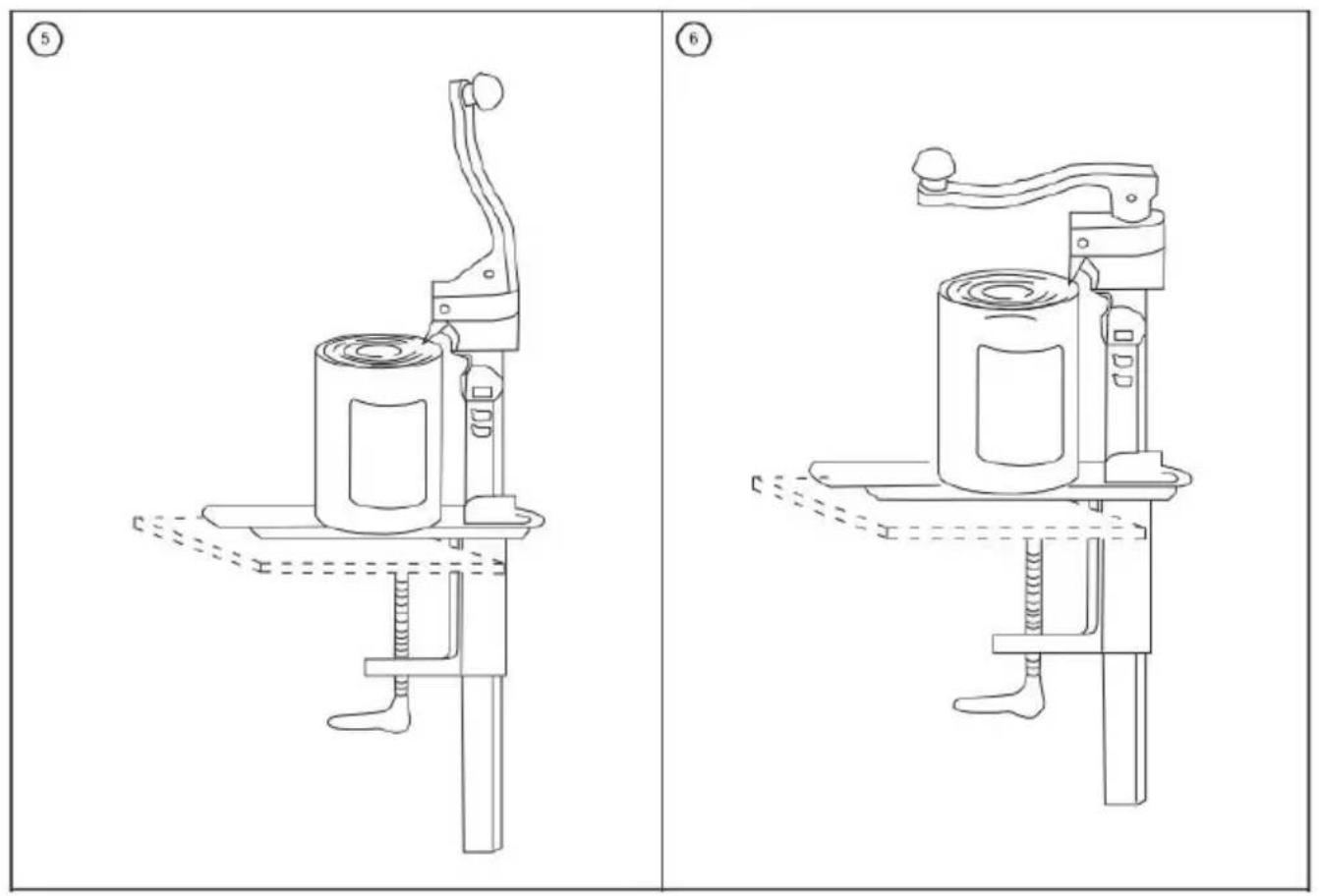

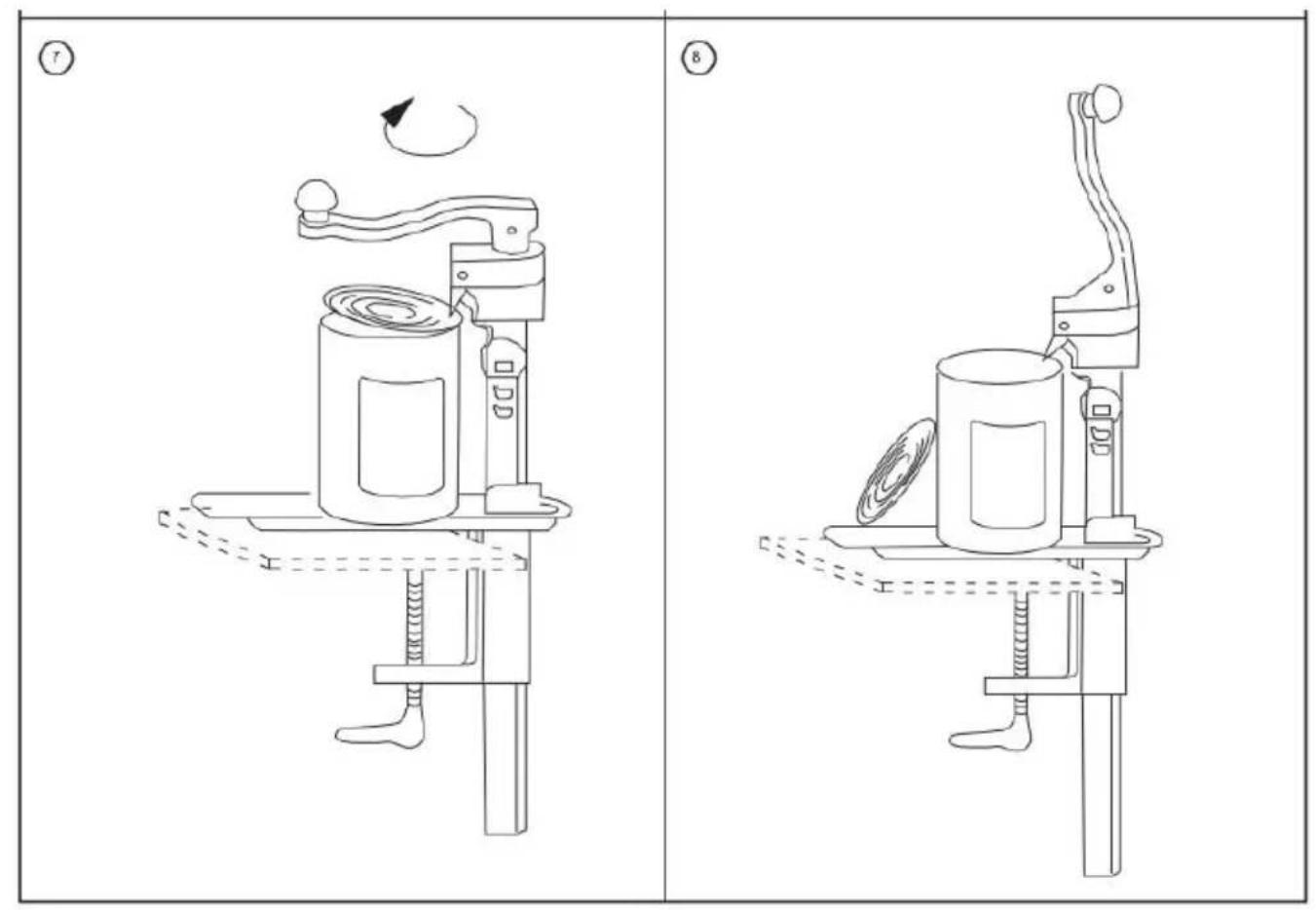

- Bring the handle to the horizontal position and turn the handle to t Can automatically turn until the top of the can rises to cut smoothly, out to prevent falling into the can.
4.Lift handle to upright position. Lift the handle and rod and remove open can.
Change the blade:
Blade replacement is relatively simple, directly unscrew two screws, you can complete the blade replacement.
Change the gear:
- To replace the gear, you need to turn the handle counterclockwise the gear does not rotate (you can choose the appropriate tool to stick remove the parts when the handle rotates.
2.When installing the gear, assemble the washers and other accessories
the original sequence, press down the handle (press the internal spring and turn the handle clockwise to install the gear and other accessories
DIRECTIONS FOR USING

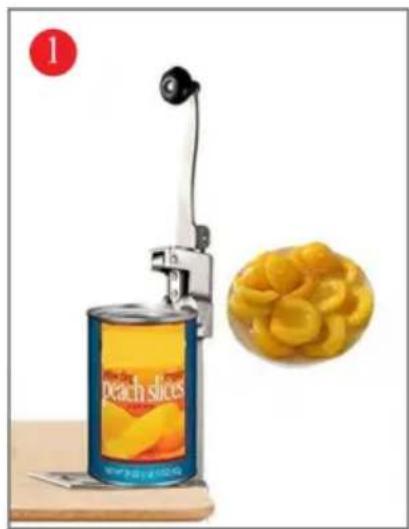

When using the Can Opener at time, fix the base on the table or with base screw, then put can on base. With handle in upright posit you'll find a slot between the knife the body, put the body down to square hole of the base, rightly ma the knife puncture the top of ca

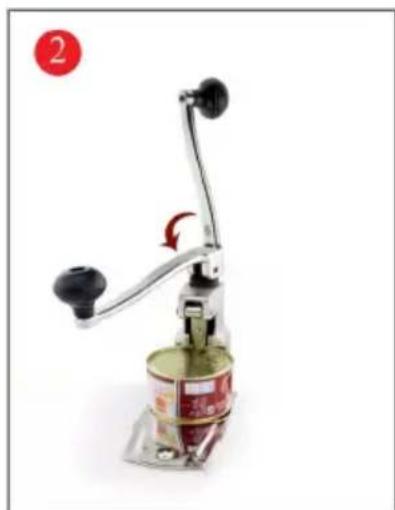

Bring handle to horizontal position and rum handle to right.Can automatically turns around until top of can is smoothly cut out.As top of raises,Lift it out to prevent falling into the cans content

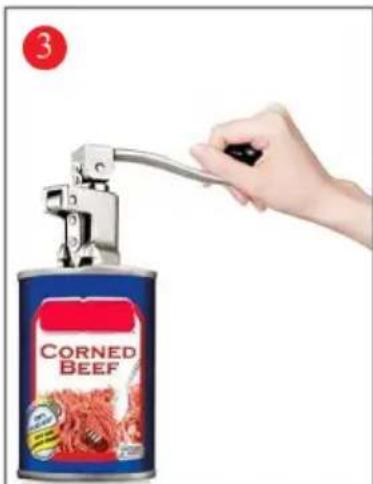

Lift handle to upright position.Lift up handle and b and remove opened can.
WEAR PROTECTIVE GLOVES
EN: Warning! Must wear protective gloves.
DE: Warning! Schutzhandschuheragen.
FR: Avertissement! Portez des gants de protection.
NL: Waarschuwing! Draag beschermende handschoenen.
IT: Avverenza! Indossare guanti protettivi.
PL: Ostrzezenie! Wtóz rrekawice ochonne.
SE: Varning! Skyddshandskar maste anvandas.
ES: iAdvertencia! Debe usar guantes protectores.
DK: Advarsel! Beskytteseshandsker kal anvendes.
NO: Advarsel! Må bruke vernehansker.
PT: Aviso! Deve'utilizar luvas de proteção.
RO: Avertisment! Trebuie sa puratai manusi de protectie.
SI: Opozorilo! Nositi je treba zašcitne rokavice.
HU: Figyelmeztetes! Viseljen védokesztyüt!
CZ: Varovani! Je tbreba nosit ochranné rukavice.
SK: Varovanie! Musite použivat ochranné rukavice.
CLEANING AND MAINTENANCE
Can openers must be cleaned daily or after each extended use. Regular maintenance helps prevent unwanted residue buildup and the growth of harmful bacteria.
1.Use a stainless steel cleaning brush to remove all food and open residue from gears, gear cavities and blades and food and can reside from blades.
2.Clean the blades, gears, and any splash areas on the can opener warm water. Do not allow parts to soak.
3.Dry the cutter, gear, and can opener thoroughly with a dry cloth or
Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai
EC REP: SHUNSHUN GmbH. Römeräcker 9 Z2021,76351
UK REP: Pooledas Group Ltd. Unit 5 Albert Edward House, The Pavilions Preston, United Kingdom
Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia
Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
Made In China
