MM-ZG01-47 - Can opener Vevor - Free user manual and instructions

Product Type	Professional Manual Can Opener
Brand	Vevor
Model	MM-ZG01-47
Main Use	Opening tin cans
Maximum Can Height	300 mm (11 inches)
Maximum Can Diameter	Up to 300 mm (not specified exactly)
Mechanism	Manual rotation by handle, gear and blade
Blade Material	Food grade SUS420
Mounting	Screw-on base to worktop
Additional Function	Automatic cutting when turning the handle
Maintenance	Daily cleaning after use
Cleaning	Stainless steel brush and warm water
Safety	Wear protective gloves during use
Spare Parts Available	Replacement blade, gear, full kit
Repairability	Easy replacement of blade and gear
Included Accessories	Base screws, spare parts kit (depending on model)
Warranty	Electronic warranty certificate available on vevor.com
Manufacturer	Vevor
Country of Origin	China
Approximate Dimensions	Height ~30 cm, width ~15 cm (estimate)
Approximate Weight	1.5 kg (estimate)

Frequently Asked Questions - MM-ZG01-47 Vevor

How to fix the base of the Vevor MM-ZG01-47 can opener?

Use the provided base screws to securely screw the base onto a table or workbench. Ensure the base is stable before use.

How to open a can with this can opener?

Place the can on the metal base, with the handle in vertical position. Insert the edge of the can into the slot between the blade and the body. Lower the handle horizontally and turn it clockwise. The can will rotate automatically and the lid will be cut.

Why doesn't the handle turn during opening?

Check that the can is correctly positioned and the blade is properly engaged. Never turn the handle counterclockwise. If the problem persists, clean the gears and blade.

How to change the blade of the can opener?

Unscrew the two blade fixing screws using a screwdriver. Replace with a new blade and screw back. The blade is a consumable part.

How to replace the gear?

Turn the handle counterclockwise to unlock it. Remove the parts (washers, etc.) in order. Install the new gear by reassembling in reverse order, then turn the handle clockwise to lock.

How to clean the can opener after use?

Use a stainless steel brush to remove residues from blades and gears. Rinse with warm water without soaking the parts. Dry thoroughly with a dry cloth.

What safety precautions should I take?

Always wear protective gloves to avoid cuts. Do not point the blade towards yourself. After use, place the handle in horizontal position to release the spring.

Where can I buy spare parts?

Contact Vevor after-sales service at www.vevor.com/support. A complete parts kit (blade, gear, washers) is available.

Can the can opener open cans of all diameters?

It can open cans with a maximum height of 300 mm (11 inches). The diameter is not explicitly limited, but it is designed for standard cans.

What to do if the blade is dull?

Replace the blade with a new one. Blades are consumable parts and should be checked regularly. Use only Vevor replacement blades.

USER MANUAL MM-ZG01-47 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

COMMERCIAL CAN OPENER INSTRUCTIONS

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when placing an order with us to ensure you are actually saving half in comparison with the top major brands.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

PRODUCT DESCRIPTION

It is used for opening all kinds of iron cans, convenient to operate. It's an ideal utensil for hotels and restaurants.

1. After using it, lay it aside with the handle in a horizontal position to loosen the spring and lengthen its service life.
2. With frequent use, the knife and gear may wear out. For customer's convenience, a complete set of parts is prepared. Please order according to your needs.

SPECIFICATION PARAMETERS

Model	Applicable height	Can opening size
MM-ZG01-47	≤300mm (11 inch)	Can open all diameter cans up 300mm in height.
MM-ZT01-47
MM-BXG-30
MM-ZG02-59	≤400mm(15.7 inch)	Can open all diameter cans up 300mm in height.
MM-BXG-40
Blade material: SUS420 (Food grade, surface hardened.)
NOTE: Open the can clockwise, do not turn the handle counter when opening the can, otherwise it will affect the opening e

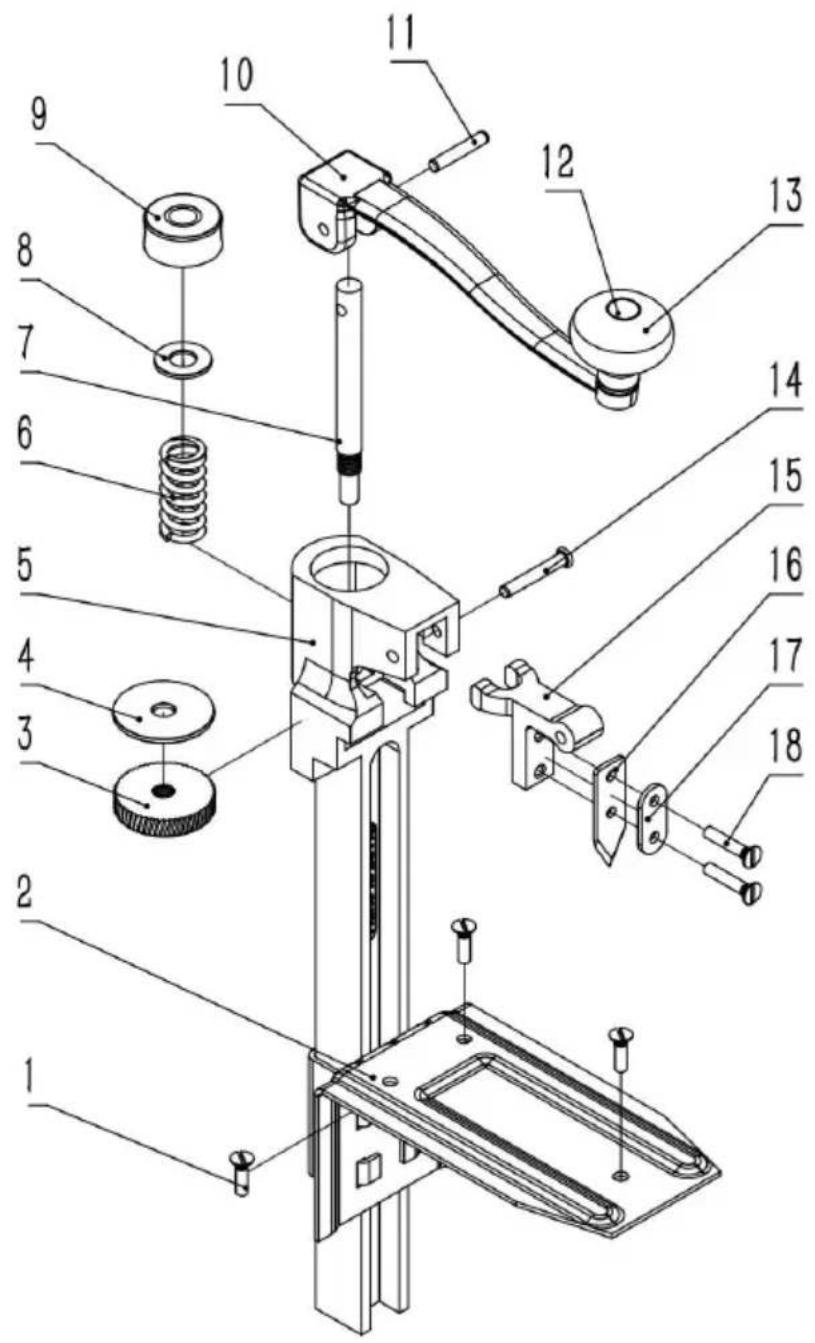

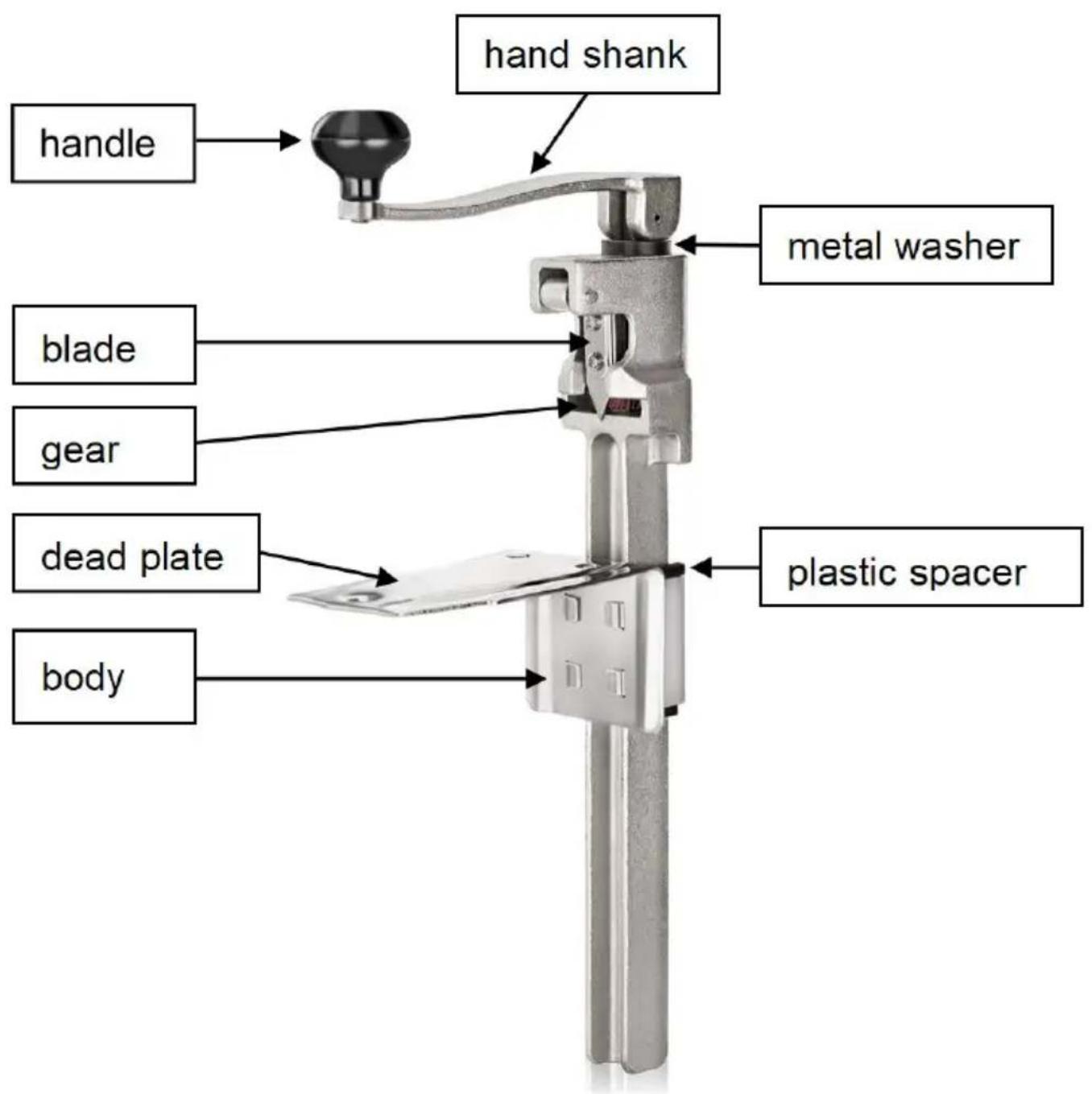

PRODUCT DIAGRAM

*The picture is for reference only, please refer to the actual object.

Details of accessories
1	Serew	7	Arbor	13	Knod
2	Base	8	Sbring Washer	14	Knife Holder Pin
3	Gear	9	Bushing	15	Knife Holder
4	Gear Spacer	10	Handle	16	knife
5	Body	11	Handle Pin	17	knife Spacer
6	Spring	12	Kond Rivet	18	ScrewBase

KINDLY REMINDER

NOTE:

1. The opening should be near the edge of the jar. Due to the height of the blade, the position of the opening should not be too far from the gear to avoid damaging the blade due to excessive lateral force when rotating the rocker arm.
2. After use, place the handles together in a horizontal position. Loosen the spring to extend its service life.
3. Blades and gears are consumables, please check and replace them in time.

USAGE METHOD

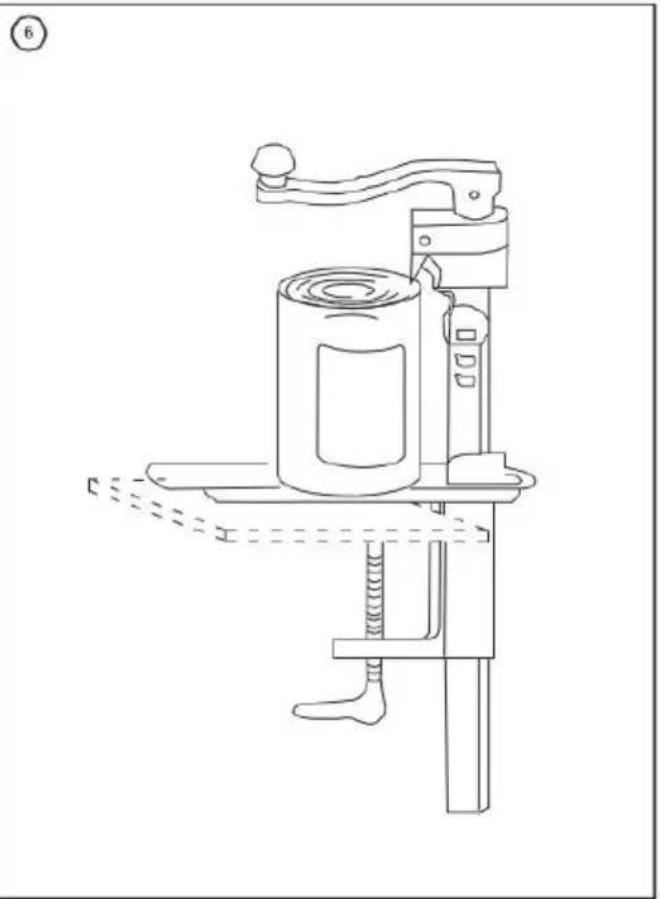

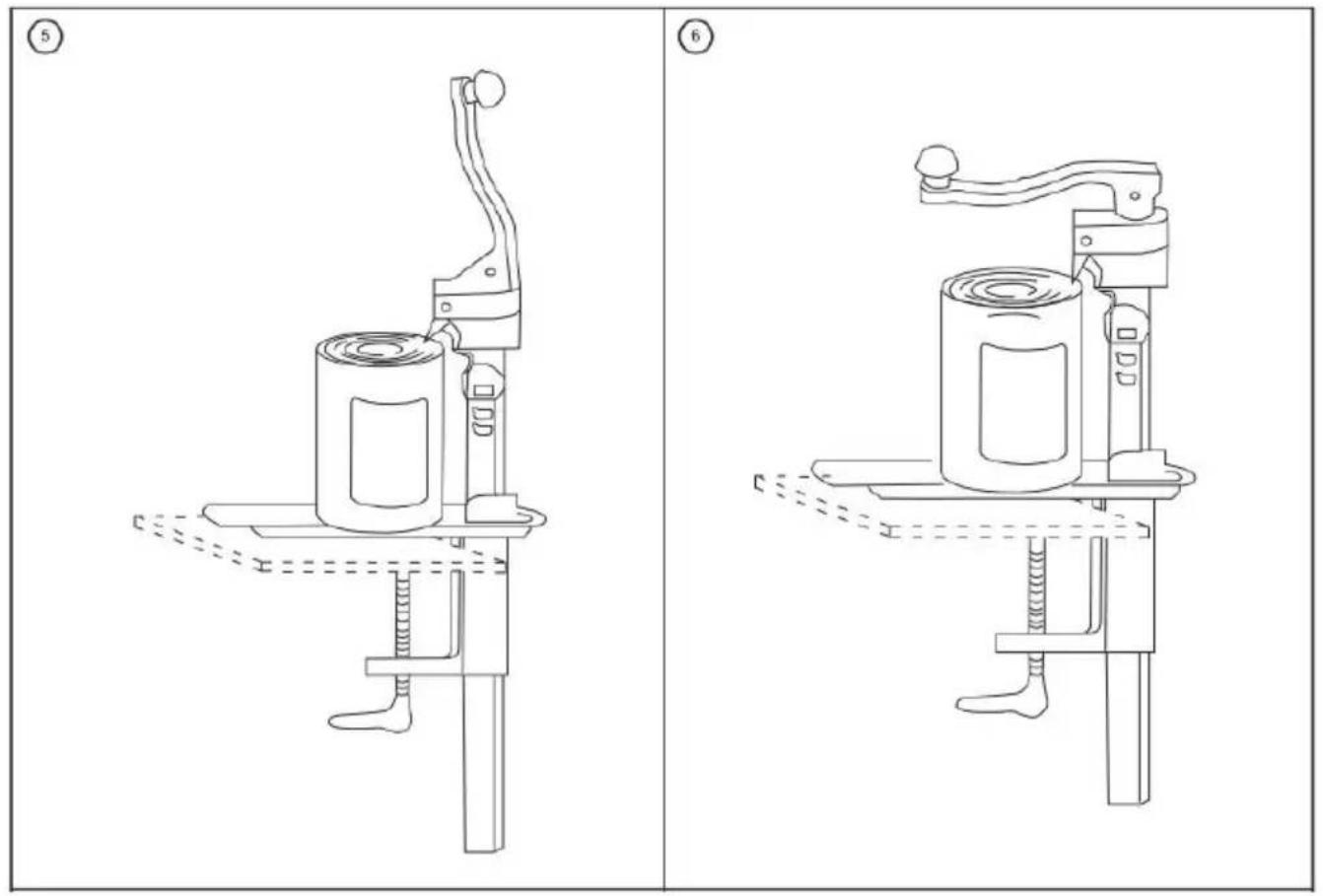

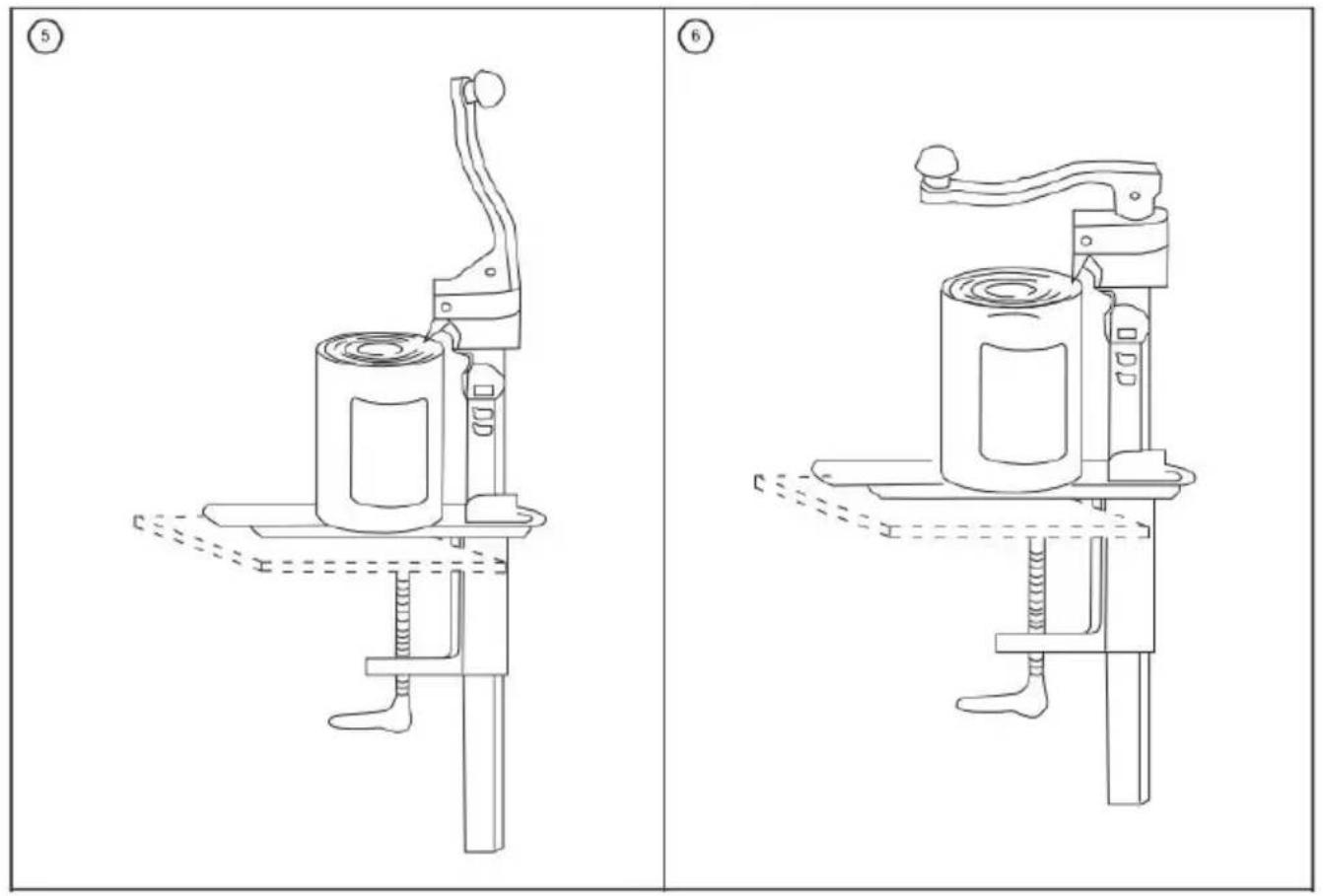

1. When using the can opener for the first time, attach the base to a bench with the base screws and place the can on a metal base. The handle is in an illuminated position.
2. You will find a slot between the knife and the body. Place the can into the square hole in the base and properly pierce the top of the can with the knife.

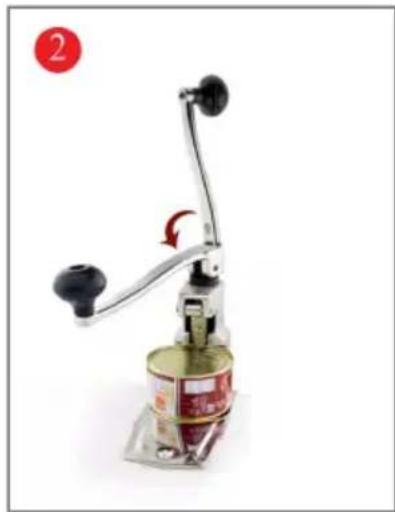

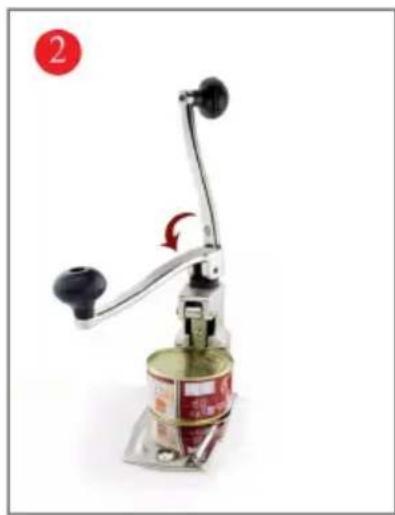

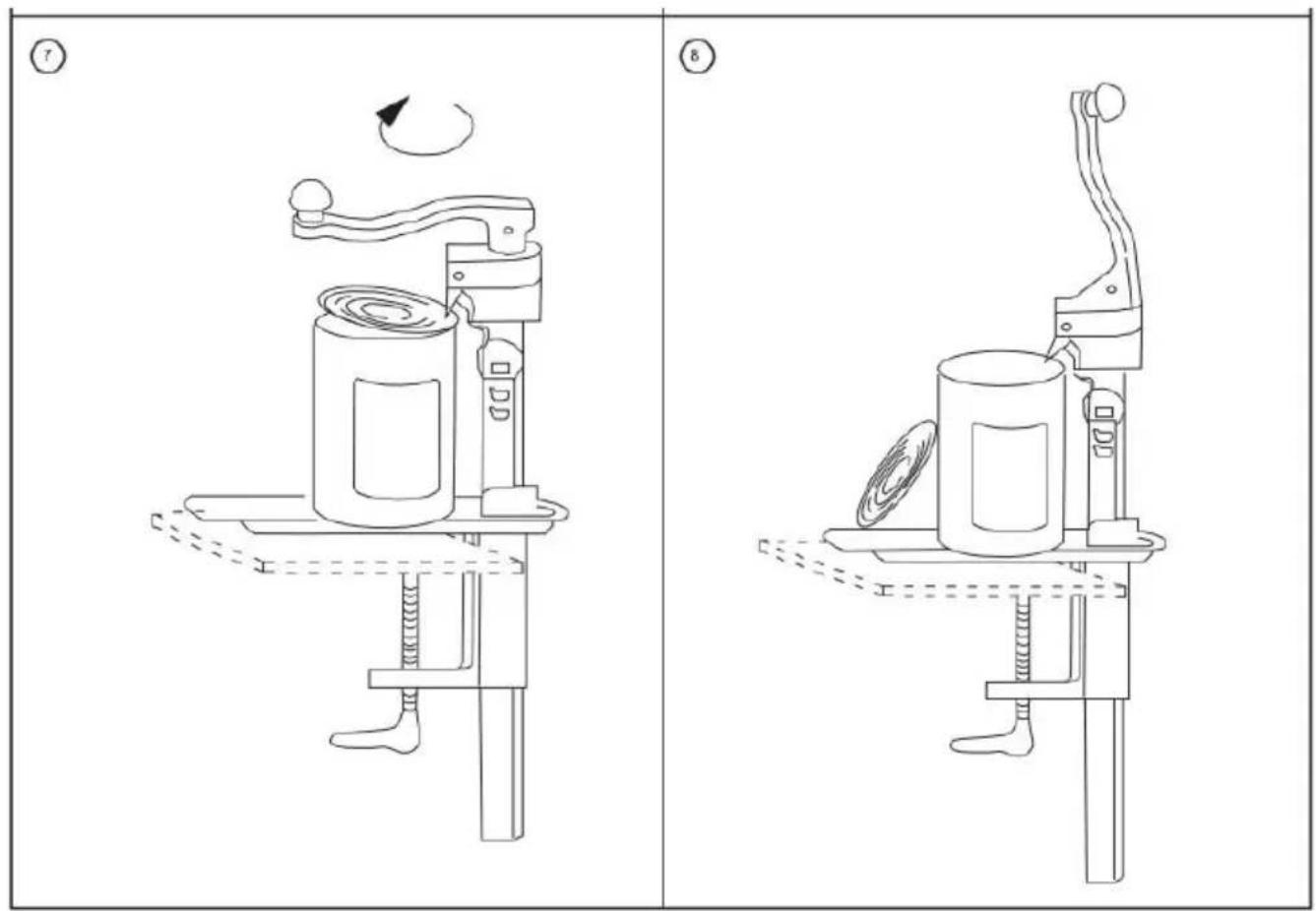

3. Bring the handle to the horizontal position and turn the handle. The can will automatically turn until the top of the can is cut smoothly, and then remove it to prevent it from falling into the can.
4. Lift the handle to the upright position. Lift the handle and rod and remove the open can.

Change the blade:

Blade replacement is relatively simple: directly unscrew two screws, and you can complete the blade replacement.

Change the gear:

1. To replace the gear, you need to turn the handle counterclockwise until the gear does not rotate (you can choose an appropriate tool to stick and remove the parts when the handle rotates).
2. When installing the gear, assemble the washers and other accessories.

in the original sequence, press down the handle (press the internal spring and turn the handle clockwise) to install the gear and other accessories

DIRECTIONS FOR USING

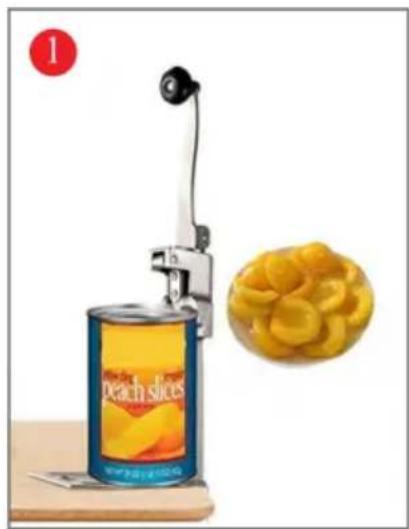

When using the can opener, fix the base on the table or with the base screw, then put the can on the base. With the handle in the upright position, you'll find a slot between the knife and the body. Put the body down into the square hole of the base, rightly making the knife puncture the top of the can.

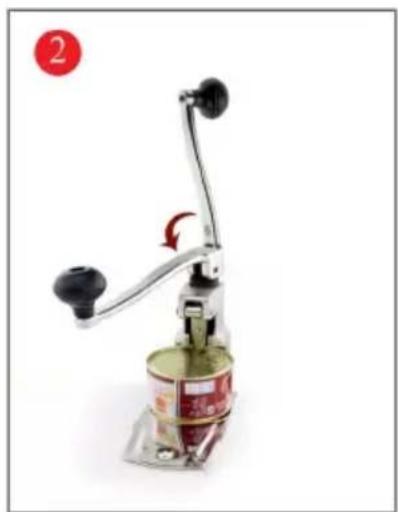

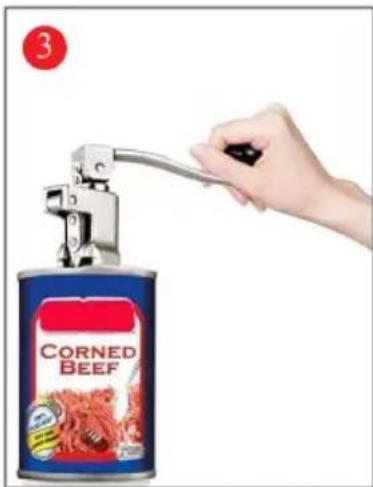

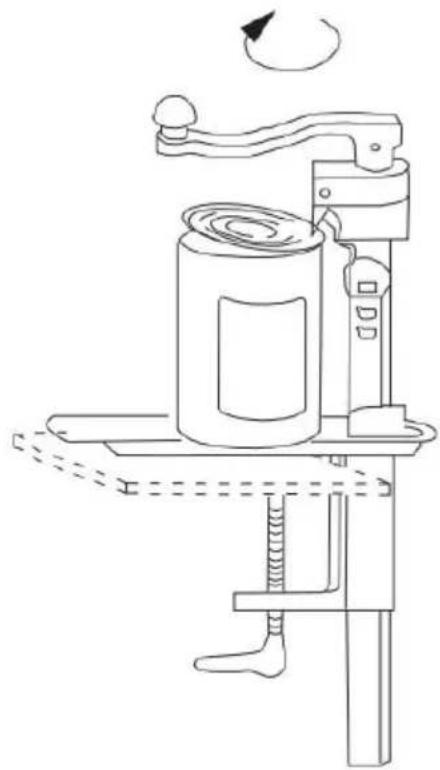

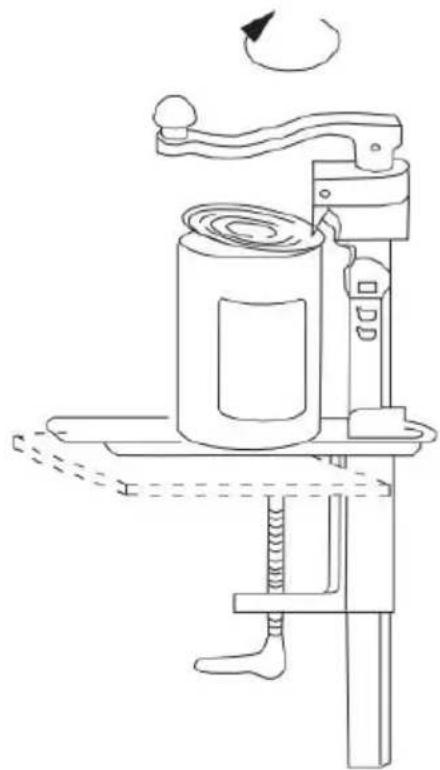

Bring the handle to the horizontal position and turn the handle to the right. The can automatically turns around until the top of the can is smoothly cut out. As the top raises, lift it out to prevent it from falling into the can's contents.

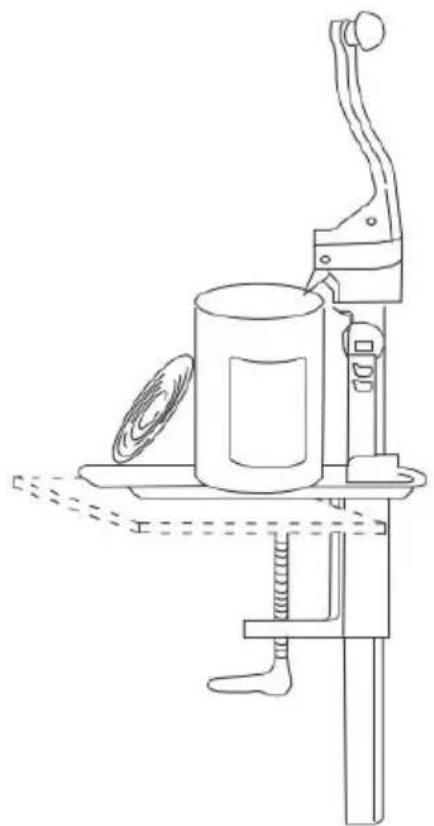

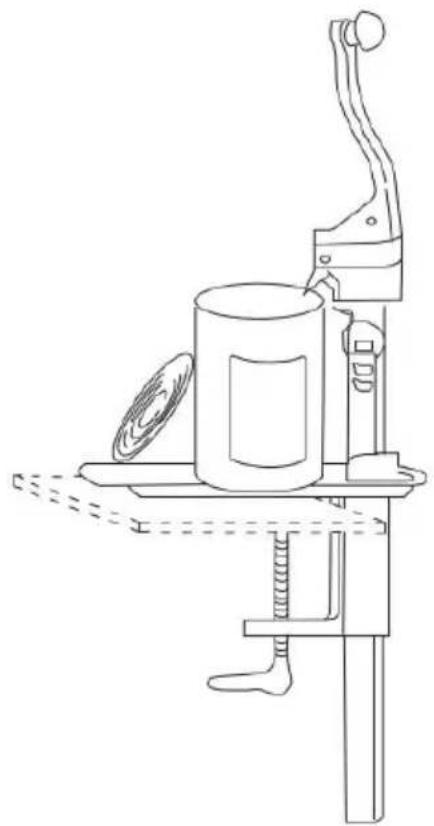

Lift the handle to the upright position. Lift up the handle and remove the opened can.

WEAR PROTECTIVE GLOVES

EN: Warning! Must wear protective gloves.

7

8

CLEANING AND MAINTENANCE

Can openers must be cleaned daily or after each extended use. Regular maintenance helps prevent unwanted residue buildup and the growth of harmful bacteria.

1. Use a stainless steel cleaning brush to remove all food and residue from gears, gear cavities, and blades, and food and can residue from blades.
2. Clean the blades, gears, and any splash areas on the can opener with warm water. Do not allow parts to soak.
3. Dry the cutter, gear, and can opener thoroughly with a dry cloth or

Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai

EC REP: SHUNSHUN GmbH. Römeräcker 9 Z2021,76351

UK REP: Pooledas Group Ltd. Unit 5 Albert Edward House, The Pavilions Preston, United Kingdom

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

Made In China
