USER MANUAL MM-BXG-40 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

COMMERCIAL CAN OPENER INSTRUCTIONS

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

Mechanical switch device with handle and base plate (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

PRODUCT DESCRIPTION

It is used for opening all kinds of iron cans, convenient to operate. It's ideal utensil for hotels and restaurants.

1. After using it, Lay it aside with the handle to horizontal position, so a loosen the spring, lengthen the service life of it.
2. Often used, knife and gear may be worn for customer's convenience, prepared completed set of parts, please order according to your need.

SPECIFICATION PARAMETERS

Model	Applicable height	Can opening size
MM-ZG01-47	≤300mm (11 inch)	Can open all diameter cans up 300mm in height.
MM-ZT01-47
MM-BXG-30
MM-ZG02-59	≤400mm(15.7 inch)	Can open all diameter cans up 300mm in height.
MM-BXG-40
Blade material: SUS420 (Food grade, surface hardened.)
NOTE: Open the can clockwise, do not turn the handle counter when opening the can, otherwise it will affect the opening e

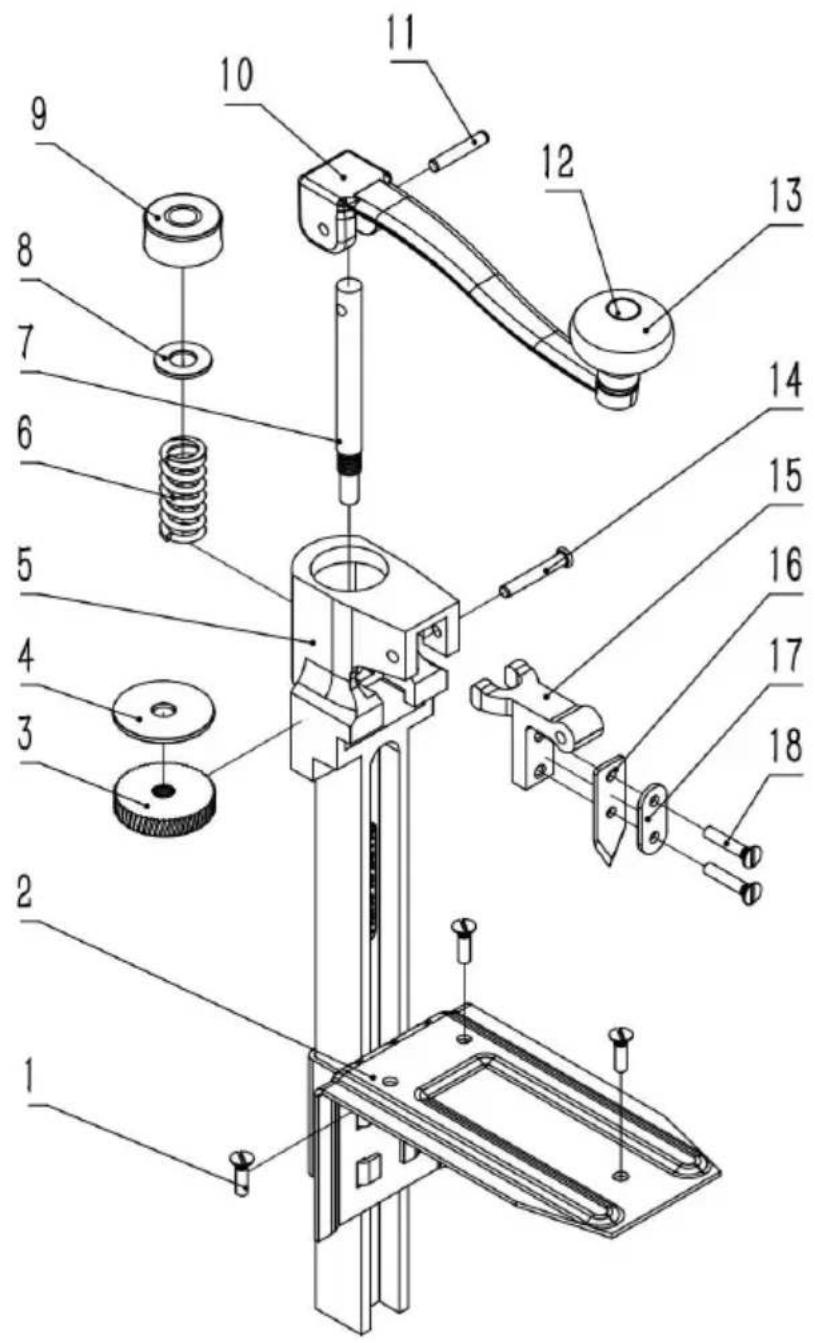

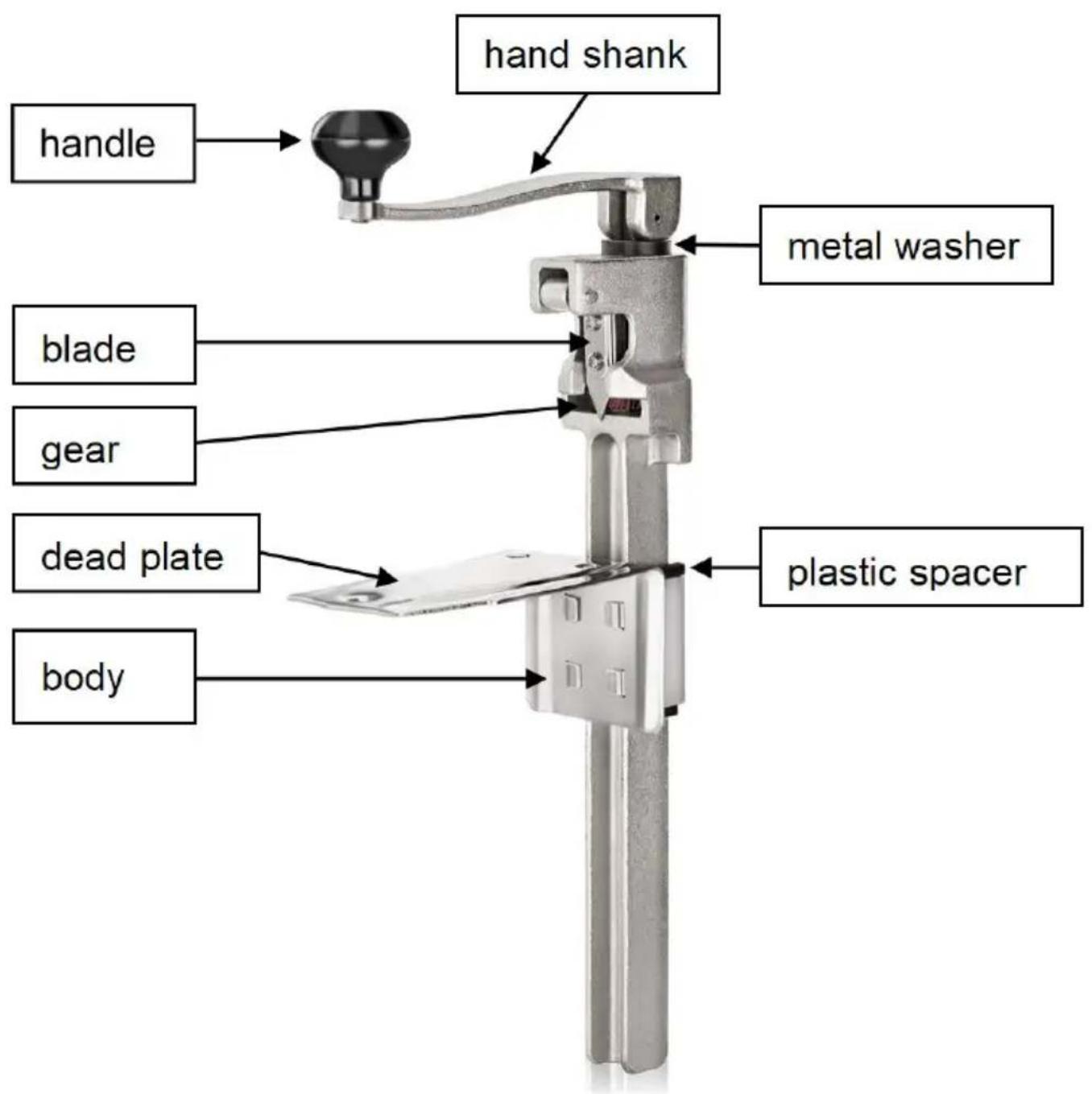

PRODUCT DIAGRAM

hand shank handle metal washer blade gear dead plate body plastic spacer

*The picture is for reference only, please refer to the actual object.

Technical diagram of a mechanical assembly with numbered parts for identification

Details of accessories
1	Serew	7	Arbor	13	Knod
2	Base	8	Sbring Washer	14	Knife Holder Pin
3	Gear	9	Bushing	15	Knife Holder
4	Gear Spacer	10	Handle	16	knife
5	Body	11	Handle Pin	17	knife Spacer
6	Spring	12	Kond Rivet	18	ScrewBase

KINDLY REMINDER

NOTE:

1. The opening should be near the edge of the jar. Due to the high of the blade, the position of the opening should not be too far away the gear to avoid damaging the blade due to excessive lateral force rotating the rocker arm.
2. After use, place the handles together in a horizontal position. Loose spring to extend its service life.
3. Blades and gears are consumables, please check and replace them time.

USAGE METHOD

1. When using the can opener for the first time, attach the base to a bench with the base screws and place the can on a metal base. The handle is in an illuminated position.
2. You will find a slot between the knife and the body. Place the fus into the square hole in the base and properly Pierce the top of the the knife.
3. Bring the handle to the horizontal position and turn the handle to t Can automatically turn until the top of the can rises to cut smoothly, out to prevent falling into the can.
4. Lift handle to upright position. Lift the handle and rod and remove open can.

Change the blade:

Blade replacement is relatively simple, directly unscrew two screws, yo can complete the blade replacement.

Change the gear:

1. To replace the gear, you need to turn the handle counterclockwise the gear does not rotate (you can choose the appropriate tool to stick remove the parts when the handle rotates.
2. When installing the gear, assemble the washers and other accessories

the original sequence, press down the handle (press the internal spring and turn the handle clockwise to install the gear and other accessories

DIRECTIONS FOR USING

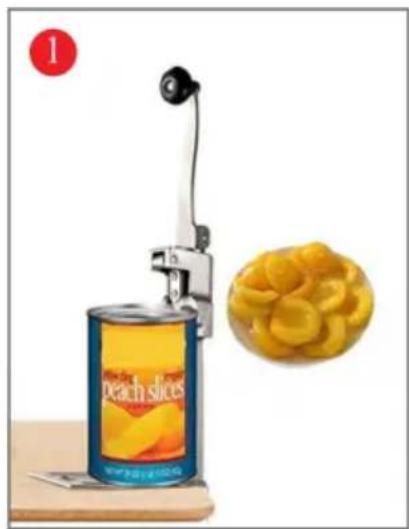

A canister labeled 'peach slices' with a close-up of golden bananas, next to a bowl of cooked beans (no text or symbols on the can itself)

Mechanical presser with lever mechanism and cup holder (no visible text or symbols)

When using the Can Opener at time, fix the base on the table or with base screw, then put can on base. With handle in upright position you'll find a slot between the knife, the body, put the body down to square hole of the base, rightly maize the knife puncture the top of ca

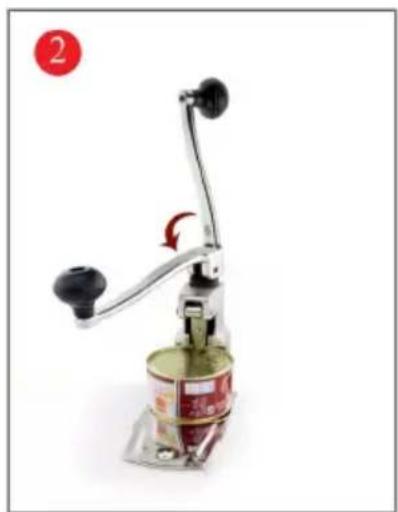

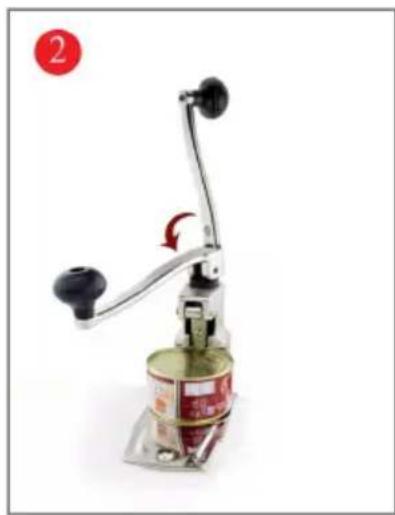

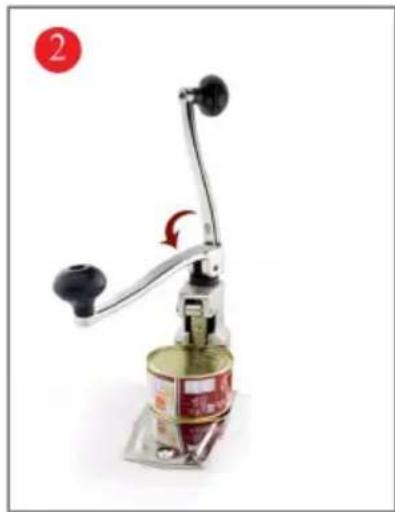

Bring handle to horizontal position and rum handle to right.Can automatically turns around until top of can is smoothly cut out.As top of raises,Lift it out to prevent falling into the cans content

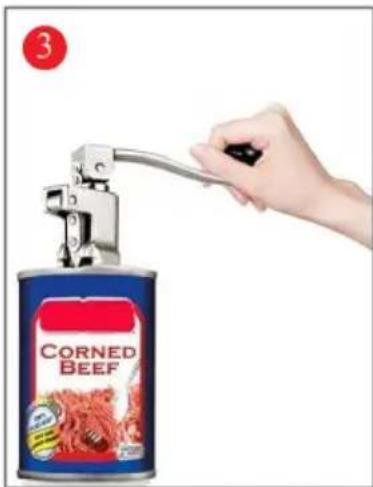

3 CORNED BEEF

Lift handle to upright position. Lift up handle and b and rimove opened can.

Symbolic icon of a hand holding a finger, enclosed in a black circle (no text or symbols)

WEAR PROTECTIVE GLOVES

EN: Warning! Must wear protective gloves.

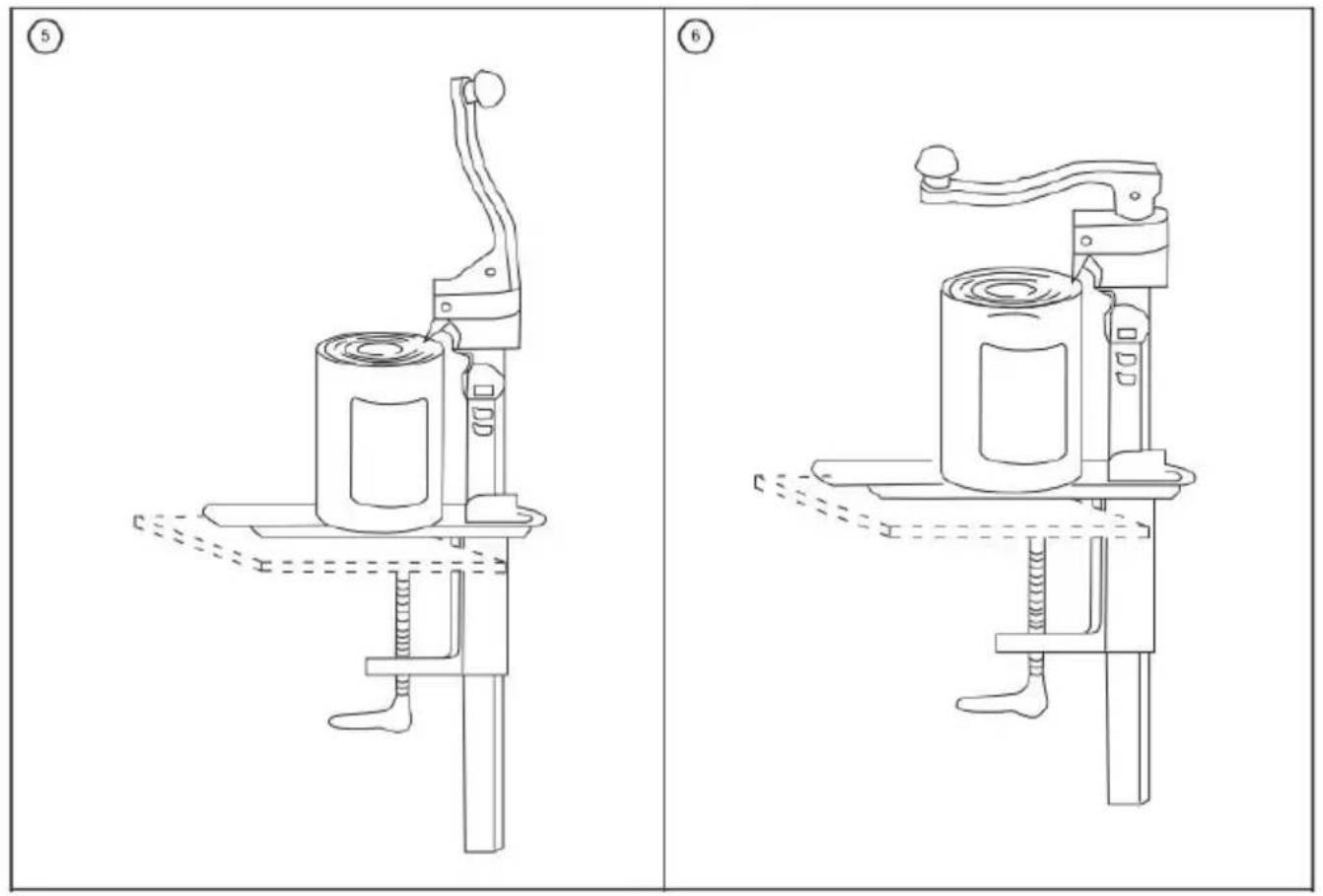

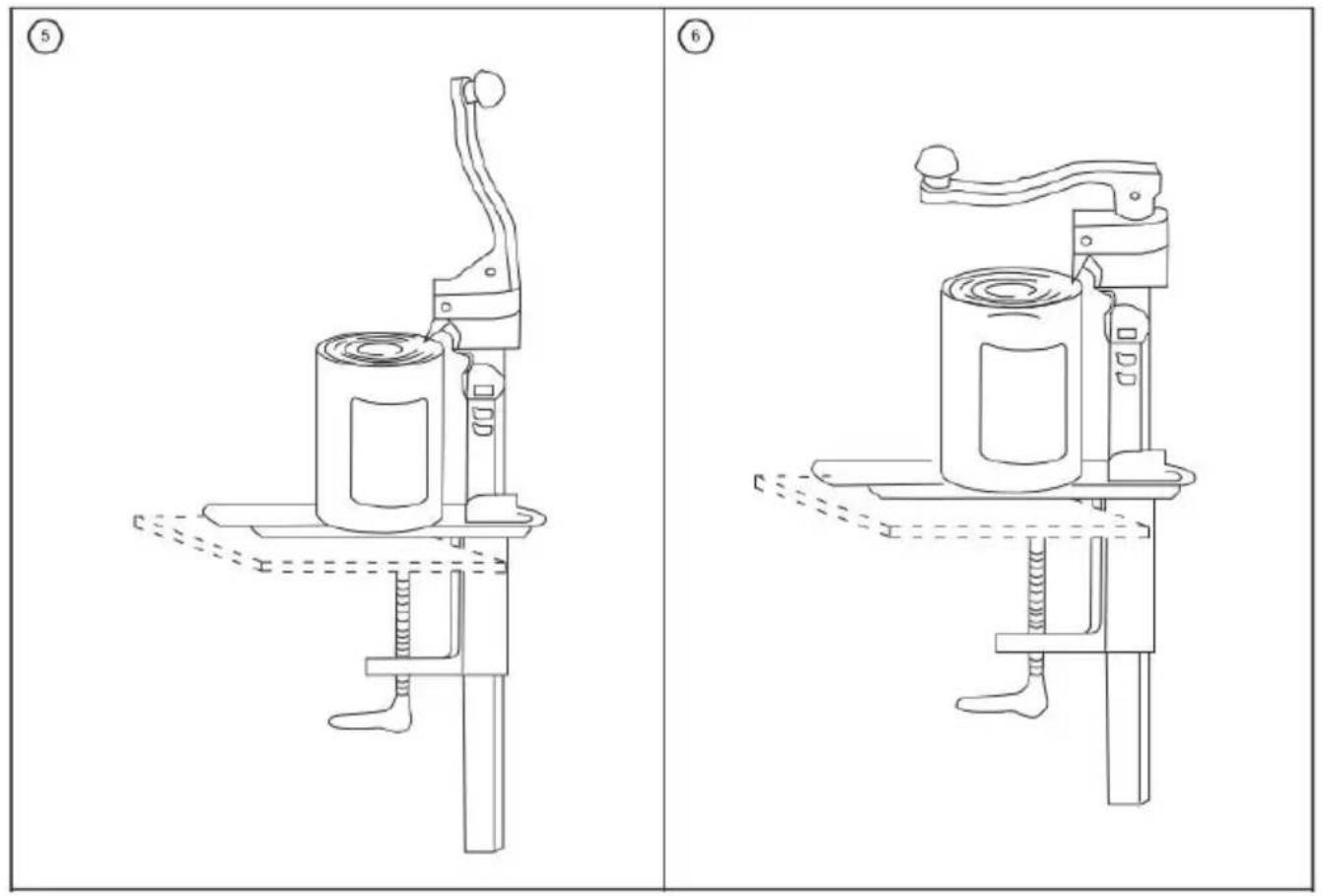

Technical diagram showing two mechanical device states labeled ③ and ④, with a hand gesture indicating movement or force direction.

7

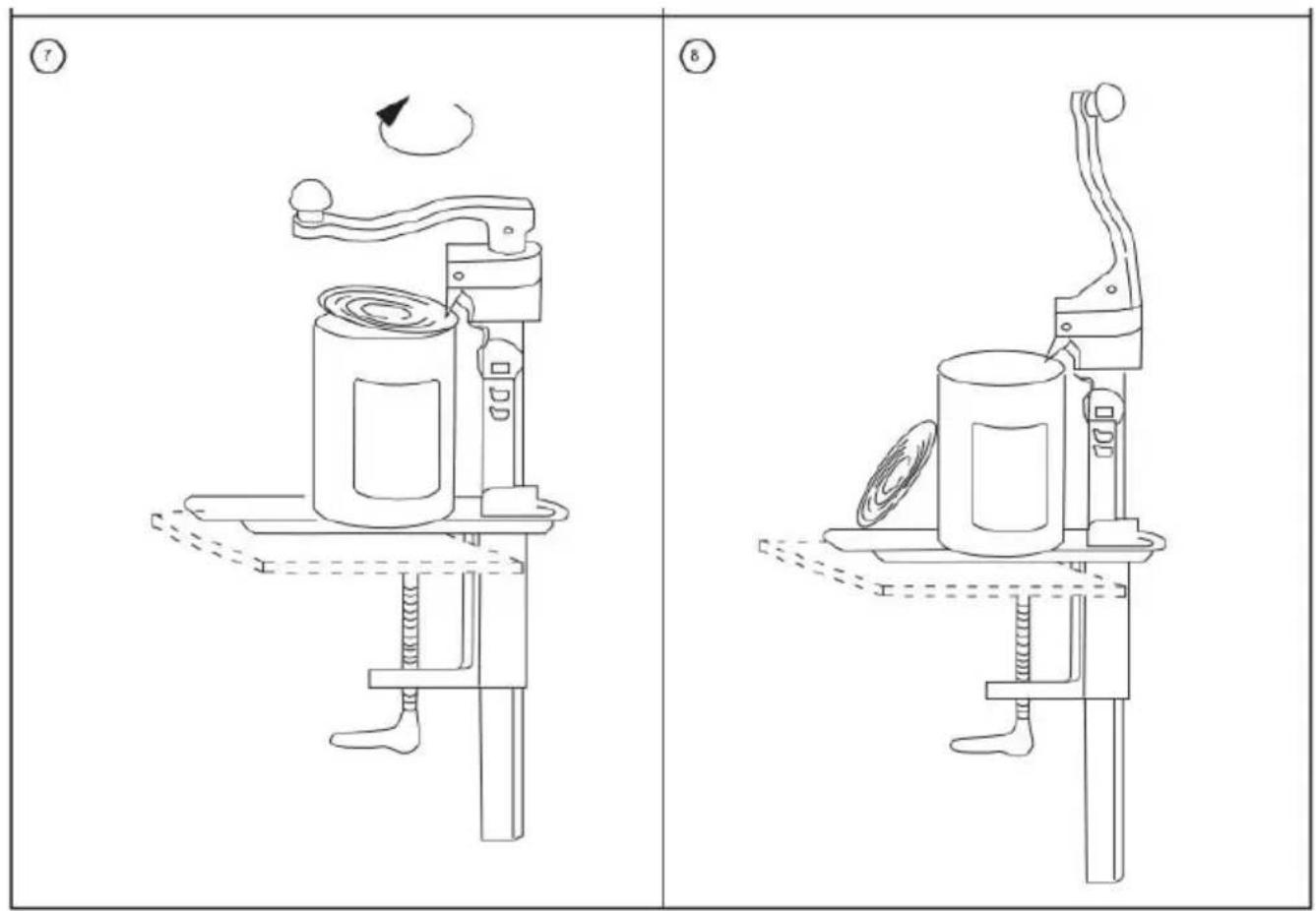

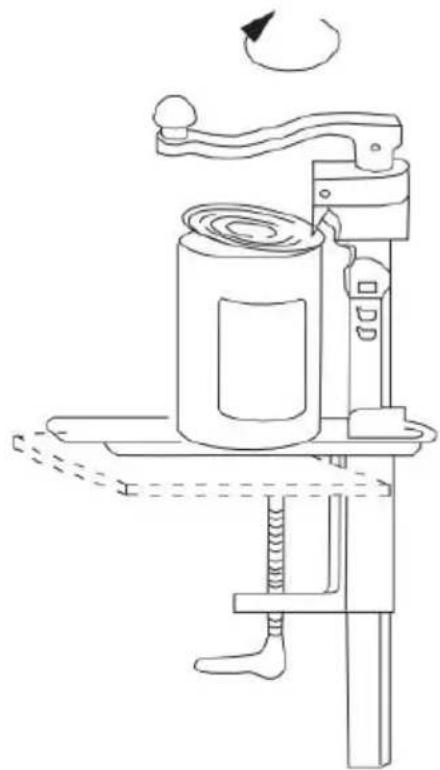

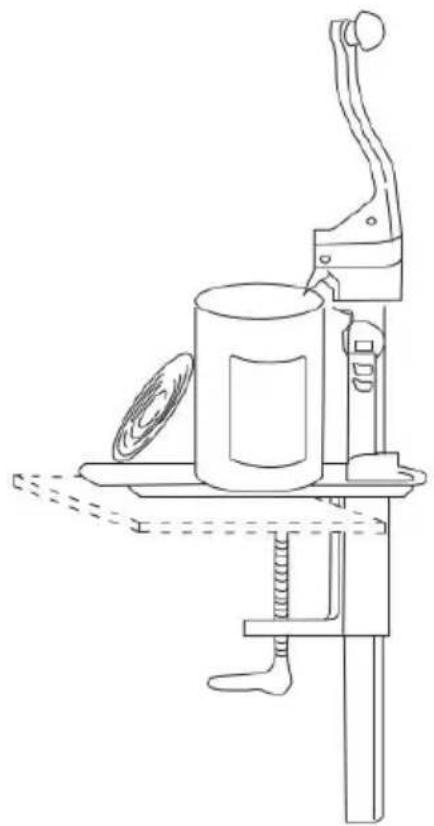

Line drawing of a mechanical device with a cylindrical component and lever mechanism (no text or symbols)

8

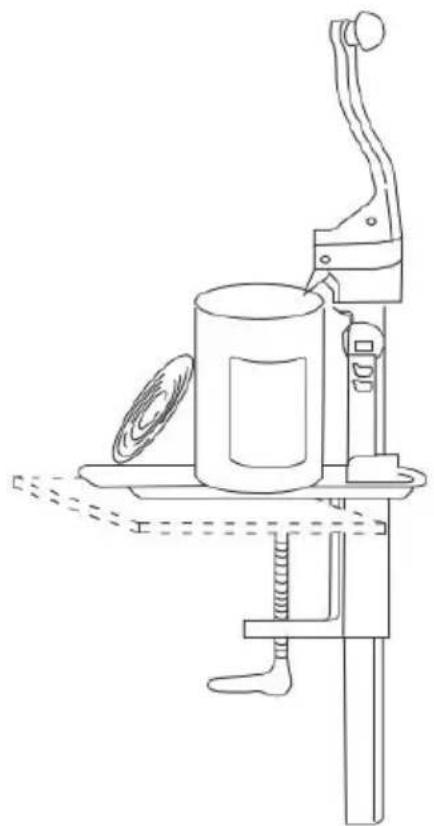

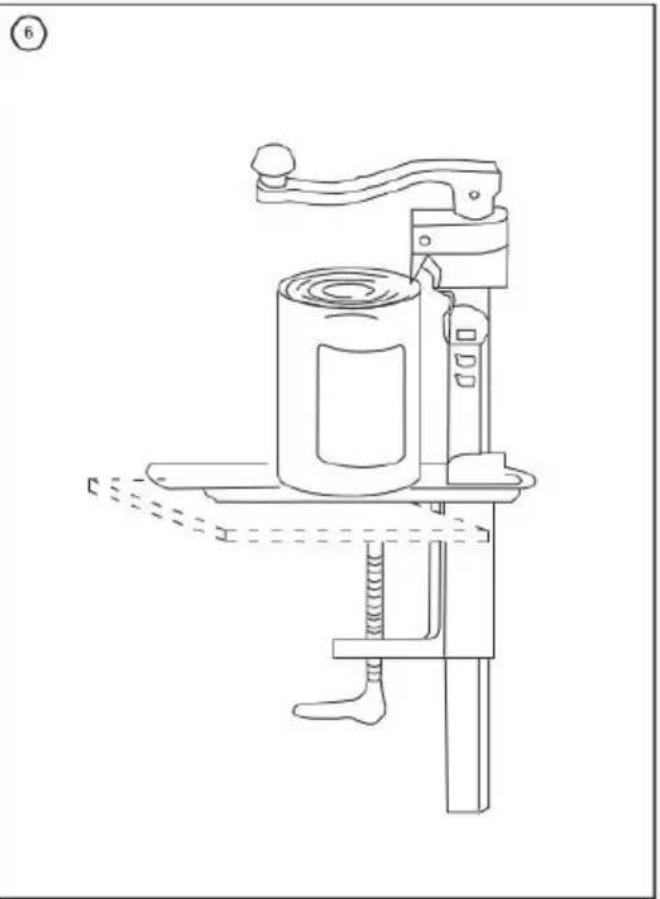

Line drawing of a mechanical clamp or crimping device with a cylindrical container and foot, no text or symbols present.

CLEANING AND MAINTENANCE

Can openers must be cleaned daily or after each extended use. Regular maintenance helps prevent unwanted residue buildup and the growth of harmful bacteria.

1. Use a stainless steel cleaning brush to remove all food and open residue from gears, gear cavities and blades and food and can residue from blades.
2. Clean the blades, gears, and any splash areas on the can opener warm water. Do not allow parts to soak.
3. Dry the cutter, gear, and can opener thoroughly with a dry cloth or

Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai

EC REP: SHUNSHUN GmbH. Römeräcker 9 Z2021,76351

UK REP: Pooledas Group Ltd. Unit 5 Albert Edward House, The Pavilions Preston, United Kingdom

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

Made In China

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

Mechanical switch device with handle and base plate (no visible text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

PRODUCT DESCRIPTION

Technical diagram of a mechanical assembly with numbered parts for identification

Details of accessories
1	Serew	7	Arbor	13	Knod
2	Base	8	Sbring Washer	14	Knife Holder Pin
3	Gear	9	Bushing	15	Knife Holder
4	Gear Spacer	10	Handle	16	knife
5	Body	11	Handle Pin	17	knife Spacer
6	Spring	12	Kond Rivet	18	ScrewBase

KINDLY REMINDER

NOTE:

A canister labeled 'peach slices' with a close-up of sliced yellow food items, placed on a wooden surface (no text or symbols on the can itself)

Mechanical hand tool with a container and lever mechanism, no visible text or symbols

Symbolic icon of a hand holding a glove, enclosed in a black circle (no text or symbols)

PORTER DES PROTECTEURS GANTS

EN: Warning! Must wear protective gloves.

Technical line drawing of a mechanical clamp or measuring device with no visible text or symbols

Line drawing of a mechanical device with a cylindrical component and lever mechanism (no text or symbols)

Technical diagram showing two mechanical device configurations with labeled parts and rotation indicators

CLEANING AND MAINTENANCE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

Mechanical lever assembly with handle and base plate (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

PRODUCT DESCRIPTION

Technical diagram of a mechanical assembly with numbered parts for identification

Details of accessories
1	Serew	7	Arbor	13	Knod
2	Base	8	Sbring Washer	14	Knife Holder Pin
3	Gear	9	Bushing	15	Knife Holder
4	Gear Spacer	10	Handle	16	knife
5	Body	11	Handle Pin	17	knife Spacer
6	Spring	12	Kond Rivet	18	ScrewBase

KINDLY REMINDER

NOTIZ:

A can with a peach slice being cut by an open tool, alongside a photo of sliced yellow fruit (no text or symbols visible)

Mechanical presser with a container and lever mechanism, no visible text or symbols

Hand using a manual lever to lift a corned beef can (no text or symbols visible on the can itself)

Symbolic icon of a hand holding a palm, enclosed in a black circle (no text or symbols)

TRAGEN SIE SCHUTZ HANDSCHUHE

EN: Warning! Must wear protective gloves.

Technical line drawing of a mechanical clamp or measuring device with no visible text or symbols

Line drawing of a mechanical device with a cylindrical component and lever mechanism (no text or symbols)

Technical diagram showing two mechanical device configurations with labeled parts and rotation indicators

CLEANING AND MAINTENANCE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

Metal mechanical lever assembly with handle and base plate (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

PRODUCT DESCRIPTION

Technical diagram of a mechanical assembly with numbered parts for identification

Details of accessories
1	Serew	7	Arbor	13	Knod
2	Base	8	Sbring Washer	14	Knife Holder Pin
3	Gear	9	Bushing	15	Knife Holder
4	Gear Spacer	10	Handle	16	knife
5	Body	11	Handle Pin	17	knife Spacer
6	Spring	12	Kond Rivet	18	ScrewBase

KINDLY REMINDER

NOTA:

A can labeled 'peach slices' with a close-up of sliced yellow food items, placed on a wooden surface (no text or symbols on the can itself)

Mechanical presser with a stack of cash and a hand handle, no visible text or symbols

Hand using a manual lever to lift a corned beef can (no text or symbols visible on the can itself)

Symbolic icon of a hand holding a palm, enclosed in a black circle (no text or symbols)

PROTETTIVO ALL'USURA GUANTI

EN: Warning! Must wear protective gloves.

Technical line drawing of a mechanical clamp or measuring device with no visible text or symbols

Line drawing of a mechanical device with a cylindrical component and lever mechanism (no text or symbols)

Technical diagram showing two mechanical device configurations with labeled parts and rotation indicators

CLEANING AND MAINTENANCE

REP UK : Pooledas Group Ltd. Unit 5 Albert Edward House, The Pavilions

Importato in AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD

NSW 2122 Australia

Anaheim Place, Rancho Cucamonga, CA 91730

Made in China

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

Mechanical clamp device with handle and base plate (no visible text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

PRODUCT DESCRIPTION

Technical diagram of a mechanical assembly with numbered parts for identification

Details of accessories
1	Serew	7	Arbor	13	Knod
2	Base	8	Sbring Washer	14	Knife Holder Pin
3	Gear	9	Bushing	15	Knife Holder
4	Gear Spacer	10	Handle	16	knife
5	Body	11	Handle Pin	17	knife Spacer
6	Spring	12	Kond Rivet	18	ScrewBase

KINDLY REMINDER

NOTA:

Illustration of a peach slicing can with a hand operating it, alongside a photo of sliced oranges (no text or symbols on the objects)

Mechanical presser with a container and lever mechanism, no visible text or symbols

Hand using a manual lever to lift a corned beef can (no text or symbols visible on the can itself)

Symbolic icon of a hand holding a glove, enclosed in a black circle (no text or symbols)

EN: Warning! Must wear protective gloves.

Technical line drawing of a mechanical clamp or measuring device with no visible text or symbols

Line drawing of a mechanical device with a cylindrical component and lever mechanism (no text or symbols)

Technical diagram showing two mechanical device configurations with labeled parts and rotation indicators

CLEANING AND MAINTENANCE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

Mechanical switch device with handle and base plate (no visible text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

PRODUCT DESCRIPTION

Technical diagram of a mechanical assembly with numbered parts for identification

Details of accessories
1	Serew	7	Arbor	13	Knod
2	Base	8	Sbring Washer	14	Knife Holder Pin
3	Gear	9	Bushing	15	Knife Holder
4	Gear Spacer	10	Handle	16	knife
5	Body	11	Handle Pin	17	knife Spacer
6	Spring	12	Kond Rivet	18	ScrewBase

KINDLY REMINDER

NOTATKA:

Illustration of a peach slicing can with a hand tool and a close-up of sliced oranges (no text or symbols on the objects)

Mechanical presser with a container and lever mechanism, no visible text or symbols

Symbolic icon of a hand holding a palm, enclosed in a black circle (no text or symbols)

NOSIĆ ŚRODKI OCHRONNE RĘKAWICE

EN: Warning! Must wear protective gloves.

Technical line drawing of a mechanical clamp or measuring device with no visible text or symbols

Line drawing of a mechanical device with a cylindrical component and lever mechanism (no text or symbols)

Technical diagram showing two mechanical device configurations with labeled parts and rotation indicators

CLEANING AND MAINTENANCE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technisch Ondersteuning en e-garantiecertificaat www.vevor.com/support

COMMERCIËLE BLIKOPENER INSTRUCTIES

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

Mechanical switch device with handle and base plate (no visible text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

PRODUCT DESCRIPTION

Technical diagram of a mechanical assembly with numbered parts for identification

Details of accessories
1	Serew	7	Arbor	13	Knod
2	Base	8	Sbring Washer	14	Knife Holder Pin
3	Gear	9	Bushing	15	Knife Holder
4	Gear Spacer	10	Handle	16	knife
5	Body	11	Handle Pin	17	knife Spacer
6	Spring	12	Kond Rivet	18	ScrewBase

KINDLY REMINDER

OPMERKING:

A can labeled 'peach slices' with a close-up of sliced pieces on a plate (no text or symbols on the can itself)

Mechanical presser with a stack of cash and a hand handle, no visible text or symbols

Hand using a manual lever to lift a corned beef can (no text or symbols visible on the can itself)

Symbolic icon of a hand holding a palm, enclosed in a black circle (no text or symbols)

DRAAG BESCHERMEND HANDSCHOENEN

EN: Warning! Must wear protective gloves.

Technical line drawing of a mechanical clamp or measuring device with no visible text or symbols

Line drawing of a mechanical device with a cylindrical component and lever mechanism (no text or symbols)

Technical diagram showing two mechanical device configurations with labeled parts and rotation indicators

CLEANING AND MAINTENANCE

UK REP : Pooledas Group Ltd. Unit 5 Albert Edward House, The Pavilions

Anaheim Place, Rancho Cucamonga, CA 91730

Gemaakt in China

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

Mechanical switch device with handle and base plate (no visible text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

PRODUCT DESCRIPTION

Technical diagram of a mechanical assembly with numbered parts for identification

Details of accessories
1	Serew	7	Arbor	13	Knod
2	Base	8	Sbring Washer	14	Knife Holder Pin
3	Gear	9	Bushing	15	Knife Holder
4	Gear Spacer	10	Handle	16	knife
5	Body	11	Handle Pin	17	knife Spacer
6	Spring	12	Kond Rivet	18	ScrewBase

KINDLY REMINDER

NOTERA:

A can with a lid and a plate of sliced yellow fruit, no text or symbols visible.

Mechanical presser with a wooden handle and metal base, showing a rotary knob and a stack of contents (no text or symbols visible)

Symbolic icon of a hand holding a finger, enclosed in a black circle (no text or symbols)

BÄR SKYDD HANDSKAR

EN: Warning! Must wear protective gloves.

Technical diagram showing two mechanical device states labeled ③ and ④, with a hand gesture indicating movement or force direction.

7

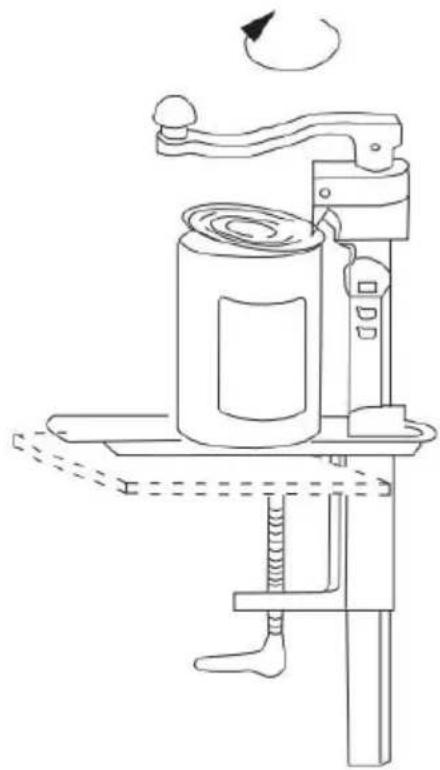

Line drawing of a mechanical device with a can and lever mechanism, no text or symbols present

8

Line drawing of a manual press machine with a cylindrical container and lever (no text or symbols)

CLEANING AND MAINTENANCE

www.vevor.com/support
