MM-ZG02-59 - Can opener Vevor - Free user manual and instructions

Product Type	Professional Can Opener
Brand	Vevor
Model	MM-ZG02-59
Blade Material	SUS420 Stainless Steel (food grade)
Maximum Can Height	400 mm (15.7 inches)
Maximum Can Diameter	300 mm (11.8 inches)
Recommended Use	Ideal for hotels, restaurants, and professional kitchens
Operation	Automatic can rotation during opening; handle in horizontal position to release spring after use
Mounting	Screw base onto a table or workbench
Safety	Wear protective gloves during use
Maintenance	Daily cleaning with warm water and a stainless steel brush; dry thoroughly after cleaning
Spare Parts Available	Replacement blade and replacement gear (consumables)
Blade Replacement	Unscrew two screws to replace the blade
Gear Replacement	Turn the handle counterclockwise to remove the old gear; install the new one by turning clockwise
Included Accessories	Metal base, mounting screws, set of replacement blades and gears (depending on batch)
Country of Manufacture	China
Warranty	Electronic warranty certificate available at www.vevor.com/support

Frequently Asked Questions - MM-ZG02-59 Vevor

How to use the Vevor MM-ZG02-59 can opener?

Secure the base onto a stable table using the screws. Place the can on the metal base. Lower the handle to the horizontal position and turn it to the right. The can rotates automatically and the knife cuts the top. When the lid lifts, raise the handle and remove the opened can.

How to clean the can opener after use?

Use a stainless steel brush to remove food residues from blades, gears, and cavities. Clean with warm water without soaking parts. Dry thoroughly with a dry cloth.

How to replace the can opener blade?

Replacement is simple: unscrew the two screws holding the blade, remove the old blade, and install the new one. Retighten the screws.

How to replace the can opener gear?

Turn the handle counterclockwise to remove the old gear. Assemble the washers and accessories in the original order. Press the handle (to compress the internal spring) and turn it clockwise to install the new gear.

What safety precautions should be taken?

Always wear protective gloves during use. Do not turn the handle counterclockwise during opening, as this could damage the blade. After use, place the handle in the horizontal position to release the spring.

What types of cans can be opened with this model?

It can open all kinds of tin cans, with a maximum height of 400 mm and a maximum diameter of 300 mm.

Where can I find spare parts?

Replacement blades and gears are available. Contact Vevor customer service via www.vevor.com/support or refer to the electronic warranty certificate.

How to mount the can opener base?

Use the provided screws to screw the base onto a solid table or workbench. Ensure the base is stable before using the appliance.

What to do if the blade no longer cuts properly?

Check the condition of the blade and gear. If the blade is dull or damaged, replace it. Also clean accumulated residues. If the problem persists, the gear may be worn and should be replaced.

How to extend the lifespan of the can opener?

After each use, place the handle in the horizontal position to release the spring. Clean the appliance regularly and replace blades and gears as soon as they show signs of wear.

USER MANUAL MM-ZG02-59 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

COMMERCIAL CAN OPENER INSTRUCTIONS

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

Mechanical switch device with handle and base plate (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

PRODUCT DESCRIPTION

It is used for opening all kinds of iron cans, convenient to operate. It's ideal utensil for hotels and restaurants.

1. After using it, Lay it aside with the handle to horizontal position, so a loosen the spring, lengthen the service life of it.
2. Often used, knife and gear may be worn for customer's convenience, prepared completed set of parts, please order according to your need.

SPECIFICATION PARAMETERS

Model	Applicable height	Can opening size
MM-ZG01-47	≤300mm (11 inch)	Can open all diameter cans up 300mm in height.
MM-ZT01-47
MM-BXG-30
MM-ZG02-59	≤400mm(15.7 inch)	Can open all diameter cans up 300mm in height.
MM-BXG-40
Blade material: SUS420 (Food grade, surface hardened.)
NOTE: Open the can clockwise, do not turn the handle counter when opening the can, otherwise it will affect the opening e

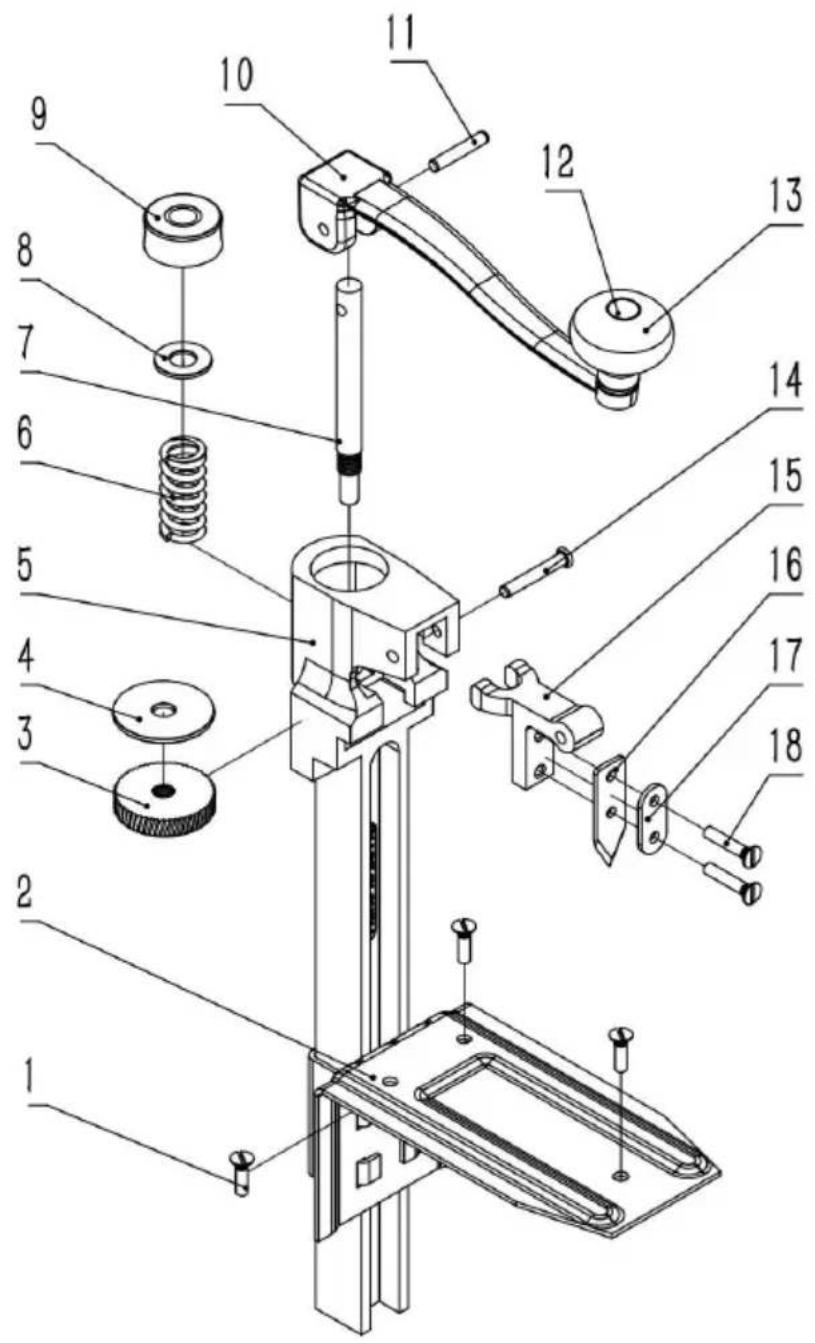

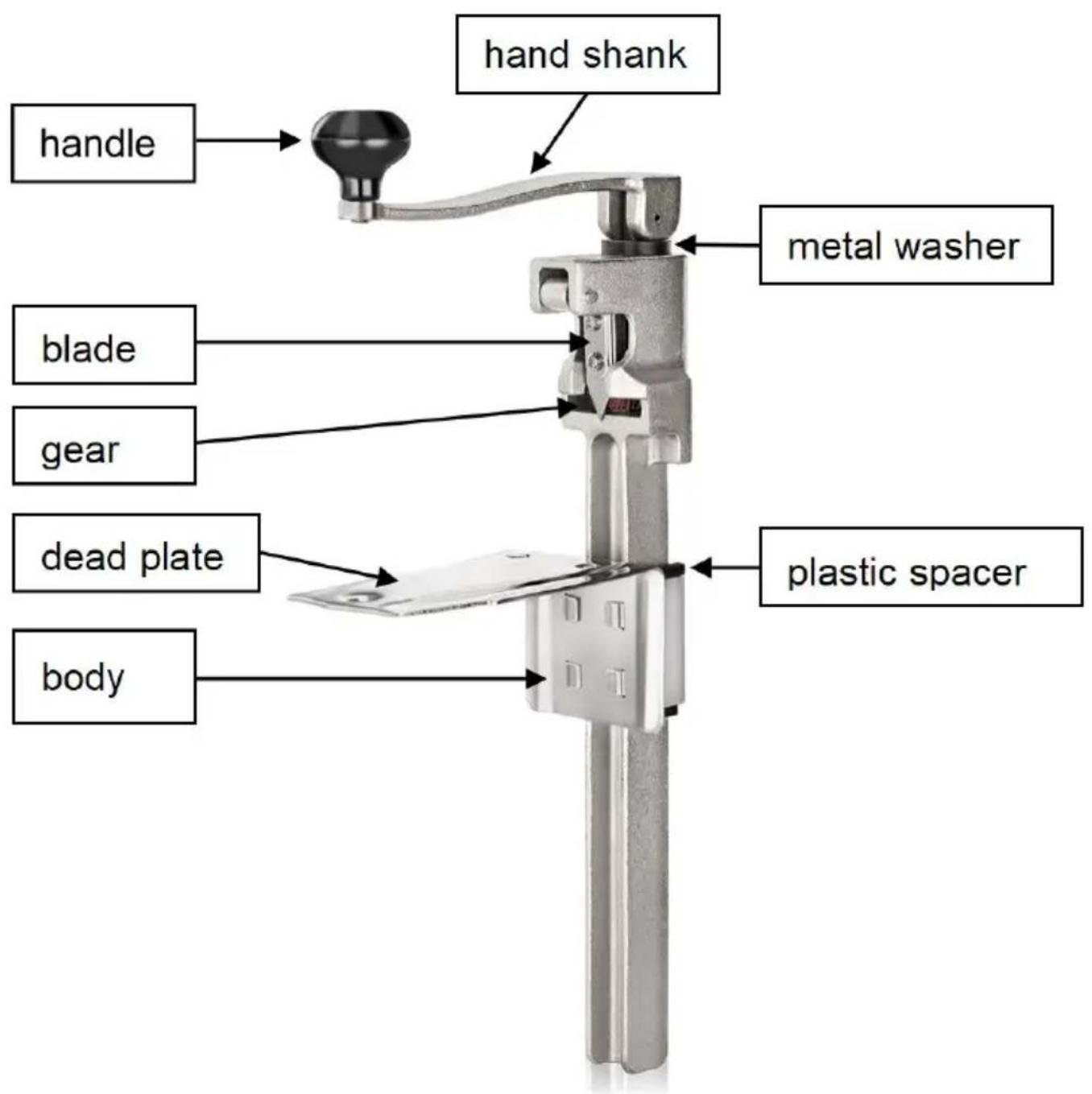

PRODUCT DIAGRAM

*The picture is for reference only, please refer to the actual object.

Details of accessories
1	Serew	7	Arbor	13	Knod
2	Base	8	Sbring Washer	14	Knife Holder Pin
3	Gear	9	Bushing	15	Knife Holder
4	Gear Spacer	10	Handle	16	knife
5	Body	11	Handle Pin	17	knife Spacer
6	Spring	12	Kond Rivet	18	ScrewBase

KINDLY REMINDER

NOTE:

1. The opening should be near the edge of the jar. Due to the high of the blade, the position of the opening should not be too far away the gear to avoid damaging the blade due to excessive lateral force rotating the rocker arm.
2. After use, place the handles together in a horizontal position. Loose spring to extend its service life.
3. Blades and gears are consumables, please check and replace them time.

USAGE METHOD

1. When using the can opener for the first time, attach the base to a bench with the base screws and place the can on a metal base. The handle is in an illuminated position.
2. You will find a slot between the knife and the body. Place the fus into the square hole in the base and properly Pierce the top of the the knife.

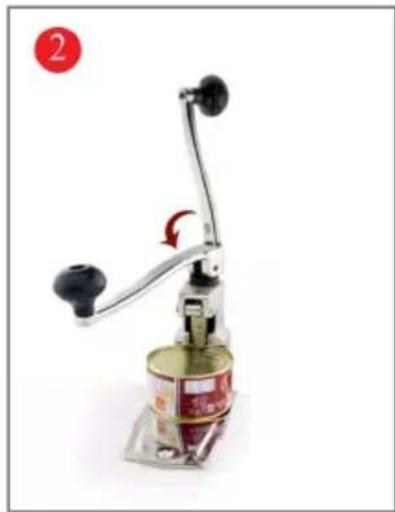

3. Bring the handle to the horizontal position and turn the handle to t Can automatically turn until the top of the can rises to cut smoothly, out to prevent falling into the can.
4. Lift handle to upright position. Lift the handle and rod and remove open can.

Change the blade:

Blade replacement is relatively simple, directly unscrew two screws, yo can complete the blade replacement.

Change the gear:

1. To replace the gear, you need to turn the handle counterclockwise the gear does not rotate (you can choose the appropriate tool to stick remove the parts when the handle rotates.

2. When installing the gear, assemble the washers and other accessories

the original sequence, press down the handle (press the internal spring and turn the handle clockwise to install the gear and other accessories

DIRECTIONS FOR USING

A canister labeled 'peach slices' with a close-up of golden bananas, next to a bowl of cooked beans (no text or symbols on the can itself)

Mechanical presser with lever mechanism and cup holder (no visible text or symbols)

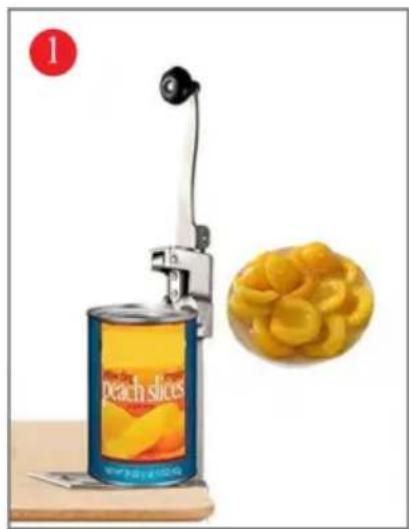

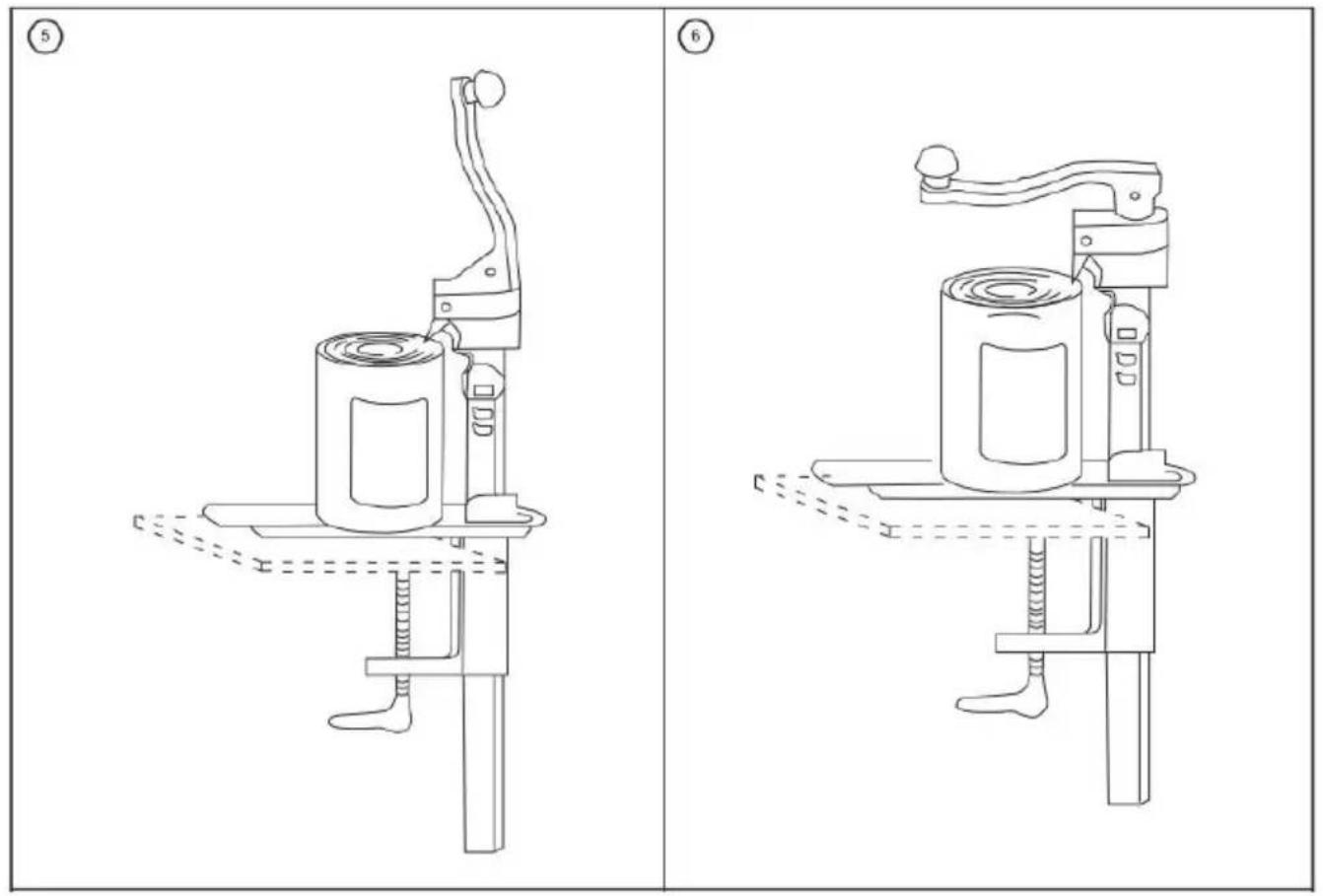

When using the Can Opener at time, fix the base on the table or with base screw, then put can on base. With handle in upright position you'll find a slot between the knife, the body, put the body down to square hole of the base, rightly maize the knife puncture the top of ca

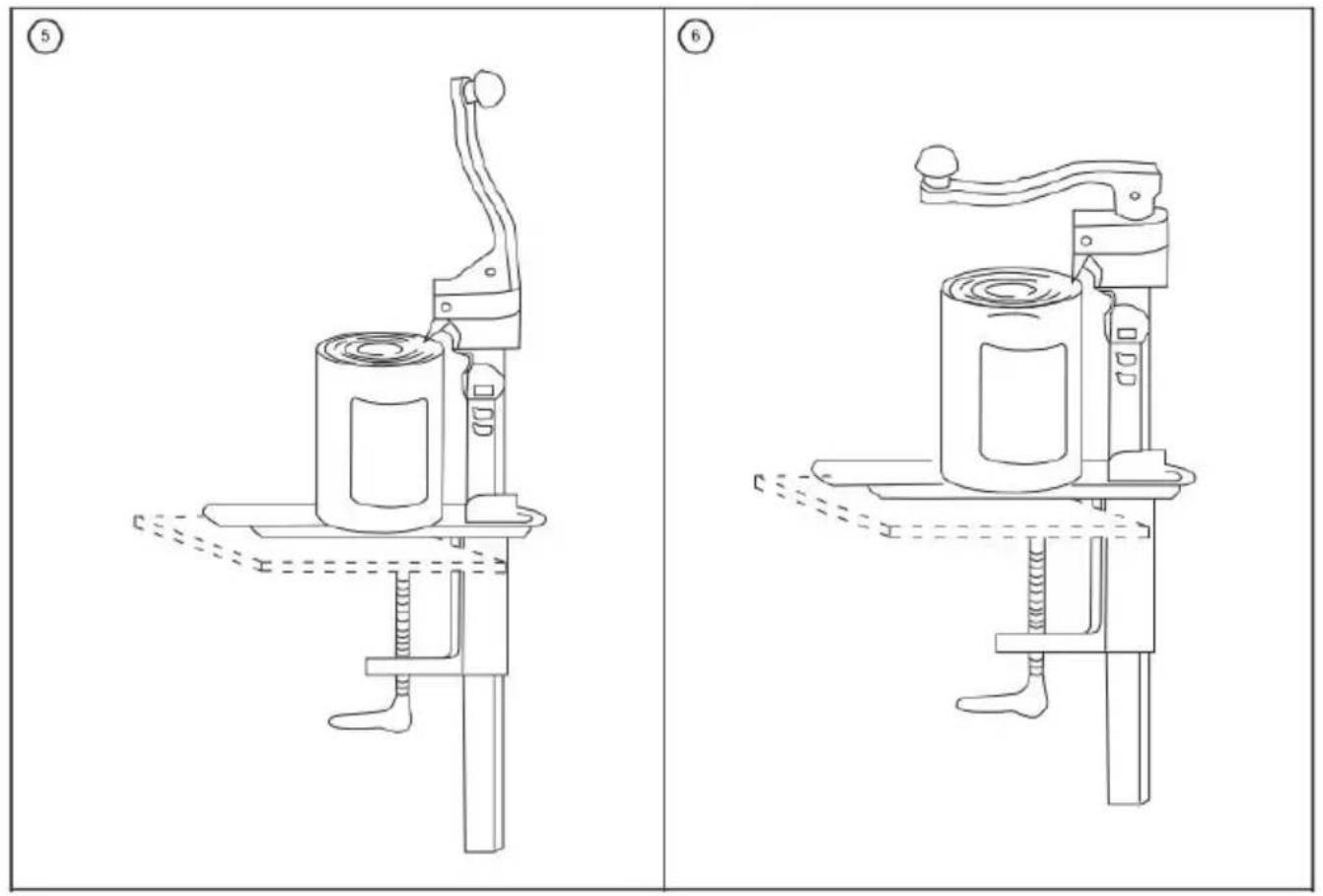

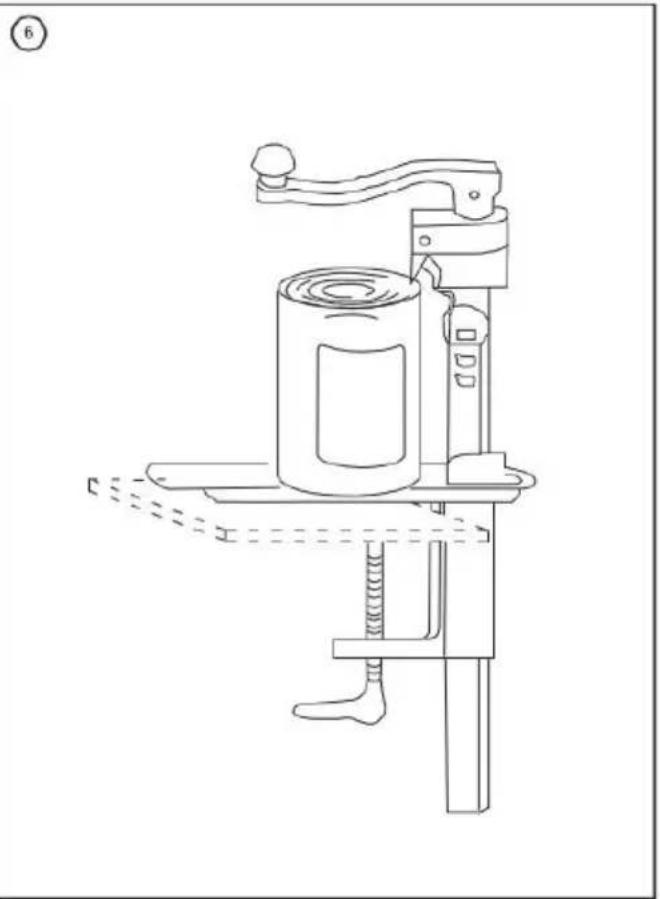

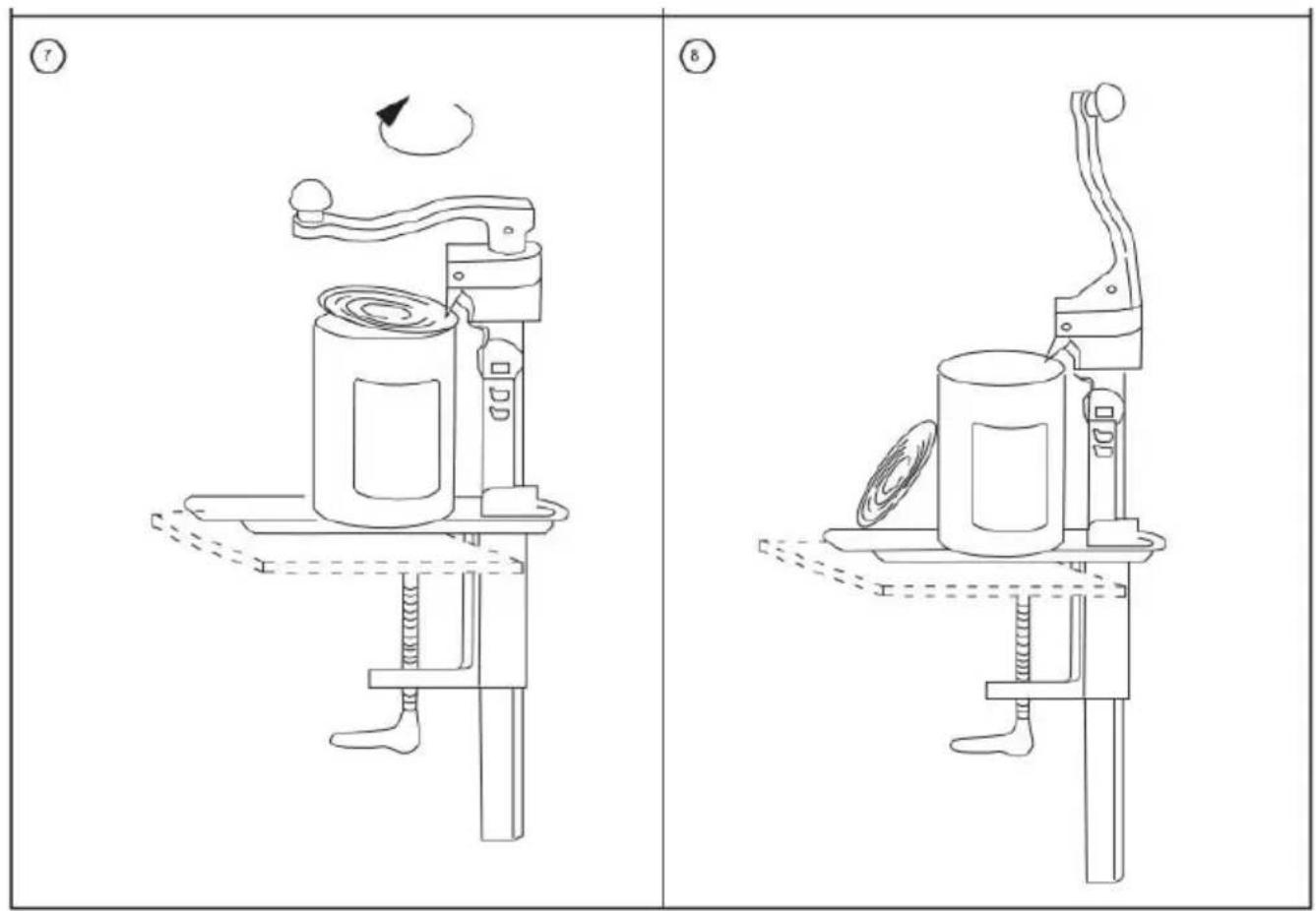

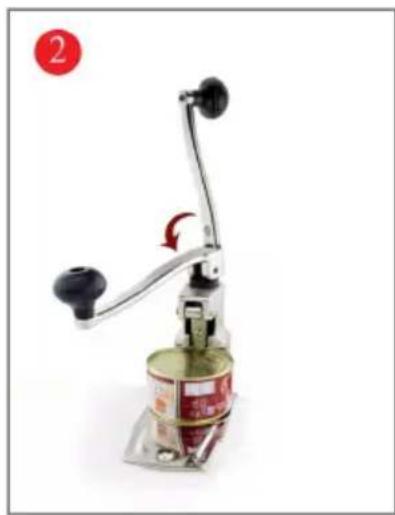

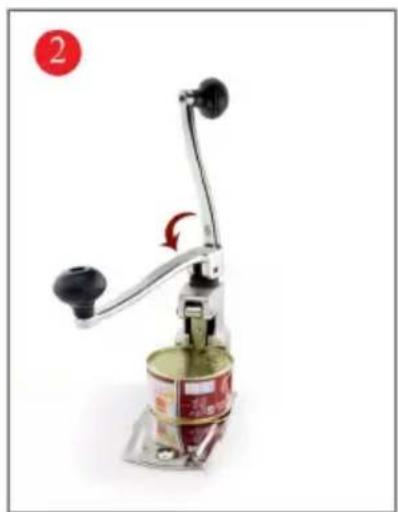

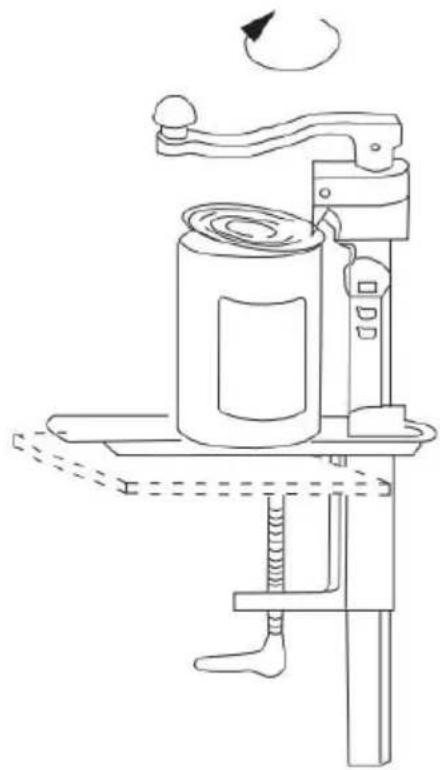

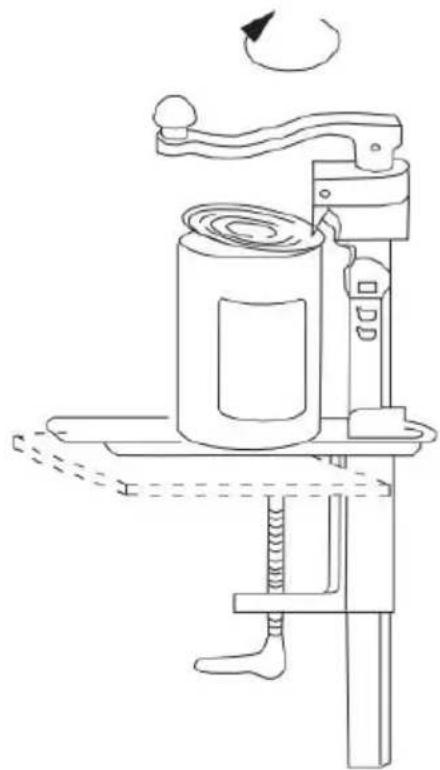

Bring handle to horizontal position and rum handle to right.Can automatically turns around until top of can is smoothly cut out.As top of raises,Lift it out to prevent falling into the cans content

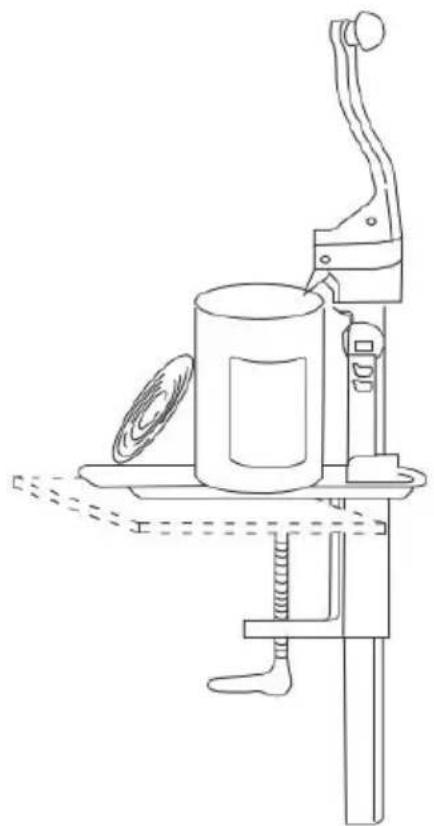

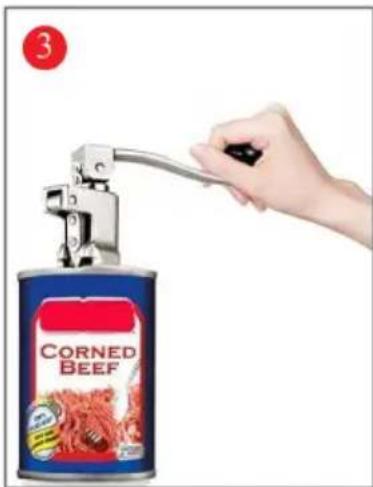

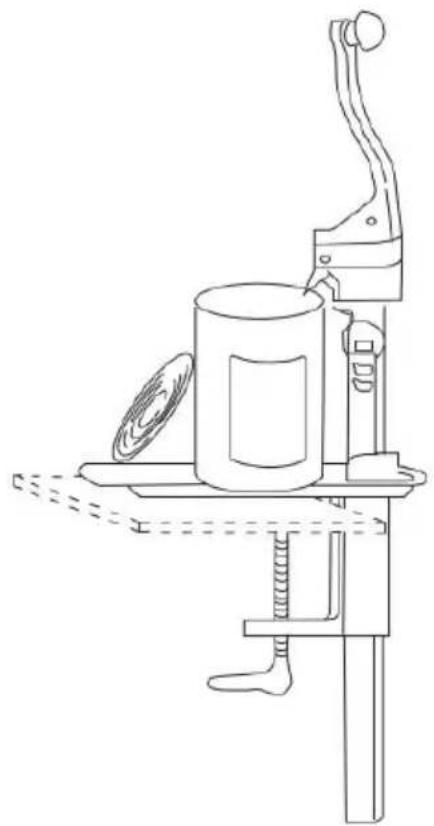

Lift handle to upright position. Lift up handle and b and rimove opened can.

Symbolic icon of a hand holding a finger, enclosed in a black circle (no text or symbols)

WEAR PROTECTIVE GLOVES

EN: Warning! Must wear protective gloves.

7

Line drawing of a mechanical device with a cylindrical component and lever mechanism (no text or symbols)

8

Line drawing of a mechanical clamp or crimping device with a cylindrical container and foot, no text or symbols present.

CLEANING AND MAINTENANCE

Can openers must be cleaned daily or after each extended use. Regular maintenance helps prevent unwanted residue buildup and the growth of harmful bacteria.

1. Use a stainless steel cleaning brush to remove all food and open residue from gears, gear cavities and blades and food and can residue from blades.
2. Clean the blades, gears, and any splash areas on the can opener warm water. Do not allow parts to soak.
3. Dry the cutter, gear, and can opener thoroughly with a dry cloth or

Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai

EC REP: SHUNSHUN GmbH. Römeräcker 9 Z2021,76351

UK REP: Pooledas Group Ltd. Unit 5 Albert Edward House, The Pavilions Preston, United Kingdom

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

Made In China
