COMMERCIAL SMOKING RECEPTACLES USER MANUAL

YD-33B

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

COMMERCIAL SMOKING RECEPTACLES

MODEL:YD-33B

Line drawing of a rectangular industrial cabinet with handle and mounting bracket (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again there are any technology or software updates on our product.

WARNING:

Read this material before using this product. Failure to do so ca result in serious injury.

Assembly precautions

1. Assemble only according to these instructions. Improper assembly can create hazards.
2. Wear ANSI-approved safety goggles and heavy-duty work gloves during assembly.
3. Keep the assembly area clean and well-lit.
4. Keep bystanders out of the area during assembly.
5. Do not assemble if tired or when under the influence of alcohol, drugs or medication.
6. The product capabilities apply to properly and completely assembled products only.
7. Assemble on a flat, level, hard and smooth surface capable of safely supporting the Commercial Smoking Receptacles.
8. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unwrap and separate all parts in a clean work area.

Use precautions

1. DO NOT SIT OR STAND ON THIS ITEM.
2. This product is not a toy. Do not allow children to play with or near item.
3. Do not exceed specified weight capacities.
4. Use only on a flat, level, hard, and smooth surface that can safely support a fully loaded Commercial Smoking Receptacles.
5. Use as intended only.
6. Inspect before every use; do not use if parts are loose or damaged.

SAVE THIS MANUAL

Diagram of a mechanical device with labeled parts including a wrench, screwdriver, and three variants of a bolt or nut assembly.

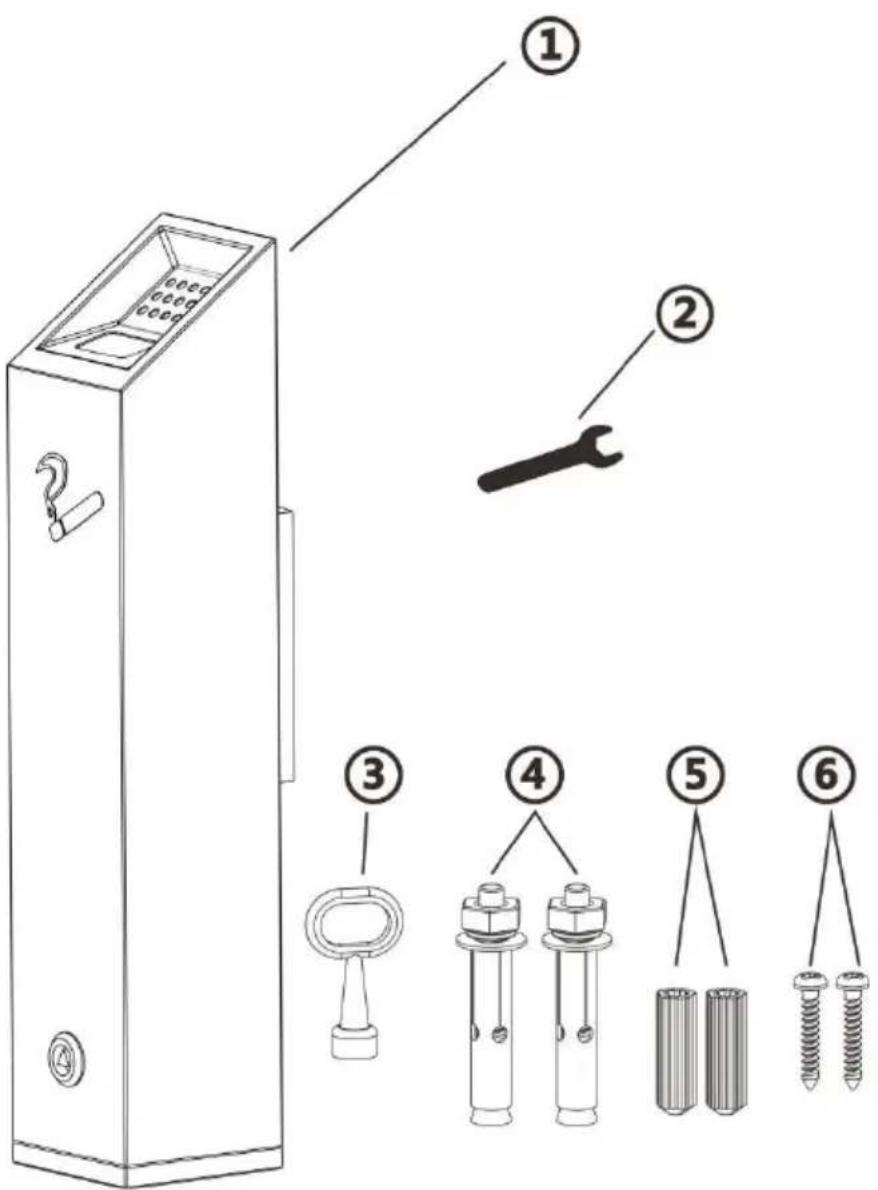

1	Main Body Of Ash Column		4	M8*60 Expansion Bolt *2
2	14mm Open End Wrench *		5	Glue Plug *2
3	Key *1		6	M4*25 Self-Tapping Screws *2

STEP 1: Pendant mounting (removable)

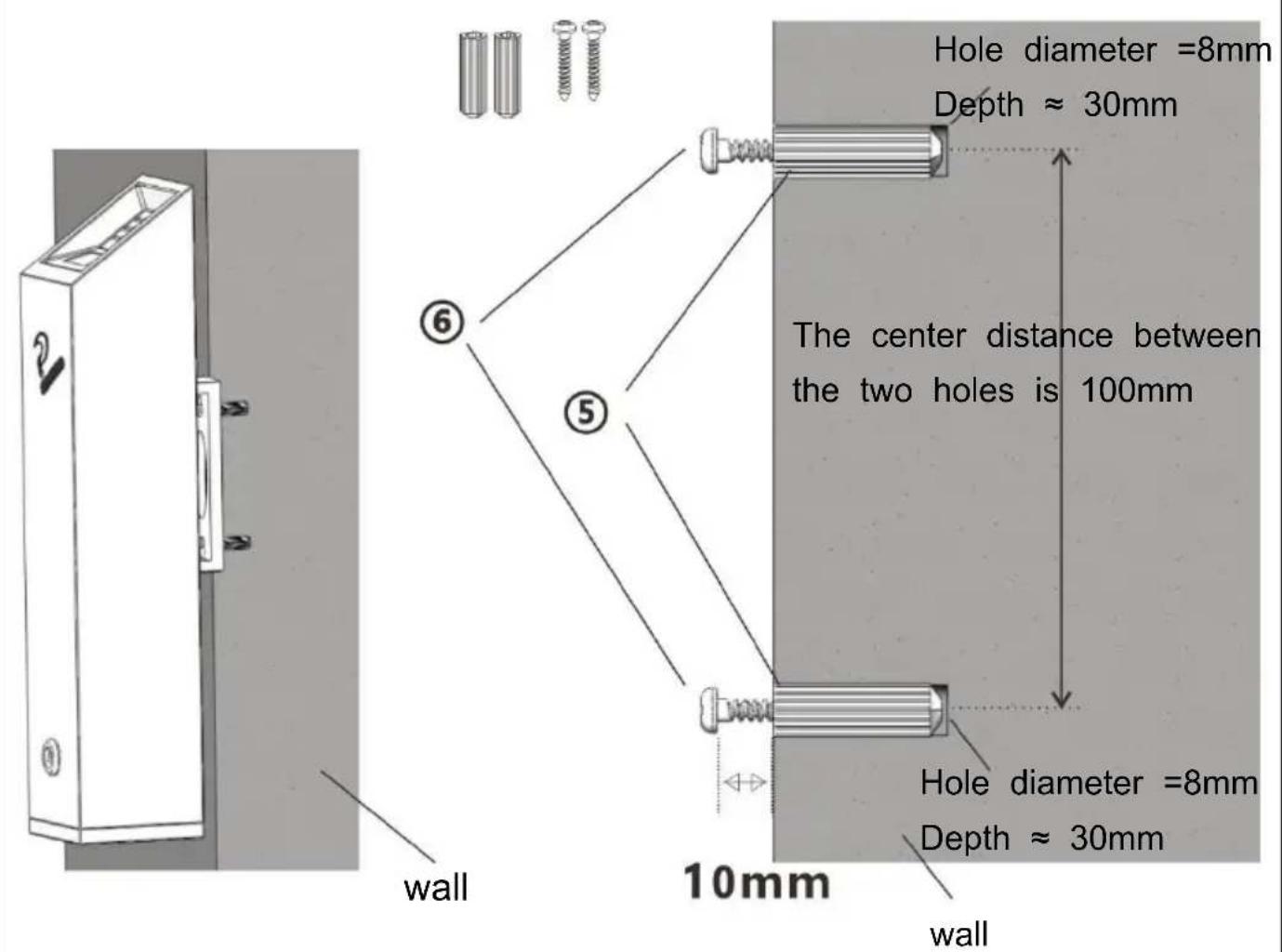

Hole diameter =8mm Depth ≈ 30mm The center distance between the two holes is 100mm Hole diameter =8mm Depth ≈ 30mm wall 10mm wall

STEP 2: Fixed Installation

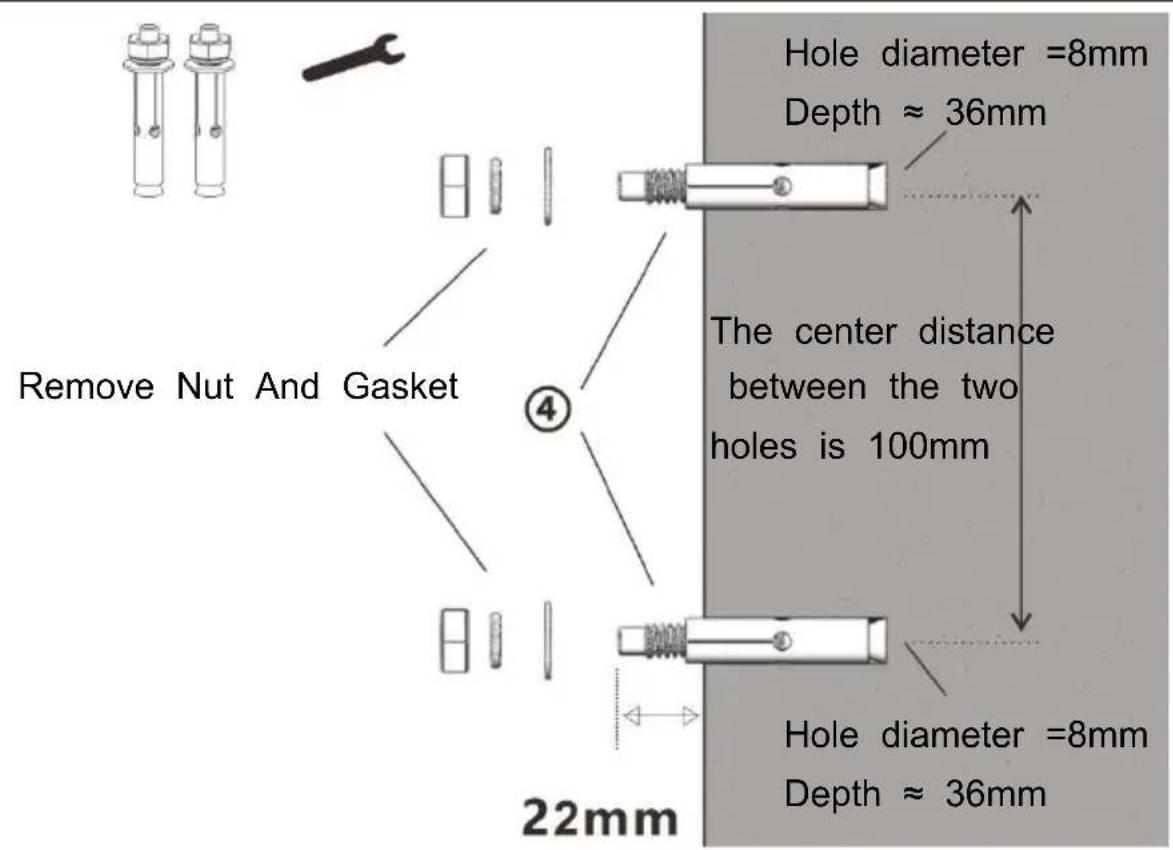

Remove Nut And Gasket ④ 22mm Hole diameter =8mm Depth ≈ 36mm The center distance between the two holes is 100mm Hole diameter =8mm Depth ≈ 36mm

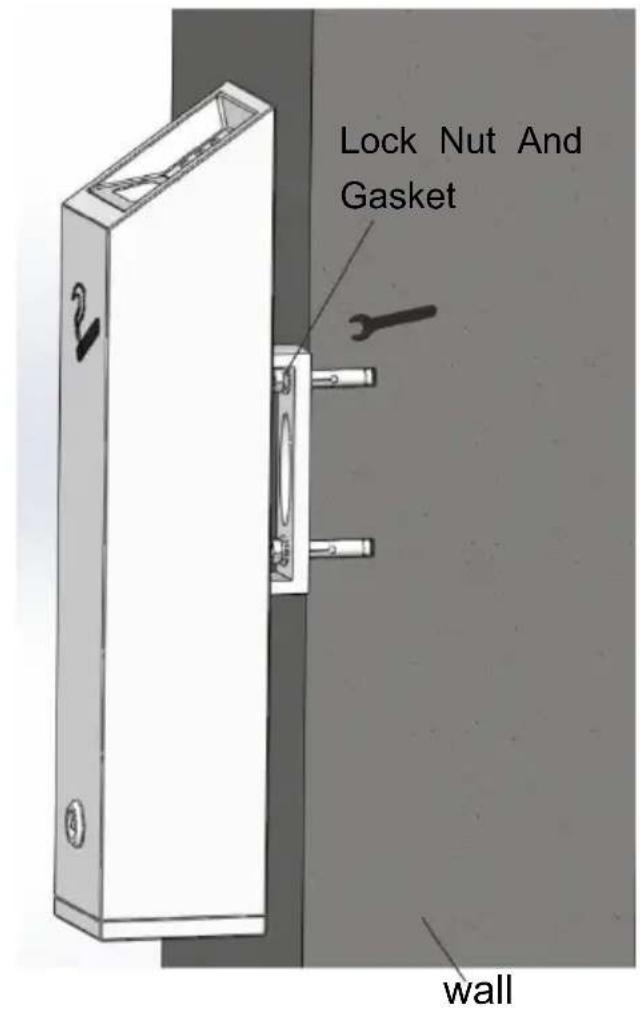

Lock Nut And Gasket wall

PRODUCT PARAMETER

Model	YD-33B
Colour	Black
Product Size	132*100*487mm

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main.

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion

House, London Road, Staines-upon-Thames, Surrey

TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a rectangular industrial cabinet with handle and mounting bracket (no text or symbols)

BESOIN D'AIDE? CONTACTEZ-NOUS!

Technical diagram of a mechanical device with numbered parts for identification and assembly reference.

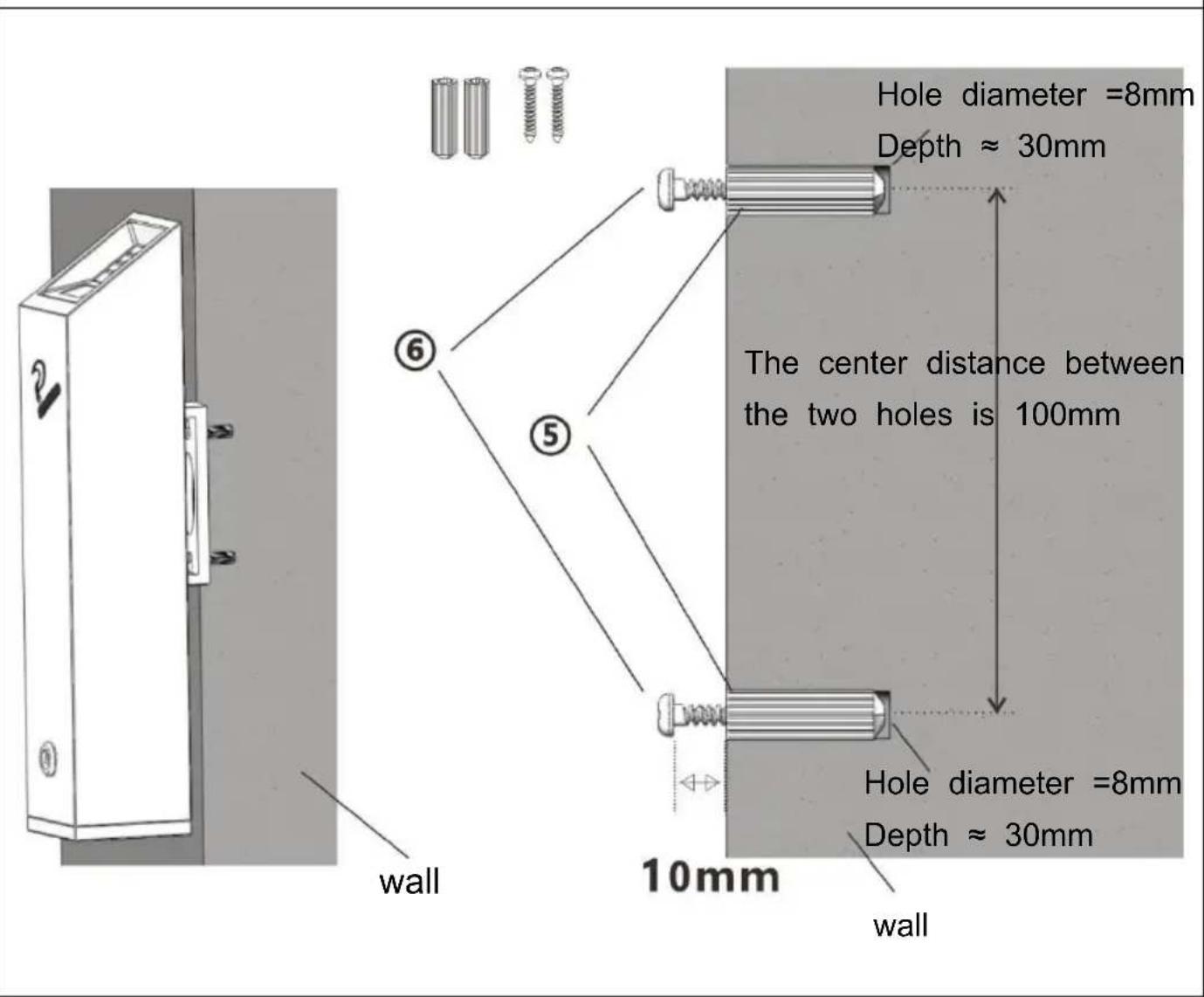

Hole diameter =8mm Depth ≈ 30mm The center distance between the two holes is 100mm Hole diameter =8mm Depth ≈ 30mm wall 10mm wall
