USER MANUAL YC1352SY Vevor

Technical Support and E-Warranty Certificate

www.vevor.com/support

DOUBLE PULL OUT

TRASH CAN

MODEL: YC1352SY

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL: YC1352SY

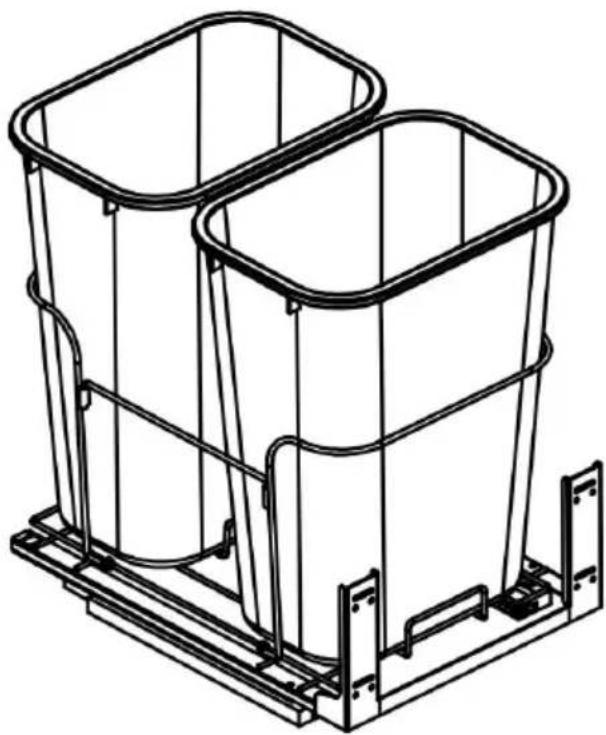

Technical line drawing of two rectangular metal crates mounted on a support frame (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel from contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions care before operating. VEVOR reserves a clear interpretation of our user m appearance of the product shall be subject to the product you receive forgive us that we won't inform you again if there are any technology updates on our product.

IMPORTANT SAFEGUARDS

Thank you for using this product. In order to make sure that you can operate the machine correctly, read this instruction carefully before operation and keep it properly for future reference. Please be sure to the precautions and safety rules in this page to ensure your safe use. This manual will outline safety warnings and precautions, operating, maintenance and cleaning. The warnings and instructions reviewed in the manual cannot cover all possible conditions and situations that may of Caution and common sense are not built into this product, since we that the uses will comply with these codes.

Please read ALL the instructions before using your machine.

1. Do not let children and minors get close to or touch the machine
2. Do not immerse the appliance in water or any other liquid.
3. Using any accessories or attachments that are not provided or recommended by the manufacturer may cause injury.
4. Do not apply this unit to any other purposes than the indicated u
5. Do not use it outdoor or for commercial purposes.
6. Never leave it unattended while in use.
7. This appliance can be used by children aged from 8 years and a and persons with reduced physical, sensory or mental capabilities or I of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and unders the hazards involved. Children shall not play with the machine alone. Cleaning and user maintenance shall not be made by children without supervision.

PRODUCT PARAMETERS

Model No.	Product Size	Garbage can capacity
YC1352SY	21.3x15x21.7 inch(540x380x550mm)	35Lx2PCS

LOADING CAPACITY

Model No.	Loading Capacity
YC1352SY	Max 110.2 lb (50Kg)

ATTENTION!

1. Do not exceed the listed weight capacity. Be aware of dynamic load. The sudden load movement may briefly create an excess load, causing product failure.

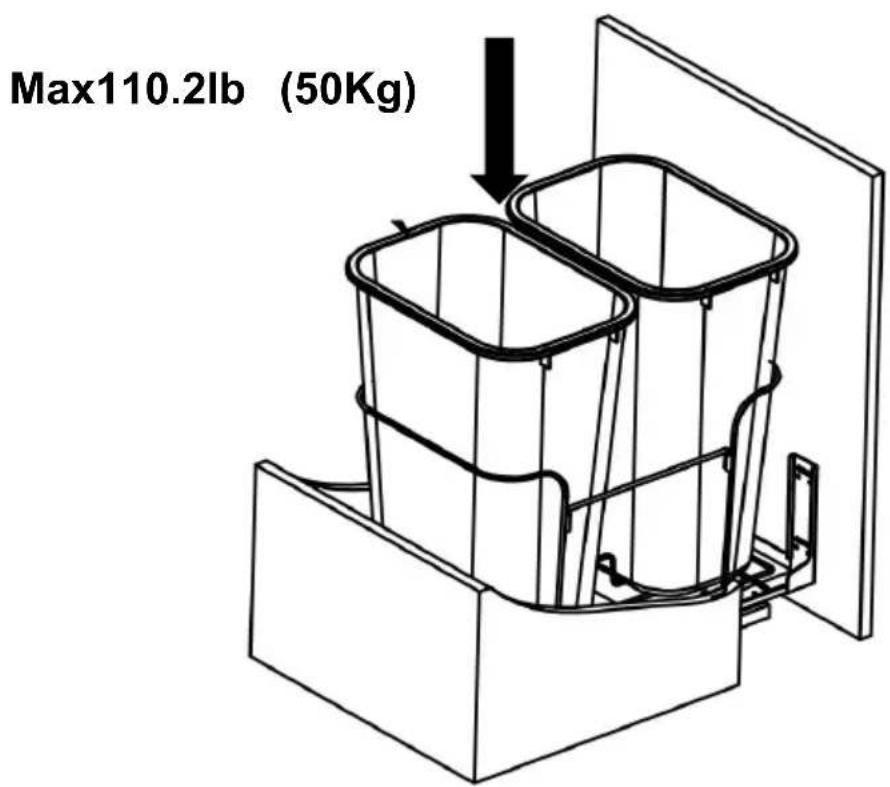

Max110.2lb (50Kg)

PRODUCT COMPONENTS

ATTENTION!

1. Check all parts for completeness before beginning assembly.
2. To avoid accidents or sharp edges injuries please assemble and use carefully.
3. Please wear safety protective equipment: gloves and goggles.

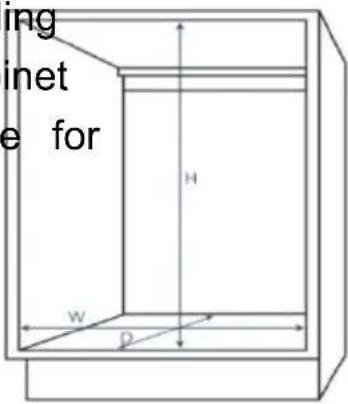

4. Check the installation size of the corresponding model of the pull basket, and select the cabinet consistent with or close to the installation size for Installation.

ing inet e for H W D

No.	Diagram	Part name	Qty
A		Guide	1
B		Plastic trash bin	2
C		Base frame	1
D		Bin wire	2
E		Connecting wire	2
F		Installation card	1

G		ScrewM4x10	6
H		Nut	4
I		ScrewST4x16	16
J		Screw driver&Spanner	1+1

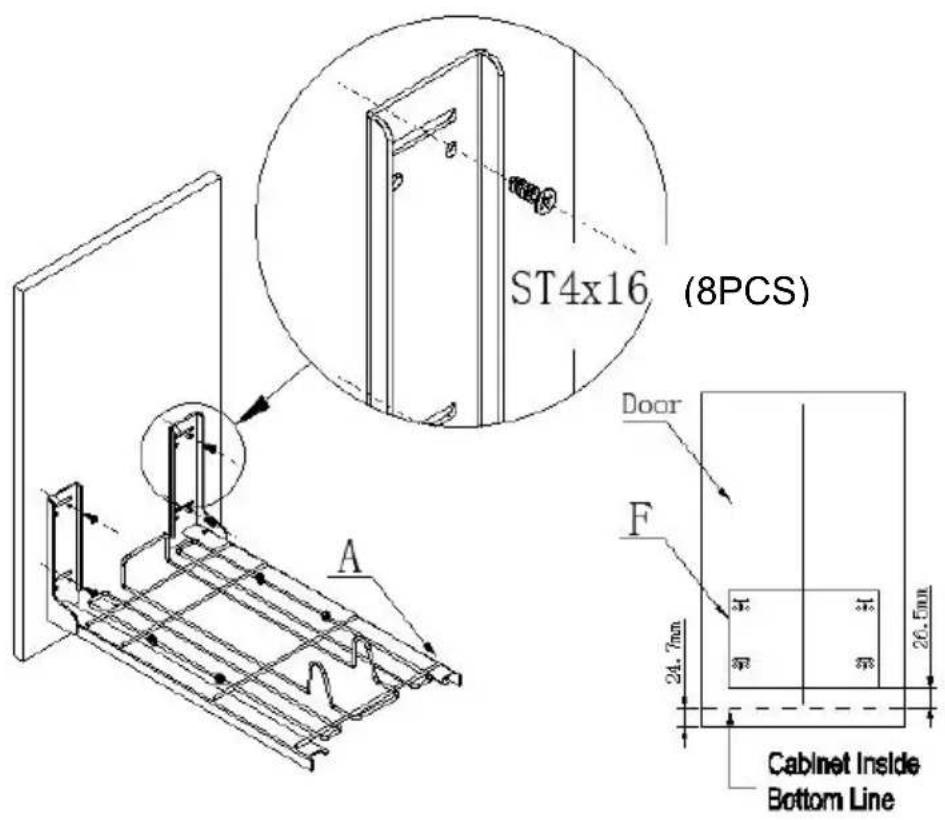

STEP1

ST4x16 (8PCS) A Door F 24.7mm 26.5mm Cabinet Inside Bottom Line

1. Put the installation card on the door as shown drawing and screws hole, then lock the frame to the door with screws.

STEP2

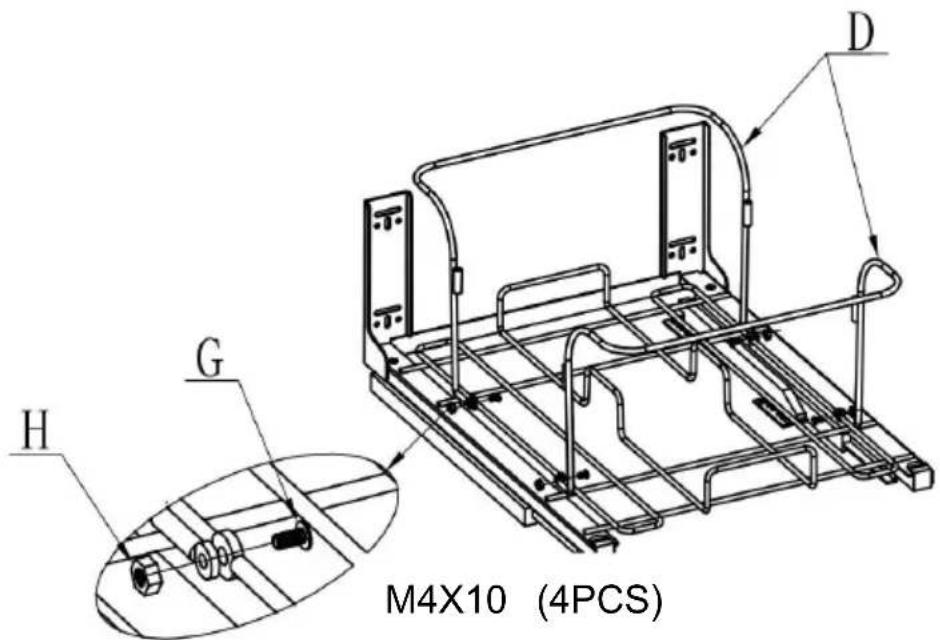

M4X10 (4PCS)

1. Put two bin wires on the base as shown drawing and fix with screws..

STEP3

Technical line drawing of a mechanical assembly with supports and mounting brackets (no text or symbols)

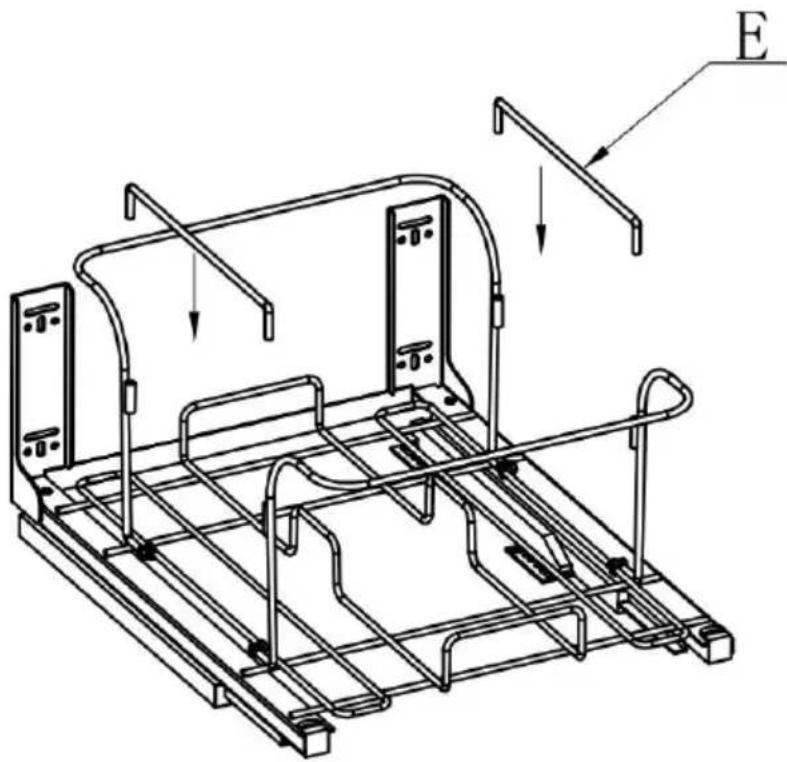

1. Insert the two connecting wires into the circular s

STEP4

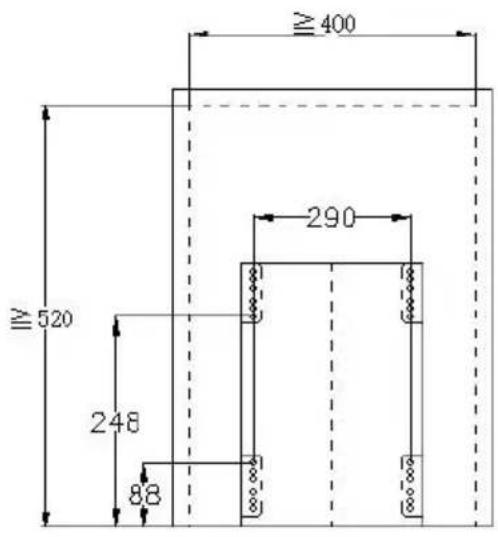

≥400 ≥520 248 88 290

Isometric line drawing of a rectangular enclosure with internal supports and a labeled section A (no text or symbols on the diagram itself)

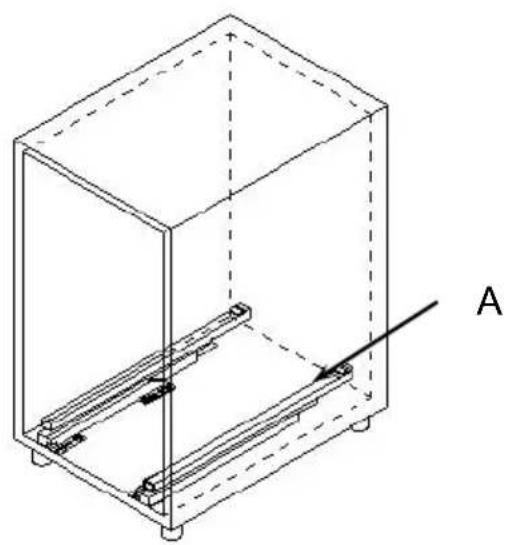

4 .Fix the base in the cabinet with screws ST4X16(8PC)

STEP5

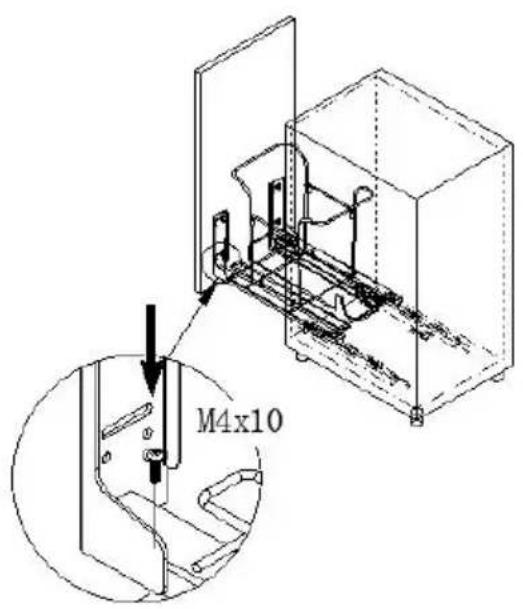

M4x10

Technical line drawing of a mechanical assembly with two cylindrical components and a base plate (no text or symbols)

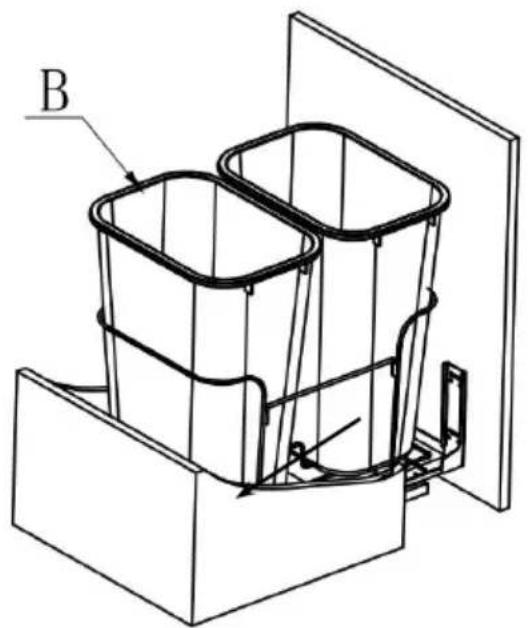

1. Fix the main frame on the drawer slide tightly with screws M4x10(2PCS), Put the plastic bin in the frame.

OPERATING INSTRUCTIONS

Before using the appliance for the first time, peel off any promotional materials and packaging materials, and check that the cooking plates clean and free of dust. If necessary, wipe them over with a damp c Spread over with an absorbent kitchen towel and wipe off any excess

ATTENTION!

WARNING! Keep children and pets away.

WARNING! Remove all packaging materials and keep them for future use. Packaging materials are not a toy.

WARNING! Don't let children play with the packaging materials. If the swallow the packaging materials, they will suffocate!

CLEAING MAINTENANCE AND STORAGE

1. For cleaning, wipe the surface with a damp (not wet) cloth or wipe with a clean lint free cotton cloth.
2. Window cleaning liquid or a similar cleaning liquid can be used to the surface.
3. Store the appliance in a dry and clean area.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Ma

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion H London Road, Staines-upon-Thames, Surrey, TW18 4
