USER MANUAL YD-67A Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

COMMERCIAL SMOKING RECEPTACLES USER MANUAL

YD-67A

YD-67B

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

COMMERCIAL SMOKING RECEPTACLES

MODEL:YD-67A YD-67B

Simple line drawing of a vertical cylindrical object with a base, containing a small oval object on top (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

WARNING:

Read this material before using this product. Failure to do so ca result in serious injury.

Assembly precautions

1. Assemble only according to these instructions. Improper assembly c create hazards.
2. Wear ANSI-approved safety goggles and heavy-duty work gloves during assembly.
3. Keep the assembly area clean and well-lit.
4. Keep bystanders out of the area during assembly.
5. Do not assemble if tired or when under the influence of alcohol, or medication.
6. The product capabilities apply to properly and completely assembled products only.
7. Assemble on a flat, level, hard and smooth surface capable of sa supporting the Commercial Smoking Receptacles.
8. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unw and separate all parts in a clean work area.

Use precautions

1. DO NOT SIT OR STAND ON THIS ITEM.
2. This product is not a toy. Do not allow children to play with or item.
3. Do not exceed specified weight capacities.
4. Use only on a flat, level, hard, and smooth surface that can safe support a fully loaded Commercial Smoking Receptacles.
5. Use as intended only.
6. Inspect before every use; do not use if parts are loose or damage

SAVE THIS MANUAL

Labeled diagram of a scientific apparatus with numbered components and tool tips for assembly or identification.

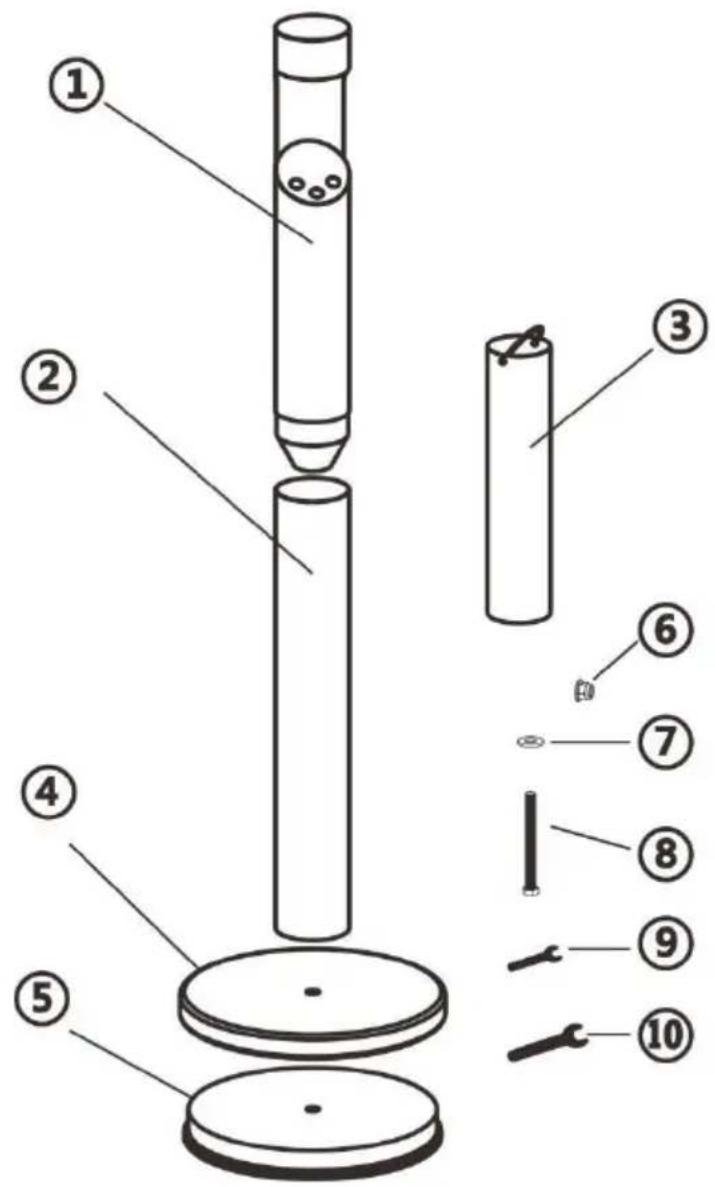

1	Cylinder - upper *1		6	M4 lock nut *1
2	Cylinder - lower *1		7	Gasket *1
3	Inner barrel *1		8	M12*80 outer hexagonal screws
4	Decorative cover *1		9	7mm open end wrench *1
5	Cast iron counterweight *		10	19mm open end wrench *1

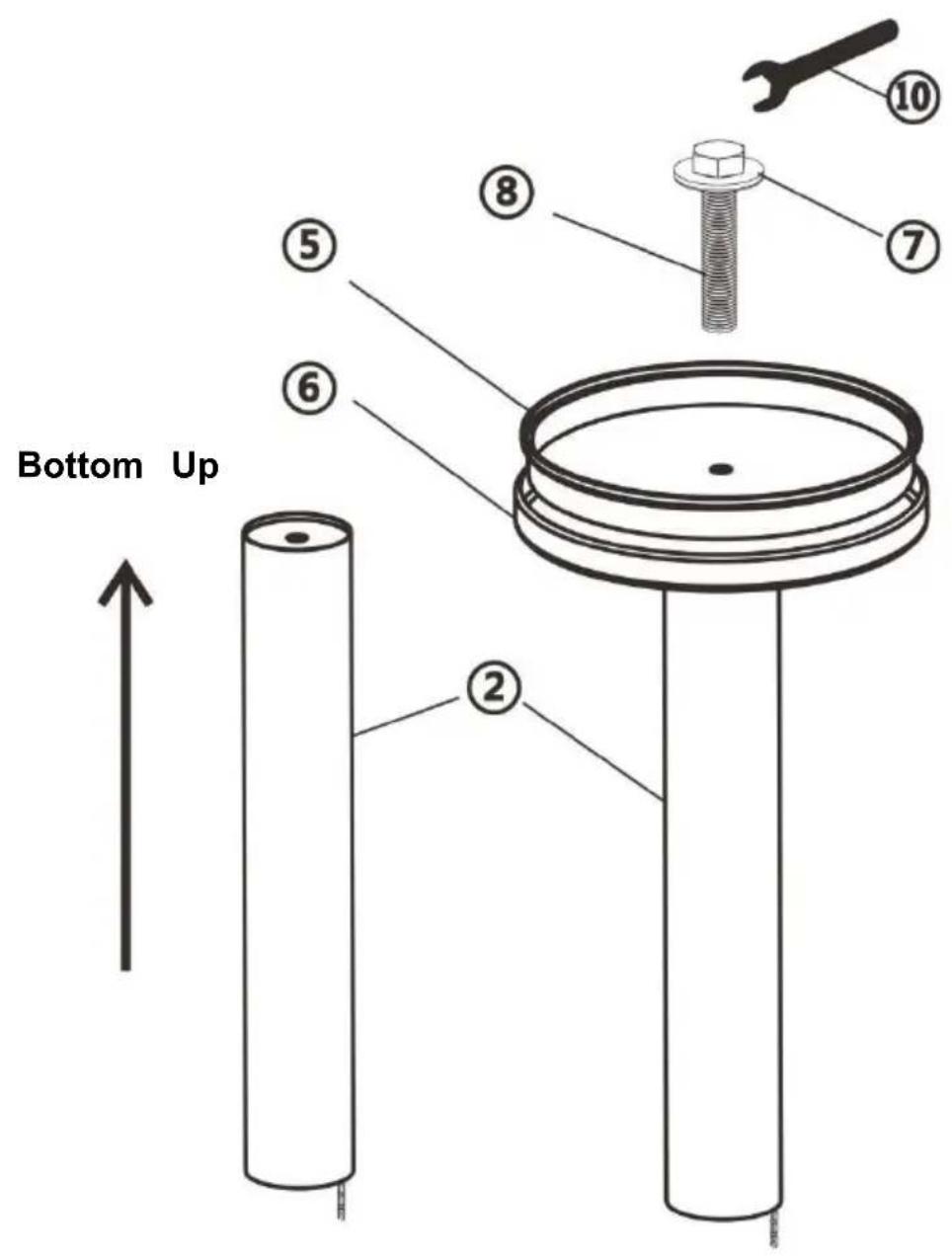

STEP 1 Lock the bottom connecting screws (as shown)

Bottom Up ② ⑤ ⑥ ⑧ ⑦ ⑩

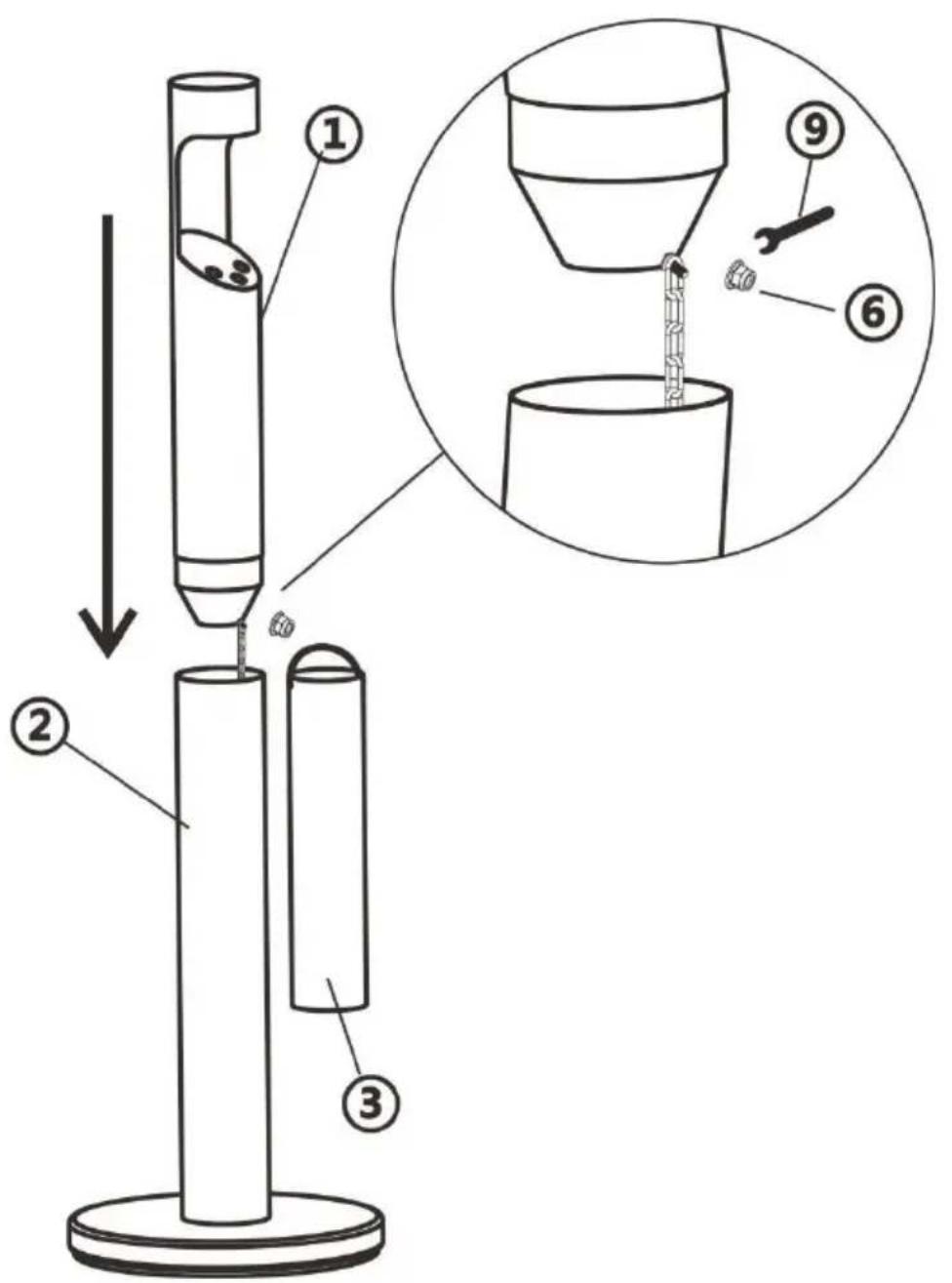

STEP 2 Connect the inner chain to the upper part of the co and lock the nut.

STEP 3 Put ③ into ②, and then insert ① into ② to complete the assembly.

Diagram of a laboratory apparatus with numbered parts and a magnified view showing a funnel pouring into a container.

PRODUCT PARAMETER

Model	YD-67A	YD-67B
Colour	Silver	Black
Product Size	320*1080mm

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey TW18 4AX
