USER MANUAL XSJ23-F03 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

BOAT TRAILER GUIDES

MODEL: XSJ23-F01/XSJ23-F02/XSJ23-F03 XSJ23-F04/XSJ23-F05

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL:XSJ23-F01/XSJ23-F02/XSJ23-F03/XSJ23-F04/XSJ23-F05

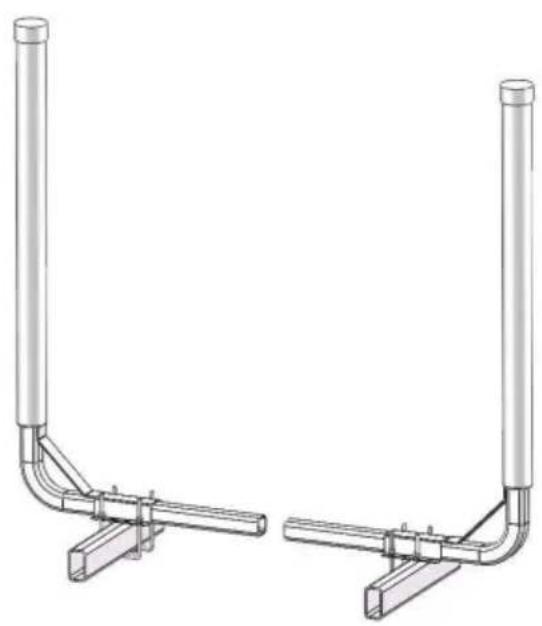

Technical line drawing of two U-shaped metal pipe fittings with flanges and support brackets (no text or symbols)

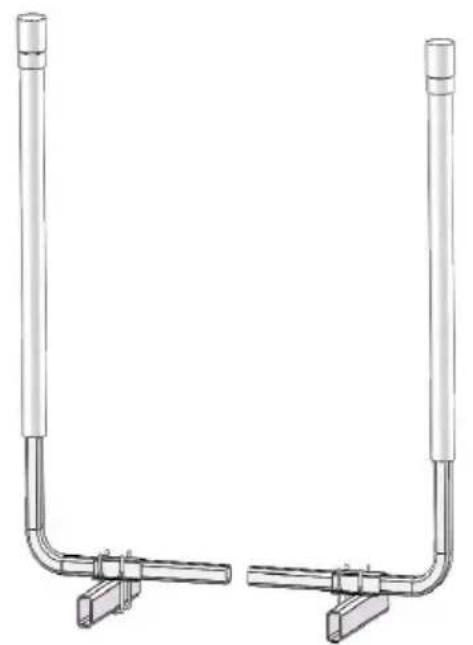

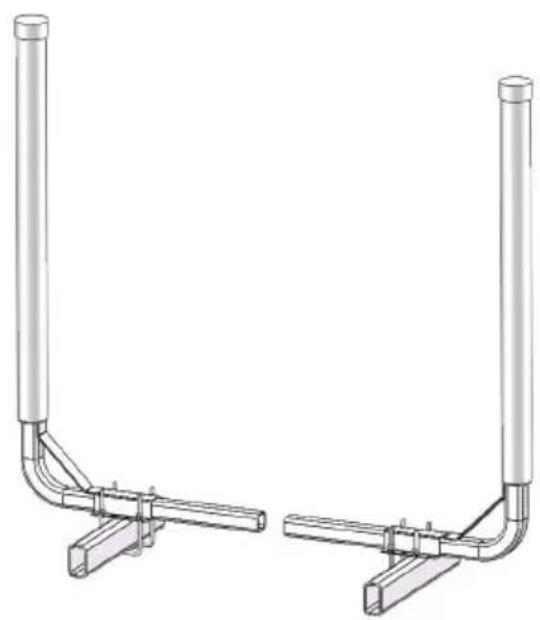

MODEL:

XSJ23-F01/XSJ23-F02

XSJ23-F04/XSJ23-F05

Technical line drawing of two identical U-shaped metal pipe fittings with vertical and horizontal extensions (no text or symbols)

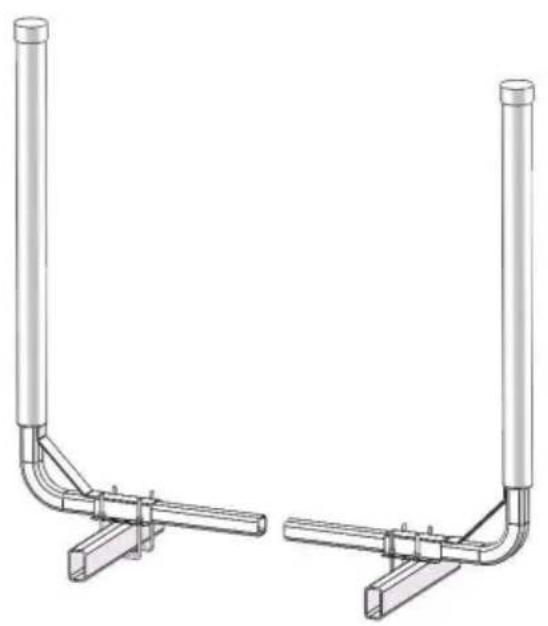

MODEL:XSJ23-F03

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

IMPORTANT SAFEGUARDS

WARNING: Read and understand this entire manual before operating or servicing this product. Failure to follow these warnings and instructions can cause personal injury or damage to valuable property.

• Avoid children using boat trailer guides. And this product is not a not allow children to play.
• Keep away from sharp points, blades and other items.

• Assembly precautions

• Assemble only according to these instructions. Improper assembly c create hazards.

• Wear ANSI-approved safety goggles and heavy-duty work gloves du assembly.
• Keep assembly area clean and well-lit.
• Keep bystanders out of the area during assembly.
• Do not assemble when tired or when under the influence of alcohol drugs or medication.
• Product capabilities apply to properly and completely assembled pro only.
• For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unwrap separate all parts in a clean work area. Please keep small spare pa of children's reach.

SAVE THESE INSTRUCTIONS

FCC INFORMATION

FOR MODEL XSJ23-F02 AND XSJ23-F04

CAUTION: Changes or modifications not expressly approved by the pa responsible for compliance could void the user's authority to operate t equipment!

This device complies with Part 15 of the FCC Rules. Operation is such the following two conditions:

1) This product may cause harmful interference.
2) This product must accept any interference received, including interference that may cause undesired operation.

WARNING: Changes or modifications to this product not expressly approved by the party.responsible for compliance could void the user's authority to operate the product.

Note: This product has been tested and found to comply with the lir a Class B digital device pursuant to Part 15 of the FCC Rules, The are designed to provide reasonable protection against harmful interferer in a residential installation.

This product generates, uses and can radiate radio frequency energy, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If product does cause harmful interference to radio or television reception, which can be determined by turning the product off and on, user is encouraged to try to correct the interference by one or more following measures.

● Reorient or relocate the receiving antenna.
- Increase the distance between the product and receiver.
- Connect the product to an outlet on a circuit different from that to the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for assistance.

PRODUCT SPECIFICATIONS:

Model#	L (mm)	H (mm)	H1 (mm)	W (mm)	S (mm)
XSJ23-F01	550	/	1105	85	300
XSJ23-F02	550	1175	/	85	300
XSJ23-F03	480	/	1215	85	160
XSJ23-F04	550	1670	/	85	300
XSJ23-F05	550	/	1590	85	300

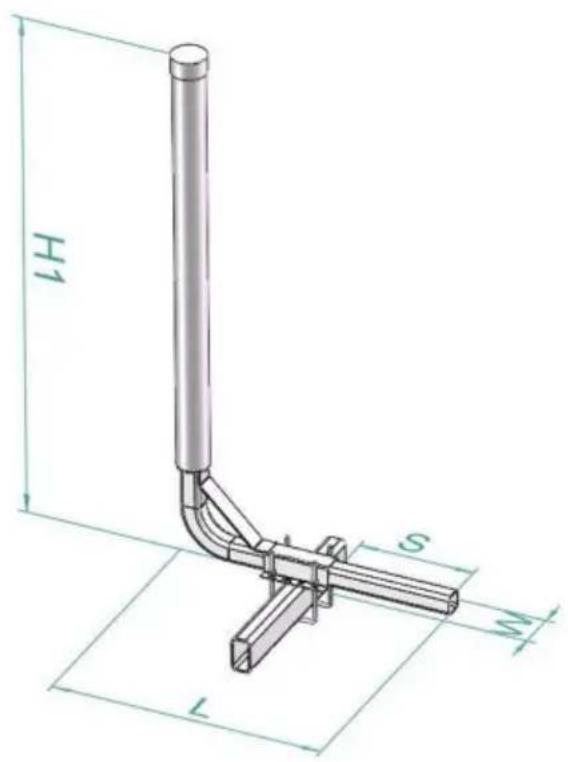

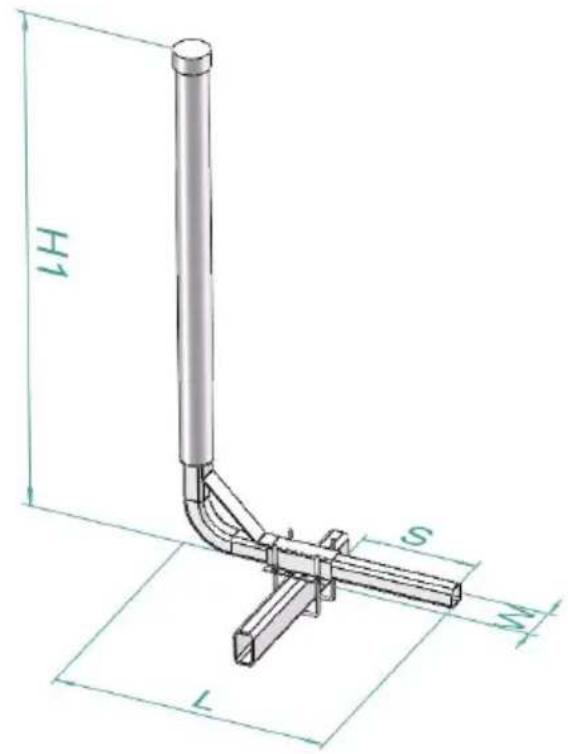

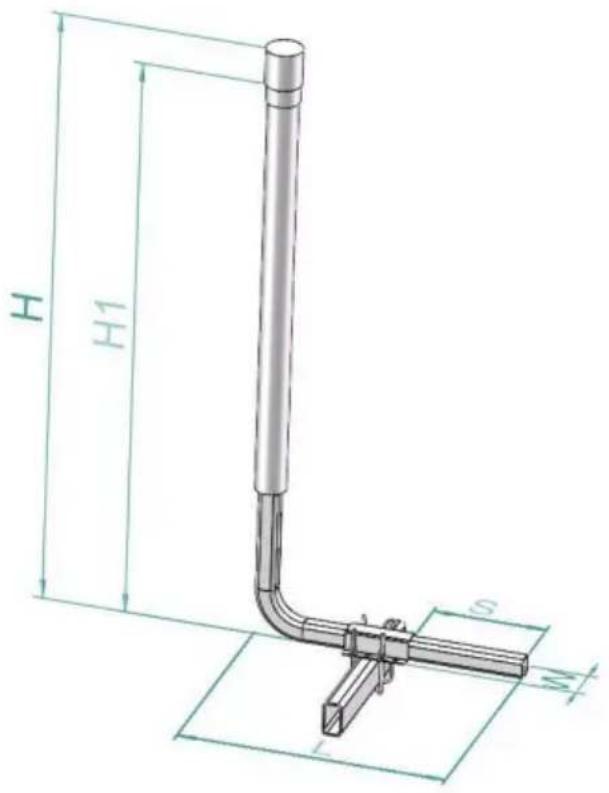

H H1 S M

MODEL:
XSJ23-F01/XSJ23-F02
XSJ23-F04/XSJ23-F05

H1 S L M

MODEL:XSJ23-F03

PACKAGE INCLUDE

No	Components	Picture	QTY
			Fits model #
			XSJ23-F01XSJ23-F05	XSJ23-F03	XSJ23-F02XSJ23-F04
1	u-bolt-2		2pcs	2pcs	2pcs
2	U-shaped slot plate		2pcs	2pcs	2pcs
3	u-bolt-1		2pcs	2pcs	2pcs
4	flat washer		8pcs	8pcs	8pcs
5	Spring washer		8pcs	8pcs	8pcs
6	nut		8pcs	8pcs	8pcs
7	L-bracket		2pcs		2pcs
				2pcs
8	wrench		1pcs	1pcs	1pcs
9	LED light		/		2pcs

SIMPLE INSTRUCTION

Technical line drawing of a bent pipe or support structure with no visible text or symbols

Technical illustration of a pipe connection with red arrows indicating support points (no text or symbols present)

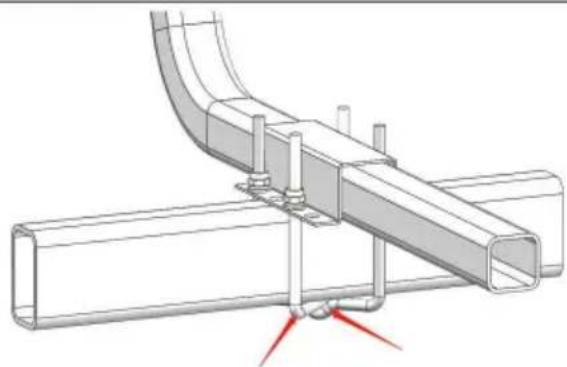

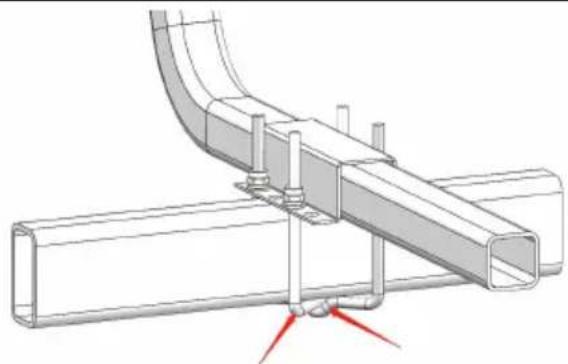

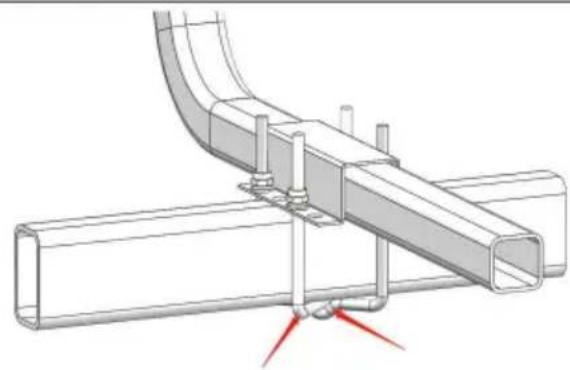

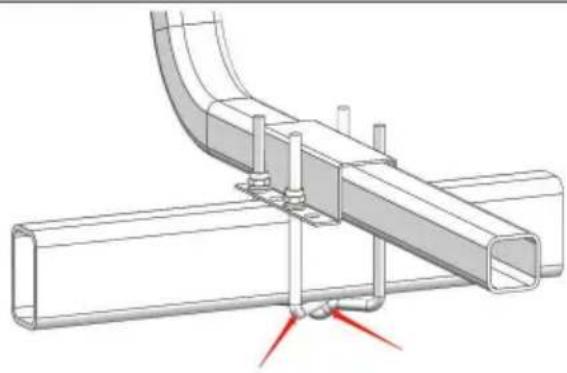

Fasten the part7 assembly to the bracket beam using U-bolts. tightened with U-bolt, The U-bolts can be installed in the two ways shown in the fig according to actual conditions.

You can also mount the rail asse under the trailer beam

ATTENTION:

• It is recommended to find someone to assist with the installation.
• Ensure that the guide rail is installed in the correct position, and tighten the screws with the plate handle.

Correct Disposal

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

This product is subject to the provision of European Direct 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the product and all accessories marked with this symbol. Products mar

as such may not be discarded with normal domestic waste, but must taken to a collection point for recycling electrical and electronic device
