GEAR PULLER

MODEL:YL-15T

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and doses necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify ca when you are placing an order with us if you are actually saving half in comparison with the top ma

VEVOR®

GEAR PULLER

MODEL:YL-15T

Close-up of a mechanical tool with orange handle and metal base, accompanied by a black-and-white photo of its open case (no visible text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

[e-mail]

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform your use, there are any technology or software updates on our product.

Safety & Warning

• Read and understand this entire manual before assembling, installing operating, or servicing this product. Failure to follow these warning and instructions can cause death, personal injury, or damage value property.
• While assembling and using this product, keep the work area clean and well-lighted, and keep spectators and children out of the work area.
• Wear ANSI-approved safety goggles, heavy-duty work gloves, and safety shoes during use.
• Use as intended only.
• Before each use, inspect the general condition of the product. Check for: broken, cracked, or bent parts, loose or missing parts, and a condition that may affect the proper operation of the product.
• After every use, wipe with a clean cloth. Then, store the product is safe, dry location out of reach of children and other non-authorize people.
• Ensure only genuine parts are used for replacement & Repair.
• Be aware of dynamic loading! The sudden load movement may break create an excess load, causing product failure.

Specifications

Model Series	YL-15T
Max. Tensile Force (t)	15
Max. Jaw Spread(inch)	12
Structural Style	Hydraulic

Figure of the Product

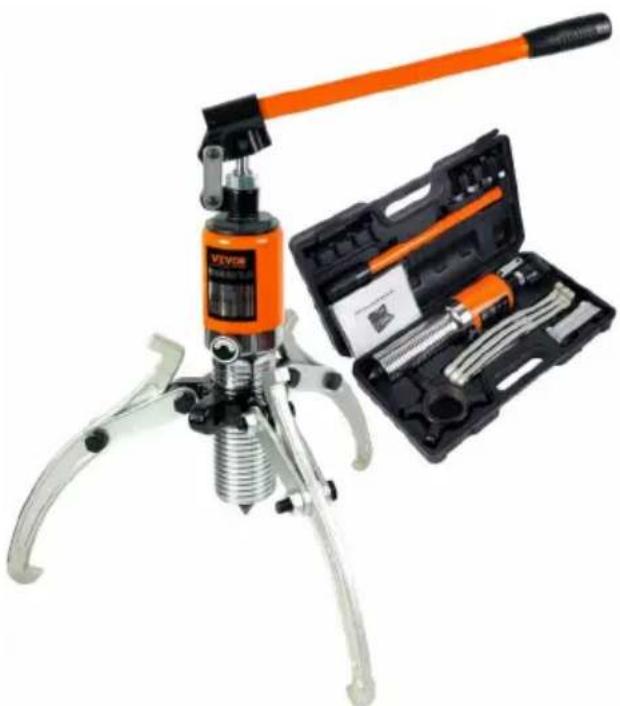

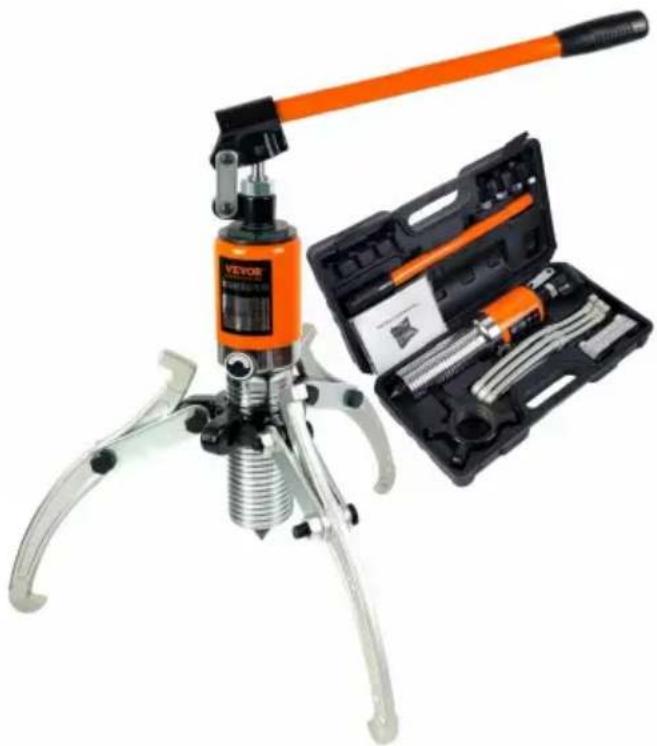

Tool kit with orange and black components, including a VEVOR device and a mechanical clamp (no visible text or symbols)

Part	Description	Qty
1	Pump Body	1
2	Pull Tab	6
3	Ejector Pin	1
4	Bolt	6
5	Nut	6
6	Handle	1
7	Puller Ring	1
8	Claw Feet	3

Installation instructions

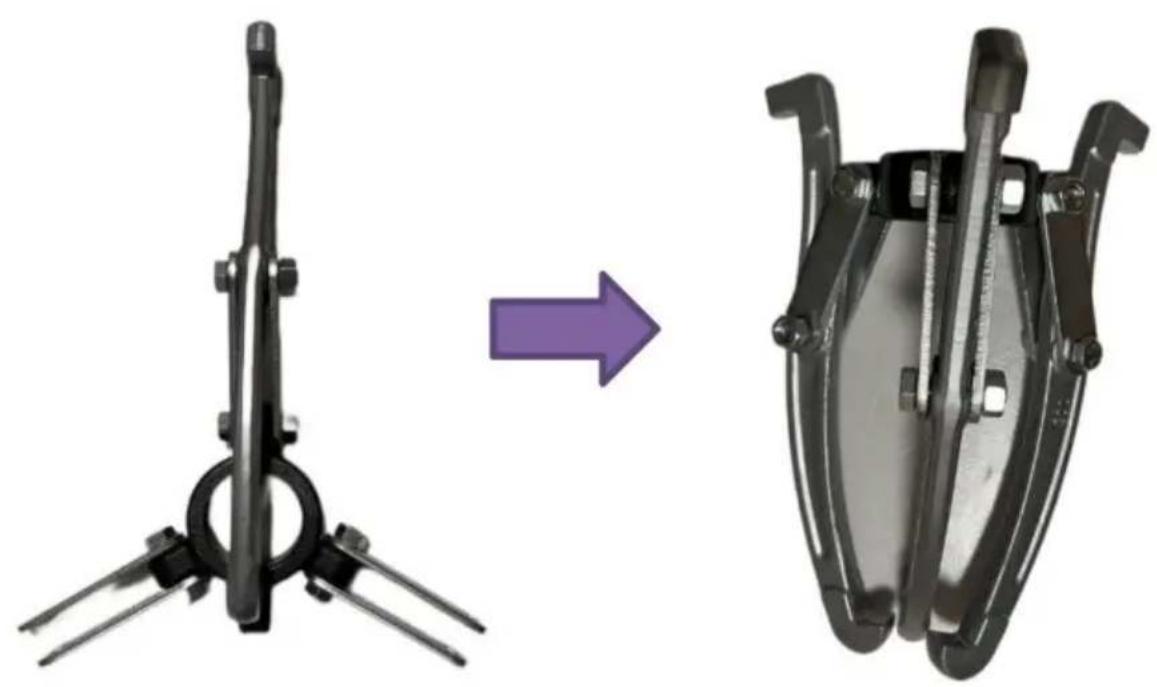

Step 1.

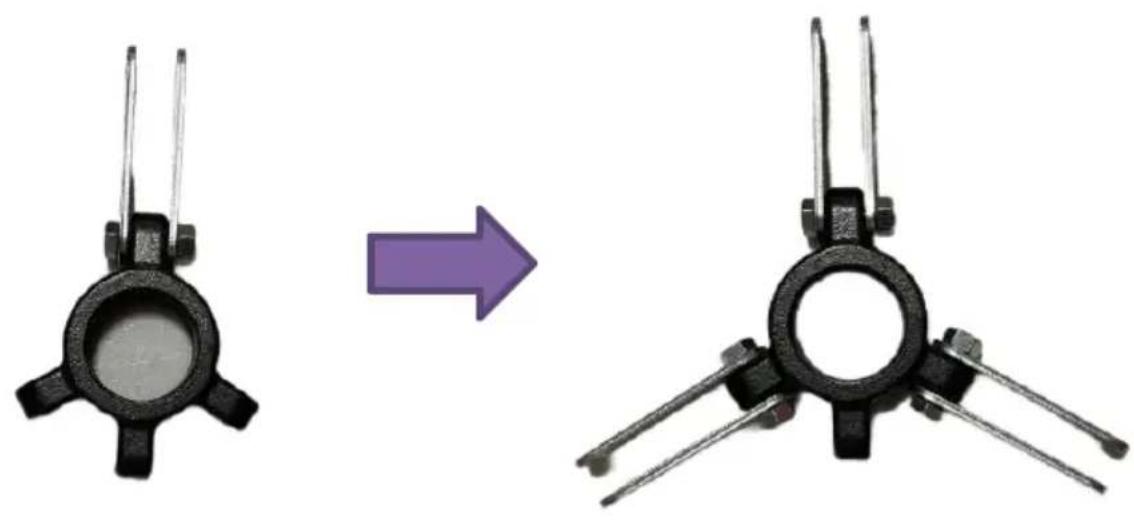

Two identical black electronic component designs being processed, one with a purple arrow indicating transformation (no text or symbols)

Step 2.

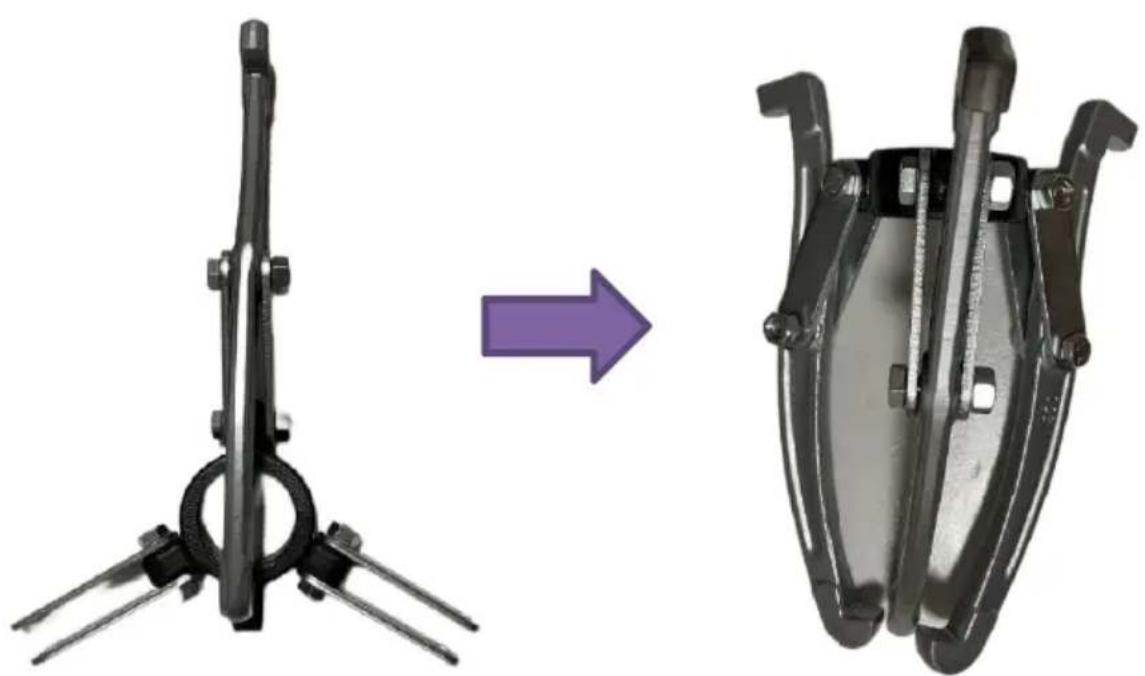

Two mechanical components, one with three legs and a curved handle, the other with a metallic bracket and screw holes (no text or symbols visible)

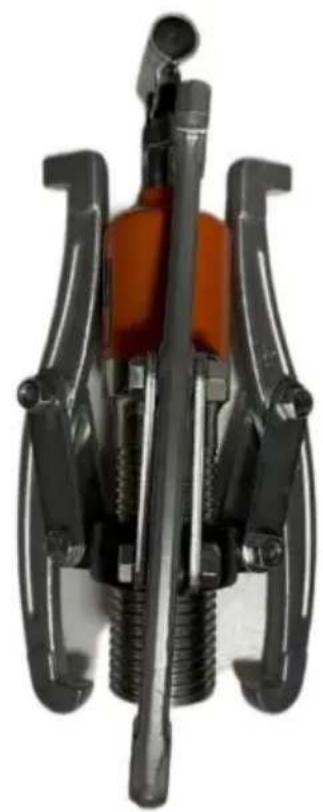

Step 3.

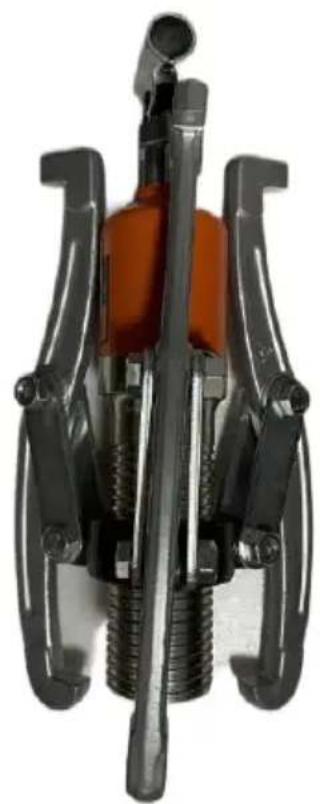

Close-up of a mechanical device with orange internal component and black handle (no visible text or symbols)

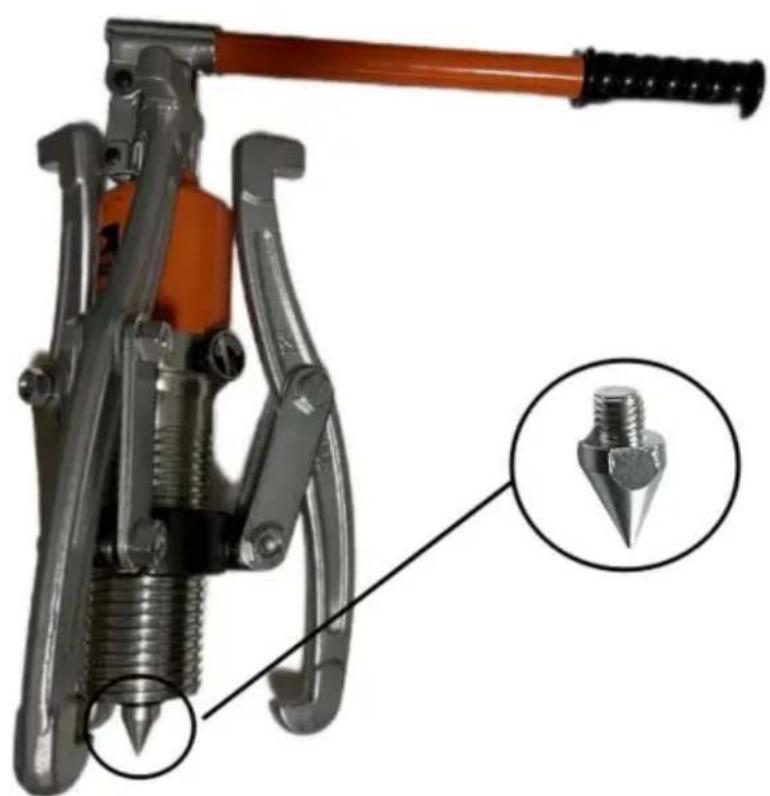

Step 4.

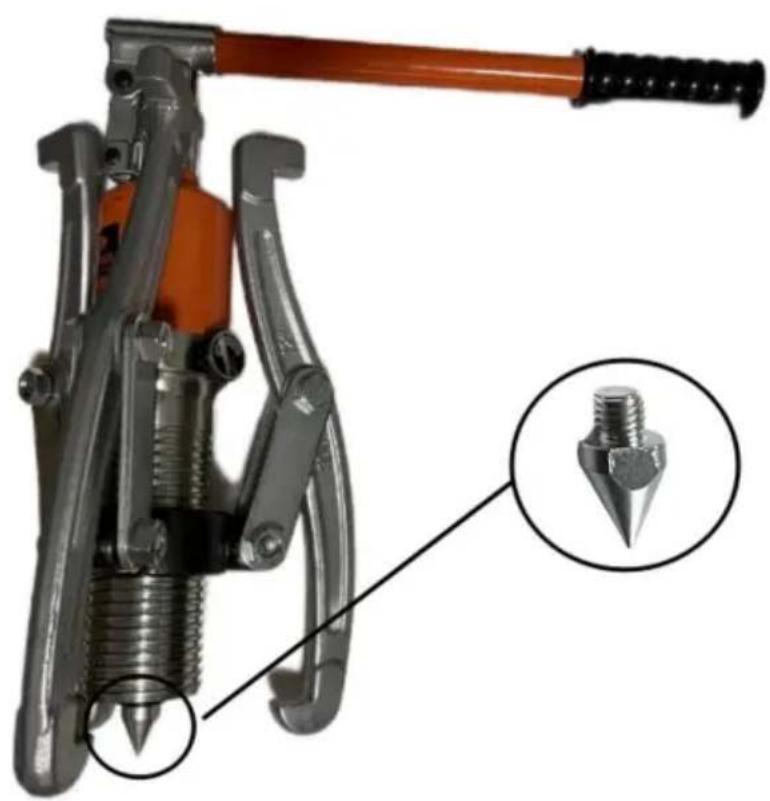

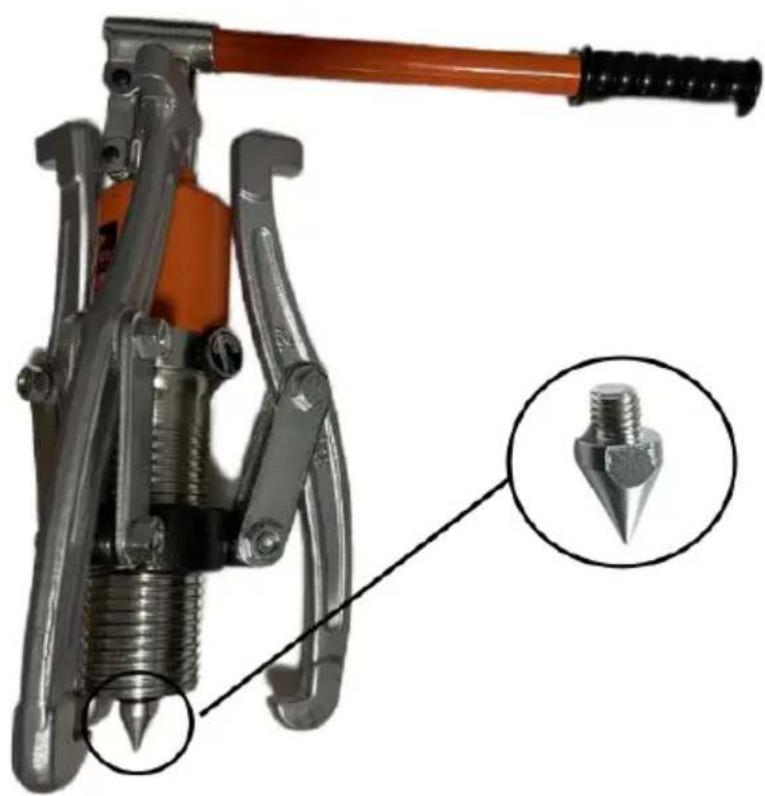

Mechanical tool with threaded component and magnified inset showing a pin (no text or symbols)

Instructions

A. Oil valve stem screw tightens on deasil first when using.
B. Adjust hook claw to claw hook to hold the objects.
C. Raise the handle hand hole to lift the filling pump upper and low corresponding to going backward; the claw hook has back and forth it to insert, and the object is pulled out to draw the quilt.
D. If you want to make the cylinder rod contract back, it only needs back to loosen the right valve stem in a counterclockwise direction; little, the cylinder rod has gone back to contract gradually under the function of the spring.
E. According to the external diameter of the object, draw distance, an strength, choose the corresponding hydraulic pressure of tonnage draw horses before using, must guard against overloading to use, avoid damage.
F. In order to prevent causing machines damage for overload, hydraul setting set up overload to unload the valve automatically; when the o at exceeding the specified load, the hydraulic pump will over low oil automatically, workpiece will don t retreat and enter, should reelect wi large hydraulic pressure of tonnage draw horses at this moment.
