USER MANUAL VV49 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

CHAIRS CART USER MANUAL

Model: VV49

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

CHAIRS CART

Thanks for purchasing one of our products. Please read the assembly instructions carefully before installation.

Line drawing of a dual-plate industrial cart with wheels and metal frame (no text or symbols)

Model:VV49 (Photo for reference)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

PRODUCT PARAMETERS

Model	Product Size/cm	Maximum number of carrying	accessory
VV49	115x 78 x 120.5	5 pcs table + 14pcs chairs(Max:181kg)	Single end open-end wrench x 1pcsHexagonal socket wrench x1Hexagonal wrench x 1pcStrap x 2

WARNING:

Please read this manual carefully before using the product. Failure to do so may result in serious injury.

ASSEMBLY PRECAUTIONS

1. Assemble needs to follow these instructions. Incorrect assembly can be a hazard.
2. Wear safety goggles and heavy-duty work gloves during assembly.
3. Do not assemble when tired or under the influence of alcohol, drugs, or medication.
4. Weight capacity and other product capabilities only apply to a wholly and correctly assembled product.
5. Keep the assembly area clean and well-lit.
6. Keep bystanders out of the area during assembly.
7. The weight of the plate is heavy; pay attention to the installation to avoid hurting it, and if necessary, find someone to assist with the installation.

USE PRECAUTIONS

WARNING: TO PREVENT SERIOUS INJURY AND DEATH FROM

TIPPING:

1. This product is not a toy. Do not allow children to play with or approach this item.
2. Use as intended only. Do not sit or stand on the product.
3. Inspect before every use. Do not use it if parts are loose or damaged.
4. Use on flat, level, and hard surfaces only.
5. Do not exceed the listed weight capacity. Tighten all knobs securely before applying load. Be aware of dynamic loading! The sudden load movement may briefly create an excess load, causing product failure.
6. When the heavy load is moving for a long time, it is necessary to check whether the screw is loose to avoid the body shaking when moving.

SAVE THESE INSTRUCTIONS

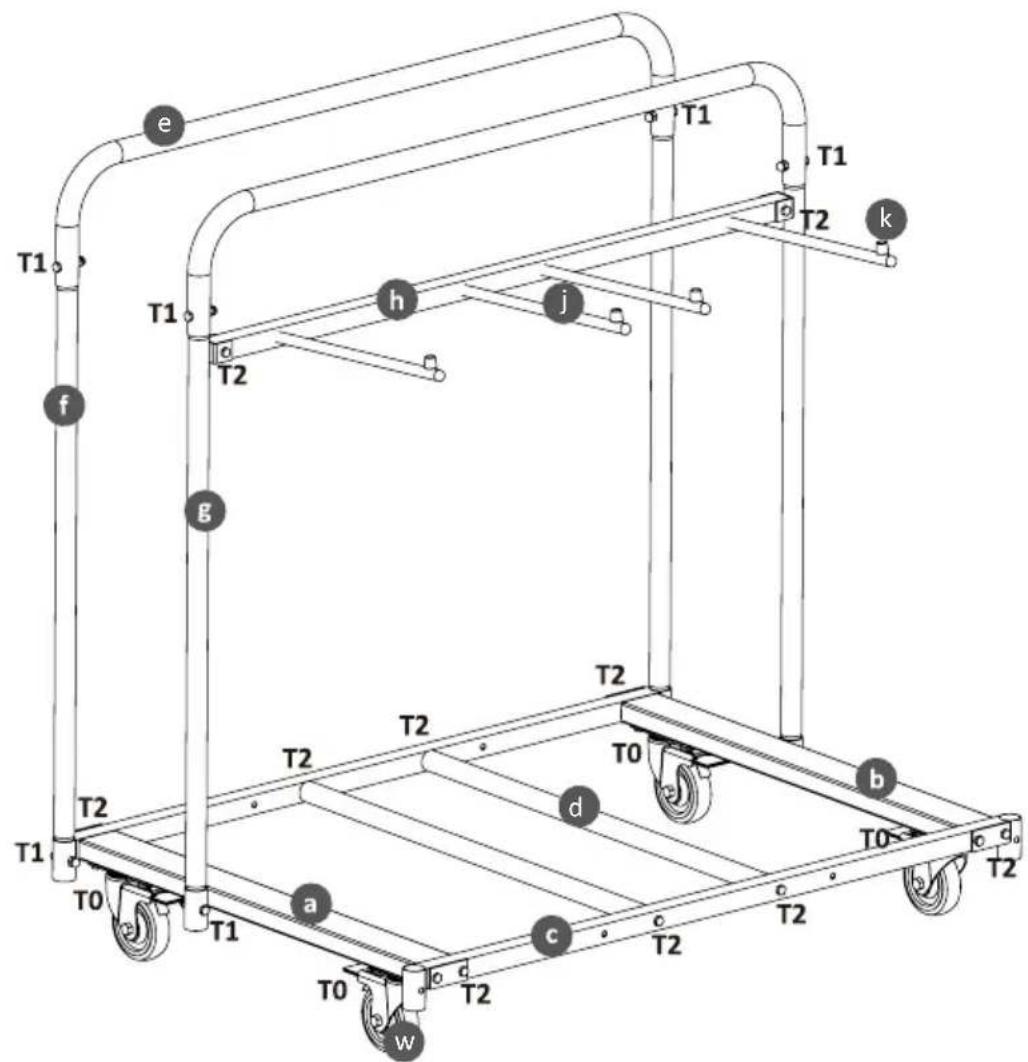

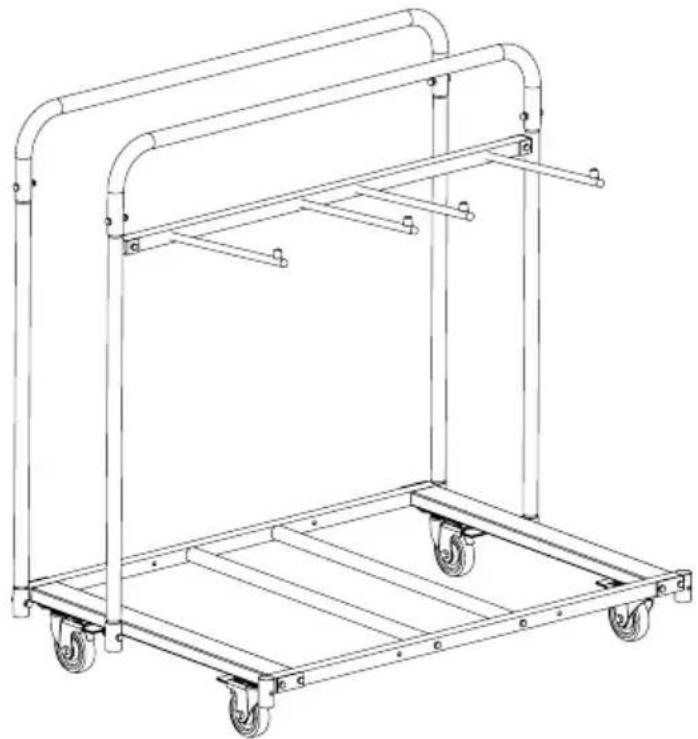

Exploded Drawing

PARTS LIST

NO.	Description	Quantity
a	Caster frame Left	1
b	Caster frame Right	1
c	Bottom frame	2
d	Bottom tube	2
e	Top rail	2
f	Rear upright post	2
g	Center upright post	2
h	Chair hanger bar	1
j	Chair hanger	4
k	Knob	4
w	Locking caster	4

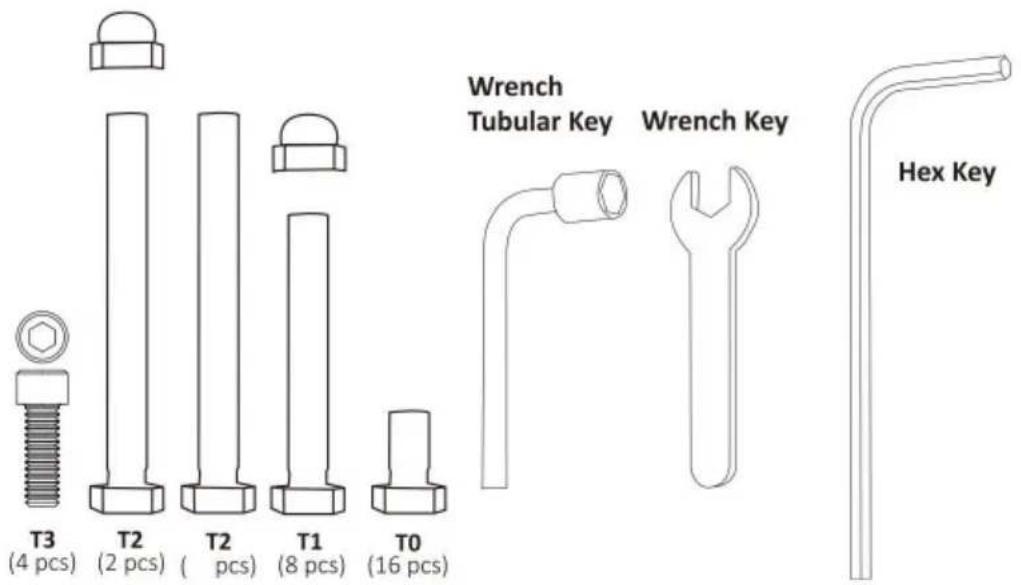

T0	Hex screw (M8*16)	16
T1	Hex screw (M8*35) with nut	8
T2	Hex screw (M8*45)	12
	Hex screw (M8*45) with nut	2
T3	Socket head screw(M8*16)	4
Tools	Wrench Key 18mm	1
	Wrench Tube Key	1
	Hex Key	1

ASSEMBLY STEPS

STEP 1:

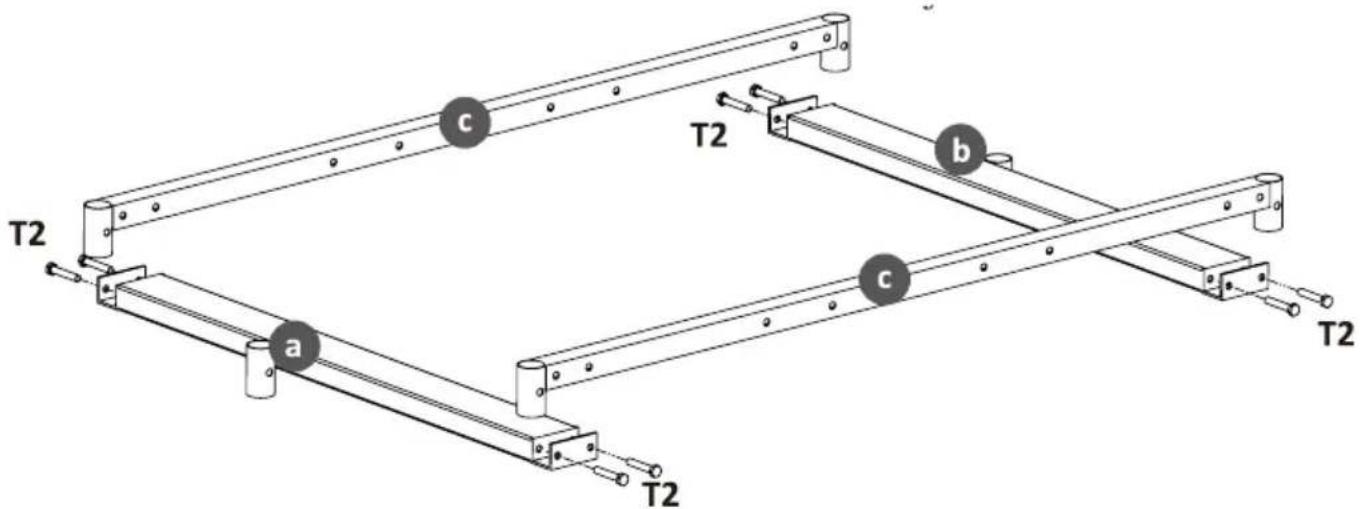

Note: The bottom frame(c) should have the round tube on both ends with the flat face facing up.

STEP 2:

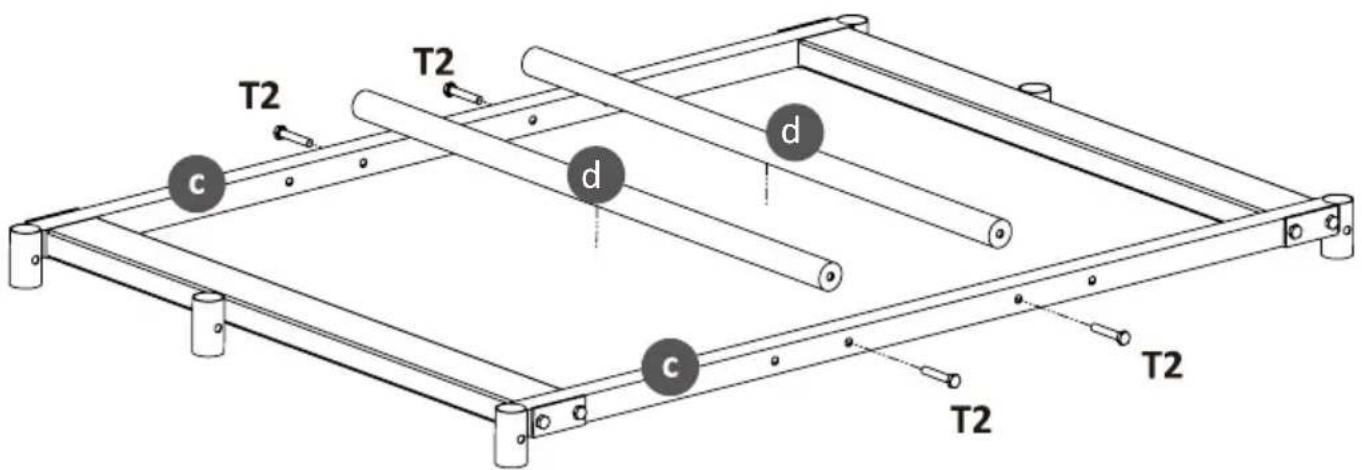

Note: There are four locations for the Bottom tube(d). Choose the correct position according to the size of the table.

STEP 3:

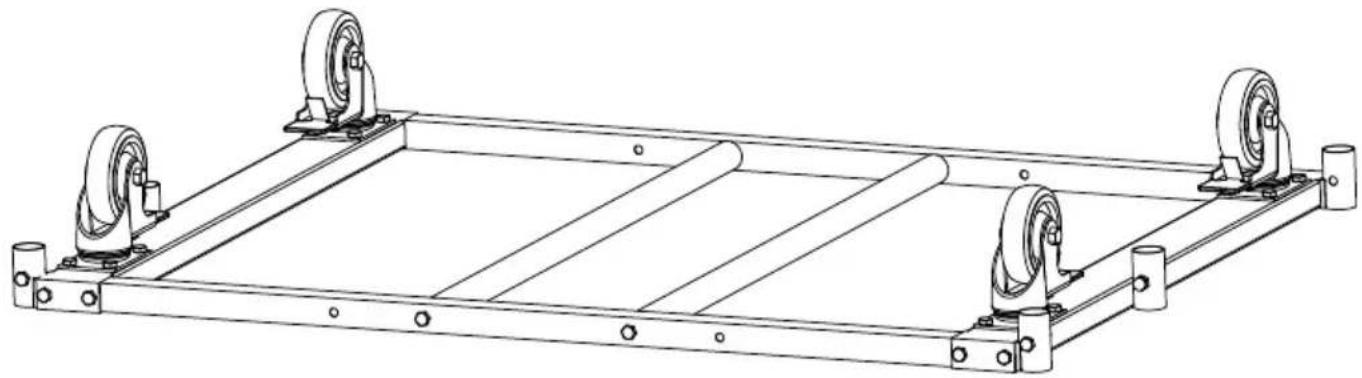

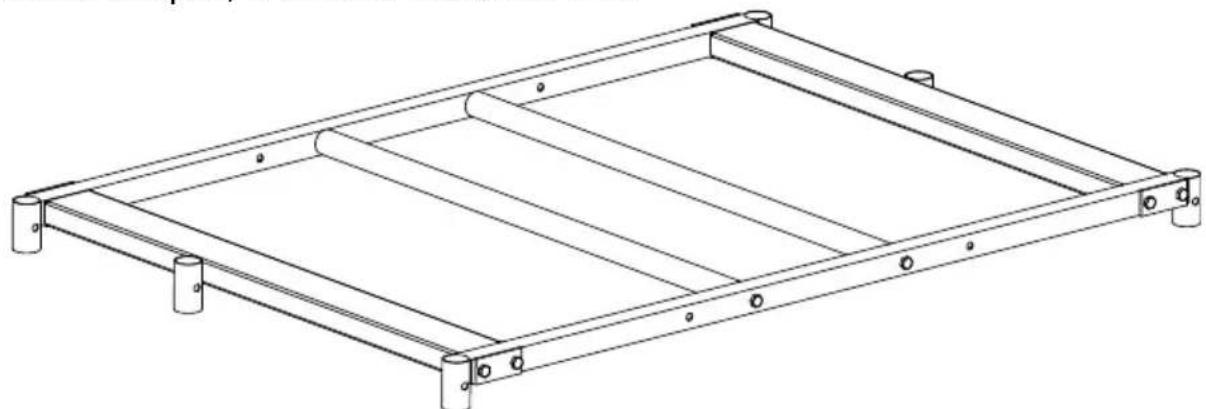

After Step 2, it should look like this.

Technical line drawing of a metal frame structure with mounting holes and supports (no text or symbols)

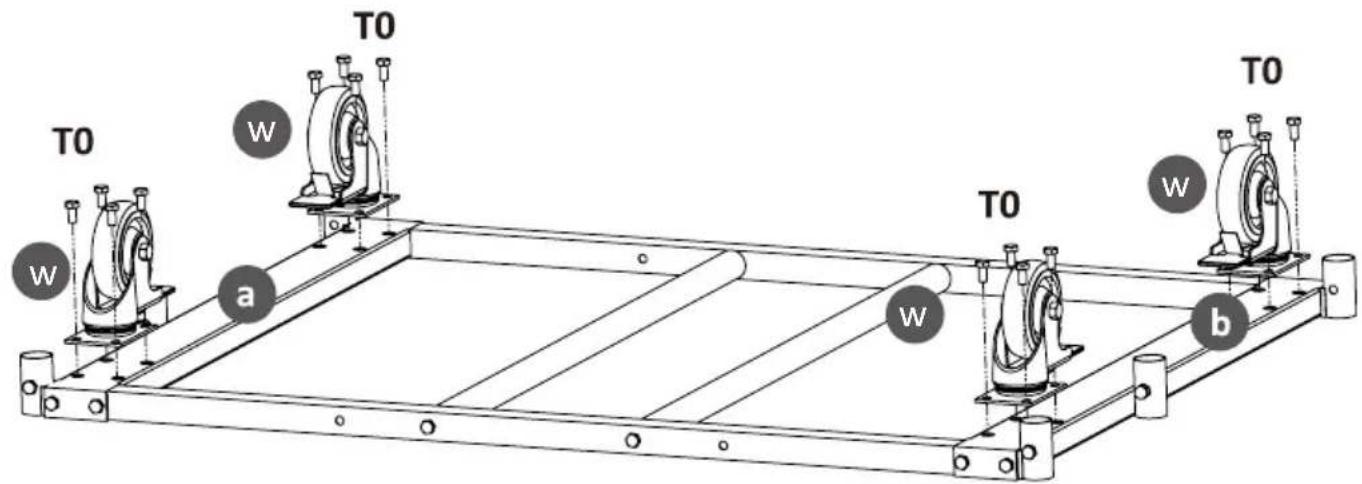

Now turn this assembly upside down, then install the locking caster(w) to the caster frame left(a) and caster frame right(b) with Hex screw(T0)

Turn this assembly upside down after the casters are installed.

Technical line drawing of a mechanical frame with two wheels and mounting feet (no text or symbols)

STEP 4:

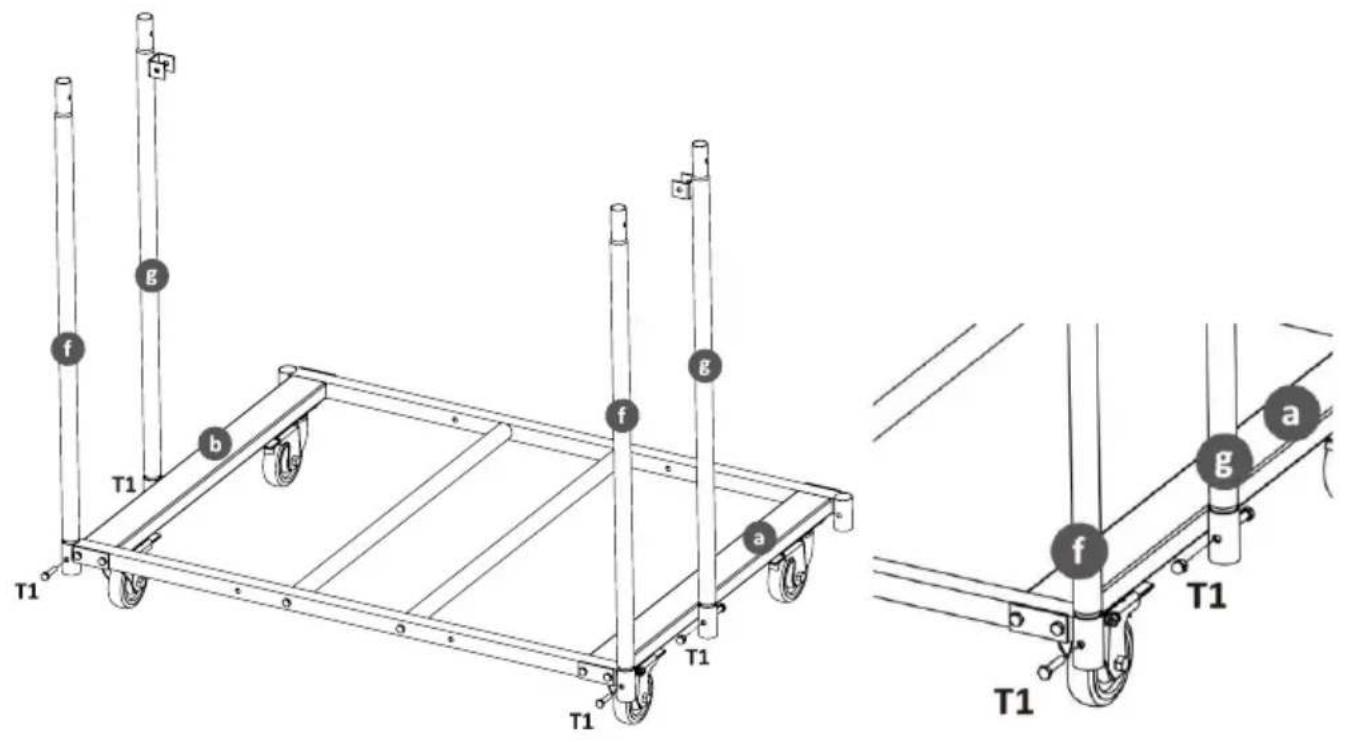

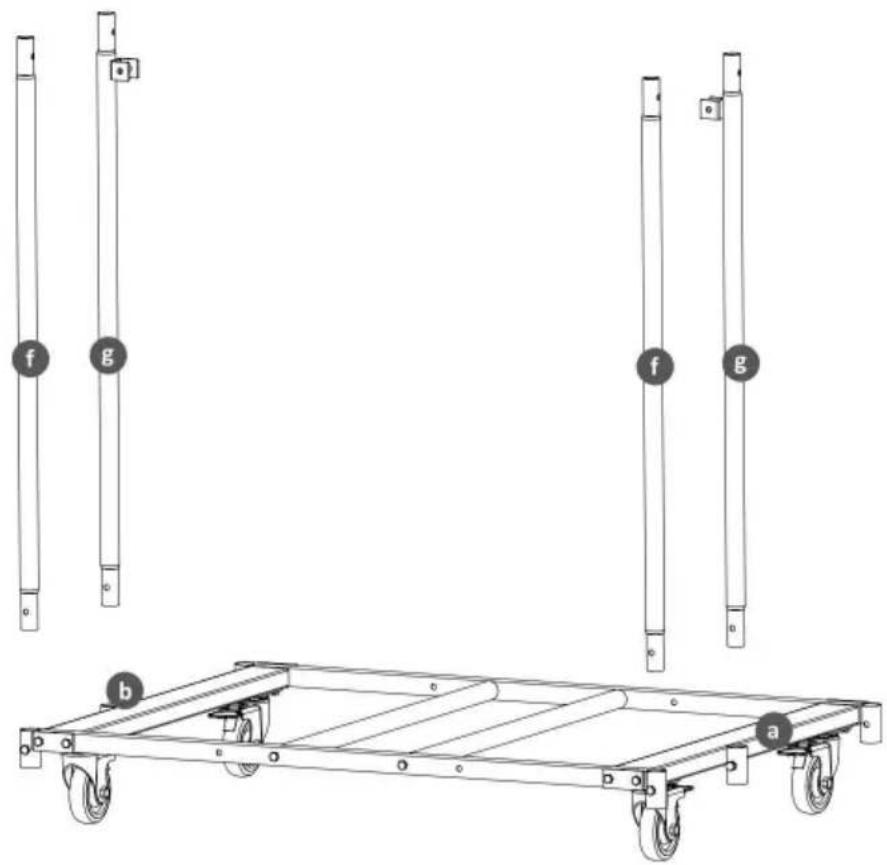

Note: Distinguish the Rear upright post(f) and Center upright post (g).

STEP 5:

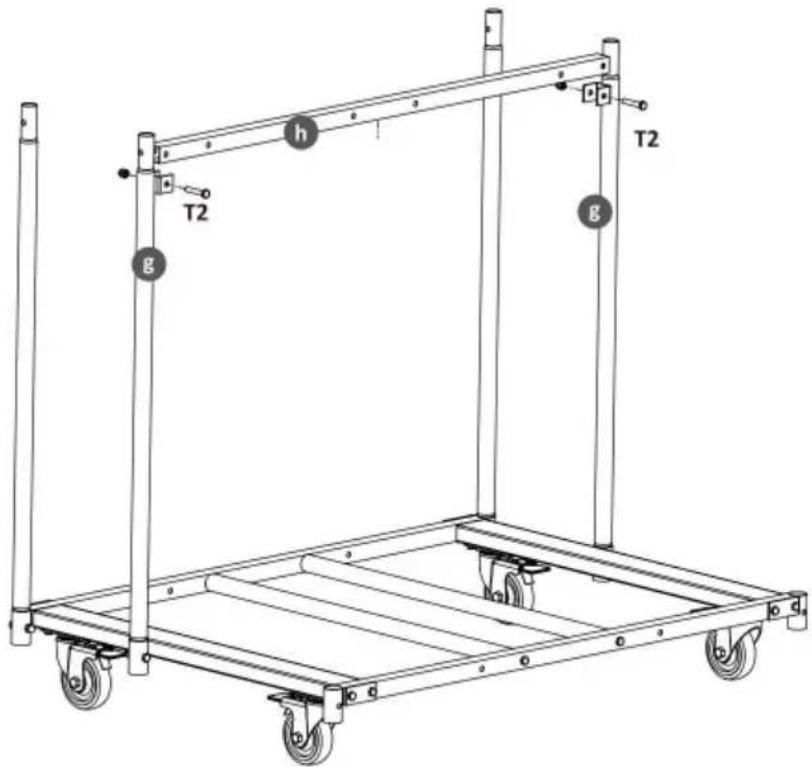

Install the chair hanger bar(g) to the center upright pole(g) with screw(T2) and nut on each side.

Note: Install the chair hanger bar(g) first before move to the next step.

STEP 6:

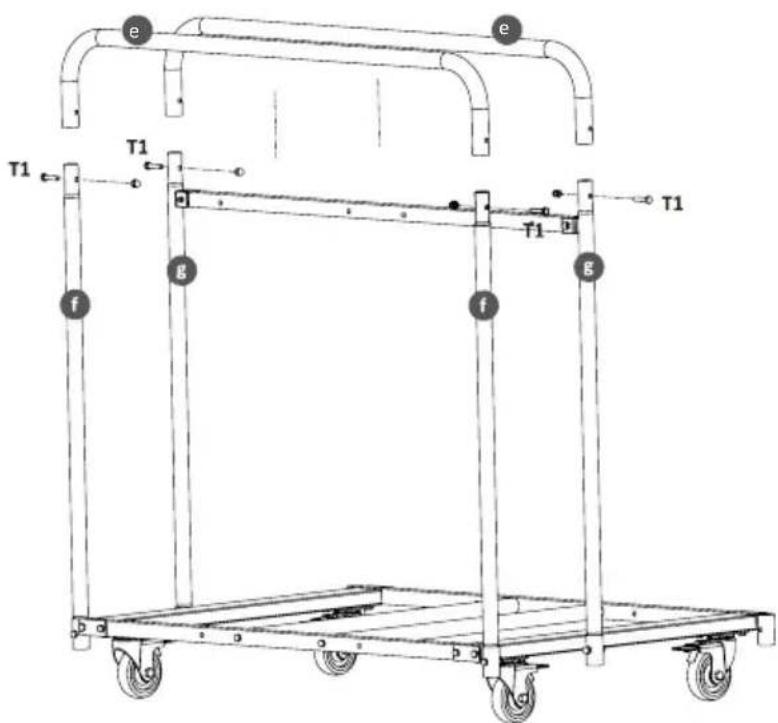

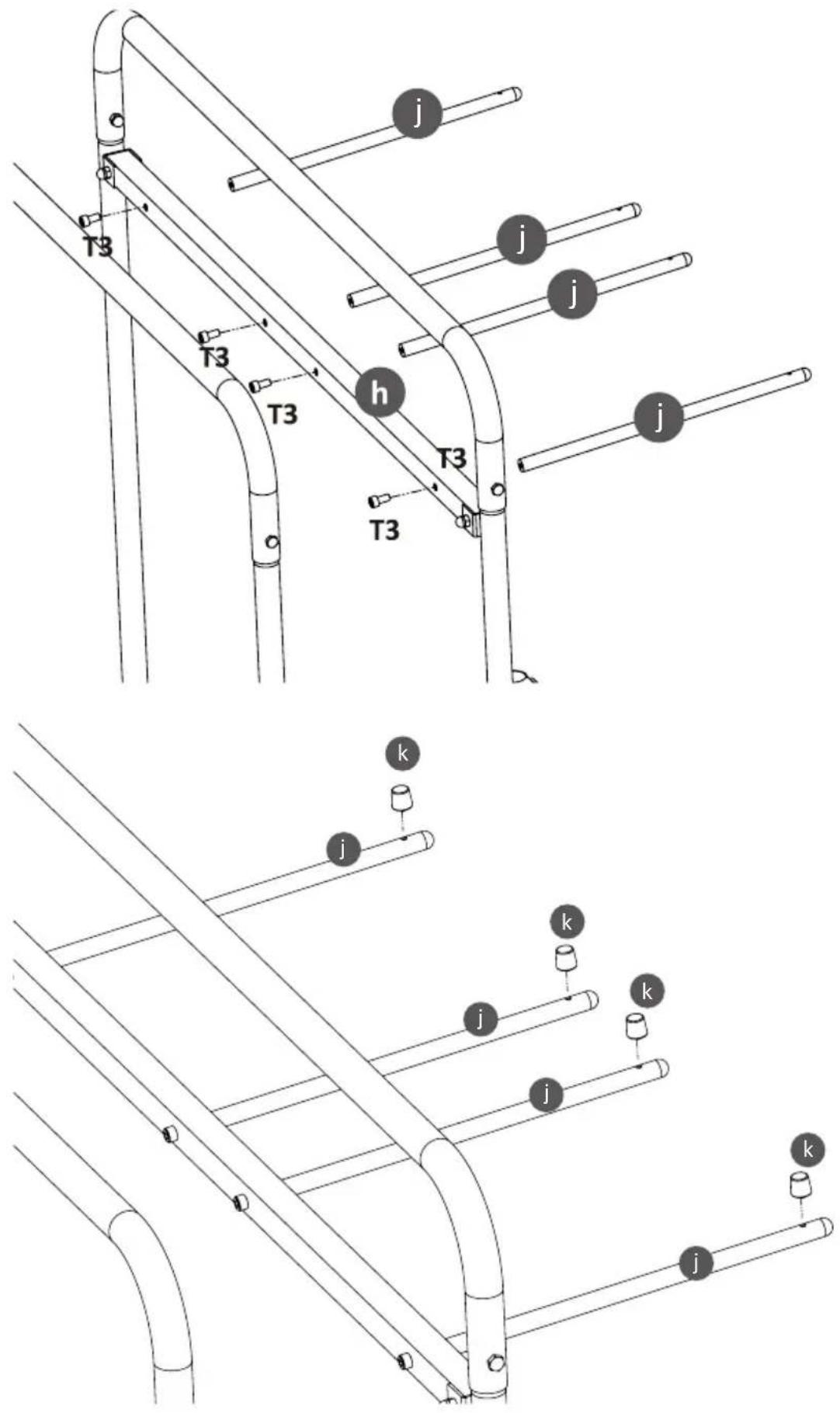

Install the top rails(e) to the upright pole(g&f) with screw(T1) and nut.

STEP 7:

STEP 8:

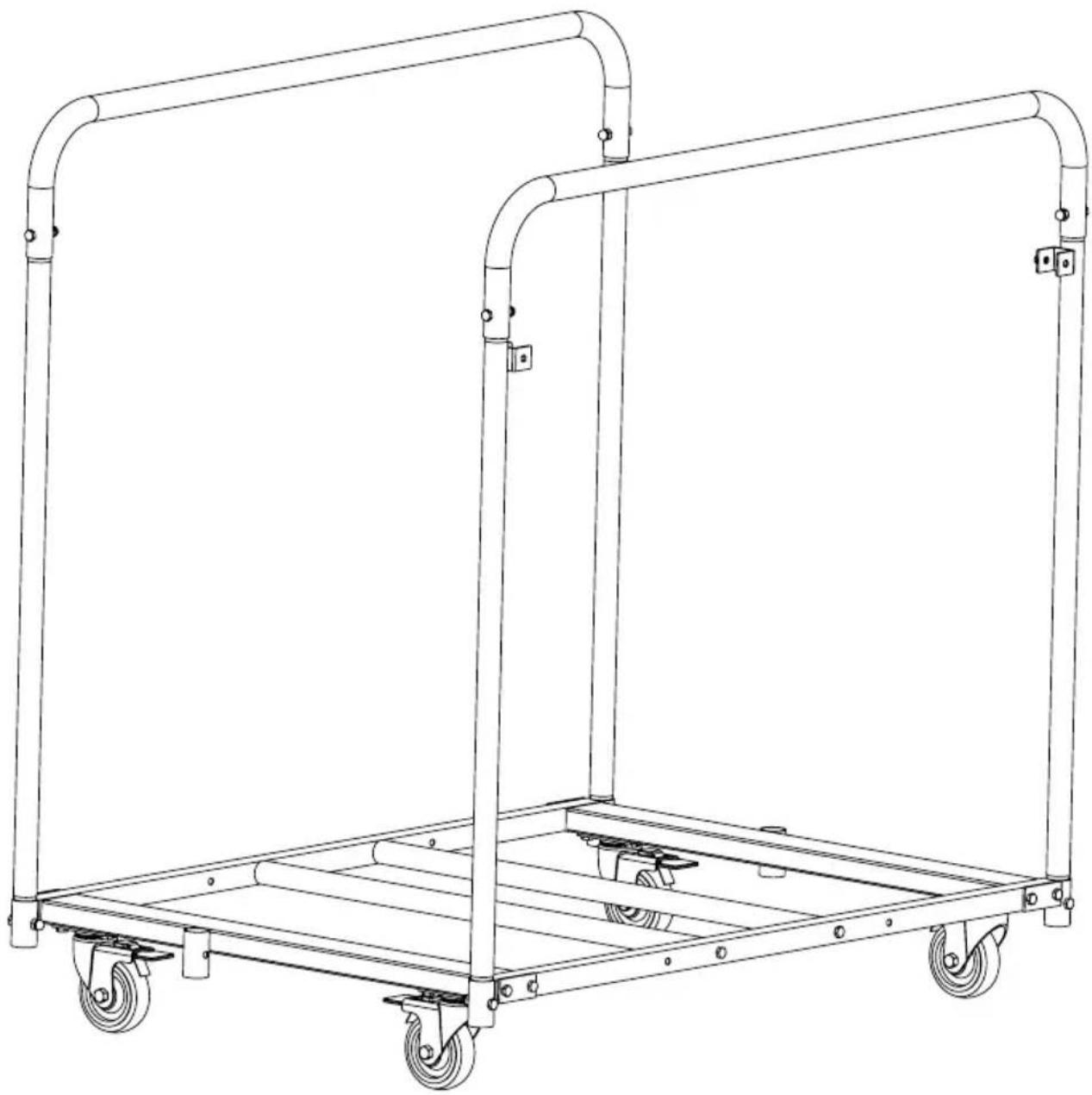

Remove the Chair hanger bar(h), and install the Center upright post(g) to the outer bottom frame tube; he cart can be used for moving tables & boxes

Line drawing of a dual-side metal cart with curved pipes and wheels (no text or symbols)
