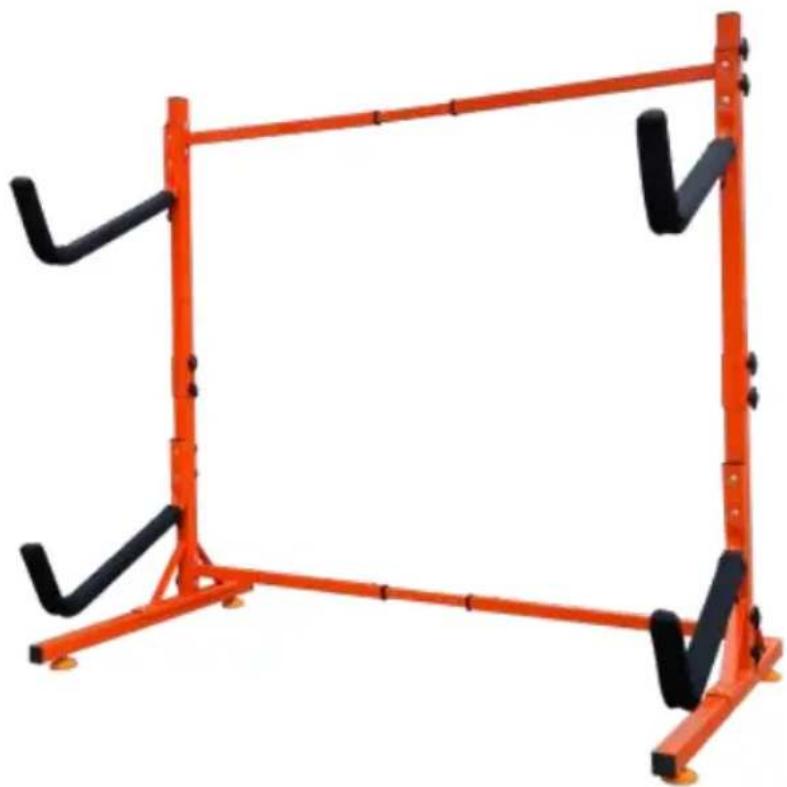

KAYAK STORAGE RACK

MODEL: Y08006-D2

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL: Y08006-D2

Orange metal frame with black support bars, no text or symbols visible

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Safety Instructions

Thoroughly read the assembly and operating instructions prior to assembly and follow the individual steps as described in the assembly instructions.

Risk of injury!

• WARNING! Do not exceed the maximum load capacity of 175 lbs load! Injuries or product damages may result.
• WARNING! Only set up the kayak storage rack on solid and even surfaces to prevent the product from tipping.
• WARNING! Do not sit persons on the kayak storage rack. Risk of injury.
• CAUTION ! Unconventional or even improper use may put persons at risk or result in damage to the kayak storage rack.
• Suggest! Installation and disassembly by two people is safer and easier.
• Routinely inspect all parts on the kayak storage rack. Tighten loose screws and replace defect parts to avoid product damage.
  • Always ensure the all screws are tightened securely.
• For additional information regarding the parts listed in the following pages, please refer to the Accessories package of this manual. Unwrap and separate all parts in a clean work area.
• This product contains small parts. If swallowed, it will pose a choking hazard. Keep these sn away from children when assembling!

Caution! Crushing hazard!

When folding and unfolding the kayak storage rack, take care not to pinch your fingers.

• Position the kayak storage rack to leave sufficient space to move around. Avoid property damage!
• When securing frames be careful to prevent damaging the frame.
• The guide and securing components must be kept free from oil and grease.

SAVE THESE INSTRUCTIONS

Parts List

The upper post x 2	The lower post x 2	Bottom caster bar x 2

Black curved object with a copper-colored end cap, isolated on white background (no text or symbols)

Coupling Plate x 4	M8*20 Screw x 4	M8*65 Carriage Screw x12

Close-up of a black mechanical component with a threaded base and triangular top (no text or symbols visible)

Wrench x1	Foot Pad x 4	M8*75 Carriage Screw x 8

Installation Introduction

STEP1:

M8*20mm Screw

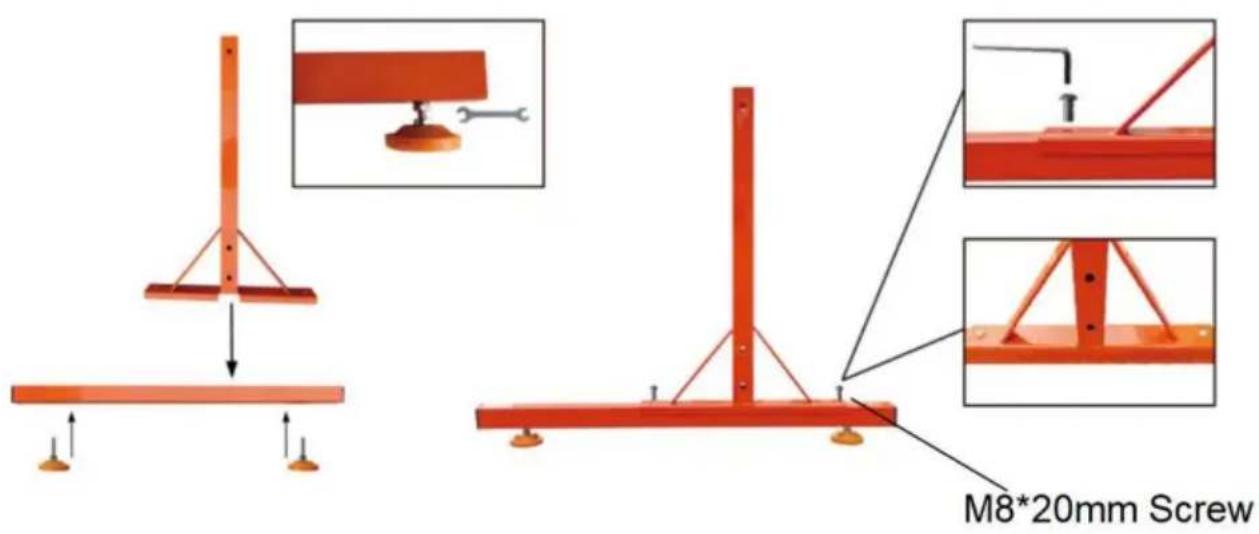

Install the bottom caster bar with a wrench, proper place the lower p vertically on the bottom caster bar, using the hex wrench to tighten 1 bolts.

STEP2:

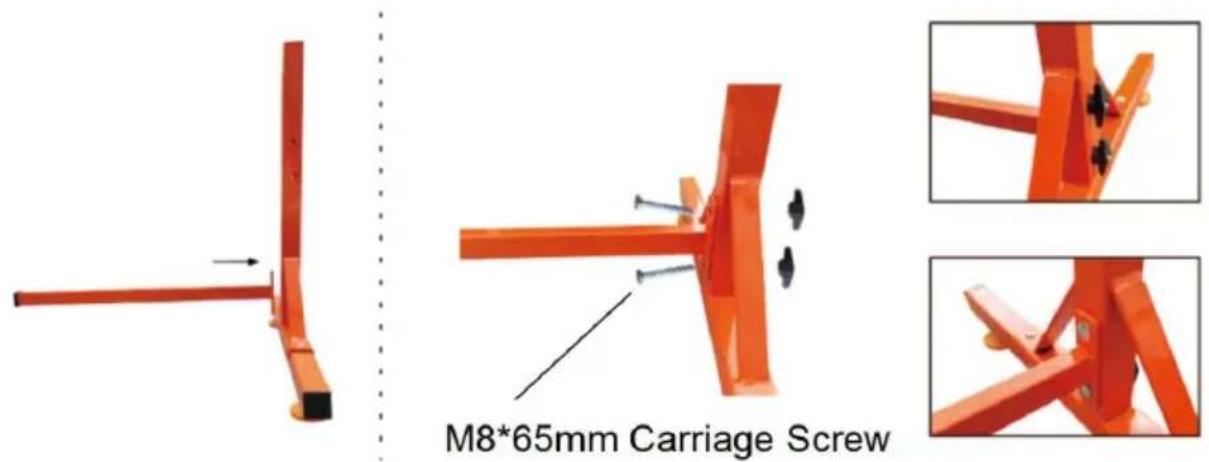

M8*65mm Carriage Screw

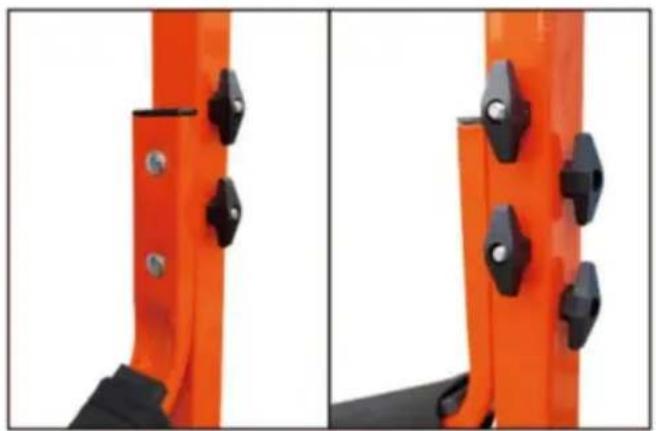

Secure the legs with the knobs as shown.

STEP3:

STOP 300 250 200 150 100 50 0 50 100 150 200 250 STOP 300 250 200 150 100 50 0 50 100 150 200 250 STOP → ←

Repeat the above steps to install the 2 legs, then the crossbar is at and secured with knobs. When installing, take care to align the rods both ends.

STEP4:

M8*65mm Carriage Screw

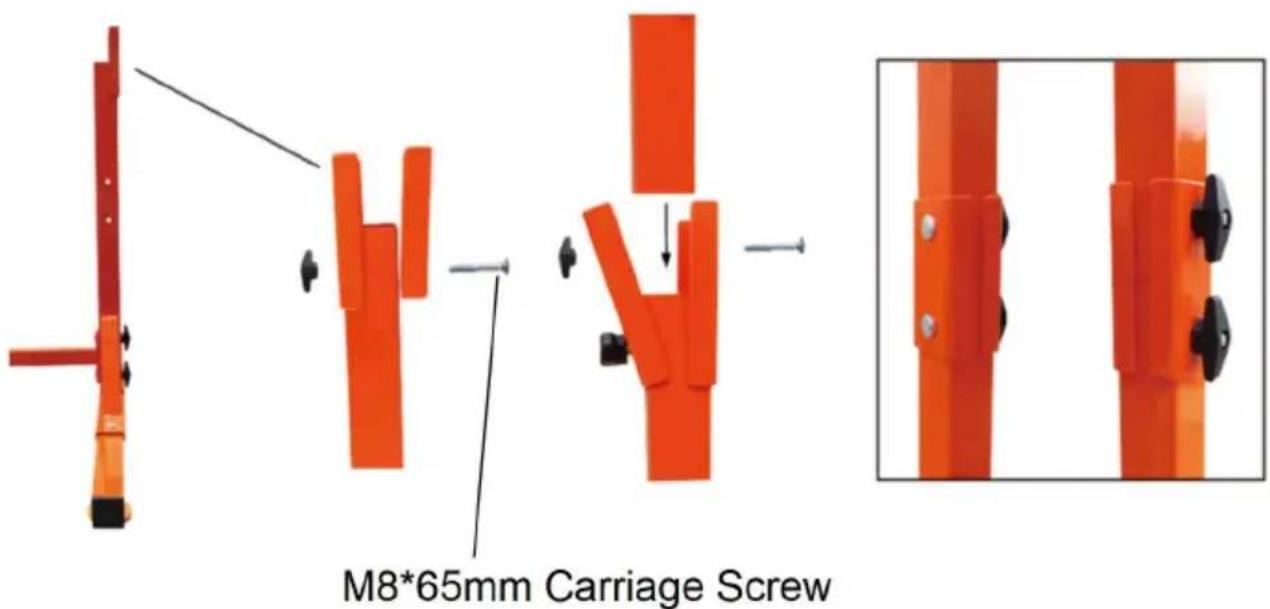

Insert the upper post into the lower post and fix.

STEP5:

M8* 75mm Carriage Screw

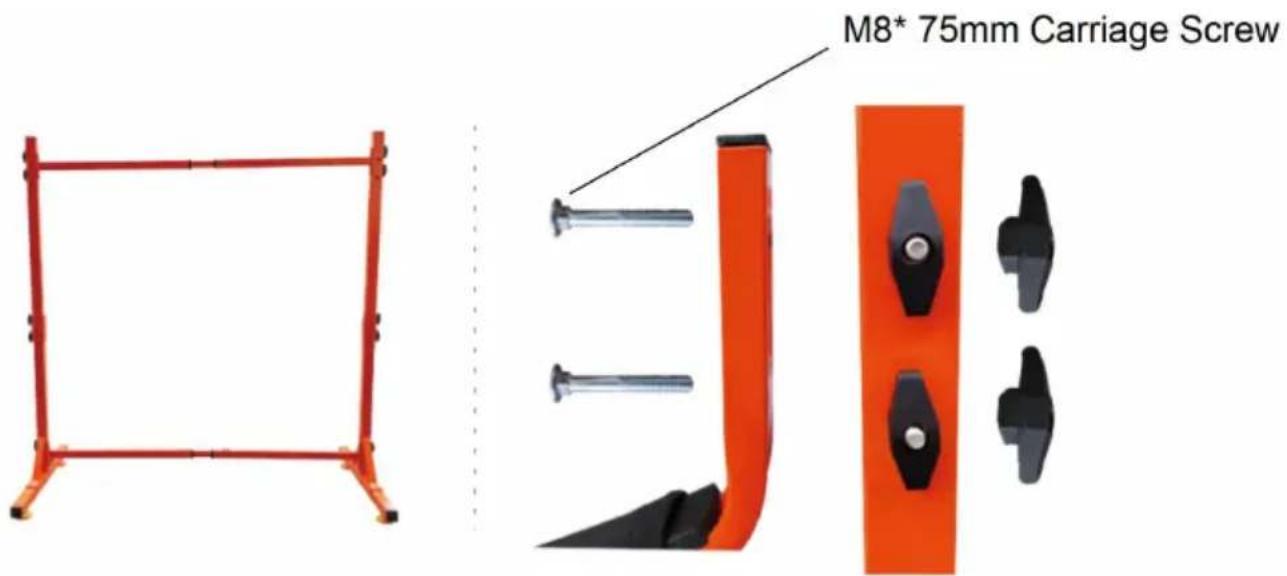

Connect the arm to the both bracket with the carriage bolt and tighten bolt with the knob.

STEP6:

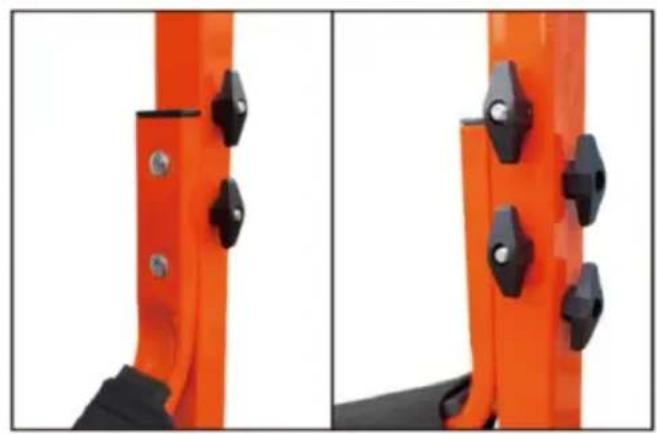

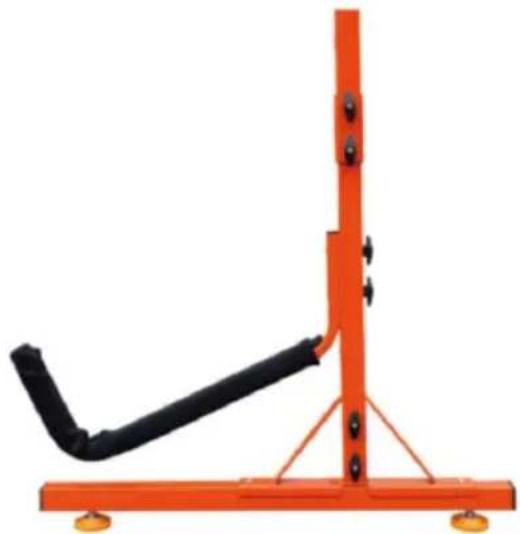

Orange metal exercise stand with black armrest and support legs (no text or symbols visible)

Close-up of orange mechanical clamps with black adjustment knobs, shown from side and top views (no text or symbols)

Repeat the above steps to complete the installation.

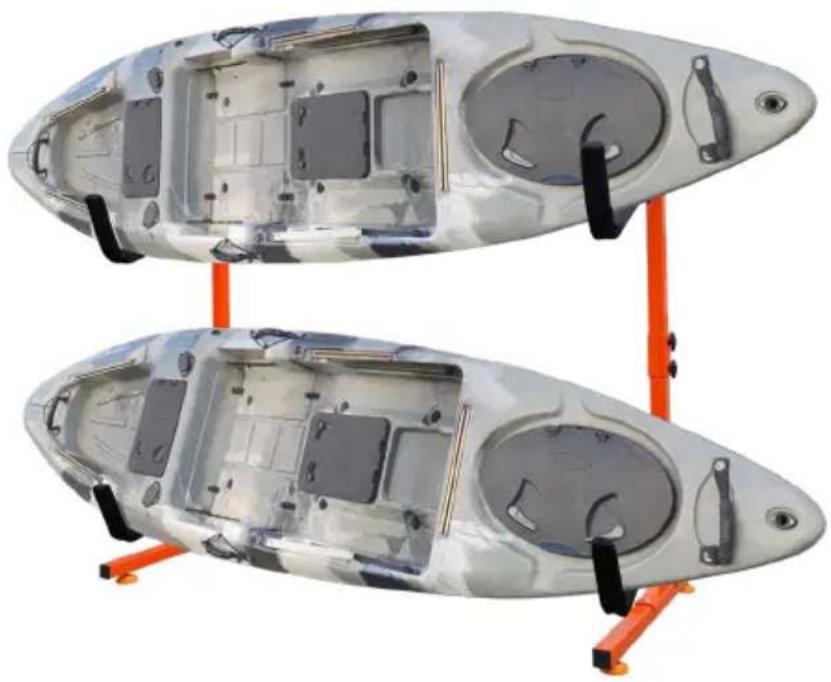

Use display
