KAYAK STORAGE RACK

MODEL: Y08005-S2

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL:Y08005-S2

Pure electrical circuit lines without any symbols

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel from contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Safety Instructions

Thoroughly read the assembly and operating instructions prior to asser and follow the individual steps as described in the assembly instructio

Risk of injury!

• WARNING! Do not exceed the maximum load capacity of 250 lbs Injuries or product damages may result.
• WARNING! Only set up the kayak storage rack on solid and even surfaces to prevent the product from tipping.
• WARNING! Do not sit persons on the kayak storage rack. Risk of injury.
• CAUTION ! Unconventional or even improper use may put persons or result in damage to the kayak storage rack.
• Suggest! Installation and disassembly by two people is safer and e
• Routinely inspect all parts on the kayak storage rack. Tighten loose screws and replace defective parts to avoid product damage.
  • Always ensure the all screws are tightened securely.
• For additional information regarding the parts listed in the following please refer to the Accessories package of this manual. Unwrap and separate all parts in a clean work area.
• This product contains small parts. If swallowed, it will pose a choki hazard. Keep these small parts away from children when assembling!

Caution! Crushing hazard!

When folding and unfolding the kayak storage rack, take care not to your fingers.

• Position the kayak storage rack to leave sufficient space to move a Avoid property damage!
• When securing frames be careful to prevent damaging the frame.
• The guide and securing components must be kept free from oil and grease.

SAVE THESE INSTRUCTIONS

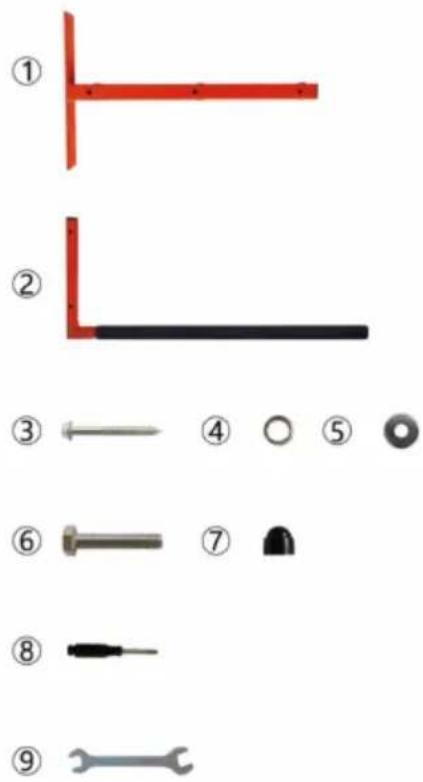

Diagram showing nine labeled parts of a mechanical tool, including red bars, black bars, screwdriver, and wrench.

Parts List
	Qty	Part Name
1	2	Ceiling Post
2	4	Arm
3	8	Hexagon Head Tapping Screws
4	8	Elastic Gasket
5	8	Shim
6	8	External Hexagonal Screw
7	8	Plastic Cap
8	1	Screwdriver
9	1	Wrench

Installation Introduction

STEP1:

Red structural component with directional arrows indicating assembly, shown from before and after magnified view (no text or symbols)

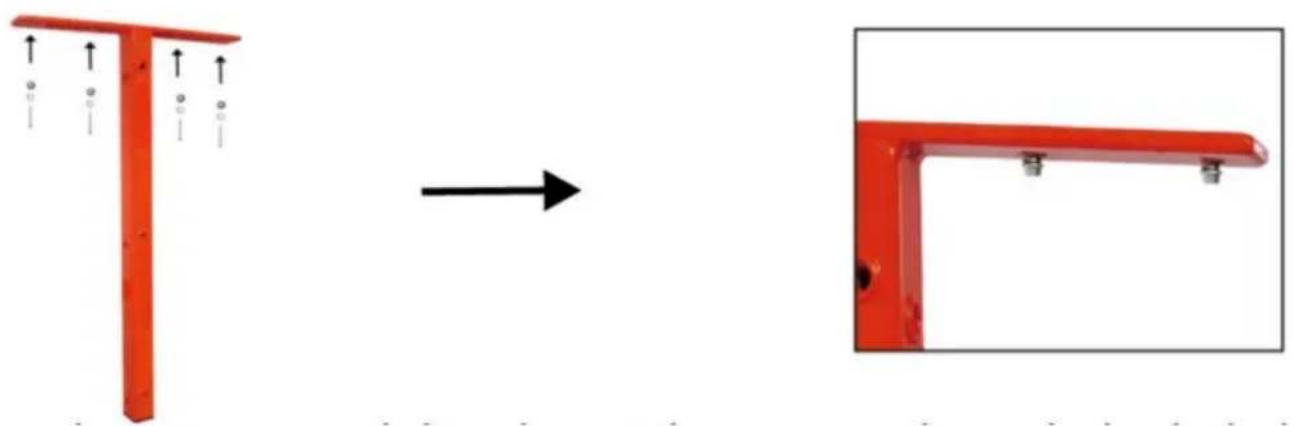

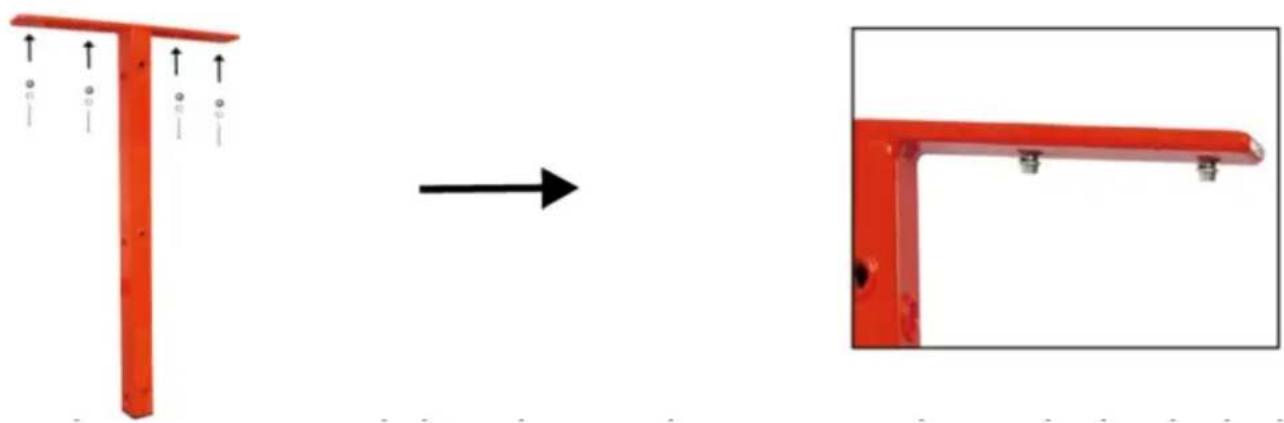

Loosen the screws and then insert the screws through the hole in ce post as shown and secure to ceiling.

Tip: Only applicable to wooden roof structures.

STEP2:

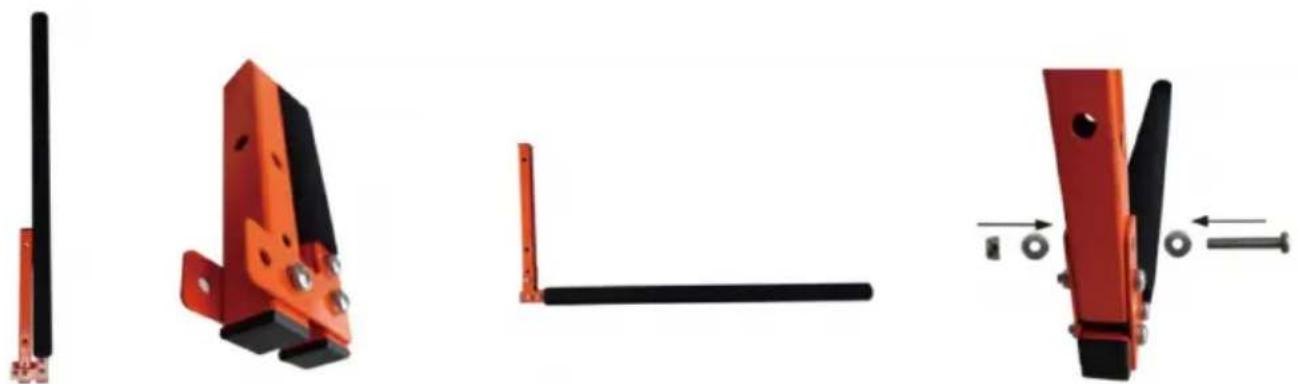

Remove the first screw, unfold it, and then install the screw back. We installing, pay attention to the alignment of the height positions of both sides of the pole.

STEP3:

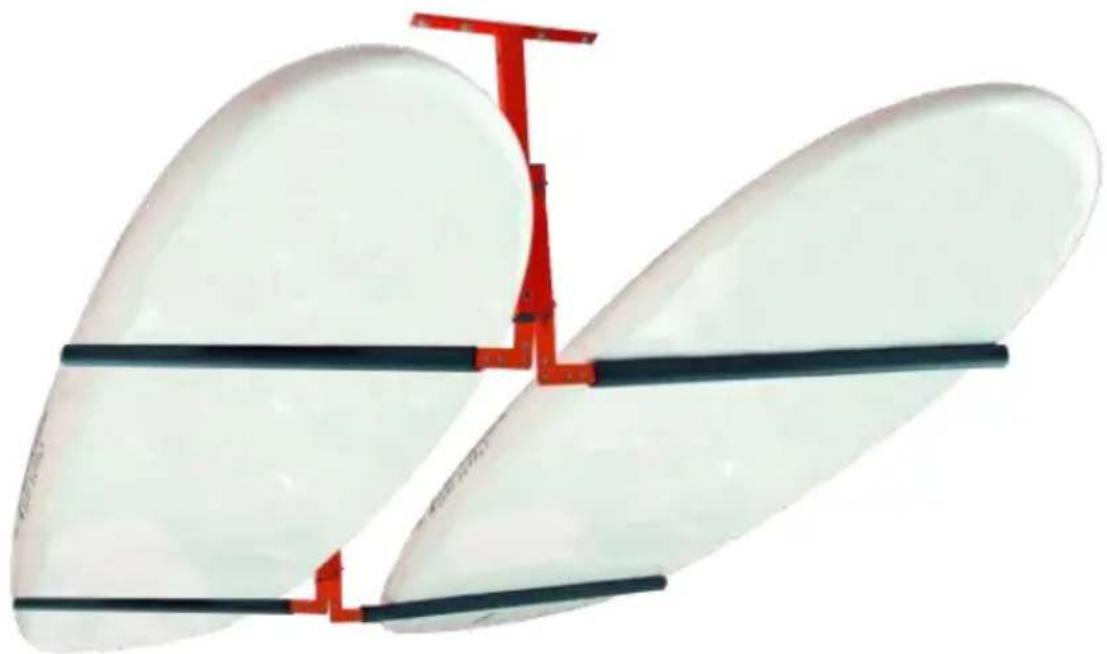

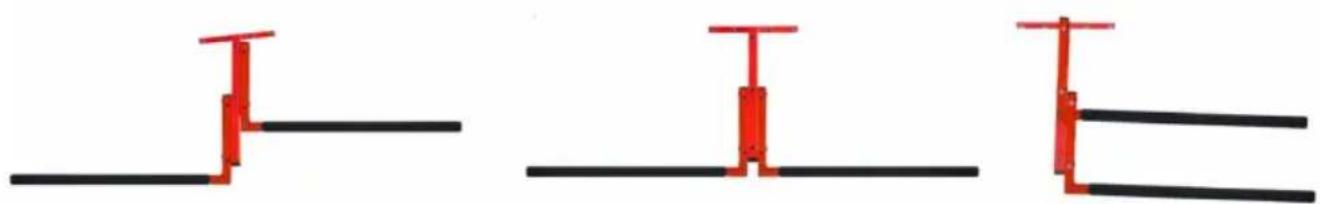

Arms can be mounted on all four sides and in the upper or lower | the Ceiling Post. Here are the different installation steps.

Three identical red metal tools with black base bars, arranged horizontally (no text or symbols)

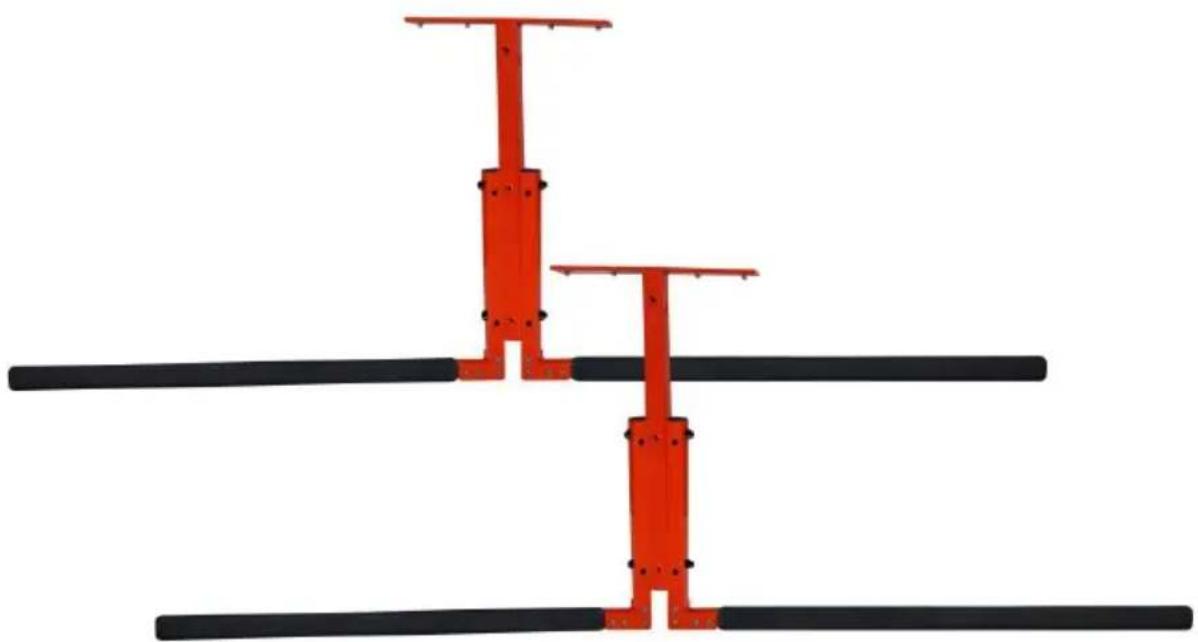

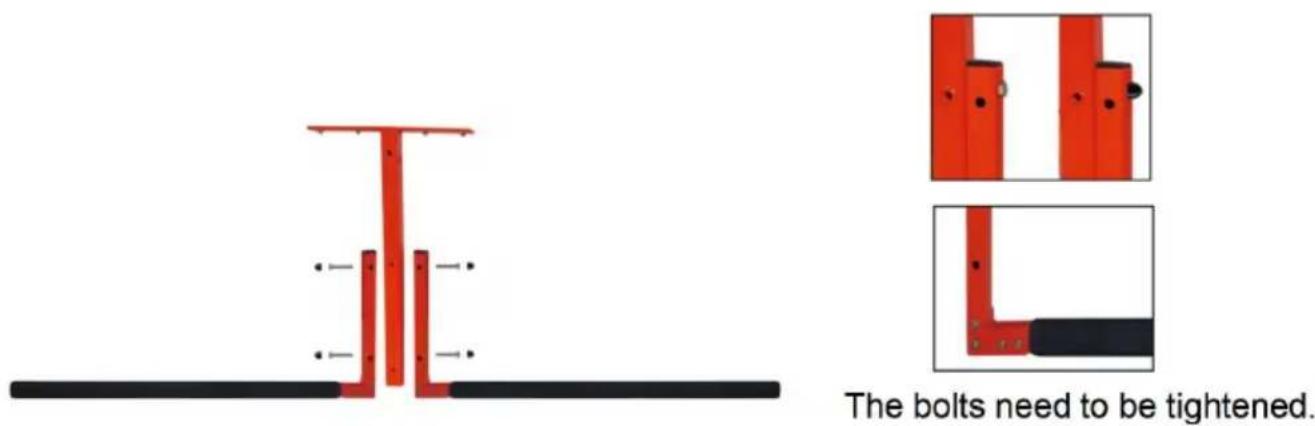

Repeat steps 1-2 for the second Ceiling Post, done.

Use display

Abstract diagram of two white lobes with red structural elements and black horizontal lines, no text or symbols present.
