USER MANUAL YL-5T Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

GEAR PULLER

MODEL:YL-5T

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and doses necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify ca when you are placing an order with us if you are actually saving half in comparison with the top ma

VEVOR®

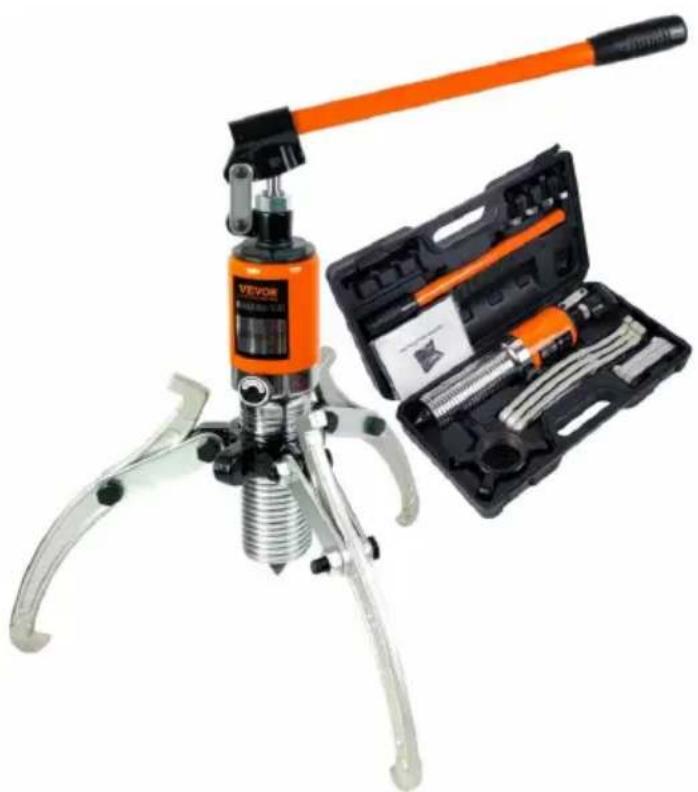

GEAR PULLER

MODEL:YL-5T

Tool kit with orange VEVOR device and mechanical components, no visible text or symbols

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel from contact us:

[e-mail]

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Safety & Warning

• Read and understand this entire manual before assembling, installing operating, or servicing this product. Failure to follow these warning and instructions can cause death, personal injury, or damage value property.
• While assembling and using this product, keep the work area clean and well-lighted, and keep spectators and children out of the work area.
• Wear ANSI-approved safety goggles, heavy-duty work gloves, and safety shoes during use.
• Use as intended only.
• Before each use, inspect the general condition of the product. Check for: broken, cracked, or bent parts, loose or missing parts, and a condition that may affect the proper operation of the product.
• After every use, wipe with a clean cloth. Then, store the product is safe, dry location out of reach of children and other non-authorize people.
• Ensure only genuine parts are used for replacement & Repair.
• Be aware of dynamic loading! The sudden load movement may break create an excess load, causing product failure.

Specifications

Model Series	YL-5T
Max. Tensile Force (t)	5
Max. Jaw Spread(inch)	8
Structural Style	Hydraulic

Figure of the Product

Tool kit with orange hydraulic cylinder and mechanical components, no visible text or symbols

Part	Description	Qty
1	Pump Body	1
2	Pull Tab	6
3	Ejector Pin	1
4	Bolt	6
5	Nut	6
6	Handle	1
7	Puller Ring	1
8	Claw Feet	3

Installation instructions

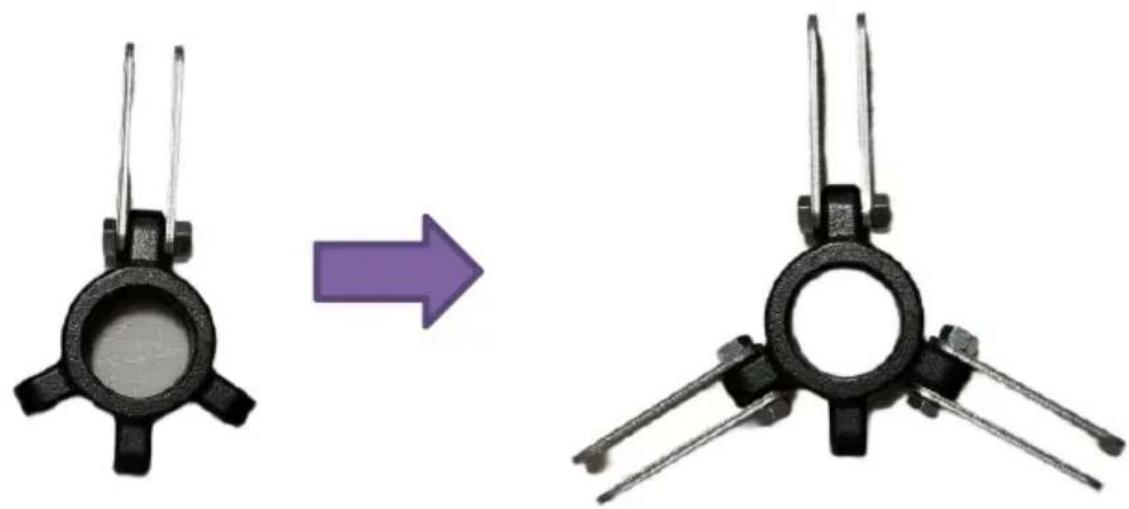

Step 1.

Two identical black mechanical components with three metal handles, one being rotated by a purple arrow (no text or symbols visible)

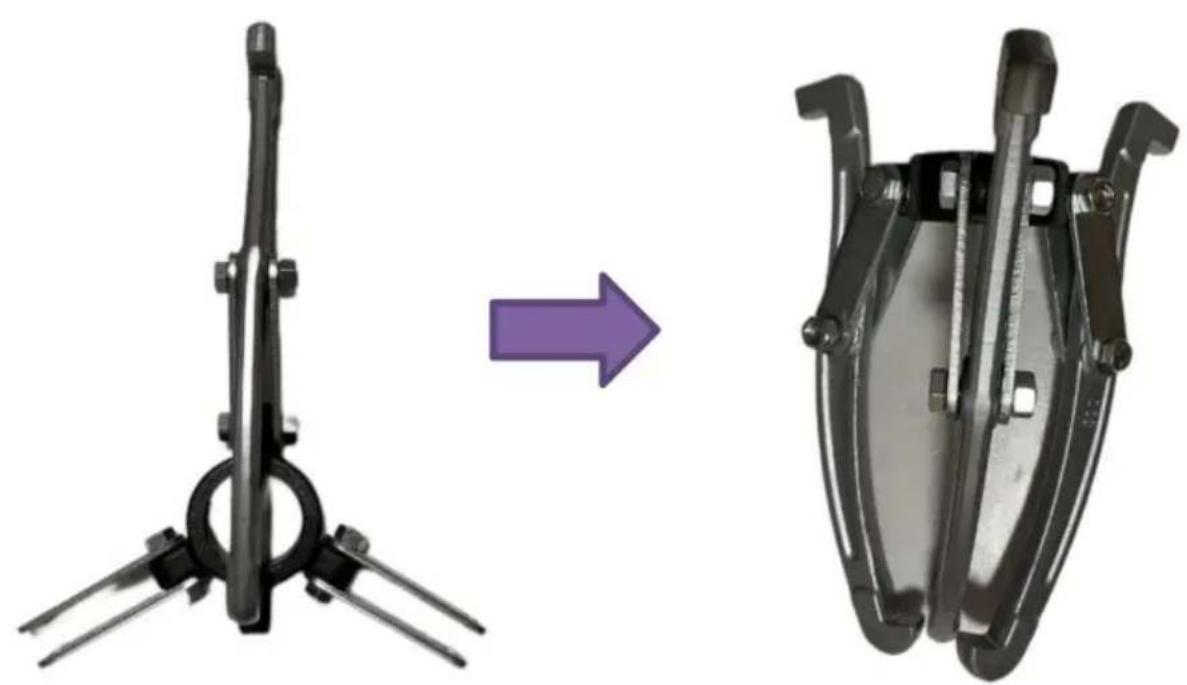

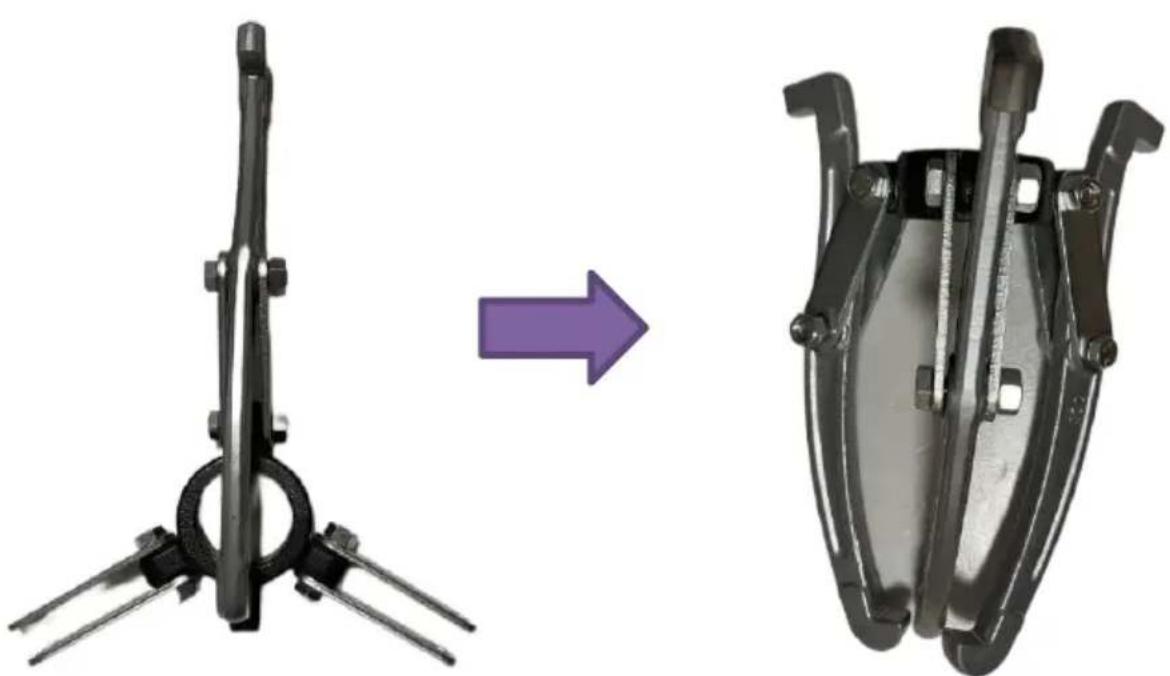

Step 2.

Two mechanical components: a metal clamp-like device and a metallic bracket with mounting holes, both shown before and after transformation (no text or symbols visible)

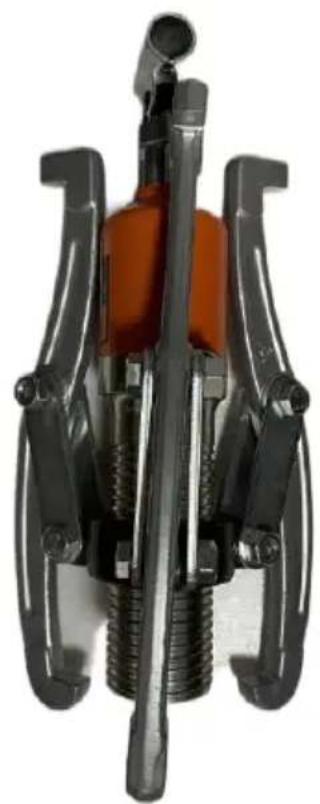

Step 3.

Close-up of a mechanical device with orange internal component and black handle (no visible text or symbols)

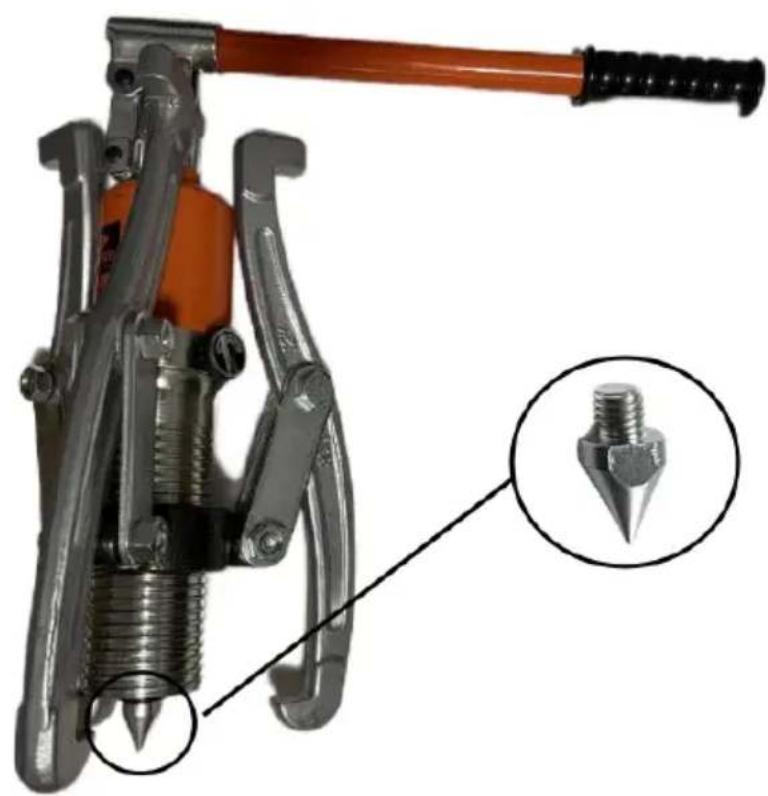

Step 4.

Mechanical tool with threaded handle and spout, shown with magnified inset of a pin (no text or symbols)

Instructions

A. Oil valve stem screw tightens on deasil first when using.
B. Adjust hook claw to claw hook to hold the objects.
C. Raise the handle hand hole to lift the filling pump upper and low corresponding to going backward. The claw hook has back and forth to insert, and the object is pulled out to draw the quilt.
D. If you want to make the cylinder rod contract back, it only needs back to loosen the right valve stem in a counterclockwise direction; little, the cylinder rod has gone back to contract gradually under the function of the spring.
E. According to the external diameter of the object, draw distance, an strength, choose the corresponding hydraulic pressure of tonnage draw horses before using, must guard against overloading to use, avoid damage.
F. In order to prevent causing machines damage for overload, hydraul setting set up overload to unload the valve automatically; when the oil at exceeding the specified load, the hydraulic pump will over low oil automatically, the workpiece will don't retreat and enter, should reeled large hydraulic pressure of tonnage draw horses at this moment.

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support Made In China

VEVOR®

TOUGH TOOLS, HALF PRICE

Tool kit with orange hydraulic tool and metal stand, displayed in a black case (no visible text or symbols)

BESOIN D'AIDE? CONTACTEZ-NOUS!

Tool kit with orange hydraulic cylinder and metal stand, no visible text or symbols

Two identical black mechanical components with three protrusions, one being rotated by a purple arrow (no text or symbols)

Étape 2.

Two mechanical components, one with three legs and a vertical rod, shown before and after transformation (no text or symbols)

Étape 3.

Mechanical device with orange internal component and black frame structure (no visible text or symbols)

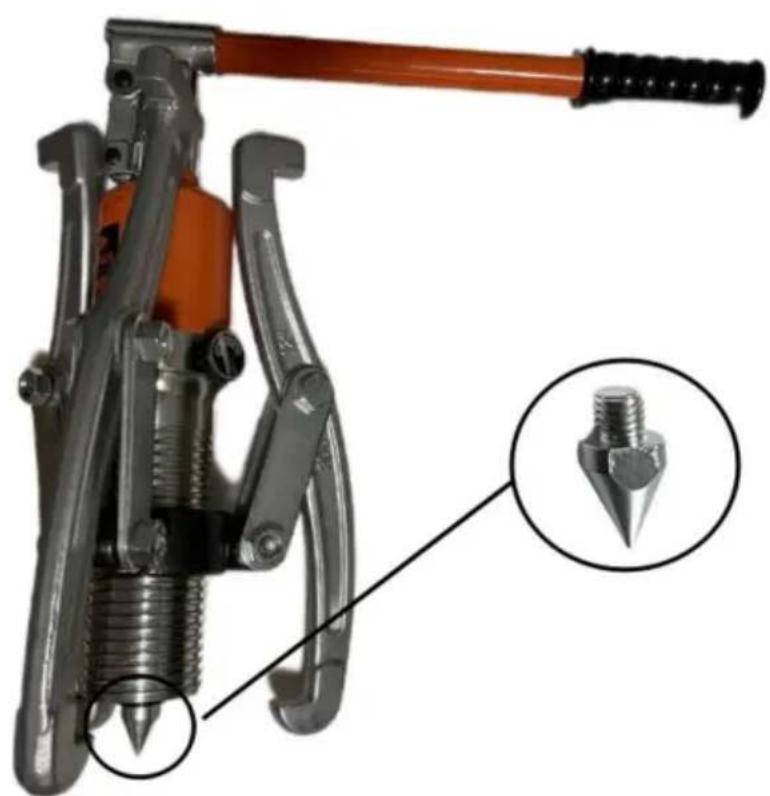

Étape 4.

Mechanical tool with threaded component and magnified inset showing a pin (no text or symbols)

Instructions

Tool kit with orange hydraulic tool and metal stand, displayed in a black case (no visible text or symbols)

[e-mail]

Tool kit with orange hydraulic cylinder and metal stand, no visible text or symbols

Two mechanical components, one with three legs and a purple arrow indicating transformation (no text or symbols)

Schritt 3.

Mechanical device with orange internal component and black frame structure (no visible text or symbols)

Schritt 4.

Mechanical tool with a handle and threaded component, shown with magnified inset (no text or symbols)

Anweisungen

www.vevor.com/support

Industrial measuring tool with orange handle and metal base, accompanied by a black-and-white photo of its open case (no visible text or symbols)

Tool kit with orange hydraulic cylinder and metal stand, no visible text or symbols

Two identical black mechanical components with three protrusions, one being rotated by a purple arrow (no text or symbols)

Fase 2.

Two mechanical components, one with three legs and a vertical rod, shown before and after transformation (no text or symbols)

Fase 3.

Mechanical device with orange internal component and black frame structure (no visible text or symbols)

Fase 4.

Mechanical tool with threaded component and magnified inset showing a pin (no text or symbols)

Istruzioni

Industrial manual tool kit with orange handle, metal base, and black case (no visible text or symbols)

Tool kit with orange hydraulic cylinder and metal stand, no visible text or symbols

Two mechanical components: a metal clamp with three legs and a metallic bracket with four legs, both shown before and after transformation (no text or symbols visible)

Paso 3.

Mechanical device with orange internal component and black frame structure (no visible text or symbols)

Paso 4.

Mechanical tool with threaded component and magnified inset showing a pin (no text or symbols)

Instrucciones

www.vevor.com/support

Fabricado en China

VEVOR®

TOUGH TOOLS, HALF PRICE

Tool kit with orange hydraulic tool and mechanical components, no visible text or symbols

POTRZEBUJESZ POMOCY? SKONTAKTUJ SIĘ Z NAMI!

Tool kit with orange hydraulic cylinder and metal stand, no visible text or symbols

Two mechanical components: a three-legged clamp and a multi-plate clamp, both shown with an arrow indicating transformation (no text or symbols present)

Krok 3.

Mechanical device with orange internal component and black frame structure (no visible text or symbols)

Krok 4.

Mechanical tool with threaded component and magnified inset showing a pin (no text or symbols)

Instrukcje

www.vevor.com/support

Tool kit with orange hydraulic tool and mechanical components, no visible text or symbols

HULP NODIG? NEEM CONTACT MET ONS OP!

[e-mail]

Tool kit with orange and black components, no visible text or symbols

Two identical black mechanical components with three protrusions, one being rotated by a purple arrow (no text or symbols)

Stap 2.

Two mechanical components, one with three legs and a vertical rod, shown before and after transformation (no text or symbols)

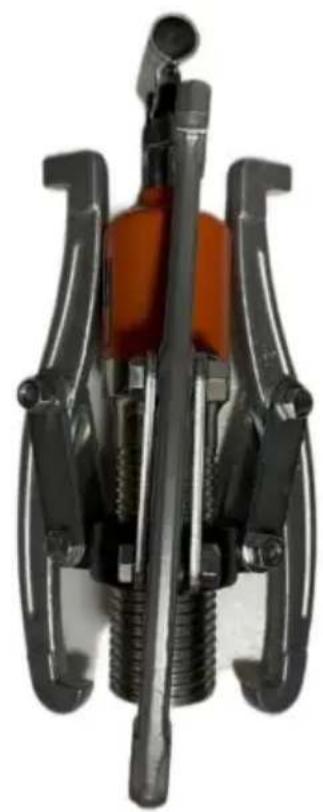

Stap 3.

Mechanical device with orange internal component and black frame structure (no visible text or symbols)

Stap 4.

Mechanical tool with a handle and threaded component, shown with magnified inset (no text or symbols)

Instructies

Industrial measuring tool with orange handle and metal base, accompanied by a black-and-white photo of its open case (no visible text or symbols)

BEHÖVER HJÄLP? KONTAKTA OSS!

Tool kit with orange hydraulic cylinder and metal stand, no visible text or symbols

Two identical black mechanical components with three protrusions, one being rotated by a purple arrow (no text or symbols)

Steg 2.

Two mechanical components, one with three legs and a vertical rod, shown before and after an arrow indicating transformation (no text or symbols present)

Steg 3.

Mechanical device with orange internal component and black frame structure (no visible text or symbols)

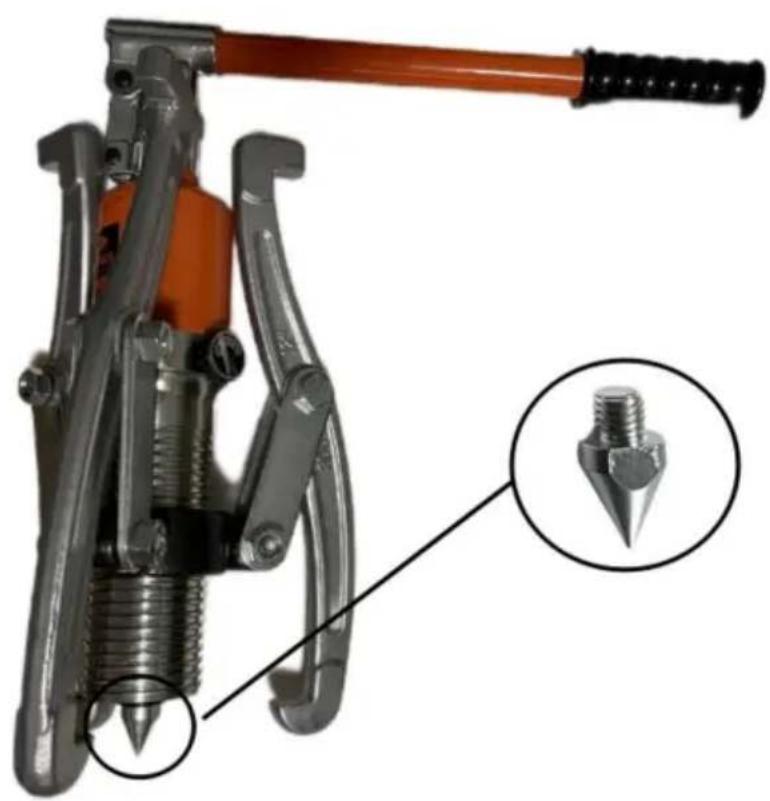

Steg 4.

Mechanical tool with a handle and threaded component, shown with magnified inset (no text or symbols)

Instruktioner
