YD-67B - Trash can Vevor - Free user manual and instructions

Product Type	Commercial Smoker Receptacle (Outdoor Ashtray)
Brand	Vevor
Model	YD-67B
Product Dimensions	320 mm (diameter) × 1080 mm (height)
Color	Black
Main Material	Steel
Approximate Capacity	Approximately 5 liters (estimate)
Power Supply	None (manual operation)
Main Functions	Collection and extinguishing of cigarette butts
Assembly Required	Yes, simple assembly with provided parts
Package Contents	Upper cylinder, lower cylinder, inner barrel, decorative cover, counterweight, lock nut, gasket, screws, keys
Safety Instructions	Do not sit or stand; do not allow children to play nearby; use on a flat surface; inspect before each use
Maintenance and Cleaning	Clean regularly; inspect for loose or damaged parts
Spare Parts Available	Yes, parts listed in the manual
Repairability	Repairable with spare parts; technical support via www.vevor.com/support
Warranty	Electronic warranty certificate available online
Intended Use	Outdoor, commercial or domestic use

Frequently Asked Questions - YD-67B Vevor

How to assemble the Vevor YD-67B trash can?

Follow the steps in the manual: lock the lower connection screws, connect the inner chain to the upper column, then insert the inner barrel and the upper cylinder. Use the provided keys.

What is the capacity of the YD-67B trash can?

The exact capacity is not specified, but estimated at about 5 liters, sufficient for moderate commercial use.

Is the YD-67B trash can suitable for indoor use?

It is designed for outdoor use, but can be used indoors if placed on a flat and stable surface.

How to maintain the Vevor YD-67B trash can?

Clean regularly with a damp cloth. Inspect before each use to check for loose or damaged parts.

What to do if a part is missing from the package?

Contact customer service via www.vevor.com/support to obtain a replacement part.

Can I sit on the YD-67B trash can?

No, it is strictly forbidden to sit or stand on this item to avoid any risk of injury.

Is the YD-67B trash can weather-resistant?

Yes, the model is designed for outdoor use and is weather-resistant thanks to its steel construction.

What tools are needed for assembly?

The 7 mm and 19 mm open-end wrenches are provided in the package. No additional tools required.

How to empty the YD-67B trash can?

Remove the upper cylinder and inner barrel to access the contents. Empty the ashes and clean if necessary.

Where to find the warranty certificate?

The electronic warranty certificate is available at www.vevor.com/support. Keep a copy for any claims.

USER MANUAL YD-67B Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

COMMERCIAL SMOKING RECEPTACLES USER MANUAL

YD-67A

YD-67B

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

COMMERCIAL SMOKING RECEPTACLES

MODEL:YD-67A YD-67B

Simple line drawing of a vertical cylindrical object with a base, containing a small oval object on top (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

WARNING:

Read this material before using this product. Failure to do so ca result in serious injury.

Assembly precautions

1. Assemble only according to these instructions. Improper assembly c create hazards.
2. Wear ANSI-approved safety goggles and heavy-duty work gloves during assembly.
3. Keep the assembly area clean and well-lit.
4. Keep bystanders out of the area during assembly.
5. Do not assemble if tired or when under the influence of alcohol, or medication.
6. The product capabilities apply to properly and completely assembled products only.
7. Assemble on a flat, level, hard and smooth surface capable of sa supporting the Commercial Smoking Receptacles.
8. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unw and separate all parts in a clean work area.

Use precautions

1. DO NOT SIT OR STAND ON THIS ITEM.
2. This product is not a toy. Do not allow children to play with or item.
3. Do not exceed specified weight capacities.
4. Use only on a flat, level, hard, and smooth surface that can safe support a fully loaded Commercial Smoking Receptacles.
5. Use as intended only.
6. Inspect before every use; do not use if parts are loose or damage

SAVE THIS MANUAL

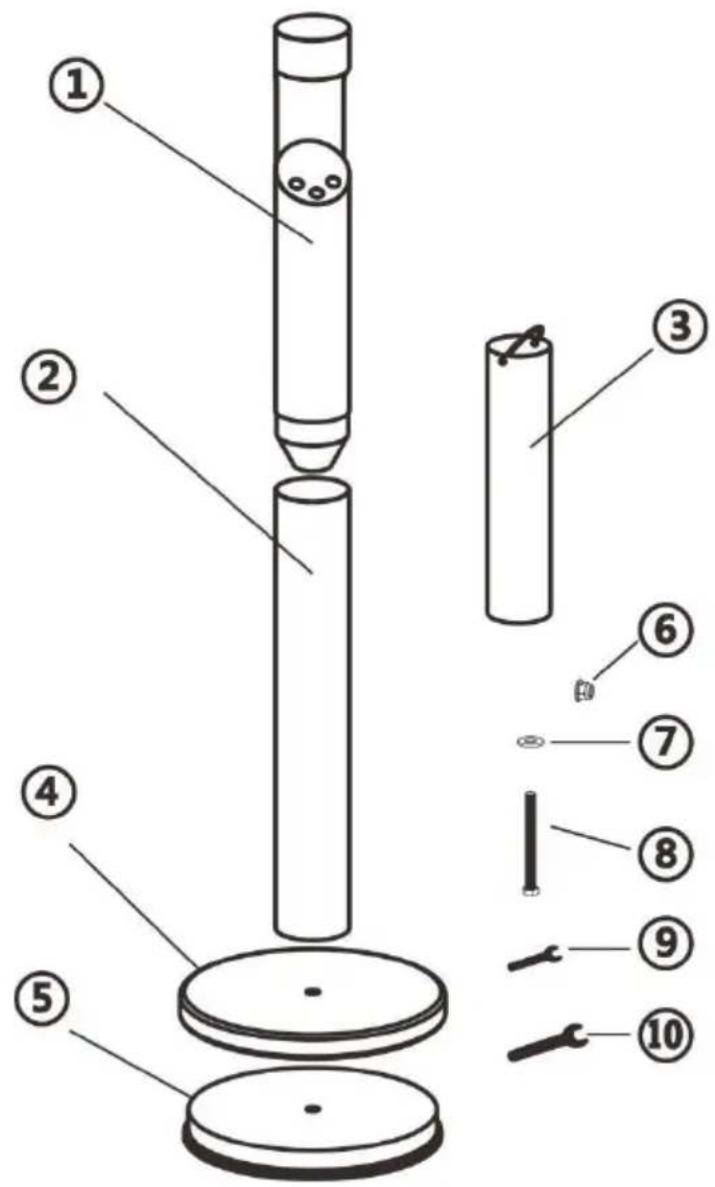

1	Cylinder - upper *1		6	M4 lock nut *1
2	Cylinder - lower *1		7	Gasket *1
3	Inner barrel *1		8	M12*80 outer hexagonal screws
4	Decorative cover *1		9	7mm open end wrench *1
5	Cast iron counterweight *		10	19mm open end wrench *1

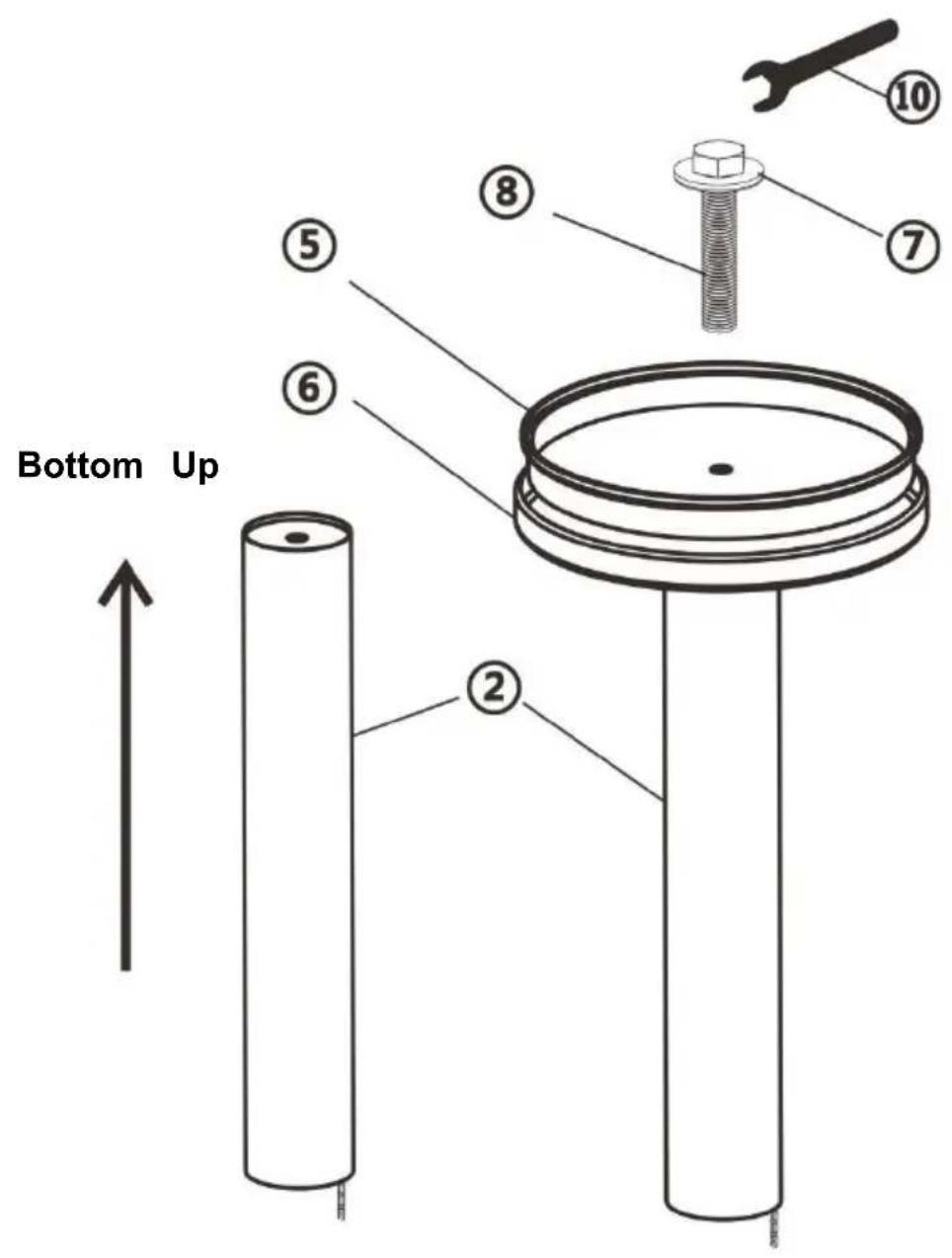

STEP 1 Lock the bottom connecting screws (as shown)

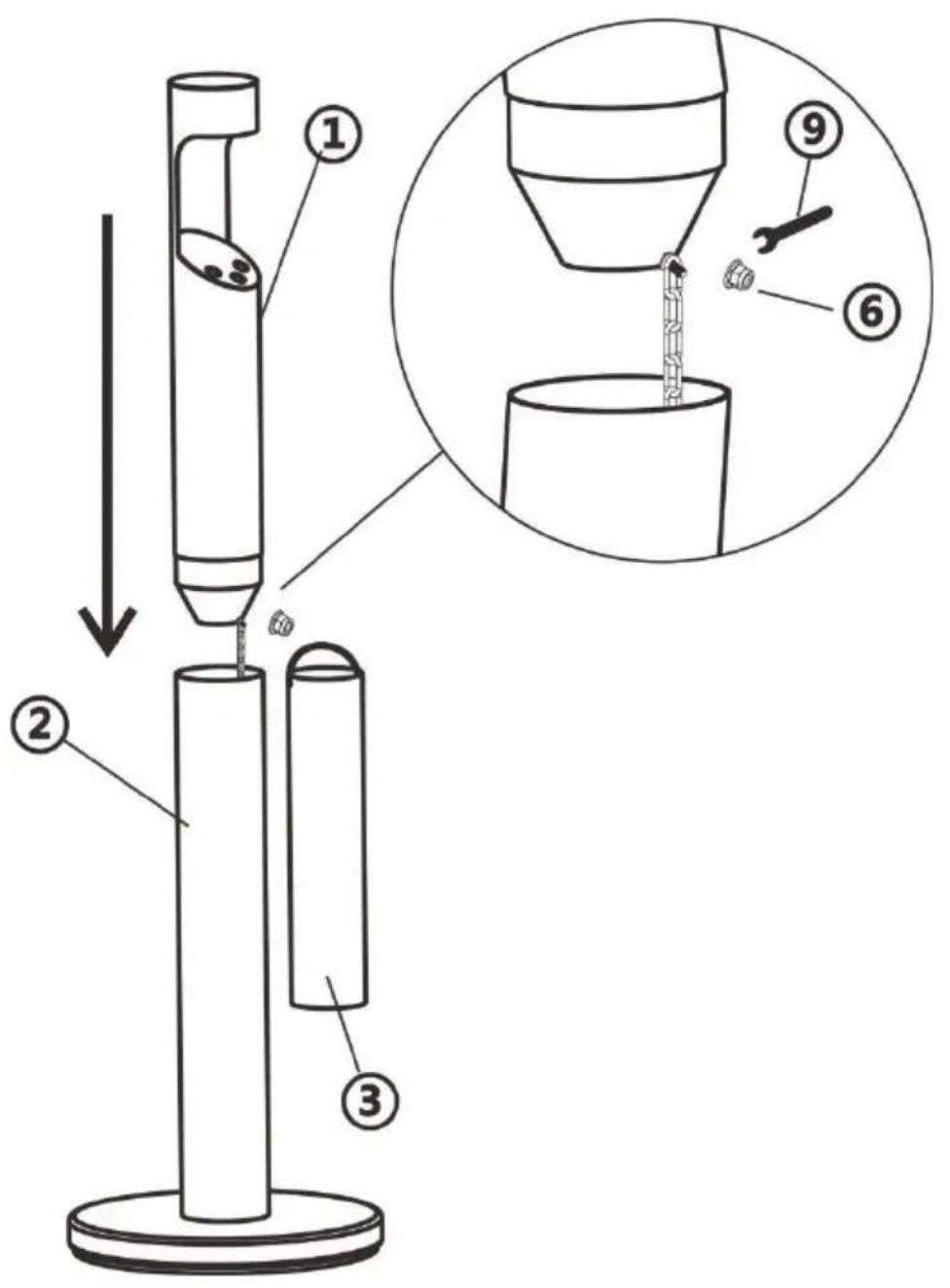

STEP 2 Connect the inner chain to the upper part of the co and lock the nut.

STEP 3 Put ③ into ②, and then insert ① into ② to complete the assembly.

PRODUCT PARAMETER

Model	YD-67A	YD-67B
Colour	Silver	Black
Product Size	320*1080mm

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support
