USER MANUAL YD-27B Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

COMMERCIAL SMOKING RECEPTACLES USER MANUAL

YD-27A

YD-27B

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

COMMERCIAL SMOKING RECEPTACLES

MODEL:YD-27A YD-27B

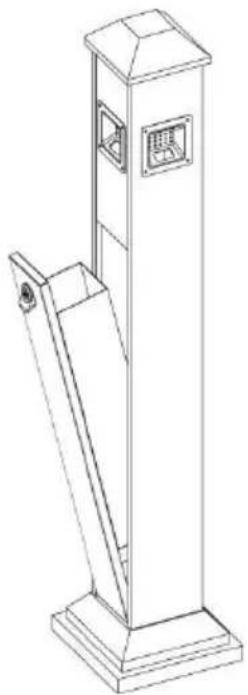

Line drawing of a vertical utility pole with two square windows and a handle (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

WARNING:

Read this material before using this product. Failure to do so can result in serious injury.

Assembly precautions

1. Assemble only according to these instructions. Improper assembly c create hazards.
2. Wear ANSI-approved safety goggles and heavy-duty work gloves during assembly.
3. Keep the assembly area clean and well-lit.
4. Keep bystanders out of the area during assembly.
5. Do not assemble if tired or when under the influence of alcohol, or medication.
6. The product capabilities apply to properly and completely assembled products only.
7. Assemble on a flat, level, hard and smooth surface capable of sa supporting the Commercial Smoking Receptacles.
8. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unw and separate all parts in a clean work area.

Use precautions

1. DO NOT SIT OR STAND ON THIS ITEM.
2. This product is not a toy. Do not allow children to play with or item.
3. Do not exceed specified weight capacities.
4. Use only on a flat, level, hard, and smooth surface that can safe support a fully loaded Commercial Smoking Receptacles.
5. Use as intended only.
6. Inspect before every use; do not use if parts are loose or damag

SAVE THIS MANUAL

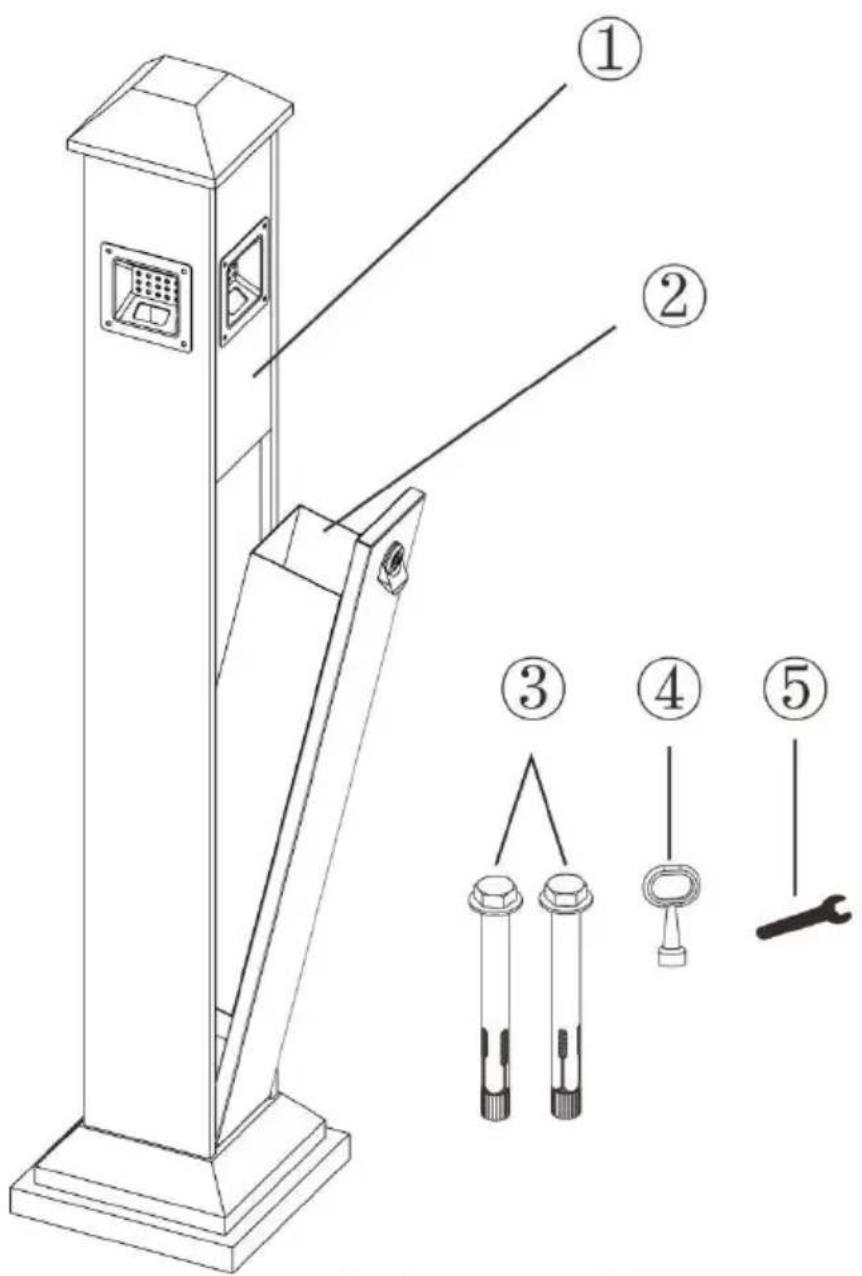

Technical diagram of a mechanical device with numbered parts and exploded view, including labeled components.

1	Main Body Of Ash Colu		4	Key *1
2	Inner Barrel *1		5	19mm Open End Wrench
3	M10*120 Expansion Bolt *2

ASSEMBLY STEP

STEP 1: Select The Installation Position And Drilling

Note: Please ensure that the direction of the door opening in the installation position is free from obstacles.

1. Set the drilling position on the hard ground, the center distance =50mm (as shown below).
2. With a diameter of 12mm drill bit in the selected position, the drilling depth is not less than 60mm.

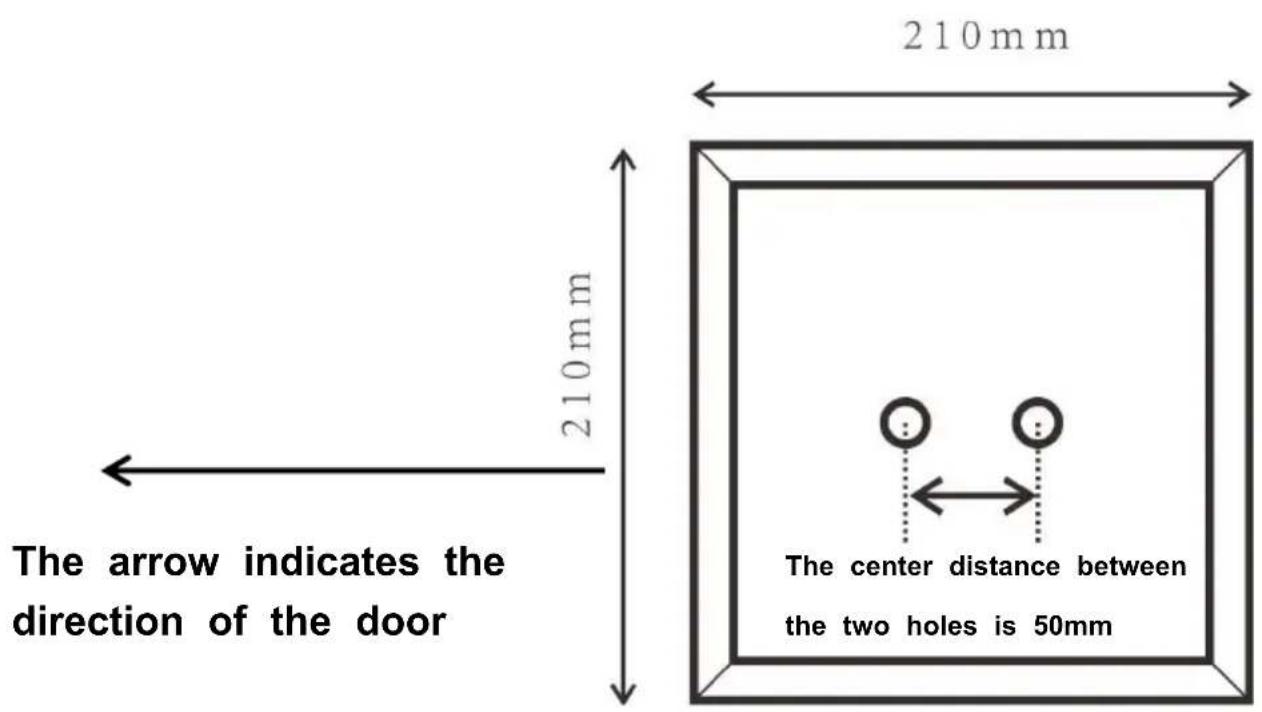

210mm 210mm The arrow indicates the direction of the door The center distance between the two holes is 50mm

Base and mounting hole spacing dimensions

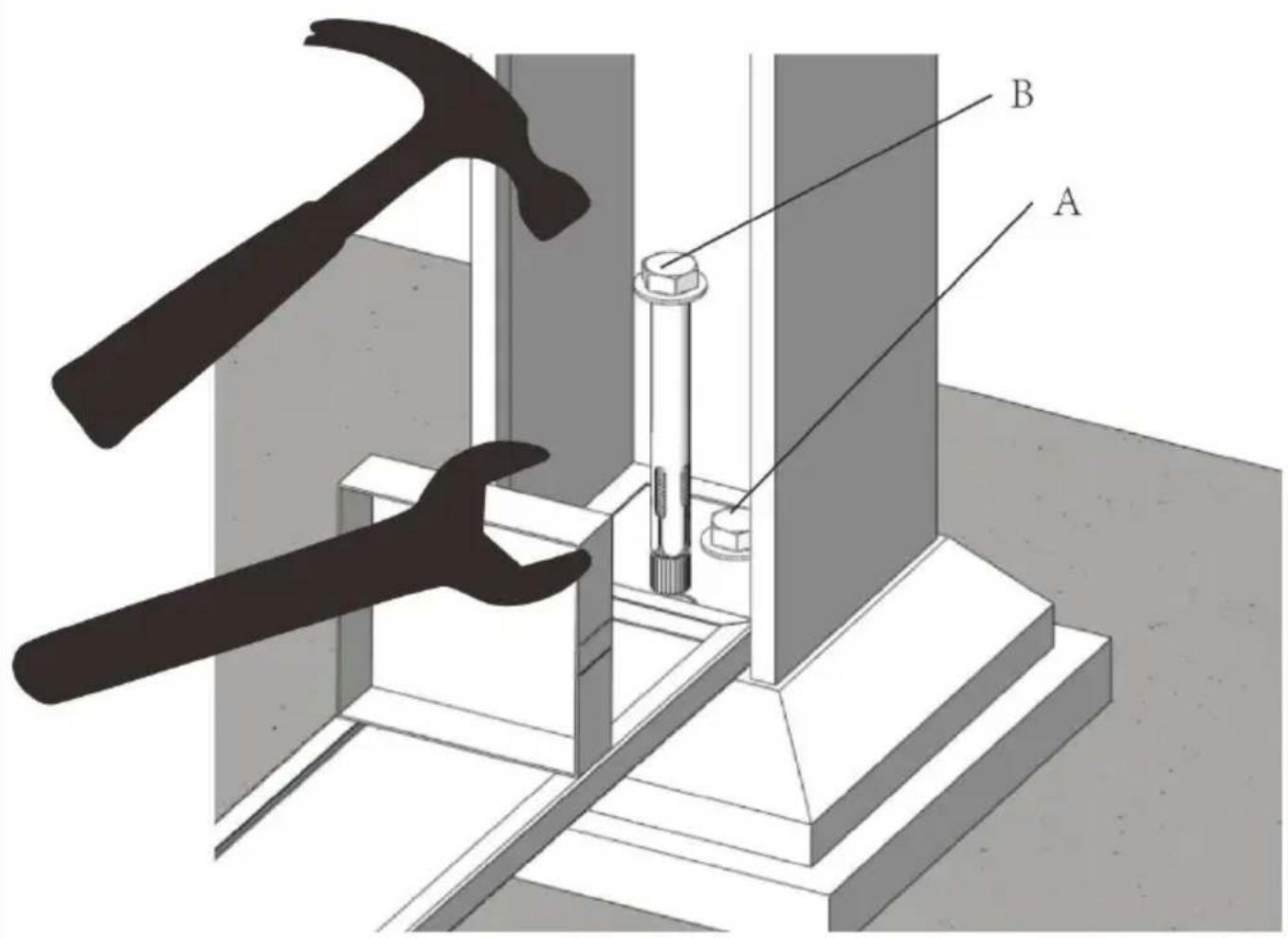

STEP 2: Install

1. Fully open the door, align the base holes with the ground, an insert M10*120mm expansion bolts into the holes in sequence A B.
2. Use the open end wrench to lock the bolt

Technical diagram showing a hammer and screwdriver working on a mechanical assembly with labeled parts A and B

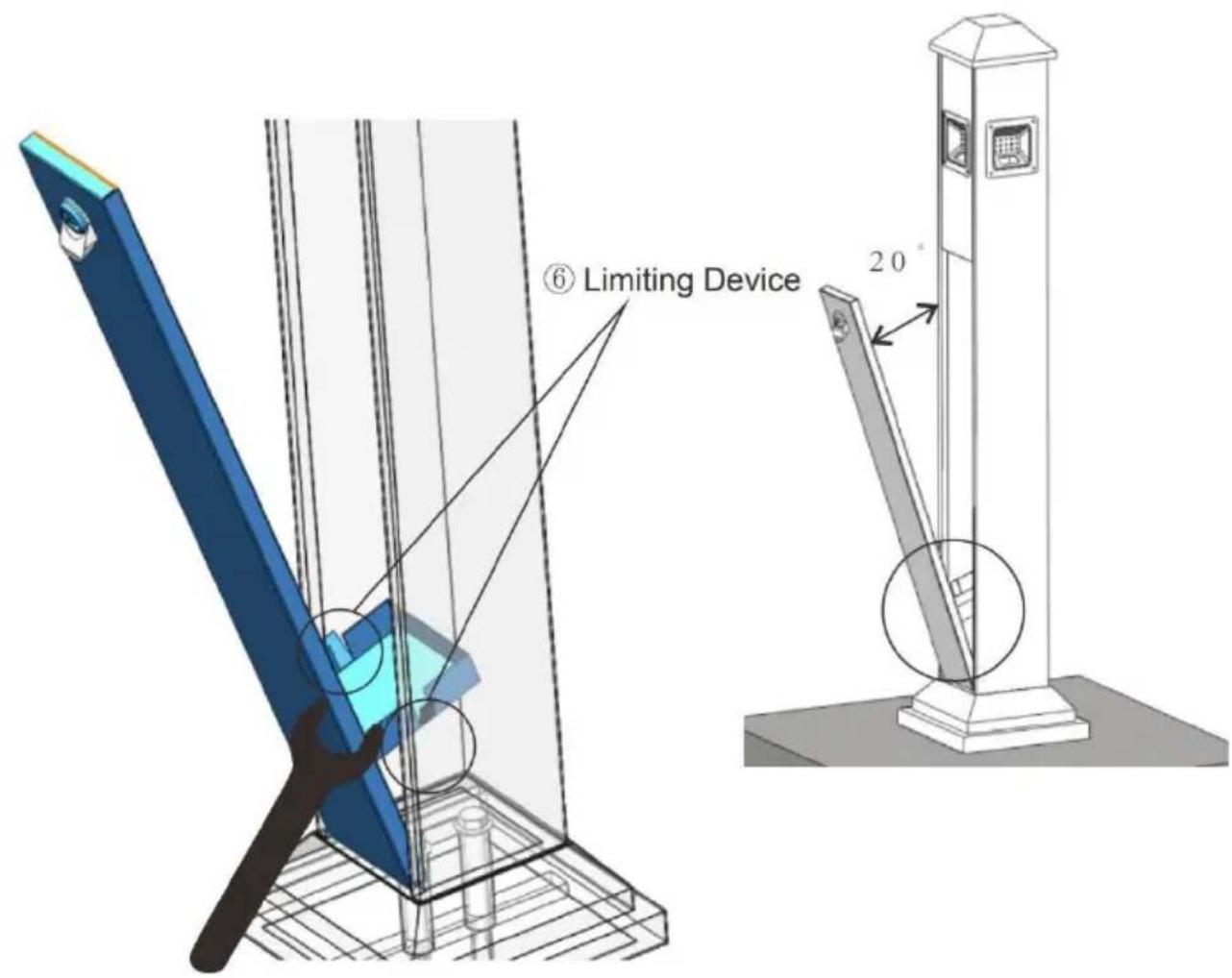

STEP 3: Open Limit

1. Use an open end wrench to push the limiting device ⑥ on panel to both sides.
2. The limit can maintain the opening Angle of the door panel about 20, which is easy to remove the inner barrel and avoid the panel falling directly to the ground.

⑥ Limiting Device 20°

INSTRUCTIONS FOR USE

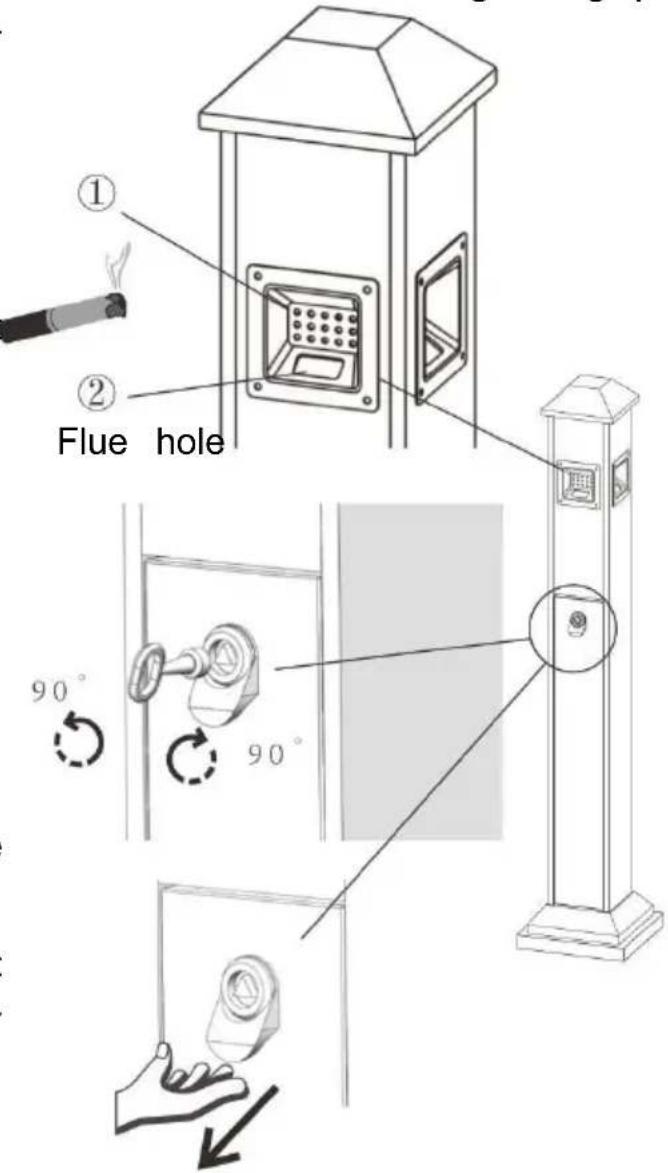

First,:Smoke Out, Input

1. Align the burning cigarette with tr
   ① position and rub until the end of cigarette is extinguished.
2. Put the extinguished cigarette or burned cigarette butt into the collected
   from the② position.

Second: Opening/Closing of the Lock Insert the key into the keyhole and it 90 degrees to the left or right to or close the lock.

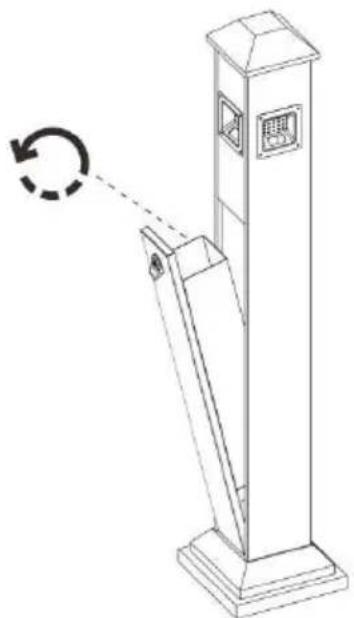

Thirdly: Clean Up Soot And Cigarette Butts

After unlocking, hold the plastic hand under the hand and pull the door in direction of the arrow.

You can remove the inner liner to the soot and cigarette butts.

Close the door after cleaning and re step 2 to lock the door.

① Porous smoke extinguishing plate

① ② Flue hole 90° 90°

e door.

Technical line drawing of a vertical pole-mounted structure with a circular arrow indicating rotation (no text or symbols)

PRODUCT PARAMETER

Model	YD-27A	YD-27B
Colour	Silver	Black
Product Size	210*210*1080mm

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
