USER MANUAL WPSR-XM015 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

PIPE SHELVES

MODEL:WPSR-XM015

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

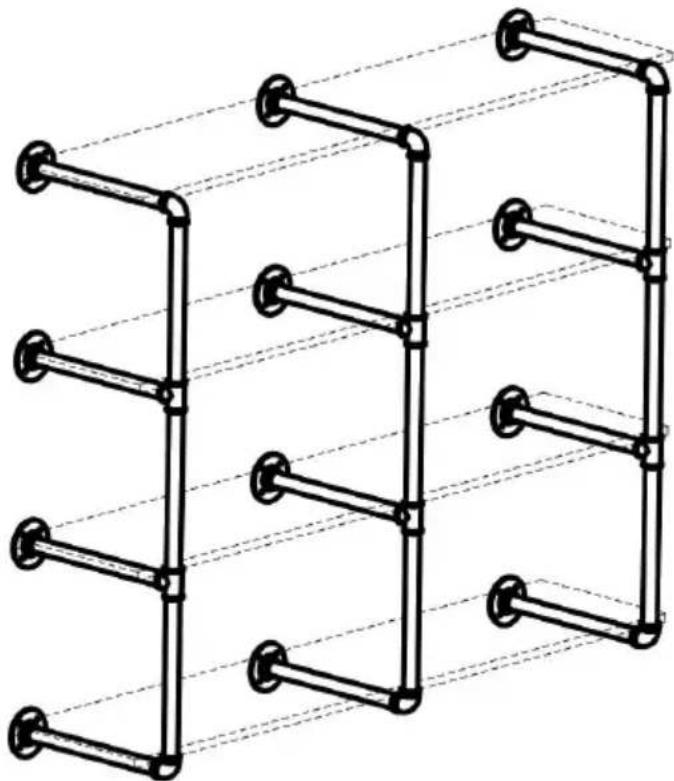

MODEL: WPSR-XM015

Pure electrical circuit lines without any symbols

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again there are any technology or software updates on our product.

IMPORTANT SAFEGUARDS

WARNING: Read and understand this entire manual before operating or servicing this product. Failure to follow these warnings and instructions can cause personal injury or damage to valuable property.

- Avoid children using the product. And this product is not a toy. Do not allow children to play.

SETUP PRECAUTIONS

1. Assemble only according to these instructions. Improper assembly can create hazards.
2. Keep the assembly area clean and well-lit.
3. Capabilities apply to properly and completely assembled product only.
4. Keep bystanders out of the area during assembly.
5. Do not assemble when tired or when under the influence of alcohol, drugs or medication.
6. Keep away from sharp points, blades and other items.
7. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unwrap and separate all parts in a clean work area. Please keep small spare parts of children's reach.

SAVE THESE INSTRUCTIONS

SAFETY AND PRECAUTIONS

WARNING:

• Do not place too heavy weight on the pipe shelves, it may bend or even break the board, we recommend placing the weight of no more than 50lb
• The pipe shelves is installed only on solid walls, such as solid brick wall and concrete walls. If the pipe shelves is installed on wooden walls, the thickness of the wooden wall be at least 6cm.

CAUTION:

• When installing the pipe shelves, pay attention to keeping the board in horizontal state, so as to have a better experience of placing items
• This product is intended for indoor installation use only.

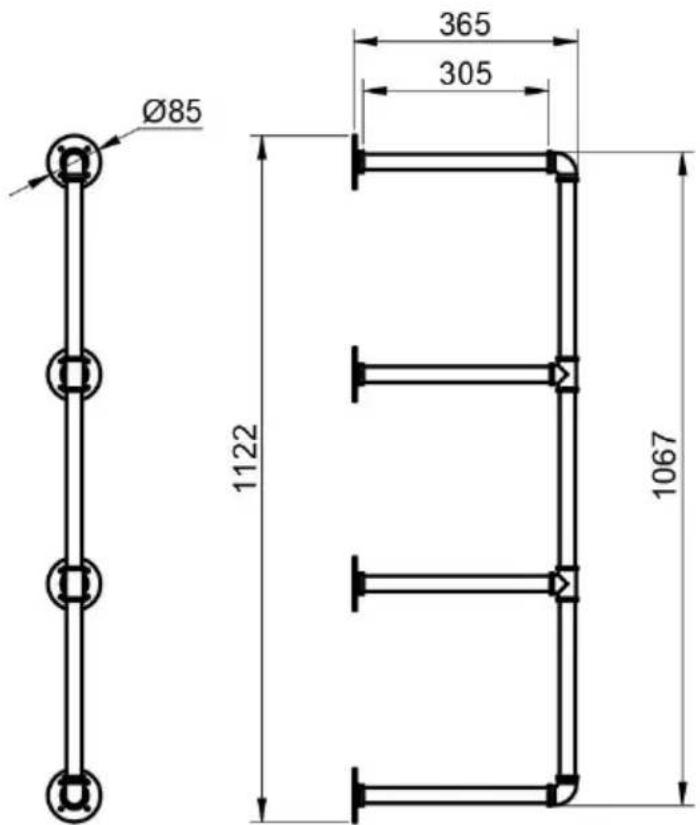

SPECIFICATION

Ø85 1122 365 305 1067

Note: The number unit in the figure is mm.

Part List

Mark	Name	Specifications	Picture	QTY
A	Tee connector	/		6
B	elbow connector	/		6
C	Mounting flange	/		12
D	Pipe	L=312mm		9
E	Pipe	L=326mm		12

Install accessories

Mark	Name	Specifications	Picture	QTY
R	Screw	M5*40mm		48
S	Plastic expansion tube	D=8mm		48

PIPE SHELVES ASSEMBLE

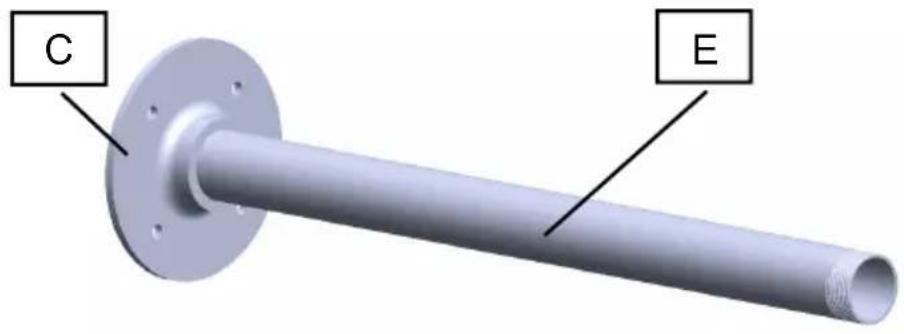

STEP1.Screw the mounting flange C together with the pipe E. 12 groups total.

C E

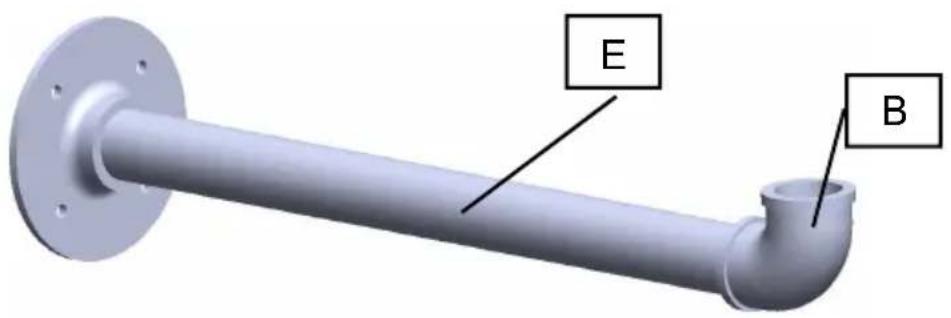

STEP2. Tighten the elbow connector B into the previous component. 6 groups in total.

E B

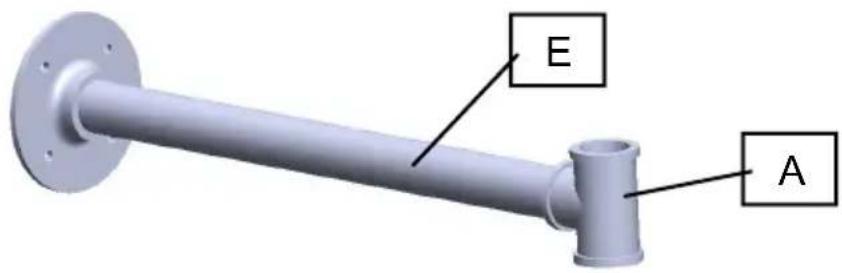

STEP3.Tighten the elbow connector A into the previous component of Step1. 6 groups in total.

E A

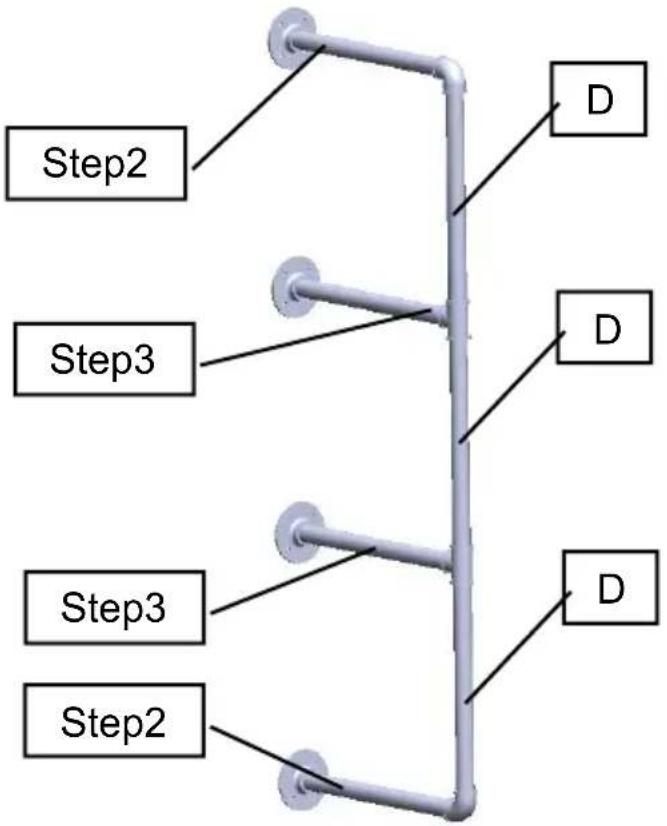

STEP4. Connect the components of Step 2 and Step 3 with pipe D.

Step2 Step3 Step3 Step2 D D D

ATTACH PIPE SHELVES TO THE WALL

Note: At least one assistant is recommended.

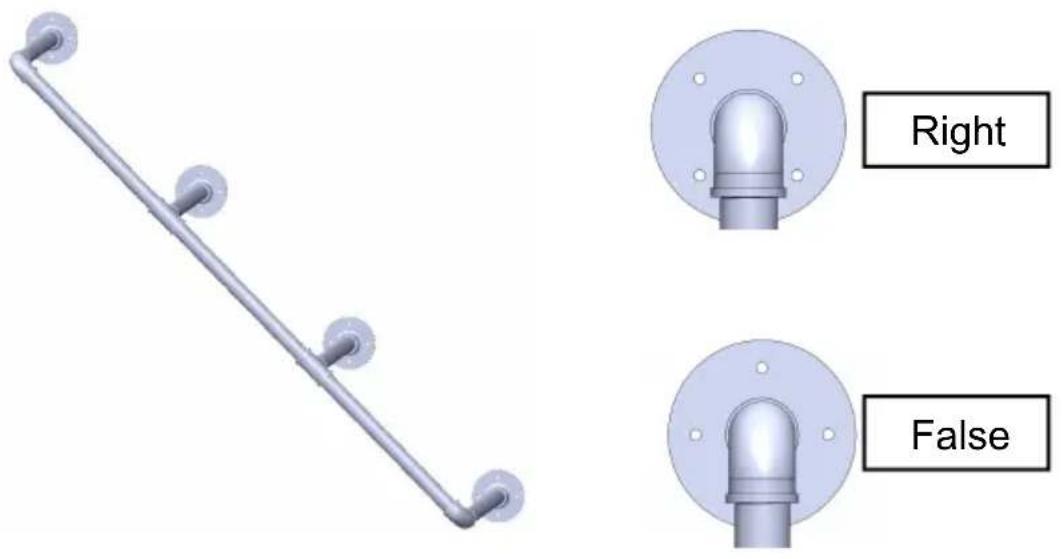

STEP1:Locate the pipe shelves to the wall and determine the height you

want to install them at. Use a level to make sure the boards are level, mark the location holes on the mounting flange.

Note: The fixed points of the flange should be distributed on both of the tube for better operation to tighten the screw.

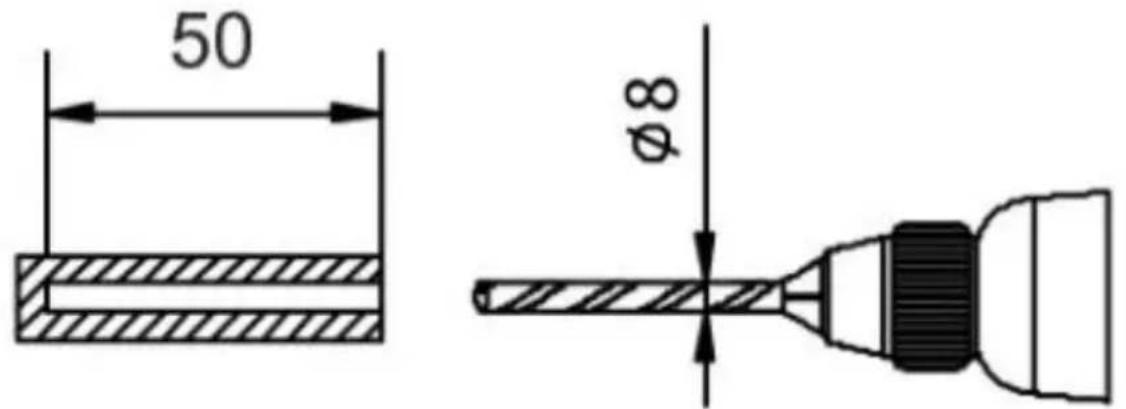

STEP2: Drill holes in the concrete wall with an impact drill bit. The size of the holes is shown below.(If mounted on a wooden wall, drill holes with common drill bit.)

50 Ø8

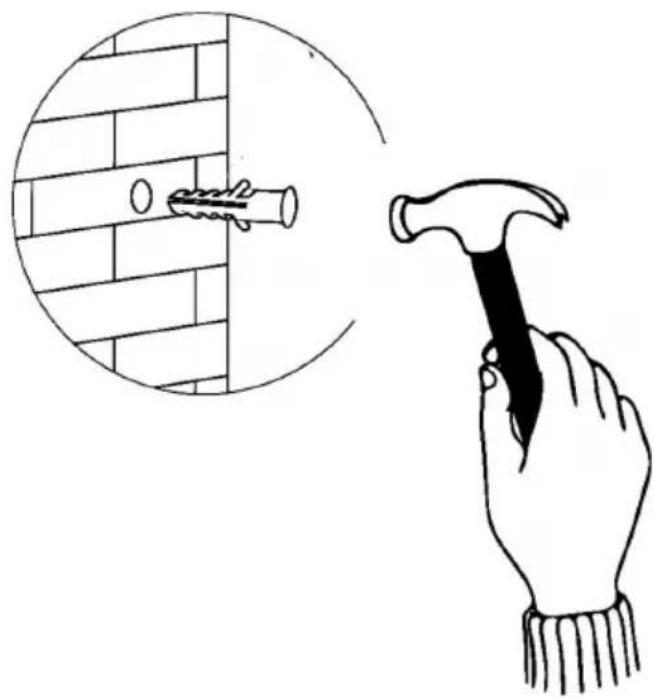

STEP3:Drive Plastic expansion tube into each hole.

Illustration showing a hand using a hammer to mark a nail on a brick wall, with a magnified inset showing the nail being held by a nail.

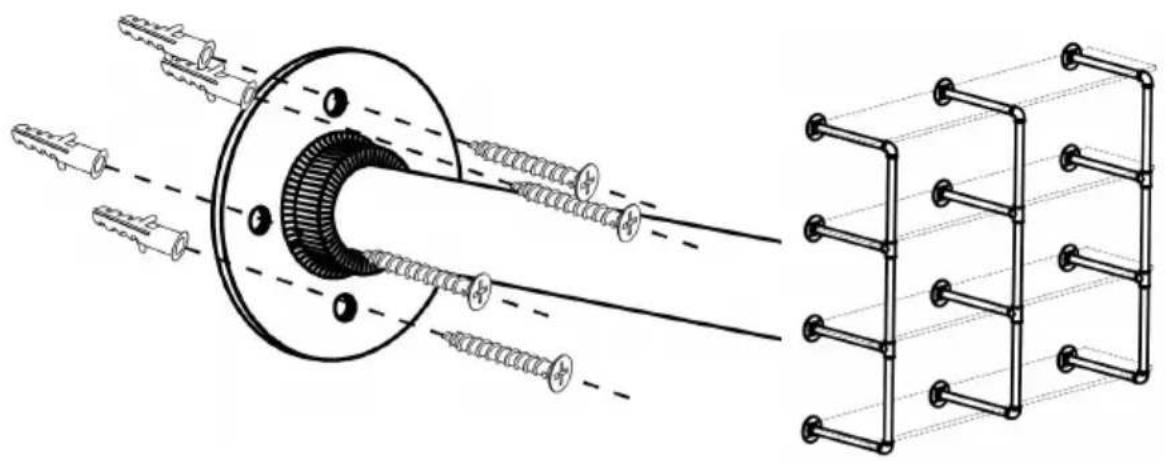

STEP4: For each mounting hole, secure pipe shelves with tapping screws.

Technical diagram of a mechanical assembly with threaded fasteners and a multi-layered structure (no text or symbols)
