XF8105 - Mechanical tool Vevor - Free user manual and instructions

USER MANUAL XF8105 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only rep estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL:XF8105

Technical line drawing of a mechanical lift platform with wheels and a base (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

SAFETY INSTRUCTIONS

For your safety, read, understand, and follow the information provided with an this Foldable Garage Creeper. The owner and operator shall have an understanding of this product and safe operating procedures before attempting use. The owner and operator shall be aware that use of this product may re special skills and knowledge. Instructions and safety information shall be conveyed in the operator's native language before use of this product is auth Make certain that the operator thoroughly understands the inherent dangers associated with the use and misuse of the product. If any doubt exists as to safe and proper use of this product, remove from service immediately.

WARNING

Do not use this device for any purpose other than that for which it is expected intended

• Read, understand, and follow all instructions before operating this device.
• Do not exceed rated capacity. Rated capacity is 300 lbs. (includes user, too equipment and personal items)
• Sit down gently. Avoid shock loads caused by jumping or falling onto seat.
• Do not stand on seat.
• Beware of pinch and crush hazards when folding and unfolding.
• Keep out of the each of children! This device is not appropriate for children
• Use only on hard, level surface capable of supporting the load.

PARAMETER LIST

Model	XF8105
Maximum load bearing	300lbs
Length:	36inch

PAPTS LIST

ITEM	DESCRIPTION	QTY	ITEM	DESCRIPTION	QTY
1	Upper Frame with Padding	1	7	Nuts	4
2	Middle Frame with Padding	1	8	Tool Tray	1
3	Lower Frame with Padding	1	9	Spring Washer	4
4	Caster Wheels	6	10	Wrench	2
5	Tube Nuts	4	11	Hex Key	1
6	Bolts	4	12	metal hanger	1

Line drawing of a rectangular electronic component with mounting feet, labeled with number ① (no text or symbols on the object itself)

Technical line drawing of a mechanical assembly with two flanged supports and a central rectangular block (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Six identical circular mechanical components arranged in a 2x2 grid, no text or symbols present.

Five identical cylindrical objects arranged in a row, with the number 5 below (no text or symbols on objects)

Five identical cylindrical objects with black caps, arranged horizontally (no text or symbols)

Simple line drawing of a rectangular tray or container with four legs and a dark interior (no text or symbols)

Two identical line drawings of a wrench with notches, labeled with number 10 below (no text or symbols on the wrench itself)

Simple line drawing of a tool with a handle and two numbered items (11 and 12), no text or symbols present.

INSTRUCTIONS

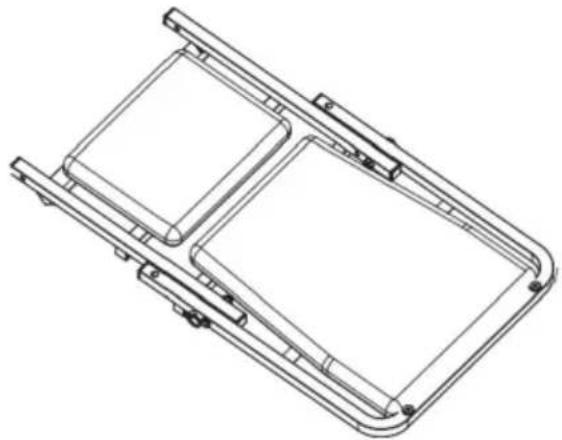

1. Place the lower frame and the middle frame on the floor with the bottom facing down (top padding facing upwards).

Technical line drawing of a mechanical component with two rectangular parts and mounting brackets (no text or symbols)

1. Assemble and lock the upper frame with bolts and nuts to the assembly step 1, as shown in the figure.

Technical line drawing of a rectangular frame with internal structural elements (no text or symbols)

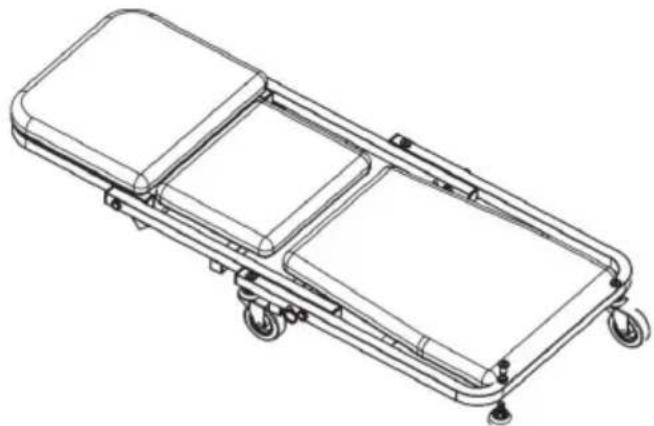

1. Put the wheel into the round hole of the pipe as shown, and then put the washer into the tube nuts, and then screw it with the hex key.

Line drawing of a multi-wheeled hospital bed with wheels and compartments (no text or symbols)

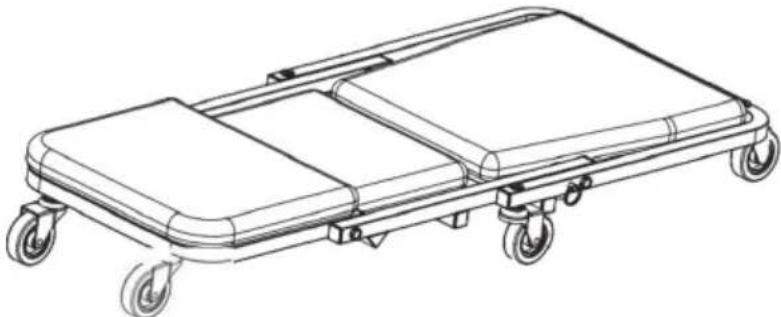

1. Screw the upper frame two wheels into the nut in turn, using an wrench.

Line drawing of a two-wheeled cart with wheels, no text or symbols present

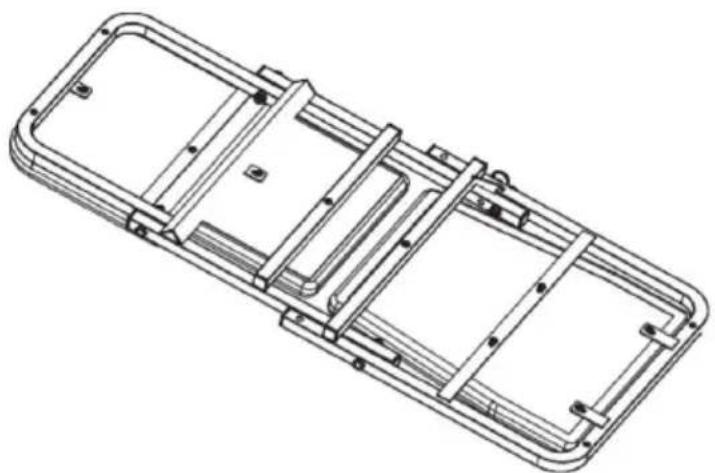

1. Pull out with the pull ring as shown, and flip the upper and middle frame holding them, and adjust them to the seat cushion state. Please be careful? hand.

Line drawing of a mechanical lift platform with two wheels and a flat base (no text or symbols)

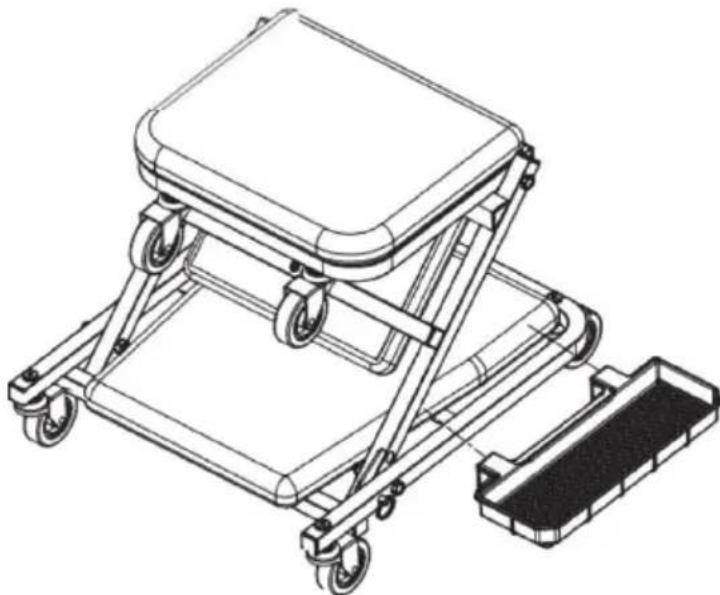

1. Attach the tool tray to the lower frame. As shown.

Technical line drawing of a mechanical lift platform with wheels and a separate tray (no text or symbols)

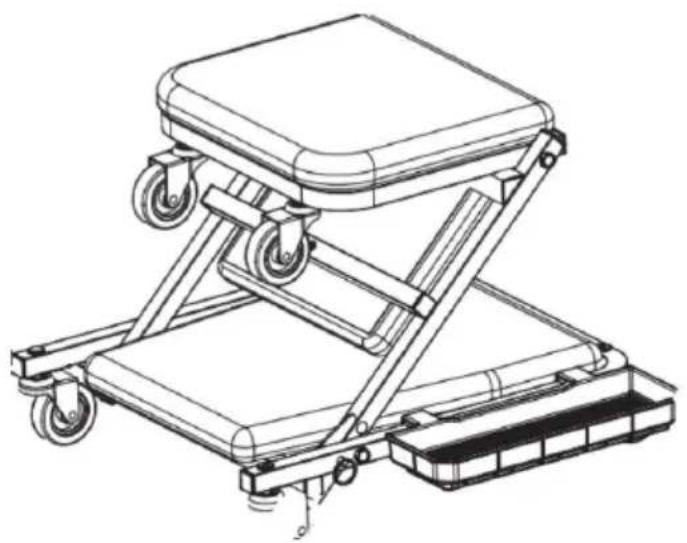

1. Make sure that the buckle of the tool tray is all stuck on the frame, and no loosening.

Technical line drawing of a mechanical lift platform with wheels and a base (no text or symbols)
