USER MANUAL XJC-008 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

TIRE CHANGER

MODEL: XJC-008

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and doses not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

TIRE CHANGER

MODEL:XJC-008

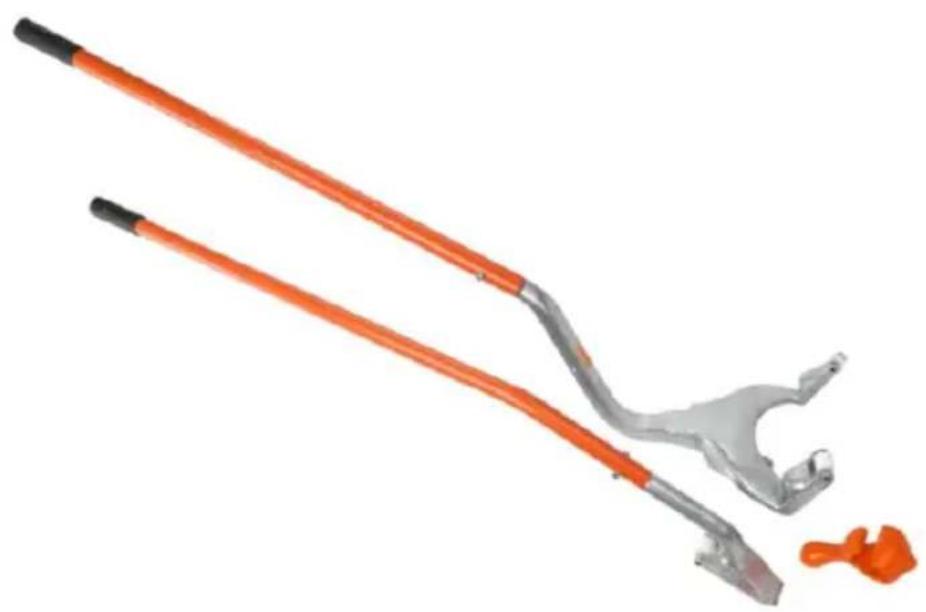

Two orange and silver metal tools with black connectors, one being lifted by a curved handle (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

[e-mail]

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

SPECIFICATIONS

Model	Fit Tire Diameter (inch)	Handle Color	Gross Weight (kg)	Package Size (mm)
XJC-008-B	22.5-24.5	Blue	12.2	970×275×260
XJC-008-O	22.5-24.5	Orange	12.2	970×275×260
XJC-008-Y	22.5-24.5	Yellow	12.2	970×275×260

Safety & Warning

• Read and understand this entire manual before assembling, installing operating, or servicing this product. Failure to follow these warnings and instructions can cause death, personal injury or damage to valuable property.
• Please release tire air pressure before using this tire changer.
  ● Always wear ANSI-approved safety goggles, steel-toed boots and protective gloves while operating the tire changer.
• Before and after each use, check to make sure that all hardware tightly secured. Regularly inspect for damage. If fraying or distortio is found, immediately discontinue use.
• Use common sense when working. Stay alert and concentrate when setting up and using the tire bead breaker. Never work while und influence of alcohol, drugs or medications.
• While assembling and using the tire bead breaker, keep the work clean and well-lighted. Keep spectators and children out of the wo area.
• Dress appropriately. Never wear loose-fitting clothing or jewelry when working. Contain long hair, and keep hair, clothing and gloves aw from moving parts.

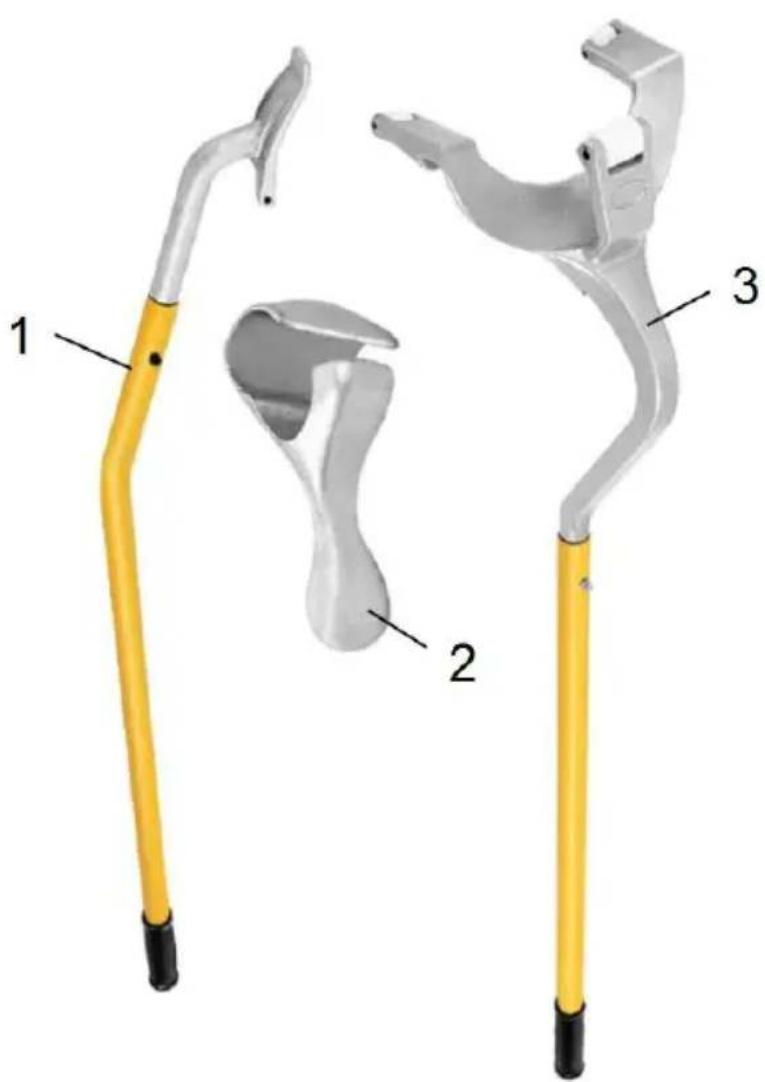

PACKAGE CONTENTS

Medical diagram showing three labeled mechanical devices: a yellow tool, a gray device with a curved handle, and a metallic bracket with a central body.

Item No	Description	Qty.	Item No.	Description	Qty.
1	Mounting Rod	1	3	Demounting Rod	1
2	Bead keeper	1

OPERATION.

A. Remove the tire

Close-up of a large metal tire with a paint can pouring into it, being handled by gloved hands (no visible text or symbols)

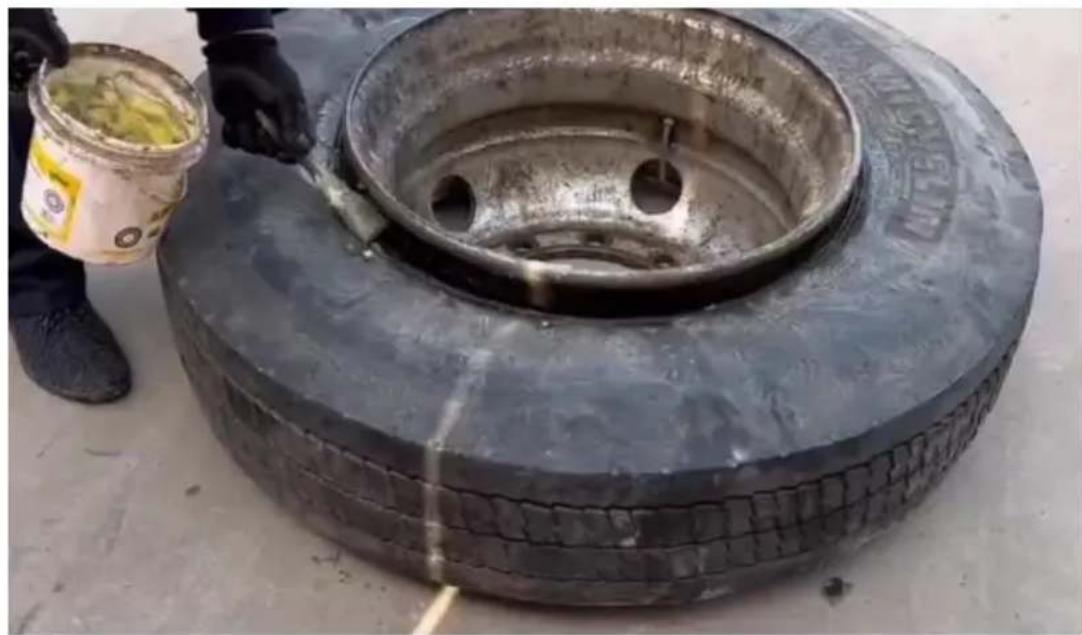

1. Apply a lubricant to the junction of the wheel hub and t

Stacked tires on a concrete floor with a hand operating a tool, no visible text or symbols

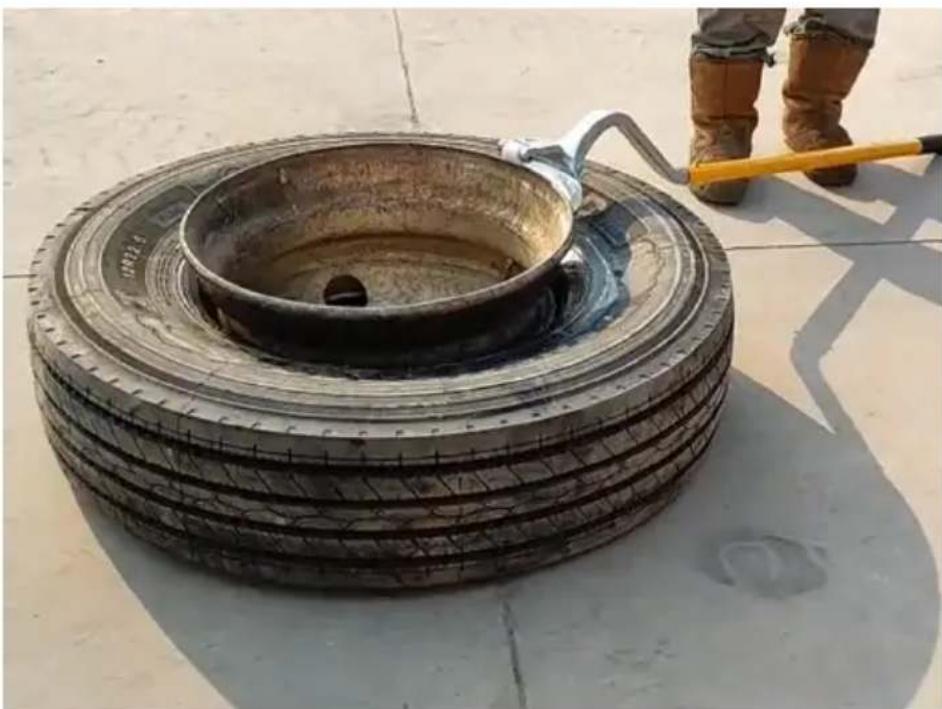

1. Insert demounting rod(3) between tire and hub.

Stack of tires with a metal tool applying material to their rim, placed on a tiled floor (no text or symbols visible)

Stack of damaged tire with blue and yellow markings, being cleaned by a yellow measuring tool (no text or symbols visible)

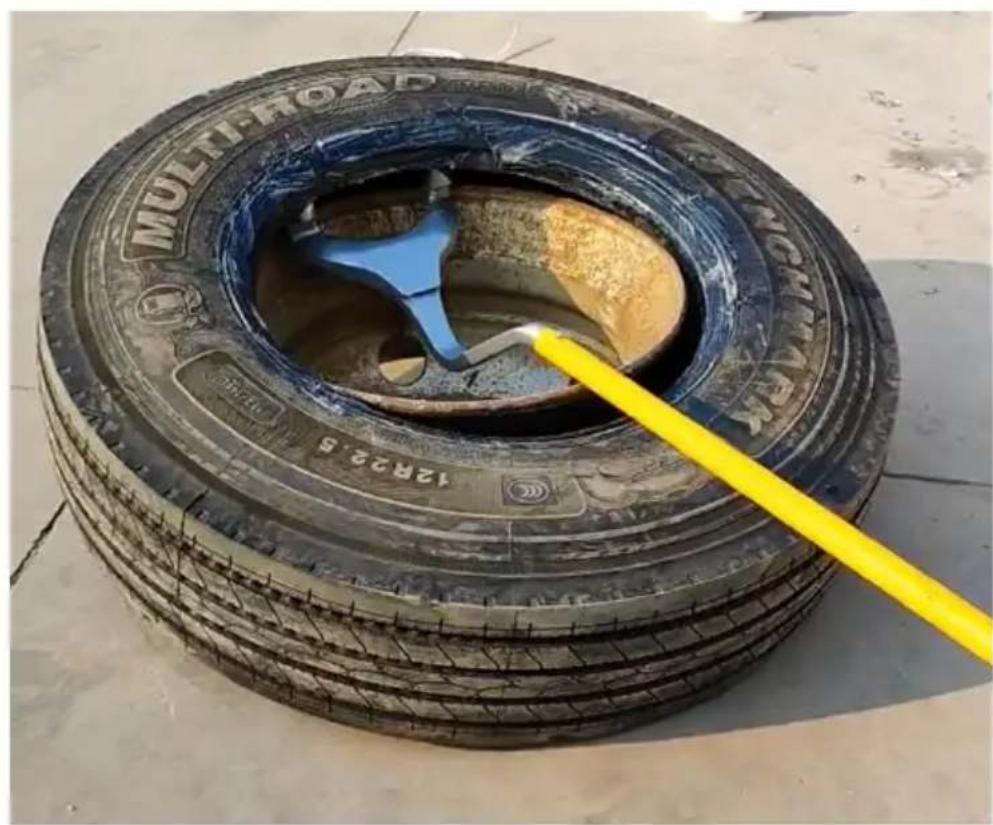

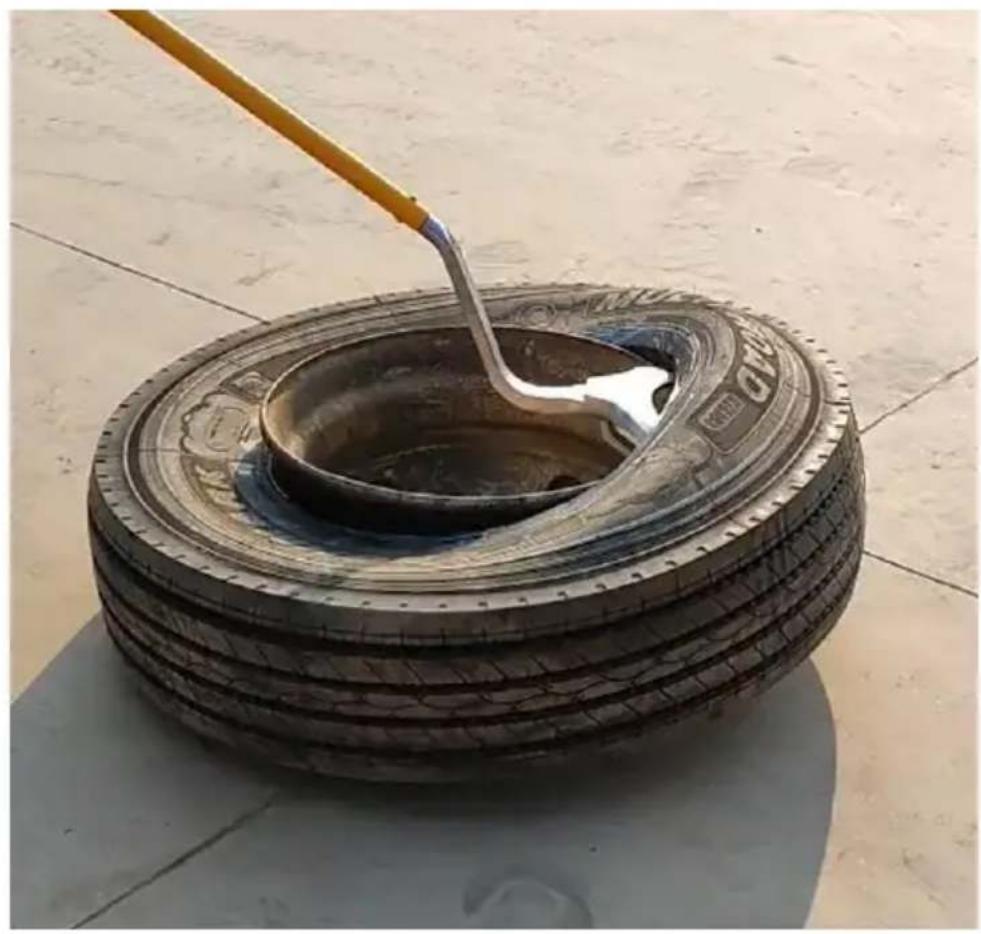

1. Use the demounting rod(3) to reverse pry up the tire until upper edge of the tire comes out of the hub.

Stack of tires with a tool applying material, no visible text or symbols on the tires or background

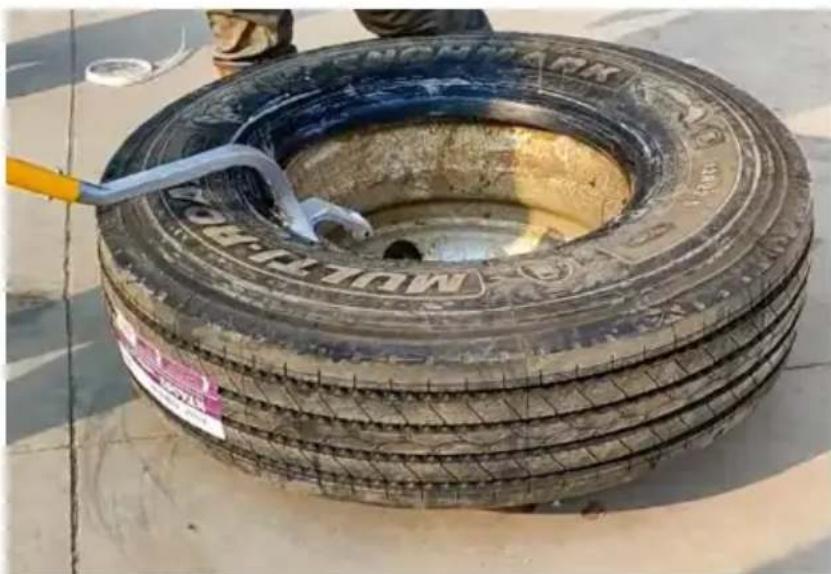

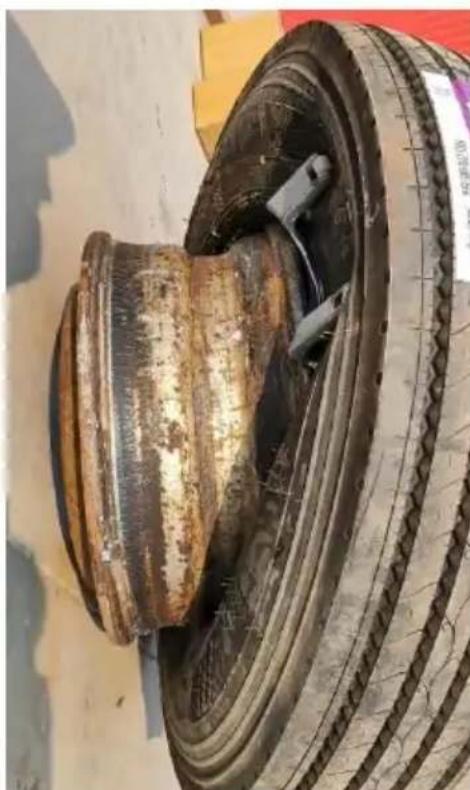

1. Insert the demounting rod(3) between the hub and the ot side of the tire.

Close-up of a damaged car tire and its wheel assembly, showing rust and wear (no text or symbols visible)

Close-up of a person using a yellow tool to lift a large tire on a concrete surface, with cardboard boxes nearby (no visible text or symbols)

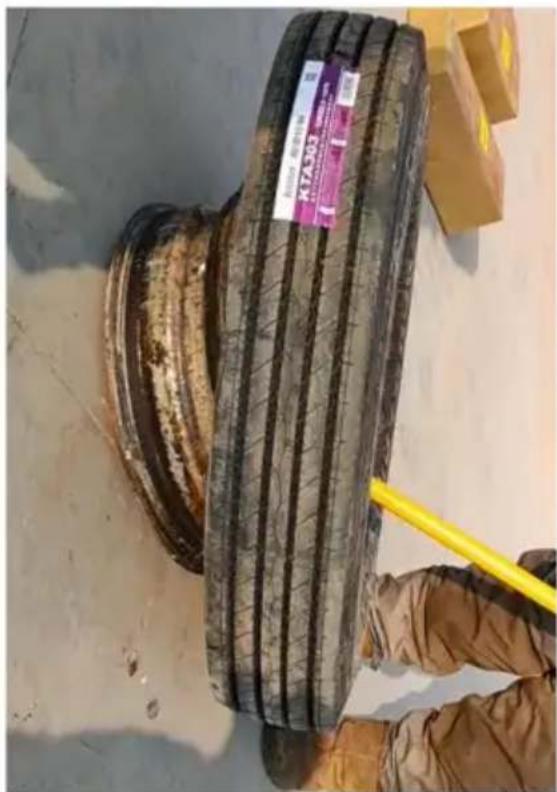

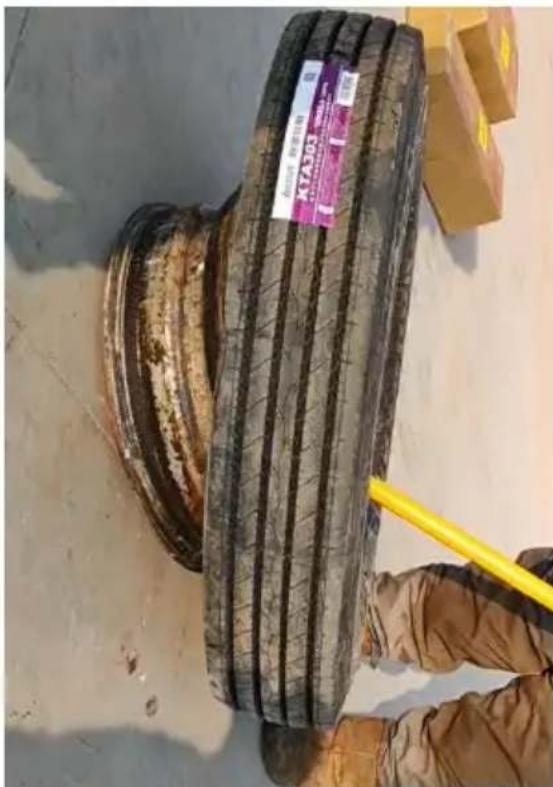

1. Use the demounting rod(3) to reverse pry up the lower edge of the tire until the upper edge of the tire comes out of the tire.

B. Tire assembly

Close-up of a car tire being cleaned with a tool, showing white material on the rim and black tires (no text or symbols visible)

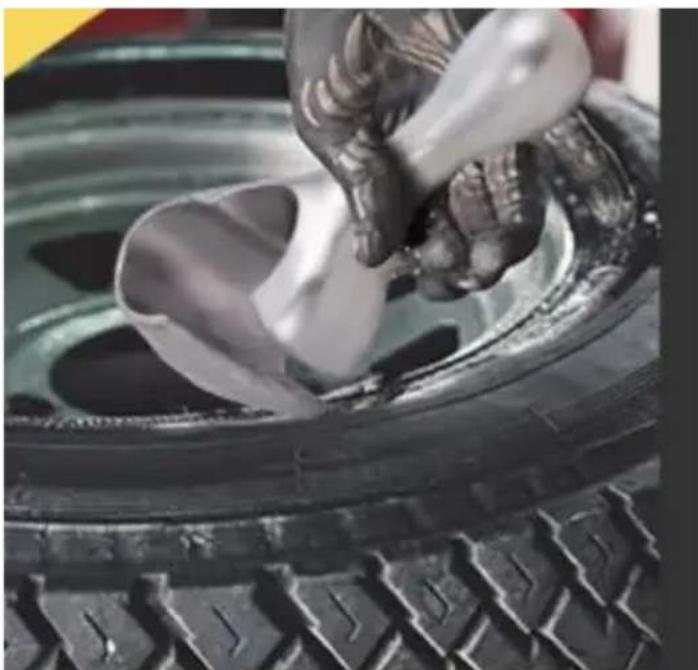

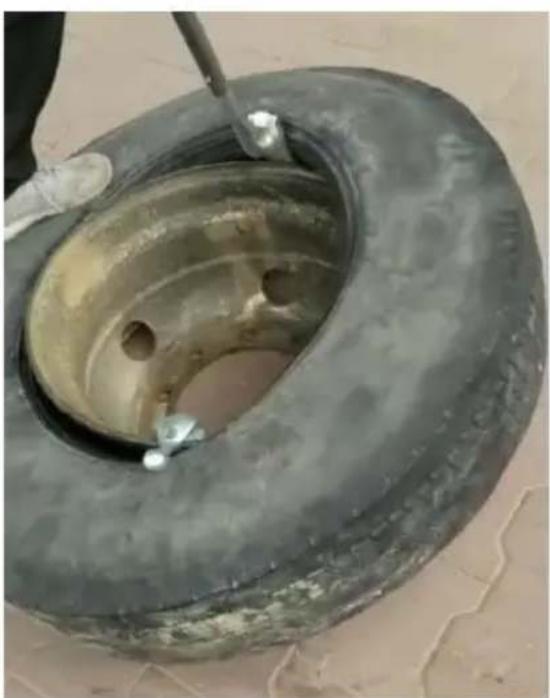

1. Insert the bead keeper(2)between the hub and the tire.

Close-up of a car tire with a metal rim and a small tool inserted, showing no visible text or symbols.

Close-up of a large circular metal object with a central hole, being handled by two hands using a tool (no visible text or symbols)

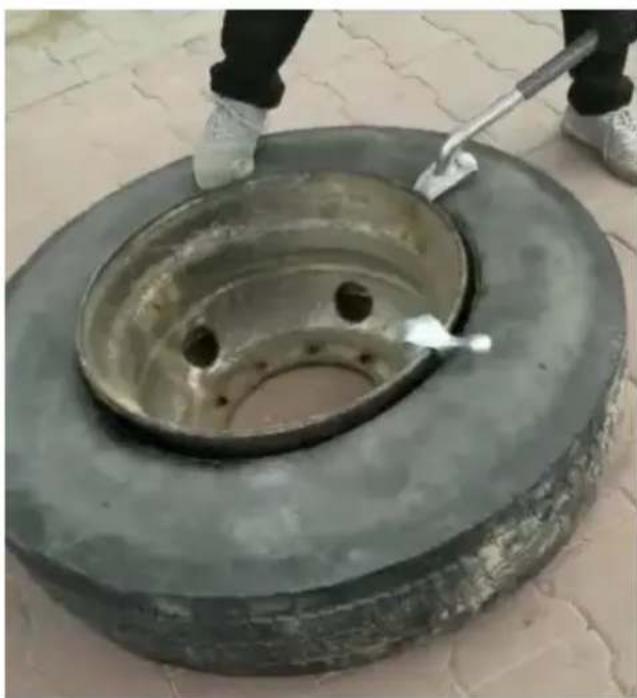

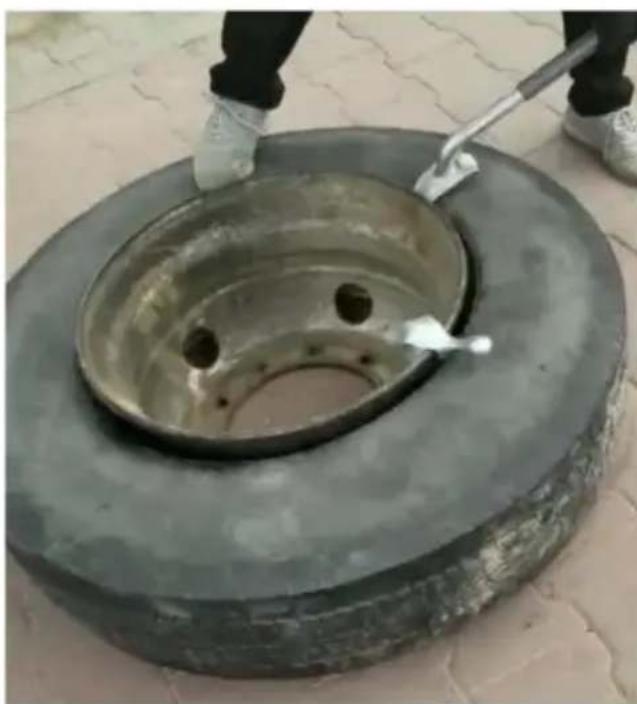

1. Use the mounting rod(1) to pry the top edge of the tire the hub until the entire tire is in the hub.
