USER MANUAL XJC-019 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

BEAD SEATER

MODEL: XJC-019

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared to major top brands and does not necessarily mean to cover all categories of tools offered us. You are kindly reminded to verify carefully when you are placing an order with us, where we are actually saving half in comparison with the top major brands.

VEVOR®

BEAD SEATER

XJC-019

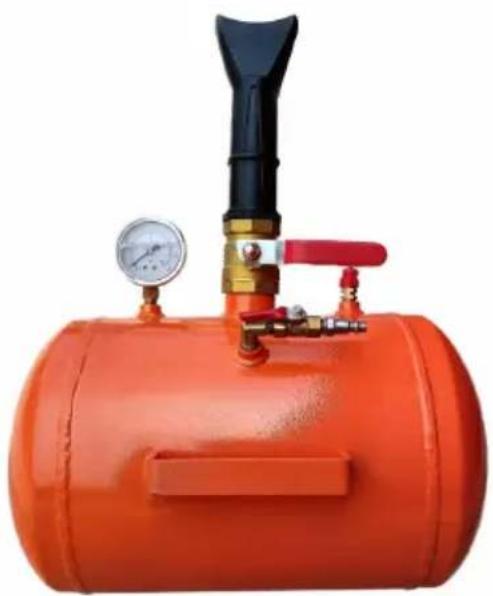

Orange industrial gas cylinder with pressure gauge and valve (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel from contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

I. Technical parameters

Model	Capacity (GAL)	Operating Pressure (psi)	Limit Pressure (psi)
XJC-019	5	85-116	145

II. Safety Precautions

	Danger! Read the operating instructions to reduce the inquiry.
	WARNING! This symbol, placed before a safety comme indicates a kind of precaution, warning, or danger. Ignore warning may lead to an accident. To reduce the risk fire, or electrocution, please always follow the recommendation shown below.
	Caution! Wear ear-muffs. The impact of noise can cause damage to hearing.
	Caution! Wear safety goggles. Sparks generated during working or splinters, chips and dust emitted by the dev cause loss of sight.
	Caution!Wear gloves when using this product.

WARNING! Read and understand all instructions before using this bea seater. The operator must follow basic precautions to reduce the risk personal injury and/or damage to the equipment.

DANGER! This notice indicates an immediate and specific hazard that result in severe personal injury or death if the proper precautions are taken.

WARNING! This notice indicates a specific hazard or unsafe practice could result in severe personal injury or death if the proper precaution not taken.

CAUTION! This notice indicates a potentially hazardous situation that result in minor or moderate injury if proper practices are not taken.

WORK AREA

1. Operate in a safe work environment. Keep your work area clean, w and free of distractions.

2. Keep anyone not wearing the appropriate safety equipment away from the work area.

3. Store the unused bead seater properly in a safe and dry location prevent rust or damage. Lock bead seater away and keep out of the of children.

PERSONAL SAFETY

WARNING! Wear personal protective equipment approved by the Canadian Standards Association (CSA) or American National Standards Institute (ANSI).

PERSONA L PROTECTIVE EQUIPMENT

1. It is recommended to use ear protectors and safety glasses when bead seater. Eye protection equipment should comply with CSA Z94.3- or ANSI Z87.1 standards based on the type of work performed.

2. Wear gloves that provide protection based on the work materials of reduce the effects of tool vibration.

PERSONA L PRECAUTIONS

Control the bead seater, personal movement and the work environmen avoid personal injury or damage to bead seater.

1. Do not operate any bead seater when tired or under the influence drugs, alcohol or medications.
2. Avoid wearing clothes or jewelry that can become entangled with moving parts of a bead seater. Keep long hair covered or bound.

SPECIFIC SAFETY PRECAUTIONS

1. Use the correct bead seater for the job. This bead seater was de for a specific function. Do not modify or alter this bead seater or us an unintended purpose.
2. Ensure that the bead seater is properly installed before using.
3. The air pressure in the gas tank cannot exceed 10 bar. If it exceeds bar, the safety valve on the gas tank will automatically open to ensure personal safety.
4. The tire is placed accurately with the rim resting against the object to reduce the clearance between the tire and the rim.
5. The black exhaust pipe must be in close contact with the steel ri the hand holding the gas tank must be very strong, because there w recoil when opening the Exhaust valve to ensure personal safety.
6. When not in use, it is forbidden to put the pressure gas in the tank.
7. Never allow the nozzle to point in the direction of a person.

WARNING! DO NOT let comfort or familiarity with product (gained from repeated use) replace strict adherence to the bead seater safety rules you use this bead seater unsafely or incorrectly, you can suffer serious personal injury.

WARNING! Direct exposure of pressurized air to skin could result in severe bodily injury.

SAVE THESE INSTRUCTIONS

III. Package List

1×Gas tank assembly

1×exhaust pipe

1×manual

IV. Product structure diagram

gas tank pressure gage exhaust pipe Exhaust valve intake valve Safety valve

V. Instructions for use

1. Close the Exhaust valve, open the intake valve, fill the compressed the air compressor into the gas tank through the air pipe through the connector, and pay attention to the air pressure not exceeding 10 ba close the intake valve.

2. The tire should be placed accurately, The rim leans against the obj reduce the gap between the tire and the rim.

3. Take the inflatable tank to the side of the tire, and make the black exhaust pipe close contact with the steel ring, hold the edge of the ring, and the sharp iron plate under the exhaust pipe contacts the tin

4. Open the Exhaust valve, and the high-pressure gas in the gas tank the tire in an instant, so that the tire and steel ring will be sealed immediately and the inflatable tank will be removed. Then use another inflation pipe to inflate through the valve until the tire is full, and the over.

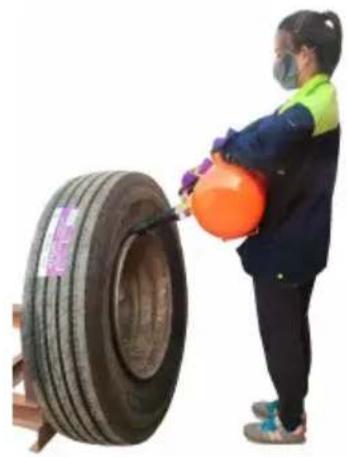

Person spraying a large tire with an orange safety helmet, no visible text or symbols

V. Scope of application

Car-SUV, Bike, Truck, ATV, Lawn Tractor, Tractor, Motorcycle, Comper
