Notice Vevor SHK-001 - page 3
3 / 100
Pick your language and provide your email: we'll send you a specifically translated version.
Product Type Weight Sled
Brand Vevor
Model SHK-001 (also compatible with SHK-002)
Primary Use Pulling and pushing for strength training and fitness conditioning
Construction Materials Heavy-duty welded steel
Dumbbell Tube Dimensions Compatible with 1-inch (2.5 cm) and 2-inch (4.2 cm) dumbbells
Equipment Weight Not specified, estimated 15-20 kg
Included Accessories Attachment belt, sled straps, wrench, screwdriver, washers, nuts, screws
Maximum Load Capacity Not specified; recommended to gradually increase weight
Assembly Type Simple, with screws and nuts; installation diagram included
Maintenance Clean with a damp cloth, dry after use; store in a dry place
Safety Precautions Keep a distance of 3 meters from bystanders; do not use under the influence or if fatigued
Warranty 1 year from shipping date (manufacturing defects and materials)
Customer Service and Technical Support www.vevor.com/support for assistance and warranty certificate
Country of Import (EU) Imported by SHUNSHUN GmbH, Germany
Country of Import (Australia) Imported by SIHAO PTY LTD
Country of Import (USA) Imported by Sanven Technology Ltd.
Repairability Spare parts available on request; contact support
User Rating 5.0/10 (based on 1 rating)

Frequently Asked Questions - SHK-001 Vevor

How to assemble the Vevor SHK-001 weight sled?
Follow the provided installation diagram. Arrange the components, attach the lower legs and dumbbell tubes with the corresponding screws, washers and nuts. Use the included wrench and screwdriver. Choose the tube suitable for your dumbbells (1 inch or 2 inches).
What is the maximum weight the SHK-001 can support?
The manufacturer does not specify an exact limit. It is recommended to gradually increase the load to avoid damaging the equipment. The sled is designed for use with standard dumbbells.
How to maintain the Vevor weight sled?
Clean it after each use with a damp cloth, then dry it thoroughly. Store it in a dry place to prevent rust. Regularly check the tightness of screws and nuts.
What are the important safety precautions?
Keep a safety distance of 3 meters around the sled during use. Do not use it if you are tired or under the influence of drugs, alcohol, or medication. Wear fitted clothing and avoid jewelry to prevent snagging.
Is the sled suitable for 1-inch and 2-inch dumbbells?
Yes, the SHK-001 comes with two interchangeable dumbbell tubes: one for 1-inch (2.5 cm) dumbbells and one for 2-inch (4.2 cm) dumbbells. Choose the one that fits your weights.
How to get spare parts or repair?
Contact Vevor support via www.vevor.com/support. You can request spare parts and benefit from technical assistance. The warranty covers manufacturing defects for one year.
What is the warranty for the Vevor SHK-001?
Vevor offers a one-year warranty from the shipping date against manufacturing and material defects. Keep your proof of purchase to activate the warranty.
Can the sled be used on all types of surfaces?
It is designed for use on flat surfaces such as grass, concrete, or gym mats. Avoid surfaces that are too abrasive which could damage the skids or straps.
How to choose the right dumbbell tube for my equipment?
Measure the inner diameter of your dumbbells. If they are 1 inch (2.5 cm), use the small tube. If they are 2 inches (4.2 cm), use the large tube. Install the chosen tube on the sled before adding weights.
Is the SHK-001 easy to store?
Yes, once disassembled, the sled takes up little space. The dumbbell tubes can be removed. Store it vertically or horizontally in a dry place, out of reach of children.

User questions about SHK-001 Vevor

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Fitness Equipment in PDF format for free! Find your manual SHK-001 - Vevor and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. SHK-001 by Vevor.

USER MANUAL SHK-001 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

WEIGHT SLED

MODEL:SHK-001/SHK-002

We continue to be committed to provide you tools with competitive "Save Half", "Half Price" or any other similar expressions used by represents an estimate of savings you might benefit from buying cer with us compared to the major top brands and does not necessarily cover all categories of tools offered by us. You are kindly reminded carefully when you are placing an order with us if you are actually in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

WEIGHT SLED

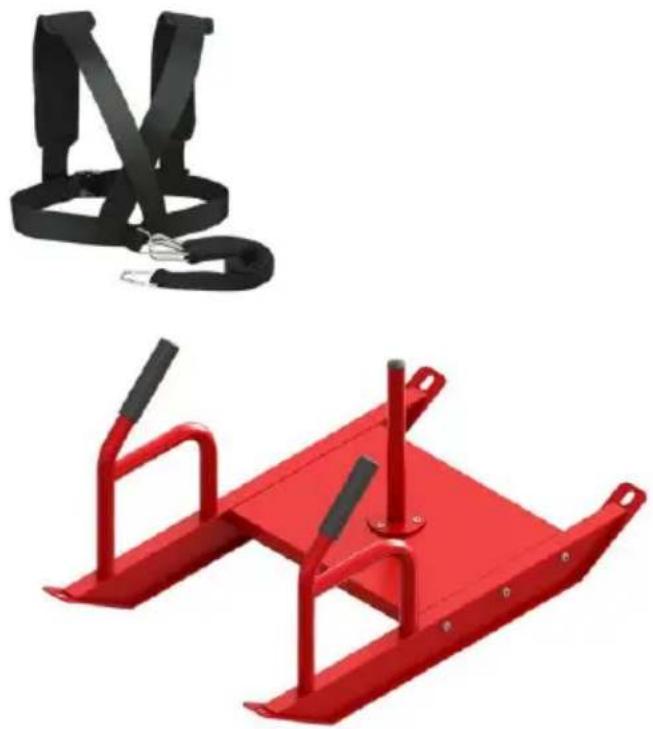

natural_image Two red industrial metal carts: one black with straps, the other a red frame (no text or symbols visible)

The product color is for reference only and is mainly promoted on the website

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

INSTRUCTIONS

Preface

First of all, let us express our heartfelt thanks to our customers who have purchased our equipment. This manual is for customer service to make better. Written with this equipment. Hope the company's products and services to bring you the canal courtesy.

Pay attention

This product must be used in strict accordance with the use method of this misuse of any other methods caused by misuse The Company does not give guarantee of any kind, including (but not limited to) the marketability offered to Company for a particular purpose Implied warranties with fitness.

The company accepts no liability. The Company shall not be liable for any € contained in this material, or for any accidental or consequential damages resulting from the provision, actual performance or use of this manual.

This manual contains proprietary information protected by patent law. All rights reserved. Without the written consent of the Company, this manual is not allowed to be photocopied, copied, or translated any part into another language.

The content contained in the manual may be changed without the user's noti

Manufacturer's liability

The Company shall be held responsible for the safety and reliability of the performance of the equipment only if the assembly operation, returning, improvement and maintenance are carried out by personnel approved by the Company, the electrical equipment concerned conforms to national standards, at the equipment is used in accordance with the operating instructions.

Guarantee

Manufacturing process and raw materials: The Company guarantees that the Equipment(except parts) are in regular use and repair condition, free of manufacturing process and raw materials faults for one year from the date of shipment. None of our inspections is perfect.

PRECAUTIONS

Precautions for use

Warning:

  1. If the equipment feels loose, falls or is damaged, please contact the comp in time;
  2. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
  3. Keep children and bystanders away while operating, distractions will cause you to lose control.
  4. Stay alert, watch what you are doing and use common sense when operating the equipment. Do not use the equipment while you are tired under the influence of drugs, alcohol or medication.. A moment of inattention while operating equipment may result in serious personal in
  5. Dress properly. Do not wear loose clothing or jewelry. Keep your hair clothing and gloves away from moving parts. Loose clothes jewelry or hair can be caught in moving parts.
  6. Store idle equipment out of reach of children and do not allow any unfamiliar with the equipment to use it. This tool is dangerous in the of untrained users.
  7. Please gradually increase the weight during normal use. Do not add much weight at once to ensure that your waist is not damaged.
  8. When using the sled, the crowd of onlookers must keep adistance meters to avoid accidental injury.

SAVE THESE INSTRUCTIONS

PART LIST

NO.Part NameQtyNO.Part NameQty
1Bottom welding19Flat washer8*166
2Bottom foot110Flat washer6*163
3Bottom foot111Nut M63
4Barbell tube212Nut M86
5Rubber handle213Sledge binding belt1
6Pipe plug214Sledge straps1
7Screw M8*50615Wrench1
8Screw M6*14316Screwdriver1

Vevor SHK-001 - PART LIST - 1

natural_image Simple 3D diagram of a rectangular box with two small dots on top and bottom, labeled 'x1' (no text or symbols on the box itself)

Vevor SHK-001 - PART LIST - 2

natural_image Simple line drawing of a mechanical lever or bracket with a handle and base, labeled 'x1' (no text or symbols on the diagram itself)

Vevor SHK-001 - PART LIST - 3

natural_image Simple line drawing of a mechanical bracket or support structure (no text or symbols)

Vevor SHK-001 - PART LIST - 4

natural_image Two identical cylindrical objects with base plates, labeled 'x1' below each (no additional text or symbols)

Vevor SHK-001 - PART LIST - 5

natural_image Simple line drawing of a cylindrical object with a hole, labeled 'x2' (no text or symbols on the object itself)

Vevor SHK-001 - PART LIST - 6

natural_image Stacked cylindrical objects labeled X2 (no text or symbols on the objects themselves)

Vevor SHK-001 - PART LIST - 7

natural_image Illustration of a bolt with threaded shaft and hexagonal end (no text or symbols)

Vevor SHK-001 - PART LIST - 8

natural_image Illustration of a threaded screw with a cross mark and dimension label 'x3' (no text or symbols on the screw itself)
9Vevor SHK-001 - PART LIST - 9x610Vevor SHK-001 - PART LIST - 10x311Vevor SHK-001 - PART LIST - 11x312Vevor SHK-001 - PART LIST - 12x6
13Vevor SHK-001 - PART LIST - 13x114Vevor SHK-001 - PART LIST - 14x115Vevor SHK-001 - PART LIST - 15^116Vevor SHK-001 - PART LIST - 16x1

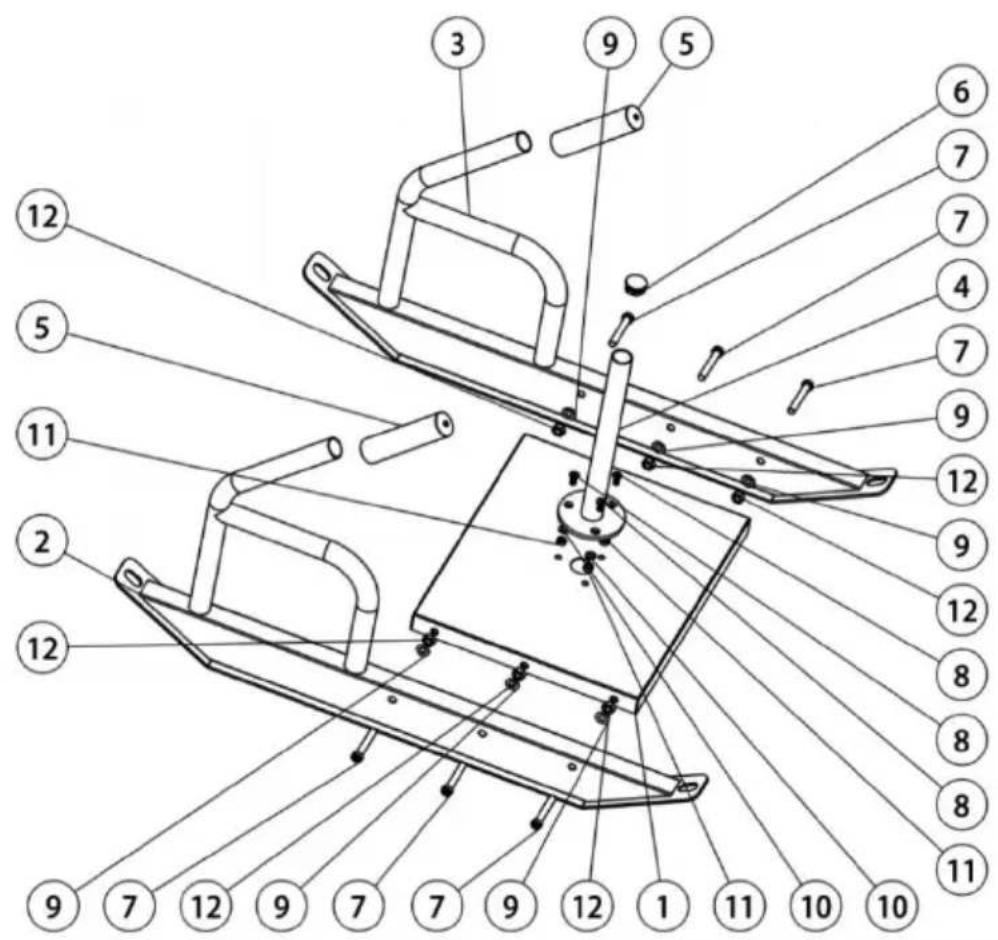

Technical diagram of a mechanical assembly with numbered components for identification

Note: You can choose one of the barbell pipes to install No. 4 acc freely. Assemble according to this figure. After installation, buckle the sledge rope

Installation steps

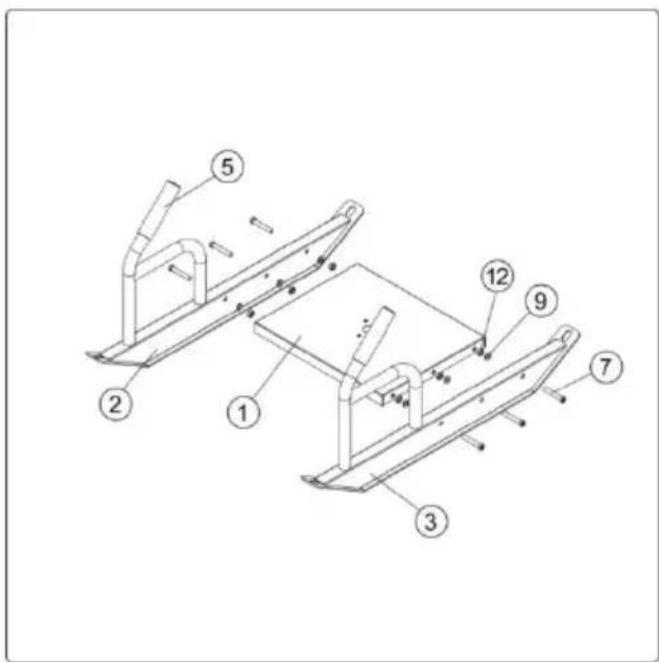

Technical diagram of a mechanical assembly with numbered components for identification

  1. Arrange all components one by one according to the diagram, and fix the together with screws in the order shown in the diagram.

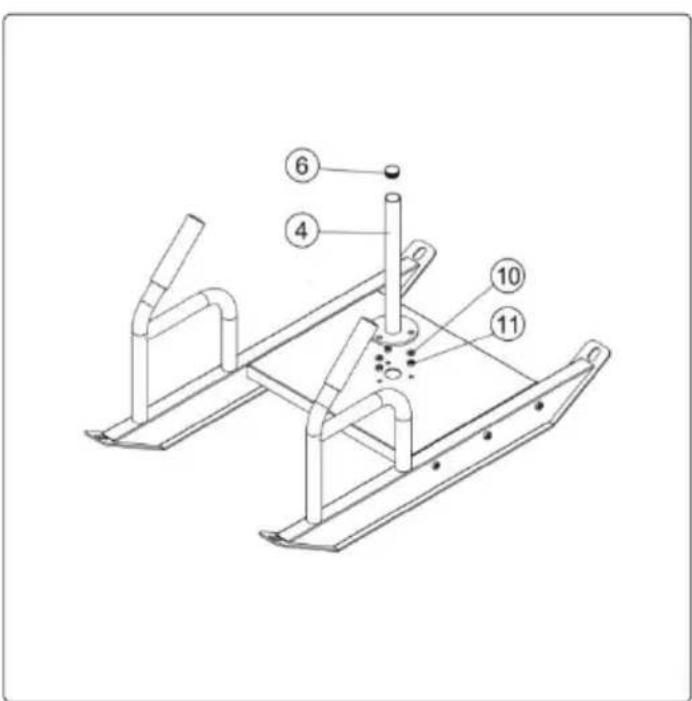

Technical diagram of a mechanical assembly with numbered components labeled 4, 6, 10, and 11.

  1. Fix the dumbbell stem and bottom plate together with screws as shown in diagram (dumbbell stems come in two sizes, one suitable for 1-inch dumbbell; the other suitable for 2-inch dumbbell stems. Please choose the dumbbell ste suitable for your own dumbbells to assemble together).

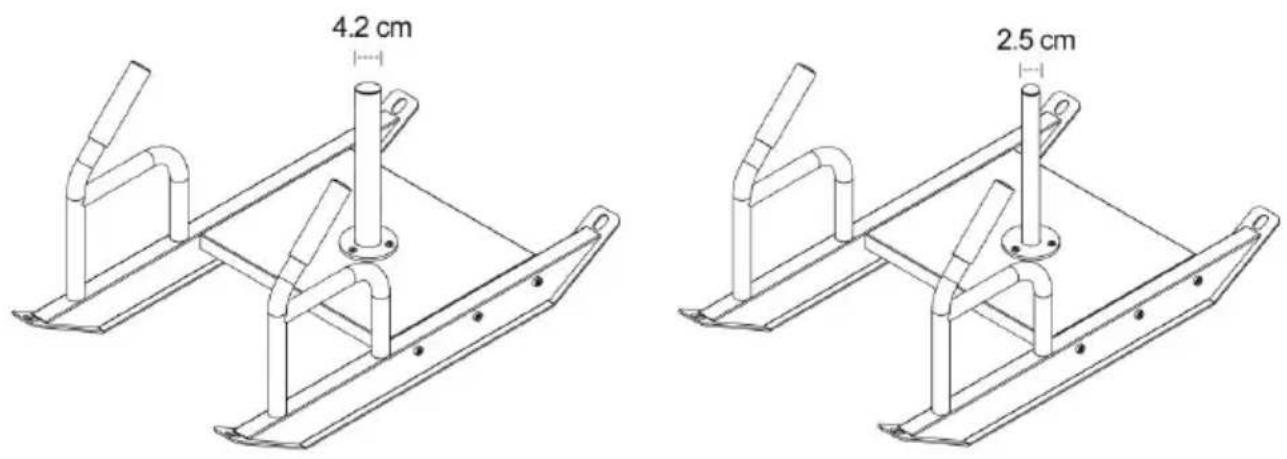

4.2 cm 2.5 cm

Adapted to 2-inch dumbbells Adapted to 1-inch dumbbells

EXERCISING INFORMATION

Before starting to exercise

How you begin your exercise program depends on your physical condition. If you have been inactive for several years, or are severely overweight, you must start slowly and increase your time on the equipment; a few minutes per workout.

Initially, you may be able to exercise only for a few minutes in your zone, however, your aerobic fitness will improve over the next six to weeks. Don't be discouraged if it takes longer. It's important to work own pace. Ultimately, you'll be able to exercise continuously for 30 m The better your aerobic fitness, the harder you will have to work to your target zone.

Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166

Anaheim Place, Rancho Cucamonga, CA 91730

Vevor SHK-001 - Before starting to exercise - 1

SHUNSHUN GmbH

Römeräcker 9 Z2021,76351

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

pooledas123@gmail.com

01772418127

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive "Save Half", "Half Price" or any other similar expressions used by represents an estimate of savings you might benefit from buying cer with us compared to the major top brands and does not necessarily cover all categories of tools offered by us. You are kindly reminded carefully when you are placing an order with us if you are actually in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

WEIGHT SLED

natural_image Two red industrial metal carts: one black with straps, the other a red frame (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

INSTRUCTIONS

Przedmowa

natural_image Simple 3D diagram of a rectangular block with two small dots and a label 'x1' (no text or symbols on the object itself)

Vevor SHK-001 - Przedmowa - 1

natural_image Simple line drawing of a mechanical part with a bracket and handle, labeled 'x1' (no text or symbols on the diagram itself)

Vevor SHK-001 - Przedmowa - 2

natural_image Simple line drawing of a mechanical bracket or support structure (no text or symbols)

2.5 cm 4.2 cm x1 x1

Vevor SHK-001 - Przedmowa - 4

natural_image Simple line drawing of a cylindrical object with a hole, labeled 'x2' below (no text or symbols on the object itself)

Vevor SHK-001 - Przedmowa - 5

natural_image Stacked circular objects labeled X2 (no text or symbols on objects)

Vevor SHK-001 - Przedmowa - 6

natural_image Illustration of a bolt with threaded shaft and circular head (no text or symbols)

Vevor SHK-001 - Przedmowa - 7

natural_image Illustration of a screw with threaded shaft and circular head (no text or symbols)
9Vevor SHK-001 - Przedmowa - 8x610Vevor SHK-001 - Przedmowa - 9x311Vevor SHK-001 - Przedmowa - 10x312Vevor SHK-001 - Przedmowa - 11x6
13Vevor SHK-001 - Przedmowa - 12x114Vevor SHK-001 - Przedmowa - 13x115Vevor SHK-001 - Przedmowa - 14^116Vevor SHK-001 - Przedmowa - 15x1

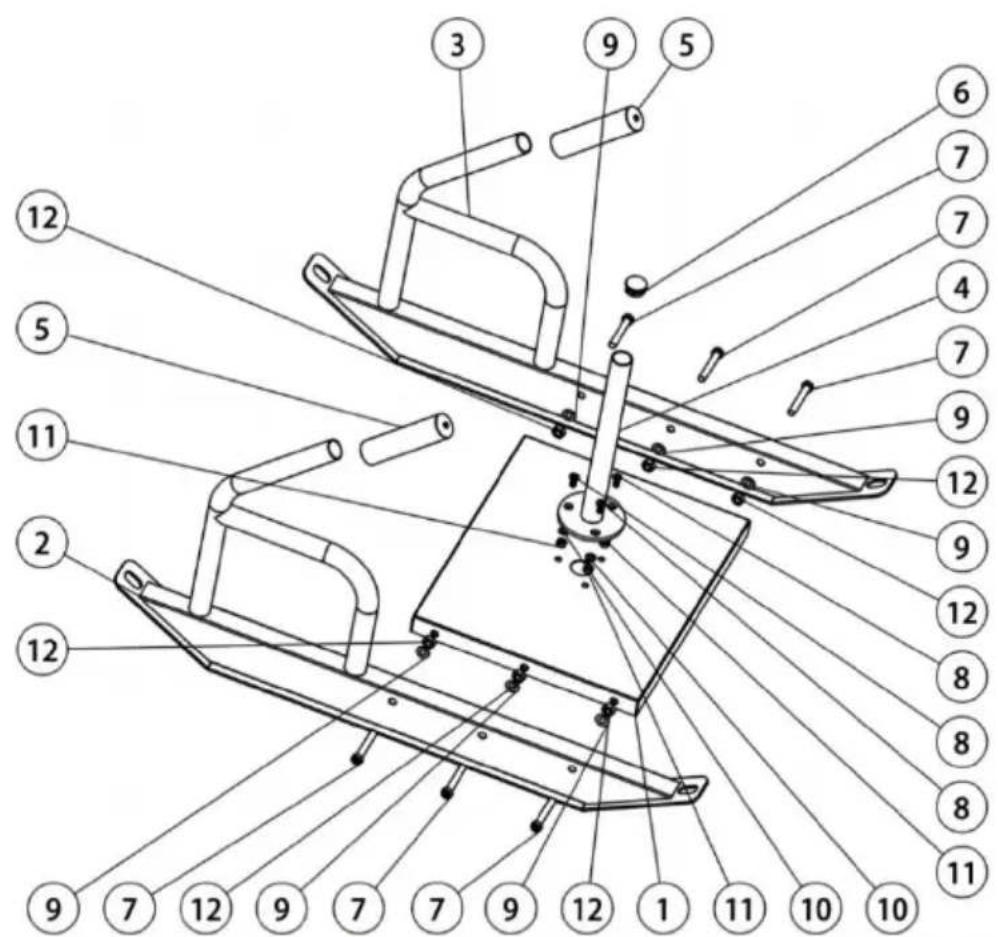

Technical diagram of a mechanical assembly with numbered components for identification
