USER MANUAL QS-002 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

TIRE CLAMP LOCK

MODEL:QS-002/QS-001-B

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually saving half in comparison with the top major brands

VEVOR®

TOUGH TOOLS, HALF PRICE

TIRE CLAMP LOCK

MODEL:QS-002/QS-001-B

Vevor QS-002 - TIRE CLAMP LOCK - 1

natural_image Technical line drawing of a mechanical clamp or clamp device with two metal rods and a magnifying glass (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel f contact us: Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

IMPORTANT SAFEGUARDS

Vevor QS-002 - IMPORTANT SAFEGUARDS - 1

Read and understand this entire manual before operating and servicing this product. Failure to follow these warnings and instructions can cause death, personal injury or damage to valuable property.

Base safety rules

  1. Do not over tighten the tire clamp lock. Damage can be done to tire clamp lock. This damage is not covered by the warranty.
  2. Do not rely on this tire clamp lock as a brake. While it will assi braking, other independent devices such as blocks or wedges should be used.
  3. Adhere to all Department of Transportation (D.O.T.) requirements will using this product.
  4. Use common sense when working. Stay alert and concentrate whe setting up and using this product. Never work while under the influen alcohol, drugs or medications.
  5. This product is not a toy. Keep it out of reach of children. While this product keep work area clean and well lighted. Keep children our work area.
  6. Dress appropriately. Never wear loose fitting clothing or jewelry when using. Contain long hair, and keep hair, clothing and gloves away from moving parts.

SAVE THESE INSTRUCTIONS

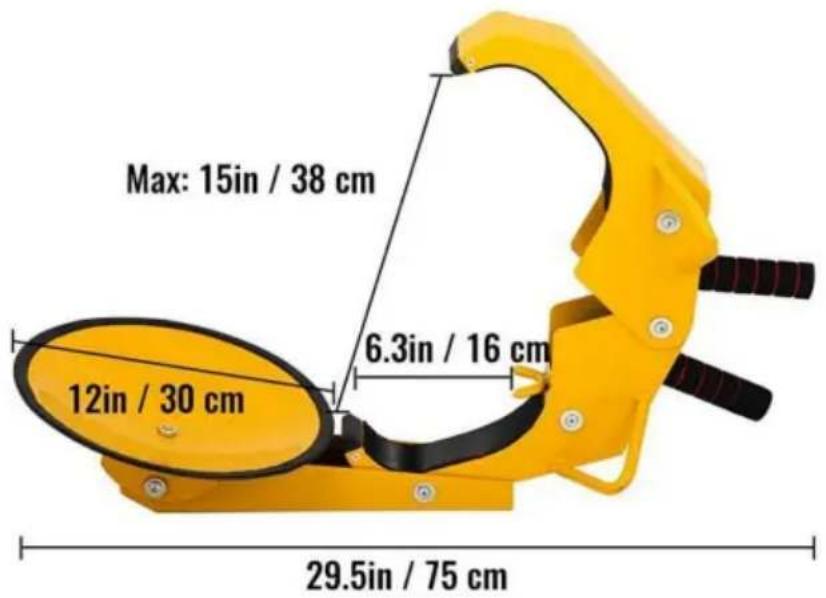

PRODUCT SPECIFICATIONS:
Vevor QS-002 - SAVE THESE INSTRUCTIONS - 1

text_image Max: 15in / 38 cm 6.3in / 16 cm 12in / 30 cm 29.5in / 75 cm

Vevor QS-002 - SAVE THESE INSTRUCTIONS - 2

text_image Tire Tire section width

Tire section height

Applicable Range:

Tire section width ≤ 15.0in / 38 cm

Tire section height ≤ 6.3in / 16 cm

Max Opening Width:15in/38cm
Entire Length29.5in/75cm
Sucker Diameter12in/30cm
Applicable Tire Section Width≤15in/38cm
Applicable Tire section height≤6.3in/16cm

SIMPLE INSTRUCTION

Vevor QS-002 - SIMPLE INSTRUCTION - 1

natural_image Hand holding a small object against a solid yellow background (no text or symbols visible)

Step1: Install the sucker

Vevor QS-002 - SIMPLE INSTRUCTION - 2

natural_image Close-up of a yellow manual pump tool with a hand adjusting its grip (no visible text or symbols)

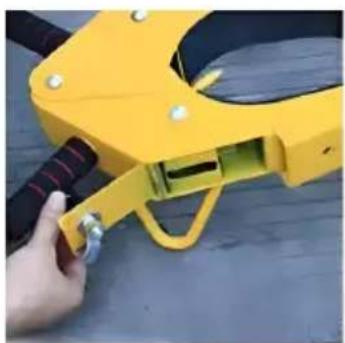

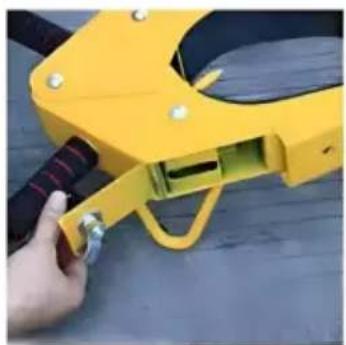

Step2: Open the lock cap by the key

Vevor QS-002 - SIMPLE INSTRUCTION - 3

natural_image Hand using a tool to handle a yellow mechanical clamp device on a wooden surface (no text or symbols visible)

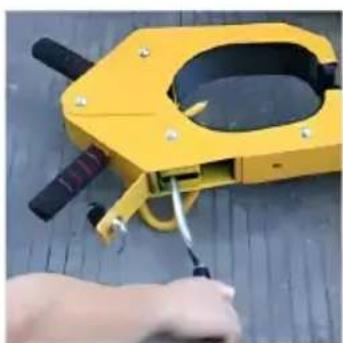

Step3: Shake the lock arm to the appropriate width with a swing

Vevor QS-002 - SIMPLE INSTRUCTION - 4

natural_image Close-up of a yellow industrial tire being adjusted by hand, no visible text or symbols

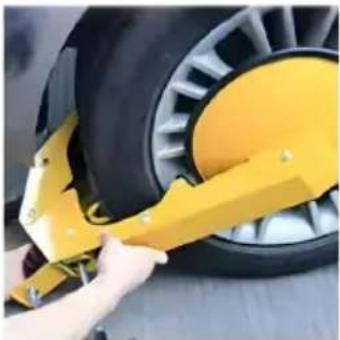

Step4: Lock the sucke lock into the whee

Vevor QS-002 - SIMPLE INSTRUCTION - 5

natural_image Close-up of a yellow bicycle steering wheel being adjusted for a hand, no visible text or symbols

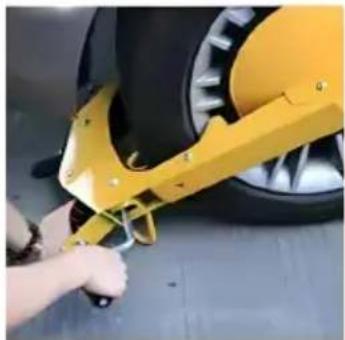

Step5: Swing your arms tightly into a tight state

Vevor QS-002 - SIMPLE INSTRUCTION - 6

natural_image Close-up of a hand adjusting a yellow bicycle tire component (no visible text or symbols)

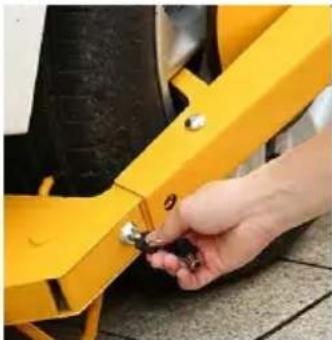

Step6: lock the cap by the key

PACKAGE INCLUDE

NoComponentsPictureQ'ty
Fits model #
QS-002QS-001-B
1LockVevor QS-002 - SIMPLE INSTRUCTION - 71pcs2pcs
2SuckerVevor QS-002 - SIMPLE INSTRUCTION - 81pcs2pcs
3NutVevor QS-002 - SIMPLE INSTRUCTION - 91pcs2pcs
4RockerVevor QS-002 - SIMPLE INSTRUCTION - 101pcs2pcs
5KeyVevor QS-002 - SIMPLE INSTRUCTION - 112pcs4pcs
