USER MANUAL SRGM1958 Vevor
Technical Support and E-Warranty Certificate www.vevor.com/support
TRUCK TONNEAU COVERS
MODEL:
SRFD0955
SRGM1466
SRDG0264
SRGM1958
We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent the estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. Are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.
VEVOR
TOUGH TOOLS, HALF PRICE
TRUCK TONNEAU COVERS
SRFD0955
SRGM1466
SRDG0264
SRGM1958
NEED HELP? CONTACT US!
Have product questions? Need technical support? Please feel fr contact us:
Technical Support and E-Warranty Certificate www.vevor.com/support
This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.
WARNING:
ASSEMBLY PRECAUTIONS
- Keep children and pets away during assembly.
- Please assemble the product in strict accordance with the instructions. Incorrect assembly could be hazardous.
- Separate and count all parts and hardware.
- Prepare the following tool: Philips Head Screwdriver.
- Follow the intended uses only.
Save the instruction.
PRODUCT PAREMETERS
| Model | VEHICLE COMPATIBILITY | Color | Material |
| SRFD0955 | Ford ,F-150, 2015-2020, Short | Black | Vinyl, Aluminum, Stainless Steel |
| SRGM1466 | Silverado / Sierra, 2014-2018/2019-2023, Standard | ||
| SRDG0264 | Dodge Ram 1500 2500 3500, 2019-2023, Standard | ||
| SRGM1958 | Silverado/Sierra, 2019-2023, Short |
PART LIST
When unpacking this product, check to make sure the parts listed below are included and carefully inspect for any damage that may have occurred during transit. If any part is missing or damaged, do not attempt to assemble or use product.
| NAME | Picture | SRFD095 5 | SRGM146 6 | SRDG026 4 | SRGM195 8 |
| Cover Assembly | 1PCS | 1PCS | 1PCS | 1PCS | |
| Side Rail | 2PCS | 2PCS | 2PCS | 2PCS | |
| Allen Wrench | 1PCS | 1PCS | 1PCS | 1PCS | |
| Clamp | 6PCS | 6PCS | 6PCS | 6PCS | |
| Clamp Foam Pad | 6PCS | 6PCS | 6PCS | 6PCS | |
| Tailgate Stick Tap | 1PCS | 1PCS | 1PCS | 1PCS | |
| Front Stick Tape(1.7m) | 1PCS | 1PCS | 1PCS | 1PCS | |
| Screw M5 ×15 | 2PCS | 2PCS | 2PCS | 2PCS | |
| Nut M5 | 2PCS | 2PCS | 2PCS | 2PCS |
INSTALLATION METHODS
| 1. Wash truck bed. | |

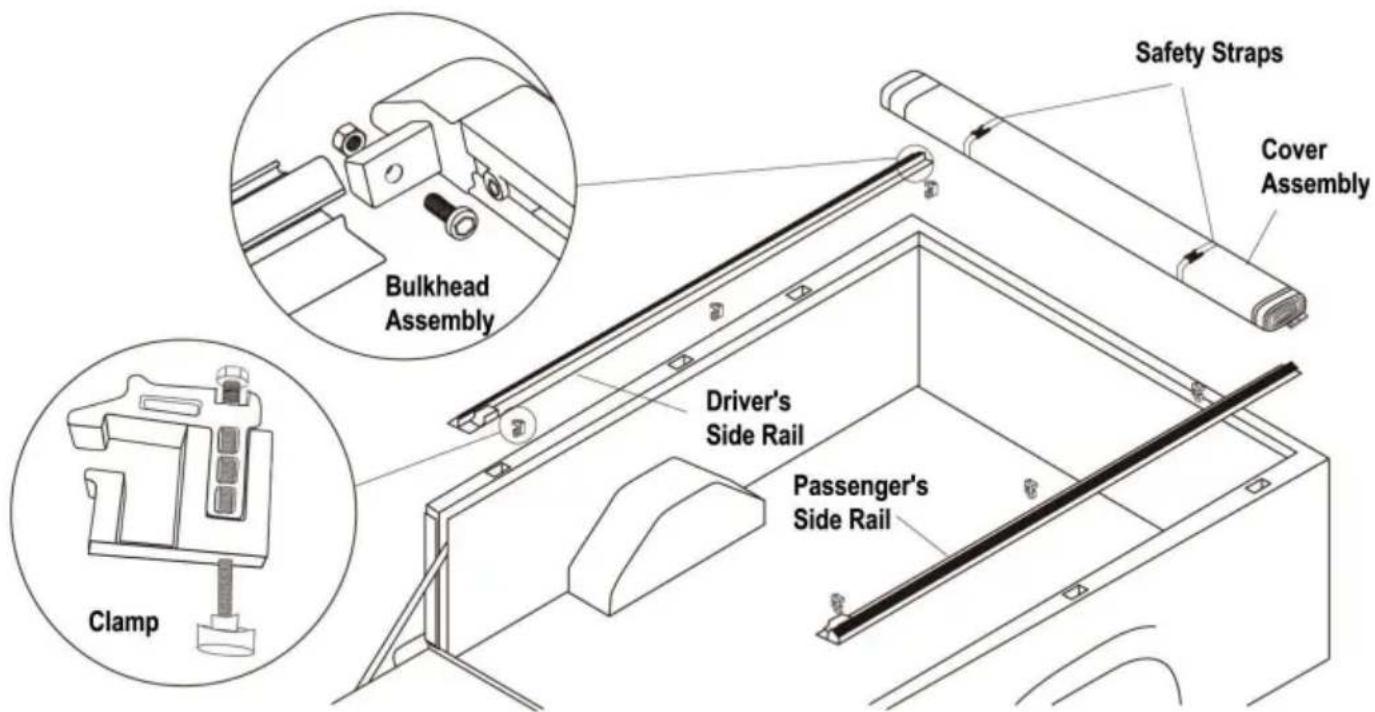

| 2. Installing the Cover Assembl Place the cover on the top of to front rail,slide the driver's side ra into this bulkhead. then tighten the front bulkhead assembly.Follow the same procedure to install the passenger's side rail. | |
| 3. Positioning Side Rails Place the side rail on the top o side rail vertically leveled. Start a the tailgate evenly space 3 clamp along each. Leave approximately to 8inches space on each end. | APPROX 6" to 8" APPROX 6" to 8" Rear Front |

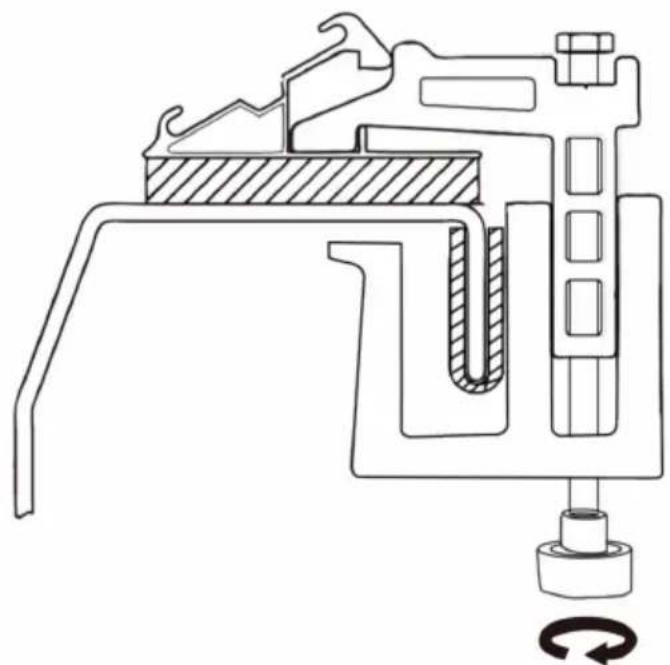

4. Tightening Clamps
Do not tighten clamps until all clamps are in proper position.
Note: Clamps may vary by specific vehicles

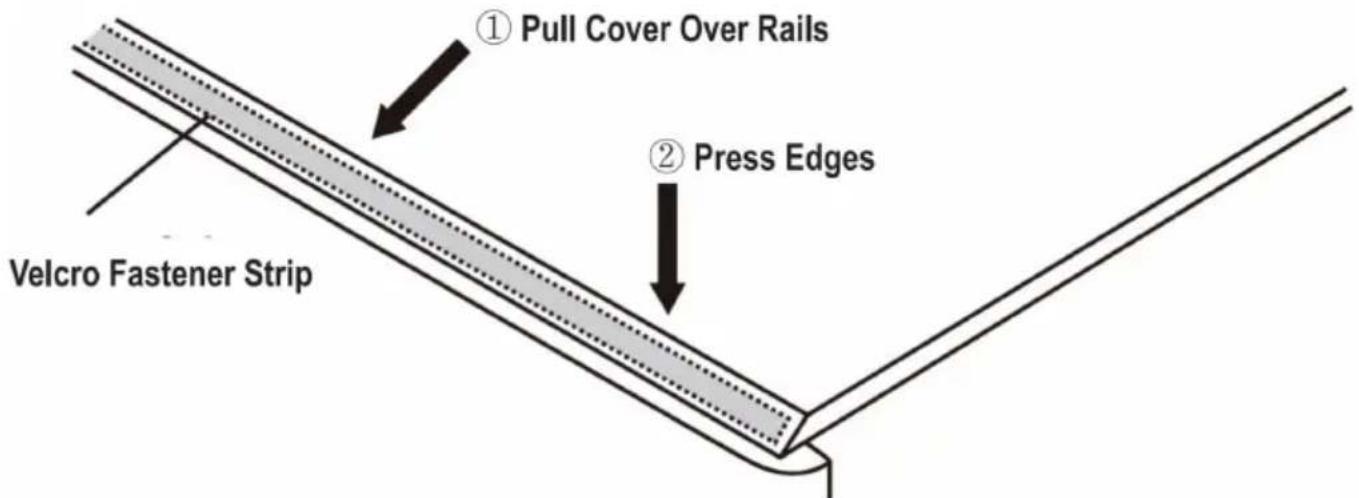

5. Secure Velcro Fastener
Pull the cover over velcro fastener strips on one side of the rail, then dges to fastener. Follow the same procedure on the opposite side.

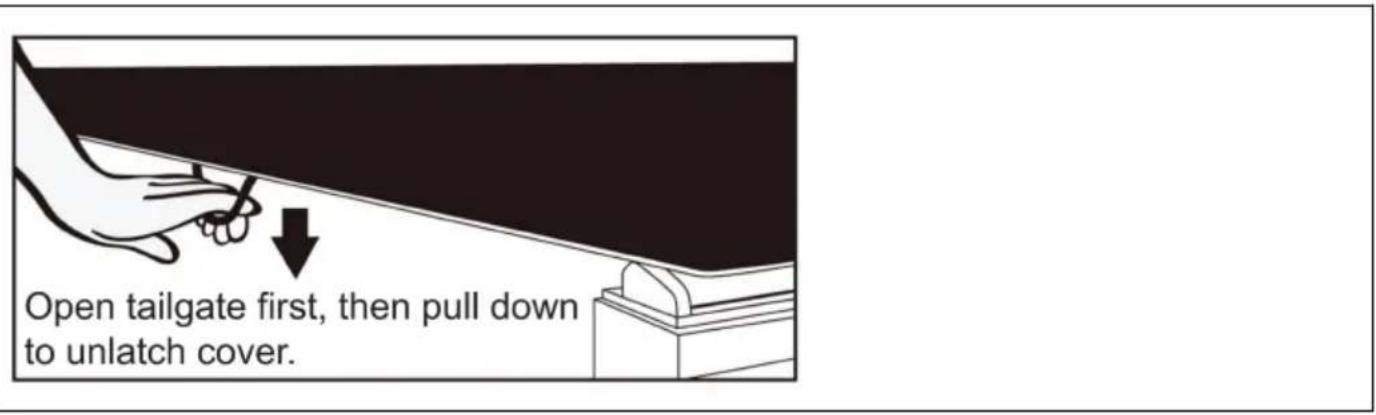

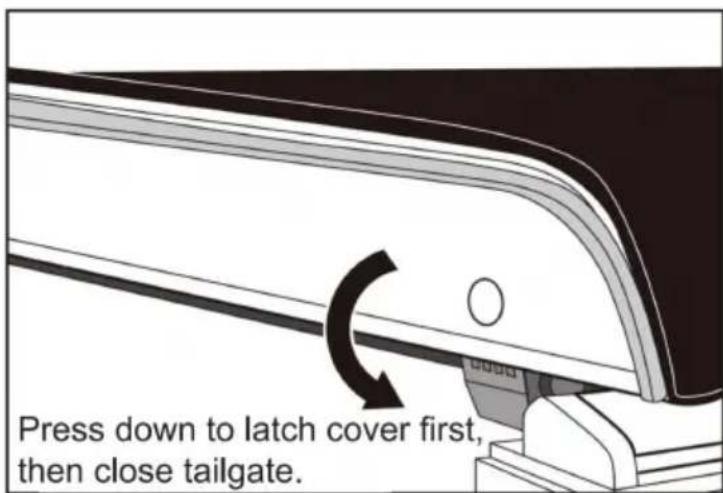

6. Latching and Unlatching your cover

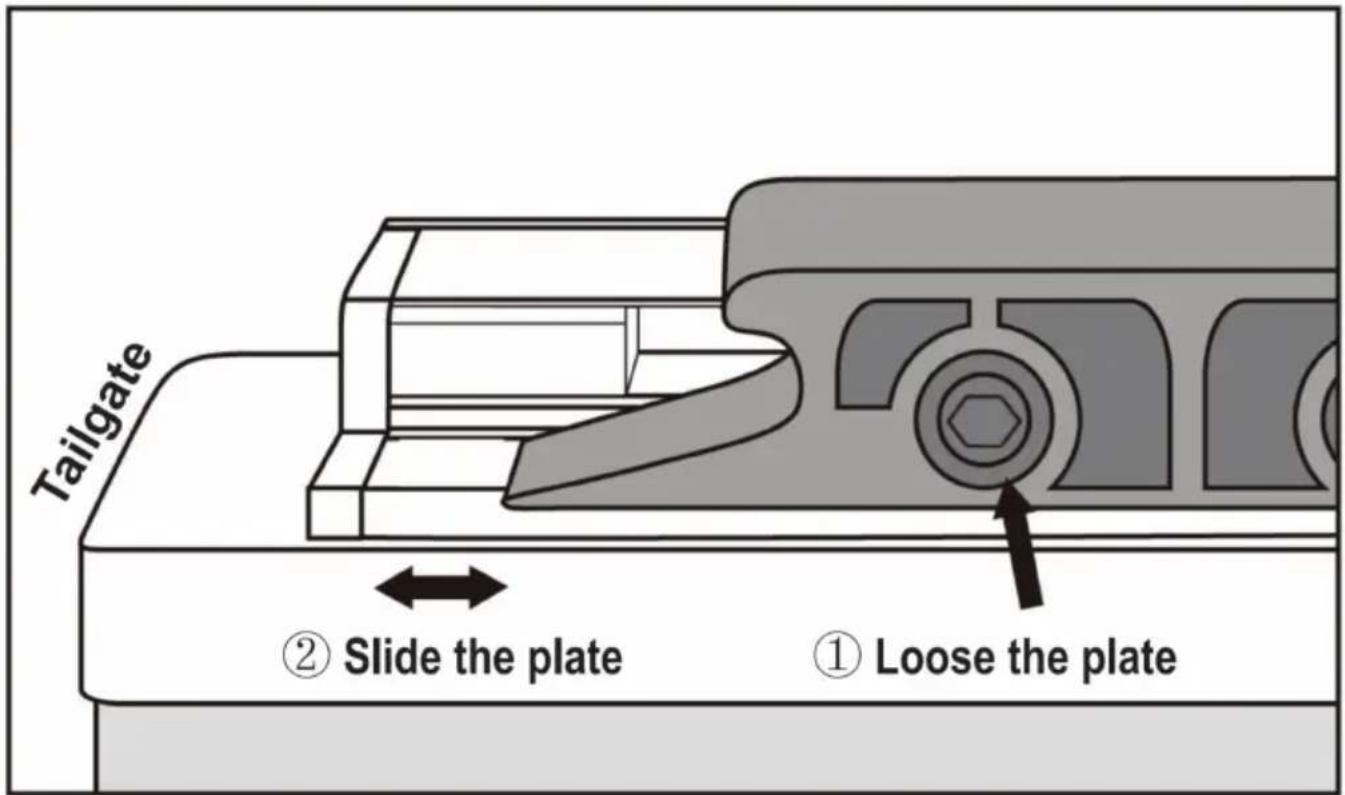

Tension Control System
The cover has been set at the factory for moderate tension to keep your cc of wrinkles. Depending on weather conditions it may be necessary for you to adjust the tension control on the cover. To adjust the tension control, simply the screws on the tension plate, then slide the tension plate towards the tailga a right scale line.

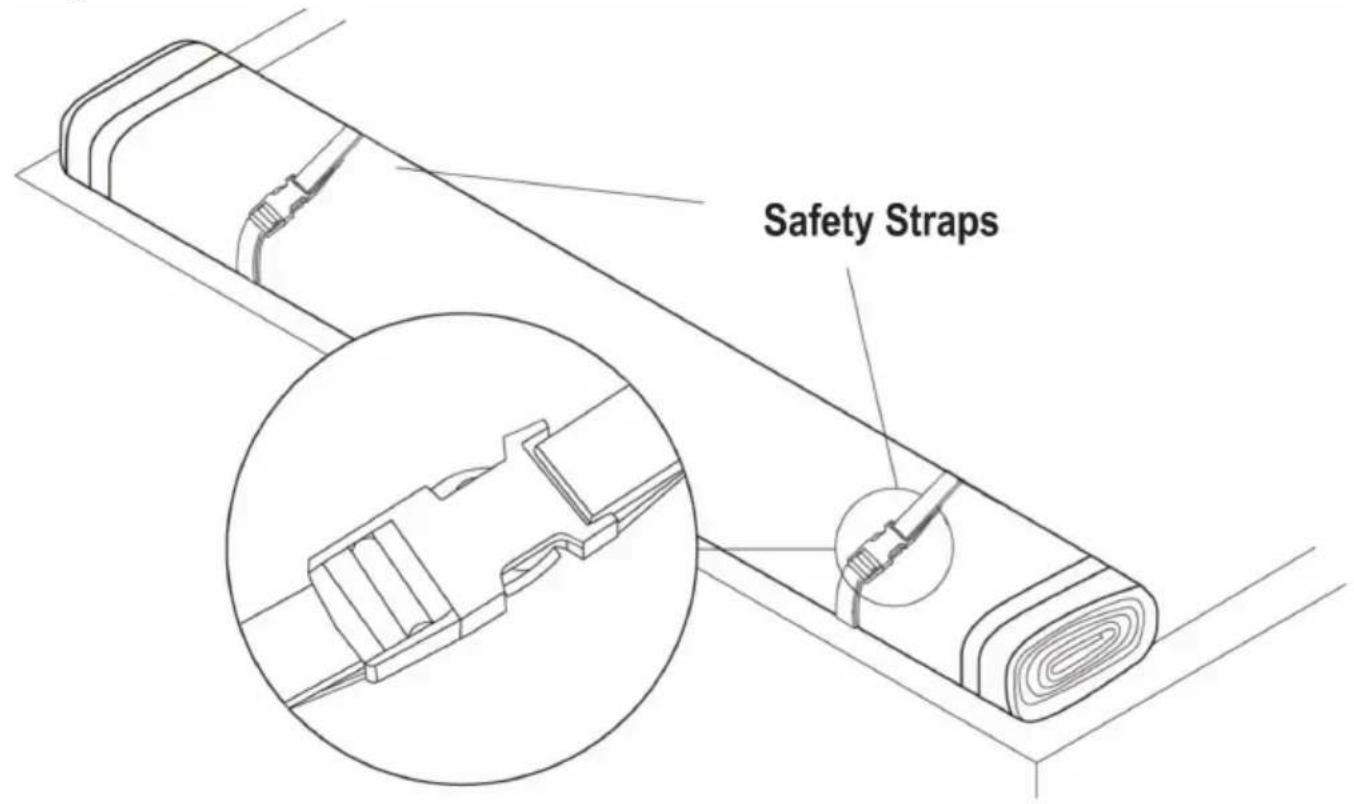

Open the Cover
Roll the cover toward the cab making sure both sides of cover rolled evenly. Secure the cover open by hooking the safety straps to the front loops.
Manufacturer: Shanghaiuxinmuyeyouxianggsi
Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai
Imported to AUS: SIHAO PTY LTD.1 ROKEVA STREETEASTWOOD
NSW 2122 Australia
Imported to USA: Sanven Technology Ltd. Suite 250,9166 Anaheim
Place,Rancho Cucamonga,CA91730
Pooledas Group Ltd
Unit 5 Albert Edward House,
The Pavilions Preston, United Kingdom
pooledas123@gmail.com
01772418127
SHUNSHUN GmbH
Romeracker 9 Z2021,76351
Technical Support and E-Warranty Certificate
www.vevor.com/support
VEVOR®
TOUGH TOOLS, HALF PRICE
