USER MANUAL S7F Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

TREADMILL PAD

MODEL:S7F

We continue to be committed to provide you tools with competitive "Save Half", "Half Price" or any other similar expressions used by represents an estimate of savings you might benefit from buying cer with us compared to the major top brands and does not necessarily cover all categories of tools offered by us. You are kindly reminded carefully when you are placing an order with us if you are actually in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

TREADMILL PAD

MODEL:S7F

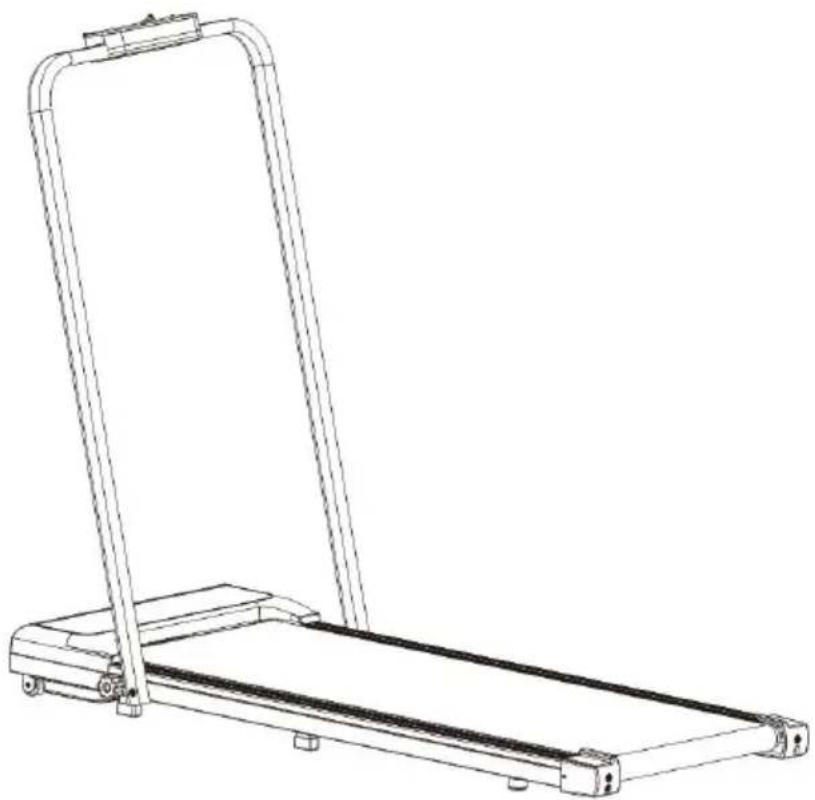

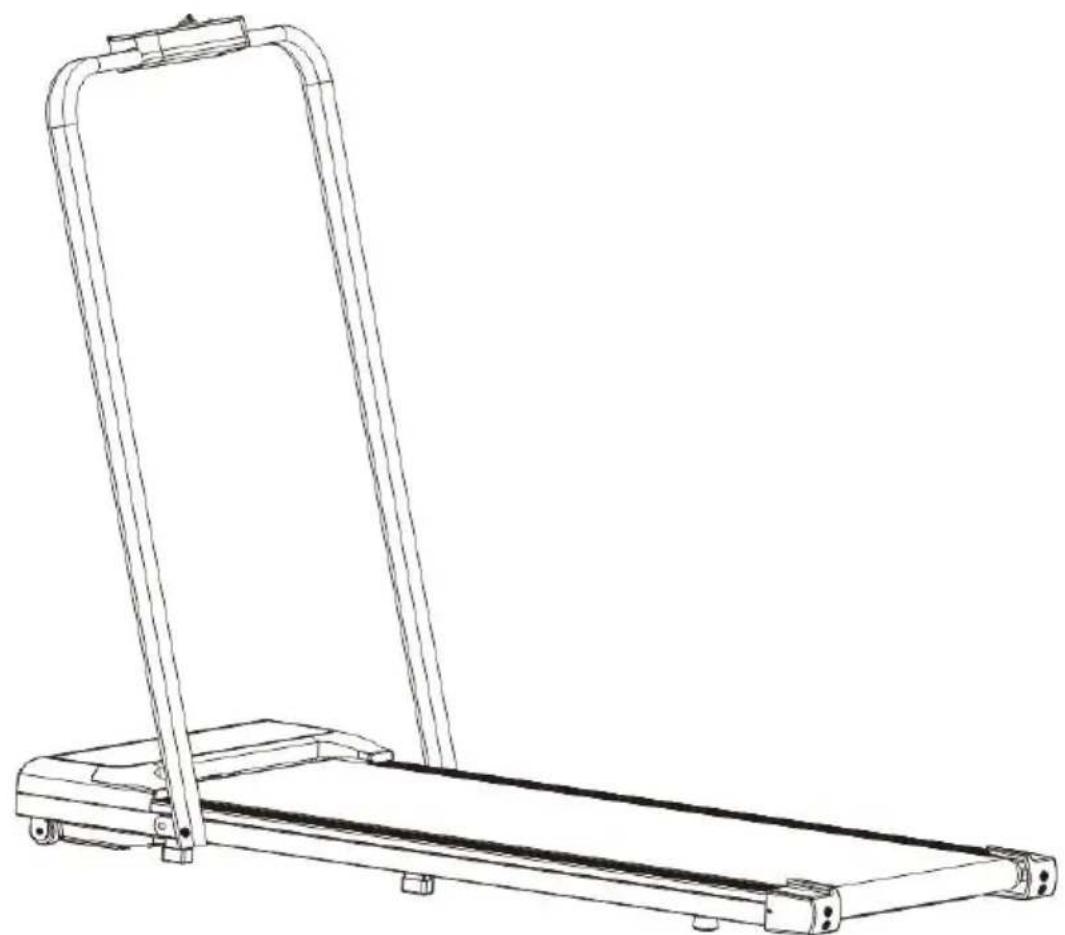

Line drawing of a treadmill with adjustable arms and legs (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

INSTRUCTIONS

Preface

First of all, let us express our heartfelt thanks to our customers who have purchased our equipment. This manual is for customer service to make better. Written with this equipment. Hope the company's products and services to bring you the canal courtesy.

Important reminder

For your own safety, before assembling and using such products, you must read this manual to clarify the unique operation, application, and possible problems of this equipment.

Quality Guarantee Commitment

We ensure that this product is made from high-quality materials.

We will repair the product if it has problems in normal use.

Warranty period is 1 year (from the date of purchase). If the product you p has quality problems, please contact with our customer service personnel in 1 months. Please don't deal with the problems without permission. We are responsible for repair of the following accessories: frame, wires, foam on arm motor, moving wheels, etc. The following cases are beyond the scope of war

• Damage for external reason.
• Use non-original accessories.
• Handle incorrectly by yourself.
• Fail to operate as instructed.

Quick-wear parts will not be repaired or replaced if normally worn, such as belt, etc.

This quality guarantee commitment is only valid for private use of family and inapplicable to gymnasium and other situations of professional training.

Please contact with our customer service personnel to buy accessories beyond scope of warranty and provide the information below when ordering:

• Instruction.
• Model of treadmill.
• Serial number of accessory.
  • Proof of date of purchase.

Please don't send the product to our company before our customer service personnel confirm. We refuse to bear any expenses if you send back the pr without permission.

II. Safety Instruction

Many safety problems are considered in design and manufacturing of the process but please still operate according to the instruction below just in case. We are responsible for any consequences caused by abnormal operation.

In order to ensure your safety and prevent accidents, please car read the operating instruction before use.

1. Please consider your physical condition when training with the product, and train in an appropriate and regular way to ensure that you have enough physical strength. Wrong or excess training will harmful to your health.

2. This product is unsuitable for children. Those that feel unwell or a mentally defective and lack common sense of use shall not use product unless under guardianship or guidance of people responsible for their safety. Children shall be prevented from fiddling with the equipment.

3. This product is suitable for home use instead of professional training and test or medical treatment.

4. Heart rate display of this product does not provide data for clinical medicine.
5. The damaged power line must be replaced by manufacturer or professional maintenance personnel to prevent danger.
6. Please inspect all components and ensure that screws and nuts are tightened before use.
7. Please wear comfortable tight clothes when using the product to prevent the clothes from being hooked by the machine. Don't let or pets play nearby to avoid accidents.
8. Please place the product on smooth, clean and flat ground, ensure that there is nothing sharp nearby and don't use it near source water and heat.
9. Don't touch any moving parts with hands or place hands or feet beneath the running belt.
10. This product can only be used by one person when running.
11. Ensure that screws and bolts are tightened after assembly of the product.
12. Please use accessories provided by the factory and don't replace them without permission.
13. This product is HC product. The weight of user is not more than 120kg.

Special Safety Instruction

Power source

• Place the treadmill where the plug can reach the socket.
• Directly insert the power line into socket and keep it firm.
• Please use qualified socket to avoid consequential danger. If the plug and socket are incompatible, ask the electrician to deal with it instead moving the plug.
• Please keep power line away from roller, and don't place power source on running belt or use damaged plug.

- Please pull the plug out from the socket before cleaning and maintenance.

Warning: failing to pull out the plug may cause personal injury and damage to equipment.

• Please inspect each component before use.
• Please don't use the product outdoors, at high humidity and in the sunshine.
• Please turn off the machine and pull out the plug when leaving.

Description of Assembly

• Please carefully read steps of assembly before assembly.
  • Take out all wrap pages and place them on clean ground, which is convenient for you to check and install.
• Carefully check whether components are complete according to packing list.
• Please pay attention to safety when using tools or handling. Please do install forcibly as you like in assembly.
• Please confirm whether the tools and packing materials left are dangerous. Plastics and foam are harmful to kids.
• Assemble the product according to the instruction. Please carefully read steps and description of assembly.
• The product must be carefully installed by adults, and by professionals necessary.

Warning: carefully install the product without damaging it. Configuration List

Configuration List

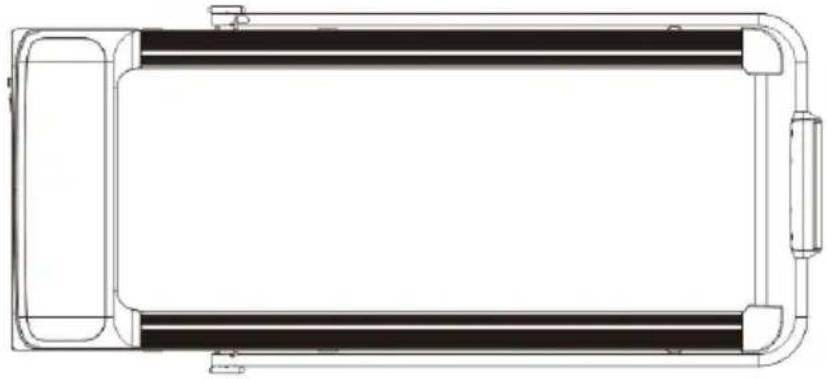

Complete machine
Bag of instruction	Safety lock Wrench silicone oil instructions Remote control	instructions
Technical parameters
Types		S7F
Max use weight		120kgs
Product size:		1295*570*112mm 1210*570*1045mm
Motor power		2.5HP
Speed		0.6-6.2MPH
Grade:		HC

Steps of Assembly

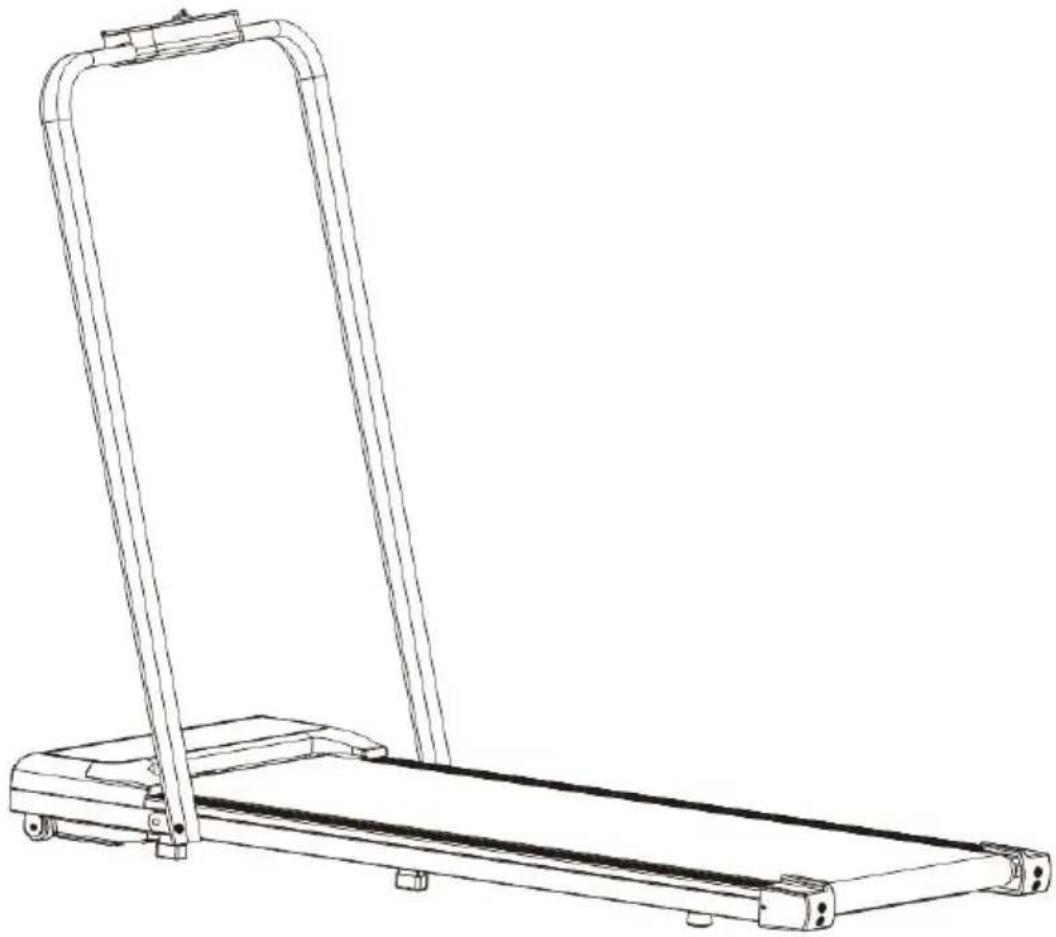

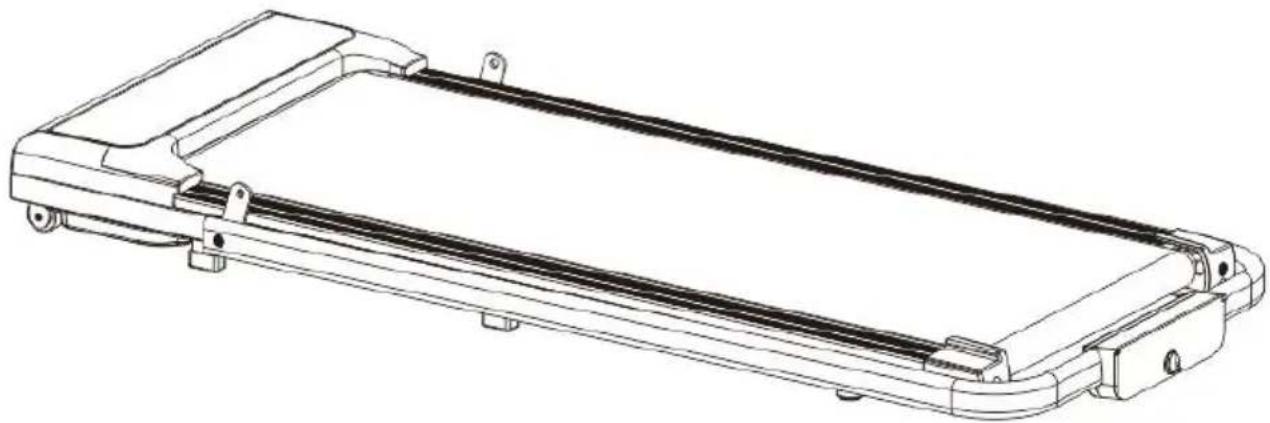

Step 1: installation of complete machine

1. Lift the machine out of the carton
2. Fold and lift the armrest, Rotate and tighten the knob clockwise

Technical line drawing of a mechanical frame component (no text or symbols)

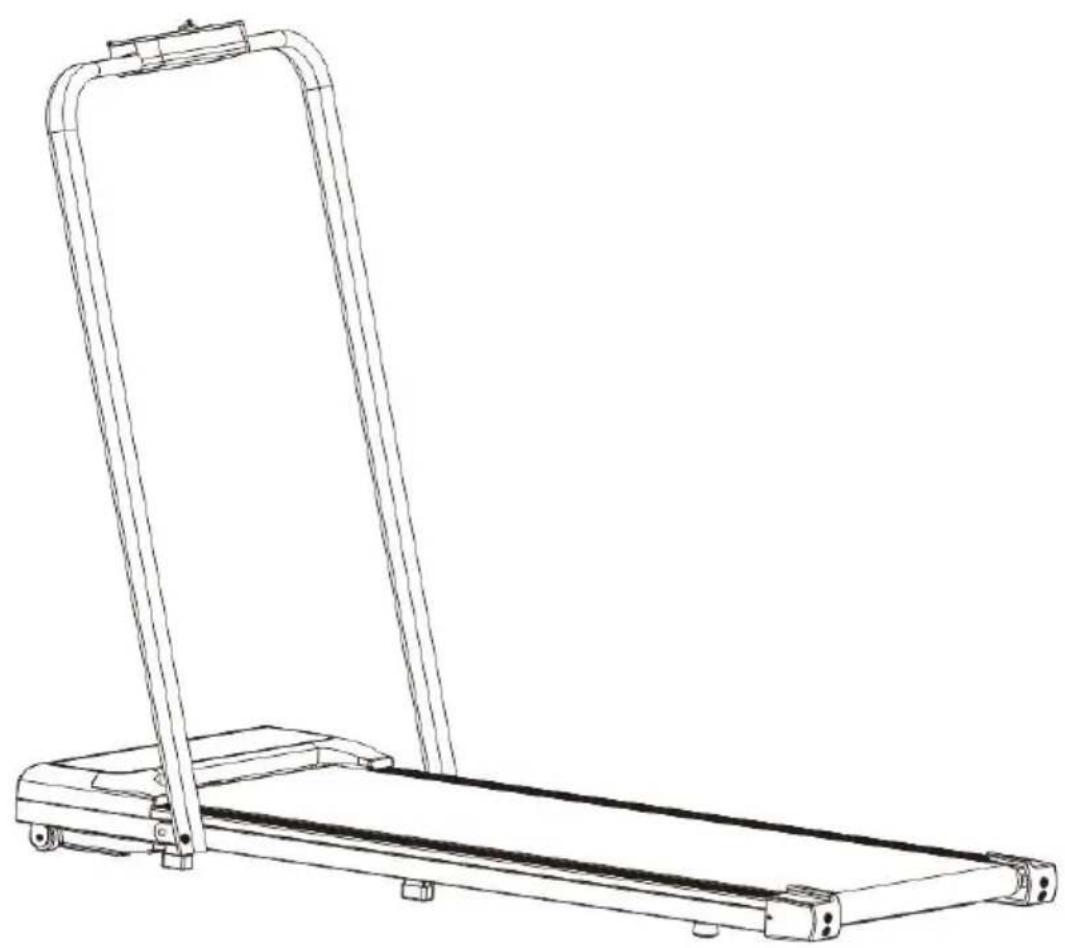

Line drawing of a standard treadmill with adjustable arms and wheels (no text or symbols)

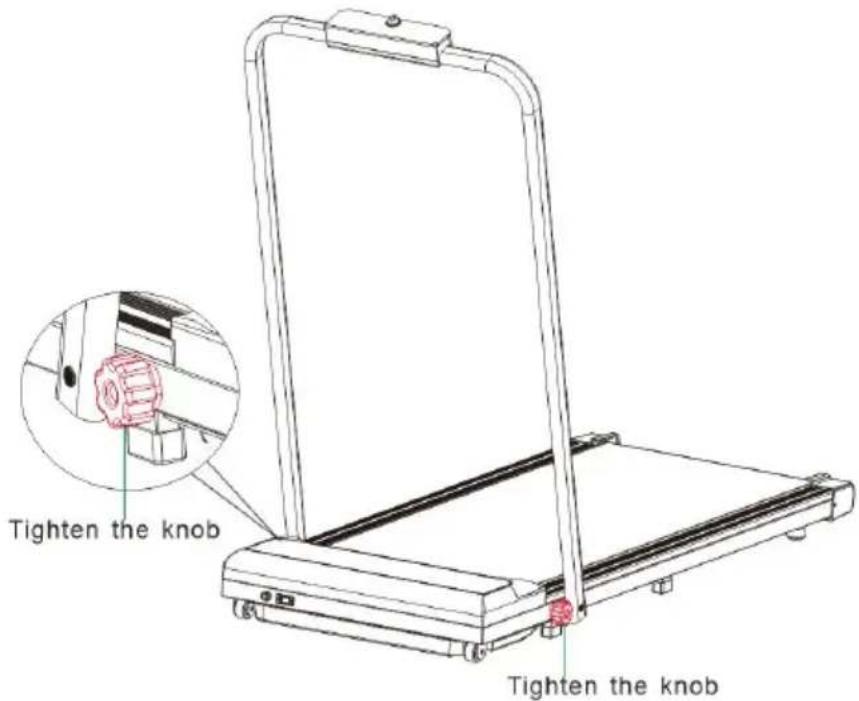

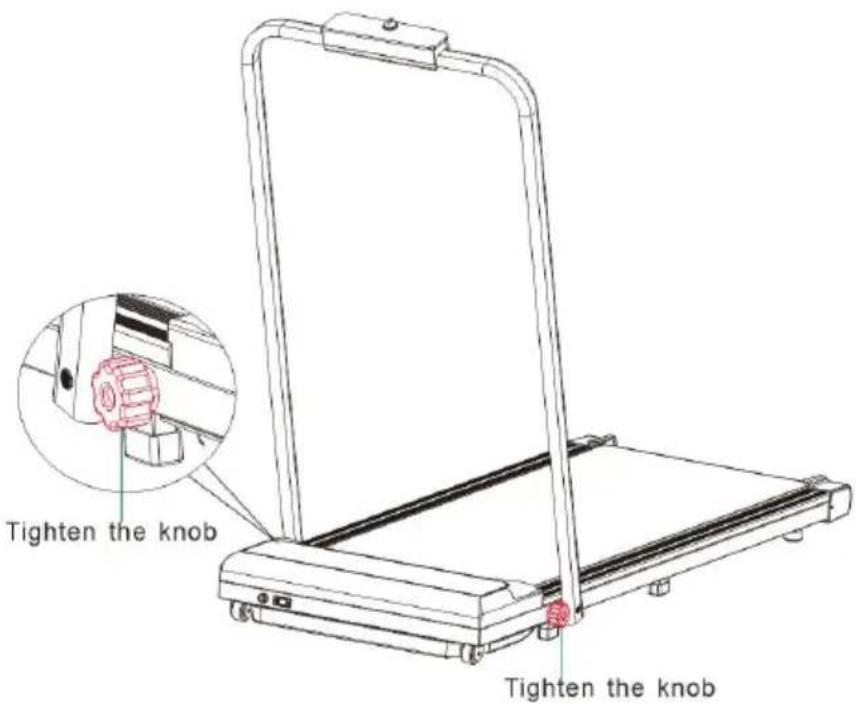

Step 2: Assembly accessories

1. Tighten the knob

Tighten the knob Tighten the knob

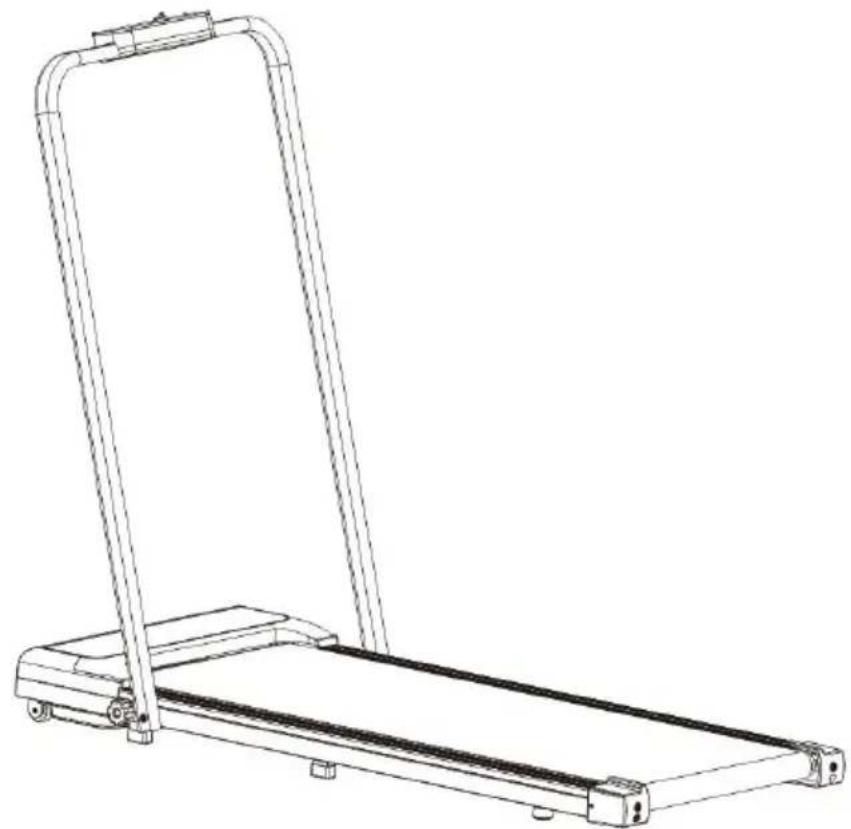

Step 3: installation is complete

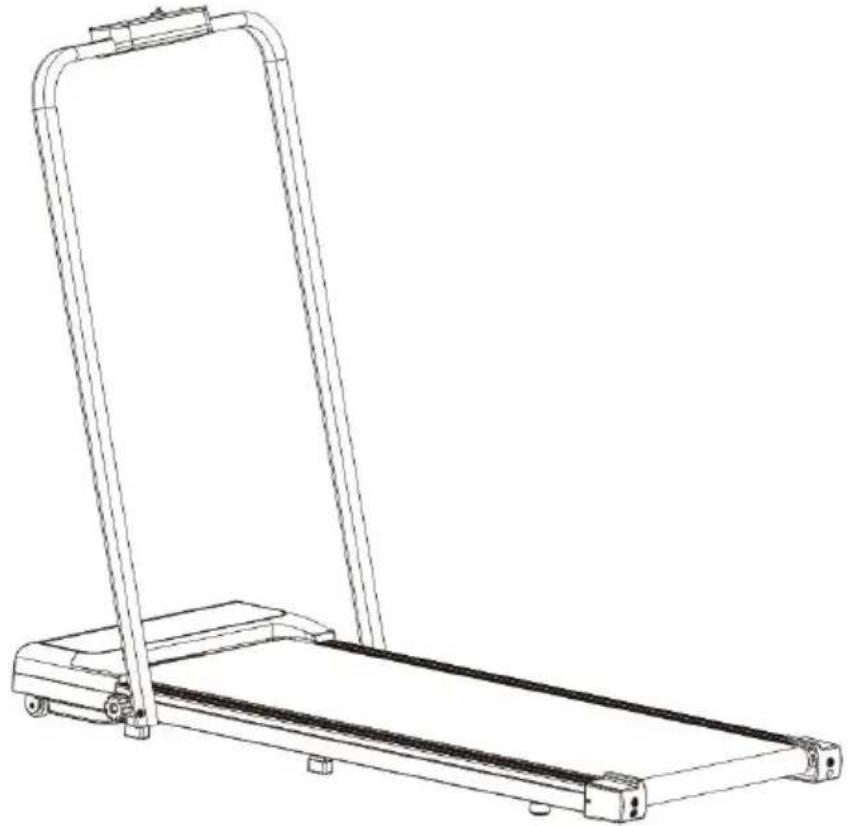

Line drawing of a standard treadmill with adjustable arms and legs (no text or symbols)

Operating Instruction

Operating instruction of treadmill:

Power socket with ground line must be used for your safety when you use treadmill.

1. Insert power plug into socket and turn on power switch a (light turns You will hear "beep" and window on instrument panel displays;

2. Place safety lock at yellow position of instrument panel, when the trea can be normally used. Please clamp the safety lock onto your clothes wh using the machine to avoid accidents. You can open the safety lock at a time to immediately stop the motor to avoid falling over. Please place the safety lock back and start starting program to use the machine again.

Console Operating Instruction

Display

[图]

TIME

图图

(1) window and keys description:

1. LED window display the following functions:

Speed window:display speed range:0.6-3.8MPH

(2) Use function of safety lock:

Place the ferromagnetic absorption part of the safety lock belt in the yellow area, use the locker patch fitting and clip it to the front of clothes.

With the circumstance of power on and safety lock in the right place, treadmill with sudden stop function.

(3) Brief introduction

Functions of this electronic meter

◆ Remote control function

(4) led display description

Display content on LED:

• Speed display
• Calorie display
• Time display
• Distance display

Window switch speed every 5 seconds, calories, time, display.distance.

(5) function description of remote control button

Remote keypad function key:

■ Start key / stop key, speed + key, Speed one key

(5) function and operation instructions of remote control button

1, Start key / stop key - turn on the power switch on the treadmill and start key / stop key on the remote control when you hear a beep from buzzer

To start running, stop the treadmill and press the start / stop key on the control to turn off the treadmill.

2, Speed + key: to speed up the treadmill when the treadmill is running, the speed + on the remote control to increase

3, Speed-key: when the treadmill is running, press the speed key on the remote control to reduce the speed of the treadmill.

Daily Maintenance

Maintenance of electric treadmill:

Appropriate maintenance is the only way to keep your treadmill in optimum s Wrong maintenance will damage or shorten the service life of treadmill.

Important reminder

• Please don't clean the treadmill with sandpaper or solvent. The controller of treadmill shall not be directly exposed to sunlight or damp to prevent damage.
• Frequently inspect and lock all parts of treadmill and immediately replace the damaged parts.

Regulate running belt

Adjustment of running belt is equipped with two functions: adjustment of degree tightness and central position of running belt. The running belt has been adjusted when leaving the factory, but it will be stretched after use to deviate from c-position to cause damage by wearing trim strip and rear protecting cover. It is normal to stretch the running belt in use.

Adjust running belt

If the running belt is slip or not smooth when you use the treadmill, you can improve it by adjusting degree of tightness of running belt.

How to adjust running belt

1. Insert 5mm hexagon wrench into the regulating screw on the left of running belt, and turn the wrench by 1/4 of a circle clockwise to regulate the r roller to tighten the running belt.
2. Repeat step 1 to adjust the screw on the right. Ensure that the regulating screw is turned by the same distance to make the rear roller parallel w frame.
3. Repeat step 1 and 2 until the running belt is not slip.
4. Note: the running belt shall not be too tight, which will damage the runni belt, roller bearing, etc., increase pressure of front/rear roller, and bring abnormal sound or other problems. To reduce tension of running belt, pl turn the wrench anticlockwise by same distance on both sides.

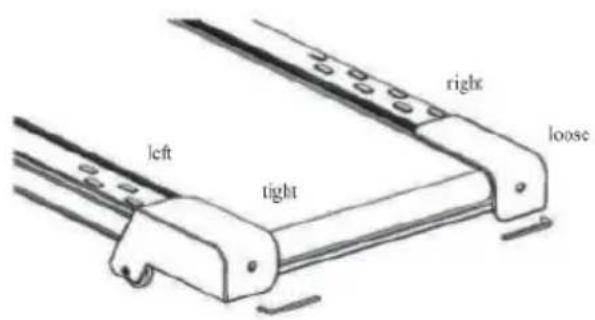

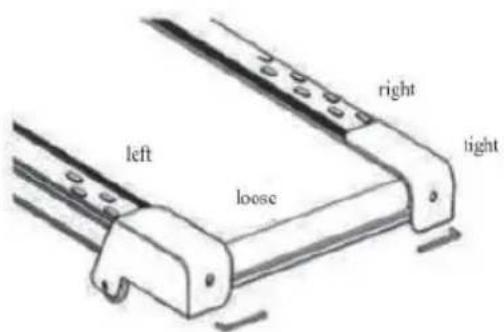

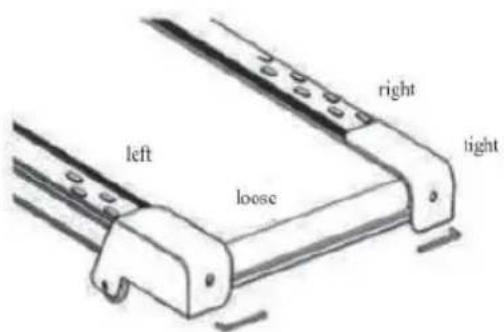

Adjust running belt to the middle

When you use the treadmill, the force of feet is different, and pressure on the belt is unbalanced, which makes the running belt deviate from the center. Such deviation is normal. It will return to the center when nobody is running on the running belt. You need to adjust it to the center if it fails to return to the

1. Keep the treadmill in no-load running and adjust speed to 3mph.

2. Observe the distance from running belt to left and right edgestrips

3. If the running belt tilts towards the left, turn the left screw by 1/4 of circle clockwise with Allen wrench.

4. If the running belt tilts towards the right, turn the right screw by 1/4 circle clockwise with Allen wrench.

5. If the running belt is still not in the middle, repeat the above steps it is in the middle.

6. Warning! Please don't tighten the roller excessively! This will cause permanent damage to the bearing!

You need to tighten the running belt again if the above steps fail to reach

Left deviation of running belt	Right deviation of running belt

Lubricating oil (MANUAL OIL)

The treadmill is oiled when leaving the factory, but lubricity of treadmill shall be inspected frequently, which helps to keep it in optimum state. The treadmill n be oiled after 1 year or running for 100h.

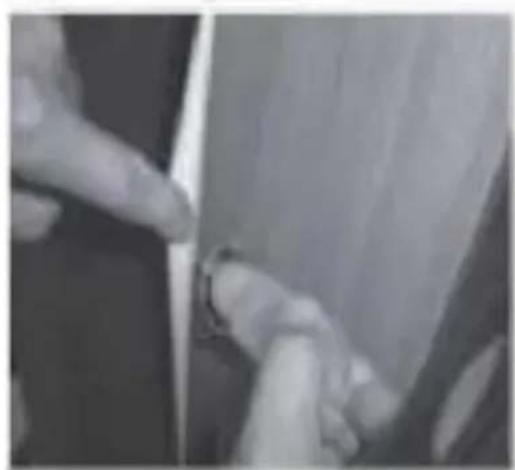

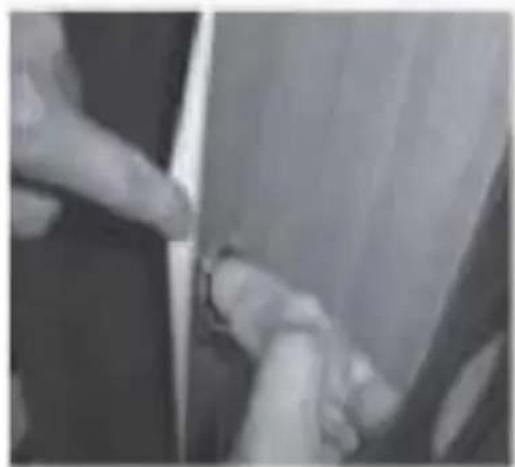

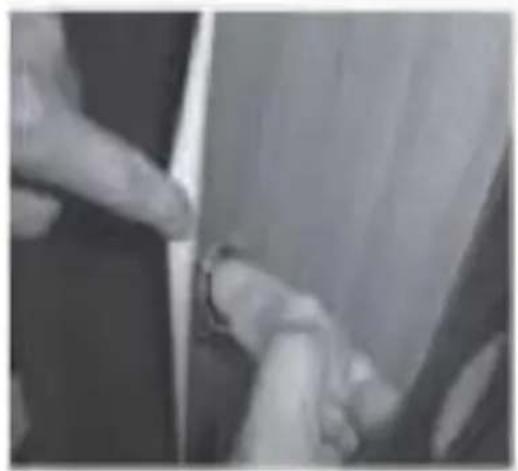

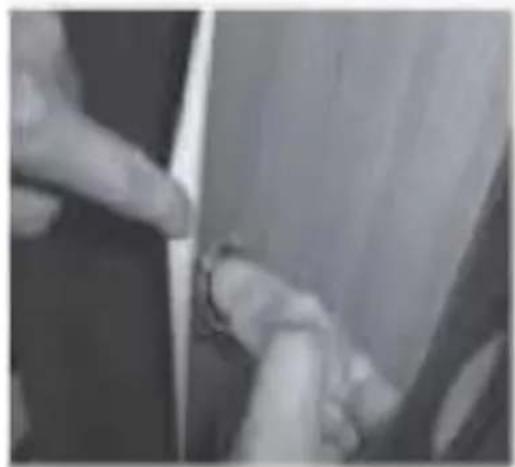

Lift one side of the running belt and touch the surface of running platform a running for 30h or 30 days. It is unnecessary to lubricate if there is silicone the surface is clearly dry, please oil it as instructed below.

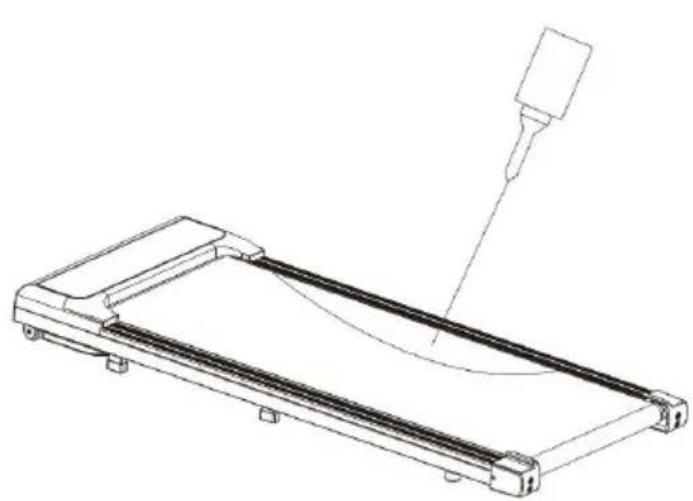

As shown in the figure, it needs to open the oil cap, pour the silicon oil import, after finished, turn on the treadmill to run for some time.

Line drawing of a treadmill with a handle and spout, no text or symbols present

Close-up of hands installing or adjusting a door panel (no visible text or symbols)

Note: Stop the treadmill to make the running belt still when oiling the running belt. And please use non-petroleum silicone oil.

Cleaning

Frequently clean the treadmill to guarantee its service life.

• Warning: cut off the power when cleaning the treadmill. The power line must be pulled out from the socket.
  • After use: clear sweat stains and sundries on instrument and other parts with clean towel and damp cloth.
• Note: don't use corrosive articles and liquid to prevent damage to electronic elements. Don't expose electronic elements to sunlight.
• Every week: clean the ground every week, and clear dirt brought by shoes and other sundries on the ground.

Storage: please place your treadmill in clean and dry environment, and ensure that power switch is off and plug is not in power socket.

Movement and folding: handling wheel is added in design to move the trea. Please confirm that power is off and the body of treadmill is folded before

Important Matter

- Warning

Please consult your doctor and receive complete physical examination before using the product. Don't carry out frequent and violent exercise without permission of doctor. Please stop using the product and consult your doctor if you feel in use. The product shall be used correctly. Please read service manual in order before exercise. Please keep children and pets away if the product is unattended or idle.

Please wear suitable clothes including sneakers. Please don't loosen your cloth in exercise to prevent them from being hooked by the machine.

Ensure that all bolts and nuts are tightened when using the equipment. Regu maintain the treadmill to keep it in good condition.

Before use:

How to start exercise plan depends on your physical condition. If you have exercised for years or you are seriously overweight, you must gradually increase exercise time, such as a few minutes every week.

At the beginning you may only exercise for a few minutes in target heart rate. Anyway, your aerobic fitness will be improved in about 6-8 weeks. Don't lose

if it takes more time. It is very important to exercise at your own pace. So you will be able to exercise continuously for 30min.

• Please consult your doctor before exercise or training. Ask the doctor to inspect your training and diet plan and give suggestions on your exercise
• Set exercise goal after consulting with your doctor to ensure that the plan practical, and start exercise plan at leisure.
• You can add some aerobic exercises into exercise plan, such as walking, jogging, swimming, dancing or riding. Test pulse frequently. If you have no electronic heartbeat monitor, consult the doctor about how to correctly measure pulse with hand from wrist or neck. In addition, you must set a heart rate on the basis of age and physical condition.

Drink enough water in exercise. You must supplement water lost due to overexercise to prevent dehydration. Don't drink a great deal of ice water or beverage. The temperature of drinking water or beverage shall be room temperature.

Sports suggestion and guidelines

Forward bends:

Slowly bend forward with your knees bent, letting your shoulders and back relax as you try to touch your toes. Go down as far as you can and hold the position for seconds.

ur toes. for 15

shoulder lift:

Lift your right shoulder up, towards your ear and hold the position for a moment. Then repeat the exercise with your left shoulder

Neck lateral flexion stretch:

one side, then the other

Harmstring Stretch:

commence with knee slightly bent, then push knee straight as tension allows, push chest towards foot.

Adductor stretch:

push down with elbows on knees very gently, keep back straight

Lateral stretching:

Stretch your arms upwards. Now try to stretch your right arm up as far as you can, feeling your right side stretch. Hold this position for a moment. Then repeat the exercise with your left arm.

Gastrocnemius stretch:

keep knee straight and heel down, feet facing forward

FCC Information:

CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment!

This device complies with Part 15 of the FCC Rules. Operation is subject to following two conditions:

1) This product may cause harmful interference.
2) This product must accept any interference received, including interference that may cause undesired operation.

WARNING: Changes or modifications to this product not expressly approved by the party.responsible for compliance could void the user's authority to operate product.

Note: This product has been tested and found to comply with the limits for

B digital device pursuant to Part 15 of the FCC Rules, These limits are des provide reasonable protection against harmful interference in a residential installation.

This product generates, uses and can radiate radio frequency energy, and if installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception, which can be determined by turning the product off and on, the user is encouraged to try to correct the interference by one or more of the following measures.

• Reorient or relocate the receiving antenna.
- Increase the distance between the product and receiver.
- Connect the product to an outlet on a circuit different from that to which receiver is connected.
- Consult the dealer or an experienced radio/TV technician for assistance. Correct Disposal .

This product is subject to the provision of european Directive 2012/19. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. applies to the product and all accessories marked with this symbol. Products marked as such may not be discarded with normal domestic waste, but must taken to acollection point for recycling electrical and electronic devices.

Fault Code Guidelines

E1	This fault is a communication problem between the upper and lower Troubleshooting :Method 1. Check if the upper and lower air connection wires are n contact. If they are not in good contact, please insert the wires into to troubleshoot the problem.Method 2.Check if the wires are twisted or broken in appearance. Ifphenomenon occurs, replace the connecting wires.
E2	The fault is motor wire detachment or motor damage, troubleshooting Method 1: Please check if the motor wires are in good contact. If good contact, please check if the motor has any odor or burnt sme problem occurs, the motor needs to be replaced.
E3	This code is for overvoltage protection and burst protection. Troubles method: Check whether the input voltage matches the rated voltage controller, check whether the displayed board mileage matches the c mileage. If powered on, immediately report an error. Please replace controller.
E4	This code indicates an abnormal detachment or disconnection of the communication control line between the upper and lower controls. Troubleshooting method: Please check if the connector of the upper lower control lines is not in good contact or there is a disconnectio phenomenon. If there is a disconnection, please replace the connecti

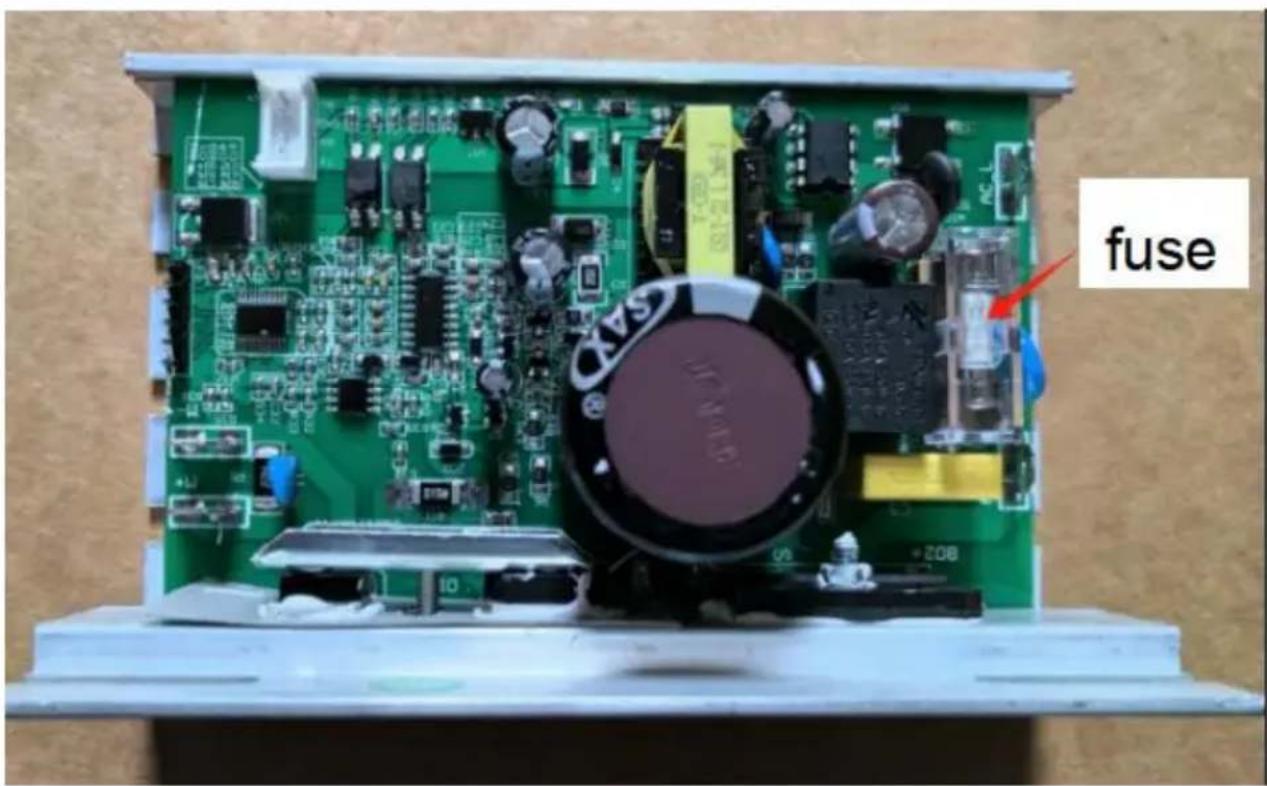

E5	The fault code that appears is overcurrent protection or overload pro Troubleshooting method: Please turn off the power and reconnect.
E6	This fault is overload protection. Troubleshooting method: Please repla fuse on the controller.
E7	E7 fault is due to the safety lock magnet not reaching the fixed an safety switch, or the internal safety lock wiring falling off, troubleshootMethod 1: If no safety lock magnet is placed in the safety lock are place a safety lock configuration magnet,Method 2: The position magnet has been placed in the safety lock error E7 is reported. It is necessary to check whether the ribbon can connecting the safety lock module and the control board is in good it falls off, please plug it in and troubleshoot the problem.

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Ma

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion H

London Road, Staines-upon-Thames, Surrey, TW18 4

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive "Save Half", "Half Price" or any other similar expressions used by represents an estimate of savings you might benefit from buying cer with us compared to the major top brands and does not necessarily cover all categories of tools offered by us. You are kindly reminded carefully when you are placing an order with us if you are actually in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

TREADMILL PAD

MODÈLE: S7F

Line drawing of a treadmill with adjustable arms and legs (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

INSTRUCTIONS

Préface

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a treadmill with adjustable arms and wheels (no text or symbols)

Line drawing of a treadmill with adjustable arms and wheels (no text or symbols)

Mode d'emploi

Left deviation of running belt	Right deviation of running belt

Huile de lubrification (HUILE MANUELLE)

Line drawing of a treadmill with a handle and cable, no text or symbols present

Close-up of hands adjusting a door panel (no visible text or symbols)

Suggestions et directives sportives

Illustration of a person bending forward with hands on hips (no text or symbols)

tre vos

15

Illustration of a person performing a seated stretch or stretching exercise (no text or symbols)

C/O YH Consulting Limited Office 147, Centurion H

London Road, Staines-upon-Thames, Surrey, TW18 4

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive "Save Half", "Half Price" or any other similar expressions used by represents an estimate of savings you might benefit from buying cer with us compared to the major top brands and does not necessarily cover all categories of tools offered by us. You are kindly reminded carefully when you are placing an order with us if you are actually in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

TREADMILL PAD

MODELL: S7F

Line drawing of a standard treadmill with adjustable arms and legs (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

INSTRUCTIONS

Vorwort

Technical line drawing of a mechanical frame component (no text or symbols)

Line drawing of a treadmill with adjustable arms and wheels (no text or symbols)

Line drawing of a treadmill with adjustable arms and legs (no text or symbols)

Bedienungsanleitung

Left deviation of running belt	Right deviation of running belt

Schmieröl (MANUAL OIL)

Line drawing of a treadmill with a handle and spout, no text or symbols present

Close-up of hands cleaning a wooden door (no visible text or symbols)

Illustration of a person bending forward with hands on hips (no text or symbols)

Ihre en

15

Illustration of a person performing a seated stretch or exercise (no text or symbols)

hte

C/O YH Consulting Limited Office 147, Centurion H, London Road, Staines-upon-Thames, Surrey, TW18 4

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive "Save Half", "Half Price" or any other similar expressions used by represents an estimate of savings you might benefit from buying cer with us compared to the major top brands and does not necessarily cover all categories of tools offered by us. You are kindly reminded carefully when you are placing an order with us if you are actually in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

TREADMILL PAD

MODELLO: S7F

Line drawing of a treadmill with adjustable arms and legs (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

INSTRUCTIONS

Prefazione

Technical line drawing of a mechanical frame or chassis component (no text or symbols)

Line drawing of a treadmill with adjustable arms and legs (no text or symbols)

Line drawing of a treadmill with adjustable arms and wheels (no text or symbols)

Left deviation of running belt	Right deviation of running belt

Olio lubrificante (OLIO MANUALE)

Technical line drawing of a treadmill with handle and spout (no text or symbols)

Close-up of hands cleaning a wall corner with a small circular object on the side (no visible text or symbols)

Illustration of a person bending forward with hands on hips (no text or symbols)

Importato in AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Importato negli USA: Sanven Technology Ltd., Suite 250, 9166 Anah Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Ma

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion H

London Road, Staines-upon-Thames, Surrey, TW18 4

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive "Save Half", "Half Price" or any other similar expressions used by represents an estimate of savings you might benefit from buying cer with us compared to the major top brands and does not necessarily cover all categories of tools offered by us. You are kindly reminded carefully when you are placing an order with us if you are actually in comparison with the top major brands.

TREADMILL PAD

MODELO: S7F

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

INSTRUCTIONS

Prefacio

Technical line drawing of a mechanical frame component (no text or symbols)

Line drawing of a treadmill with adjustable arms and legs (no text or symbols)

Line drawing of a treadmill with adjustable arms and wheels (no text or symbols)

Left deviation of running belt	Right deviation of running belt

Aceite lubricante (ACEITE MANUAL)

Line drawing of a treadmill with a handle and cable, no text or symbols present

Close-up of hands cleaning a wall corner with a small circular object on the side (no visible text or symbols)

Illustration of a person bending forward with hands on hips (no text or symbols)

e
ies.

Illustration of a person performing a seated stretch or stretching pose (no text or symbols)

Importado a AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Importado a EE. UU.: Sanven Technology Ltd., Suite 250, 9166 Anal Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Ma

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion H

London Road, Staines-upon-Thames, Surrey, TW18 4

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive "Save Half", "Half Price" or any other similar expressions used by represents an estimate of savings you might benefit from buying cer with us compared to the major top brands and does not necessarily cover all categories of tools offered by us. You are kindly reminded carefully when you are placing an order with us if you are actually in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

TREADMILL PAD

MODEL: S7F

Line drawing of a standard treadmill with adjustable arms and legs (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

INSTRUCTIONS

Przedmowa

Technical line drawing of a mechanical frame component (no text or symbols)

Line drawing of a treadmill with adjustable arms and legs (no text or symbols)

Line drawing of a treadmill with adjustable arms and wheels (no text or symbols)

Instrukcja obsługi

Line drawing of a treadmill with a handle and spout, no text or symbols present

Close-up of hands installing or adjusting a wooden door panel (no visible text or symbols)

Illustration of a person performing a seated stretch or exercise (no text or symbols)

do

Importowane do AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Importowane do USA: Sanven Technology Ltd., Suite 250, 9166 Anal Place, Rancho Cucamonga, CA 91730

EC

REP

UK

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Ma

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion H London Road, Staines-upon-Thames, Surrey, TW18 4

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technisch Ondersteuning en E-garantiecertificaat www.vevor.com/support

LOOPBAND PAD

MODEL: S7F

We continue to be committed to provide you tools with competitive "Save Half", "Half Price" or any other similar expressions used by represents an estimate of savings you might benefit from buying cer with us compared to the major top brands and does not necessarily cover all categories of tools offered by us. You are kindly reminded carefully when you are placing an order with us if you are actually in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

TREADMILL PAD

MODEL: S7F

Line drawing of a standard treadmill with adjustable arms and legs (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

INSTRUCTIONS

Voorwoord

Technical line drawing of a mechanical frame or chassis component (no text or symbols)

Line drawing of a standard treadmill with adjustable arms and legs (no text or symbols)

Stap 2: Montage-accessoires

1. Draai de knop vast

Tighten the knob Tighten the knob

Stap 3: installatie is voltooid

Line drawing of a treadmill with adjustable arms and wheels (no text or symbols)

Gebruiksaanwijzing

Left deviation of running belt	Right deviation of running belt

Smeerolie (HANDOLIE)

Line drawing of a treadmill with a handle and spout, no text or symbols present

Close-up of hands cleaning a wooden door (no visible text or symbols)

Illustration of a person bending forward with hands on hips (no text or symbols)

Illustration of a person performing a seated stretch or exercise (no text or symbols)

Adductor strekken:

C/O YH Consulting Limited Office 147, Centurion H

London Road, Staines-upon-Thames, Surrey, TW18 4

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive "Save Half", "Half Price" or any other similar expressions used by represents an estimate of savings you might benefit from buying cer with us compared to the major top brands and does not necessarily cover all categories of tools offered by us. You are kindly reminded carefully when you are placing an order with us if you are actually in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

TREADMILL PAD

MODELL: S7F

Line drawing of a standard treadmill with adjustable arms and legs (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

INSTRUCTIONS

Förord

Technical line drawing of a mechanical frame or chassis component (no text or symbols)

Line drawing of a treadmill with adjustable arms and wheels (no text or symbols)

Line drawing of a standard treadmill with adjustable arms and legs (no text or symbols)

Bruksanvisning

Left deviation of running belt	Right deviation of running belt

Smörjolja (MANUELL OLJA)

Line drawing of a treadmill with a handle and spout, no text or symbols present

Close-up of hands installing or adjusting a door panel (no visible text or symbols)

Illustration of a person bending forward in a relaxed posture (no text or symbols)

axellyft:

Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Ma

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion H

London Road, Staines-upon-Thames, Surrey, TW18 4

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support
