Product Type	Professional Electric Bain-Marie
Brand	Vevor
Model	SC-TC-216
Dimensions (L x W x H)	1133 x 580 x 385 mm
Power Supply	1500 W, 110-120 V~ 60 Hz or 220-240 V~ 50 Hz (dual voltage)
Plug Type	Standard power plug (depending on model)
Electronic Thermometer	No
Main Functions	Steam heating, insulation, hydration, food classification
Water Tank Capacity	Large tank (fill to about two-thirds)
Number of Food Pans	Multiple (simultaneous sorting)
Main Material	Stainless steel, glass
Safety	Mandatory grounding, overheat protection (temperature limiter), circuit breaker, anti-burn label
Maintenance and Cleaning	Clean with non-corrosive agent, do not immerse or use water jet, wipe after use
Included Spare Parts	Glass supports (left and right), glass (2), ball valve, Teflon tape, gaskets, screws, nuts
Reparability	Available parts: heating tube, thermostat, indicator lights, valve; professional intervention recommended
Warranty	Electronic warranty, technical support via www.vevor.com/support
Usage	Commercial (catering, food presentation)
Operating Conditions	Ambient temperature 5-50°C, humidity ≤90%
Optional Accessories	Not specified
Country of Origin	Not specified

Frequently Asked Questions - SC-TC-216 Vevor

How to install the Vevor SC-TC-216 bain-marie?

First fix the glass supports (right and left) to the housing using the provided screws. Then insert the glass panels into the supports. For the drain valve, wrap Teflon tape around the thread (4-5 turns) and screw it tightly. Make sure the valve is well sealed. Finally, check that all parts are in place before plugging in the device. Wear protective gloves during installation.

What is the power supply voltage of the SC-TC-216?

The device accepts two voltages: 110-120 V~ 60 Hz or 220-240 V~ 50 Hz. Check your mains voltage and adjust the voltage selector if necessary (not visible on the manual, but the product is compatible). Always use a grounded outlet.

How to start the device for the first time?

Before plugging in, fill the water tank to about two-thirds (do not exceed). Plug the device into a grounded outlet. Turn on the main switch, then turn the temperature control knob to set the desired temperature. The green indicator light shows power on. Wait for the water to heat up. Never operate without water.

How to clean the bain-marie after use?

Always turn off the power and let it cool before cleaning. Use a soft cloth moistened with a non-corrosive cleaning agent to wipe the water tank and food pans. Never use paint-soluble liquids. Never immerse the device in water and do not use a water jet. Dry thoroughly.

What to do if the temperature does not increase?

If the green and red indicator lights are on but the temperature does not rise, the heating tube may be loose or burnt out. Check the heating tube connections and tighten the bolts. If the tube is damaged, have it replaced by a professional. For other issues, refer to the fault analysis table in the manual.

Is it possible to adjust the temperature precisely?

The device is equipped with a thermostat that allows selecting a set temperature for food insulation. However, it is not a precise digital control. The temperature range depends on the knob setting. The actual temperature may vary.

How to drain the water from the tank?

Use the drain valve located at the bottom of the device. Place a container under the valve, then open it by turning the handle. Make sure the water is cooled before draining. Close the valve after use. If the valve leaks, tighten it or replace the Teflon tape.

What types of food can be kept in this bain-marie?

This bain-marie is designed to keep foods such as soups, sauces, stews, vegetables, etc. warm. It allows insulation, hydration, and simultaneous classification with multiple food pans. It is not suitable for cooking, only for holding temperature.

Is the device suitable for domestic use?

No, this product is a commercial device intended for professional use (catering, buffets, etc.). It is not recommended for domestic use due to its power and size. Please follow the operating environment indicated in the manual.

Where to find spare parts for the SC-TC-216?

Spare parts (heating tube, thermostat, valve, glass, supports, etc.) can be obtained from Vevor after-sales service. Contact technical support via www.vevor.com/support. It is recommended to call a professional for any repairs.

USER MANUAL SC-TC-216 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

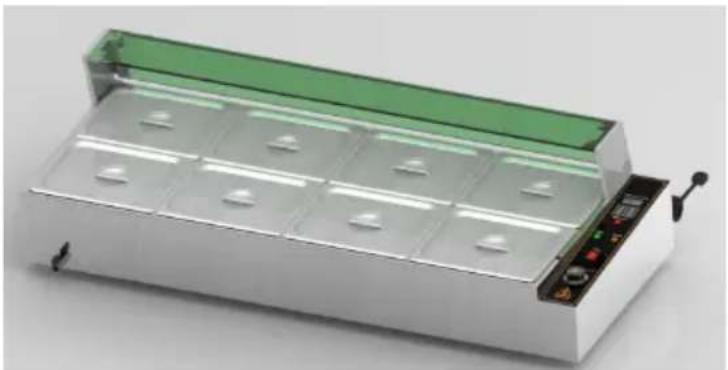

Electric Bain Marie

Applicable models: sc-tc-213\sc-tc-214\sc-tc-215\SC-TC-216\SC-TC-2108\SC-TC-2110 sc-tc-316\SC-TC-319\SC-TC-3112\SC-TC-2110-B\SC-TC-3112-B \SC-TC-2108-B

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent the estimate of savings you might benefit from buying certain tools with us compared major top brands and does not necessarily mean to cover all categories of tools us. You are kindly reminded to verify carefully when you are placing an order v are actually saving half in comparison with the top major brands.

Model: sc-tc-213\sc-tc-214\sc-tc-215\SC-TC-216\SC-TC-2108\SC-TC-2110\sc-tc-316\SC-TC-319\SC-TC-3112\SC-TC-2110-B\SC-TC-3112-B\SC-TC-2108-B

3D rendering of a laboratory incubator with green lid and control panel (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us: Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions of before operating. VEVOR reserves a clear interpretation of our user. The appearance of the product shall be subject to the product you. Please forgive us that we won't inform you again if there are any or software updates on our product.

Warning-To reduce the risk of injury, user must read instru manual carefully.

CORRECT DISPOSALThis product is subject to the provision of European Directi 2012/19/EC. The symbol showing a wheelie bin crossed thr indicates that the product requires separate refuse collection European Union. This applies to the product and all access marked with this symbol. Products marked as such may no discarded with normal domestic waste, but must be taken t collection point for recycling electrical and electronic devices

WARM PROMPT

This product is protected by a protective film on the surface of the machine to prevent scratches during transportation. Please remove all protective films before use!

1.Instructions for Use:

1. Safety grounding is mandatory before use!
   2.The voltage used must match the rated voltage

2. For initial use, fill the water tank to about two-thirds capacity before connecting to the power supply; When the water tank under the machine is low on water, first cut off the power and allow cooling before replenishing, ensuring that the water level does not exceed two-thirds the tank to prevent electric shock hazards.

3. When the power supply is on and the power indicator light is lit, the temperature control heating switch to select the desired food insul temperature, which will heat the water in the tank to a specific temp and maintain it in the soup bucket.

4. After use, always turn off the power to prevent accidents during cle 6. If any abnormalities occur during use, discontinue use and have a professional troubleshoot before continuing.

5. The product is not suitable for individuals with physical, sensory, or mental impairments or those lacking experience and knowledge, including children.

6. Avoid immersing hands or other body parts in or near the water ta High temperatures may appear on the surface for some time after operation or at the end of use; touch only when absolutely necessary avoid burns or other injuries.

7. When installing the drain faucet for the first time, ensure a seal is by wrapping tape around the threads.

8. To dismantle the drain faucet at a later time, replace the tape with new one and reapply it securely.

9. To adjust the drain valve, press the knob to adjust.

2. Precautions and maintenance:

1. The operation should be carried out by designated personnel who proficient in using the machinery and equipment.
2. Be careful when moving the machine, and if there is a malfunction should be repaired by professional personnel and should not be knock
3. Please do not install or store this device in the following locations avoid accidental operation and malfunction:

3.1 On an unstable table or counter.
3.2 Places with high or low temperatures.
3.3 Places with excessive air volume and dust.
3.4 Places with highly unstable power supply voltage.

3.5Places without good grounding devices.

1. Appliances must not be cleaned with water spray pipes or soaked water to prevent electrical leakage.

2. After use, use a non corrosive cleaning agent to wipe the water and food bowl clean.

3. It is strictly prohibited to use liquids that are soluble in the paint the surface of the machine

4. Special precautions:

7.1 This product is a commercial device and is not suitable for house use

7.2 Do not shake or tilt during use

7.3 Cannot be disassembled, modified, or dismantled without authorization, as modification may lead to serious accidents.

7.4 Before cleaning, it is necessary to cut off the power to prevent accidental leakage accidents

7.5 During use, do not directly touch the cabinet with your hands due high temperatures. Use special tools and heat-resistant gloves when handling food.

7.6 It is prohibited to use hard and sharp objects to scratch or cut machine.

3. Normal working environment conditions:

1. The ambient temperature is 5-50 °C, and the relative humidity of

is not more than 90%;

1. Power supply voltage: 110V ± 10%, frequency: 60 ± 1% HZ. (220-10%, frequency: 50 ± 1% HZ)

4. Product Introduction

1. This product has a novel and unique design, beautiful appearance, combination of square and circular shapes, multiple food boxes, easy classify and use simultaneously, sturdy and durable, and easy to mair. Equipped with steam heating function, it can uniformly increase temperature and is equipped with a large water tank to maintain food moisture. It is a specialized equipment for food display, display, insula moisturizing, and classification.

Symbol Description:

In this manual, symbols are used to highlight all important safety instructions and recommendations related to the equipment. To avoid accidents, casualties, or property damage, please be particularly careful follow these instructions.

Equipotential Dangerous voltage Anti scalding label

6.Product specifications

MODEL	VOLTAGE (V)	Hz	POWER (W)	SIZE (mm)	Electronic thermometer	Power cord type
SC-TC-213	AC110-120	60	1500	980*395*380	NO	Plug
	AC220-240	50
SC-TC-214	AC110-120	60	1500	1217*375*385	NO	Plug
	AC220-240	50
SC-TC-215	AC110-120	60	1500	1484*378*385	NO	Plug
	AC220-240	50
SC-TC-216	AC110-120	60	1500	1133*580*385	NO	Plug
	AC220-240	50
SC-TC-2108	AC110-120	60	1700	1461*580*385	NO	Plug
	AC220-240	50	3200
SC-TC-2110	AC110-120	60	1700	1468*730*381	NO	Plug
	AC220-240	50	3200
SC-TC-316	AC110-120	60	1500	127*375*385	NO	Plug
	AC220-240	50
SC-TC-319	AC110-120	60	1500	1133*580*385	NO	Plug
	AC220-240	50
SC-TC-3112	AC110-120	60	1700	1461*580*385	NO	Plug
	AC220-240	50	3200
SC-TC-2108-B	AC220-240	50	3200	1461*580*385	YES	Cable
SC-TC-2110-B	AC220-240	50	3200	1468*730*381	YES	Cable
SC-TC-3112-B	AC220-240	50	3200	1461*580*385	YES	Cable

7.Product appearance

SC-TC-213	SC-TC-214	SC-TC-215
SC-TC-216	SC-TC-2108	SC-TC-2110
SC-TC-316	SC-TC-319	SC-TC-3112
SC-TC-2108-B	SC-TC-2110-B	SC-TC-3112-B

Note: The location of this electrical component is based on the design that time, and our company reserves the right to make changes to the participating design. If the design changes and the instruction manual not improved in a timely manner, we hope the customer can understand

8.Product Structure Diagram

SC-TC-2108 BOOM LIST
NO.	NAME	PCS	NO.	NAME	PCS
01	Glass	2	06	Control box	1
02	Right glass bracket	1	07	Water tank rack	8
03	Left glass bracket	8	08	Heating tube	1
04	Half a basin lid	1	09	Machine foot	1
05	Half basin	4	10	Ball valve fauce	1

SC-TC List of Series Spareparts

NO.	NAME	PCS	NO.	NAME	PCS
01	Right glass bracket	1	06	Rubber gasket	8
02	Left glass bracket	1	07	Nut	8
03	Glass	2	08	Teflon tape	1
04	Screw	12	09	Spoon	1
05	Ball valve faucet	1	10	Leaky spoon	1
Attention: Please check if the Spareparts are complete bef installation!

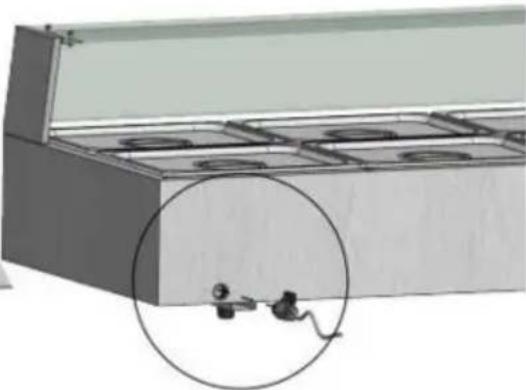

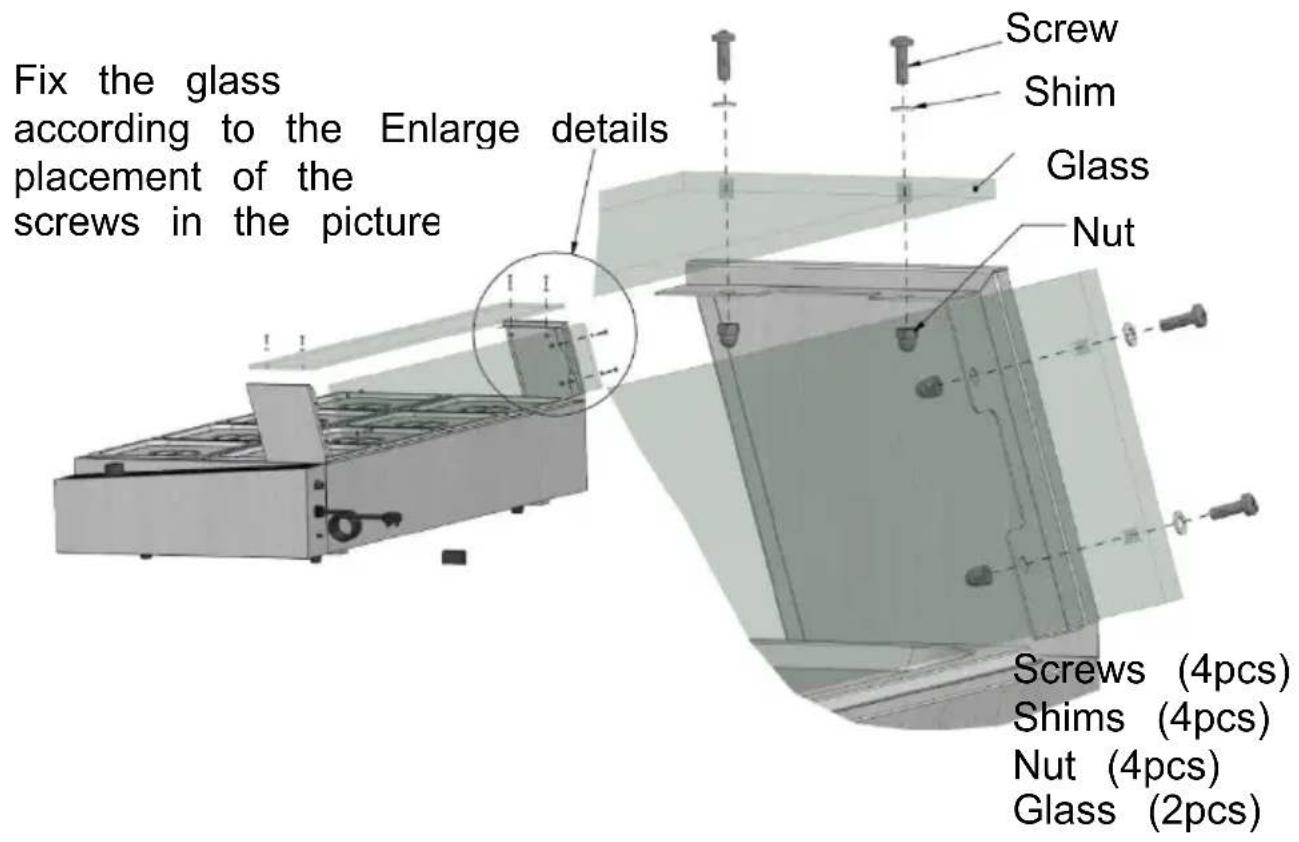

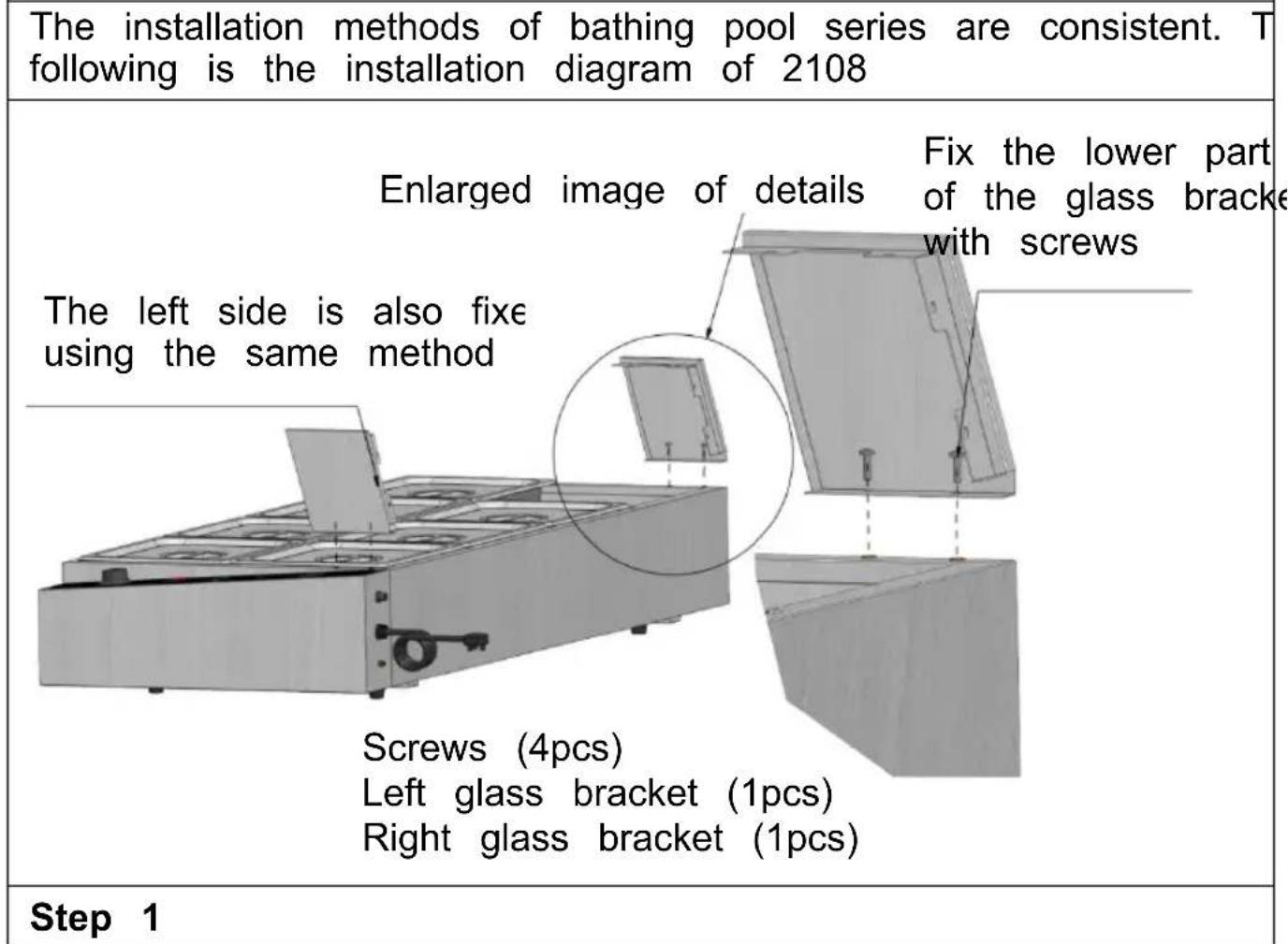

SC-TC-2108 Installation diagram

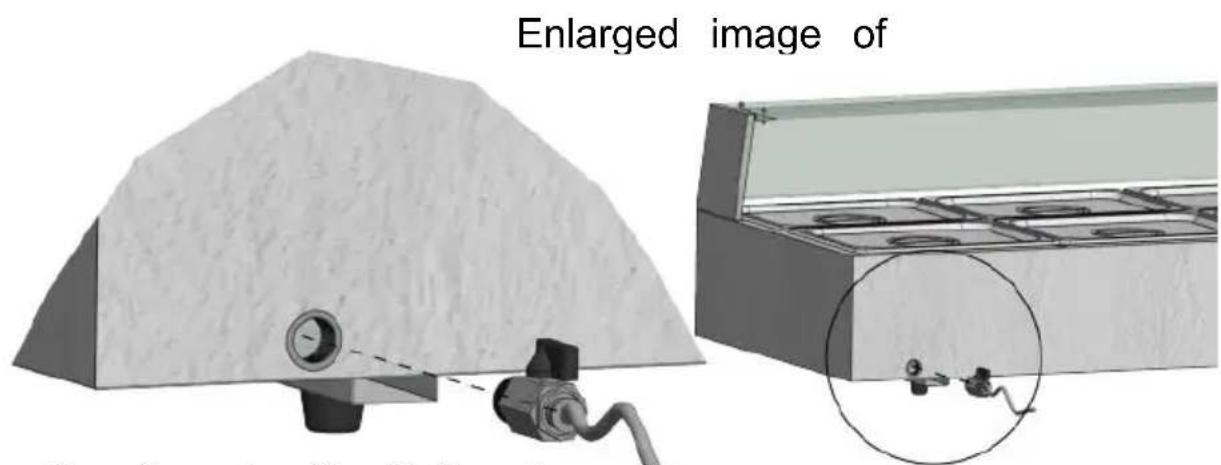

Step 2

Wrap the thread with Teflon tape for 5 turns, and then tighten it to the waterproof hole; Note that in the future dismantling the faucet requires replacin it with a new Teflon tape

Ball valve faucet (1pcs Teflon tape (1pcs)

9.Fault analysis

NO.	Fault phenomenon	Reason	Exclusion method
01	The green and re indicator lights are on simultaneously, and the temperature does not rise	The wiring of the electric heating tube is loose, an the electric heating tube is burnt out	1Tighten the wiring bolts of the electric heating tube.2Replace the electric heating tube
02	The work indicator light is on and the temperature rise cannot be controlled.	Temperature controller malfunction	1Replace the thermostat
03	The indicator light not on, and the temperature control is normal	The indicator light is burnt out	1Replacing indicator lights
04	Cannot automatically insulate.	Temperature controller malfunction	1Replace the thermostat
05	The shell has electric leakage and feels numb to the hands	Insulation is damp or the inner wire come into contact with the casing.	1Send to the maintenance department for repair.
Attention: The above issues are for analysis and reference only handle them on your own. Relevant professionals are require investigate and repair them. In case of safety abnormalities s electric leakage, the power should be cut off in a timely mann use should be stopped!

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

3D rendering of a laboratory incubator with green lid and control panel (no visible text or symbols)

BESOIN D'AIDE? CONTACTEZ-NOUS!

www.vevor.com/support

Diagram of a mechanical device with a curved surface and connected components, no visible text or symbols

3D diagram of a mechanical assembly with multiple circular components and a magnified inset showing a small component (no text or symbols)

3D rendering of a laboratory incubator with green lid and control panel (no visible text or symbols)

www.vevor.com/support

3D rendering of a laboratory incubator with green lid and control panel (no text or symbols visible)

3D rendering of a laboratory incubator with green lid and control panel (no text or symbols visible)

www.vevor.com/support

3D rendering of a laboratory incubator with green lid and control panel (no visible text or symbols)

POTRZEBUJESZ POMOCY? SKONTAKTUJ SIE Z NAMI!

www.vevor.com/support

3D diagram of a mechanical assembly with mounting holes and a circled component (no text or symbols)

3D rendering of a laboratory incubator with green lid and control panel (no text or symbols visible)

HULP NODIG? NEEM CONTACT MET ONS OP!

1. Products specificities

MODEL	SPANNING(V)	Hertz	STROOM MAAT(IN)	(mm)	Elektronisch thermome hebben	Stroom koord type
SC-TC-213	AC110-120 60		1500	980*395*380	NEE	Plug
	AC220-240 50
SC-TC-214	AC110-120 60		1500	1217*375*385	NEE	Plug
	AC220-240 50
SC-TC-215	AC110-120 60		1500	1484*378*385	NEE	Plug
	AC220-240 50
SC-TC-216	AC110-120 60		1500	1133*580*385	NEE	Plug
	AC220-240 50
SC-TC-2108	AC110-120 60		1700	1461*580*385	NEE	Plug
	AC220-240 50		3200
SC-TC-2110	AC110-120 60		1700	1468*730*381	NEE	Plug
	AC220-240 50		3200
SC-TC-316	AC110-120 60		1500	127*375*385	NEE	Plug
	AC220-240 50
SC-TC-319	AC110-120 60			1133*580*385	NEE1500	Plug
	AC220-240 50
SC-TC-3112	AC110-120 60		1700	1461*580*385	NEE	Plug
	AC220-240 50		3200
SC-TC-2108-B	AC220-240 50		3200	1461*580*385	JA Kabel
SC-TC-2110-B	AC220-240 50		3200	1468*730*381	JA Kabel
SC-TC-3112-B	AC220-240 50		3200	1461*580*385	JA Kabel

7.Productuiterlijk

SC-TC-213	SC-TC-214	SC-TC-215
SC-TC-216	SC-TC-2108 SC-TC-2110
SC-TC-316	SC-TC-319 SC-TC-3112
SC-TC-2108-B	SC-TC-2110-B	SC-TC-3112-B

Kogelkraan (1st) Teflontape (1st)

9.Foutanalyse
