HOT TUB COVER LIFT

MODEL:SCL-03

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

HOT TUB

COVER LIFT

MODEL:SCL-03

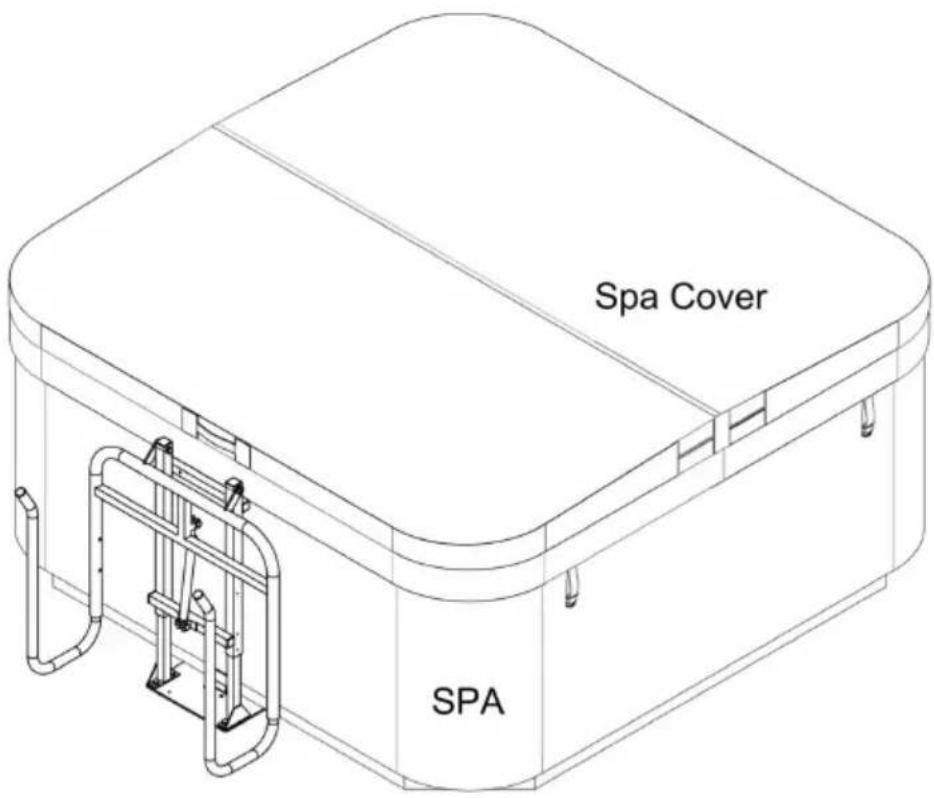

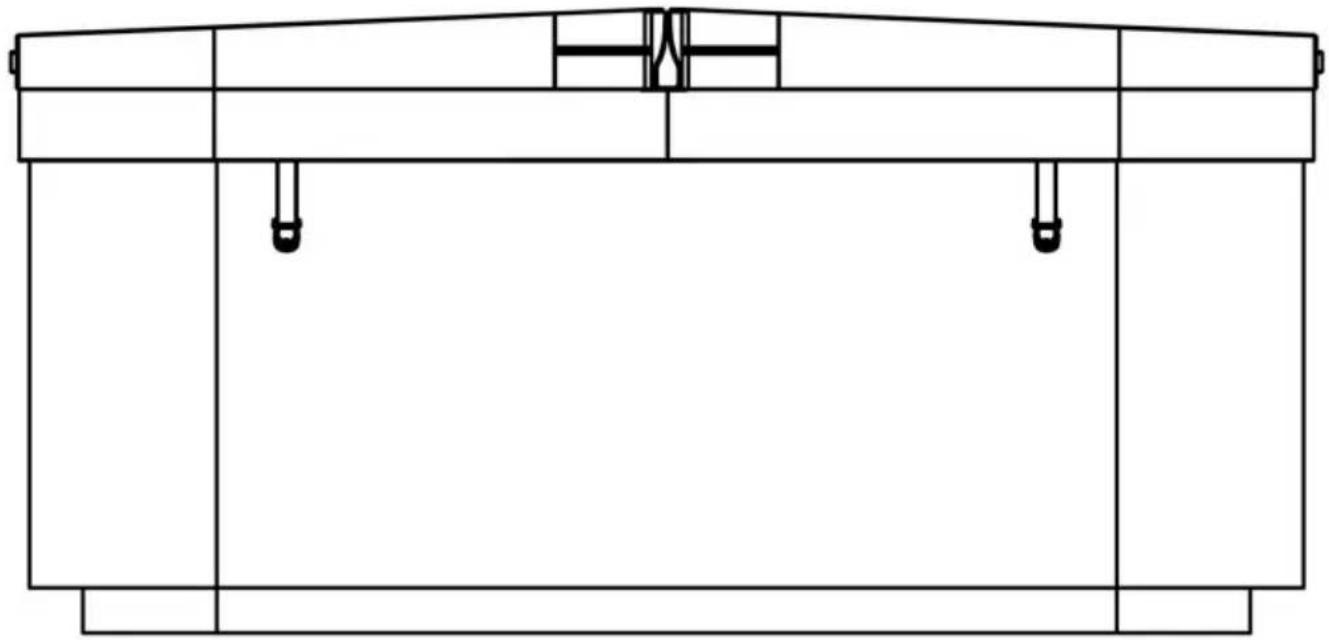

Spa Cover SPA

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

ASSEMBLYPRECAUTIONS

1. Assemble needs to follow these instructions. Incorrect assembly can be a hazard.
2. Wear safety goggles and heavy-duty work gloves during assembly.
3. Do not assemble when tired or when under the influence of alcohol, drug medication.
4. Weight and other product properties are only applicable to correctly and completely assembled products.
5. Keep the assembly area clean and well-lit.

USE PRECAUTIONS

WARNING: TO PREVENT SERIOUS INJURY AND DEATH FROM

TIPPING:

1. This product is not a toy. Please keep the product away from children while assembling.
2. Use as intended only. Do not let children play or jump on the product. Do stand on the item or use as a step ladder.
3. Inspect before every use. Do not use it if parts are loose or damaged.
4. Tighten the lower screws every three months to prevent loosening of the legs.
5. Do not exceed the listed weight capacity. Tighten all knobs securely before applying load. Be aware of dynamic loading! The sudden load movement may briefly create an excess load, causing product failure.

SAVE THESE INSTRUCTION

Model	SCL-03
Suitable for Hot Tub (Rectangular)	Length: 1900-2500mm (74.8-98.4")Width: 1350-2350mm (53.1-92.5")Height: 840-1050mm (33.1-41.3")
Material	Aluminum
Color	Black
Maximum Load	25kg / 55lbs

PART LIST

When unpacking this product, check to make sure the parts listed be are included and carefully inspect for any damage that may have occurred during transit. If any part is missing or damaged, do not attempt to assemble or use the product.

NO	PICTURE	PART NAME	QTY		NO	PICTURE	PART NAME	QTY
1		Φ27 Elbow	2		2		Square tube	2
3		Φ32 Body Elbow Part	1		4		Base	1
5		Locators	1		6		Screw Cap	10+4
7		Mechanical Wires 5X50	2		8		Mechanical Wires 5X30	4+2
9		Mechanical Wires 5X20	6+2		10		Mechanical Wires M8X16	6
11		Nuts M8	6		12		Gasket M8	6
13		Cross Mark Head	1		14		Drill Bit Φ 3.2	1
15		Hexagon Wrench	1
Tip: “+” is extra spare parts .

INSTALLATION AND OPERATION INSTRUCTIONS

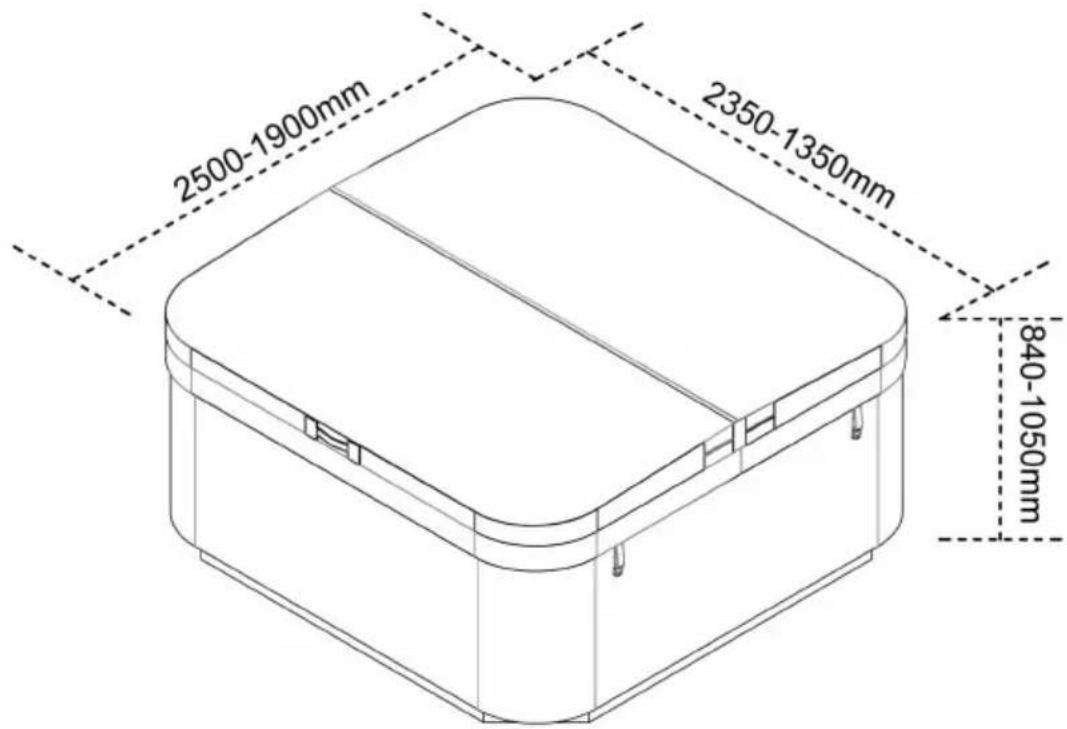

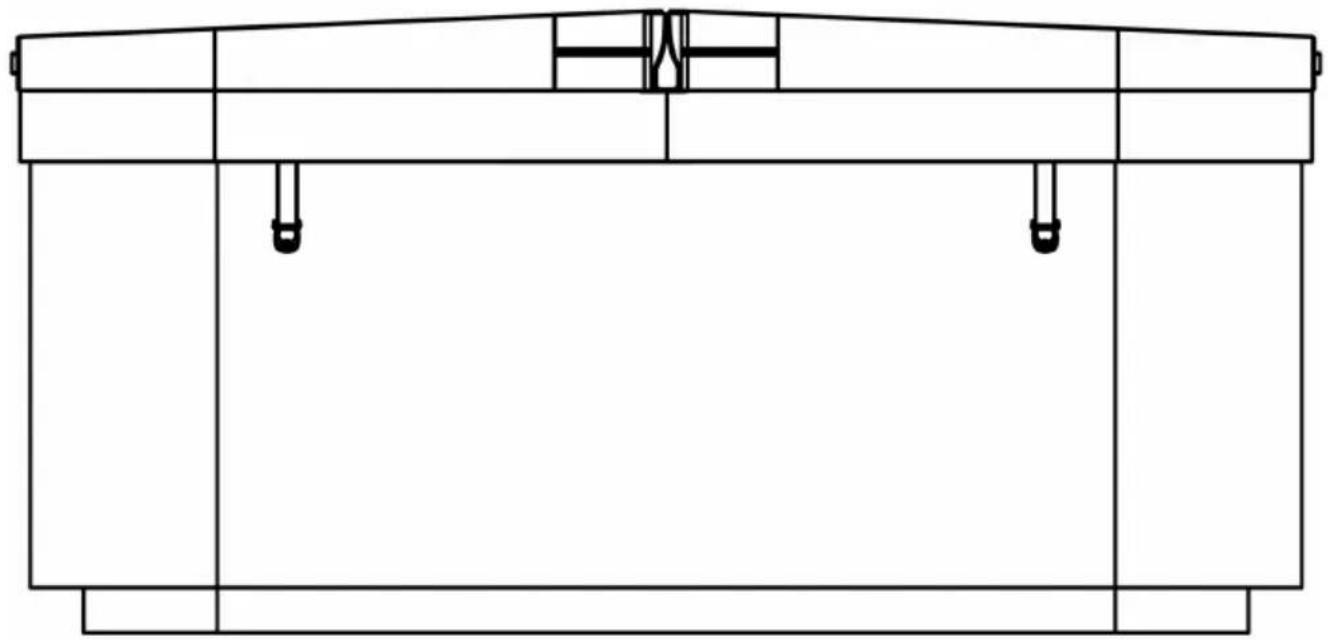

Available dimension:

2500-1900mm 2350-1350mm 840-1050mm

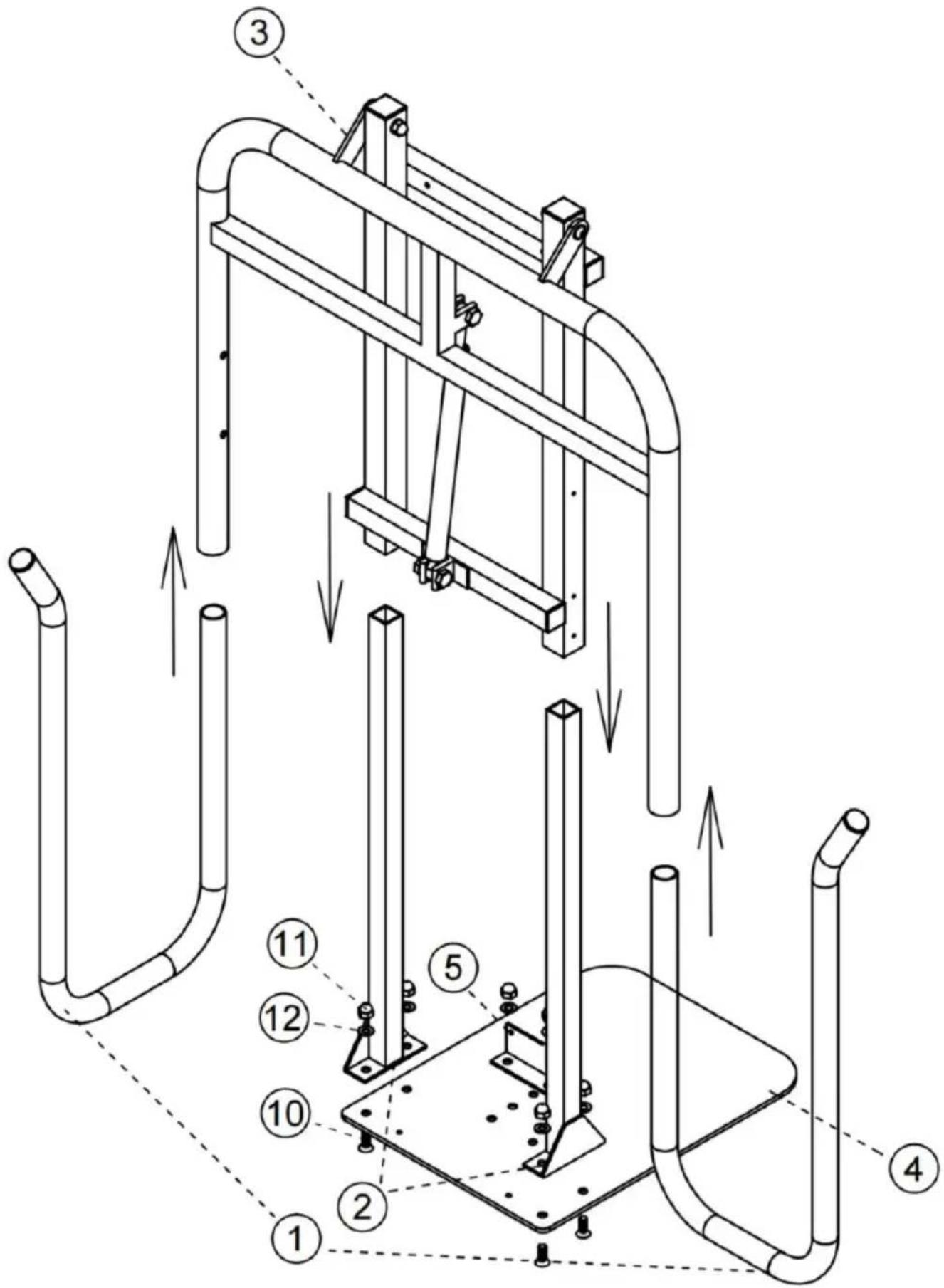

Assembly drawing:

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or assembly steps.

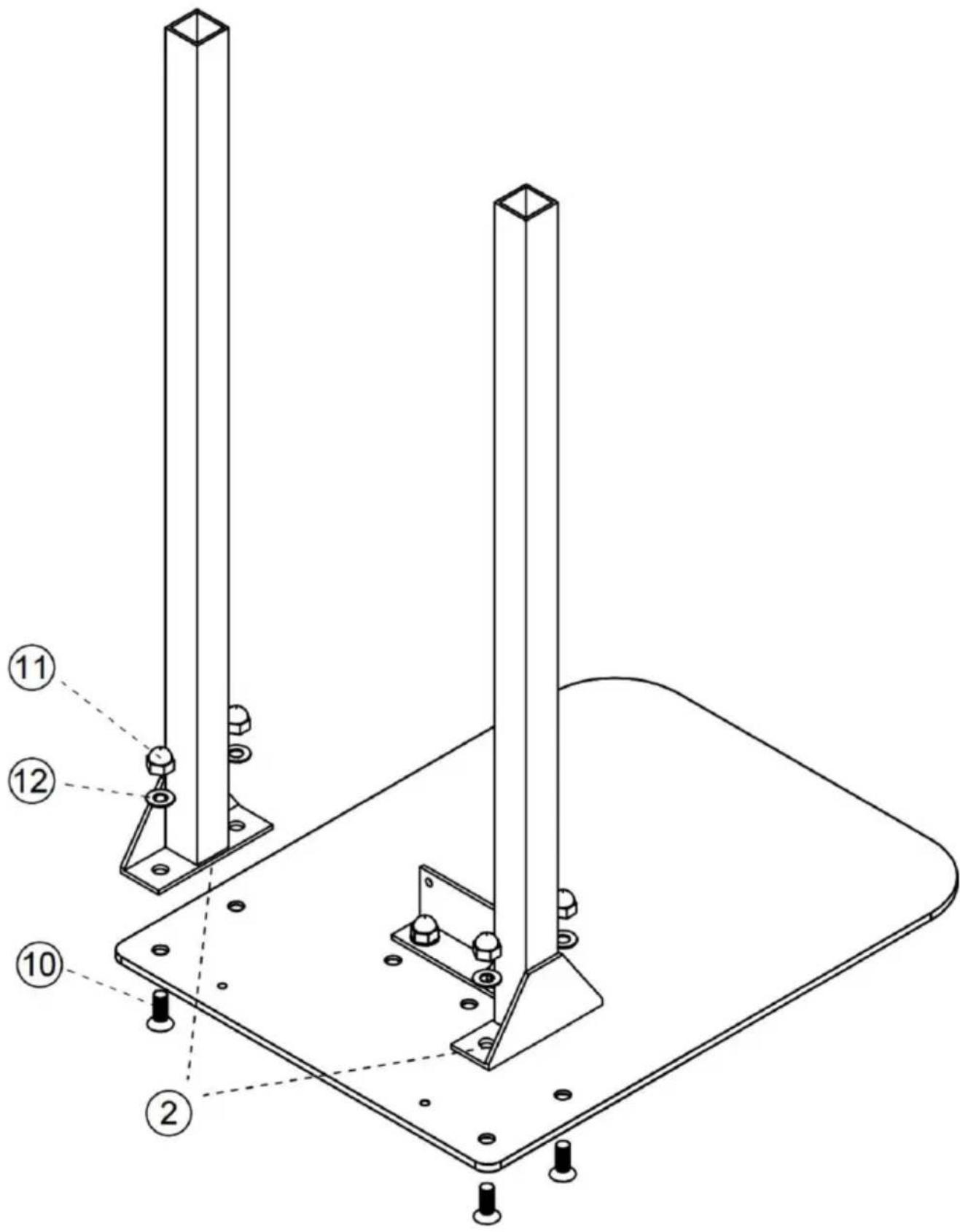

Installation steps 1::Install the bottom locating plate.

Technical line drawing of a mechanical assembly or structural frame with no visible text or symbols

Measure the distance from the bottom of the spa to the o as the installation location reference values of the locating

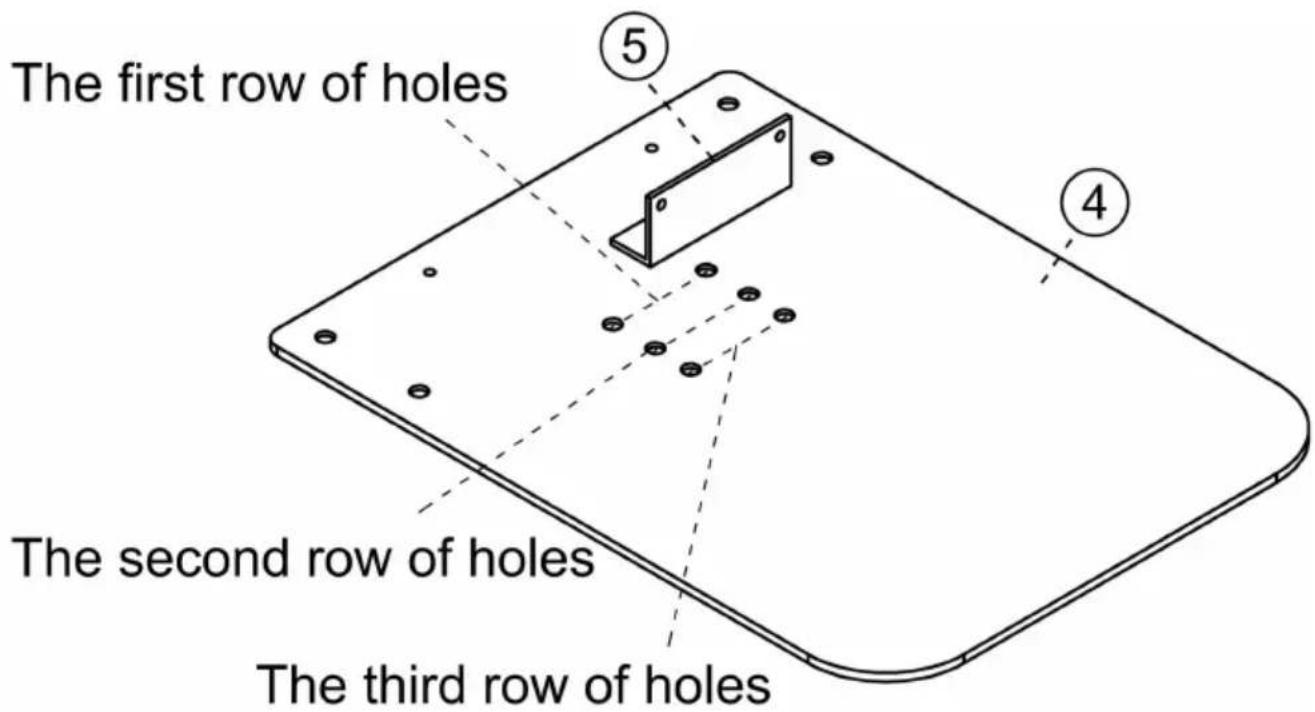

The first row of holes ⑤ ④ The second row of holes The third row of holes

After installation, the distance from first row of holes to the 25mm, the second row of holes is 50mm, and the third of 75mm. Choose the closest size of your spa to install.

Installation steps 2: Install the stents on both sides respective

Technical diagram of a mechanical support structure with numbered components for identification

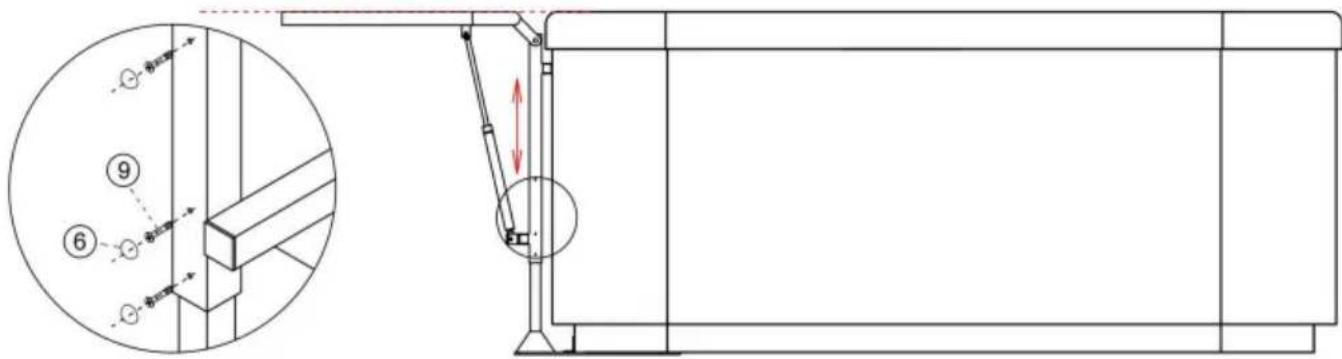

Installation steps 3: Install the tipping frame.

Technical diagram showing mechanical assembly with numbered components and directional arrows, including a magnified inset of detail view.

Inserted the product into the spa bottom, adjust the tipping and down to let the highest position to be unanimous with spa, and locking with the screws.

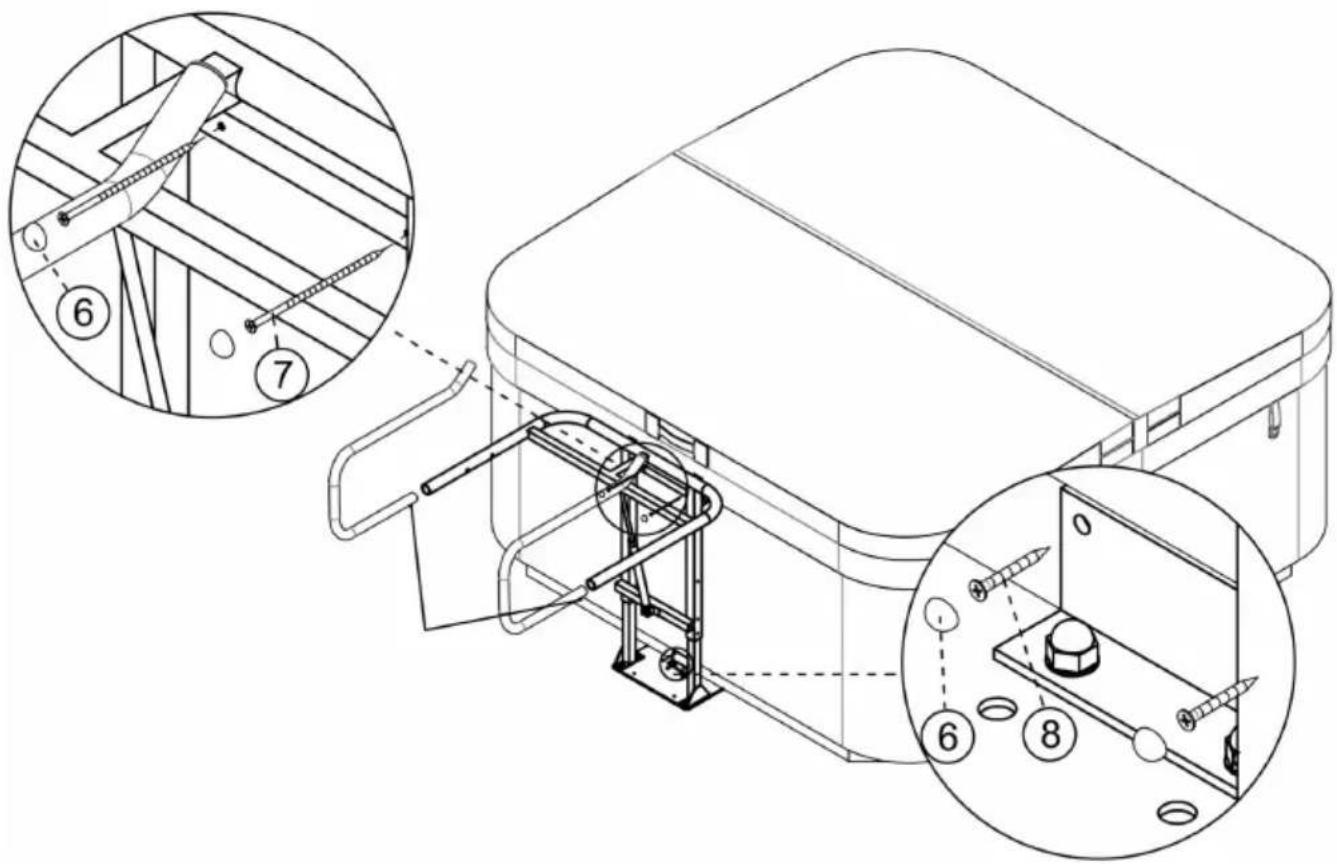

Installation steps 4: Locking the whole lifter onto the spa screws tightly, and install the U-tube.

Technical diagram of a mechanical assembly with numbered parts and exploded views, likely illustrating assembly or maintenance steps.

Press the protruding dots below the U-tube, and push the U into the hole and spin, until the protruding dots in place are

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai

Imported to AUS:SIHAO PTY LTD.1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250,9166 Anaheim Place, Rancho Cucamonga, CA91730
