HOT TUB COVER LIFT

MODEL: SCL-01

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

HOT TUB

COVER LIFT

MODEL:SCL-01

Spa Cover SPA

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

ASSEMBLYPRECAUTIONS

1. Assemble needs to follow these instructions. Incorrect assembly can be a hazard.
2. Wear safety goggles and heavy-duty work gloves during assembly.
3. Do not assemble when tired or when under the influence of alcohol, drug medication.
4. Weight and other product properties are only applicable to correctly and completely assembled products.
5. Keep the assembly area clean and well-lit.

USE PRECAUTIONS

WARNING: TO PREVENT SERIOUS INJURY AND DEATH FROM TIPPING:

1. This product is not a toy. Please keep the product away from children while assembling.
2. Use as intended only. Do not let children play or jump on the product. I stand on the item or use as a step ladder.
3. Inspect before every use. Do not use it if parts are loose or damaged.
4. Tighten the lower screws every three months to prevent loosening of the
5. Do not exceed the listed weight capacity. Tighten all knobs securely before applying load. Be aware of dynamic loading! The sudden load movement may briefly create an excess load, causing product failure.

SAVE THESE INSTRUCTION

PRODUCT PAREMETERS

Model	SCL-01
Suitable for Hot Tu(Rectangular)	Length: 1900-2600mm (74.8-102.4")Width: 1350-2350mm (53-92.5")Height: 800-1050mm (31.5-41.3")
Material	Aluminum
Color	Black
Maximum Load	25kg / 55lbs

PART LIST

When unpacking this product, check to make sure the parts listed be are included and carefully inspect for any damage that may have occurred during transit. If any part is missing or damaged, do not attempt to assemble or use the product.

NO	PICTURE	PART NAME	QTY		NO	PICTURE	PART NAME	QTY
1		27 With Cotton Elbow	2		2		32 Straight Tubes	4
3		27 Elbow	2		4		L Floor	1
5		R Floor	1		6		Rope	2
7		Screw Cap	38+4		8		Mechanical Wires 5X30	12+2
9		Mechanical Wires 5X20	26+2		10		Hook	1
11		Cross Mark Head	1		12		Drill Bit 3.2	1
Tip: “+” is extra spare parts .

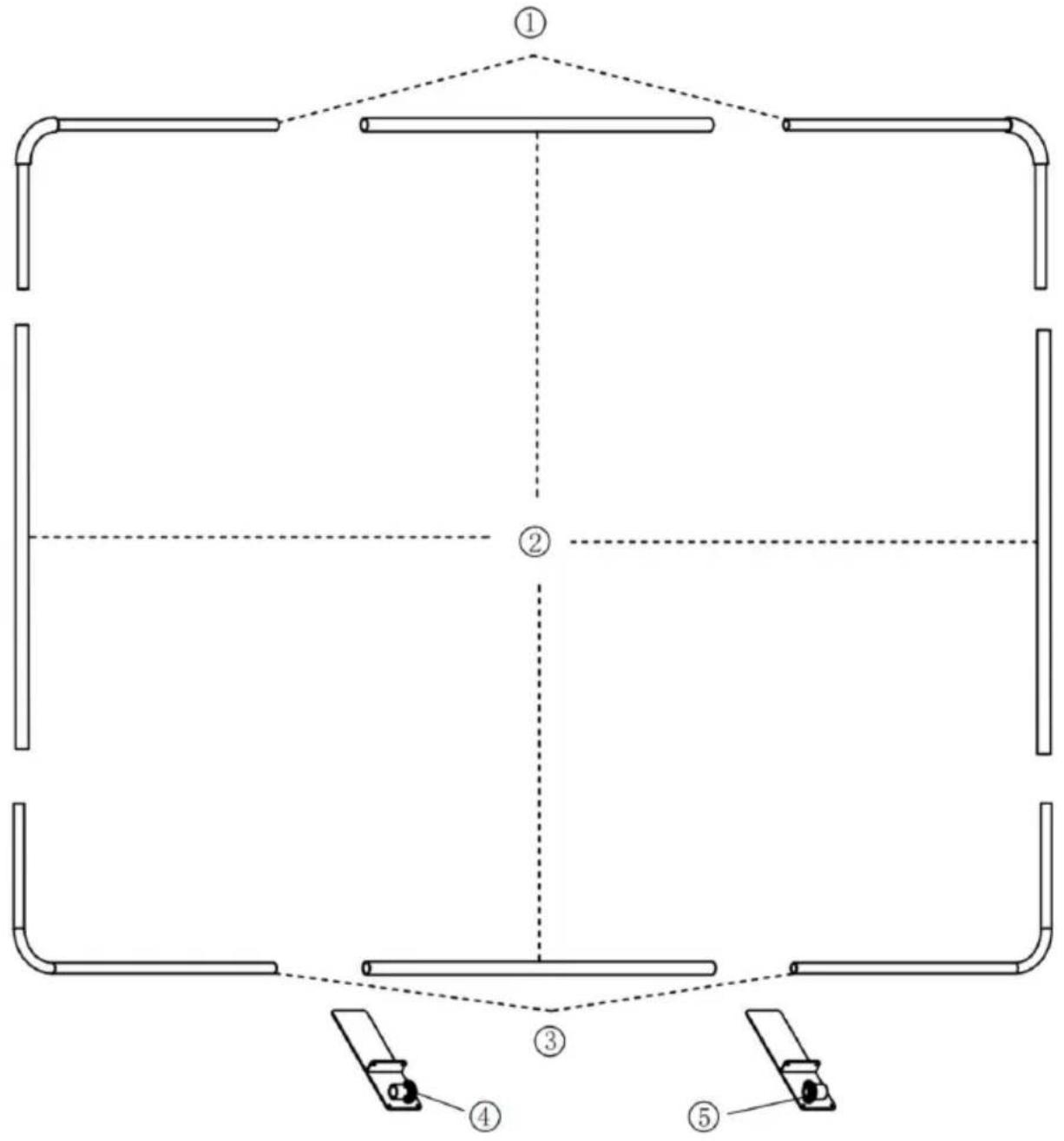

Diagram of a mechanical or electrical component with numbered parts and dashed alignment lines

Available dimension:

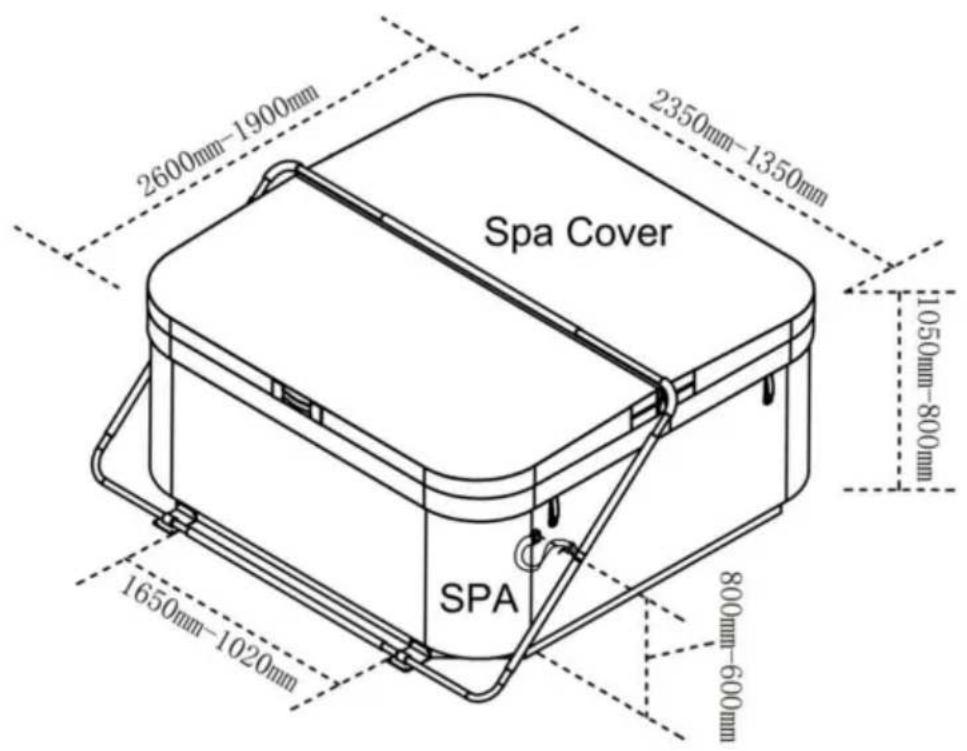

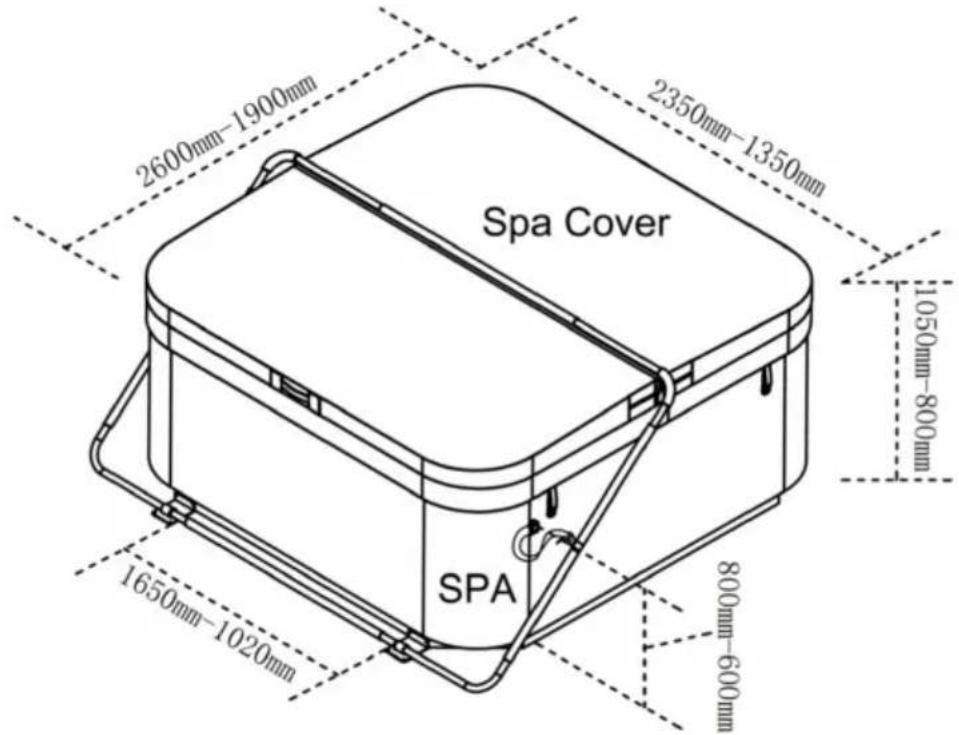

2600mm-1900mm 2350mm-1350mm Spa Cover 1050mm-800mm 1650mm-1020mm SPA 800mm-600mm

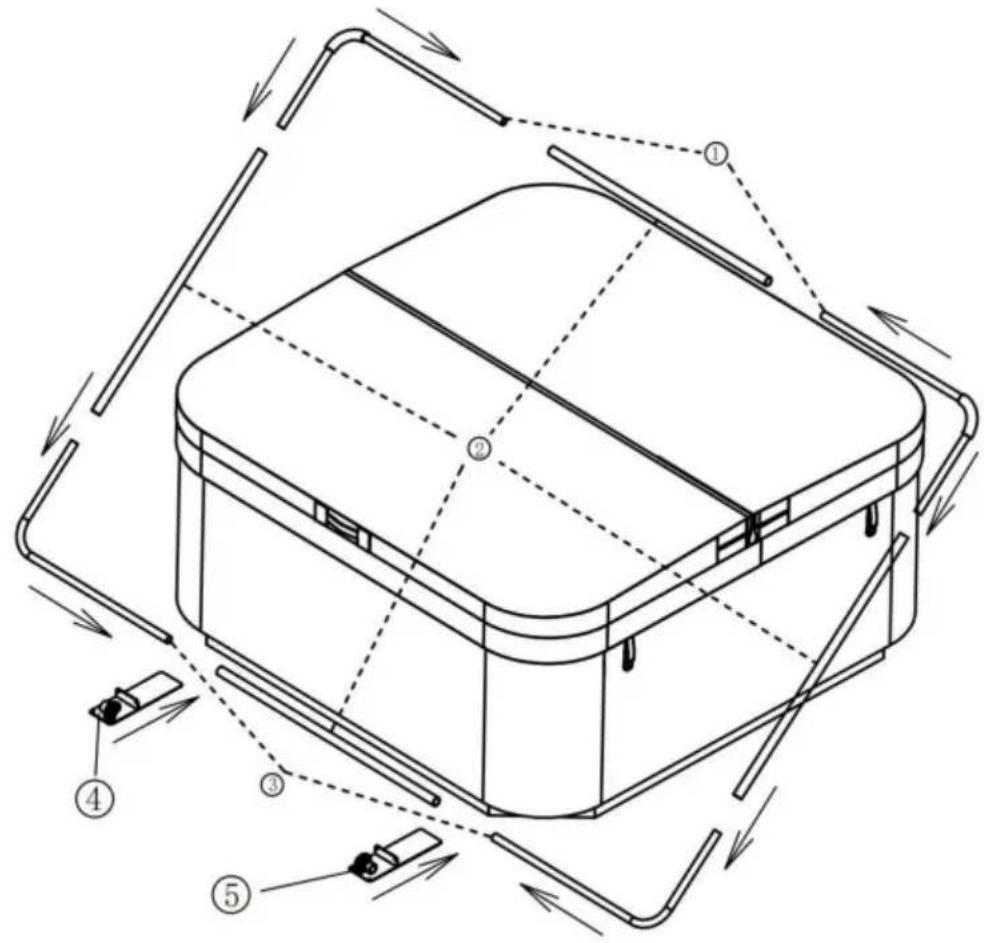

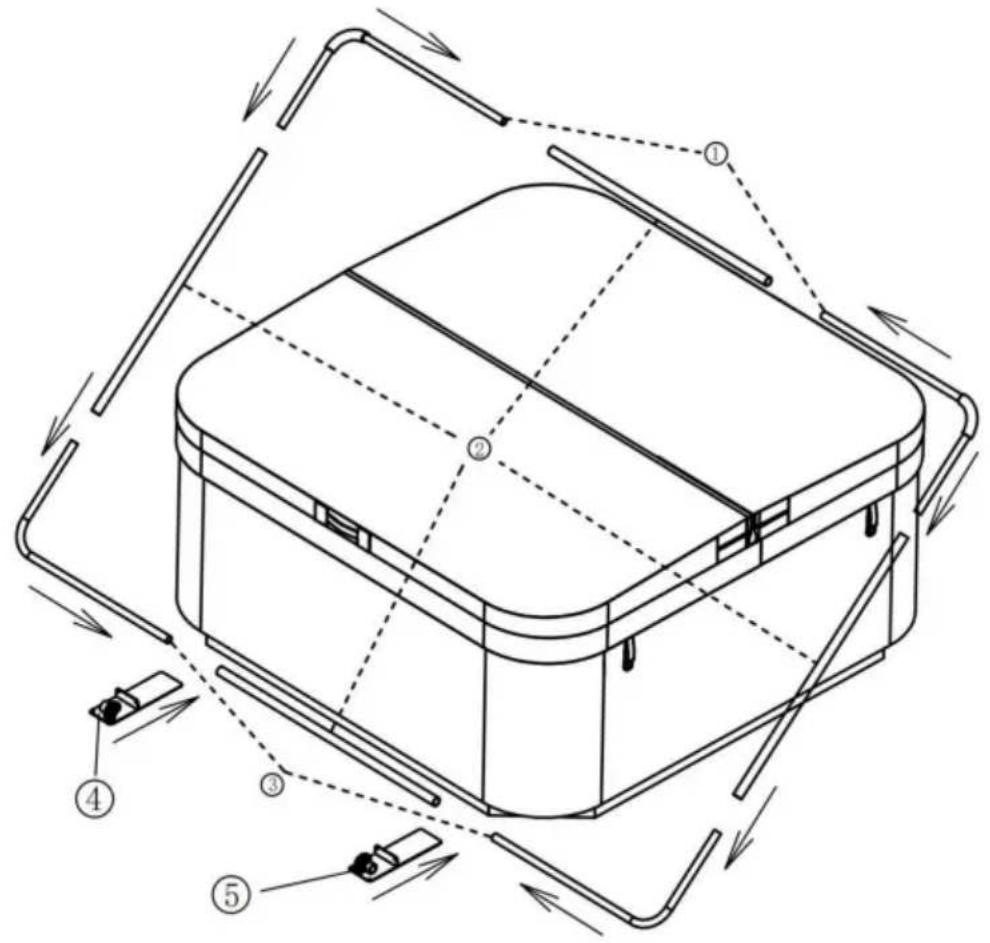

Assembly drawing:

Technical diagram of a mechanical device with numbered components and directional arrows indicating motion or assembly.

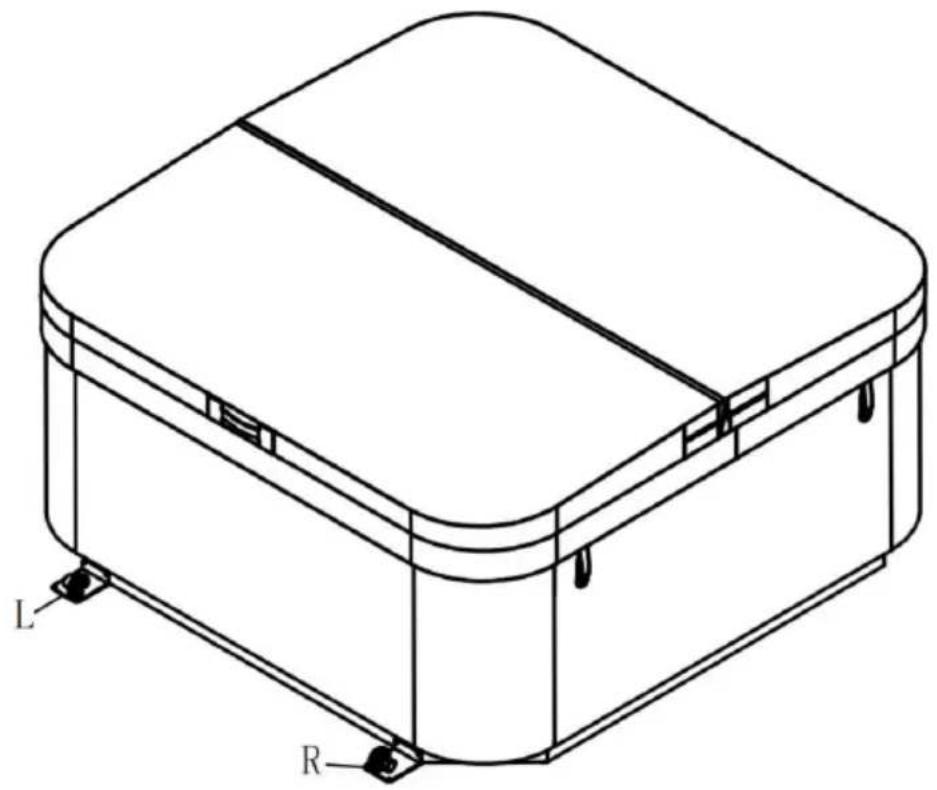

Installation steps 1: Arrange the bottom position.

Isometric line drawing of a rectangular box with labeled parts L and R (no text or symbols beyond labels)

A distinction placed L&R.

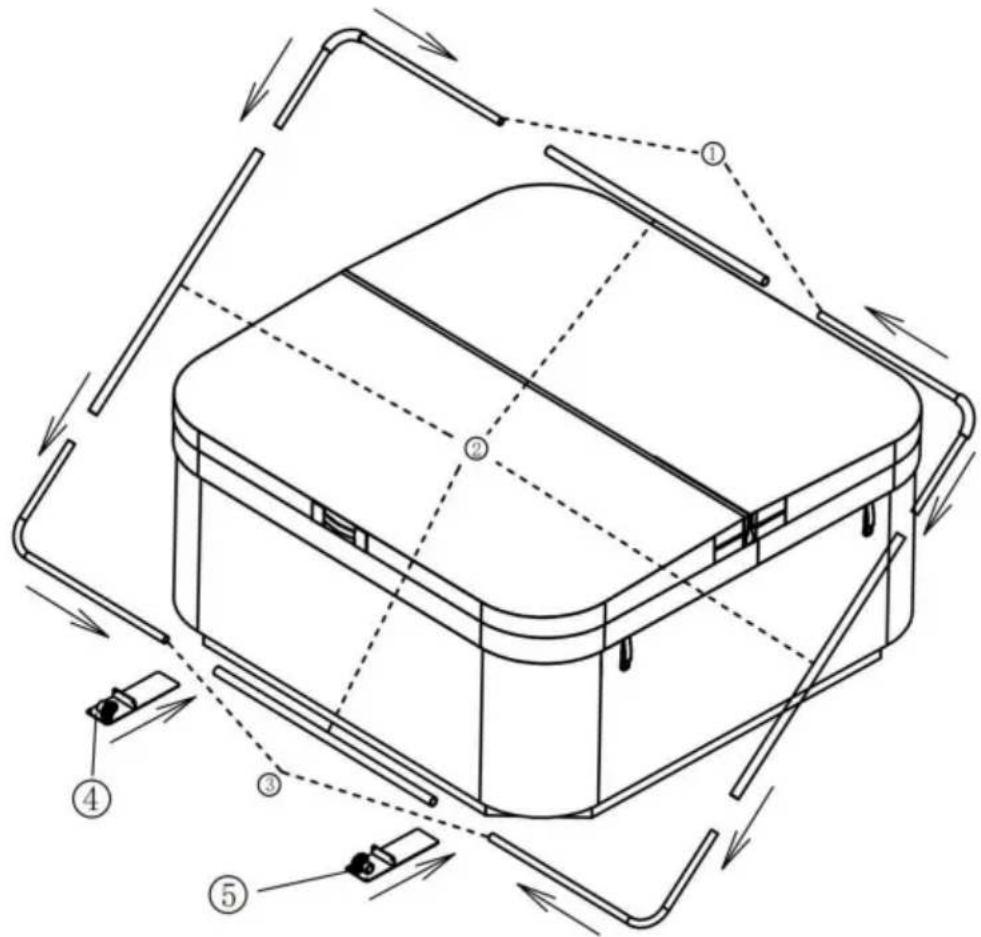

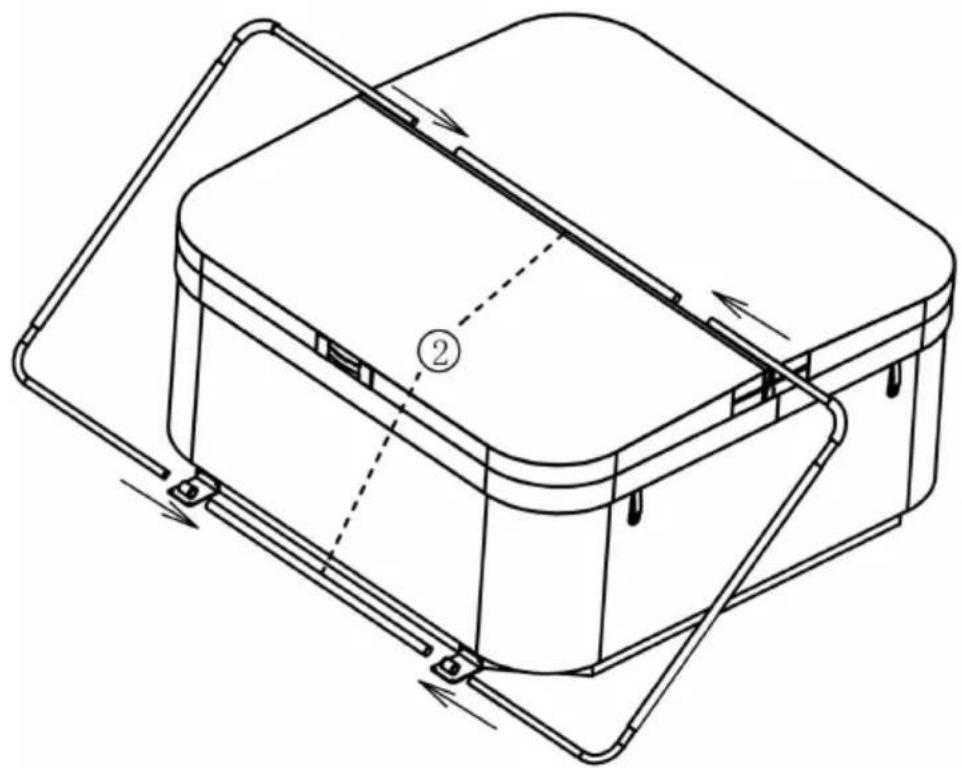

Installation steps 2: Install the stents on both sides resp

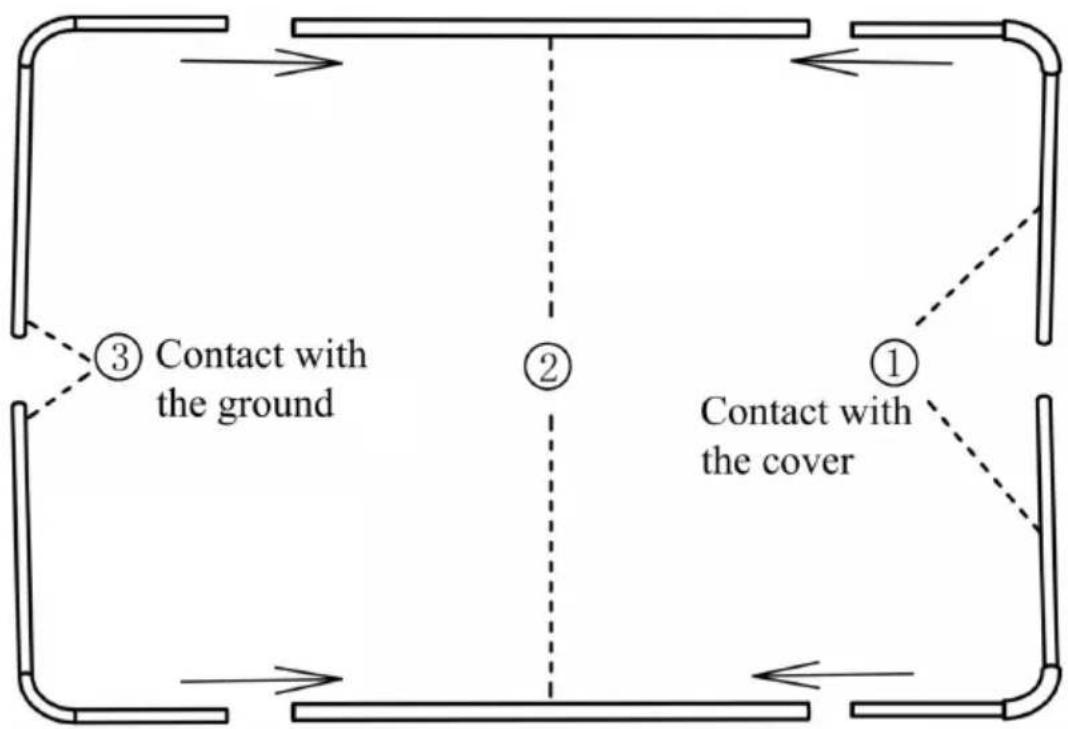


A distinction placed①&③

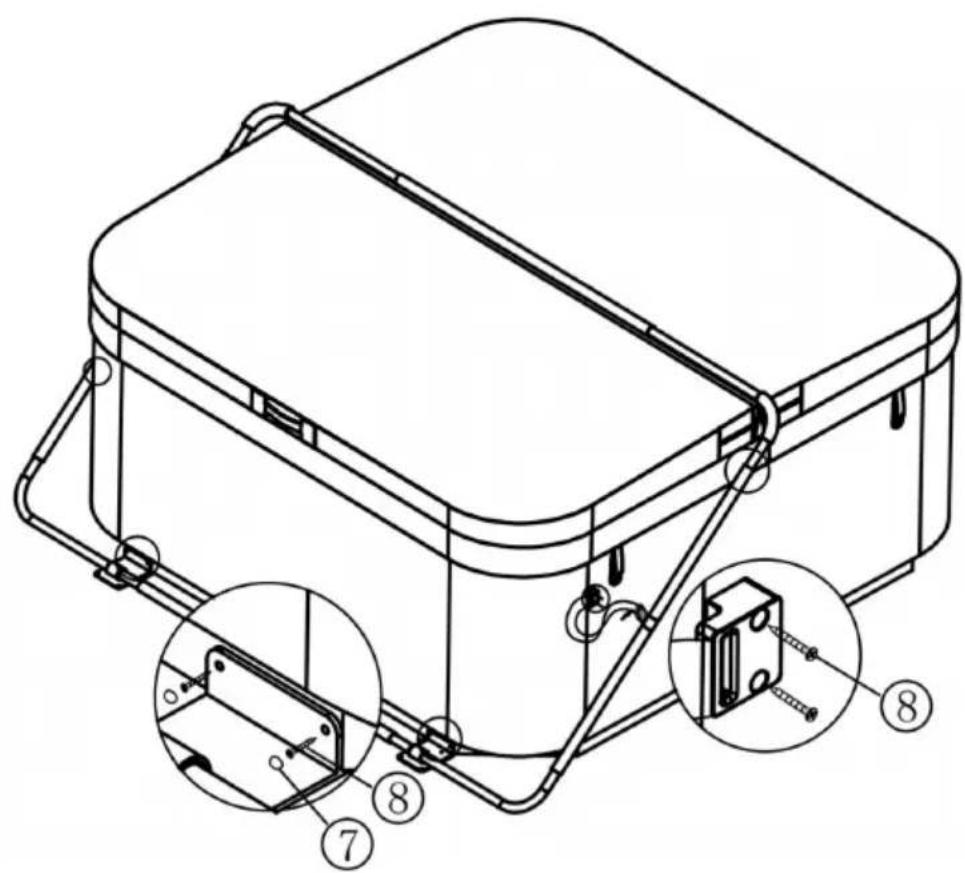

Installation steps 3: lock the stents onto the spa.

Technical line drawing of a mechanical housing with internal components and directional arrows (no text or symbols)

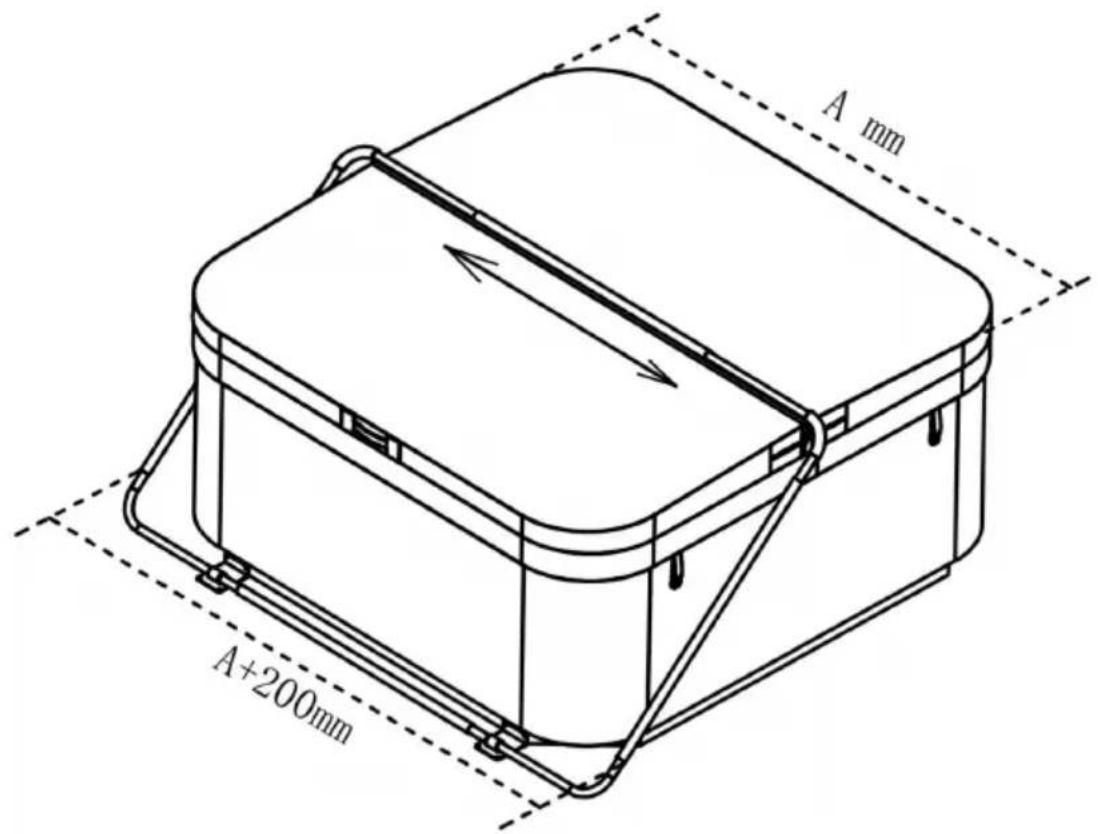

Installation steps 4: Adjust the position of the lifter, let the center.

A mm A+200mm

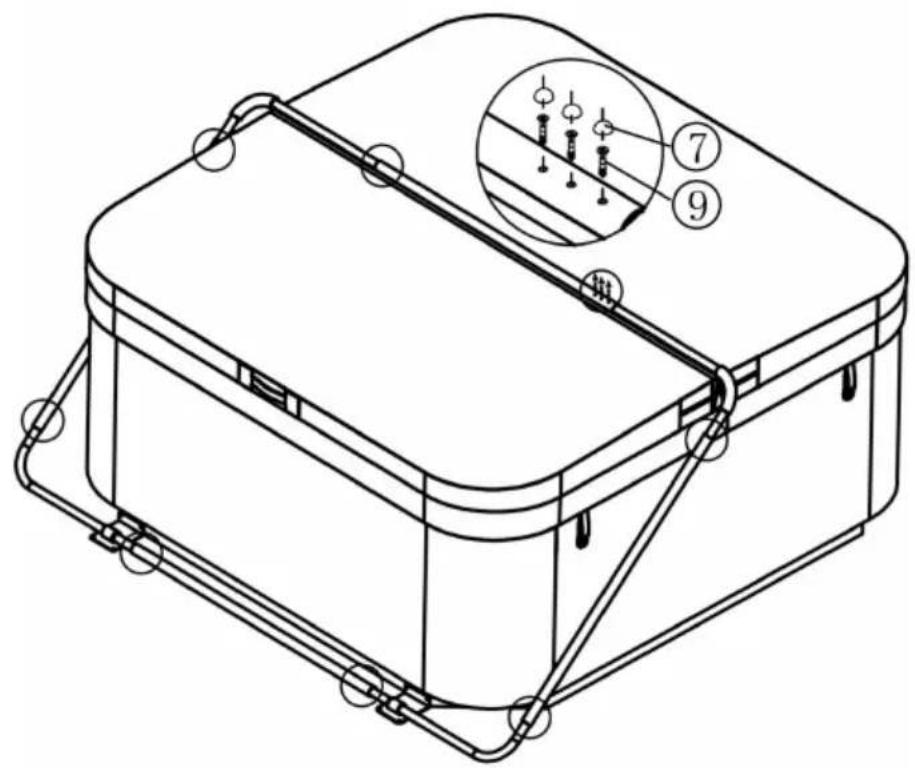

Installation steps 5: Locate the lifter, and lock screws.

Technical diagram of a mechanical device with labeled parts and an inset showing internal components

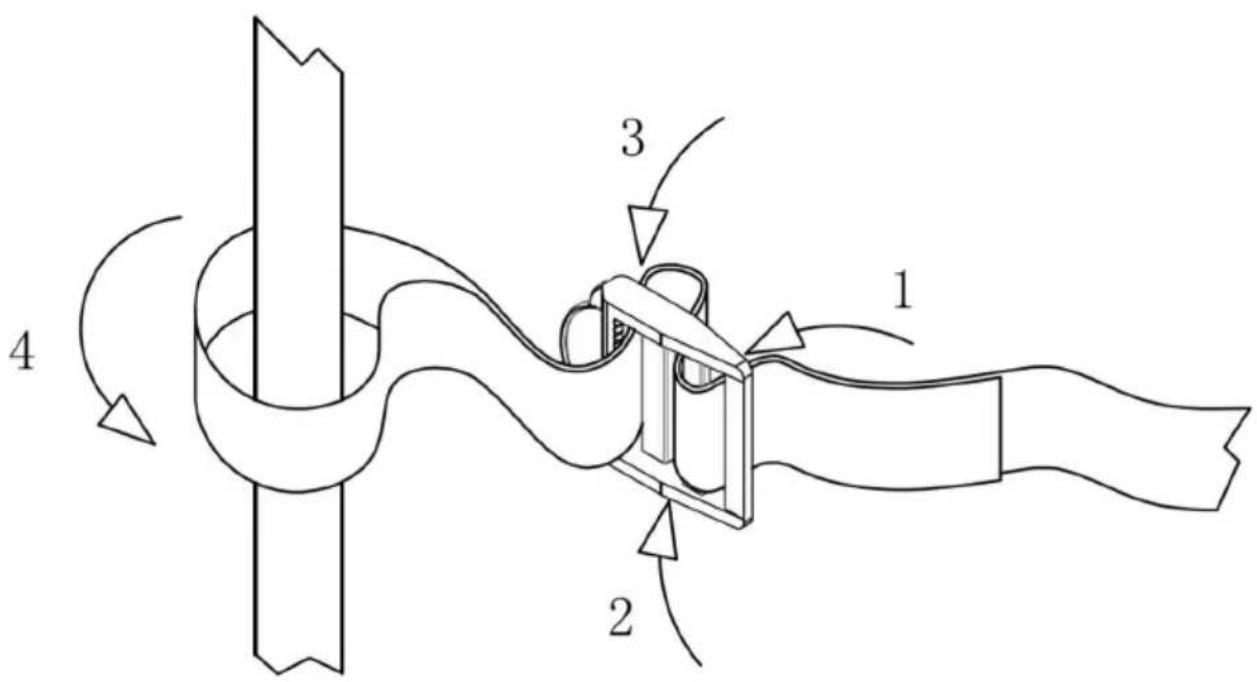

Installation steps 6: fixed the bottom and rope.

Technical diagram of a mechanical device with labeled parts and internal components, including zoomed-in insets for detail views.

Installation steps 7: adjust the length of the rope let the cover to be tilted backwards.

Technical diagram showing a mechanical assembly with numbered components and directional arrows indicating motion or force.

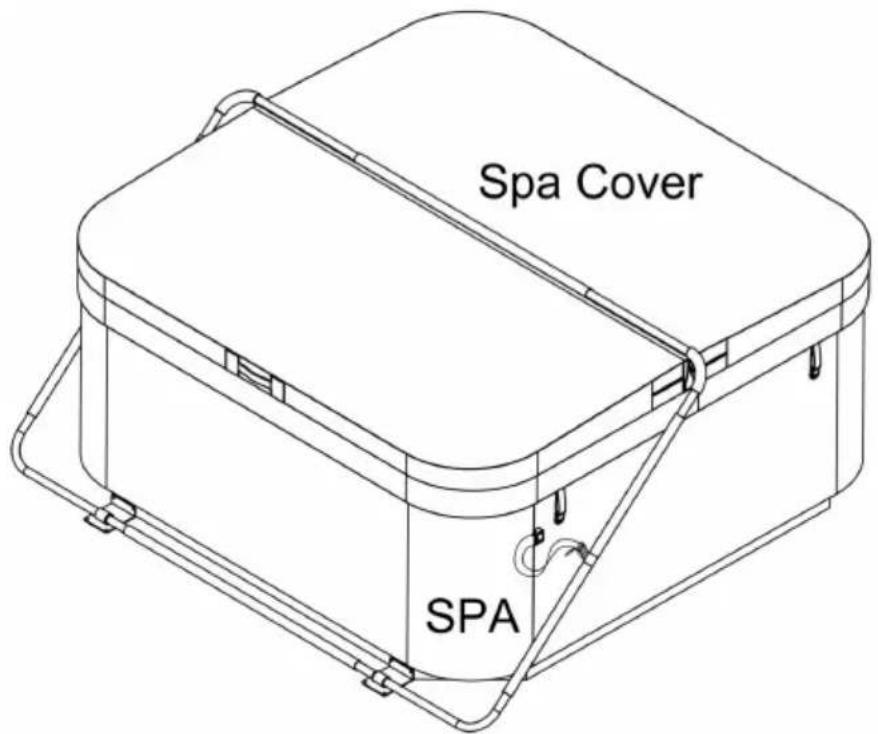

let the open cover to be tilted backwards.

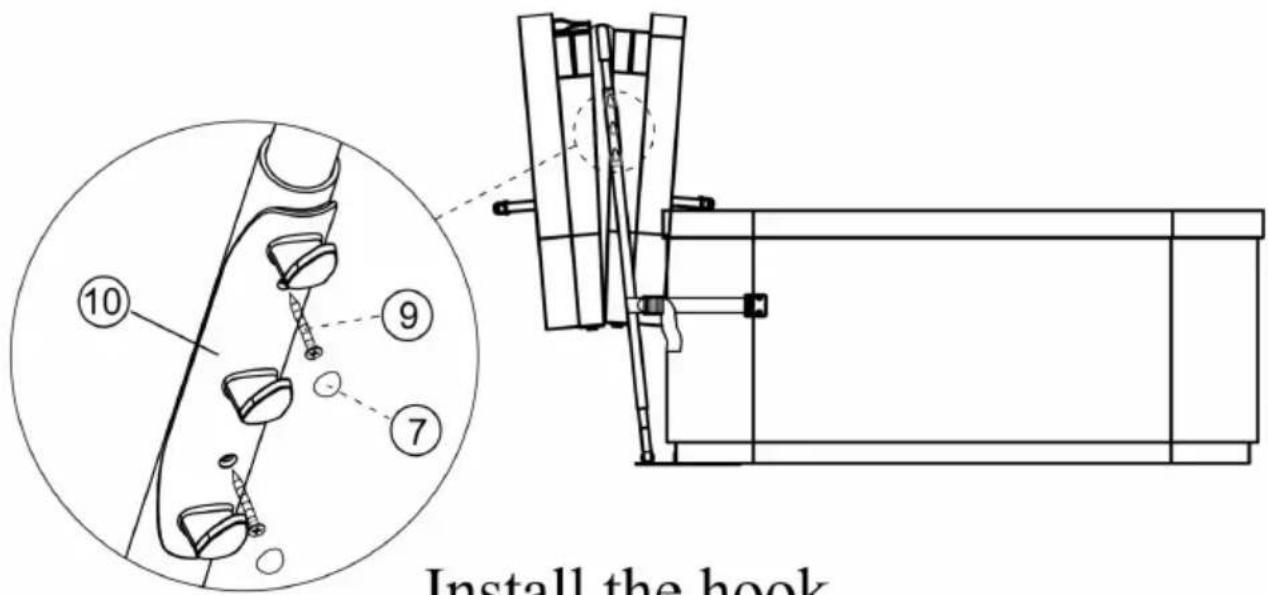

Install the book

Install the hook
