Product Type	Bench Chain Vise
Brand	Vevor
Model	RG1204S5
Pipe Capacity	1/8 - 5 inches (3 mm - 127 mm)
Base and Jaw Material	Heavy-duty Cast Iron
Color	Red / Black
Dimensions (L x W x H)	400 x 300 x 170 mm
Clamping Mechanism	Steel chain with ergonomic handle
Included Accessories	Vise plate for hitch mount (compatible with class III and IV receivers)
Mounting	On bench (3 mounting holes) or on vehicle hitch
Maintenance and Cleaning	Apply anti-rust oil on metal surfaces; do not use abrasive materials; inspect before each use
Safety	Wear protective equipment; keep area clean and well-lit; do not use if tired or under influence; keep children away
Spare Parts and Repairability	Use only identical replacement parts; maintenance by qualified technician
Power Supply	Manual (no electrical power)
Technical Support and Warranty	www.vevor.com/support
Manufacturer	Shanghai Muxin Muye Co., Ltd., Baoshan, Shanghai, China

Frequently Asked Questions - RG1204S5 Vevor

How to install the vise on a workbench?

Use the three mounting holes on the base to securely attach the vise to your workbench with suitable bolts (not included). Make sure the surface is flat and stable.

What is the maximum pipe clamping capacity?

The RG1204S5 model can clamp pipes with a diameter of 1/8 to 5 inches (approximately 3 mm to 127 mm).

How to maintain the chain vise?

Regularly apply anti-rust oil to the chain and metal surfaces. Clean with a soft cloth, without abrasive materials. Inspect the tool before each use for any loose or damaged parts.

Can I use this vise to hold objects other than pipes?

Yes, the chain vise is designed for pipes but can also clamp other cylindrical or irregularly shaped objects, as long as they are within the capacity of the chain and jaws.

What to do if the chain is loose or not holding?

Check that the chain is properly positioned around the pipe. Turn the handle clockwise to tighten the chain. If it remains loose, inspect the links for wear or damage and replace the chain if necessary.

Is the vise suitable for heavy professional use?

Yes, its heavy-duty cast iron base and durable steel chain make it suitable for professional use. However, observe the clamping capacities and perform regular maintenance.

How to use the vise plate for hitch mounting?

The plate attaches to a class III or IV hitch receiver. It offers adjustable height in 1.7-inch (45 mm) increments over a range of 16 inches (400 mm). Attach the vise to the plate using the mounting holes.

What are the essential safety precautions?

Always wear safety glasses and gloves. Keep the work area clean and well-lit. Do not wear loose clothing that could get caught in the chain. Do not force the vise beyond its capacity.

Where can I find spare parts?

Contact Vevor technical support via www.vevor.com/support. Use only identical replacement parts to ensure safety and proper operation.

Does the vise come with a warranty?

Yes, Vevor offers an electronic warranty. Check the warranty certificate at www.vevor.com/support for details and conditions.

USER MANUAL RG1204S5 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

Bench Chain Vise

Model: RG1204S5/RG1204S6/RG1204S8

We continue to be committed to providing you with tools at competitive prices. "Save Half," "Half Price," or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and do not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when placing an order with us if you are actually saving half in comparison with the top major brands.

Model: RG1204S5/RG1204S6/RG1204S8

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

SAFETY WARNINGS AND PRECAUTIONS

Thank you for using this product. In order to make sure that you can operate the machine correctly, read this instruction carefully before operation and keep it properly for future reference. Please be sure to read the precautions and safety rules on this page to ensure your safe use. This manual will outline safety warnings and precautions, operating, maintenance, and cleaning. The warnings and instructions reviewed in this manual cannot cover all possible conditions and situations that may occur. Caution and common sense are not built into this product, since we believe that the users will comply with these codes.

Please read ALL the instructions before using your machine.

1. Work area safety

a. Keep work area clean and well lit. Cluttered or dark areas invite accidents. b. Keep children and bystanders away while operating; distractions will cause loss of control.

2. Personal safety

a. Stay alert, watch what you are doing and use common sense when operating the tool. Do not use the tool while you are tired or under the influence of alcohol or medication. A moment of inattention while operating the Chain Vise may result in serious personal injury. b. Use safety equipment. Safety equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. c. Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewelry, or long hair can be caught in moving parts. d. Store idle Chain Vise out of the reach of children and do not allow persons unfamiliar with the Chain Vise to use it. This tool is dangerous in the hands of untrained users, who can break fingers or break feet and more. e. Inspect before every use. Do not use it if parts are loose or damaged. f. Do not apply this unit to any other purposes than the indicated usage. g. DO NOT CLEAN IT WITH ANY ABRASIVE MATERIAL.

3. Service

Have your Bench Chain Vise serviced by a qualified service technician using identical replacement parts. This will ensure that the safety of the Bench Chain Vise Kit is maintained.

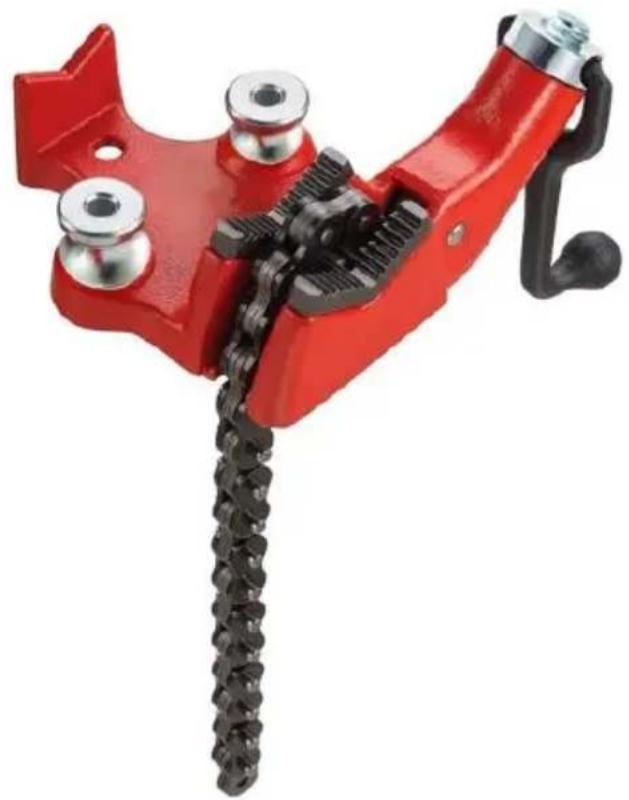

Production Introduction

The bench chain vise is perfect for securely holding pipes without scoring the surface. It is designed with a crank handle for tightening the chain. It is equipped with a rugged cast-iron base for exceptional durability and stability.

Main features:

Large Holding Capacity, Solid & Durable Frame

No-Fatigue Operation, Easy Installation

TECHNICAL INFO

Model No	RG1204S5	RG1204S6	RG1204S8
Pipe Capacity	1/8-5inch	1/4-6inch	1/2-8inch
Material:	Cast Iron
Color:	Red/Black
Product photo
Accessories	Hitch Mount Vise Plat	/	/
Size (mm)	400*300*170	255*305*130	115*165*110

Hitch Mount Vise Plate accessories Parameter information

*This accessory is only equipped with model RG1. Users can also purchase it according to their own needs.

Model: RG1204S5 Table Chain Vise equipped with Hitch Mount Vise Plate

Hitch Mount Vise Plate/Holder is crafted from robust all-steel construction, compatible with Class III and IV receivers.

It features versatile mounting holes designed to accommodate a wide range of vises and other bench-type devices.

The durable powder coat finish ensures long-lasting performance.

1. The height can be adjusted to a desired height for optimal comfort, with an adjustment range of 16".
2. The vise mount plate dimensions are 7-7/8" L x 7" W, and the vise mounting holes measure 5/8" x 2".
3. The 2 inch x 2 inch anti-rattle device is included for stability.
4. The overall dimensions are 22" long, 7-7/8" wide, and 22-5/8" high.

Adjustable Height

The main column has different mounting holes that allow the user to adjust in increments for added versatility.

Travel 16" (400mm) in 1.7" (45mm) increments for a total of 9 stops. The height of the beam must be greater than 18.5 inches (460mm) from the ground.

UNDERSTAND YOUR TOOL

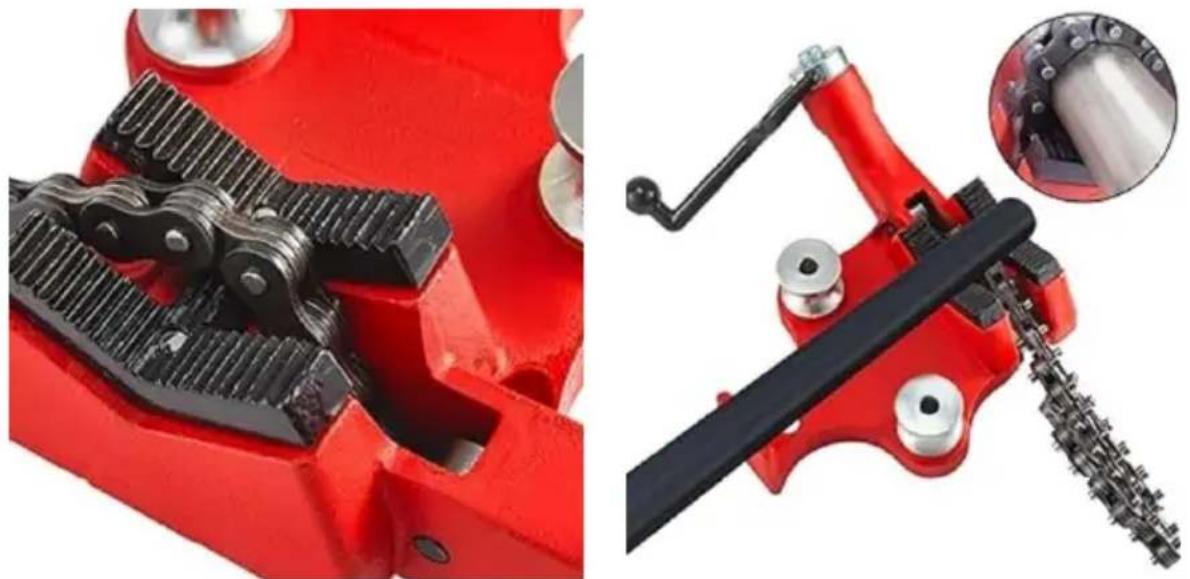

1. Cast Iron Base & Jaws

Built of cast iron, the chain pipe vise is solid and hard. Grooves enhance gripping on the pipe surface. All you need to do is place the appropriate size of pipe in the V-groove and vise, and then fasten it with a chain.

Its sturdy construction and reliable clamping mechanism make it a favorite among professionals and hobbyists alike. Whether you're working on a plumbing project or fabricating metal parts, this pipe vise provides the stability and versatility you need to get the job done right.

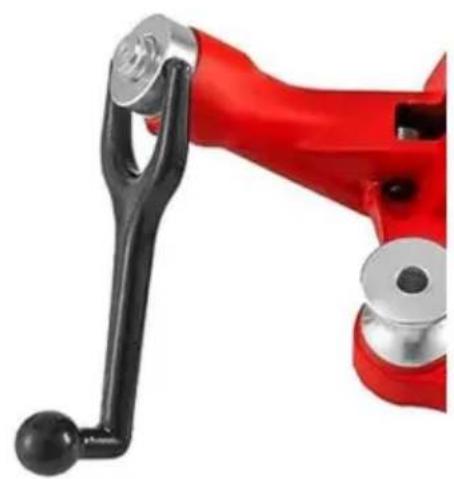

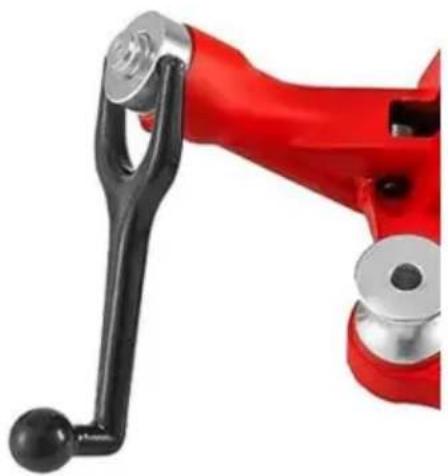

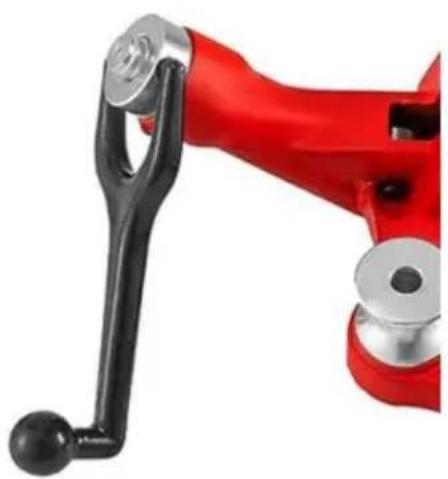

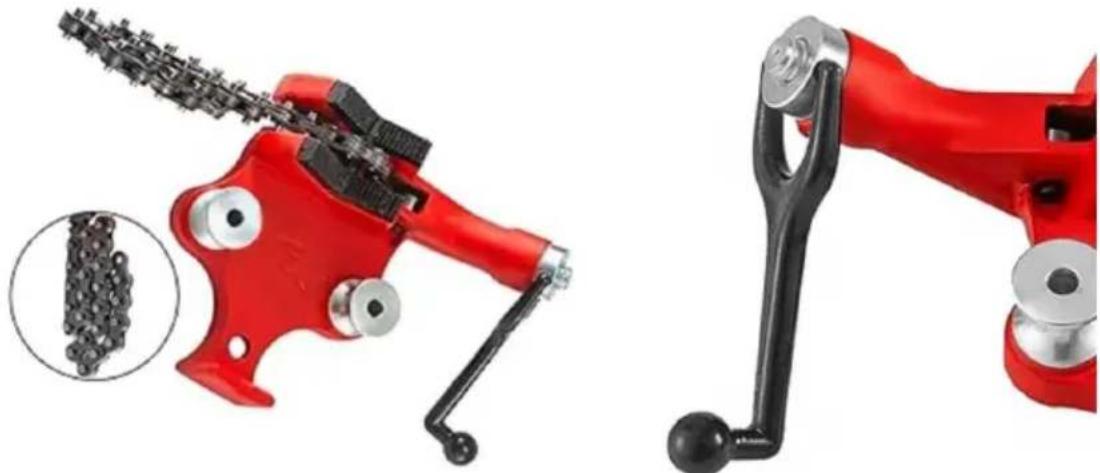

2. Ergonomic Crank Handle & Tough Durable Chain

The crank handle is firmly anchored on the base for you to adjust the press and tighten the chain, convenient to use.

Chain durability and reliability are paramount. The pipe vise stand is a testament to this philosophy, designed with a tough steel chain to fix and lock pipes tightly in place. This critical feature ensures efficient and safe use, allowing for precise work without the risk of slippage or movement.

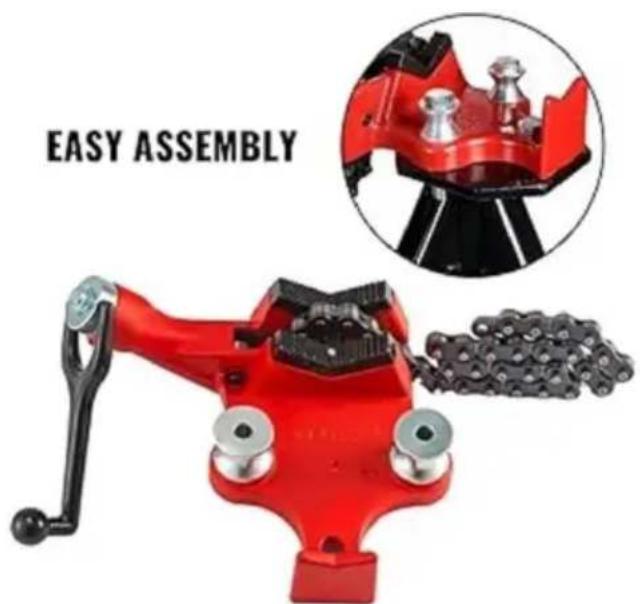

3. Easy Assembly

The bench chain vise is a versatile tool that can be easily mounted to various surfaces for added convenience and stability. With three mounting holes, you can securely attach the vise to a workbench, or even a tripod stand, depending on your specific needs and working environment. This feature ensures that the bench chain vise is not only functional but also adaptable to different scenarios, making it a valuable addition to any workshop or job site.

MAINTENANCE AND SERVICING

Damaged equipment may cause serious personal injury. Do not use damaged equipment. If abnormal noise or vibration occurs, have the problem corrected before further use.

1. Before each use, inspect the general condition of the tool. Check for loose screws, misalignment or binding of moving parts, cracked or broken parts, or any other condition that may affect its safe operation.
2. Paint anti-rust oil on metal surfaces such as the chain to avoid rust.
3. Service to the tool should only be done by a qualified Service Technician.
