RG1204S6 - Workshop vise Vevor - Free user manual and instructions

Product Type	Bench Chain Vise
Brand	Vevor
Model	RG1204S6
Pipe Capacity	1/4 to 6 inches (0.64 to 15.24 cm)
Material	Cast Iron
Color	Red / Black
Dimensions (L x W x H)	255 x 305 x 130 mm
Weight	Approximately 12 kg (estimated)
Base and Jaws	Cast iron with grooves for better grip
Clamping Mechanism	Ergonomic handle for tightening the chain
Chain	Robust and durable steel
Mounting	Easy to mount on workbench or tripod via 3 mounting holes
Usage	Holds pipes without scratching them
Safety	Clean and well-lit work area, wear personal protective equipment
Maintenance	Apply anti-rust oil to the chain; inspect before each use
Repair	Entrust to a qualified technician with identical replacement parts
Warranty	Technical support and electronic warranty certificate at www.vevor.com/support
Included Accessories	No accessories for this model (vise plate for hitch mounting not included)
Country of Origin	China (manufactured by Shanghai Muxin Muye Co., Ltd.)

Frequently Asked Questions - RG1204S6 Vevor

What is the maximum pipe capacity for the RG1204S6 model?

The RG1204S6 model can hold pipes with a diameter of 1/4 to 6 inches (0.64 to 15.24 cm).

How to install the Vevor RG1204S6 chain vise?

The vise is easy to mount using three mounting holes. It can be fixed on a workbench or tripod. Make sure the surface is stable and the screws are tightened.

What maintenance is required for this vise?

Regularly apply anti-rust oil to the chain and metal parts. Before each use, check that no parts are loose or damaged. Thorough maintenance should be performed by a qualified technician.

Can I use this vise for plumbing work?

Yes, the chain vise is ideal for holding pipes without scratching them, making it perfect for plumbing, metal fabrication, and other workshop tasks.

Is the vise delivered with a mounting plate for trailer hitch?

No, the vise plate for hitch mounting is only provided with the RG1204S5 model. For the RG1204S6, it can be purchased separately if needed.

What safety precautions should be taken during use?

Keep the work area clean and well-lit. Wear safety equipment such as goggles and gloves. Do not wear loose clothing. Make sure the workpiece is firmly clamped before working.

Can this vise be mounted on a vertical surface?

The vise is designed to be mounted on a stable horizontal surface like a workbench. Vertical mounting is not recommended as it could compromise stability and safety.

How to properly clamp a pipe in the vise?

Place the pipe in the V-groove of the jaw, wrap the chain around the pipe, then turn the handle to tighten the chain until the pipe is firmly held. Avoid over-tightening to prevent damage to the pipe.

What to do if the chain loosens during use?

Stop using immediately. Check that the chain is not worn or damaged. If it is in good condition, retighten it with the handle. If the problem persists, contact after-sales service.

Where can I find spare parts for the RG1204S6?

Spare parts must be identical to the original ones. Contact technical support via www.vevor.com/support to obtain spare parts or repair information.

USER MANUAL RG1204S6 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

Bench Chain Vise

Model:RG1204S5/RG1204S6/RG1204S8

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

Model:RG1204S5/RG1204S6/RG1204S8

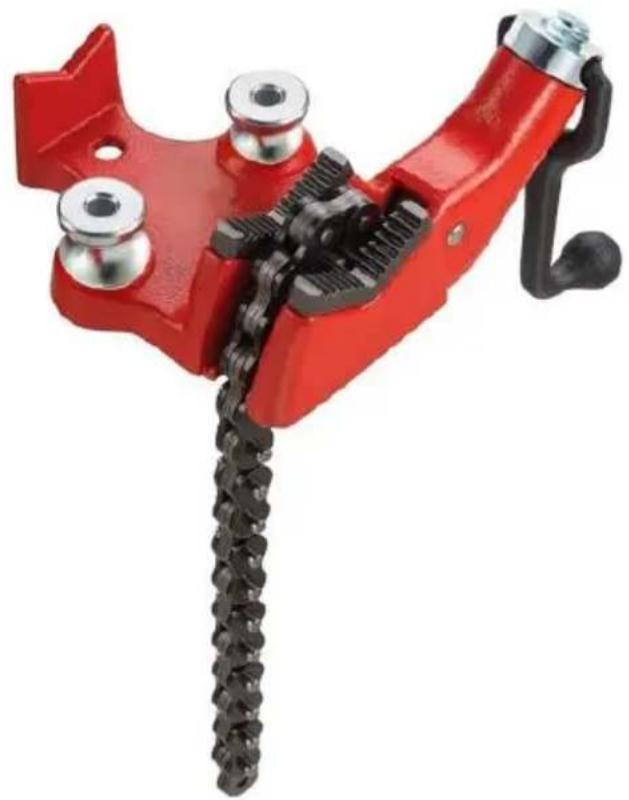

Red mechanical clamp tool with chain and gear mechanism (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

SAFETY WARNINGS AND PRECAUTIONS

Thank you for using this product. In order to make sure that you can opera machine correctly, read this instruction carefully before operation and keep it properly for future reference. Please be sure to read the precautions and safe rules in this page to ensure your safe use. This manual will outline safety v and precautions, operating, maintenance and cleaning. The warnings and instructions reviewed in this manual cannot cover all possible conditions and situations that may occur. Caution and common sense are not built into this product, since we believe that the uses will comply with these codes.

Please read ALL the instructions before using your machine.

1. Work area safety

a. Keep work area clean and well lit. Cluttered or dark areas invite accidents
b. Keep children and bystanders away while operating, distractions will cause to lose control.

2. Personal safety

a. Stay alert, watch what you are doing and use common sense when operate the tool. Do not use the tool while you are tired or under the influence of alcohol or medication. A moment of inattention while operating Chain Vise may result in serious personal injury.
b. Use safety equipment. Safety equipment such as dust mask, non-skid shoe hard hat, or hearing protection used for appropriate conditions will reduced personal injuries.
c. Dress properly. Do not wear loose clothing or jewelry. Keep your hair, cloth and gloves away from moving parts. Loose clothes jewelry or long hair can caught in moving parts.
d. Store idle Chain Vise out of the reach of children and do not allow pers unfamiliar with the Chain Vise. This tool is dangerous in the hands of untrail users, who can break fingers or break feet and more.
e. Inspect before every use. Do not use it if parts are loose or damaged.
f. Do not apply this unit to any other purposes than the indicated usage.
g. DO NOT CLEAN IT WITH ANY ABRASIVE MATERIAL.

3. Service

Have your Bench Chain Vise serviced by a qualified service technician using identical replacement parts. This will ensure that the safety of the Bench Cha Vise Kit is maintained.

Production Introduction

The bench chain vise is perfect for securely holding pipes without scoring the surface. It is designed with a crank handle for tightening the chain. It is cor with a rugged cast-iron base for exceptional durability and stability.

Main feature:

Large Holding Capacity Solid & Durable Frame

No-Fatigue Operation Easy Installation

TECHNICAL INFO

Model No	RG1204S5	RG1204S6	RG1204S8
Pipe Capacity	1/8-5inch	1/4-6inch	1/2-8inch
Material:	Cast Iron
Color:	Red/Black
Product photo
Accessories	Hitch Mount Vise Pla	/	/
Size (mm)	400*300*170	255*305*130	115*165*110

Hitch Mount Vise Plate accessories Parameter informa

*This accessory is only equipped with model RG1 users can also purchase according to their own

Model: RG1204S5 Table chain Vise equipped with H Mount Vise Plate

Hitch Mount Vise Plate/Holder is crafted from robust all-steel construction, compatible with Class III and IV receivers.

Metal structural support bracket with mounting holes and a separate lower section (no text or symbols visible)

It features versatile mounting holes designed to accommodate a wide range of vises and other bench-type devices.

The durable powder coat finish ensures long-lasting performance.

1. The height can be adjusted to a desired height for optimal comfort, with adjustment range of 16".

2. The vise mount plate dimensions are 7-7/8" L x 7 and the vise mounting holes measure 5/8" x 2".

3. the 2 inch x 2 inch anti-rattle device is included stability.

4. The overall dimensions are 22" long, 7-7/8" wide, 22-5/8" high.

Mechanical support structure with a red double-headed arrow indicating upward motion (no text or symbols)

Adjustable Height

Main column has different mounting holes that would allow user to adjust in increments for added versatility.

Travel 16" (400mm) in 1.7" (45mm) increments for a total of 9 stops and The height of the beam must be greater than 18.5inch (460mm) from the ground.

UNDERSTAND YOUR TOOL

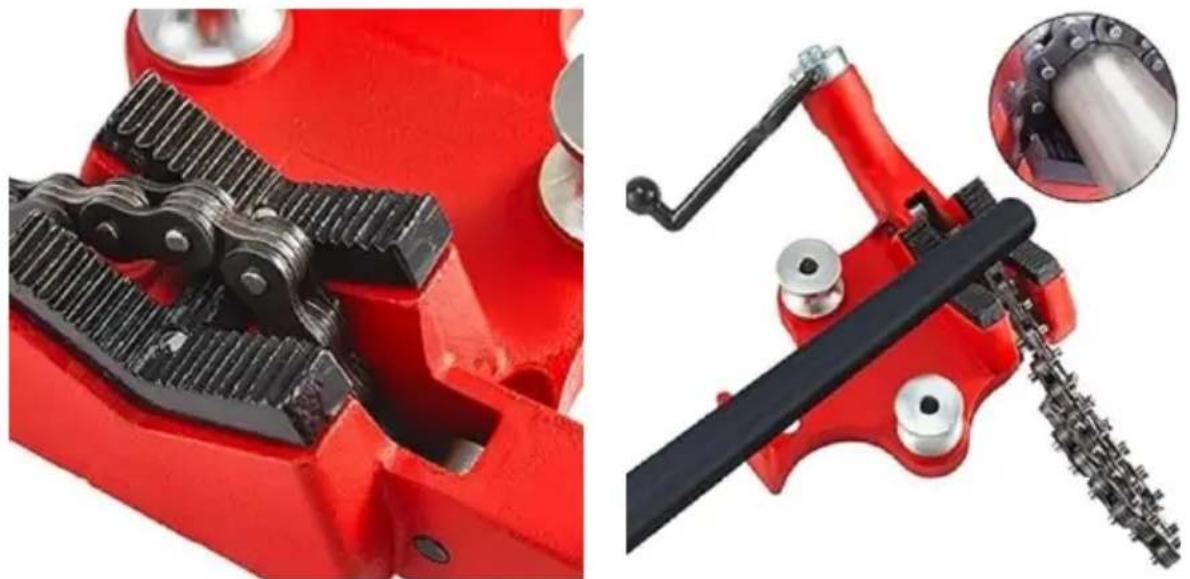

1. Cast Iron Base & Jaws

Close-up of a red mechanical clamp tool with gear and chain attachment (no text or symbols visible)

Built by cast iron, the chain pipe vise is solid and hard. Grooves enhance g scoring pipe surface. All you need to do is place the appropriate size of pip V-groove and vise, and then fasten it with a chain.

Its sturdy construction and reliable clamping mechanism make it a favorite am professionals and hobbyists alike. Whether you're working on a plumbing proje or fabricating metal parts, this pipe vise provides the stability and versatility y need to get the job done right.

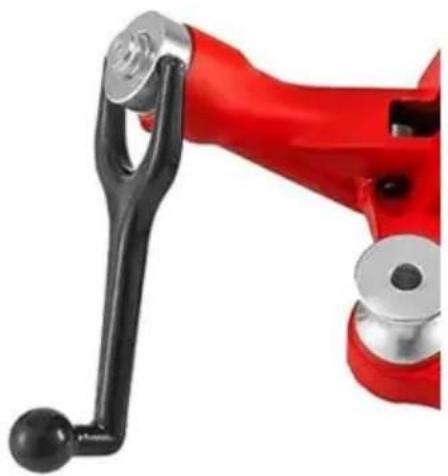

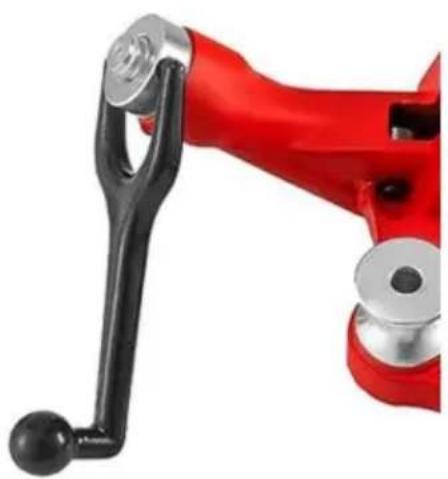

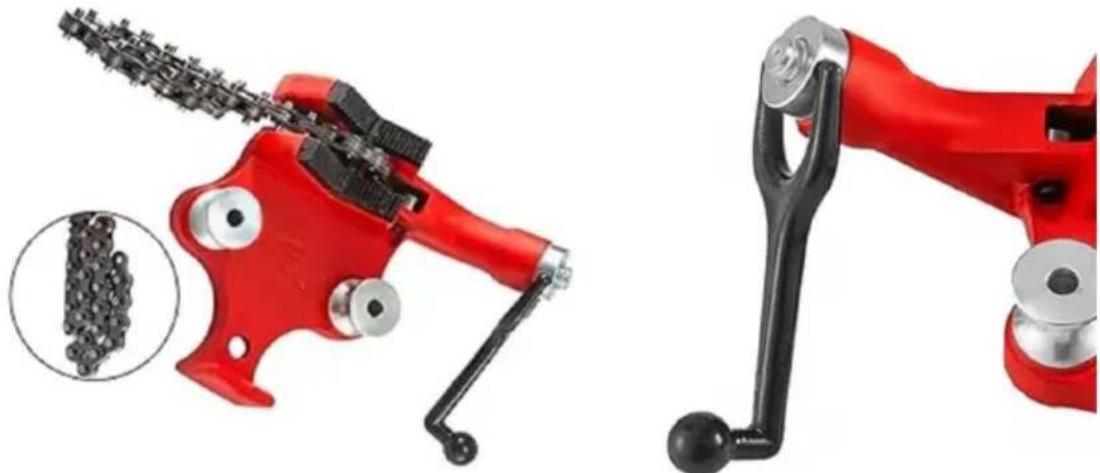

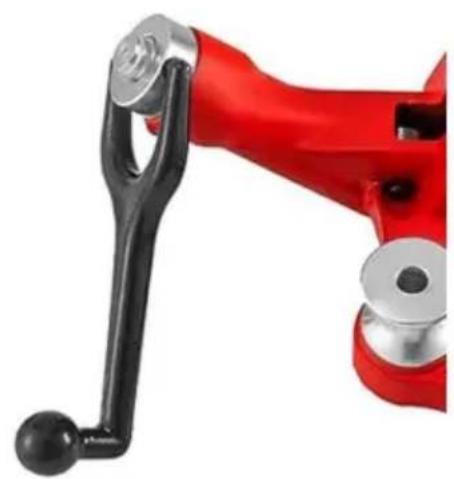

2. Ergonomic Crank Handle & Tough Durable Chain

Two red bicycle chain levers with mechanical components, one showing a close-up inset of chain links (no text or symbols visible)

The crank handle is firmly anchored on the base for you to adjust the press tighten the chain, convenient to use.

Chain durability and reliability are paramount. The pipe vise stand is a testan this philosophy, designed with a tough steel chain to fix and lock pipes tight place. This critical feature ensures efficient and safe use, allowing for precise without the risk of slippage or movement.

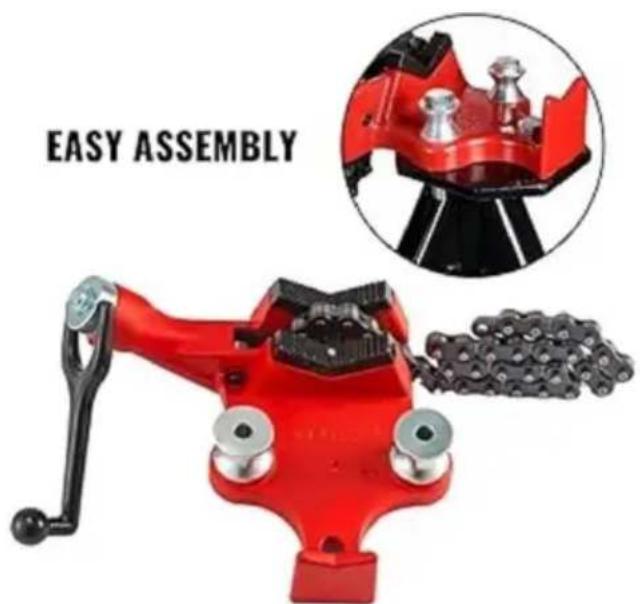

3. Easy Assembly

The bench chain vise is a versatile that can be easily mounted to various surfaces for added convenience and stability. With three mounting holes, can securely attach the vise to a workbench, or even a tripod stand, depending on your specific needs an working environment. This feature ensures that the bench chain vise is only functional but also adaptable to different scenarios, making it a value addition to any workshop or job site.

MAINTENANCE AND SERVICING

Damaged equipment may cause serious personal injury. Do not use damaged equipment. If abnormal noise or vibration occurs, have the problem corrected before further using

1. Before each using, inspect the general condition of the tool. Check for I screw misalignment or binding of moving parts, caracked or broken parts, or other condition that may affect its safe operation.
2. Paint anti-rust oil on metal surface such as chain to avoid rust.
3. Service to the tool should only be done by a qualified Service Technician.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey TW18 4AX
